基于遗传算法的抗网表逆向攻击逻辑混淆方法

赵毅强; 蒯钧; 马浩诚; 张启智; 高雅; 叶茂; 何家骥

doi:10.11999/JEIT220059

基于遗传算法的抗网表逆向攻击逻辑混淆方法

doi: 10.11999/JEIT220059

天津大学微电子学院天津 300072

基金项目: 国家重点研发计划项目(2021YFB3100903)

详细信息

作者简介:
赵毅强：男，教授，研究方向为集成电路设计与安全

蒯钧：男，硕士生，研究方向为集成电路设计与安全

马浩诚：男，博士生，研究方向为集成电路设计与安全

张启智：男，博士生，研究方向为集成电路设计与安全

高雅：女，硕士生，研究方向为集成电路设计与安全

叶茂：男，副教授，研究方向为集成电路设计与安全

何家骥：男，副研究员，研究方向为集成电路设计与安全

通讯作者:
何家骥　dochejj@tju.edu.cn

中图分类号: TN918
计量
- 文章访问数: 696
- HTML全文浏览量: 496
- PDF下载量: 97
- 被引次数: 0
出版历程
- 收稿日期: 2022-01-13
- 修回日期: 2022-05-01
- 网络出版日期: 2022-05-07
- 刊出日期: 2023-01-17

A Novel Logic-obfuscation Method to Resist Netlist-reverse Attack Based on Genetic Algorithm

School of Microelectronics, Tianjin University, Tianjin 300072, China

Funds: The National Key Research and Development Program of China (2021YFB3100903)

摘要

摘要: 随着集成电路(IC)产业进入后摩尔时代，芯片一次性工程成本愈发高昂，而以逆向工程技术为代表的知识产权窃取手段，越来越严重地威胁着芯片信息安全。为了抵抗逆向工程攻击，该文提出一种基于遗传算法的自动化逻辑混淆方法，通过分析网表寄存器的拓扑网络结构，筛选逻辑节点并创建冗余连接，从而混淆词级寄存器的相似性特征，在低开销下防止逆向攻击恢复寄存器传输级的词级变量、控制逻辑与数据通路。基于SM4国密算法基准电路开展验证实验，结果表明：经该文方法混淆后，逆向结果与设计真实情况的标准化互信息相关度下降了46%，拓扑复杂度提升61.46倍，面积额外开销为0.216%；同时相较于随机混淆，该混淆方法效率提升为2.718倍，面积额外开销降低70.8%。
- 后摩尔时代 /
- 硬件安全 /
- 逻辑混淆 /
- 逆向工程 /
- 遗传算法
Abstract: As the Integrated Circuit (IC) industry enters the post-Moore era, the cost of one-time chip design is getting higher and higher, and threats of reverse engineering to recover the original design increase continually. In order to resist the reverse attacks, an automatic logic obfuscation technology based on genetic algorithm is proposed. By analyzing the topology network of registers in netlist, fan-in and fan-out nets are chosen to create redundant connections between registers, so that obfuscating the similarity among the word-level registers, and at last resist the reverse attacks to recover the word-level variable, control logic and dataflow. Experiments on the SM4 circuit shows, compared to the original netlist, after the proposed method’s obfuscation, the standardized mutual information of reverse attack result is reduced by 46%, and the topology complexity increased by 61.46 times. And compared to random obfuscation, the efficiency of the proposed method is increased to 2.718 times, and the area cost is reduced by 70.8%.
- Post-Moore era /
- Hardware security /
- Logic obfuscation /
- Reverse engineering /
- Genetic algorithm

HTML全文

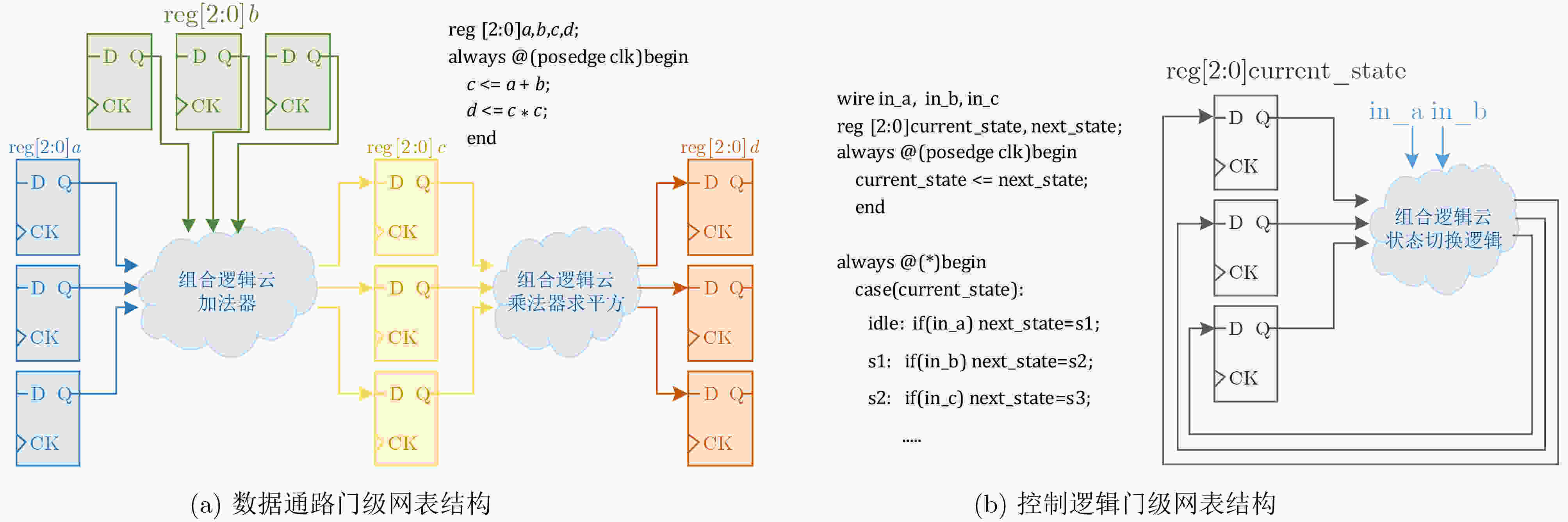

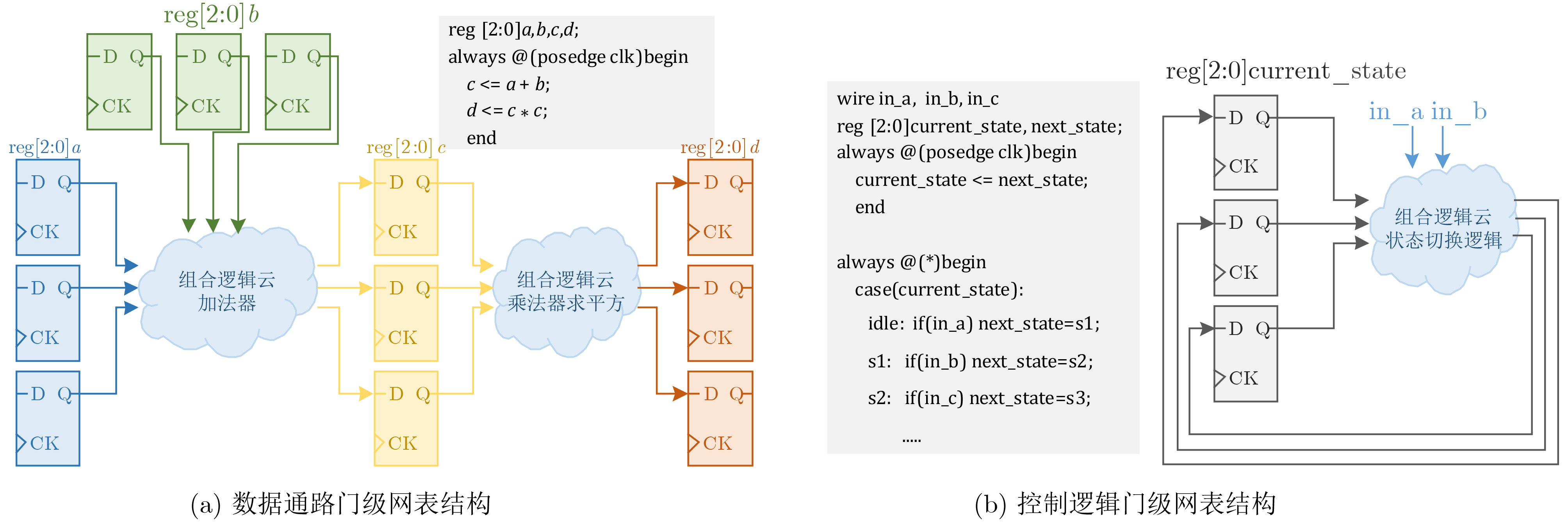

图 1 逻辑综合与门级网表结构

下载: 全尺寸图片幻灯片

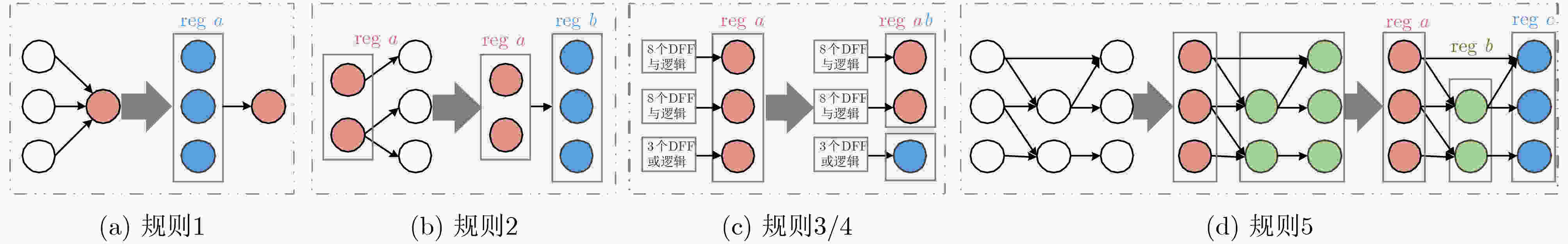

图 2 同组寄存器相似性特征分析规则

下载: 全尺寸图片幻灯片

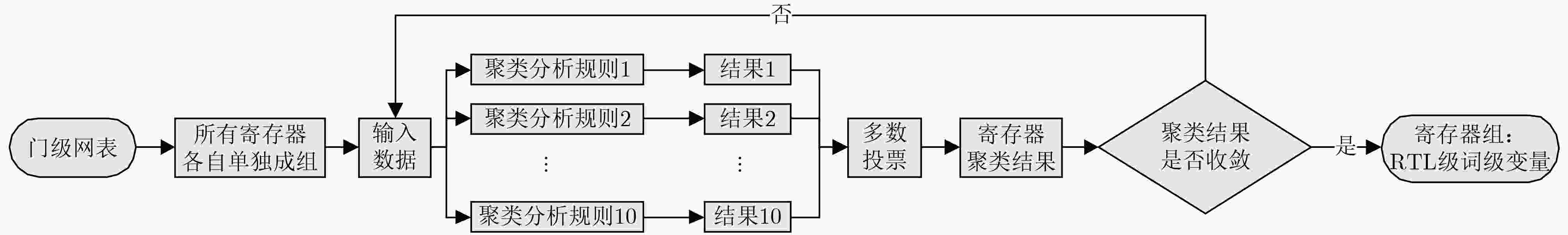

图 3 门级网表逆向过程

下载: 全尺寸图片幻灯片

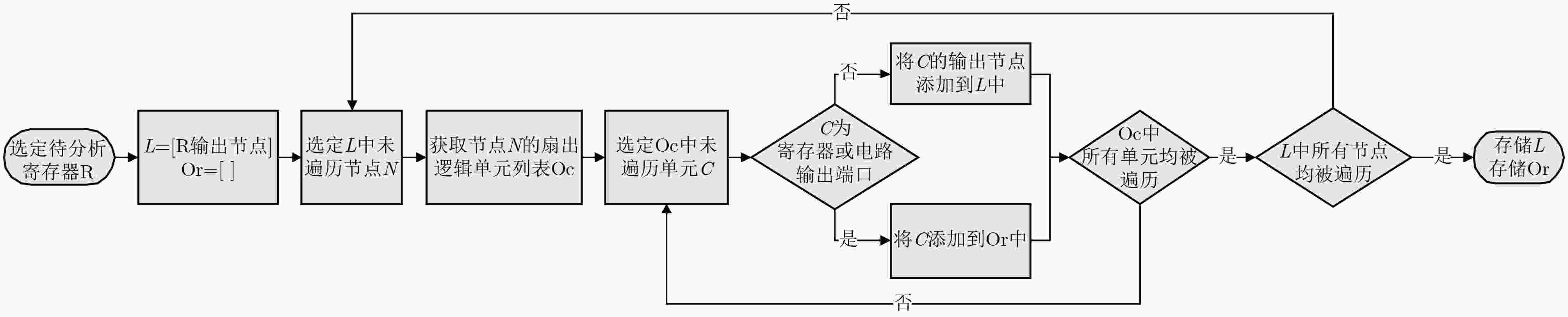

图 4 寄存器拓扑网络提取算法

下载: 全尺寸图片幻灯片

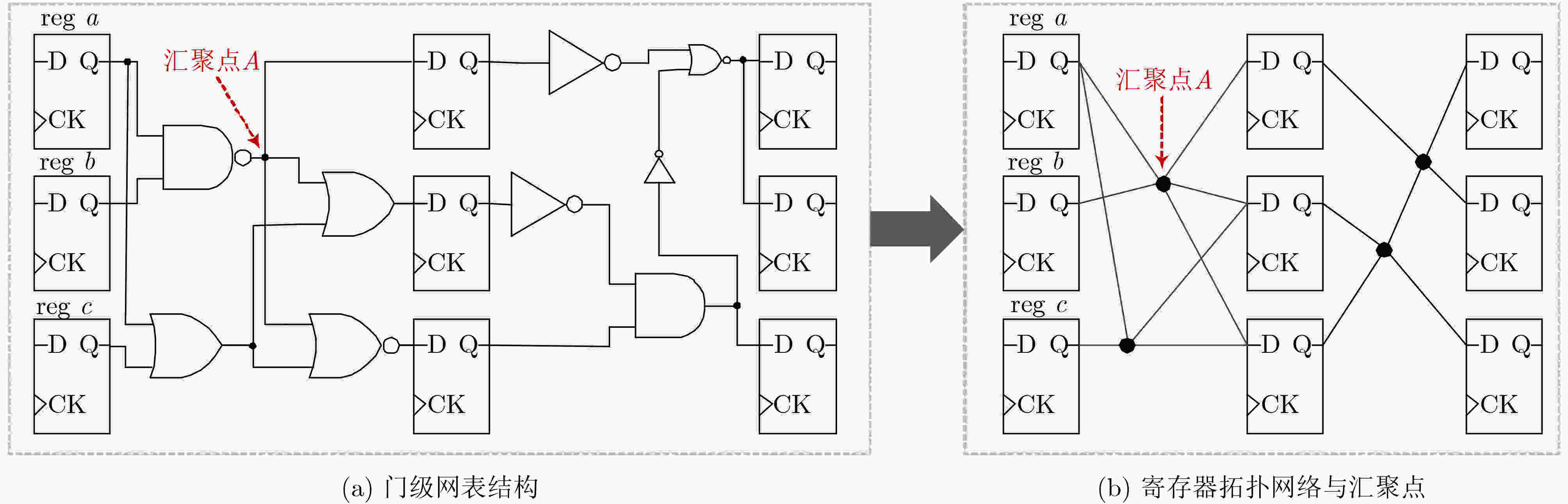

图 5 寄存器拓扑网络与汇聚节点提取效果

下载: 全尺寸图片幻灯片

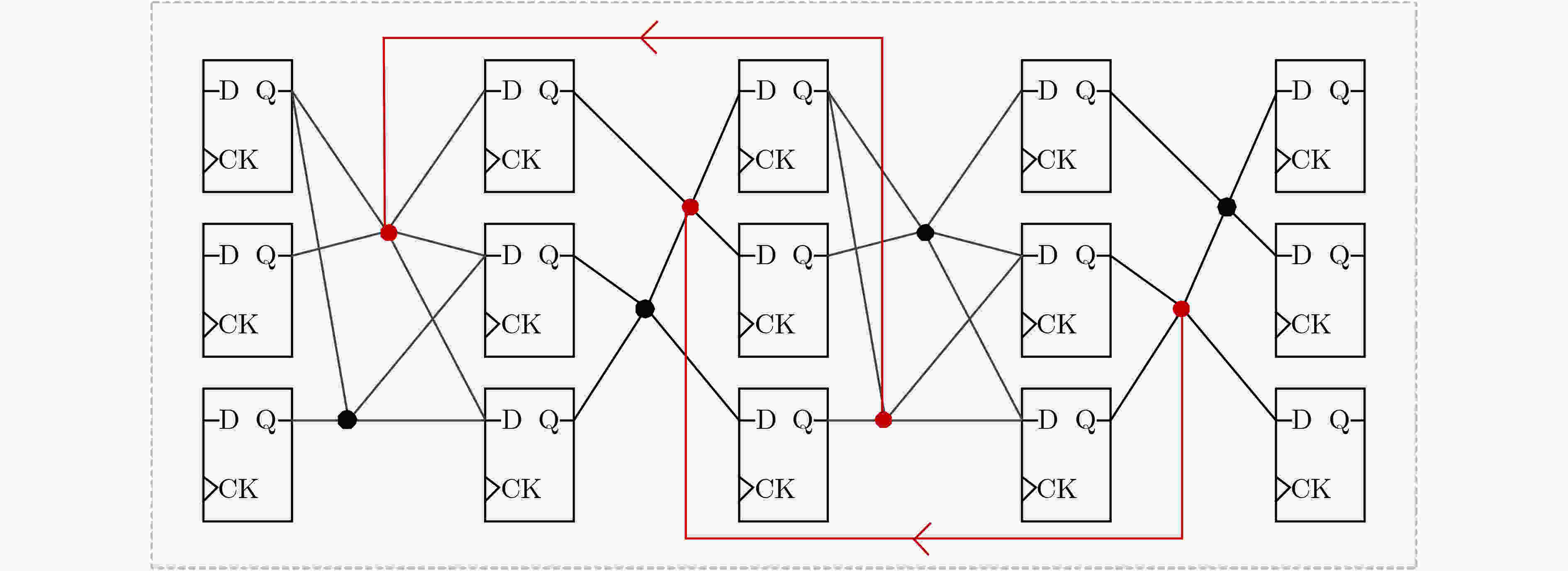

图 6 筛选混淆节点对并创建冗余连接

下载: 全尺寸图片幻灯片

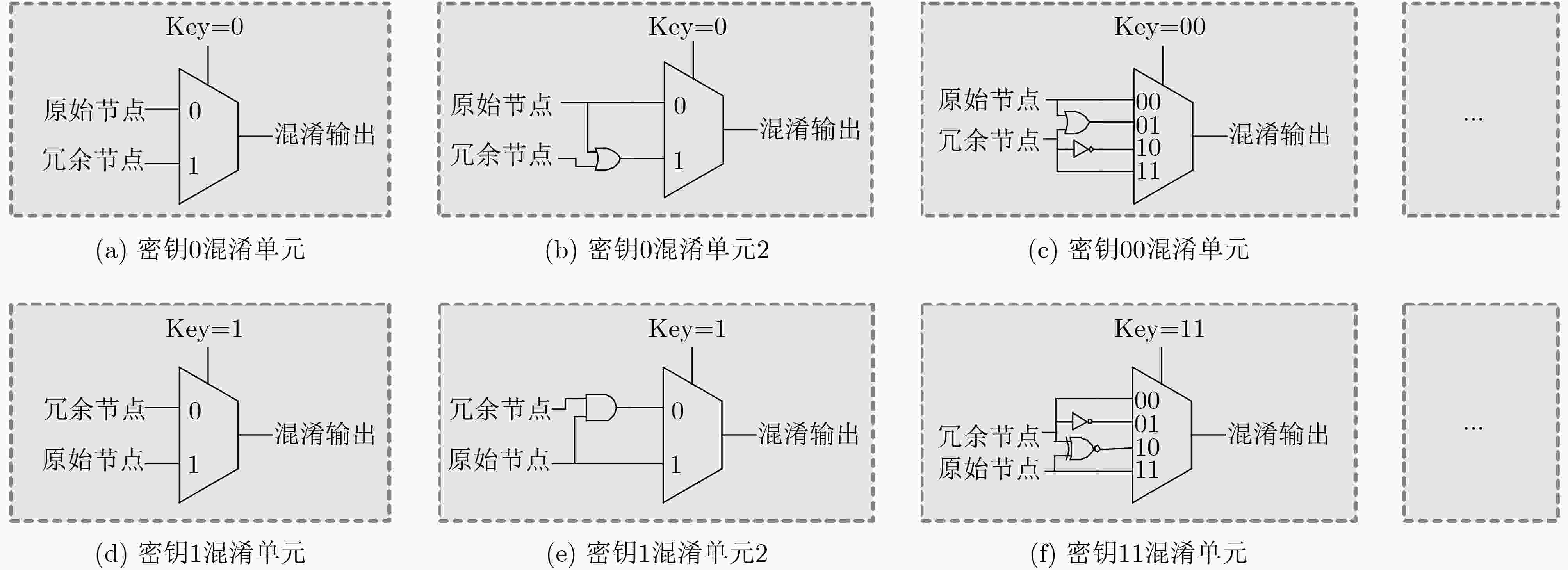

图 7 混淆单元逻辑结构

下载: 全尺寸图片幻灯片

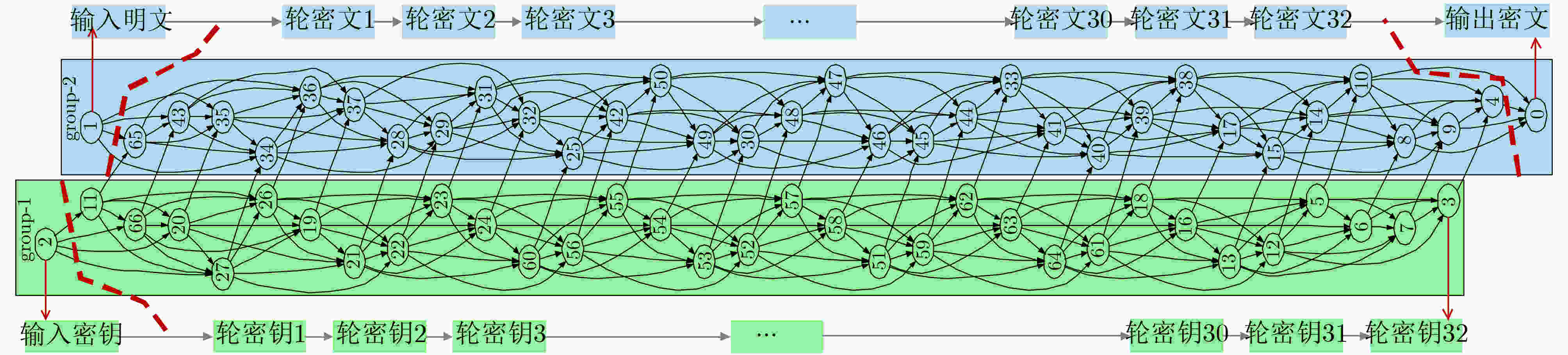

图 8 SM4国密算法电路网表逆向分析结果

下载: 全尺寸图片幻灯片

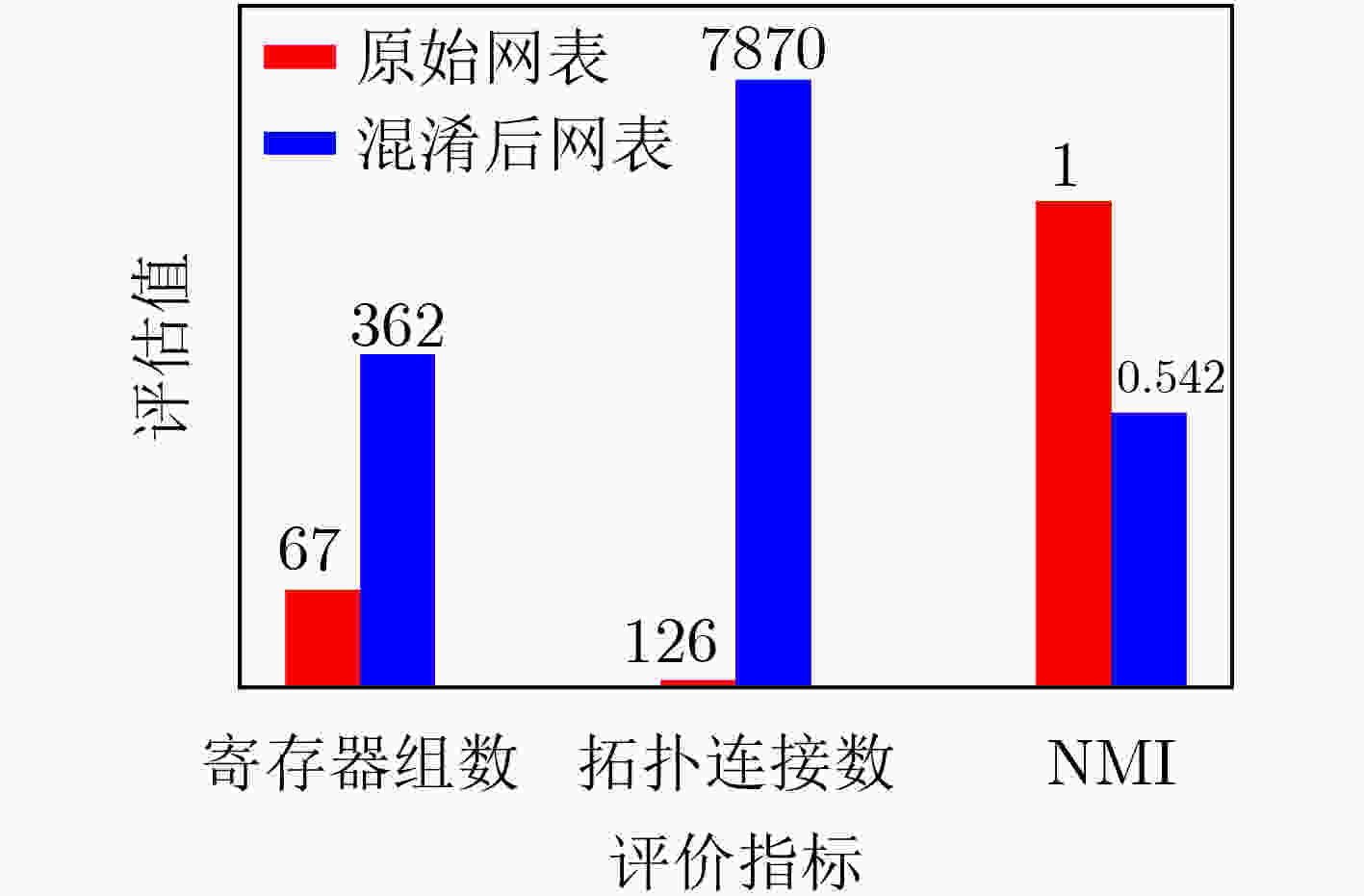

图 9 SM4国密算法电路抗逆向效果分析

下载: 全尺寸图片幻灯片

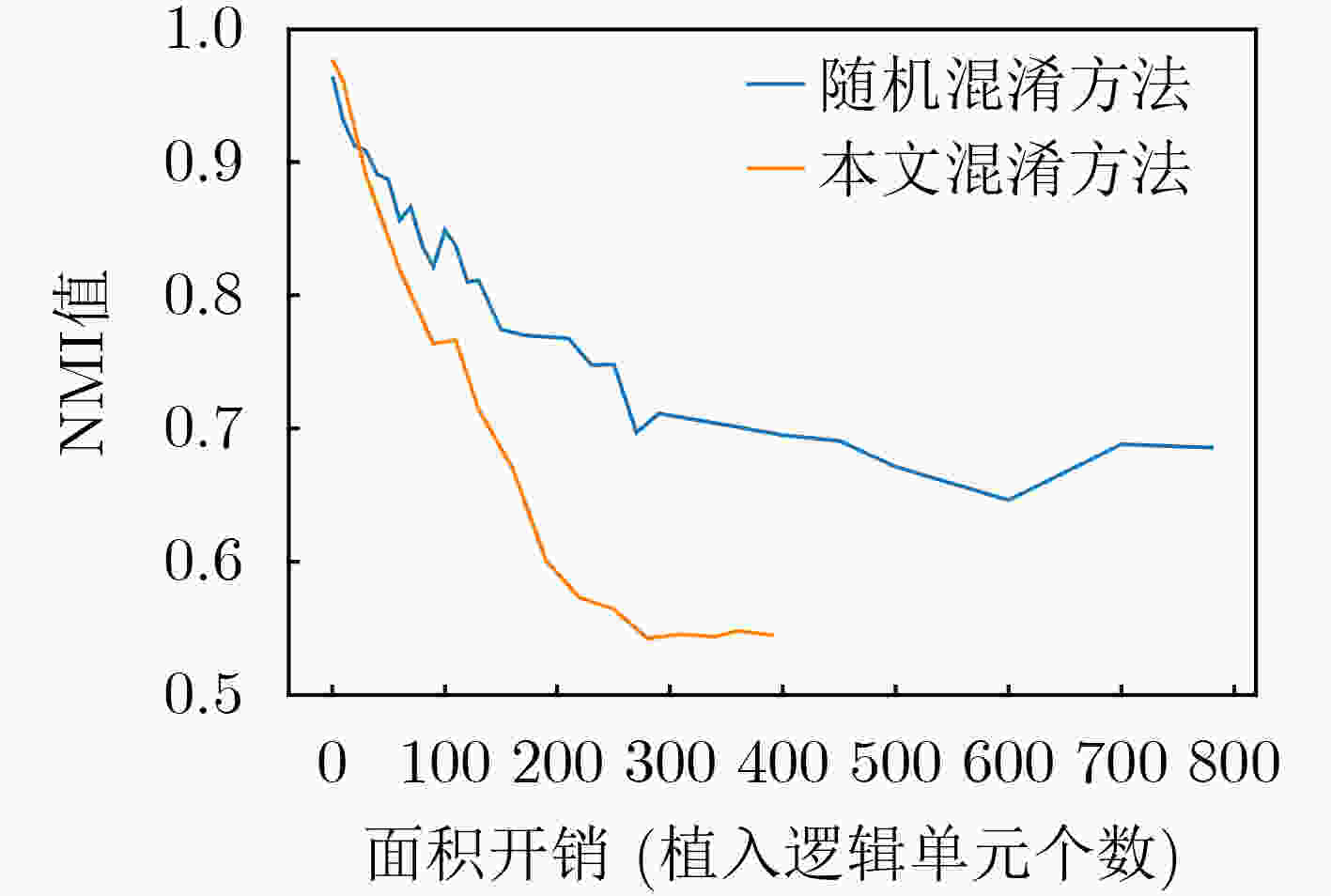

图 10 面积开销与混淆效率分析

下载: 全尺寸图片幻灯片

表 1 面积开销对比

	1	2	3	4	5	6	7	8	9
NMI值	0.95	0.9	0.85	0.8	0.75	0.7	0.65	0.6	0.55
本文混淆方法开销	13	28	47	70	116	139	169	190	269
随机混淆方法开销	5	35	75	135	228	268	579	–	–
本文方法降低面积开销(%)	–	20.00↓	37.33↓	48.15↓	49.12↓	48.13↓	70.80↓	–	–

下载: 导出CSV
