面向蜂窝网络的D2D多播通信的分簇和中继选择方法

李旭杰 刘春燕 孙颖

李旭杰, 刘春燕, 孙颖. 面向蜂窝网络的D2D多播通信的分簇和中继选择方法[J]. 电子与信息学报, 2023, 45(2): 488-496. doi: 10.11999/JEIT211565
引用本文: 李旭杰, 刘春燕, 孙颖. 面向蜂窝网络的D2D多播通信的分簇和中继选择方法[J]. 电子与信息学报, 2023, 45(2): 488-496. doi: 10.11999/JEIT211565
LI Xujie, LIU Chunyan, SUN Ying. Clustering and Relay Selection Method for Cellular Network-oriented D2D Multicast Communication[J]. Journal of Electronics & Information Technology, 2023, 45(2): 488-496. doi: 10.11999/JEIT211565
Citation: LI Xujie, LIU Chunyan, SUN Ying. Clustering and Relay Selection Method for Cellular Network-oriented D2D Multicast Communication[J]. Journal of Electronics & Information Technology, 2023, 45(2): 488-496. doi: 10.11999/JEIT211565

面向蜂窝网络的D2D多播通信的分簇和中继选择方法

doi: 10.11999/JEIT211565
基金项目: 江苏省教育厅未来网络科研基金 (FNSRFP-2021-YB-7),中国科学院无线传感网与通信重点实验室开放课题(20190914),江苏省水利科技项目(2020028),南通市科技项目(MS22021042)
详细信息
    作者简介:

    李旭杰:男,1979年生,副教授,研究方向为无线通信和车联网等

    刘春燕:女,1997年生,硕士生,研究方向为D2D通信技术

    孙颖:女,1989年生,博士生,研究方向为未来网络技术

    通讯作者:

    李旭杰 lixujie@hhu.edu.cn

  • 中图分类号: TN929.5

Clustering and Relay Selection Method for Cellular Network-oriented D2D Multicast Communication

Funds: The Future Network Scientific Research Foundation Project (FNSRFP-2021-YB-7), The Open Research Foundation Key Laboratory of Wireless Sensor Network and Communication of Chinese Academy of Sciences (20190914), The Water Science and Technology Program of Jiangsu (2020028), The Social and People's Livelihood Technology in Nantong City (MS22021042)
  • 摘要: 传统蜂窝网络中,信道衰减的随机性和不确定性导致小区边缘用户的接收性能很差,尤其是面向视频传输等速率要求较高时其弊端更加凸显。D2D通信因其配置灵活性可作为传统蜂窝网络架构的有利补充,能有效改善边缘用户的性能。该文针对D2D通信的多播传输,分析了系统最小时延成本下的中继数量和分簇算法,提出一种基于分簇和中继选择的低时延D2D多播方案。该方案可以自适应选择多播重传中的中继的数量和中继节点到基站的距离,同时给出最优的带宽资源分配机制。仿真结果表明,与其他方案相比,所提方法能有效减少系统时延,提高边缘用户体验和系统性能。

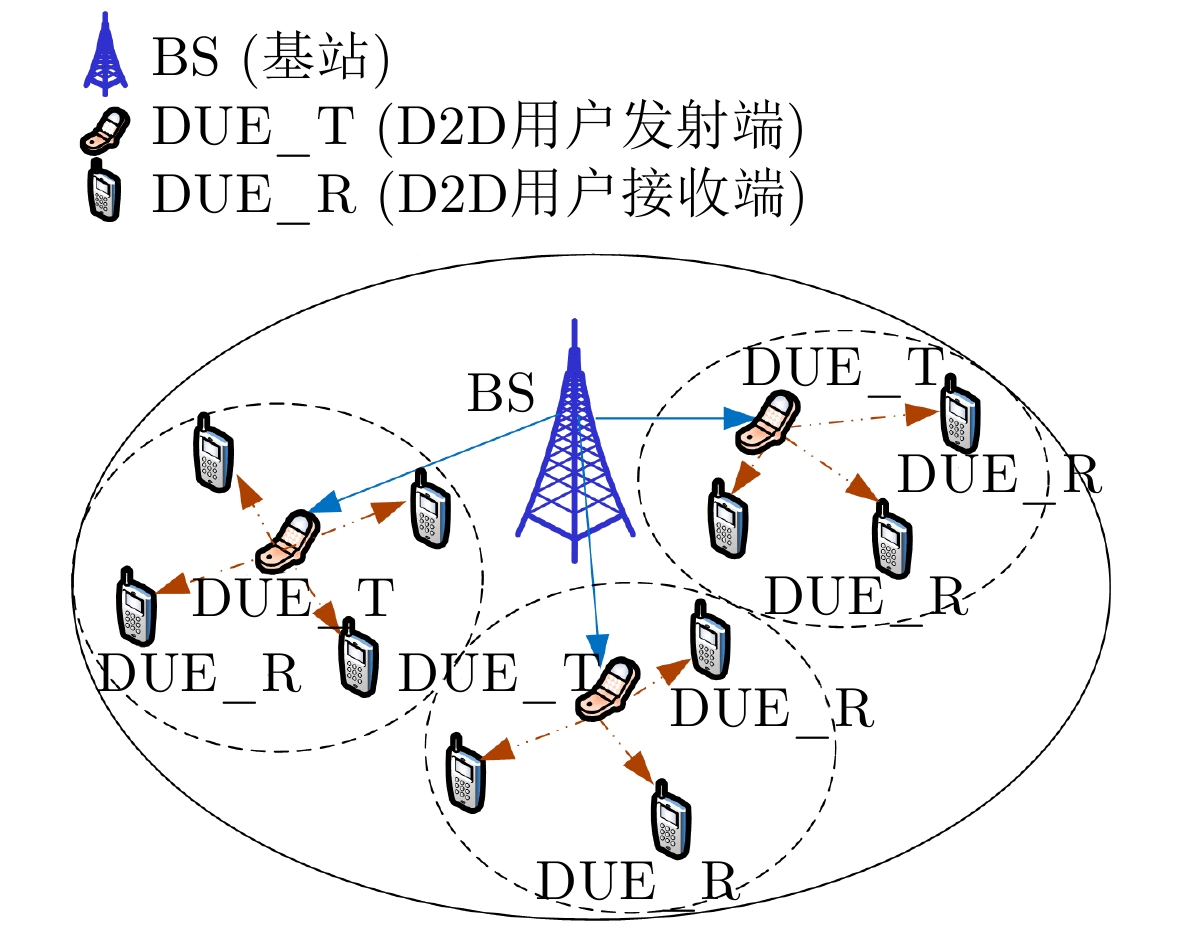

  • 图  1  蜂窝D2D通信系统模型

    图  2  本文所提分簇算法原理图

    图  3  自适应比例带宽分配算法

    图  4  基于K-means算法的传输时延与分簇个数的关系

    图  5  分簇个数、基站到中继节点的最佳传输距离与小区半径的关系

    图  6  不同算法下的分簇图

    图  7  系统总传输时延与小区内总用户的关系

    图  8  系统总传输时延与小区半径的关系

    图  9  系统总传输时延与发射功率的关系

    算法1 暴力搜索算法
     输入:$ B $,$ {P_T} $,${P_{ {{\rm{BS}}} } }$,$ D $,$ \alpha $,$ N $,$ {n_0} $,$ R $
     输出:${d_{ {{\rm{BS}}} ,{R_s} } }$,$ S $
     (1)初始化中继节点$ S $的取值范围$ S \in [{S_{\min }},{S_{\max }}] $;
     (2)for ${d_{ {{\rm{BS}}} ,{R_s} } } = 1$ to $ R $
     (3) for $ S = {S_{\min }} $ to $ {S_{\max }} $
     (4)  计算通信系统的总时延;
     (5) end for
     (6)end for
     (7)得到使系统总时延最小的$ S $和${d_{ {{\rm{BS}}} ,{R_s} } }$;
    下载: 导出CSV
    算法2 等角度分簇算法
     输入:$ N $,$ S $,$ {d_{{\rm{BS}} ,{R_s}}} $,$ \varphi $
     输出:$ {b_{{R_s},{Z_r}}} $,$ {\text{cluster\_x(}}{R_s}{\text{)}} $,$ {\text{cluster\_y(}}{R_s}{\text{)}} $
     (1)令$ s $和$ r $初始值为1,获取所有用户的位置信息,其横纵坐标分别表示为$ {\text{x\_user}}\left( i \right),{\text{y\_user}}\left( i \right),\forall i \in [1,N] $;
     (2)计算用户$ i $的夹角$\theta \_{{\rm{user}}} (i) = \arctan \dfrac{ {x\_{ {\rm{user} } } (i)} }{ { {\text{y} }\_{ {\rm{user} } } (i)} },\forall i \in [1,N]$;
     (3)for $ i = 1 $ to $ N $
     (4) $ {\delta _i} \leftarrow \left| {\sqrt {{\text{x\_user}}{{(i)}^2} + {\text{y\_user}}{{(i)}^2}} - {d_{{\rm{BS}} ,{R_s}}}} \right| $;
     (5)end for
     (6)中继节点横坐标$ {\text{cluster\_x(}}{R_s}{\text{)}} \leftarrow {\text{x\_user}}(\arg \mathop {\min }\limits_i {\text{\{ }}{\delta _i}{\text{\} }},i{\text{ = (1,2,}}\cdots{\text{,}}N{\text{)}}) $;
     (7)中继节点纵坐标$ {\text{cluster\_y(}}{R_s}{\text{)}} \leftarrow {\text{y\_user}}(\arg \mathop {\min }\limits_i {\text{\{ }}{\delta _i}{\text{\} }},i{\text{ = (1,2,}}\cdots{\text{,}}N{\text{)}}) $;
     (8)中继节点的夹角$\omega = \dfrac{ { {\text{cluster\_x(} }{R_s}{\text{)} } } }{ { {\text{cluster\_y(} }{R_s}{\text{)} } } }$;
     (9)for $ i = 1 $ to $ N $
     (10) if $\theta {\text{\_user(} }i{\text{)} } \in \left[\omega {\text{ - } }\dfrac{\varphi }{2},\omega {\text{ + } }\dfrac{\varphi }{2}\right]$
     (11) then $ {Z_r} \leftarrow i $并将该用户依附于该中继节点,$ {b_{{R_s},{Z_r}}} = 1 $;
     (12) else $ {Z_r} \leftarrow i $,$ {b_{{R_s},{Z_r}}} = 0 $;
     (13) $ r \leftarrow r + 1 $;
     (14) end if
     (15)end for
     (16)for $ s = 2 $ to $ S $
     (17) 第$ s $个理论中继节点的横纵坐标分别为
     $ \begin{gathered} {\text{cluster\_x}}(s) = {d_{{\rm{BS}} ,{R_s}}} \cdot \sin [\omega + (s - 1) \cdot \varphi ], \\ {\text{cluster\_y}}(s) = {d_{{\rm{BS}} ,{R_s}}} \cdot \cos [\omega + (s - 1) \cdot \varphi ] \\ \end{gathered} $;
     (18) for $ i = 1 $ to $ N $
     (19) $ {\delta _i} \leftarrow \left| {\sqrt {{\text{x\_user}}{{(i)}^2} + {\text{y\_user}}{{(i)}^2}} - \sqrt {{\text{cluster\_x}}{{(s)}^2} + {\text{cluster\_y}}{{(s)}^2}} } \right| $;
     (20) end for
     (21) 优化中继节点横坐标$ {\text{cluster\_x(}}{R_s}{\text{)}} \leftarrow {\text{x\_user}}(\arg \mathop {\min }\limits_i {\text{\{ }}{\delta _i}{\text{\} ,}}i{\text{ = (1,2,}}\cdots{\text{,}}N{\text{)}}) $;
     (22) 优化中继节点纵坐标$ {\text{cluster\_y(}}{R_s}{\text{)}} \leftarrow {\text{y\_user}}(\arg \mathop {\min }\limits_i {\text{\{ }}{\delta _i}{\text{\} ,}}i{\text{ = (1,2,}}\cdots{\text{,}}N{\text{)}}) $;
     (23) for $ i = 1 $ to $ N $
     (24) if $\theta {\text{\_user(} }i{\text{)} } \in \left[\omega + s \cdot \varphi {\text{ - } }\dfrac{3}{2}\varphi ,\omega + s \cdot \varphi - \dfrac{\varphi }{2}\right]$
     (25) then$ {Z_r} \leftarrow i $并将该用户依附于该中继节点,$ {b_{{R_s},{Z_r}}} = 1 $;
     (26) else $ {Z_r} \leftarrow i $,$ {b_{{R_s},{Z_r}}} = 0 $;
     (27) $ r \leftarrow r + 1 $;
     (28) end if
     (29) end for
     (30)end for
    下载: 导出CSV
    算法3 自适应比例带宽分配算法
     输入:$ {C_m} $, $ {b_{{R_s},{Z_r}}} $, $ S $, $ B $, $ \delta $
     输出:$ {M^*} $
     (1)初始化步长$ j $和${C_{ {{\rm{th}}} } }$
     (2)repeat
     (3) 根据香农公式和$ {C_{{th} }} $,利用二分法求解每个簇的带宽与系统
       总带宽的比值$ {\lambda _{{R_s}}} $;
     (4) $ M \leftarrow \left\{ {{\lambda _{{R_1}}},{\lambda _{{R_2}}}, \cdots ,{\lambda _{{R_S}}}} \right\} $;
     (5) $ \mu \leftarrow {\lambda _{{R_1}}} + {\lambda _{{R_2}}} + \ldots + {\lambda _{{R_S}}} $;
     (6) if $ \mu > 1 $ then ${C_{{\rm{th}}} } \leftarrow {C_{{\rm{th}}} } - j \cdot \left| {\mu - 1} \right| \cdot B$;
     (7) else ${C_{{\rm{th}}} } \leftarrow {C_{{\rm{th}}} } + j \cdot \left| {\mu - 1} \right| \cdot B$;
     (8) end if
     (9)until $ \left| {1 - \mu } \right| < \delta $,其中$ \delta = {10^{ - 4}} $。
     (10)if $ \mu > 1 $
     (11) then $ \lambda _{{R_s}}^* \leftarrow {\lambda _l} - \left( {1 - \mu } \right) $ where $ l \leftarrow \mathop {\arg \max }\limits_{{R_s} \in A} {\lambda _{{R_s}}} $;
     (12)else $ \lambda _{{R_s}}^* \leftarrow {\lambda _l}{\text{ + }}\left( {1 - \mu } \right) $ where $ l \leftarrow \mathop {\arg \min }\limits_{{R_s} \in A} {\lambda _{{R_s}}} $;
     (13)end if
     (14)$ {M^*} \leftarrow \left\{ {\lambda _{{R_1}}^*,\lambda _{{R_2}}^*, \cdots ,\lambda _{{R_S}}^*} \right\} $。
    下载: 导出CSV
    算法4 本文算法
     输入:$ B $, $ {P_T} $, ${P_{ {{\rm{\rm{BS}}}} } }$, $ D $, $ \alpha $, $ N $, $ {n_0} $, $ R $, $ A $, $ Z $
     输出:$ T $
     (1)初始化阈值$\varDelta > 0$,并对$ {b_{{R_s},{Z_r}}} $进行0或1随机赋值;
     (2)repeat
     (3) 根据D2D用户依附关系$ {b_{{R_s},{Z_r}}} $,利用暴力搜索算法(算法1),解出使得系统总时延最小的$ {d_{{\rm{BS}} ,{R_s}}} $,簇数$ S $以及中继节点的横纵坐标
       $ {\text{cluster\_x(}}{R_s}{\text{)}} $和$ {\text{cluster\_y(}}{R_s}{\text{)}} $;
     (4) 根据步骤(3)得到的$ {d_{{\rm{BS}} ,{R_s}}} $和$ S $利用等角度分簇算法(算法2)进行分簇并更新D2D用户依附关系$ b_{{R_s},{Z_r}}^\prime $, $ d_{{\rm{BS}} ,{R_s}}^\prime $以及中继节点的横纵坐
       标$ {\text{cluster\_x(}}{R_s}{\text{)'}} $和$ {\text{cluster\_y(}}{R_s}{\text{)'}} $;
     (5) $ \delta \leftarrow \left| {d_{{\rm{BS}} ,{R_s}}^\prime - {d_{{\rm{BS}} ,{R_s}}}} \right| $;
     (6) until $\delta < \varDelta$;
     (7)输出最佳的D2D用户依附关系$ b_{{R_s},{Z_r}}^* $,中继节点的横纵坐标$ {\text{cluster\_x(}}{R_s}{{\text{)}}^*} $和$ {\text{cluster\_y(}}{R_s}{{\text{)}}^*} $以及$ d_{{\rm{\rm{BS}}} ,{R_s}}^* $;
     (8)根据步骤(7)得到的D2D用户依附关系$ b_{{R_s},{Z_r}}^* $,中继节点的横纵坐标$ {\text{cluster\_x(}}{R_s}{{\text{)}}^*} $和$ {\text{cluster\_y(}}{R_s}{{\text{)}}^*} $,利用等自适应带宽分配算法(算
       法3)求得每个簇的最佳带宽分配比例;
     (9)根据式(2)和式(6)计算求得通信系统的总时延$ T = {T_{{\text{\rm{BS}}},S}} + {T_D} $。
    下载: 导出CSV

    表  1  系统仿真参数

    参数数值
    小区半径($ R $)200~1000 m
    数据包($ D $)10 Mbit
    热噪声功率($ {n_0} $)–144 dBm
    信道带宽($ B $)106 Hz
    路损系数($ \alpha $)4
    用户数($ N $)100~1000
    基站发射功率(${P_{{\rm{BS}}} }$)20~30 dBm
    D2D用户发射功率($ {P_T} $)20~30 dBm
    下载: 导出CSV
