Chip and Its Key Technology for Monolithically Integrated Visible Light Communication and Sensing
-

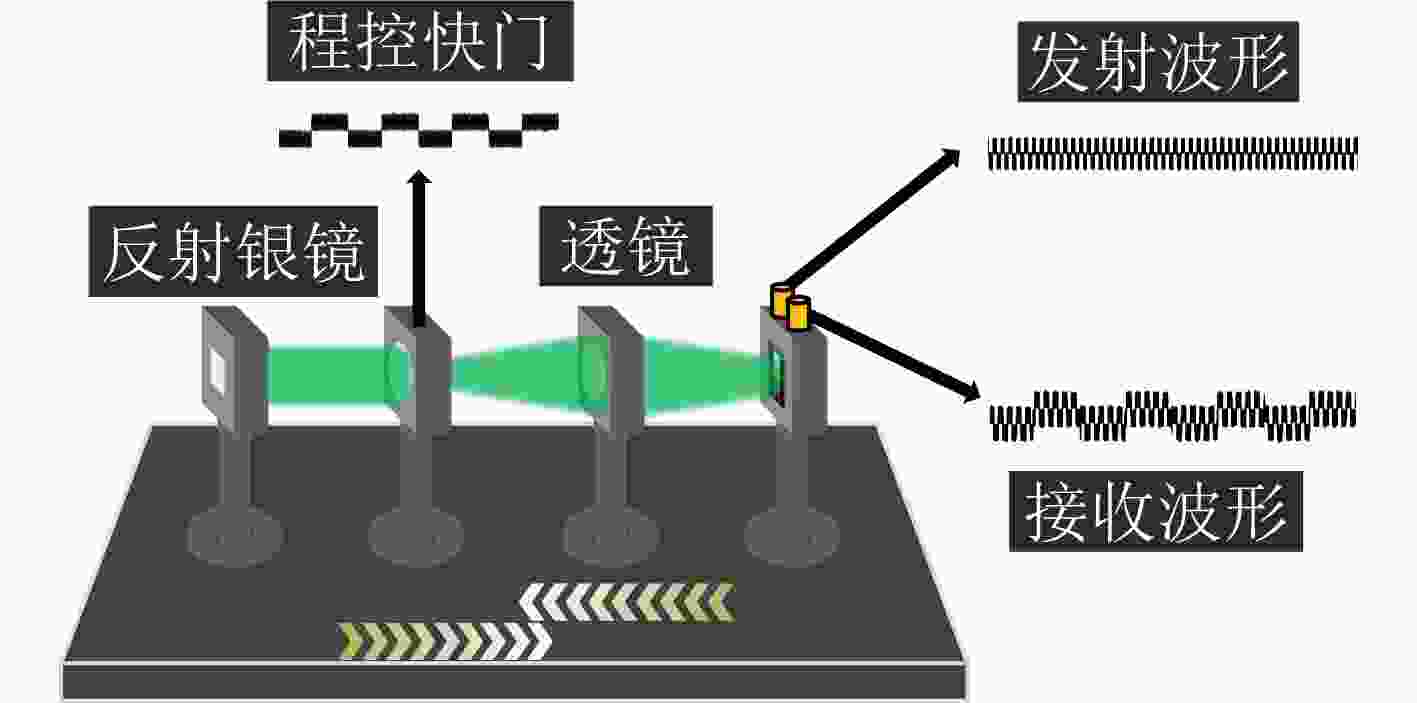

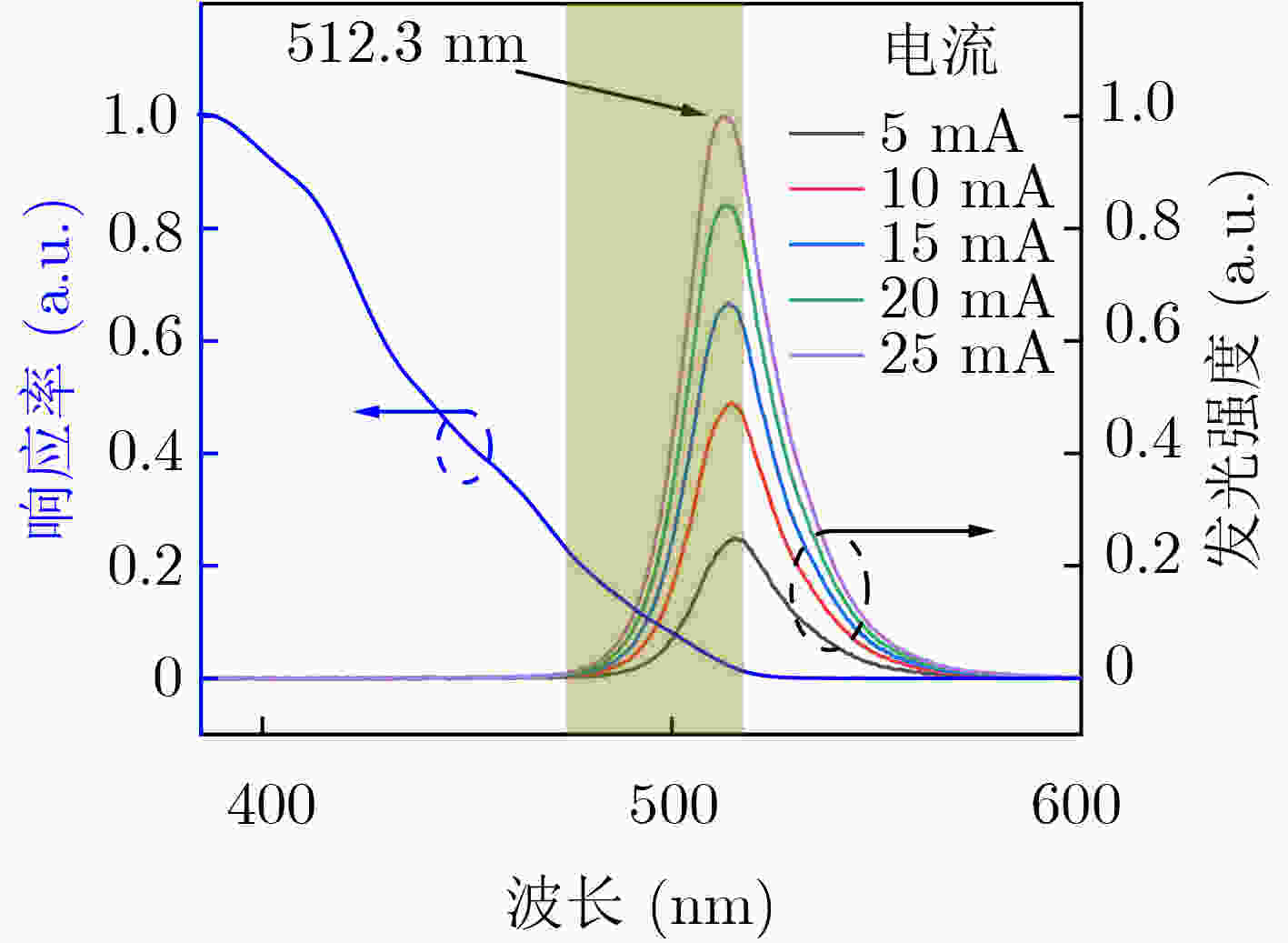

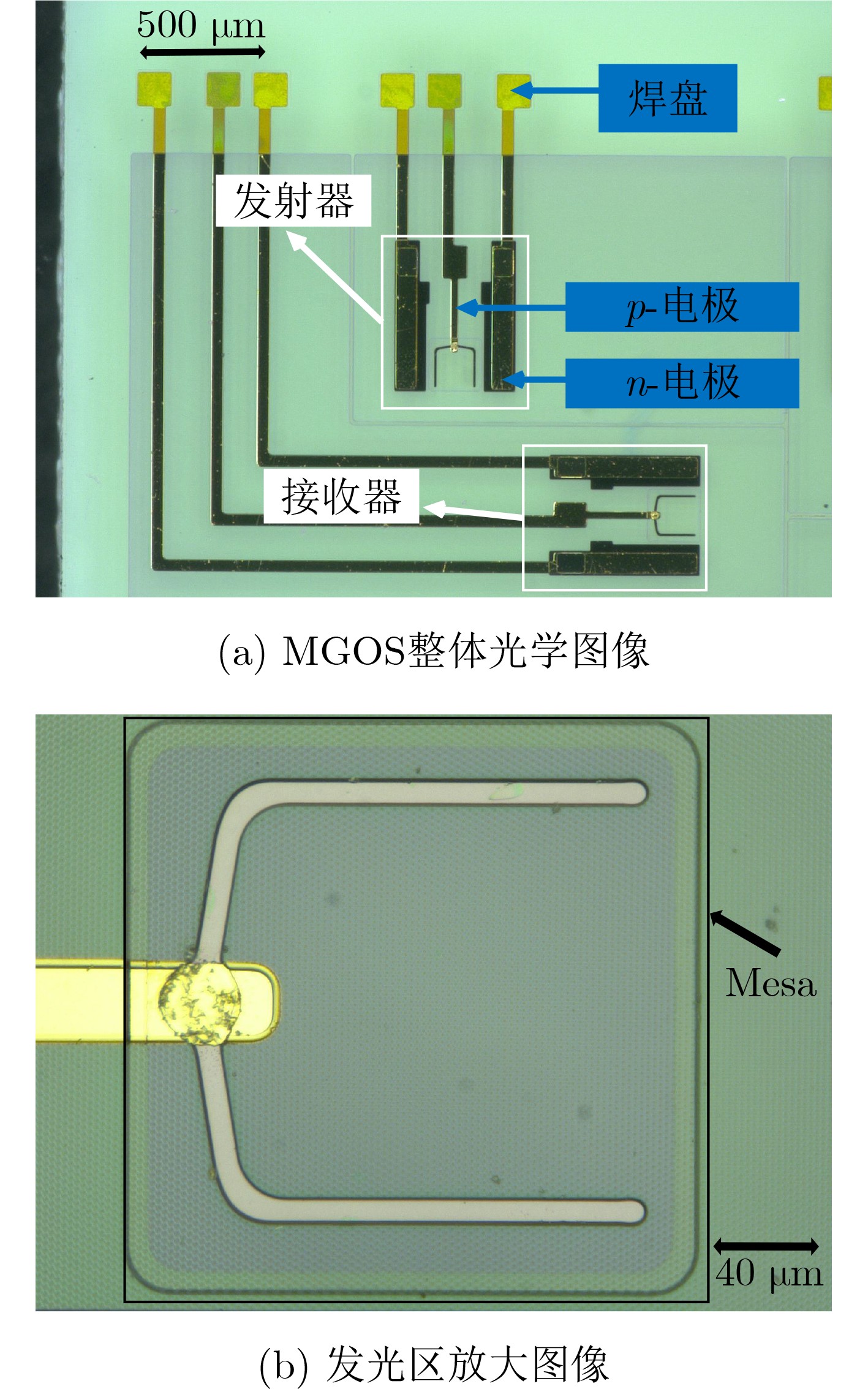

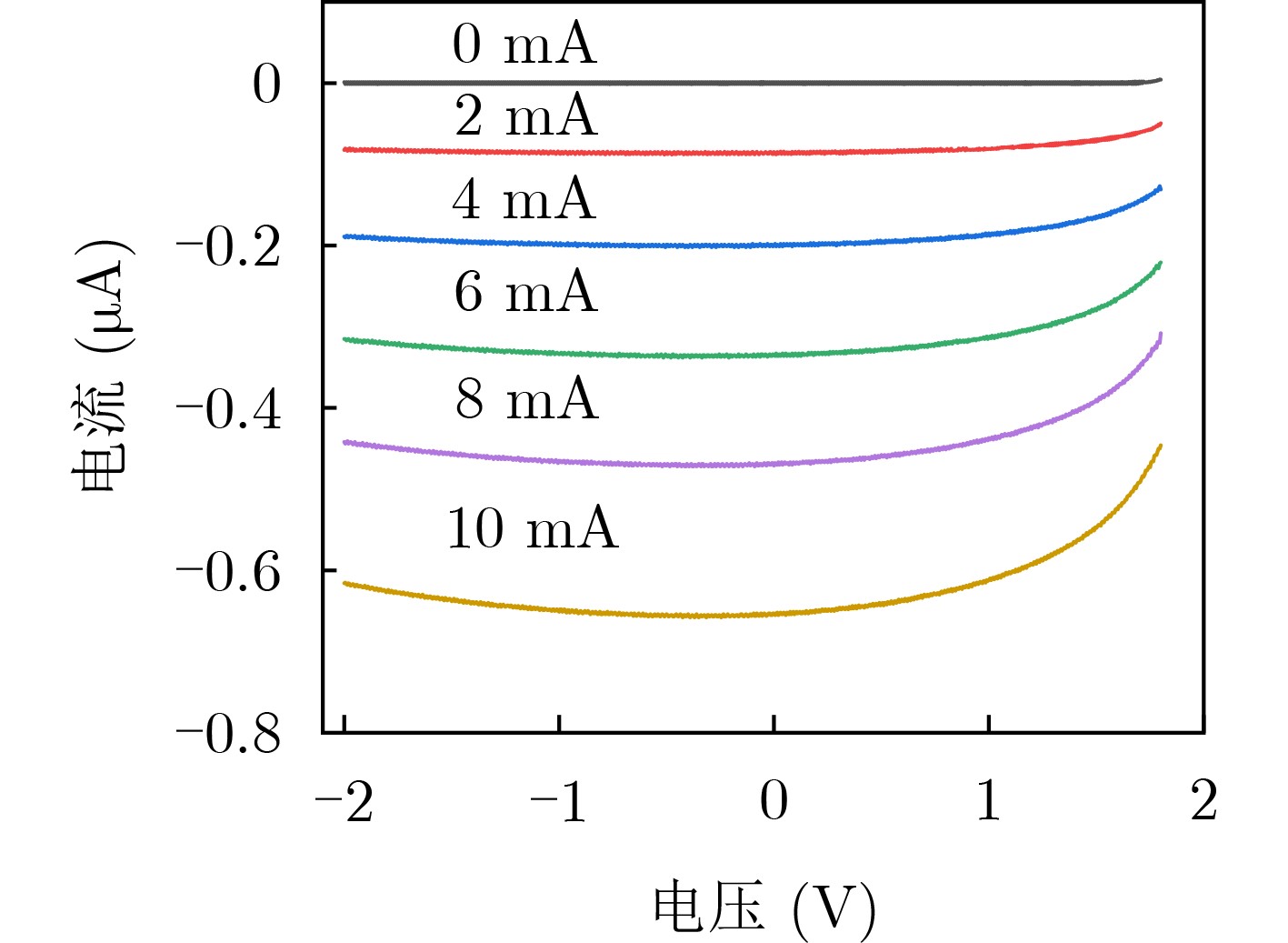

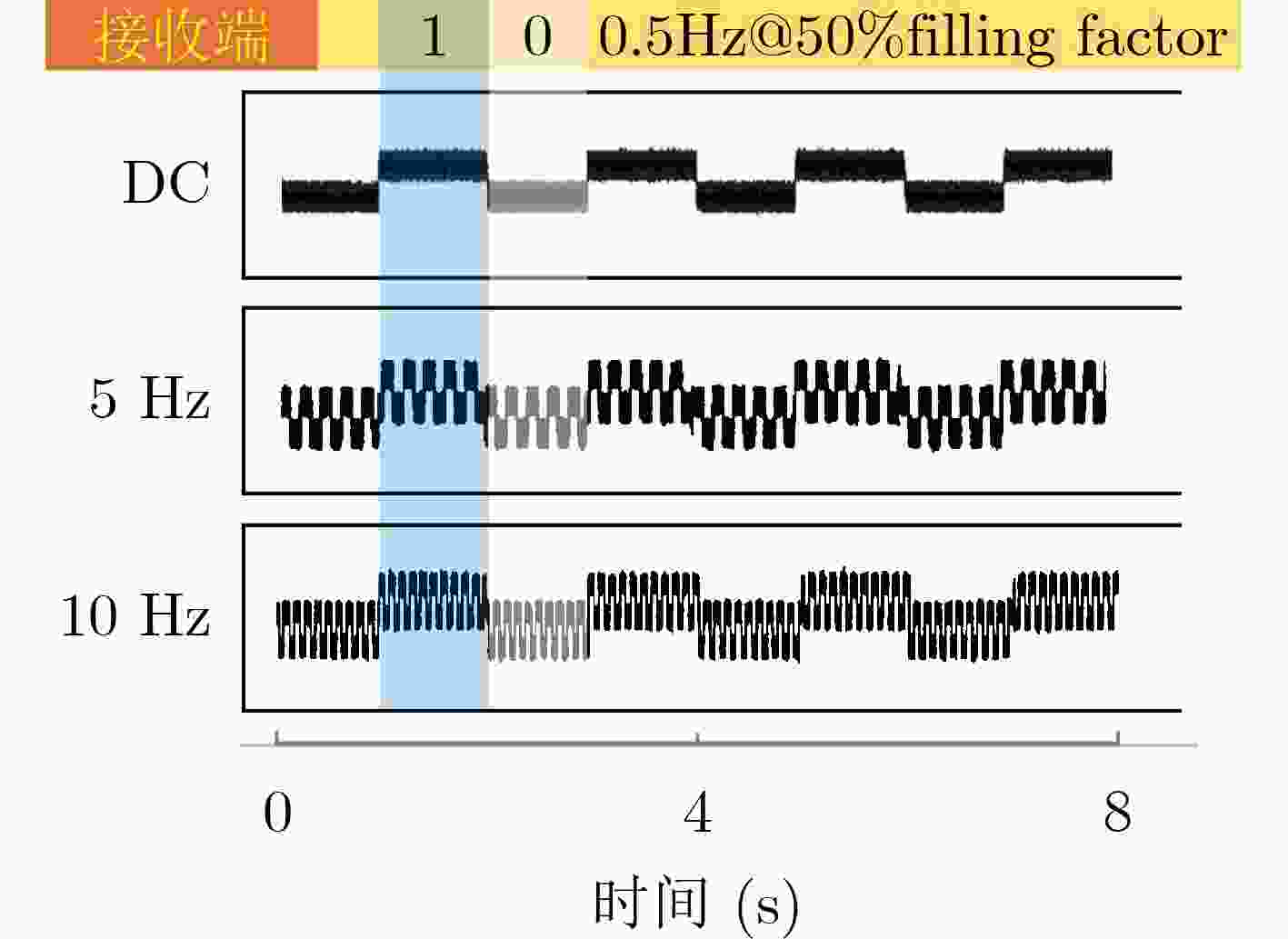

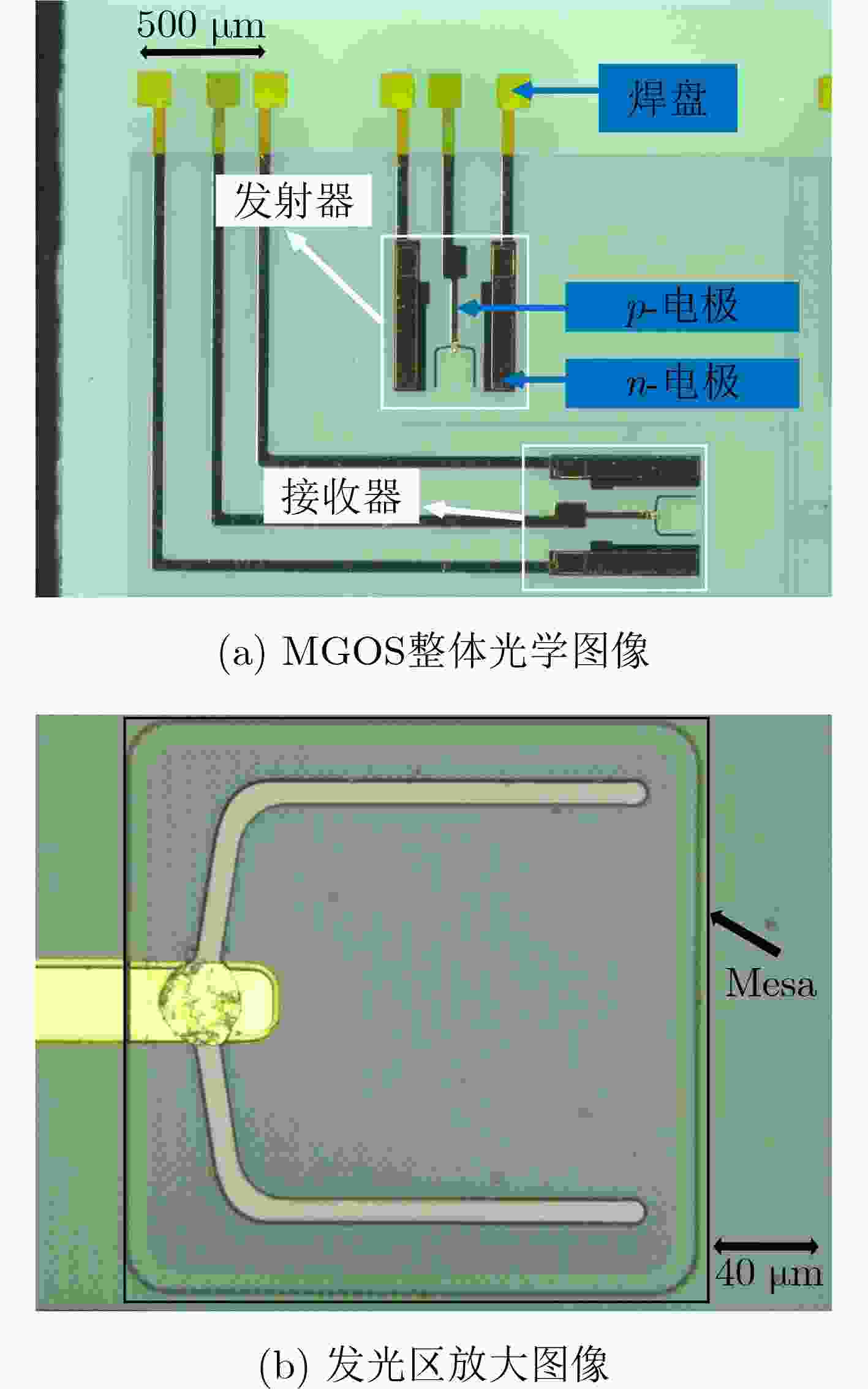

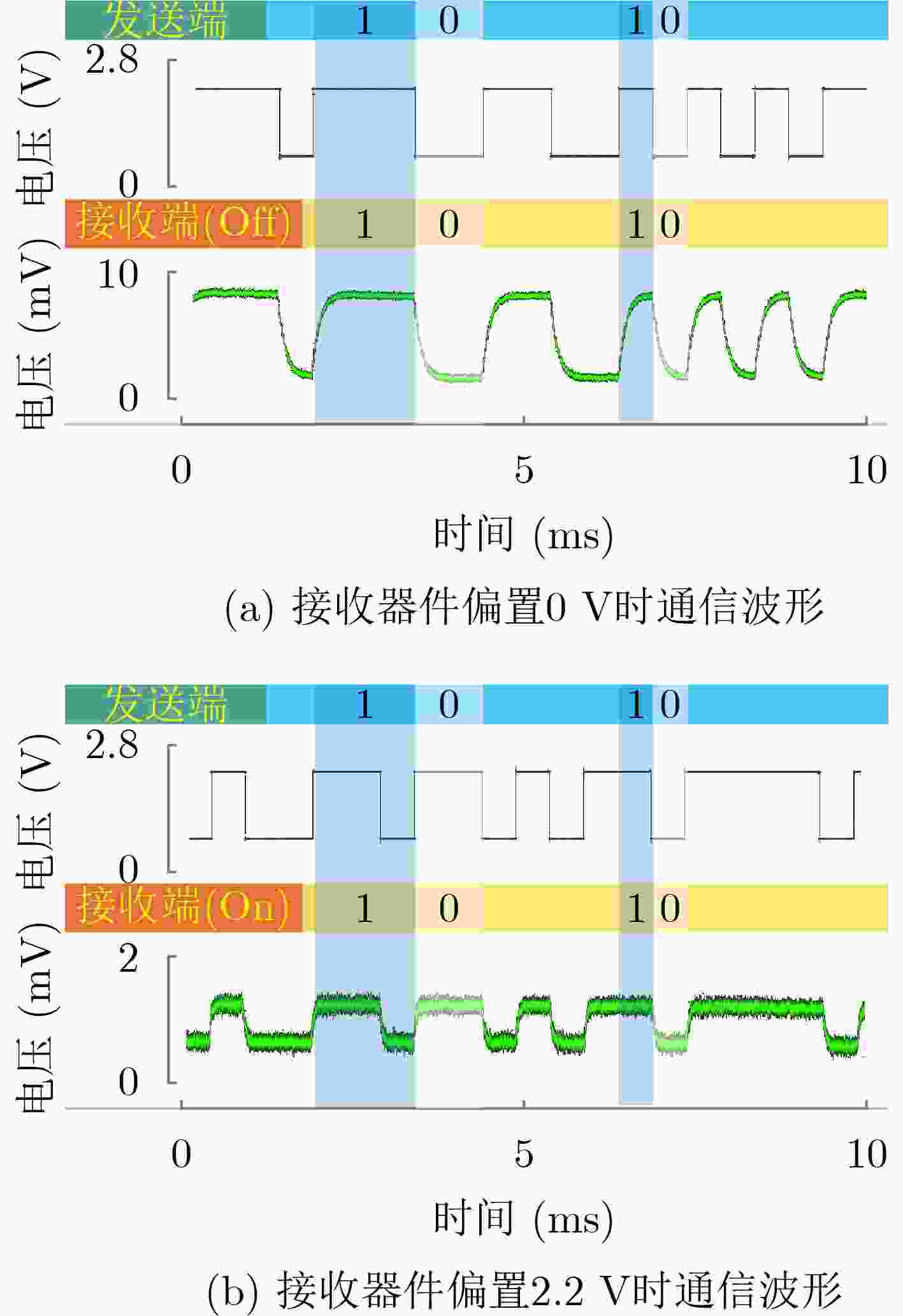

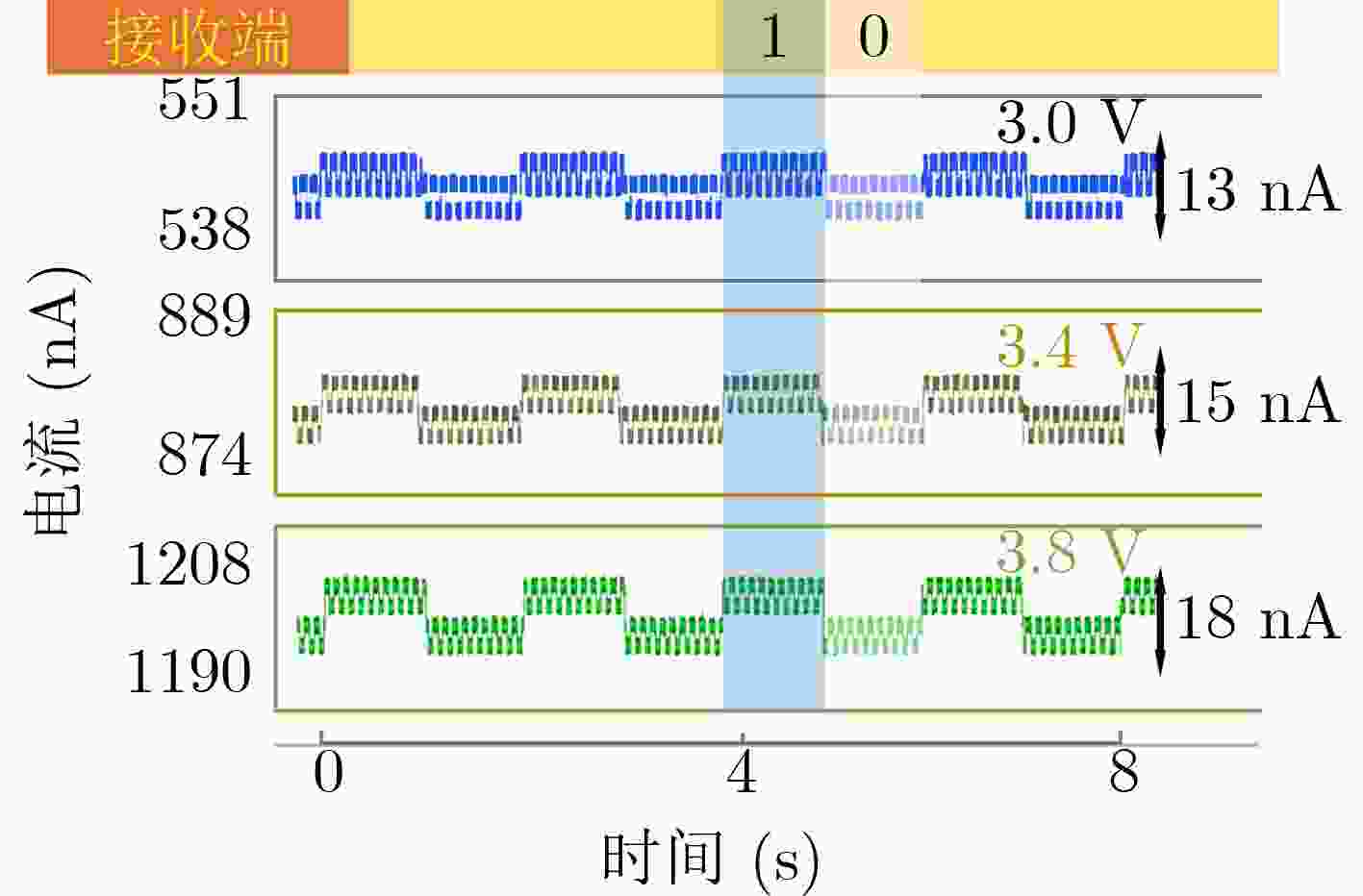

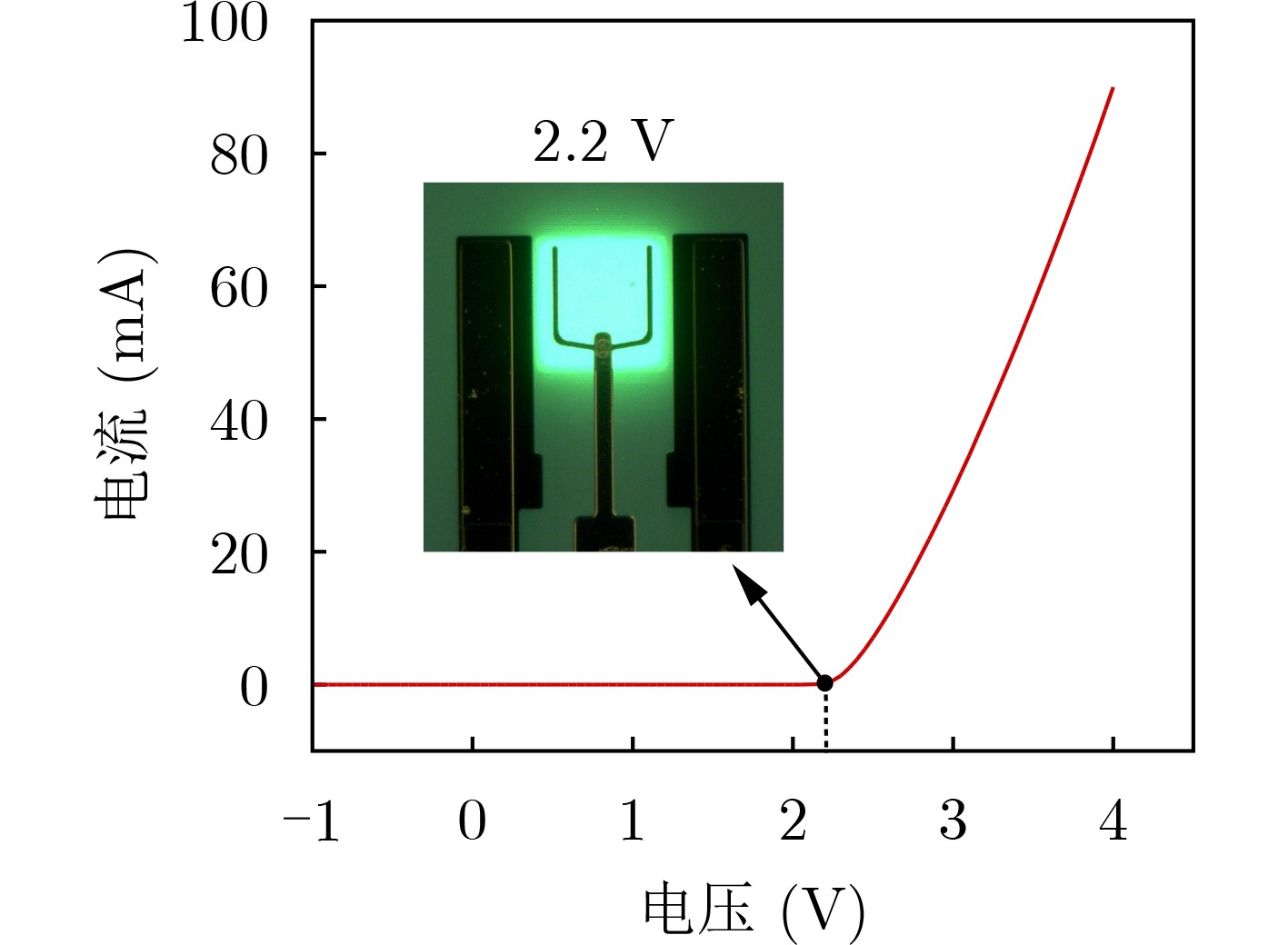

摘要: 通信感知一体化是6G关键技术之一。氮化镓量子阱二极管的发射光谱和光探测谱存在重叠区，量子阱二极管光探测器能够吸收具有相同量子阱结构的光发射器件发出的短波长光子，生成光电流。该文基于该物理现象，研制同质集成光发射光接收器件的氮化镓光电子芯片，由于单个量子阱二极管芯片器件自身发光干扰导致感知外界光信号弱，但是收发分离芯片又存在效率低、紧凑性弱、鲁棒性差等问题，将具有相同量子阱结构的量子阱二极管器件制备在同一块芯片上，分别作为发光和接收器件，构建自由空间逆向光通信系统，探索可见光通信感知一体化芯片及关键技术。Abstract: Integrated communication and sensing is an emerging technology towards 6G. Since there is a spectral emission-detection overlap of GaN QW(Quantum Well) diode, GaN-based photodiode can absorb short-wavelength light photons emitted from another light-emitting diode sharing identical QW structure to generate photocurrent, offering the coexistence of emission, sensing and communication functionalities. Based on this intriguing phenomenon and because single QW diode chip has a weak external light signal sensing due to its luminous interference and the transceiver separation chips have some problems, such as low efficiency, weak compactness and poor robustness, this paper monolithically integrate GaN-based transmitter and receiver into a single chip, wherein they share identical QW structure and are fabricated using the same process flow. Asymmetric optical links are thus established using monolithic GaN optoelectronic chip, opening a feasible route to develop integrated visible light communication and sensing technology.
-
[1] CAVAZOS J. 6G: Innovating the future of wireless communications[J]. Microwave Journal, 2021, 64(5): 132–138. [2] 杨峰义, 刘洋, 杨蓓. 6G网络的一些思考[J]. 中兴通讯技术, 2021, 27(2): 1–5.YANG Fengyi, LIU Yang, and YANG Bei. Ref lections on 6G networks[J] ZTE Technology Journal, 2021, 27(2): 1–5 [3] 刘汝卿, 蒋衍, 李锋, 等. 实时感知型激光雷达多通道数据采集系统设计[J]. 红外与激光工程, 2021, 50(5): 20200291. doi: 10.3788/IRLA20200291LIU Ruqing, JIANG Yan, LI Feng, et al. Design of multi-channel data acquisition system for real-time perception lidar[J]. Infrared and Laser Engineering, 2021, 50(5): 20200291. doi: 10.3788/IRLA20200291 [4] 潘成康, 王爱玲, 刘建军, 等. 通信感知一体化信息交互技术[J]. 无线电通信技术, 2021, 47(6): 718–723. doi: 10.3969/j.issn.1003-3114.2021.06.006PAN Chengkang, WANG Ailing, LIU Jianjun, et al. Technology analysis of information exchange based on integrated wireless sensing and communication[J]. Radio Communications Technology, 2021, 47(6): 718–723. doi: 10.3969/j.issn.1003-3114.2021.06.006 [5] NAKAMURA K, MIZUKOSHI I, and HANAWA M. Optical wireless transmission of 405 nm, 1.45 Gbit/s optical IM/DD-OFDM signals through a 4.8 m underwater channel[J]. Optics Express, 2015, 23(2): 1558–1566. doi: 10.1364/OE.23.001558 [6] 王永进, 傅康, 王林宁. 一种基于可见光通信技术的光互联方案[J]. 南京邮电大学学报:自然科学版, 2020, 40(5): 134–140. doi: 10.14132/j.cnki.1673-5439.2020.05.015WANG Yongjin, FU Kang, and WANG Linning. Optical interconnection scheme based on visible light communication technology[J]. Journal of Nanjing University of Posts and Telecommunications:Natural Science Edition, 2020, 40(5): 134–140. doi: 10.14132/j.cnki.1673-5439.2020.05.015 [7] 王永进, 王金元, 朱秉诚. 可见光通信最新研究进展[J]. 邮电设计技术, 2017(8): 1–6. doi: 10.12045/j.issn.1007-3043.2017.08.001WANG Yongjin, WANG Jinyuan, and ZHU Bingcheng. Recent research progress on visible light communications[J]. Designing Techniques of Posts and Telecommunications, 2017(8): 1–6. doi: 10.12045/j.issn.1007-3043.2017.08.001 [8] 卢洪斌, 梁祚铨. 可见光室内定位系统的信道模型及其仿真分析[J]. 光学仪器, 2017, 39(2): 64–69. doi: 10.3969/j.issn.1005-5630.2017.02.012LU Hongbin and LIANG Zuoquan. A channel model of a visible light indoor positioning system and its simulation[J]. Optical Instrument, 2017, 39(2): 64–69. doi: 10.3969/j.issn.1005-5630.2017.02.012 [9] 贾晓阳, 张恒煦. 水下可见光通信系统发展与通信性能的分析[J]. 通讯世界, 2021, 28(2): 11–12. doi: 10.3969/j.issn.1006-4222.2021.02.007JIA Xiaoyang and ZHANG Hengxu. Development of underwater visible light communication system and analysis of communication performance[J]. Telecom World, 2021, 28(2): 11–12. doi: 10.3969/j.issn.1006-4222.2021.02.007 [10] 刘斌, 鹿玮, 王金波, 等. 一种旋转扫描的可见光全景成像系统及实现[J]. 激光与红外, 2017, 47(9): 1154–1157. doi: 10.3969/j.issn.1001-5078.2017.09.018LIU Bin, LU Wei, WANG Jinbo, et al. Visible light system panoramic imaging system of rotary scanning[J]. Laser &Infrared, 2017, 47(9): 1154–1157. doi: 10.3969/j.issn.1001-5078.2017.09.018 [11] 李舒涵, 许宏科, 武治宇. 基于红外与可见光图像融合的交通标志检测[J]. 现代电子技术, 2020, 43(3): 45–49. doi: 10.16652/j.issn.1004-373x.2020.03.011LI Shuhan, XU Hongke, and WU Zhiyu. Traffic sign detection based on infrared and visible image fusion[J]. Modern Electronics Technique, 2020, 43(3): 45–49. doi: 10.16652/j.issn.1004-373x.2020.03.011 [12] 田宇航. 可见光通信的发展与应用[J]. 数字通信世界, 2017(12): 182,188. doi: 10.3969/J.ISSN.1672-7274.2017.12.154TIAN Yuhang. Development and application of visible light communication[J]. Digital Communication World, 2017(12): 182,188. doi: 10.3969/J.ISSN.1672-7274.2017.12.154 [13] 高绪敏. 面向可见光通信的硅基氮化物同质光电子集成芯片研究[D]. [博士论文], 南京邮电大学, 2018.GAO Xumin. Study on silicon based nitride homologous optoelectronic integrated chip for visible light communication[D]. [Ph. D. dissertation], Nanjing University of Posts and Telecommunications, 2018. [14] WANG Linning, LI Xin, GAO Xumin, et al. Asymmetric optical links using monolithic III-nitride diodes[J]. Optics Letters, 2021, 46(2): 376–379. doi: 10.1364/OL.415007 [15] 陈旭, 尉志青, 冯志勇, 等. 面向6G的智能机器通信与网络[J]. 物联网学报, 2020, 4(1): 59–71. doi: 10.11959/j.issn.2096?3750.2020.00156CHEN Xu, WEI Zhiqing, FENG Zhiyong, et al. Intelligent machine-type communication and network for 6G system[J]. Chinese Journal on Internet of Things, 2020, 4(1): 59–71. doi: 10.11959/j.issn.2096?3750.2020.00156 -
