基于动态异构冗余架构的车载网络内生安全机制

王鹏 翟浡琨 李玉峰 郑秋生

王鹏, 翟浡琨, 李玉峰, 郑秋生. 基于动态异构冗余架构的车载网络内生安全机制[J]. 电子与信息学报, 2023, 45(1): 272-281. doi: 10.11999/JEIT211294
引用本文: 王鹏, 翟浡琨, 李玉峰, 郑秋生. 基于动态异构冗余架构的车载网络内生安全机制[J]. 电子与信息学报, 2023, 45(1): 272-281. doi: 10.11999/JEIT211294
WANG Peng, ZHAI Bokun, LI Yufeng, ZHENG Qiusheng. Endogenous Security Mechanism of Vehicle Network Based on Dynamic Heterogeneous Redundancy[J]. Journal of Electronics & Information Technology, 2023, 45(1): 272-281. doi: 10.11999/JEIT211294
Citation: WANG Peng, ZHAI Bokun, LI Yufeng, ZHENG Qiusheng. Endogenous Security Mechanism of Vehicle Network Based on Dynamic Heterogeneous Redundancy[J]. Journal of Electronics & Information Technology, 2023, 45(1): 272-281. doi: 10.11999/JEIT211294

基于动态异构冗余架构的车载网络内生安全机制

doi: 10.11999/JEIT211294
基金项目: 国家自然科学基金 (61702547)
详细信息
    作者简介:

    王鹏:男,博士,硕士生导师,研究方向为智能网联系统安全、新型网络与网络安全、网络空间内生安全

    翟浡琨:男,硕士生,研究方向为智能网联系统安全、网络空间内生安全

    李玉峰:男,博士,博士生导师,研究方向为网络空间安全、高速网络信息处理与管理、自主智能系统安全

    郑秋生:男,博士,硕士生导师,研究方向为网络安全、网络舆情、大数据

    通讯作者:

    王鹏 15803846349@163.com

  • 中图分类号: TN915.08

Endogenous Security Mechanism of Vehicle Network Based on Dynamic Heterogeneous Redundancy

Funds: The National Natural Science Foundation of China (61702547)
  • 摘要: 针对车载网络通信报文容易被捕获重放的问题,该文提出一种基于动态异构冗余(DHR)架构的车载网络内生安全机制(ESM-VN)。首先,对车载网络重放攻击进行建模分析,总结重放攻击依赖的车载网络特征;然后结合网络空间内生安全理论,设计车载网络通信报文动态异构冗余的实现机制,通过拟态裁决和负反馈机制实现攻击感知与主动防御的协调统一。实验结果表明,相比于传统车载网络防御方法,该文所提机制能够在至少降低50%报文响应时延的同时,有效提高车载网络对重放攻击的防御能力。

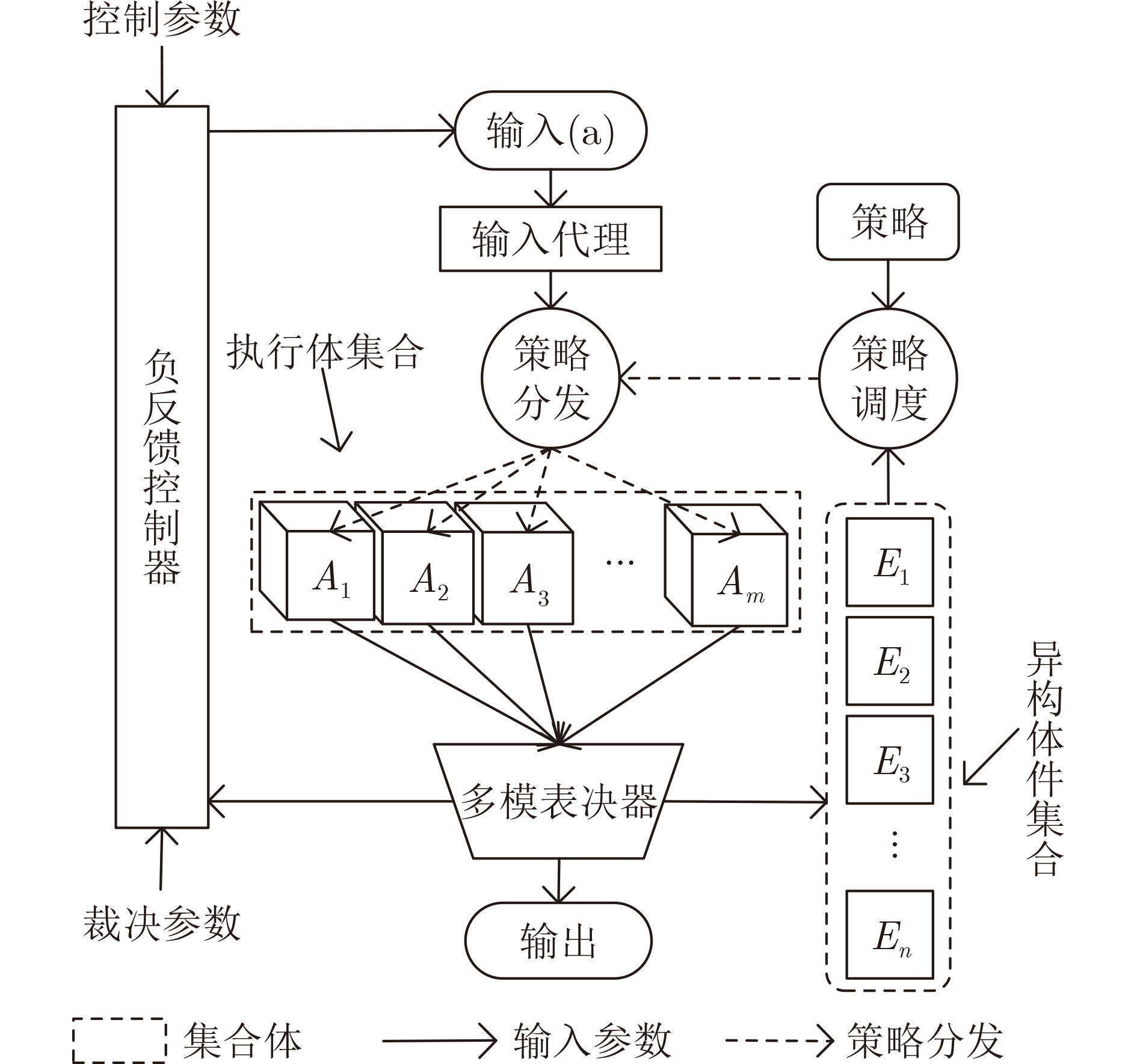

  • 图  1  动态异构冗余架构图

    图  2  核心框架图

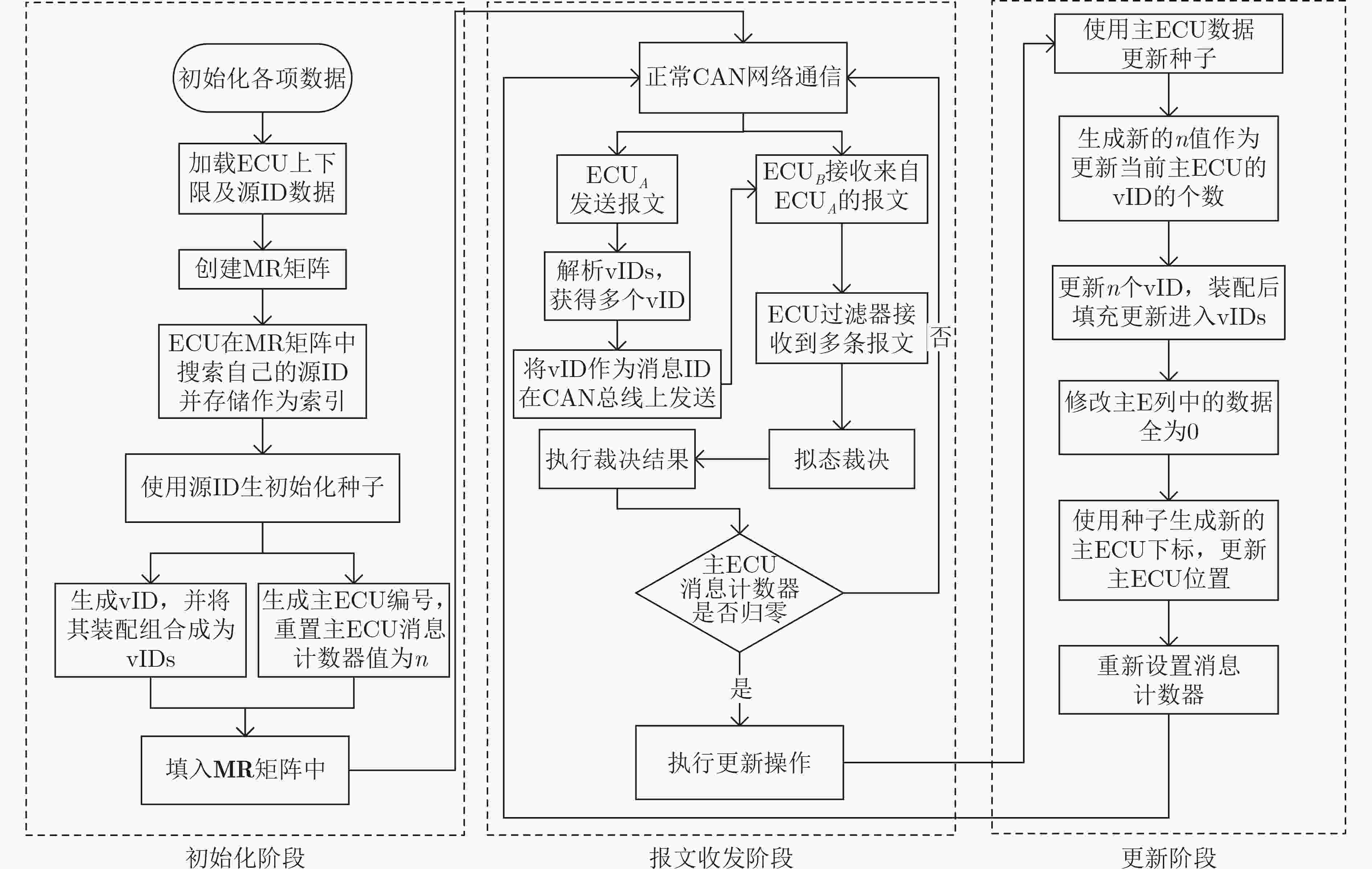

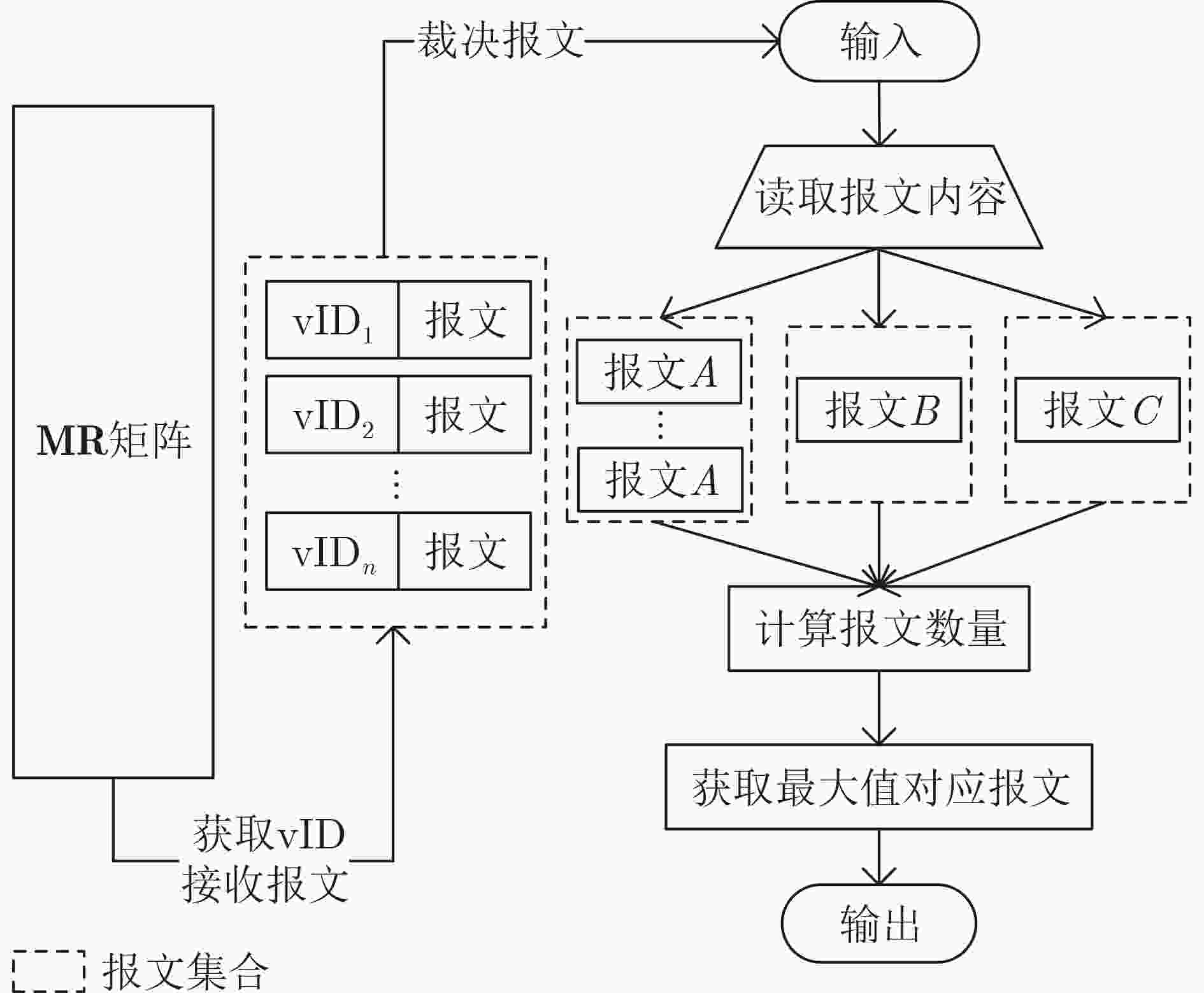

    图  3  机制框图

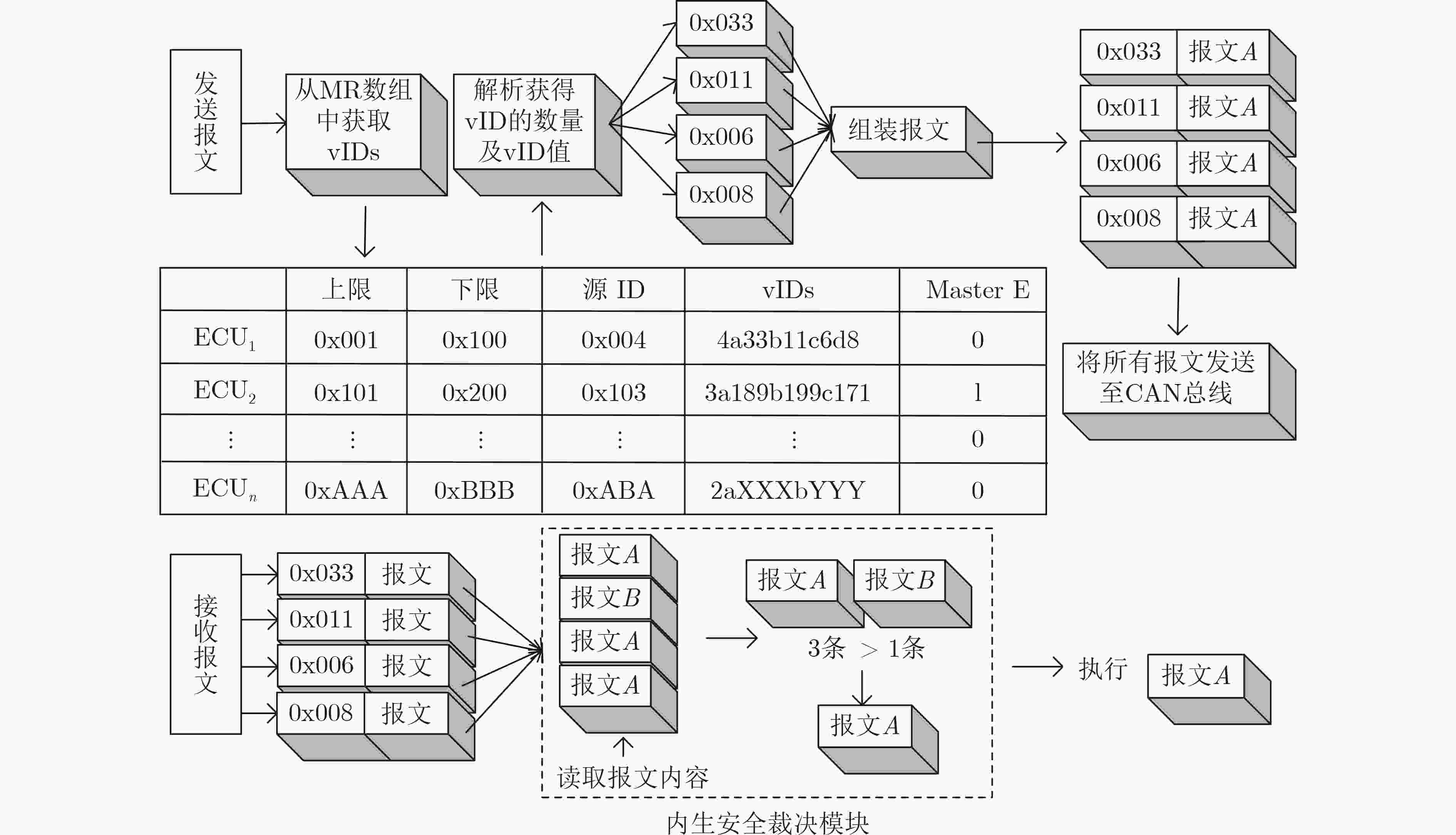

    图  4  DHR结构的报文收发实例

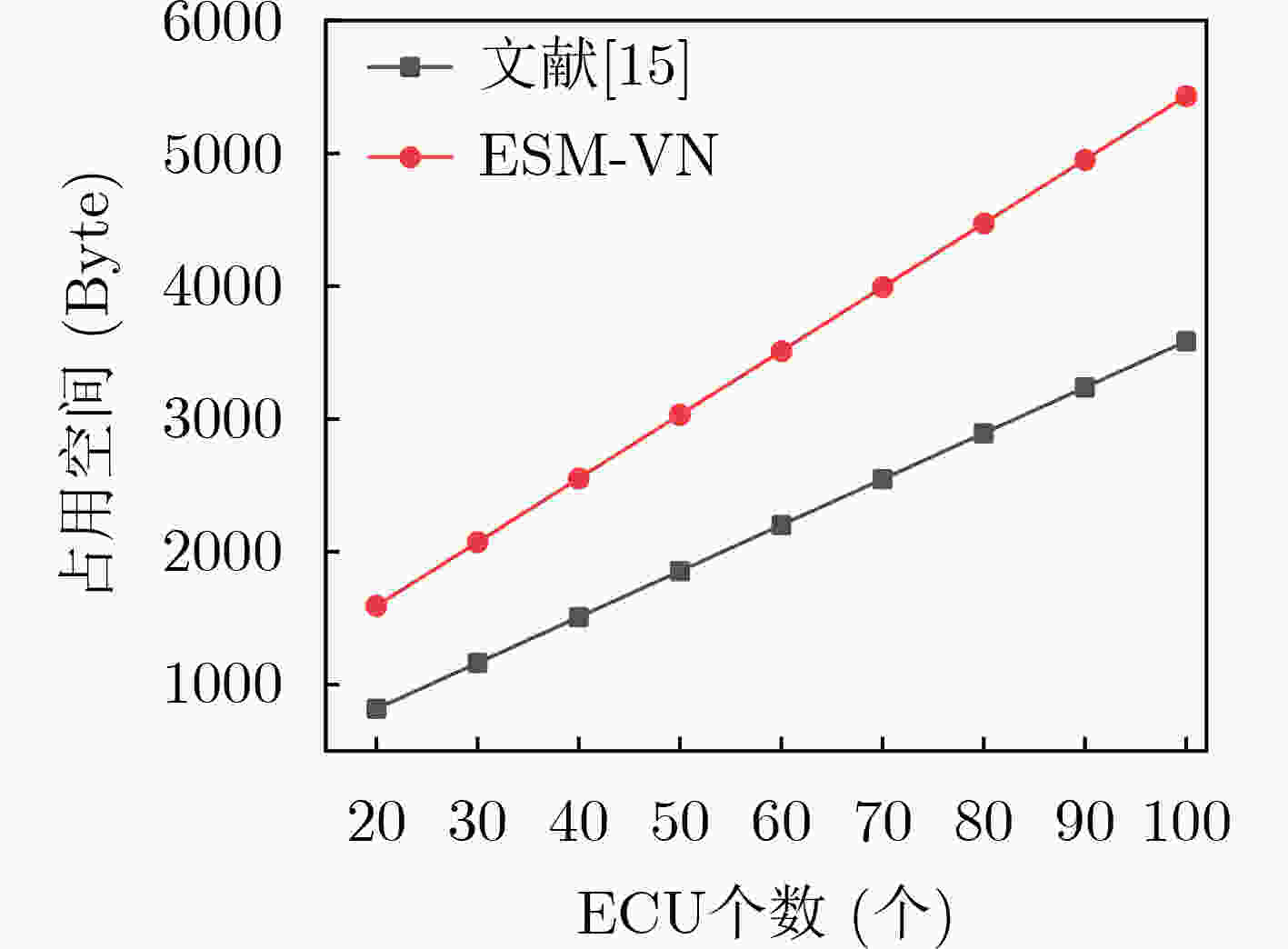

    图  5  单节点空间占用对比

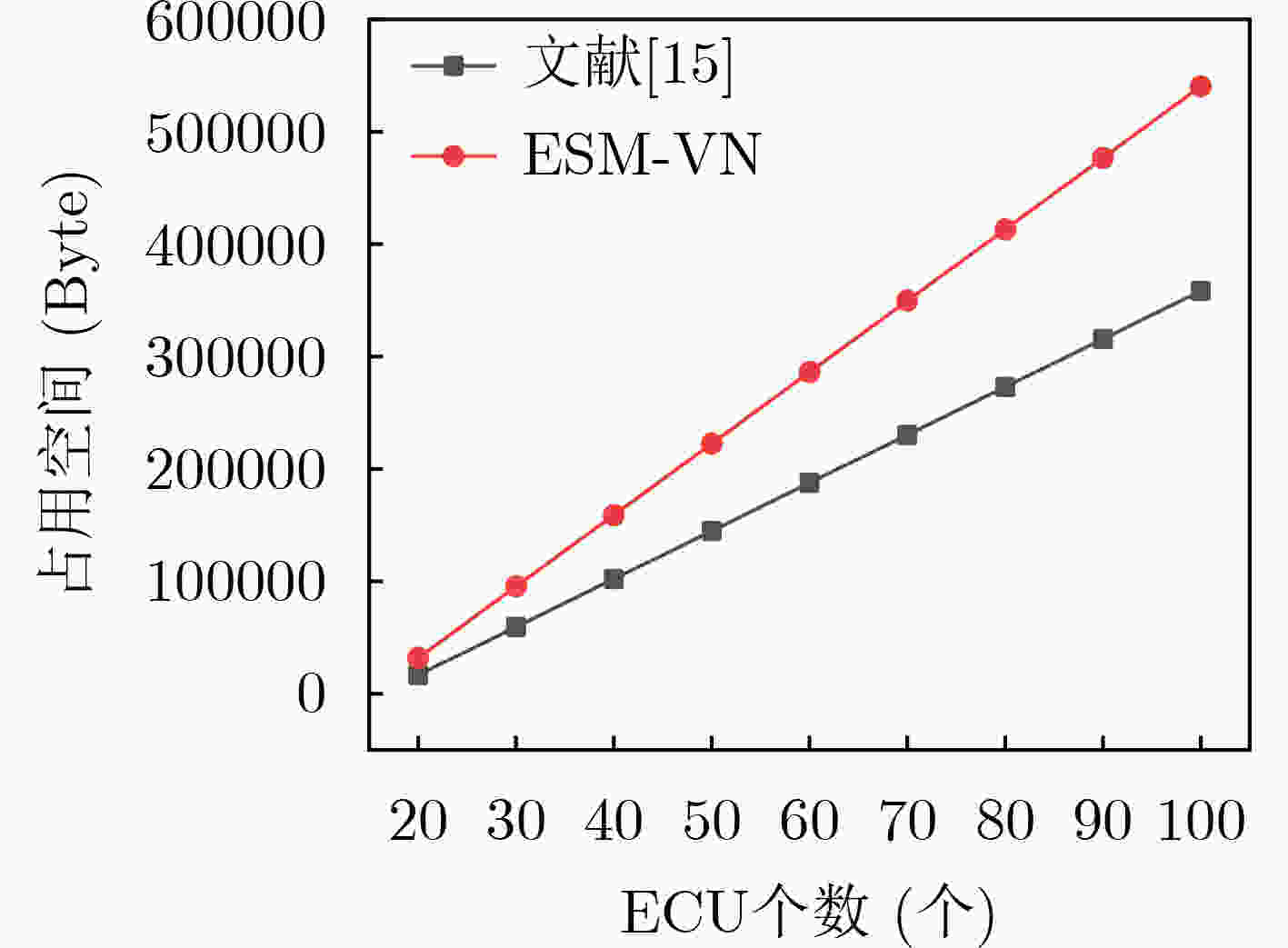

    图  6  全节点空间占用对比

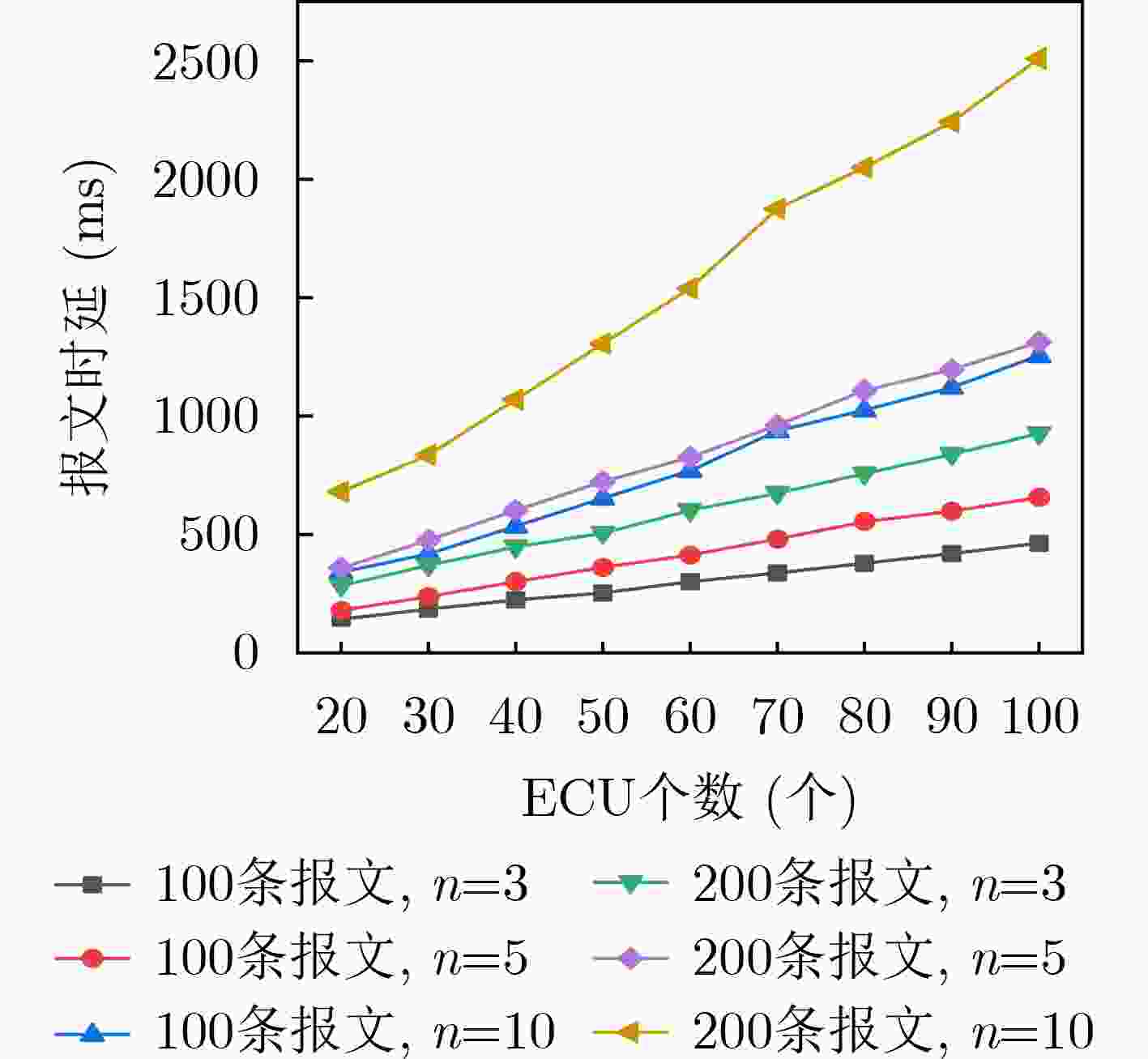

    图  7  不同参数下报文处理时延

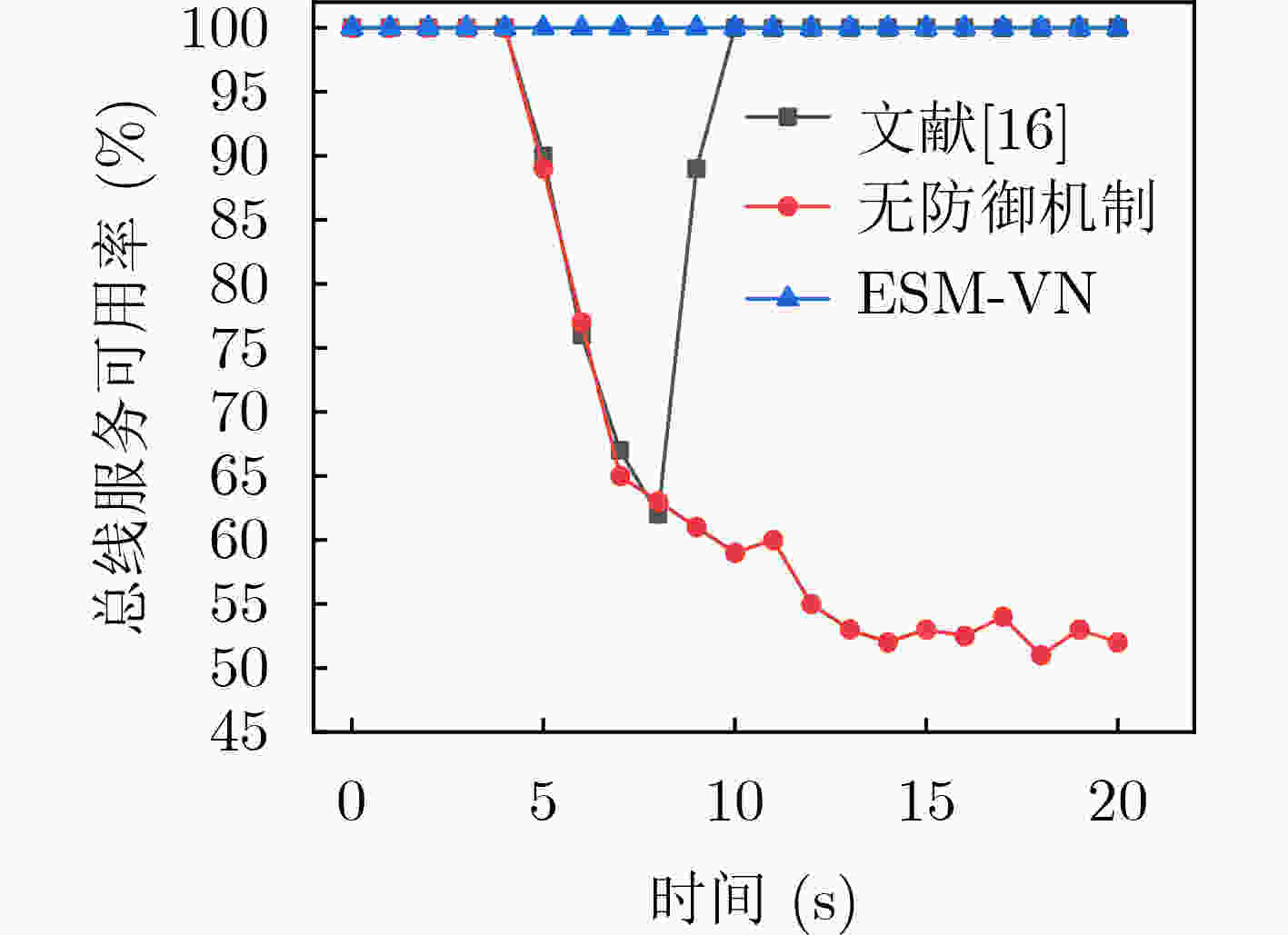

    图  8  总线服务可用率

    表  1  单节点占用空间对比(Byte)

    ECU数量(个)
    20100
    文献[15]835.13519
    ESM-VN15235451
    下载: 导出CSV

    表  2  全节点空间对比(Byte)

    防御机制
    20个ECU占用空间100个ECU占用空间
    文献[15]16354350178
    ESM-VN31157543134
    下载: 导出CSV

    表  3  时间开销对比(ms)

    文献[7]文献[8]文献[12]ESM-VN
    ECU平均注册时延2.0062.298.3671.417
    报文时延5901.56320.16736.8742510.72
    下载: 导出CSV

    表  4  安全性分析对比

    文献[12]文献[15]文献[16]ESM-VN
    消息来源完整性
    保密性部分
    侦察攻击
    重放攻击部分部分
    下载: 导出CSV
