移动边缘计算中基于联邦学习的视频请求预测和协作缓存策略

李光辉; 李宜璟; 胡世红

doi:10.11999/JEIT211287

移动边缘计算中基于联邦学习的视频请求预测和协作缓存策略

doi: 10.11999/JEIT211287

江南大学人工智能与计算机学院无锡 214122

基金项目: 国家自然科学基金(62072216)

详细信息

作者简介:
李光辉：男，教授，博士生导师，研究方向为边缘计算、物联网

李宜璟：女，硕士生，研究方向为边缘计算

胡世红：女，博士，研究方向为边缘计算

通讯作者:
李宜璟　6191914008@stu.jiangnan.edu.cn

中图分类号: TN929.5; TP181
计量
- 文章访问数: 1006
- HTML全文浏览量: 568
- PDF下载量: 193
- 被引次数: 13
出版历程
- 收稿日期: 2021-11-17
- 修回日期: 2022-02-22
- 录用日期: 2022-03-03
- 网络出版日期: 2022-03-08
- 刊出日期: 2023-01-17

Video Request Prediction and Cooperative Caching Strategy Based on Federated Learning in Mobile Edge Computing

School of Artificial Intelligence and Computer Science, Jiangnan University, Wuxi 214122, China

Funds: The National Natural Science Foundation of China (62072216)

摘要

摘要: 随着互联网社交平台的崛起和移动智能终端设备的普及，自媒体短视频、直播等视频业务蓬勃发展，人们对高质量视频服务的需求也急剧上升。与此同时，连接到核心网络的大量智能设备增加了回程链路的负载，传统的云计算难以满足用户对视频服务的低延迟要求。移动边缘计算(MEC)通过在网络边缘部署具有计算和存储能力的边缘节点，通过在更靠近用户的边缘侧提高计算和存储服务，降低了数据传输时延进而缓解了网络阻塞。因此，基于MEC架构，该文充分利用网络边缘资源，提出了基于联邦学习的视频请求预测和视频协作缓存策略。通过利用多个边缘节点对提出的深度请求预测模型(DRPN)视频请求预测模型进行联邦训练，预测视频未来的请求情况，然后量化缓存内容所带来的时延收益并协作地以最大化该时延收益为目的进行缓存决策。该文分析了真实数据集MovieLens，模拟了视频请求缓存场景并进行实验。仿真结果表明，相比于其他策略，所提策略不仅能有效降低用户等待时延，在有限的缓存空间中提高内容多样性，从而提高缓存命中率，降低缓存成本，还能降低整个系统的通信成本。
- 边缘计算 /
- 联邦学习 /
- 视频缓存 /
- 请求预测
Abstract: With the rise of Internet social platforms and the popularization of mobile smart terminal devices, people's demand for high-quality and real-time data has risen sharply, especially for video services such as short videos and live streams. At the same time, too many terminal devices connected to the core network increase the load of the backhaul link, so that the traditional cloud computing is difficult to meet the low-latency requirements of users for video services. By deploying edge nodes with computing and storage capabilities at the edge of the network, Mobile Edge Computing (MEC) can calculate and store closer to the users, which will reduce the data transmission delay and alleviate the network congestion. Therefore, making full use of the computing and storage resources at the edge of the network under MEC, a video request prediction method and a cooperative caching strategy based on federated learning are proposed. By federally training the proposed model Deep Request Prediction Network (DRPN) with multiple edge nodes, the video requests in the future can be predicted and then cache decisions can be made cooperatively. The simulation results show that compared with other strategies, the proposed strategy can not only effectively improve the cache hit rate and reduce the user waiting delay, but also reduce the communication cost and cache cost of the whole system to a certain extent.
- Mobile Edge Computing(MEC) /
- Federated learning /
- Video caching /
- Request prediction

HTML全文

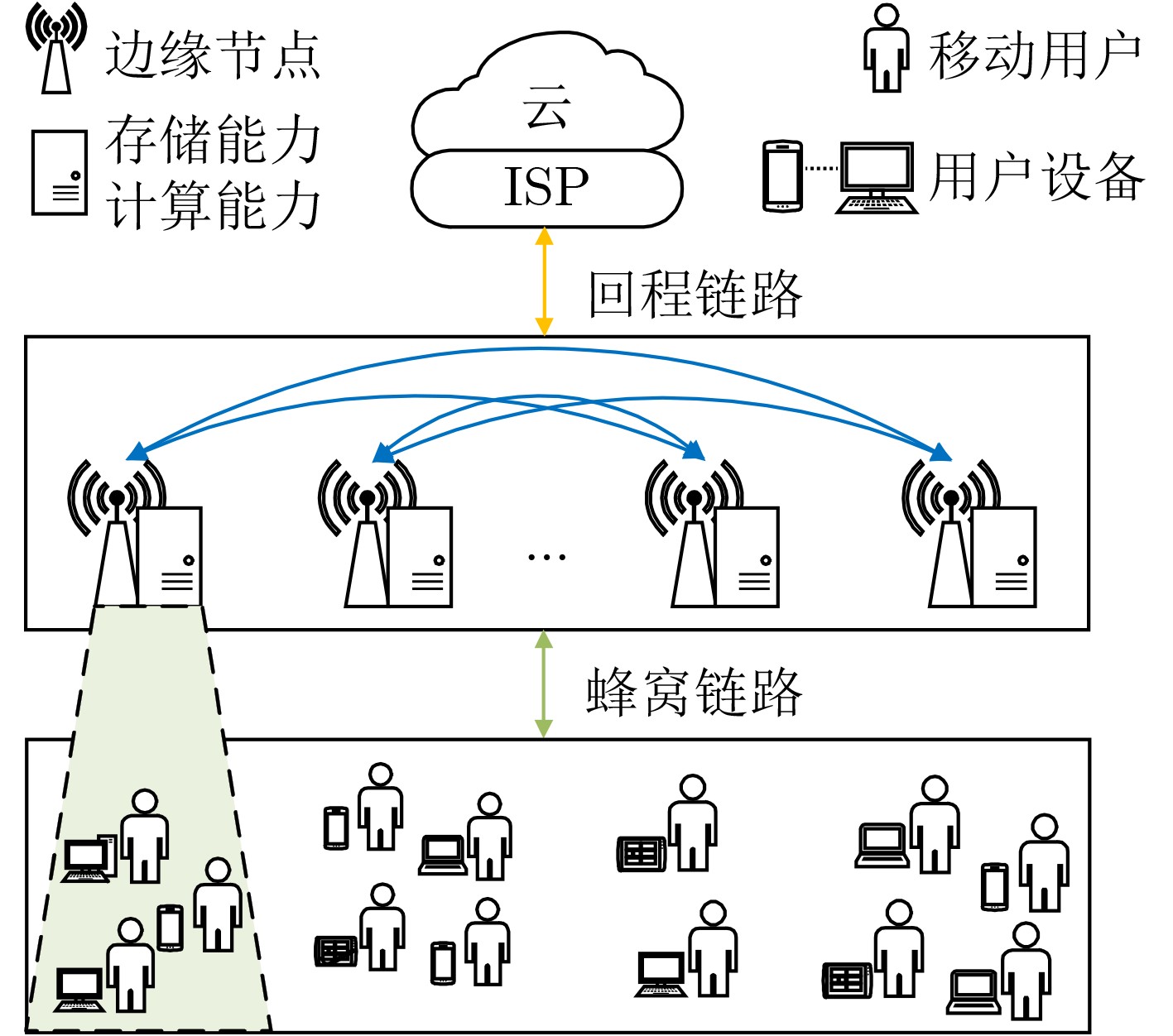

图 1 网络结构

下载: 全尺寸图片幻灯片

图 2 单个边缘节点功能

下载: 全尺寸图片幻灯片

图 3 DPRN 网络结构

下载: 全尺寸图片幻灯片

图 4 LSTM 单元内部结构

下载: 全尺寸图片幻灯片

图 5 不同训练模式下DRPN预测模型的训练质量(NDCG)

下载: 全尺寸图片幻灯片

图 6 DRPN预测模型在不同训练模式下的收敛情况

下载: 全尺寸图片幻灯片

图 7 不同缓存策略在不同缓存容量比下的性能指标

下载: 全尺寸图片幻灯片

图 8 不同缓存策略在不同边缘节点数目下的性能指标

下载: 全尺寸图片幻灯片

算法1　DRPN模型的分布式联邦训练
输入： $\mathcal{N}{{n} }$ , $\mathcal{D}$ , $k$ , ${\boldsymbol{w}}_n^0$ , $T$ , $E$ , $\eta$
输出： ${{\boldsymbol{w}}^{t + 1} }$
(1) $N \leftarrow \;\|\mathcal{N}\|$
(2) $K\leftarrow \mathrm{max}\left(\lceil kN\rceil ,1\right)$ # $k$ 为每轮参与训练的边缘节点占比，　　 $k \in (0,1]$
(3) for $t{\text{ } } = {\text{ } }1,{\text{ } }2,{\text{ } }\cdots,{\text{ } }T$ do #全局训练轮次
(4) 　　从节点集合 $\mathcal{N}$ 中随机选择 $K$ 个节点形成子集 $\mathcal{N}'$
(5) 　　for $n \in \mathcal{N}'$ do #各节点并行执行
(6) 　　　　 ${\boldsymbol{w}}_n^{t + 1} \leftarrow { {\rm{LOCALUPDATE} } } \left( {n,{ {\boldsymbol{w} }^t} } \right)$
(7) 　　end for
(8) 　　中心作为聚合器，负责计算、汇总并分发下一轮权重　　　　 ${{\boldsymbol{w}}^{t + 1} }$ 　(9) 　　 ${{\boldsymbol{w}}^{t + 1} } \leftarrow \displaystyle\sum\limits_{n = 1}^N {\frac{ {\left\| { {D_n} } \right\|} }{D}{{\boldsymbol{w}}^{t + 1} } }$
(10) end for
(11) function ${{\rm{LOCALUPDATE}}} \left( {n,{{\boldsymbol{w}}^t} } \right)$ #本地训练
(12) 　　for $e{\text{ } } = {\text{ } }1,{\text{ } }2,{\text{ } }\cdots,{\text{ } }E$ do #本地训练轮次
(13) 　　　　 ${\boldsymbol{w} }_n^{t + 1} \leftarrow {\boldsymbol{w} }_n^t - \eta \nabla {F_n}\left( { { {\boldsymbol{w} }^t} } \right)$ # $\eta$ 为学习率
(14) 　　end for
(15) 　　return ${\boldsymbol{w} }_n^{t + 1}$
(16) end function

下载: 导出CSV

算法2　基于贪心算法的协作缓存策略(GCCS)
输入： $\mathcal{N}_{{n} }$ , $\mathcal{L} = \left[ {{L_1},\cdots,{L_n},\cdots,{L_N}} \right]$ , $\mathcal{C} = \left[ {{C_1},\cdots,{C_n},\cdots,{C_N}} \right]$
输出： $\mathcal{L}' = \left[ { { L'_1},\cdots,{ L'_n},\cdots,{ L'_N} } \right]$
(1)初始化 $\mathcal{C}$ 中的每一项为实际最大可用缓存容量
(2)初始化 $\mathcal{L}'$ 中的每一项为空的缓存列表
(3)记 $\mathcal{F}$ 为 $\mathcal{L}$ 中每一个列表所涉及的内容标识符 $f$ 的全集
(4)repeat
(5) 　 ${\text{best\_gain}} \leftarrow 0$
(6) 　for $n$ in $\mathcal{N}{{n} }$
(7) 　　for $f$ in $\mathcal{F}$
(8) 　　　if $f$ not in $L'$ and ${s_f} \le {C_n}$ then
(9) 　　　　 ${\text{gain} } \leftarrow {{\rm{CALCULATEGAIN}}} \left( {n,f} \right)$
(10) 　　　　 ${\text{best\_gain} } \leftarrow \max \left( { {\text{best\_gain} },{{\rm{gain}}} } \right)$
(11) 　　　end if
(12) 　　end for
(13) 　end for
(14) 　if ${\text{best\_gain}} \ne 0$ then
(15) 　　 $f' \leftarrow$ 产生最大增益时所对应的内容标识符
(16) 　　 $n' \leftarrow$ 产生最大增益时所对应的节点
(17) 　　Add $f'$ to ${L'_{n'}}$
(18) 　　 ${C_{n'}} \leftarrow {C_{n'}} - {s_{f'}}$
(19) 　end if
(20)until ${\text{best\_gain}} = 0$
(21)function ${\rm CALCULATEGAIN} \left( {n',f'} \right)$
(22) 　 ${\text{total\_gain}} \leftarrow 0$
(23) 　记 $\mathcal{F}'$ 为 $\mathcal{L}'$ 中每一个列表所涉及的内容标识符 $f$ 的全集
(24) 　for $n$ in $\mathcal{N}{{n} }$
(25) 　　if $f'$ in ${L_n}$ then
(26) 　　　 $c \leftarrow$ ${L_n}$ 中对于 $f'$ 的流行度预测值 ${\text{pred\_pop}}$
(27) 　　　if $f'$ not in $\mathcal{F}'$ then
(28) 　　　　 ${\text{total\_gain}} \leftarrow {\text{total\_gain}} + c$ #命中状态由云端命　　　　　　　中变换为邻居命中
(29) 　　　end if
(30) 　　　if $n = n'$ then
(31) 　　　　 ${\text{total\_gain} } \leftarrow {\text{total\_gain} } + \alpha{\text{c} }$ #命中状态由邻　　　　　　　居命中变换为本地命中
(32) 　　　end if
(33) 　　end if
(34) 　end for
(35) 　return ${\text{total\_gain}}$
(36) end function

下载: 导出CSV
