一种基于联邦学习资源需求预测的虚拟网络功能迁移算法

唐伦; 吴婷; 周鑫隆; 陈前斌

doi:10.11999/JEIT210743

一种基于联邦学习资源需求预测的虚拟网络功能迁移算法

doi: 10.11999/JEIT210743

1.
重庆邮电大学通信与信息工程学院重庆 400065
2.
重庆邮电大学移动通信重点实验室重庆 400065

基金项目: 国家自然科学基金(62071078)，重庆市教委科学技术研究项目(KJZD-M201800601)

详细信息

作者简介:
唐伦：男，教授，博士，研究方向为下一代无线通信网络、异构蜂窝网络、软件定义无线网络等

吴婷：女，硕士生，研究方向为5G网络切片、服务功能链部署和重配置、机器学习算法

周鑫隆：男，硕士生，研究方向为网络切片、资源分配、深度学习算法

陈前斌：男，教授，博士生导师，研究方向为个人通信、多媒体信息处理与传输、异构蜂窝网络等

通讯作者:
吴婷　2721283189@qq.com

中图分类号: TN929.5
计量
- 文章访问数: 1001
- HTML全文浏览量: 707
- PDF下载量: 176
- 被引次数: 3
出版历程
- 收稿日期: 2021-07-27
- 修回日期: 2022-03-23
- 网络出版日期: 2022-03-30
- 刊出日期: 2022-10-19

A Virtual Network Function Migration Algorithm Based on Federated Learning Prediction of Resource Requirements

1.
School of Communication and Information Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
2.
Key Laboratory of Mobile Communications Technology, Chongqing University of Posts and Telecommunications, Chongqing 400065, China

Funds: The National Natural Science Foundation of China (62071078), The Science and Technology Research Program of Chongqing Municipal Education Commission (KJZD-M201800601)

摘要

摘要: 针对网络切片场景下时变网络流量引起的虚拟网络功能(VNF)迁移问题，该文提出一种基于联邦学习的双向门控循环单元(FedBi-GRU)资源需求预测的VNF迁移算法。该算法首先建立系统能耗和负载均衡的VNF迁移模型，然后提出一种基于分布式联邦学习框架协作训练预测模型，并在此框架的基础上设计基于在线训练的双向门控循环单元(Bi-GRU)算法预测VNF的资源需求。基于资源预测结果，联合系统能耗优化和负载均衡，提出一种分布式近端策略优化(DPPO)的迁移算法提前制定VNF迁移策略。仿真结果表明，两种算法的结合有效地降低了网络系统能耗并保证负载均衡。
- 虚拟网络功能 /
- 预测 /
- 迁移 /
- 深度强化学习
Abstract: In order to solve the problem of virtual network function migration caused by time-varying network traffic in network slicing, a Virtual Network Function (VNF) migration algorithm based on Federated learning with Bidirectional Gate Recurrent Units (FedBi-GRU) prediction of resource requirements is proposed. Firstly, a VNF migration model of system energy consumption and load balancing is established, and then a framework based on distributed federated learning is introduced to cooperatively train the predictive model. Secondly, considering predicting the resource requirements of VNF, an online training Bidirectional Gate Recurrent Unit (Bi-GRU) algorithm on the basis of the framework is designed. Finally, on the grounds of the resource prediction results, system energy consumption optimization and load balancing are combined, and a Distributed Proximal Policy Optimization (DPPO) migration algorithm is proposed to formulate a VNF migration strategy in advance. The simulation results show that the combination of the two algorithms reduces effectively the energy consumption of the network system and ensures the load balance.
- Virtual Network Function(VNF) /
- Prediction /
- Migration /
- Deep reinforcement learning

HTML全文

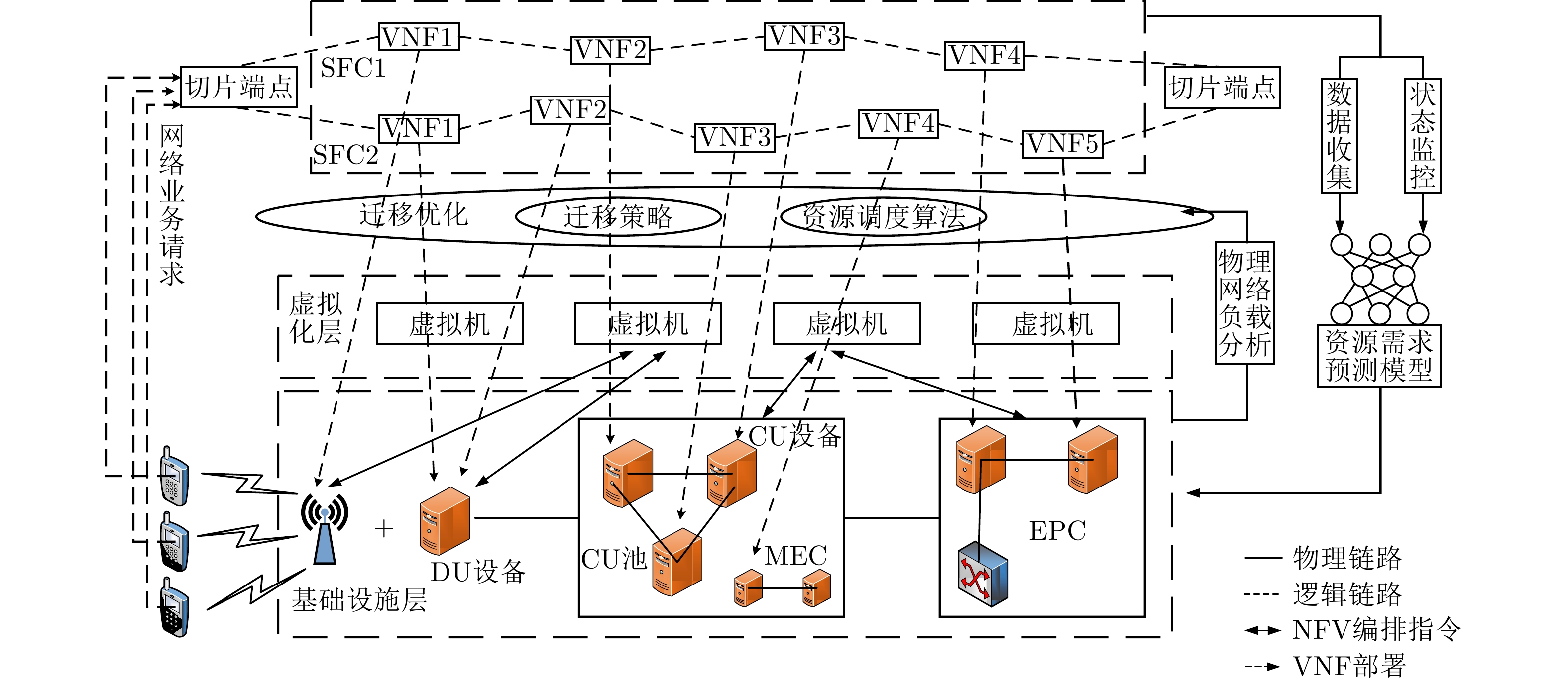

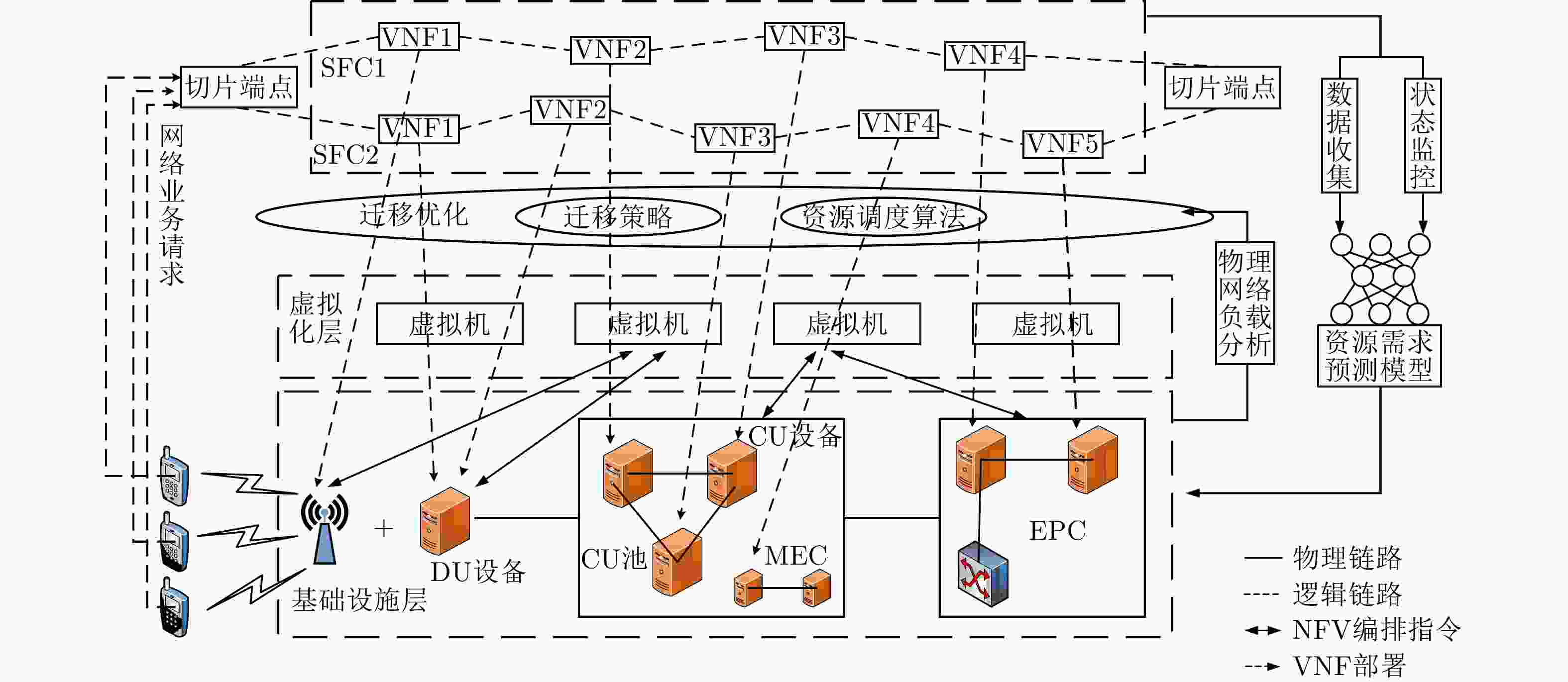

图 1 网络场景图

下载: 全尺寸图片幻灯片

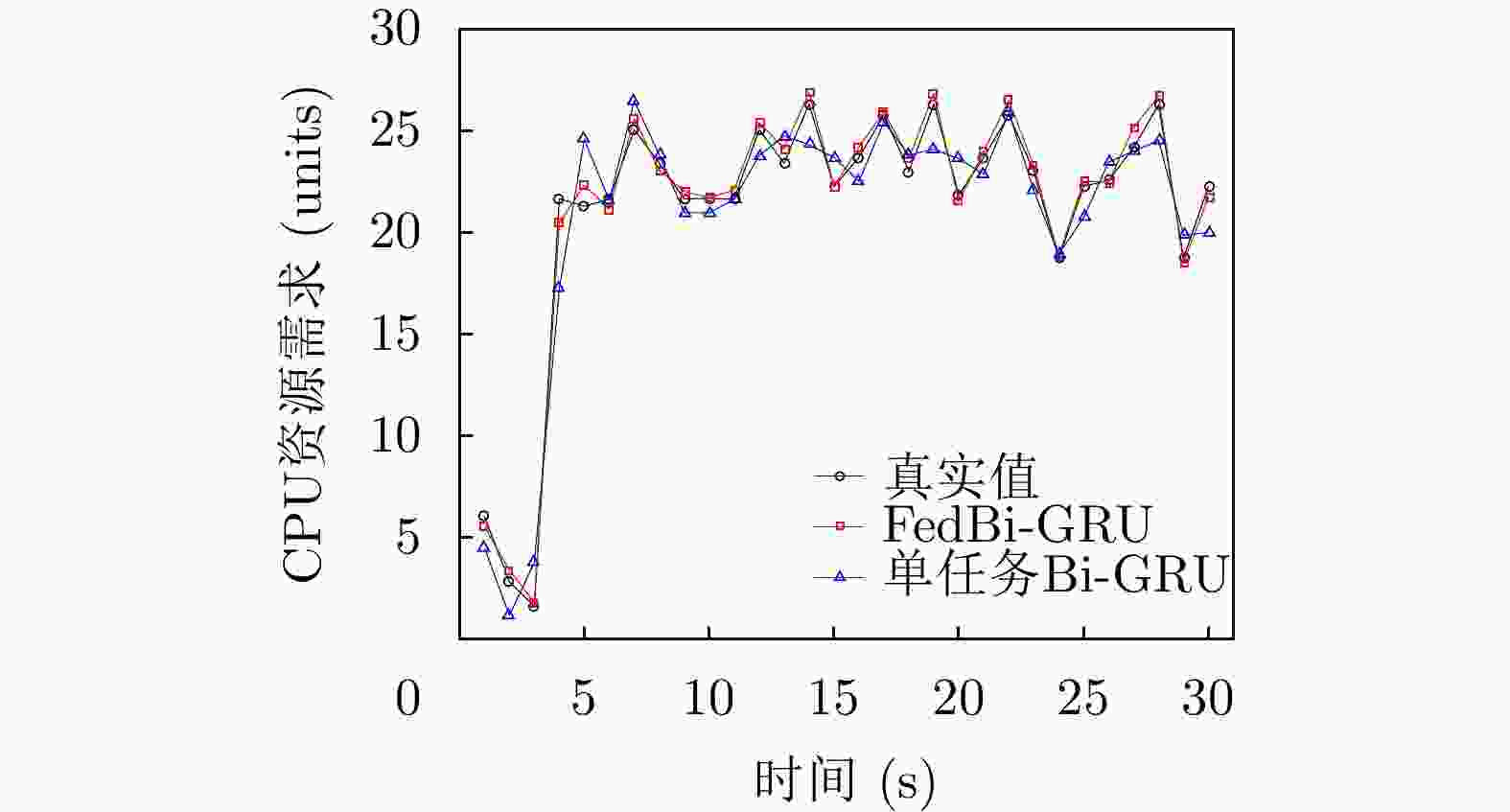

图 2 FedBi-GRU与单任务Bi-GRU预测对比

下载: 全尺寸图片幻灯片

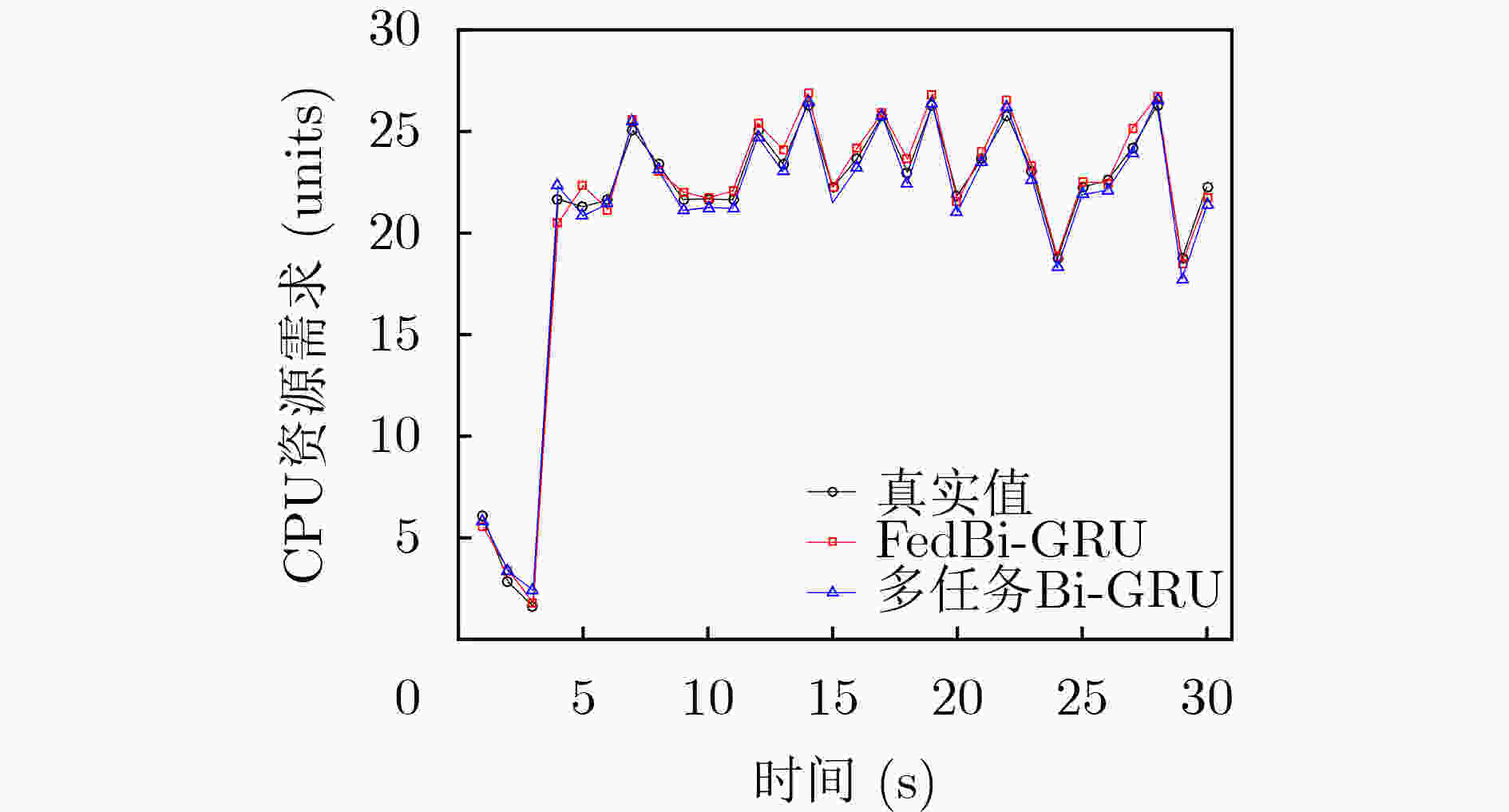

图 3 FedBi-GRU与多任务Bi-GRU预测对比

下载: 全尺寸图片幻灯片

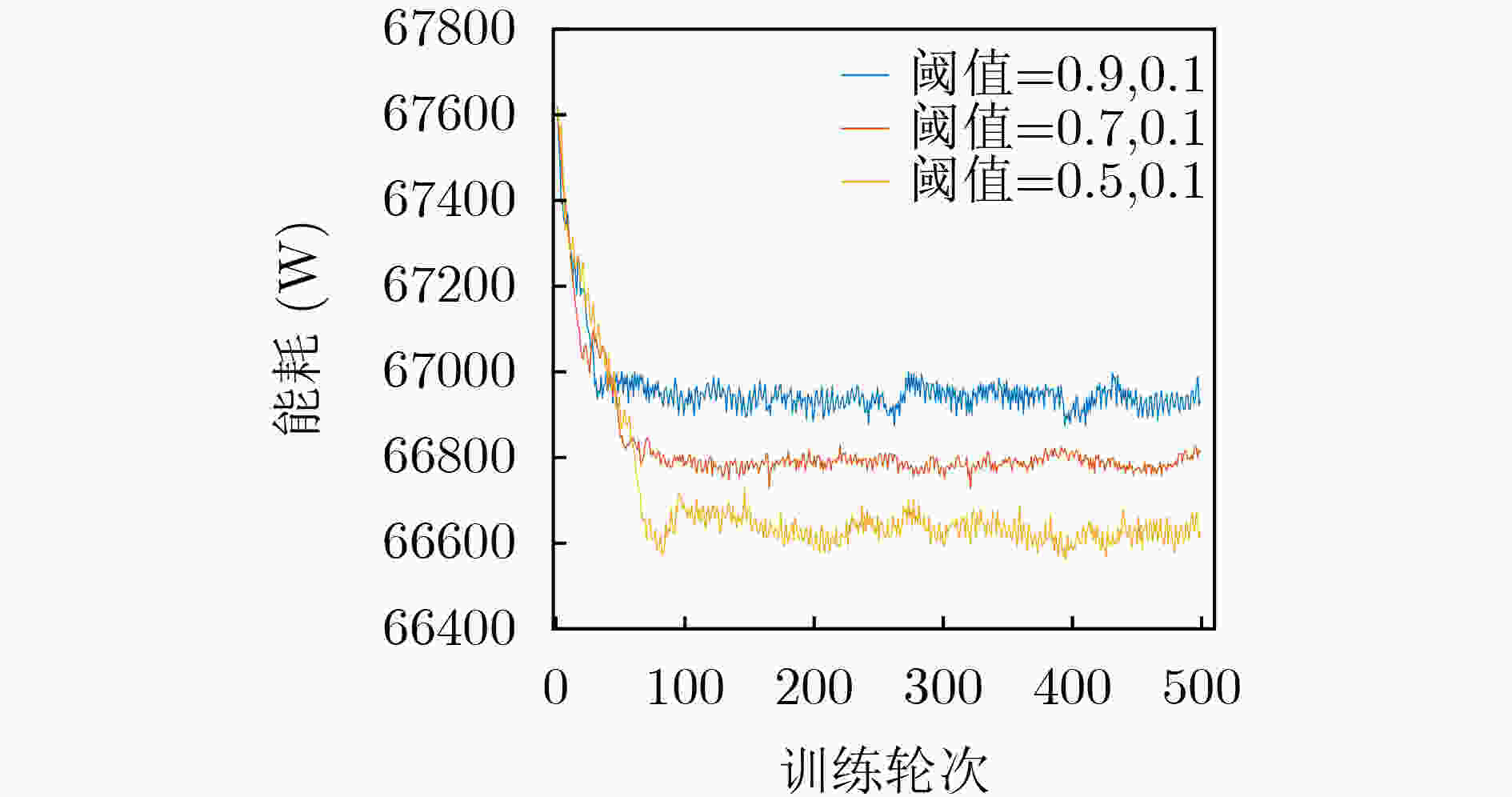

图 4 不同CPU阈值的网络系统能耗

下载: 全尺寸图片幻灯片

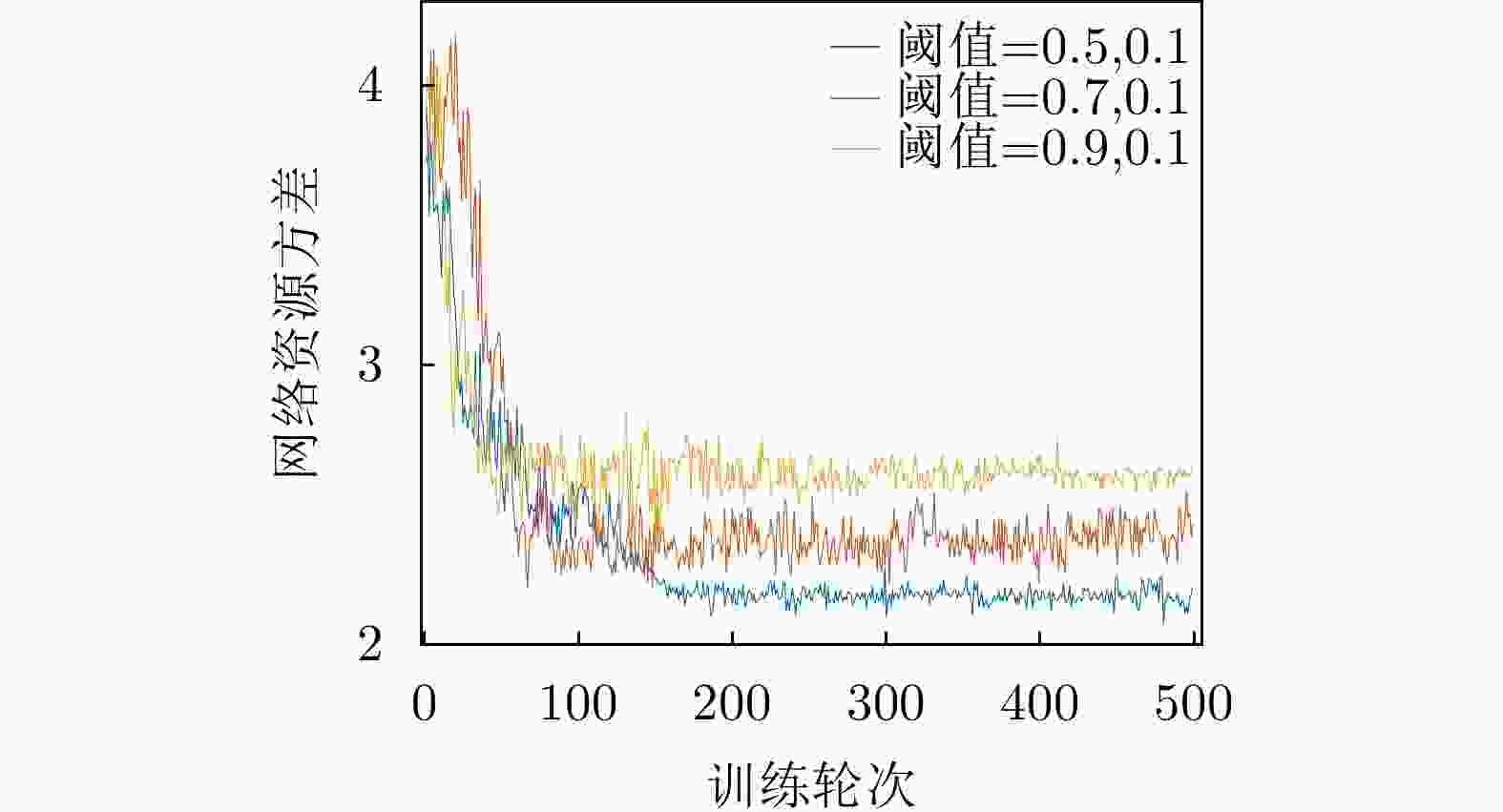

图 5 不同CPU阈值的网络资源方差

下载: 全尺寸图片幻灯片

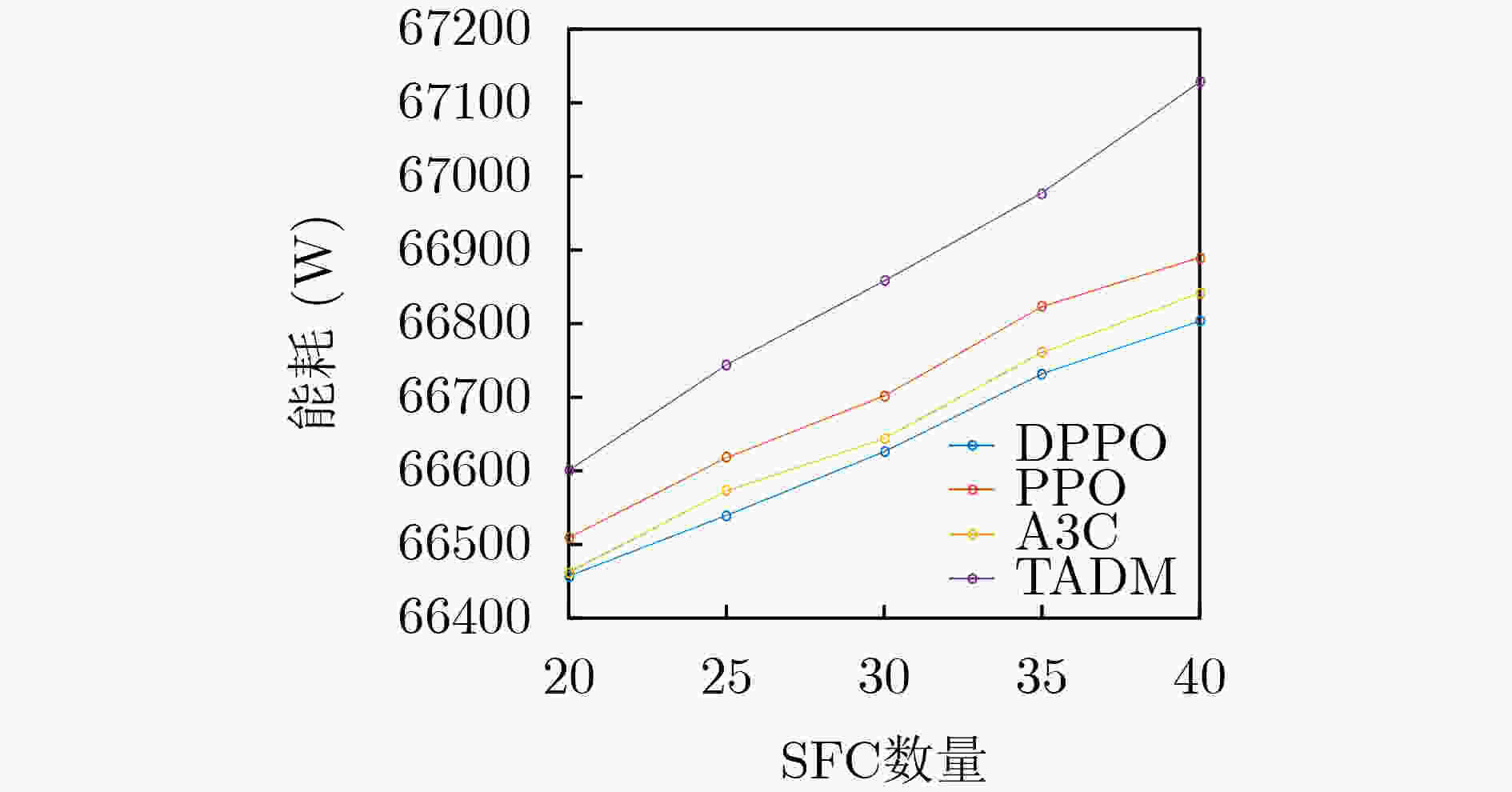

图 6 网络系统能耗对比

下载: 全尺寸图片幻灯片

图 7 网络资源方差对比

下载: 全尺寸图片幻灯片

表 1 基于DDPO的VNF迁移算法

输入：VNF的资源需求预测结果 ${r_{t + 1}} = \{ r_{t + 1}^{\text{C}},r_{t + 1}^{\text{M}},r_{t + 1}^{\text{B}}\}$ ，物理网络图 ${G^{\text{P}}} = ({N^{\text{P}}},{L^{\text{P}}})$ ，SFC网络图 $G_i^{\text{V}} = (N_i^{\text{V}},L_i^{\text{V}})$
输出：VNF映射策略 $\pi$
(1) 根据VNF的资源需求预测结果，计算各个物理节点的资源利用率 ${\eta _{\rm{R}}}$
(2) if ${\eta _{\rm{R} } } \le \eta _{\rm{R} }^{\text{d} }\& \& {\eta _{\rm{R} } } \ge \eta _{\rm{R}}^{ {\text{up} } }$ then
(3) 初始化全局参数 $({\theta _{\text{c}}},{\theta _{\text{a}}})$ ，局部参数 $(\theta _{\text{c}}^n,\theta _{\text{a}}^n)$ ，全局PPO网络最大迭代次数 ${K_{{\text{max}}}}$ ，局部PPO网络最大迭代次数 $M$ ，线程数 $N$ ，学习率　　 $({\varepsilon _{\text{c}}},{\varepsilon _{\text{a}}})$
(4) 　for ${\text{thread} } = 1, 2,\cdots ,N$ do
(5) 　　for ${\text{episode} } = 1,2, \cdots ,M$ do
(6) 　　　从本地Actor网络的策略 $\pi ({s_n}(t)\left\| {{a_n}(t),\theta _{\text{a}}^n} \right.)$ 中选取映射动作 $a(t)$
(7) 　　　if ${\eta _1} \in (\eta _1^{\text{d}},\eta _1^{{\text{up}}})\& \& {\eta _2} \in (\eta _2^{\text{d}},\eta _2^{{\text{up}}})\& \& {\eta _3} \in (\eta _3^{\text{d}},\eta _3^{{\text{up}}})\& \& T \le {T_{{\text{tot}}}}$ then
(8) 　　　　执行动作 $a(t)$ ，根据式(16)得到瞬时奖励 $r(t)$ ，并转移到状态 $s(t + 1)$
(9) 　　　　从本地Actor网络获得优势函数 $A({s_n}(t),{a_n}(t))$
(10) 　　　else
(11) 　　　　式(16)瞬时奖励 $r(t) = - {1 \mathord{\left/ {\vphantom {1 \varepsilon }} \right. } \varepsilon }$ ，从本地 ${\rm{Actor}}$ 网络重新选取动作 $a(t)$
(12) 　　　end if
(13) 　　end for
(14) 　　　根据式(24)更新全局PPO的Critic网络累计梯度 $\Delta {\theta _{\text{c}}}$
(15) 　　　根据式(26)更新全局PPO的Actor网络累计梯度 $\Delta {\theta _{\text{a}}}$
(16) 　　　将 $\Delta {\theta _{\text{c}}}$ 和 $\Delta {\theta _a}$ 推送至全局PPO网络进行异步更新
(17) 　　　 ${\theta _{\text{c}}} \leftarrow {\theta _{\text{c}}} + {\varepsilon _{\text{c}}}\Delta {\theta _{\text{c}}}$ , ${\theta _{\text{a}}} \leftarrow {\theta _{\text{a}}} + {\varepsilon _{\text{a}}}\Delta {\theta _{\text{a}}}$
(18) 　end for
(19) 　　同步全局PPO网络参数至本地PPO网络参数： $\theta _{\text{c}}^{n'} = {\theta _{\text{c}}}$ , $\theta {_{\text{a}}^{n'}} = \theta _{\text{a}}^{}$
(20) 　　继续执行步骤4—步骤17
(21) 　until $K \ge {K_{{\text{max}}}}$
(22) end if

下载: 导出CSV

表 2 仿真参数

仿真参数	描述	取值
${N^{\text{P}}}$	物理节点数量	22
$P_n^{\text{b}}$	物理节点待机能耗	Uniform[100,150](W)
$P_n^{{\text{cpu}}}$	物理节点CPU满载能耗	Uniform[250,300](W)
$P_m^{\text{s}}$	物理节点状态切换能耗	Uniform[15,25](W)
${C_n}$	物理节点CPU资源容量	Uniform[200,300](units)
${M_n}$	物理节点存储资源容量	Uniform[300,400](Mbps)
${B_{nm}}$	物理链路 ${l_{nm}}$ 带宽容量	Uniform[80,100](Mbps)
$F$	SFC集合数量	30个
$N_i^{\text{V}}$	VNF集合长度	Uniform[3,5](个)
${T_{{\text{tot}}}}$	SFC端到端时延限制	30 ms

下载: 导出CSV

参考文献(19)

[1]	LI Defang, HONG Peilin, XUE Kaiping, et al. Availability aware VNF deployment in datacenter through shared redundancy and multi-tenancy[J]. IEEE Transactions on Network and Service Management, 2019, 16(4): 1651–1664. doi: 10.1109/TNSM.2019.2936505
[2]	QU Kaige, ZHUANG Weihua, YE Qiang, et al. Dynamic flow migration for embedded services in SDN/NFV-enabled 5G core networks[J]. IEEE Transactions on Communications, 2020, 68(4): 2394–2408. doi: 10.1109/TCOMM.2020.2968907
[3]	LIU Yicen, LU Hao, LI Xi, et al. An approach for service function chain reconfiguration in network function virtualization architectures[J]. IEEE Access, 2019, 7: 147224–147237. doi: 10.1109/ACCESS.2019.2946648
[4]	TANG Lun, HE Xiaoyu, ZHAO Peipei, et al. Virtual network function migration based on dynamic resource requirements prediction[J]. IEEE Access, 2019, 7: 112348–112362. doi: 10.1109/ACCESS.2019.2935014
[5]	LIU Yicen, LU Yu, LI Xi, et al. On dynamic service function chain reconfiguration in IoT networks[J]. IEEE Internet of Things Journal, 2020, 7(11): 10969–10984. doi: 10.1109/JIOT.2020.2991753
[6]	HUANG Yuzhe, XU Huahu, GAO Honghao, et al. SSUR: An approach to optimizing virtual machine allocation strategy based on user requirements for cloud data center[J]. IEEE Transactions on Green Communications and Networking, 2021, 5(2): 670–681. doi: 10.1109/TGCN.2021.3067374
[7]	DAYARATHNA M, WEN Yonggang, and FAN Rui. Data center energy consumption modeling: A survey[J]. IEEE Communications Surveys & Tutorials, 2015, 18(1): 732–794. doi: 10.1109/COMST.2015.2481183
[8]	ERAMO V, AMMAR M, and LAVACCA F G. Migration energy aware reconfigurations of virtual network function instances in NFV architectures[J]. IEEE Access, 2017, 5: 4927–4938. doi: 10.1109/ACCESS.2017.2685437
[9]	HAN Zhenhua, TAN Haisheng, WANG Rui, et al. Energy-efficient dynamic virtual machine management in data centers[J]. IEEE/ACM Transactions on Networking, 2019, 27(1): 344–360. doi: 10.1109/TNET.2019.2891787
[10]	ZHANG Zhongbao, CAO Huafeng, SU Sen, et al. Energy aware virtual network migration[J]. IEEE Transactions on Cloud Computing, 2022, 10(2): 1173–1189. doi: 10.1109/TCC.2020.2976966.
[11]	GUO Zehua, XU Yang, LIU Yafeng, et al. AggreFlow: Achieving power efficiency, load balancing, and quality of service in data center networks[J]. IEEE/ACM Transactions on Networking, 2020, 29(1): 17–33. doi: 10.1109/TNET.2020.3026015
[12]	LI Biyi, CHENG Bo, LIU Xuan, et al. Joint resource optimization and delay-aware virtual network function migration in data center networks[J]. IEEE Transactions on Network and Service Management, 2021, 18(3): 2960–2974. doi: 10.1109/TNSM.2021.3067883
[13]	ZHANG Kunpeng, WU Lan, ZHU Zhaoju, et al. A multitask learning model for traffic flow and speed forecasting[J]. IEEE Access, 2020, 8: 80707–80715. doi: 10.1109/ACCESS.2020.2990958
[14]	LIU Yi, JAMES J J Q, KANG Jiawen, et al. Privacy-preserving traffic flow prediction: A federated learning approach[J]. IEEE Internet of Things Journal, 2020, 7(8): 7751–7763. doi: 10.1109/JIOT.2020.2991401
[15]	ZHANG Zhenyu, LUO Xiangfeng, LIU Tong, et al. Proximal policy optimization with mixed distributed training[C]. The 2019 IEEE 31st International Conference on Tools with Artificial Intelligence (ICTAI), Portland, USA, 2019: 1452–1456.
[16]	SCHULMAN J, WOLSKI F, DHARIWAL P, et al. Proximal policy optimization algorithms[J]. arXiv preprint arXiv: 1707.06347, 2017.
[17]	BEN YAHIA I G, BENDRISS J, SAMBA A, et al. CogNitive 5G networks: Comprehensive operator use cases with machine learning for management operations[C]. 2017 20th Conference on Innovations in Clouds, Internet and Networks (ICIN), Paris, France, 2017: 252–259.
[18]	BENDRISS J, BEN YAHIA I G, and ZEGHLACHE D. Forecasting and anticipating SLO breaches in programmable networks[C]. 2017 20th Conference on Innovations in Clouds, Internet and Networks (ICIN), Paris, France, 2017: 127–134.
[19]	BENDRISS J. Cognitive management of SLA in software-based networks[D]. [Ph. D. dissertation], Institut National des Télécommunications, 2018.
