基于多智能体强化学习的混合博弈模式下多无人机辅助通信系统设计

吴官翰; 贾维敏; 赵建伟; 高飞飞; 姚敏立

doi:10.11999/JEIT210662

基于多智能体强化学习的混合博弈模式下多无人机辅助通信系统设计

doi: 10.11999/JEIT210662

吴官翰^{1, 2},
贾维敏¹,
赵建伟^1, ,,
高飞飞³,
姚敏立¹

1.
火箭军工程大学西安 710038
2.
中国酒泉卫星发射中心酒泉 735000
3.
清华大学北京 100084

基金项目: 国家自然科学基金(62001500)

详细信息

作者简介:
吴官翰：男，1993年生，助理工程师，研究方向为无人机通信组网和深度强化学习

贾维敏：女，1971年生，教授，研究方向为遥测技术

赵建伟：男，1989年生，讲师，研究方向为无人机蜂群通信

高飞飞：男，1980年生，副教授，研究方向为通信原理和智能信号处理

姚敏立：男，1966年生，教授，研究方向为卫星动中通技术

通讯作者:
赵建伟　zhaojianweiep@163.com

中图分类号: TN911
计量
- 文章访问数: 1704
- HTML全文浏览量: 1058
- PDF下载量: 307
- 被引次数: 0
出版历程
- 收稿日期: 2021-07-02
- 修回日期: 2021-09-06
- 网络出版日期: 2021-09-15
- 刊出日期: 2022-03-28

MARL-based Design of Multi-Unmanned Aerial Vehicle Assisted Communication System with Hybrid Gaming Mode

1.
Rocket Force University of Engineering, Xi’an 710038, China
2.
Jiuquan Satellite Launch Center, Jiuquan 735000, China
3.
Tsinghua University, Beijing 100084, China

Funds: The National Natural Science Foundation of China (62001500)

摘要

摘要: 空天地一体化通信作为未来6G的发展方向，很好地弥补了当前无线通信覆盖不足的弊端。该文提出一种基于多智能体强化学习(MARL)的多无人机(Multi-UAV)辅助通信算法，在用户与无人机(UAVs)构成的混合博弈模式下求解纳什均衡近似解，解决了动态环境下UAVs轨迹设计、多维资源调度以及用户接入策略联合优化问题。结合马尔可夫博弈概念建模该连续决策过程，以集中训练分布式执行(CTDE)机制，将近端策略优化(PPO)算法扩展到多智能体领域。针对离散与连续共存的动作空间设计了两种策略输出模式，并且结合Beta策略改进实现，最后通过仿真实验验证了算法的有效性。
- 多无人机辅助通信 /
- 多智能体强化学习 /
- 混合博弈 /
- 纳什均衡
Abstract: As the future development direction of 6G, integrated space-air-ground communication well compensates for the drawback of insufficient current wireless communication coverage. In this paper, a Multi-Unmanned Aerial Vehicle (Multi-UAV) assisted communication algorithm with Multi-Agent Reinforcement Learning (MARL) is proposed to solve the Nash equilibrium approximate solution in a hybrid game model composed of users and UAVs and solve the joint optimization problem of UAV trajectory design, multidimensional resource scheduling and user access strategy in dynamic environment. The Markov game concept is exploited to model this continuous decision process with a Centralized Training Distributed Execution (CTDE) mechanism, and the Proximal Policy Optimization (PPO) algorithm is extended to the multi-agent domain. Two policy output modes are designed for the action space, where both the discrete and continuous actions coexist. Then, the implementation is improved by combining Beta policy. Finally, the effectiveness of the algorithm is verified by simulation experiments.
- Multi-Unmanned Aerial Vehicle (Multi-UAV) assisted communications /
- Multi-Agent Reinforcement Learning (MARL) /
- Hybrid game /
- Nash equilibrium

HTML全文

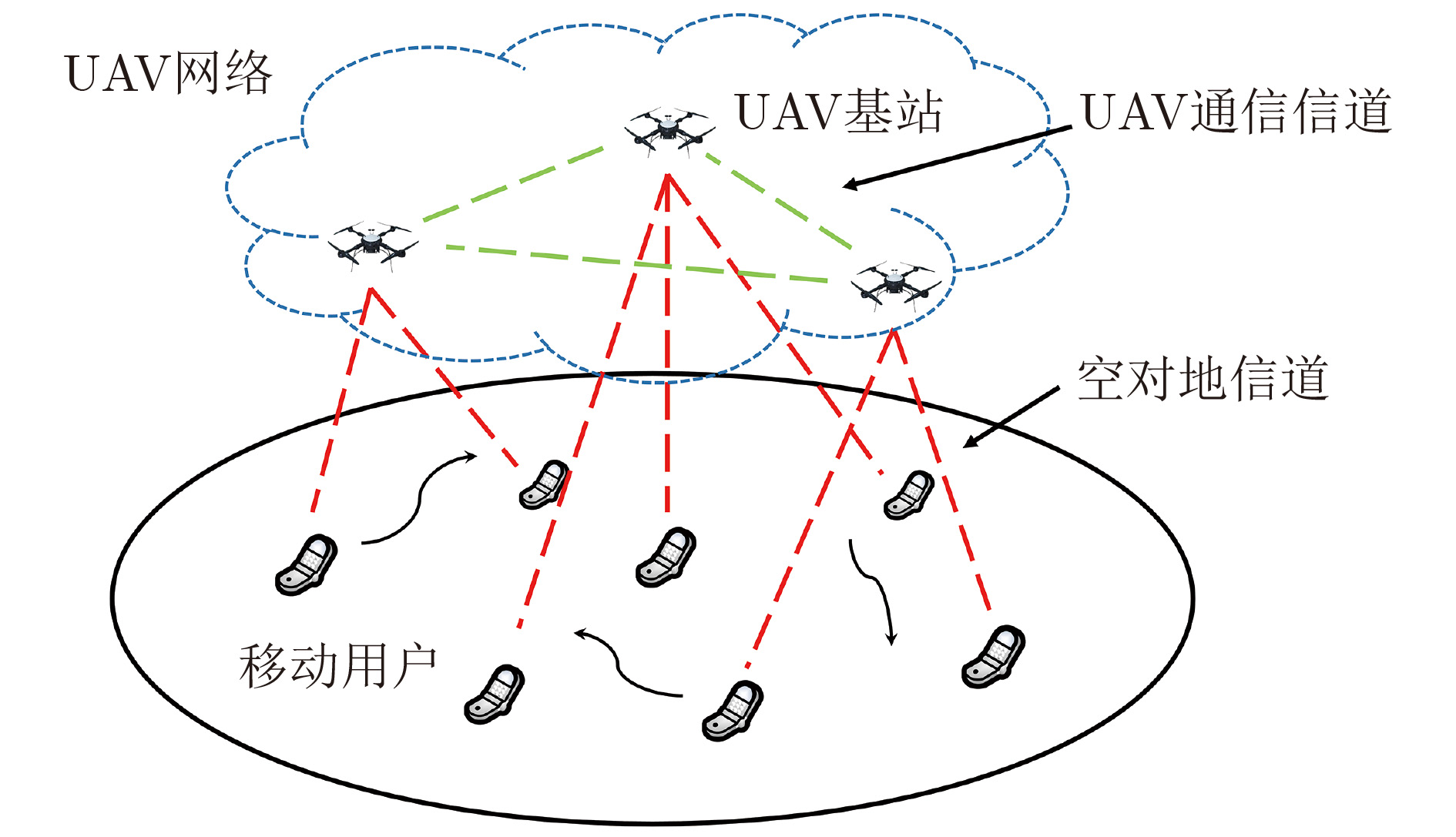

图 1 多无人机协作辅助地面通信场景

下载: 全尺寸图片幻灯片

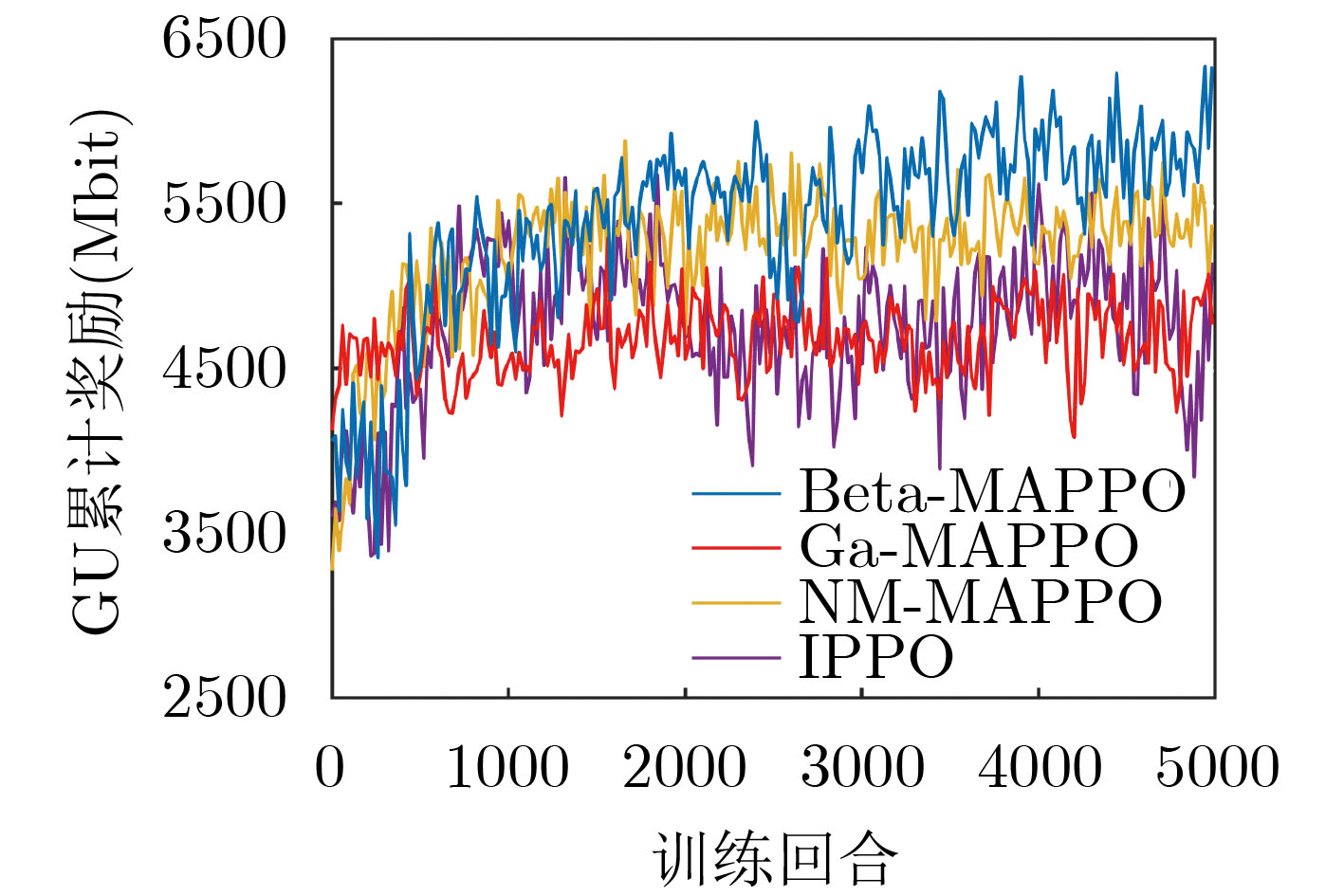

图 2 GU累计奖励变化对比

下载: 全尺寸图片幻灯片

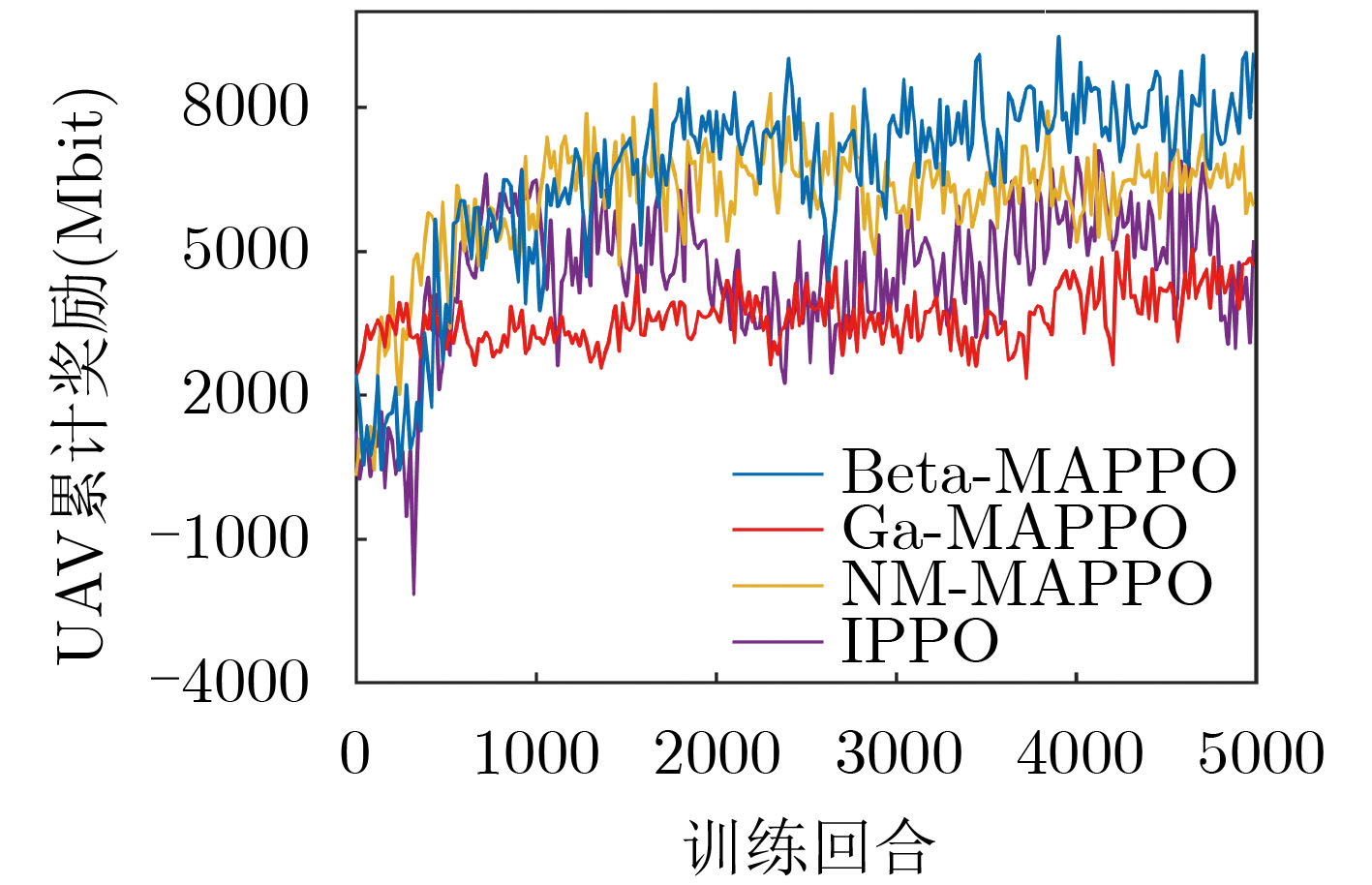

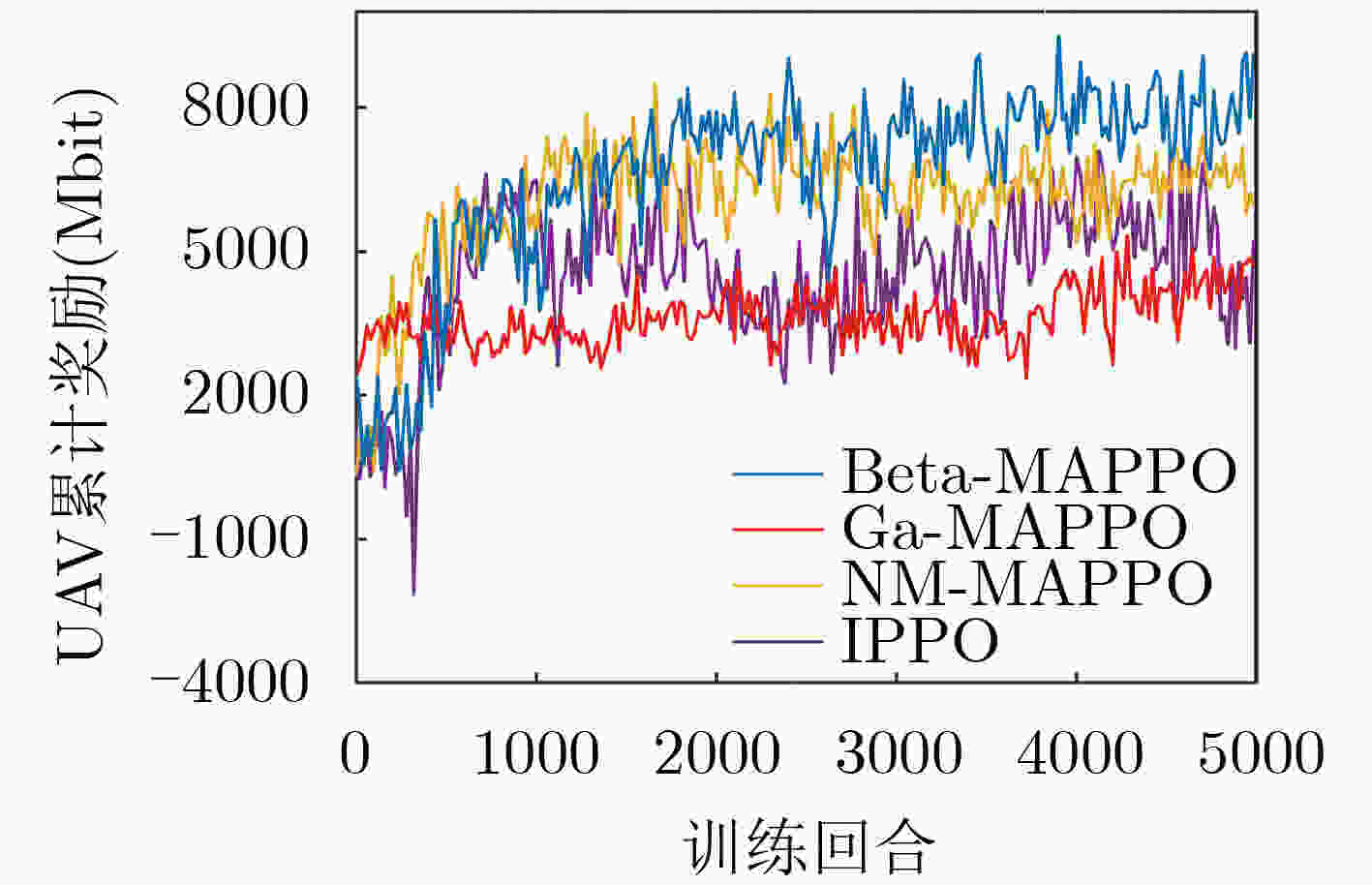

图 3 UAV累计奖励变化对比

下载: 全尺寸图片幻灯片

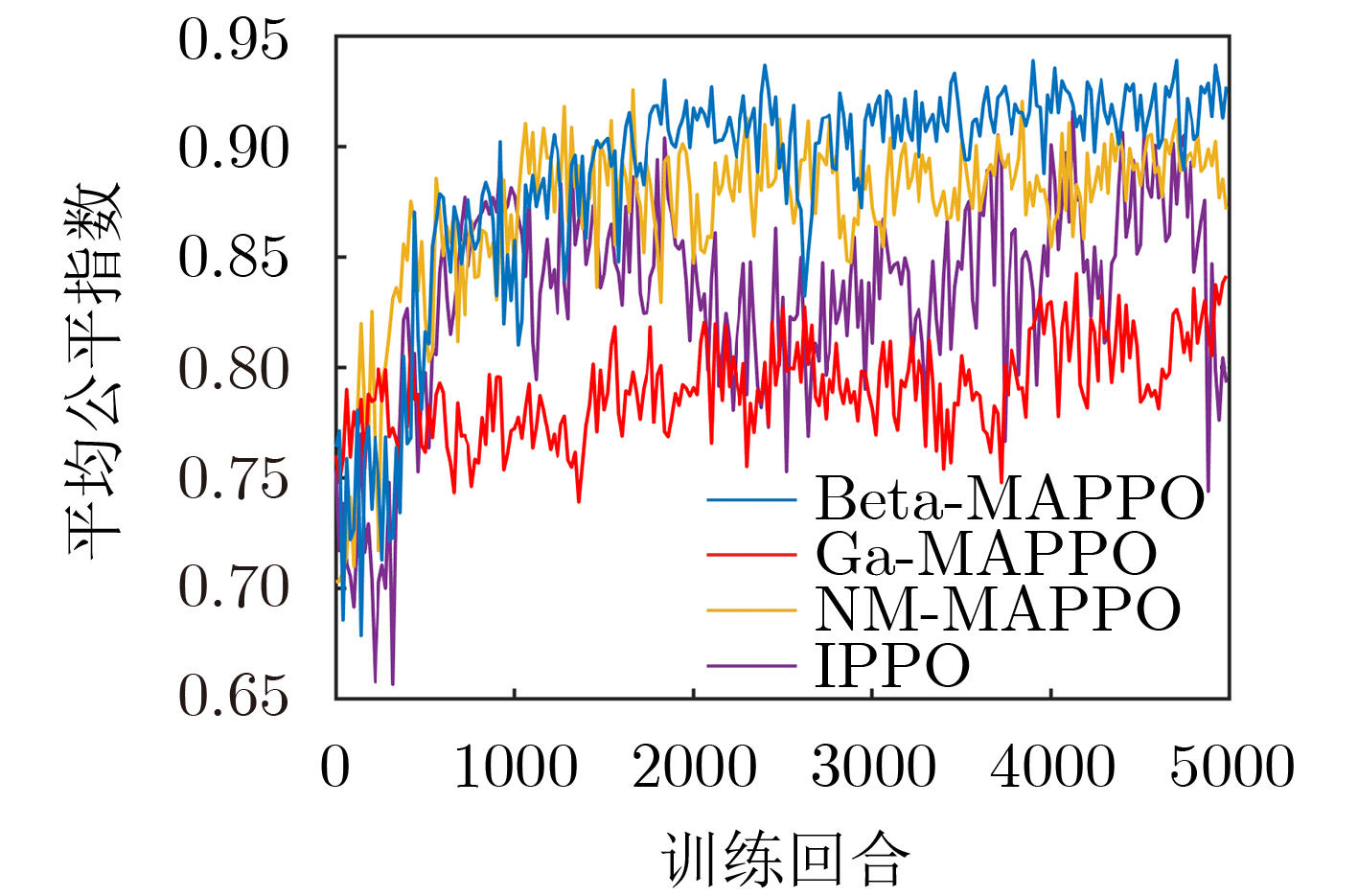

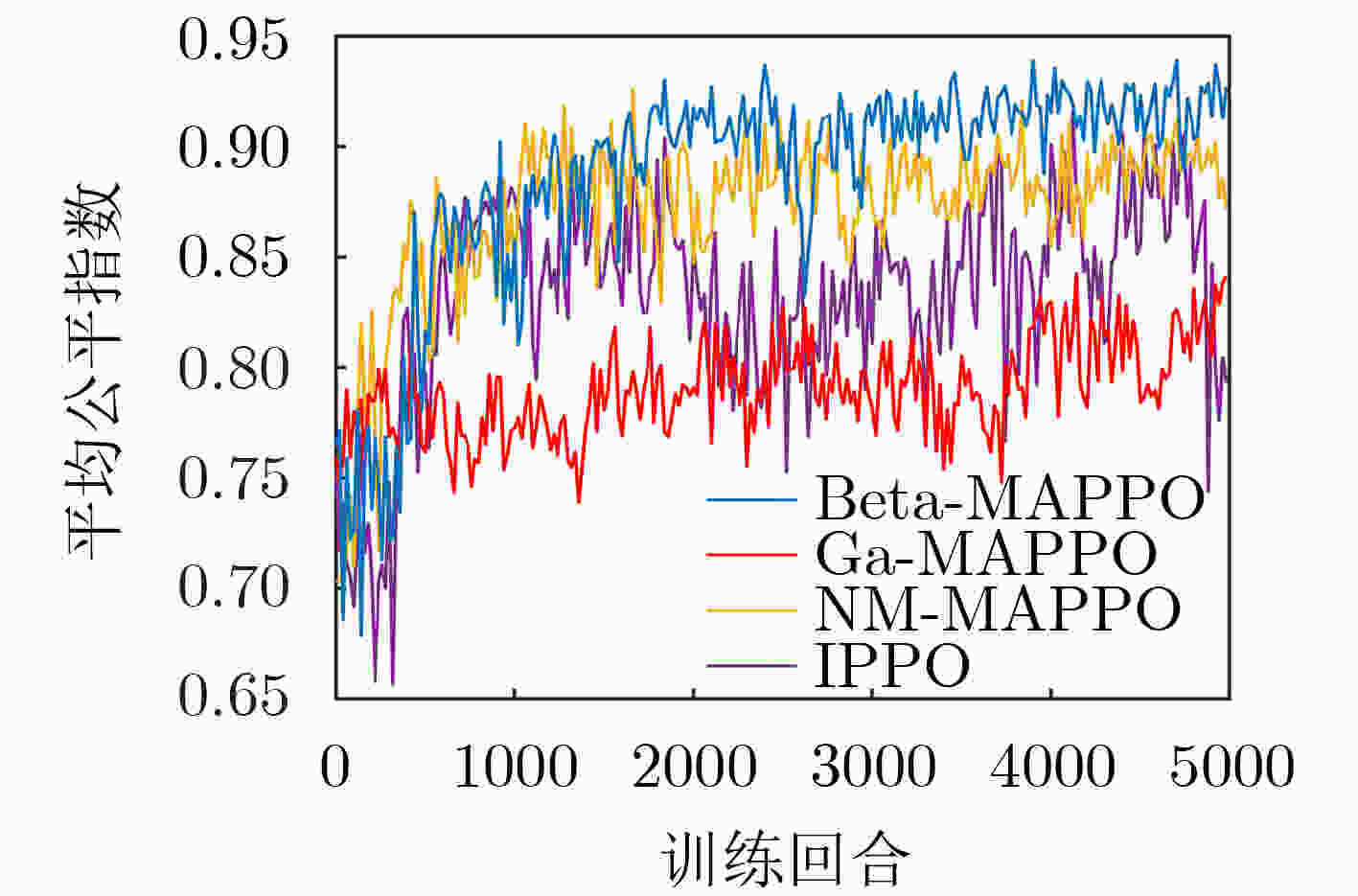

图 4 平均公平指数变化对比

下载: 全尺寸图片幻灯片

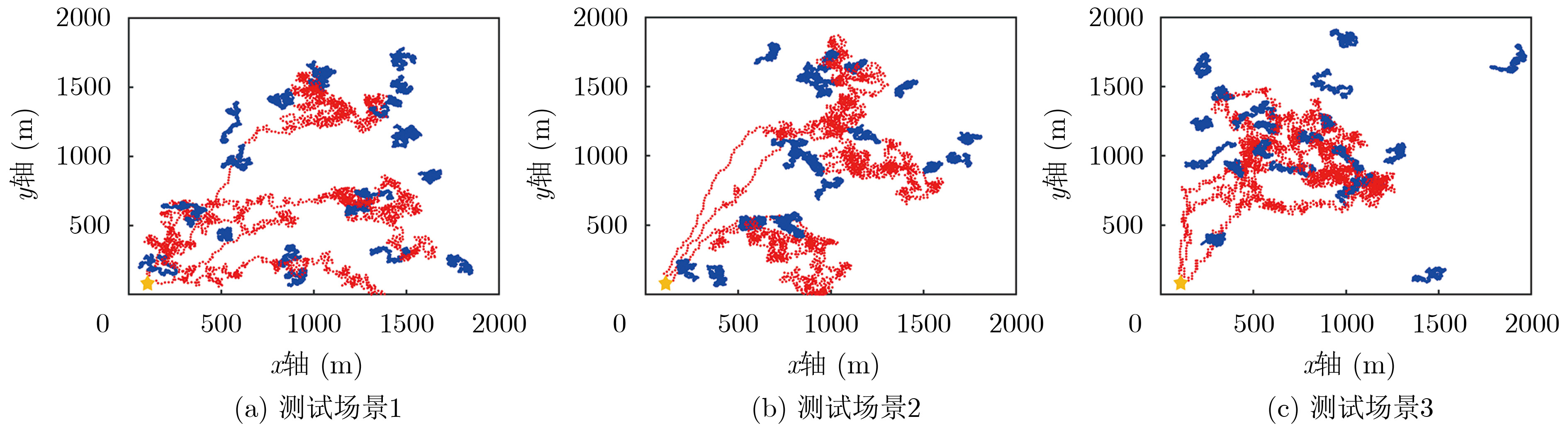

图 5 UAV与GU运动轨迹

下载: 全尺寸图片幻灯片

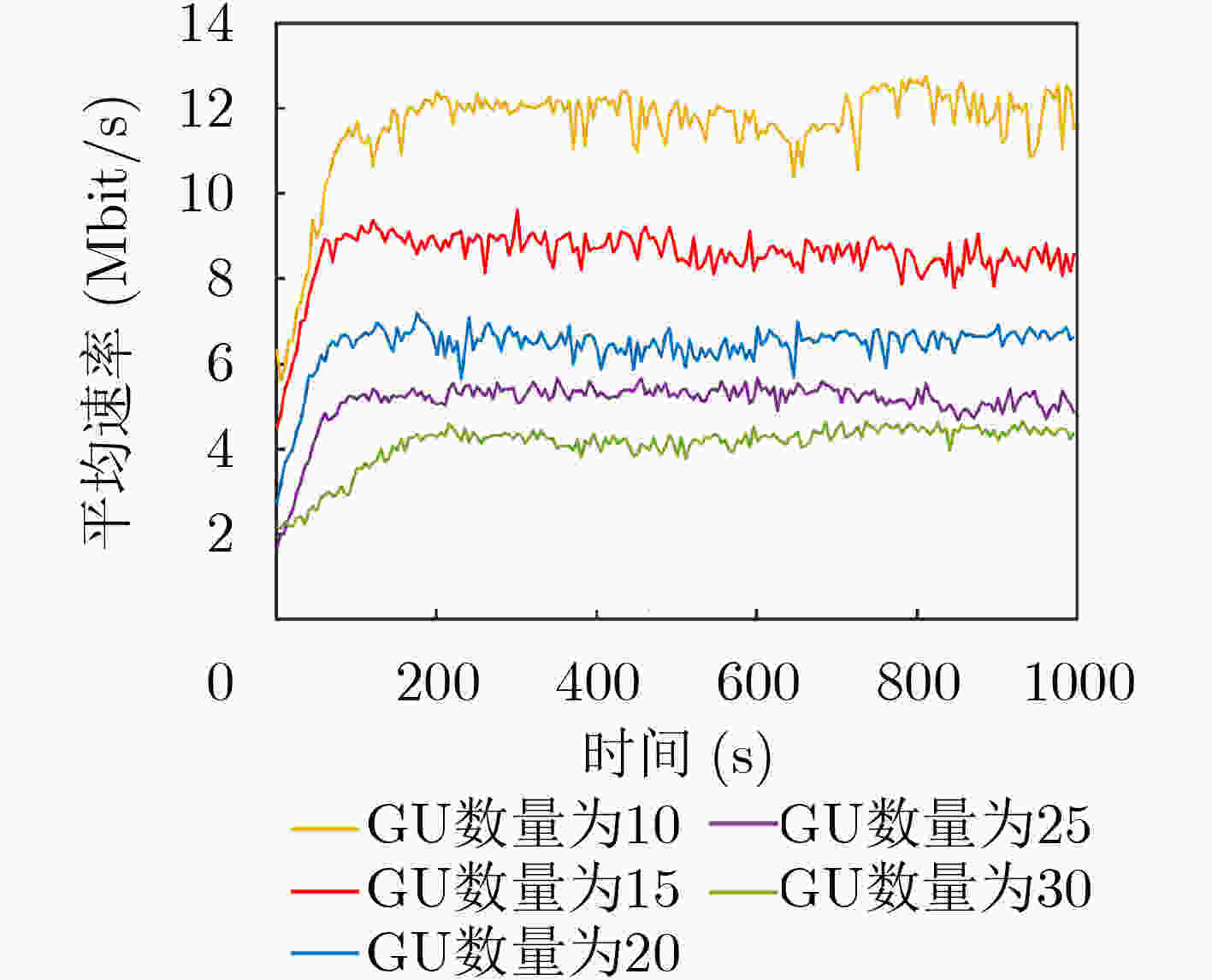

图 6 在不同GU场景下服务时段内GU平均速率变化情况

下载: 全尺寸图片幻灯片

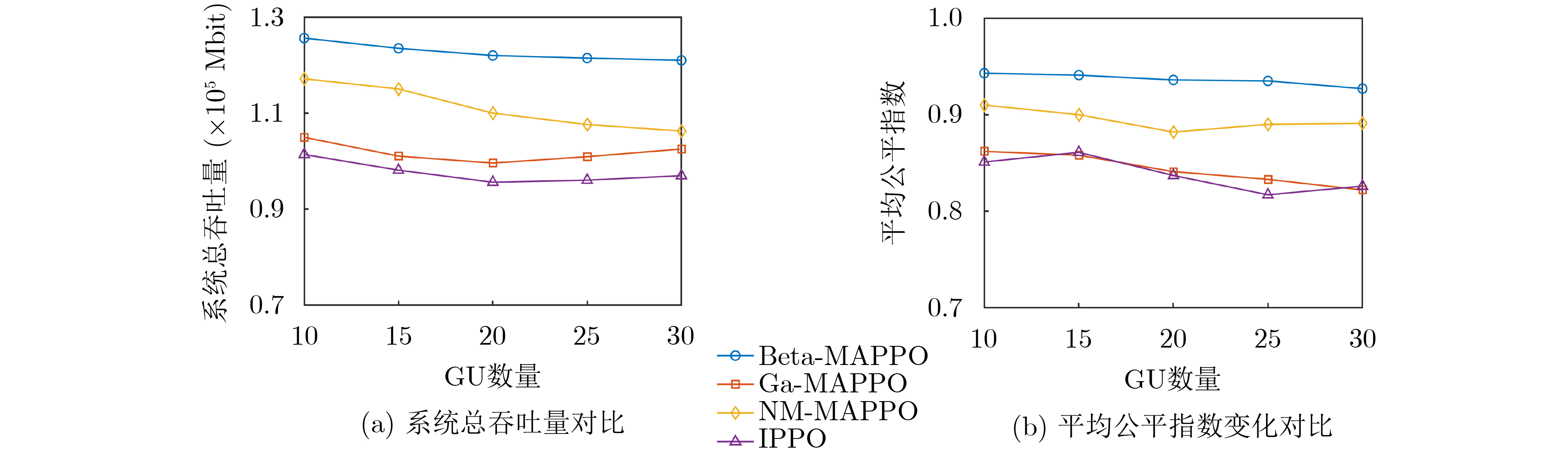

图 7 不同数量GU场景下系统总吞吐量及平均公平指数对比

下载: 全尺寸图片幻灯片

表 1 多无人机辅助通信的Beta-MAPPO算法

输入：初始化各类神经网络参数，经验缓存区$\mathcal{B}$，以及其余相关参数、超参数
输出：训练完善的GU, UAV策略网络
(1)　　for episode do
(2)　　　　初始化经验缓存$\mathcal{B}$以及所有GU与UAV位置
(3)　　　　for step t do
(4)　　　　所有GU根据当前状态$ \boldsymbol{o}_t^n $选择UAV接入
(5)　　　　所有UAV根据当前状态$\boldsymbol{o}_t^m$选择飞行方向和资源分配方案
(6)　　　　各自得到奖励反馈$r_t^i$，储存经验元组$(\boldsymbol{o}_t^i,\;\boldsymbol{a}_t^i,\;\boldsymbol{s}_t^i,\;r_t^i,{\rm{pr}}_t^i)$到$\mathcal{B}$，然后转移到下一个状态${\boldsymbol{s}_{t + 1}}$
(7)　　　　if buffer $\mathcal{B}$ is full then
(8)　　　　　　for all agent i do
(9)　　　　　　　　用GAE方式计算优势函数$ \tilde A_t^i $与目标状态值函数${V_{\rm target}}(s_t^i)$
(10)　　　　　　　　for update epoch ${n_r}$ do
(11)　　　　　　　　　　从$\mathcal{B}$中采样数据依据式(19)更新Actor网络参数$\theta $或$\phi $
(12)　　　　　　　　　　依据式(18)更新Critic网络参数${\omega _1}$或${\omega _2}$
(13)　　　　　　　　end for
(14)　　　　　　　end for
(15)　　　　　　清空经验缓存区$\mathcal{B}$
(16)　　　　　　end if
(17)　　　　　　end for
(18)　　　　end for

下载: 导出CSV

表 2 算法相关参数

参数名称	值
裁剪参数$\varepsilon $	0.2
熵奖励系数$\psi $	0.01
GAE参数$\lambda $	0.97
折扣因子$\gamma $	0.998
数据复用次数${n_r}$	5
优化器	Adam
GU激活函数	Tanh, Softmax
UAV激活函数	Tanh, Softplus
Mini_batch数量	4
缓存区大小	4096
学习率	3e-4
奖励系数$ {r_c} $	1
奖励系数$ {r_d} $	2
考虑前w个时刻的UAV负载	3
指数参数${\kappa _r}$	5
UAV边界惩罚函数参数$ {r_b} $	20
UAV边界惩罚函数参数${\kappa _b}$	8e-2

下载: 导出CSV
