基于相位补偿的非理想无线轨道角动量复用通信系统研究

王洋 修艳磊 胡韬 施盼盼 廖希

王洋, 修艳磊, 胡韬, 施盼盼, 廖希. 基于相位补偿的非理想无线轨道角动量复用通信系统研究[J]. 电子与信息学报, 2022, 44(9): 3212-3219. doi: 10.11999/JEIT210626
引用本文: 王洋, 修艳磊, 胡韬, 施盼盼, 廖希. 基于相位补偿的非理想无线轨道角动量复用通信系统研究[J]. 电子与信息学报, 2022, 44(9): 3212-3219. doi: 10.11999/JEIT210626
WANG Yang, XIU Yanlei, HU Tao, SHI Panpan, LIAO Xi. Research on Non-ideal Wireless Orbital Angular Momentum Multiplexing Communication System Based on Phase Compensation[J]. Journal of Electronics & Information Technology, 2022, 44(9): 3212-3219. doi: 10.11999/JEIT210626
Citation: WANG Yang, XIU Yanlei, HU Tao, SHI Panpan, LIAO Xi. Research on Non-ideal Wireless Orbital Angular Momentum Multiplexing Communication System Based on Phase Compensation[J]. Journal of Electronics & Information Technology, 2022, 44(9): 3212-3219. doi: 10.11999/JEIT210626

基于相位补偿的非理想无线轨道角动量复用通信系统研究

doi: 10.11999/JEIT210626
基金项目: 国家自然科学基金(62171071),重庆市自然科学基金(cstc2019jcyj-msxmX0288),重庆市教委科学技术研究计划项目(KJQN202103102)
详细信息
    作者简介:

    王洋:男,副教授,博士,研究方向为无线轨道角动量通信、信道建模、智能信息调制表面等

    修艳磊:男,硕士生,研究方向为轨道角动量信道建模

    胡韬:男,博士生,研究方向为无线轨道角动量通信

    施盼盼:男,硕士生,研究方向为室内轨道角动量信道建模

    廖希:女,副教授,博士,研究方向为电波传播、射频与微波电子学、信道建模等

    通讯作者:

    修艳磊 s190101014@stu.cqupt.edu.cn

  • 中图分类号: TN928

Research on Non-ideal Wireless Orbital Angular Momentum Multiplexing Communication System Based on Phase Compensation

Funds: The National Natural Science Foundation of China (62171071), The Natural Science Foundation of Chongqing (cstc2019jcyj-msxmX0288), The Science and Technology Research Project of Chongqing Municipal Education Commission (KJQN202103102)
  • 摘要: 电磁波轨道角动量各模态间满足严格正交性,为无线通信系统提供了一个新的复用维度。当前无线轨道角动量通信的研究仍集中于理想视距(LoS)场景,在实际通信场景中,多径效应和非对齐效应等非理想传输情况通常是无法避免的,这会使得无线轨道角动量多入多出(OAM-MIMO)通信系统的性能遭受较大损失。为提升非理想无线OAM-MIMO通信系统性能,该文建模了一种更加符合实际传输场景的毫米波OAM-MIMO 10射线信道模型;然后评估了多径效应和非对齐效应带来的性能损失问题;最后,提出了一种低复杂度的平均相位补偿与迭代功率分配(APC-IPA)联合优化方案来消除非对齐和多径效应造成的相位偏差,提升系统信道容量。仿真结果表明:在同时遭受非对齐和多径效应时,所提APC-IPA联合方案能够有效地提升系统信道容量。

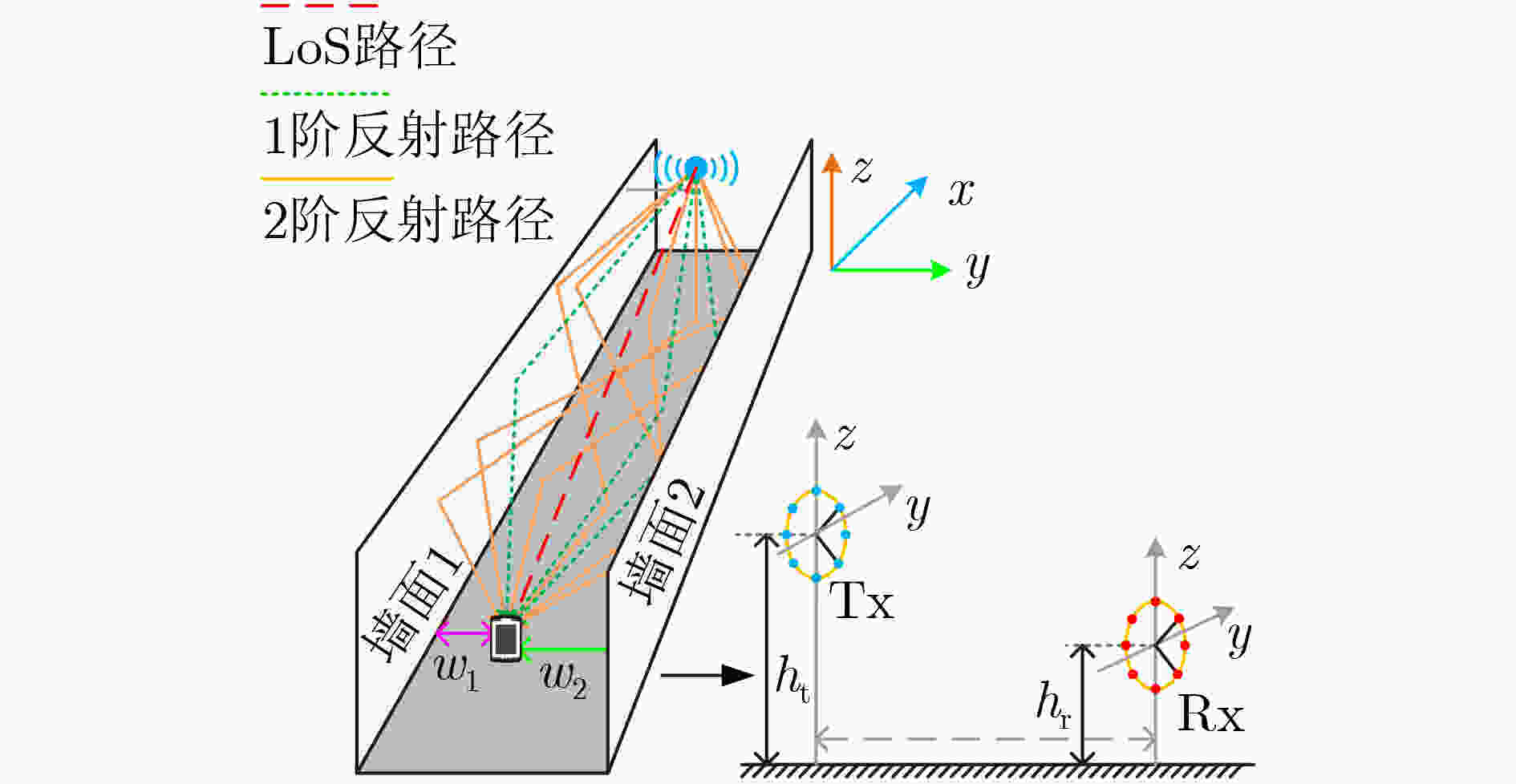

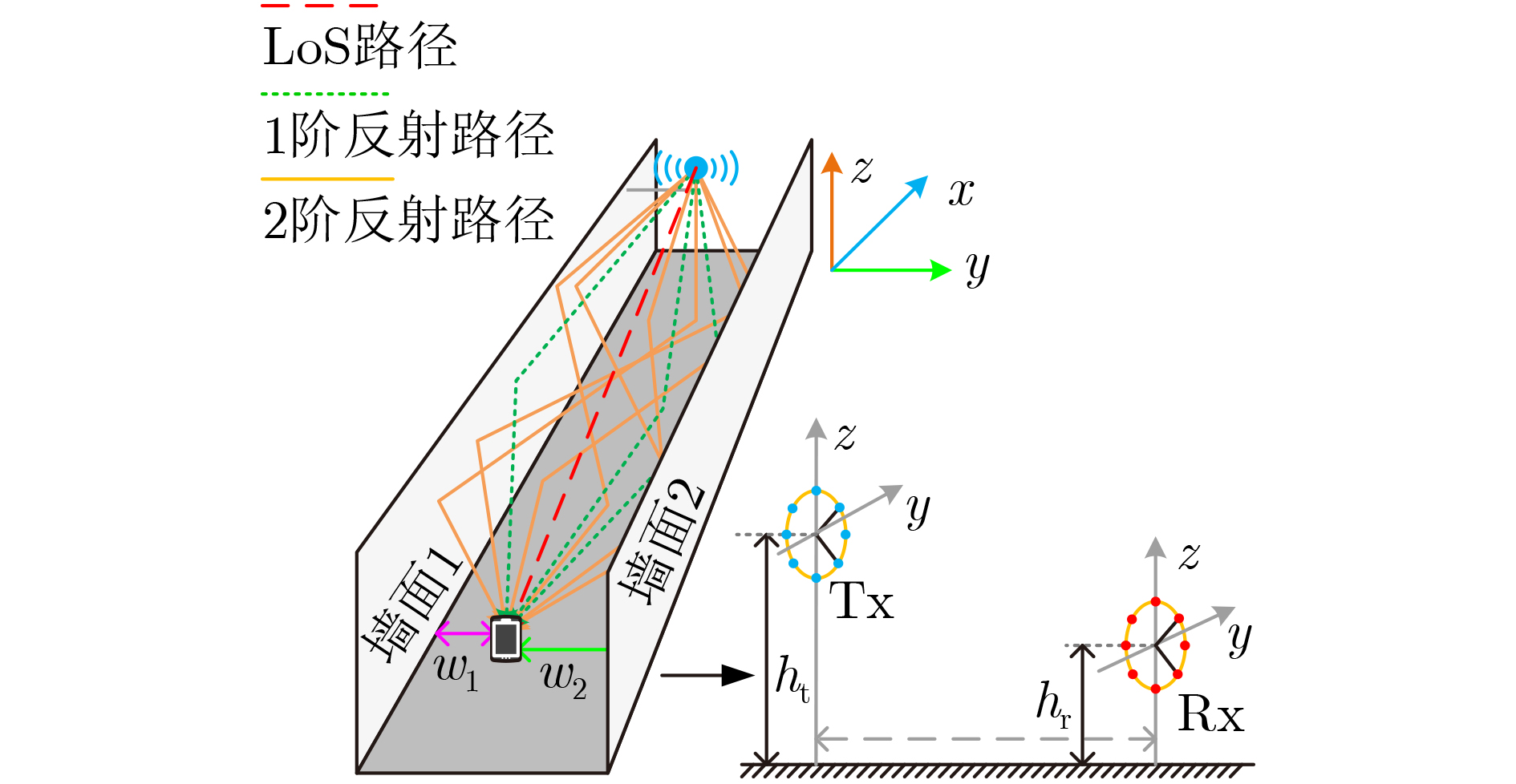

  • 图  1  基于未对齐收发天线阵列的街道峡谷OAM-MIMO 10射线传播模型

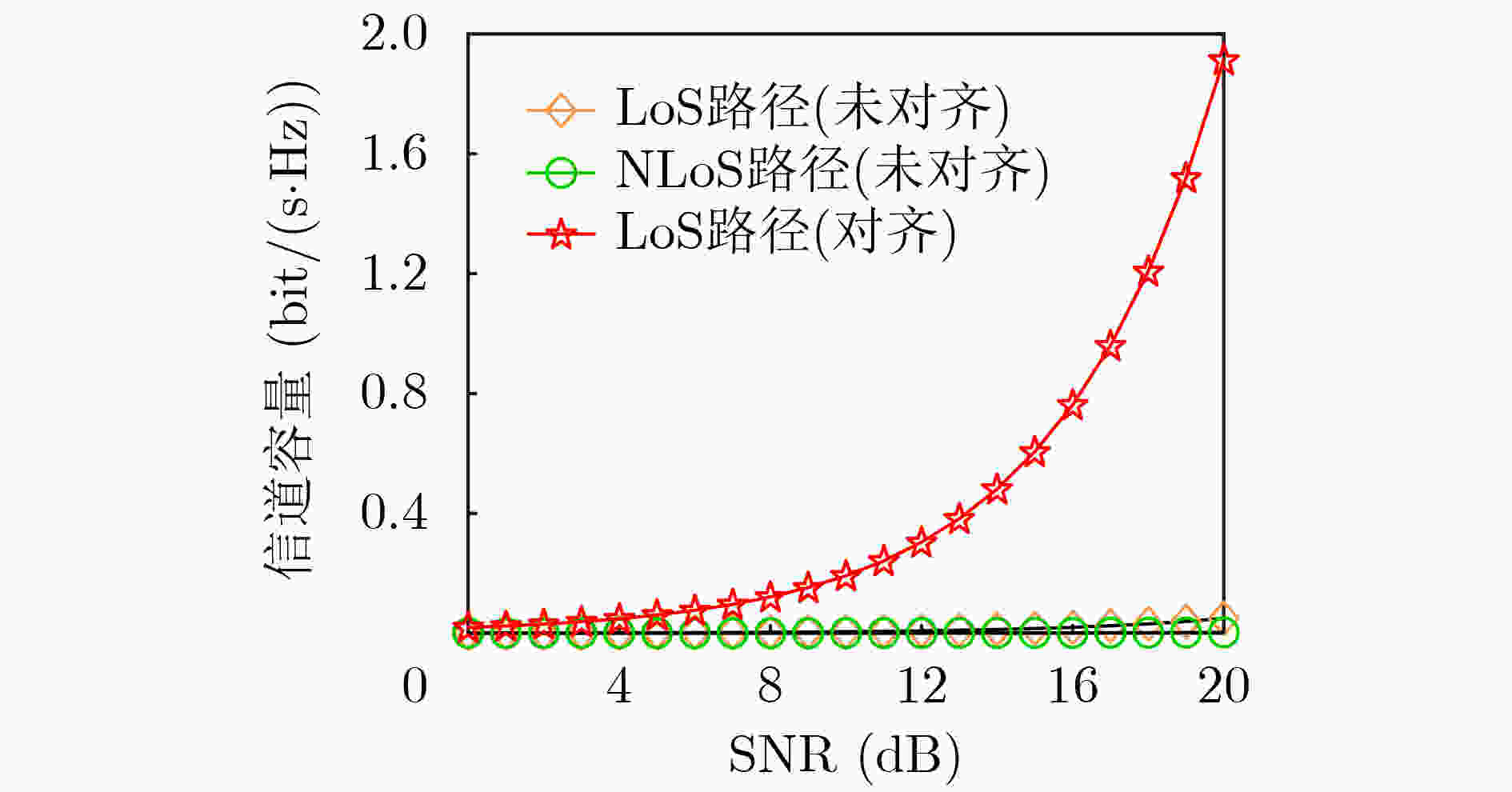

    图  2  不同路径下的信道容量比较

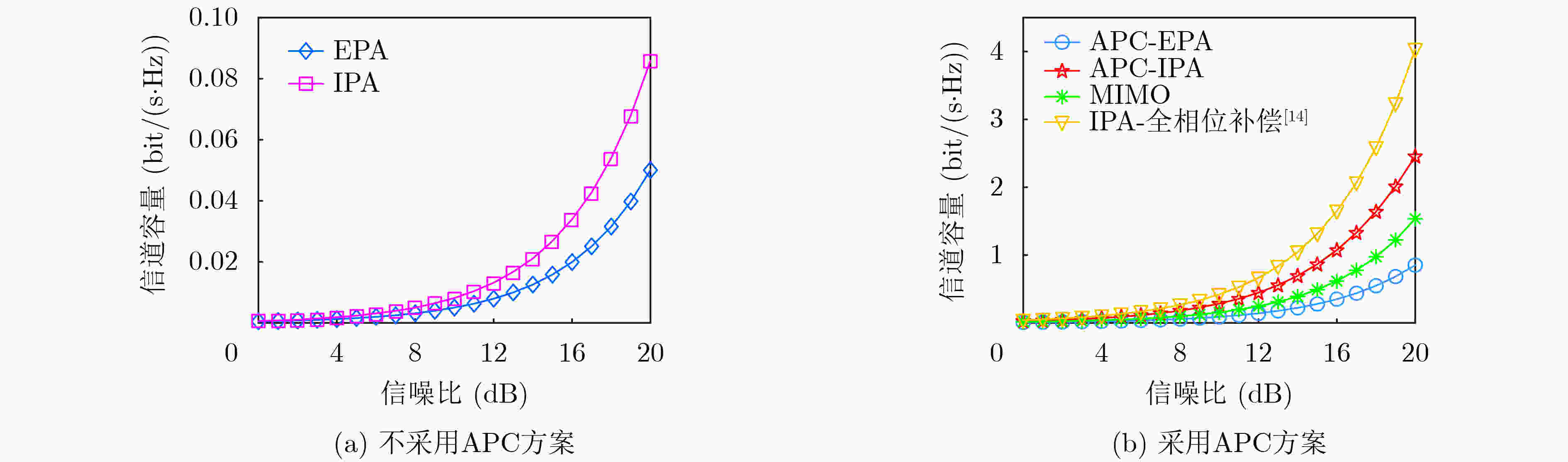

    图  3  不同方案下信道容量随信噪比的变化曲线

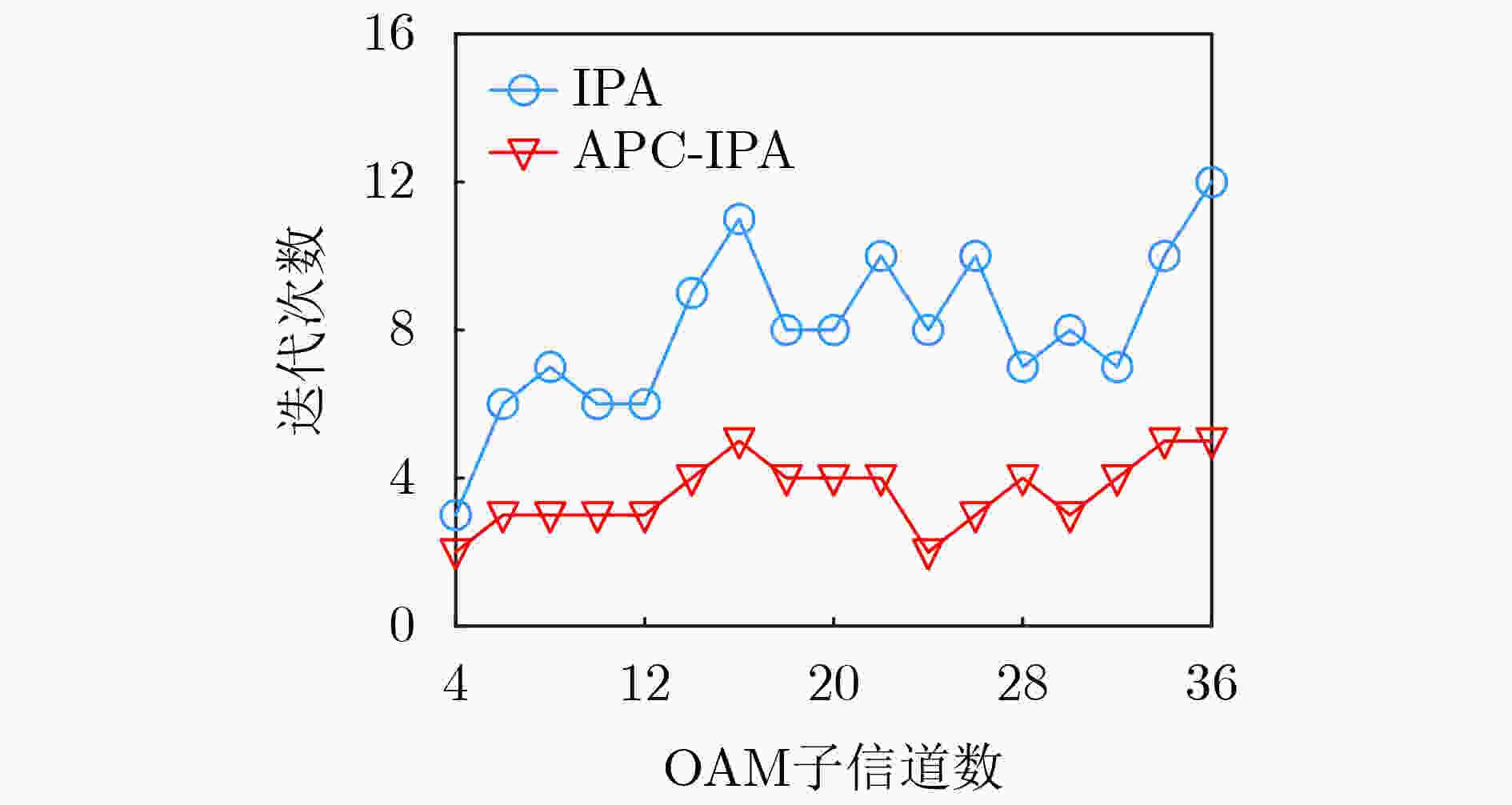

    图  4  算法迭代次数随OAM子信道数的变化曲线

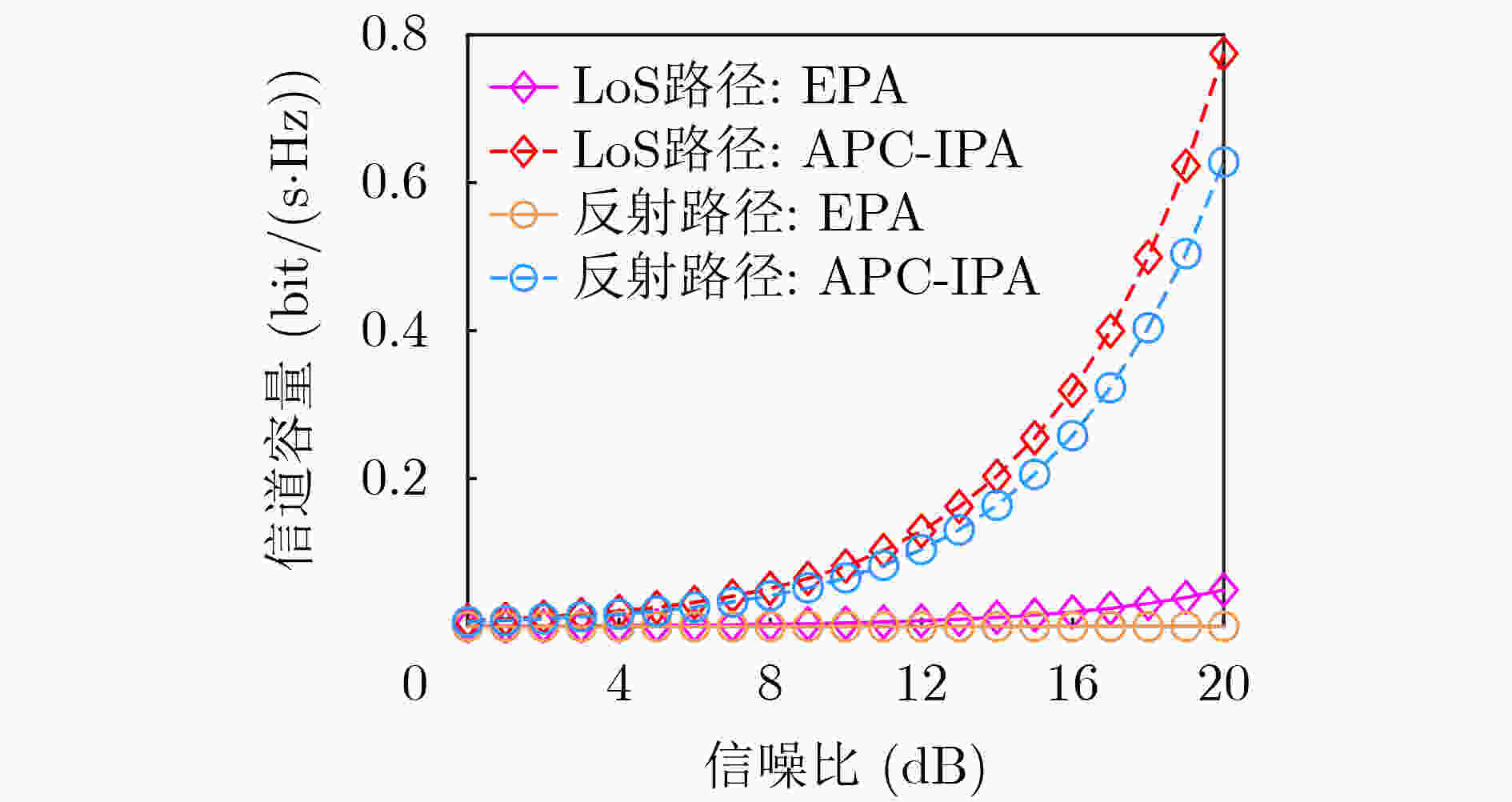

    图  5  LoS路径与反射路径下信道容量随信噪比的变化曲线

    表  1  IPA算法

     初始化:L, $ {P_{\text{t}}} $, $ {{\mathbf{H}}_{{\text{OAM}}}} $, ε, i = 1
     (1) 根据式(30)计算相位补偿矩阵Q
     (2) 根据式(31)更新OAM信道矩阵$ {{\mathbf{H}}_{{\text{OAM}}}} $;
     (3) For l = 1:L
     (4)  计算$ \rho _l^{(0)} = {{{P_{\text{t}}}} \mathord{\left/ {\vphantom {{{P_{\text{t}}}} N}} \right. } N} $,根据式(16)计算$ {\text{SINR}}_l^{(0)} $;
     (5) End for
     (6) 根据式(17)和式(32)计算$ {C^{(0)}} $和$ {u^{(0)}} $;
     (7) For l = 1:L
     (8)  根据式(16)和式(33)更新$ {\text{SINR}}_l^{(i)} $和$ \rho _l^{(i)} $;
     (9) End for
     (10) 根据式(17)更新$ {C^{(i)}} $;
     (11) If $ {C^{(i)}} - {C^{(i - 1)}} > \varepsilon $,then
     (12)  根据式(32)更新$ {u^{(i)}} $;
     (13)  i = i+1,回到步骤(7);
     (14) Else
     (15)  Break;
     (16) End if
     (17) 输出最终的功率分配方案$ \left\{ {{\rho _1},{\rho _2},\cdots,{\rho _L}} \right\} $。
