基于模糊认知图的机器人情感响应模型

黄宏程; 左蓉蓉; 胡敏; 陶洋; 寇兰

doi:10.11999/JEIT210601

基于模糊认知图的机器人情感响应模型

doi: 10.11999/JEIT210601

黄宏程^{1, 2, ,},
左蓉蓉¹,
胡敏¹,
陶洋^{1, 2},
寇兰¹

1.
重庆邮电大学通信与信息工程学院重庆 400065
2.
重庆市通信软件工程技术研究中心重庆 400065

基金项目: 国家自然科学基金(61871062)

详细信息

作者简介:
黄宏程：男，1979年生，副教授，研究方向为认知情感计算、复杂网络与信息传播理论

左蓉蓉：女，1997年生，硕士生，研究方向为人机交互情感计算

胡敏：女，1971年生，教授，研究方向为信息通信网络体系结构、人机交互理论与技术应用

陶洋：男，1964年生，教授，研究方向为人工智能、大数据与计算智能

寇兰：女，1963年生，副教授，研究方向为D2D通信、人机交互理论与技术应用

通讯作者:
黄宏程　huanghc@cqupt.edu.cn

中图分类号: TP242.6
计量
- 文章访问数: 1028
- HTML全文浏览量: 660
- PDF下载量: 107
- 被引次数: 0
出版历程
- 收稿日期: 2021-06-18
- 修回日期: 2021-09-08
- 网络出版日期: 2021-09-25
- 刊出日期: 2022-02-25

Robot Emotion Response Model Based on Fuzzy Cognitive Map

HUANG Hongcheng^{1, 2
, ,},
ZUO Rongrong¹,
HU Min¹,
TAO Yang^{1, 2},
KOU Lan¹

1.
School of Communication and Information Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
2.
Chongqing Engineering Research Center of Communication Software, Chongqing 400065, China

Funds: The National Natural Science Foundation of China (61871062)

摘要

摘要: 针对现有人机交互系统广泛存在机器人情感响应缺乏独特性和主动性、参与人参与度、满意度、体验感不高的问题，该文依据愉悦度-激活度-优势度(PAD)情感空间提出一种基于模糊认知图的机器人情感响应模型。首先，获取参与人交互输入情感值，对其评估得到参与人的情感状态矩阵；其次，考虑到机器人的性格特征和社会角色，利用模糊认知图的时间连续性，建立当前情感状态与上下文长期情感状态之间的关联，从而对机器人情感响应过程进行建模；最后，根据机器人的性格特征和社会角色对情感响应的影响，更新机器人的情感状态矩阵，并将其映射到连续情感空间中，得到机器人的情感响应。模型对比实验结果表明，该文所提模型能够增加机器人情感响应的主动性、独特性并且能够有效提升参与人的满意度，增加参与人体验感。
- 机器人 /
- 人机交互 /
- 愉悦度-激活度-优势度情感空间 /
- 模糊认知图 /
- 情感响应
Abstract: In view of the existing human-computer interaction systems, which generally exist in the robot’s emotional response lack of uniqueness and initiative, and low participation degree, satisfaction degree and experience sense of participants, a model of emotional response of robots based on fuzzy cognitive map based on the emotional space of Pleasure-Arousal-Dominance (PAD) is proposed. Firstly, the participants’ interactive input emotion values are obtained, and the participants’ emotional state matrix is obtained by evaluating them. Secondly, considering the personality characteristics and social roles of the robot, the relationship between the current emotional state and the long-term emotional state of the context is established by using the time continuity of fuzzy cognitive map, so as to model the robot emotional response process. Finally, according to the influence of the robot’s personality and social role on the emotional response, the emotional state matrix of the robot is updated and mapped into the continuous emotional space to obtain the robot’s emotional response. The model comparison experiment results show that the proposed model can increase the initiative and uniqueness of the robot emotional response, and effectively improve the satisfaction of the participants, and increase the participants’ sense of experience.
- Robot /
- Human-computer interaction /
- Pleasure-Arousal-Dominance(PAD) emotion space /
- Fuzzy Cognitive Map(FCM) /
- Emotional response

HTML全文

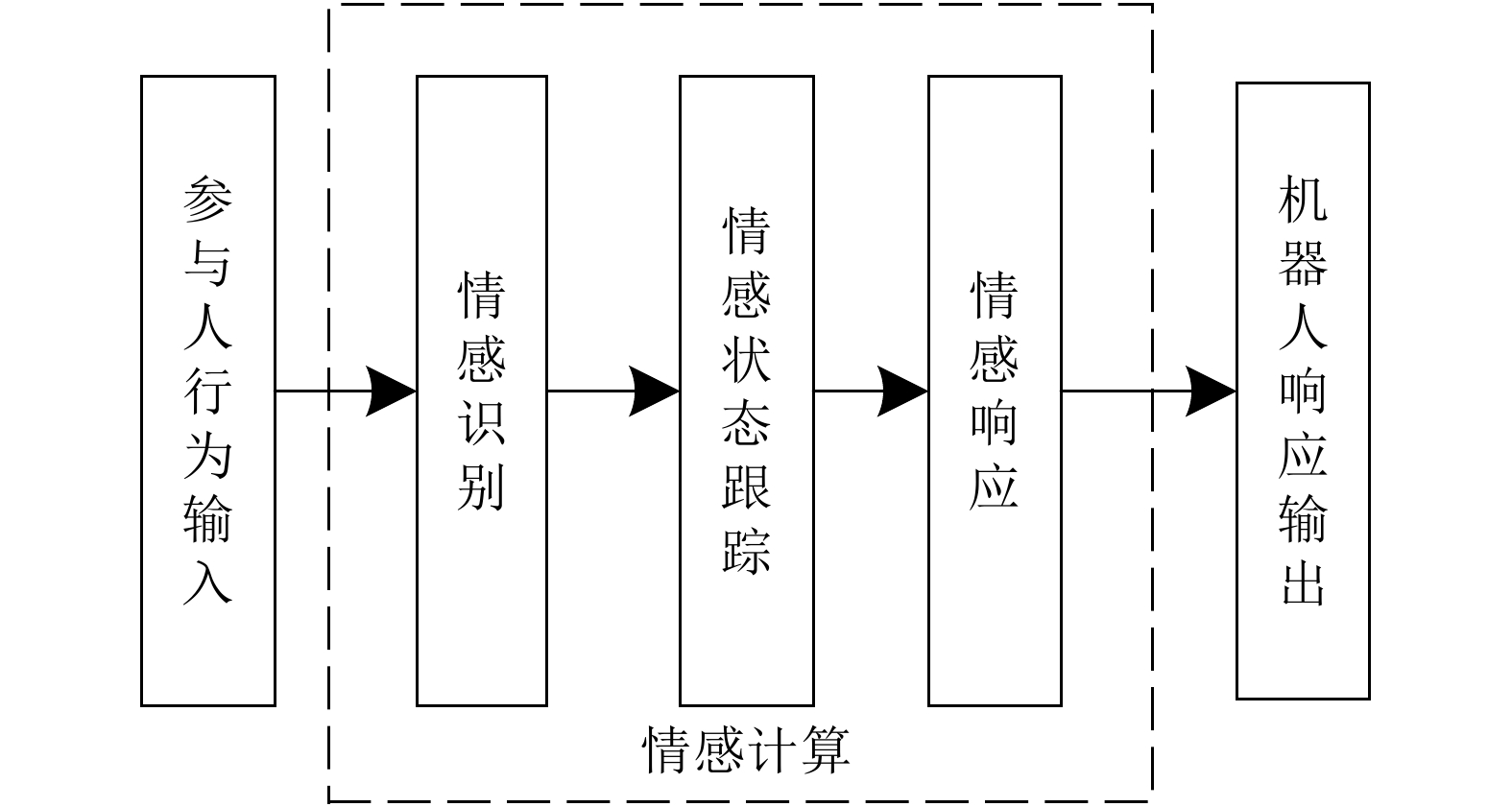

图 1 人机情感交互过程

下载: 全尺寸图片幻灯片

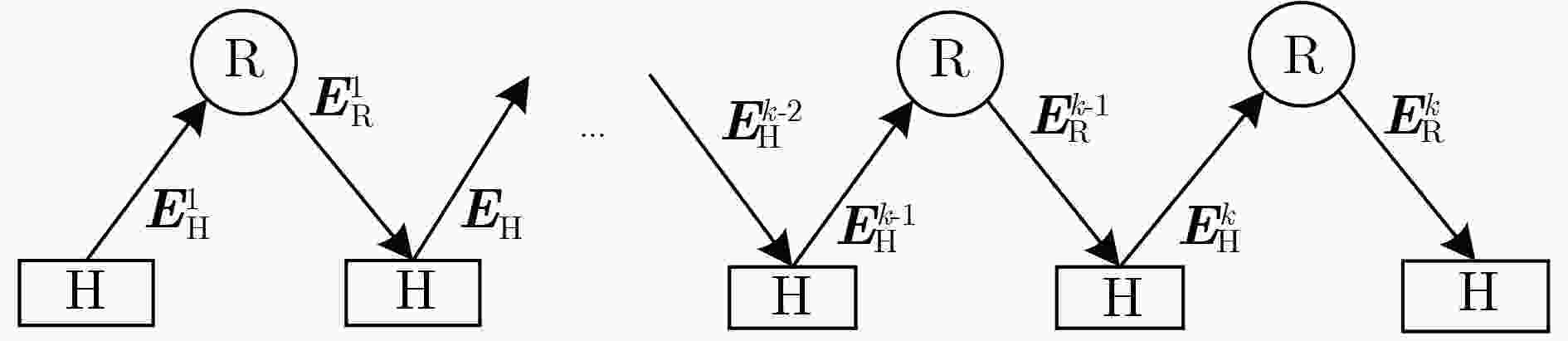

图 2 情感交互与情感响应

下载: 全尺寸图片幻灯片

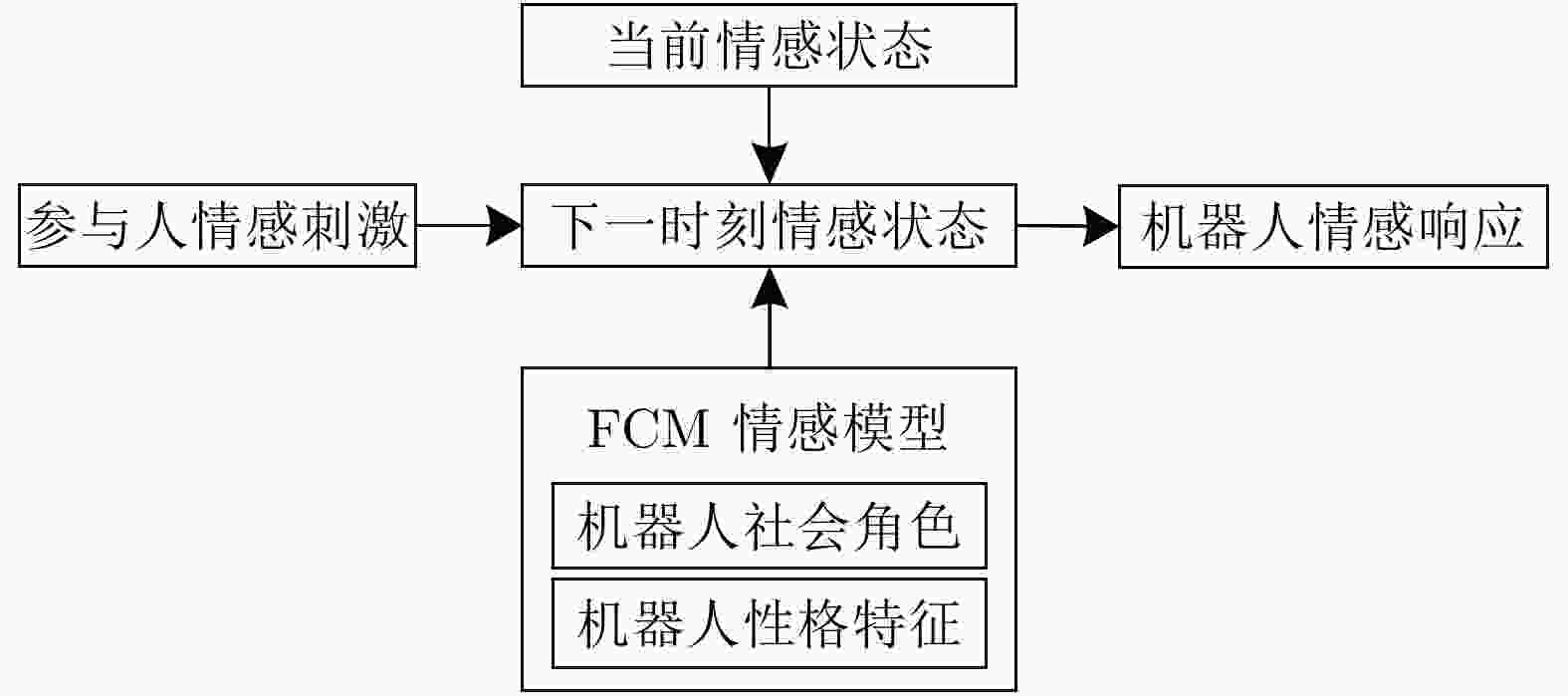

图 3 机器人情感响应框架

下载: 全尺寸图片幻灯片

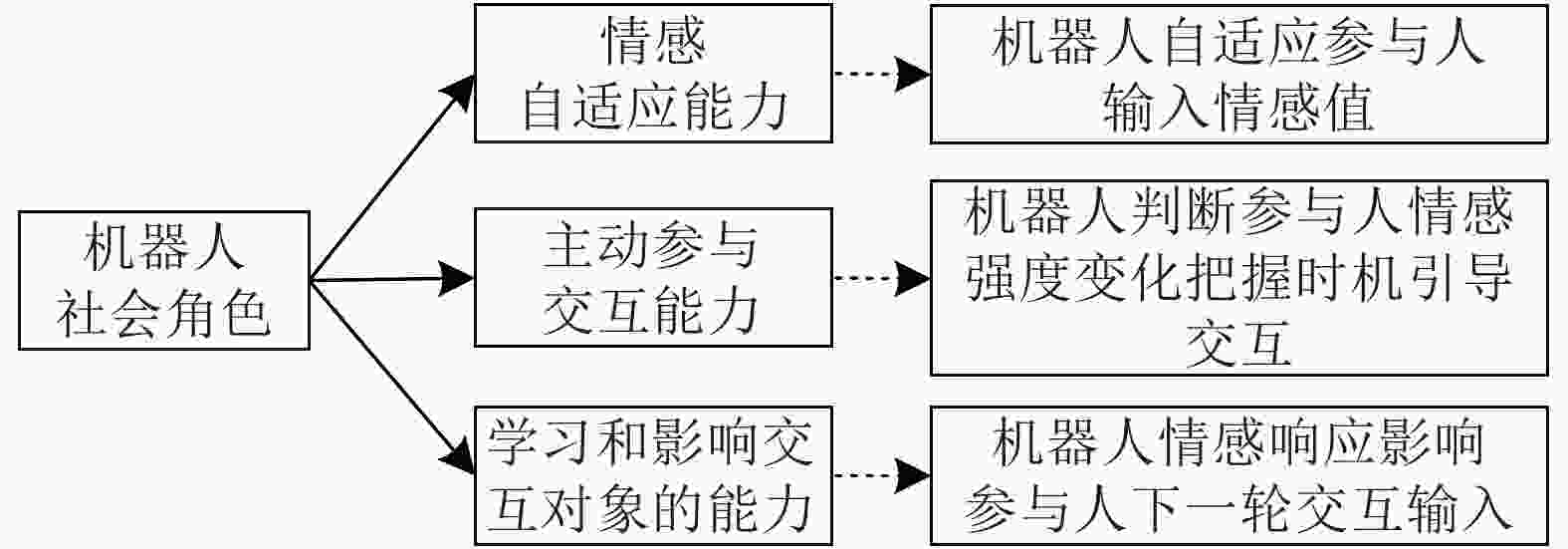

图 4 机器人社会角色模型

下载: 全尺寸图片幻灯片

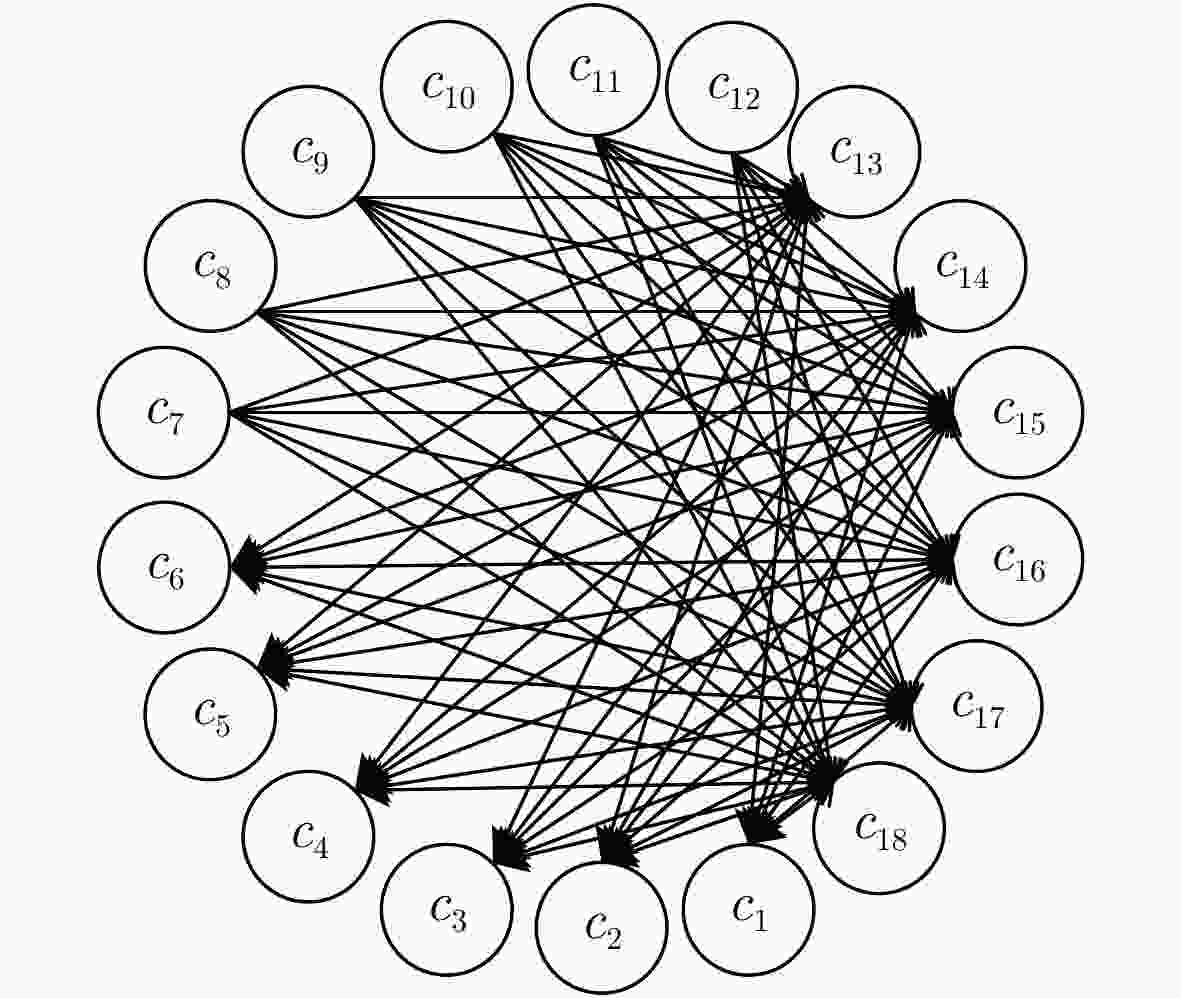

图 5 模糊认知图情感响应节点间关系

下载: 全尺寸图片幻灯片

表 6 不同模型交互参与度结果

模型	N(轮)	T(s)
Chatterbot	5	54.36
GCRs	12	130.24
MECS	8	87.16
RL	11	119.63
ACO	7	75.61
本文	14	153.47

下载: 导出CSV

表 1 基于模糊认知图的机器人情感响应模型

输入：第k轮交互参与人交互输入情感值${{\boldsymbol{E}}_{\text{H}}}$，模糊认知图状态值3元序组$ M = (C,E,{\boldsymbol{W}}) $；
输出：第k轮机器人回复给参与人的情感响应值${\boldsymbol{E}}_{\text{R}}^{}$；
Repeat：
参与人交互输入情感${{\boldsymbol{E}}_{\text{H}}}$；
根据式(1)—式(3)对${{\boldsymbol{E}}_{\text{H}}}$进行情感状态评估得到$ {\boldsymbol{I}}({{\boldsymbol{E}}_{\text{H}}}) $；
根据式(4)、式(5)计算参与人情感强度${\text{Intensity(}}{{\boldsymbol{E}}_{\text{H}}}{\text{)}}$的变化；
根据式(6)、式(7)计算当前情感状态下，机器人性格经过大五人格修正后的情感响应计算值${{\boldsymbol{e}}_c}$；
根据式(8)—式(12)训练FCM模型，对权重矩阵${\boldsymbol{W}}$进行更新获得机器人在6种基本情感上的情感强度；
根据式(13)对机器人在6种基本情感上的情感强度进行PAD情感空间坐标标定，得到机器人的情感响应；
Until 停止输入交互情感；
人机交互结束

下载: 导出CSV

表 2 不同模型交互体验感结果

模型	连贯性(单轮)	合理性(单轮)	多样性(单轮)	流畅性(多轮)	一致性(多轮)	准确性(多轮)
GCRs	1.478	1.319	1.184	1.129	1.326	1.147
MECS	1.279	1.437	1.247	1.396	1.284	1.056
RL	1.496	1.124	1.345	1.238	1.096	1.342
ACO	1.351	1.386	1.239	1.327	1.312	1.258
本文	1.532	1.497	1.412	1.506	1.468	1.523

下载: 导出CSV

表 3 交互体验感消融实验

交互体验感消融实验	连贯性(单轮)	合理性(单轮)	多样性(单轮)	流畅性(多轮)	一致性(多轮)	准确性(多轮)
FCM+性格特征	1.425	1.419	1.432	1.474	1.429	1.465
FCM+社会角色	1.467	1.438	1.384	1.486	1.447	1.496
两个因素都有	1.532	1.497	1.412	1.506	1.468	1.523

下载: 导出CSV

表 4 不同模型交互满意度结果

模型	情感相似度	情感精确度	情感活跃度	交互满意度
GCRs	0.615	0.695	0.536	0.631
MECS	0.637	0.768	0.462	0.654
RL	0.642	0.729	0.471	0.642
ACO	0.568	0.637	0.436	0.569
本文	0.671	0.794	0.517	0.689

下载: 导出CSV

表 5 交互满意度消融实验

满意度消融实验	情感相似度	情感精确度	情感活跃度	交互满意度
FCM+性格特征	0.557	0.636	0.509	0.579
FCM+社会角色	0.648	0.732	0.498	0.651
两个因素都有	0.671	0.794	0.517	0.689

下载: 导出CSV

表 7 交互参与度消融实验

参与度消融实验	N(轮)	T(s)
FCM+性格特征	12	126.35
FCM+社会角色	12	132.56
两个因素都有	14	153.47

下载: 导出CSV

表 8 不同模型有效性评价结果

模型	MRR	MAP
Chatterbot	0.457	0.485
GCRs	0.624	0.643
MECS	0.591	0.612
RL	0.587	0.604
ACO	0.482	0.503
本文	0.653	0.674

下载: 导出CSV

表 9 有效性消融实验

有效性消融实验	MRR	MAP
FCM+性格特征	0.569	0.592
FCM+社会角色	0.624	0.637
两个因素都有	0.653	0.674

下载: 导出CSV
