用于雷电测向的三磁环天线设计和研究

胡淼; 张子石; 章越峰; 许蒙蒙; 周雪芳; 沈成竹

doi:10.11999/JEIT210476

用于雷电测向的三磁环天线设计和研究

doi: 10.11999/JEIT210476

1.
杭州电子科技大学通信工程学院杭州 310018
2.
中国移动通信集团浙江有限公司杭州分公司杭州 310018

基金项目: 国家自然科学基金(61705055)，2020年度浙江省重点研发计划 (2020C01106)，浙江省属高校基本科研业务费专项资金资助(GK209907299001-018)

详细信息

作者简介:
胡淼：男，1982年生，教授，博士生导师，研究方向为电磁测量、激光技术

张子石：男，1997年生，硕士生，研究方向为电磁测量

章越峰：男，1977年生，高级工程师，研究方向为移动通信、人工智能

通讯作者:
胡淼　miao_hu@hdu.edu.cn

中图分类号: TN82
计量
- 文章访问数: 1151
- HTML全文浏览量: 642
- PDF下载量: 81
- 被引次数: 0
出版历程
- 收稿日期: 2021-05-28
- 修回日期: 2021-08-17
- 网络出版日期: 2021-08-30
- 刊出日期: 2022-08-17

Research of Three-magnetic Loop Antenna for Lightning Direction Finding

1.
College of Communication Engineering, Hangzhou Dianzi University, Hangzhou 310018, China
2.
China Mobile Communications Group Zhejiang Co., Ltd. Hangzhou Branch, Hangzhou 310018, China

Funds: The National Natural Science Foundation of China (61705055), 2020 Zhejiang Province Key Research and Development Program (2020C01106), The Fundamental Research Funds for the Provincial Universities of Zhejiang (GK209907299001-018)

摘要

摘要: 为了克服正交磁环天线结构误差角造成的测向角度(测角)误差较大的问题，该文提出一种结构上改进的三磁环测向天线设计方案。阐述了两两呈60°夹角磁环嵌套结构的三磁环天线的测向原理，建立了三磁环天线测角误差关于结构误差角的仿真模型。仿真分析表明，在相同结构误差角的条件下，相比正交磁环天线，三磁环天线测角误差最大值理论上能够降低50%。低频(f<200 kHz)情况下的对比实验结果表明，相比于正交磁环天线，三磁环天线测角误差最大值降低65%，测角误差总体优化约50%，实验与仿真结果符合较好。
- 雷电测向天线 /
- 测角误差 /
- 结构误差角
Abstract: In order to overcome the large directional angle error caused by the structure error angle of the orthogonal magnetic loop antenna, a three-magnetic loop directional antenna design scheme is proposed. The principle of the direction finding of the three-magnetic loop antenna is described, and the simulation model of the directional angle error with respect to the structure error angle of the three-magnetic loop antenna is established. The simulation analysis shows that under the same structural error angle condition, compared with the orthogonal magnetic loop antenna, the maximum directional angle error of the three magnetic loop antenna can theoretically be reduced by 50%. The comparative experiment results under the low frequency (f<200 kHz) situation show that compared with orthogonal magnetic loop antennas, the maximum directional angle error of the three magnetic loop antenna is reduced by 65%, and the overall directional angle error is optimized by approximately 50%, the experimental results are in good agreement with the simulation results.
- Lightning directional antenna /
- Directional angle error /
- Structural error angle

HTML全文

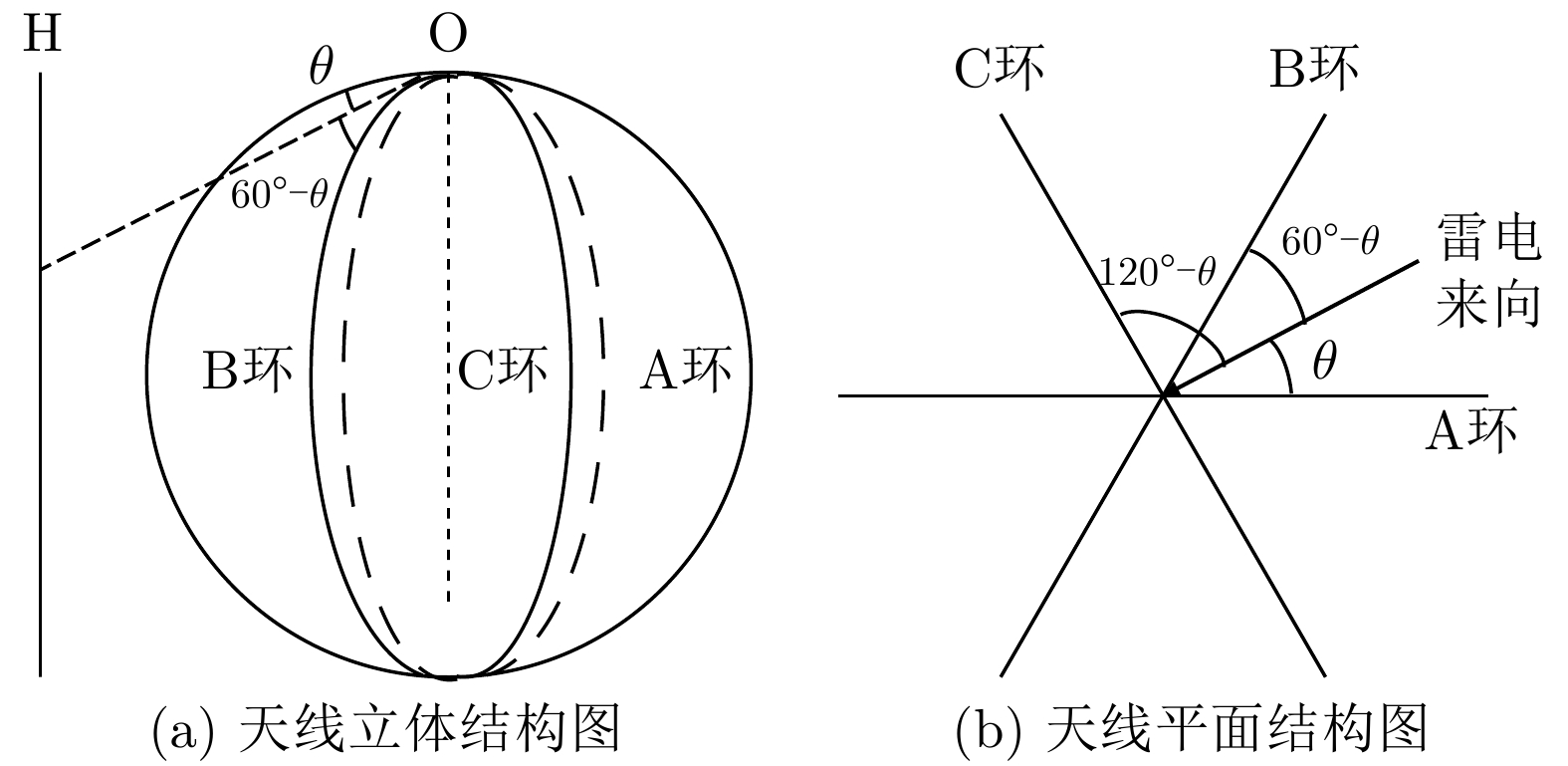

图 1 三磁环天线结构示意图

下载: 全尺寸图片幻灯片

图 2 单磁环结构误差角示意图

下载: 全尺寸图片幻灯片

图 3 三磁环天线测角误差趋势图

下载: 全尺寸图片幻灯片

图 4 两磁环结构误差角示意图

下载: 全尺寸图片幻灯片

图 5 三磁环天线测角误差趋势图

下载: 全尺寸图片幻灯片

图 6 正交磁环天线测角误差趋势图

下载: 全尺寸图片幻灯片

图 7 三磁环天线实物图

下载: 全尺寸图片幻灯片

图 8 两种天线测角误差对比图

下载: 全尺寸图片幻灯片

表 1 磁环天线参数

磁环半径r(cm) 线圈宽度d(cm) 导线直径
Φ(mm) 磁环匝数
(N)

7.5 1.5 0.3 60

下载: 导出CSV
