Software Source Code Vulnerability Detection Based on CNN-GAP Interpretability Model
-

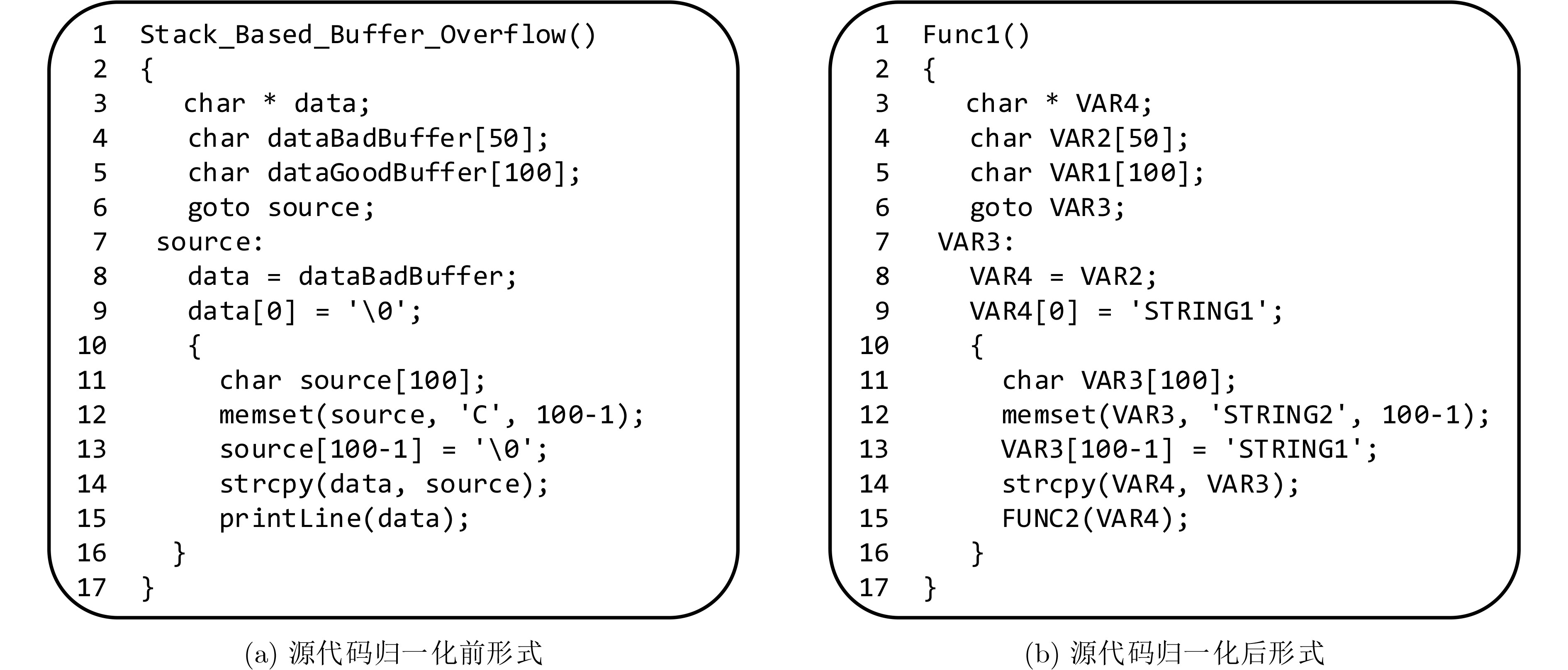

摘要: 源代码漏洞检测是保证软件系统安全的重要手段。近年来，多种深度学习模型应用于源代码漏洞检测，极大提高了漏洞检测的效率，但还存在自定义标识符导致库外词过多、嵌入词向量的语义不够准确、神经网络模型缺乏可解释性等问题。基于此，该文提出了一种基于卷积神经网络(CNN)和全局平均池化(GAP)可解释性模型的源代码漏洞检测方法。首先在源代码预处理中对部分自定义标识符进行归一化，并采用One-hot编码进行词嵌入以缓解库外词过多的问题；然后构建CNN-GAP神经网络模型，识别出包含CWE-119缓冲区溢出类型漏洞的函数；最后通过类激活映射(CAM)可解释方法对结果进行可视化输出，标识出可能与漏洞相关的代码。通过与Russell等人提出的模型以及Li等人提出的VulDeePecker模型进行对比分析，表明CNN-GAP模型能达到相当甚至更好的性能，且具有一定的可解释性，便于研究人员对漏洞进行更深入的分析。Abstract: Source code vulnerability detection is an important method to ensure the security of software system. In recent years, a variety of deep learning models are applied to source code vulnerability detection, which improves greatly the efficiency of vulnerability detection. However, there are still some problems in source code vulnerability detection based on deep learning, such as too many words outside the database caused by user-defined identifier, inaccurate semantics of embedded word vector, lack of interpretability of neural network model, and so on. A new software source code vulnerability detection method is proposed based on Convolution Neural Networks (CNN) and Global Average Pooling (GAP) interpretability model. Firstly, some user-defined identifiers are normalized in the source code preprocessing, and one hot coding is used for word embedding to alleviate the problem of too many words outside the database. Then, CNN-GAP neural network model is built to identify the functions containing CWE-119 type vulnerabilities. Finally, Class Activation Mapping (CAM) interpretable method is used to output visually the results and identify the codes that may be related to vulnerabilities. Compared with the model proposed by Russell and Vuldeepecker model proposed by Li et al., the experimental results show that CNN-GAP model can achieve quite or even better performance, and has a certain interpretability, which is convenient for researchers to analyze the vulnerability more deeply.
-

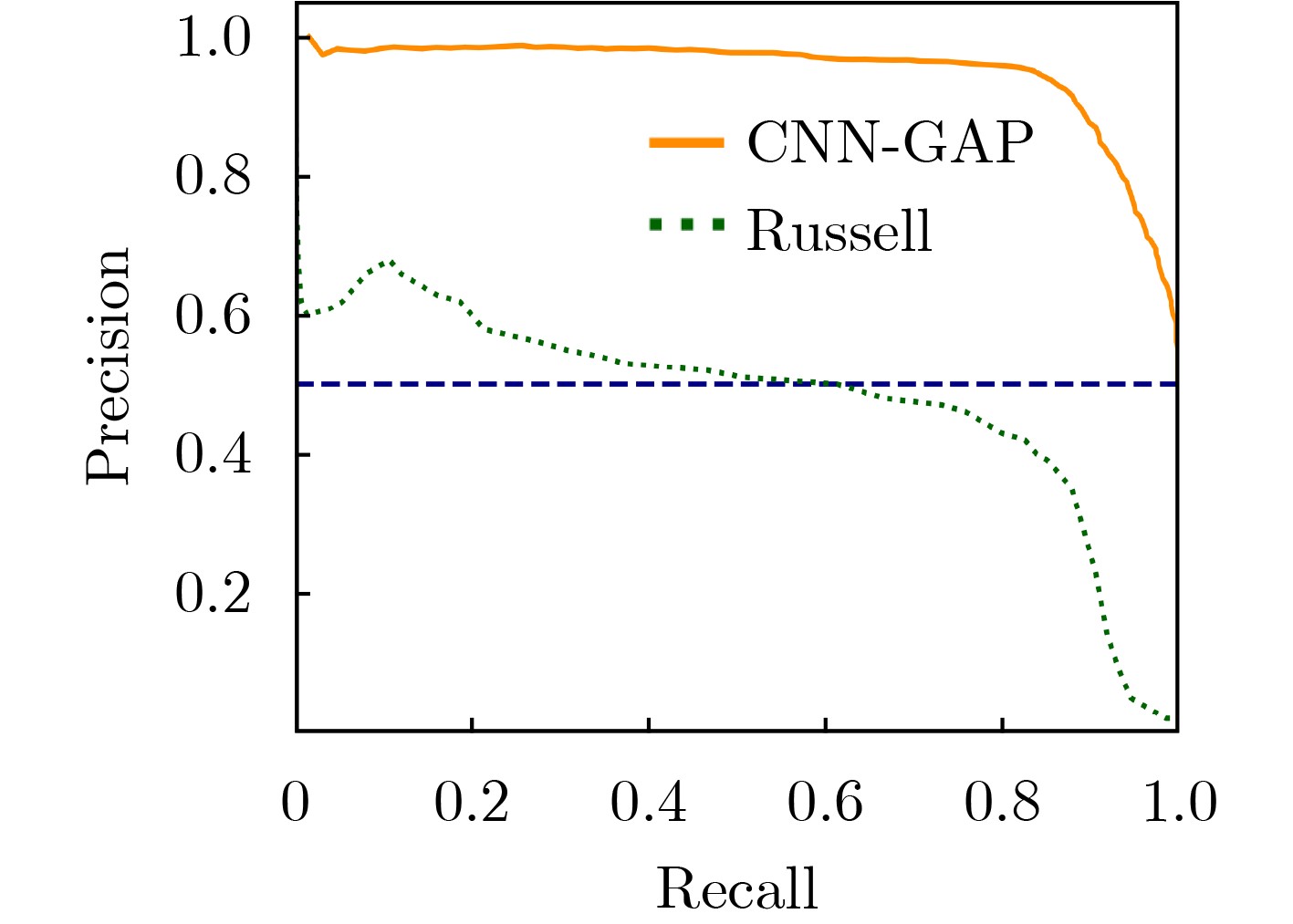

表 1 CNN-GAP模型在Russell测试集上的结果
Accuracy Precision Recall F1 TPR FPR FNR CNN-GAP 0.8945 0.9531 0.8299 0.8872 0.8299 0.0407 0.1700
下载: 导出CSV
表 2 CNN-GAP模型与VulDeePecker模型的实验结果对比
Accuracy Precision Recall F1 TPR FPR FNR CNN-GAP 0.8490 0.9235 0.7610 0.8344 0.7610 0.0630 0.2390 VulDeePecker – 0.9170 0.8200 0.8660 0.8200 0.0290 0.1800
下载: 导出CSV
-
[1] COUSOT P, COUSOT R, FERET J, et al. The ASTRÉE analyzer[C]. The 14th European Symposium on Programming, Edinburgh, UK, 2005: 21–30. [2] HOLZMANN G J. The model checker SPIN[J]. IEEE Transactions on Software Engineering, 1997, 23(5): 279–295. doi: 10.1109/32.588521 [3] YAMAGUCHI F, LOTTMANN M, and RIECK K. Generalized vulnerability extrapolation using abstract syntax trees[C]. The 28th Annual Computer Security Applications Conference, New York, USA, 2012: 359–368. [4] YAMAGUCHI F, GOLDE N, ARP D, et al. Modeling and discovering vulnerabilities with code property graphs[C]. The 2014 IEEE Symposium on Security and Privacy, Berkeley, USA, 2014: 590–604. [5] MILLER B P, FREDRIKSEN L, and SO B. An empirical study of the reliability of UNIX utilities[J]. Communications of the ACM, 1990, 33(12): 32–44. doi: 10.1145/96267.96279 [6] STEPHENS N, GROSEN J, SALLS C, et al. Driller: Augmenting fuzzing through selective symbolic execution[C]. The 2016 23rd Network and Distributed System Security Symposium, San Diego, USA, 2016: 1–16. [7] PORTOKALIDIS G, SLOWINSKA A, and BOS H. Argos: An emulator for fingerprinting zero-day attacks for advertised honeypots with automatic signature generation[C]. The 1st ACM SIGOPS/EuroSys European Conference on Computer Systems, New York, USA, 2006: 15–27. [8] 邹权臣, 张涛, 吴润浦, 等. 从自动化到智能化: 软件漏洞挖掘技术进展[J]. 清华大学学报:自然科学版, 2018, 58(12): 1079–1094.ZOU Quanchen, ZHANG Tao, WU Runpu, et al. From automation to intelligence: Survey of research on vulnerability discovery techniques[J]. Journal of Tsinghua University:Science &Technology, 2018, 58(12): 1079–1094. [9] LIN Guanjun, ZHANG Jun, LUO Wei, et al. POSTER: Vulnerability discovery with function representation learning from unlabeled projects[C]. The 2017 ACM SIGSAC Conference on Computer and Communications Security, New York, USA, 2017: 2539–2541. [10] LIN Guanjun, ZHANG Jun, LUO Wei, et al. Cross-project transfer representation learning for vulnerable function discovery[J]. IEEE Transactions on Industrial Informatics, 2018, 14(7): 3289–3297. doi: 10.1109/TII.2018.2821768 [11] LIN Guanjun, ZHANG Jun, LUO Wei, et al. Software vulnerability discovery via learning multi-domain knowledge bases[J]. IEEE Transactions on Dependable and Secure Computing, 2021, 18(5): 2469–2485. doi: 10.1109/TDSC.2019.2954088 [12] LIU Shigang, LIN Guanjun, HAN Qinglomg, et al. DeepBalance: Deep-learning and fuzzy oversampling for vulnerability detection[J]. IEEE Transactions on Fuzzy Systems, 2020, 28(7): 1329–1343. [13] LIU Shigang, LIN Guanjun, QU Lizhen, et al. CD-VulD: Cross-domain vulnerability discovery based on deep domain adaptation[J]. IEEE Transactions on Dependable and Secure Computing, 2022, 19(1): 438–451. doi: 10.1109/TDSC.2020.2984505 [14] LI Zhen, ZOU Deqing, XU Shouhuai, et al. VulDeePecker: A deep learning-based system for vulnerability detection[C]. The 25th Annual Network and Distributed System Security Symposium, San Diego, USA, 2018. [15] ZOU Deqing, WANG Sujuan, XU Shouhuai, et al. μVulDeePecker: A deep learning-based system for multiclass vulnerability detection[J]. IEEE Transactions on Dependable and Secure Computing, 2021, 18(5): 2224–2236. doi: 10.1109/TDSC.2019.2942930 [16] LI Zhen, ZOU Deqing, XU Shouhuai, et al. VulDeeLocator: A deep learning-based fine-grained vulnerability detector[J]. IEEE Transactions on Dependable and Secure Computing, 2022, 19(4): 2821–2837. doi: 10.1109/TDSC.2021.3076142 [17] RUSSELL R, KIM L, HAMILTON L, et al. Automated vulnerability detection in source code using deep representation learning[C]. The 17th IEEE International Conference on Machine Learning and Applications, Orlando, USA, 2018: 757–762. [18] ZHOU Yaqin, LIU Shangqing, SIOW J K, et al. Devign: Effective vulnerability identification by learning comprehensive program semantics via graph neural networks[C]. The 33rd International Conference on Neural Information Processing Systems, Red Hook, USA, 2019: 10197–10207. [19] 段旭, 吴敬征, 罗天悦, 等. 基于代码属性图及注意力双向LSTM的漏洞挖掘方法[J]. 软件学报, 2020, 31(11): 3404–3420.DUAN Xu, WU Jingzheng, LUO Tianyue, et al. Vulnerability mining method based on code property graph and attention BiLSTM[J]. Journal of Software, 2020, 31(11): 3404–3420. [20] ZHOU Bolei, KHOSLA A, LAPEDRIZA A, et al. Learning deep features for discriminative localization[C]. 2016 IEEE conference on Computer Vision and Pattern Recognition, Las Vegas, USA, 2016: 2921–2929. -
