Research on Video SAR Moving Target Detection Algorithm Based on Improved Faster Region-based CNN
-
摘要: 针对传统视频SAR(ViSAR)运动目标检测方法存在的帧间配准难度大、快速运动目标阴影特征不明显、虚警概率高等问题，该文提出一种基于改进快速区域卷积神经网络(Faster R-CNN)的视频SAR运动目标检测方法。该方法结合Faster R-CNN深度学习算法，利用K-means聚类方法对anchor box的长宽及长宽比进行预处理，并采用特征金字塔网络(FPN)架构对视频SAR运动目标的“亮线”特征进行检测。与传统方法相比，该方法具有实现简单、检测概率高、虚警概率低等优势。最后，通过课题组研制的Mini-SAR系统获取的实测视频SAR数据验证了新方法的有效性。
-
关键词:
- 视频SAR /
- 运动目标检测 /
- 快速区域卷积神经网络 /
- 特征金字塔网络 /
- K-means

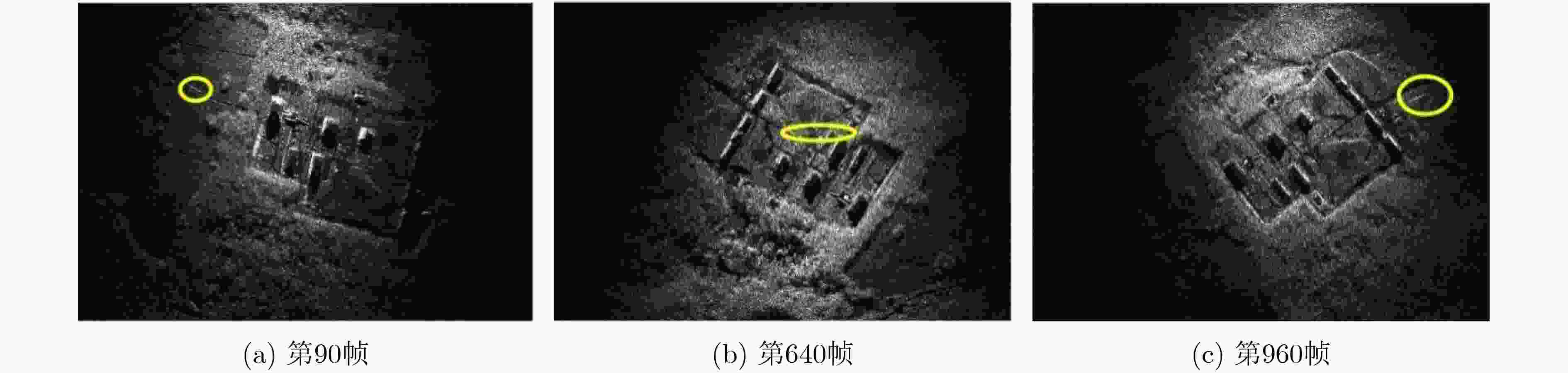

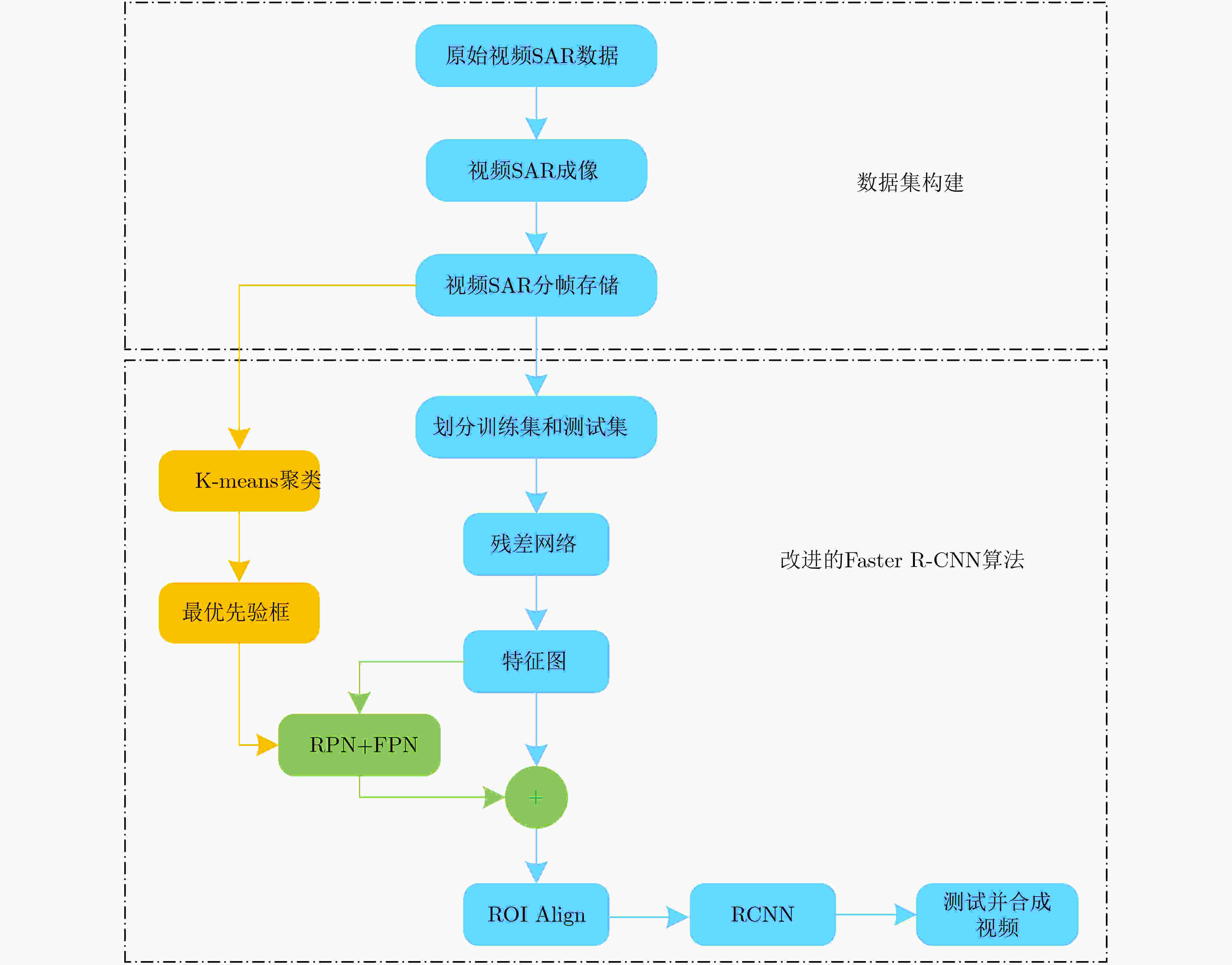

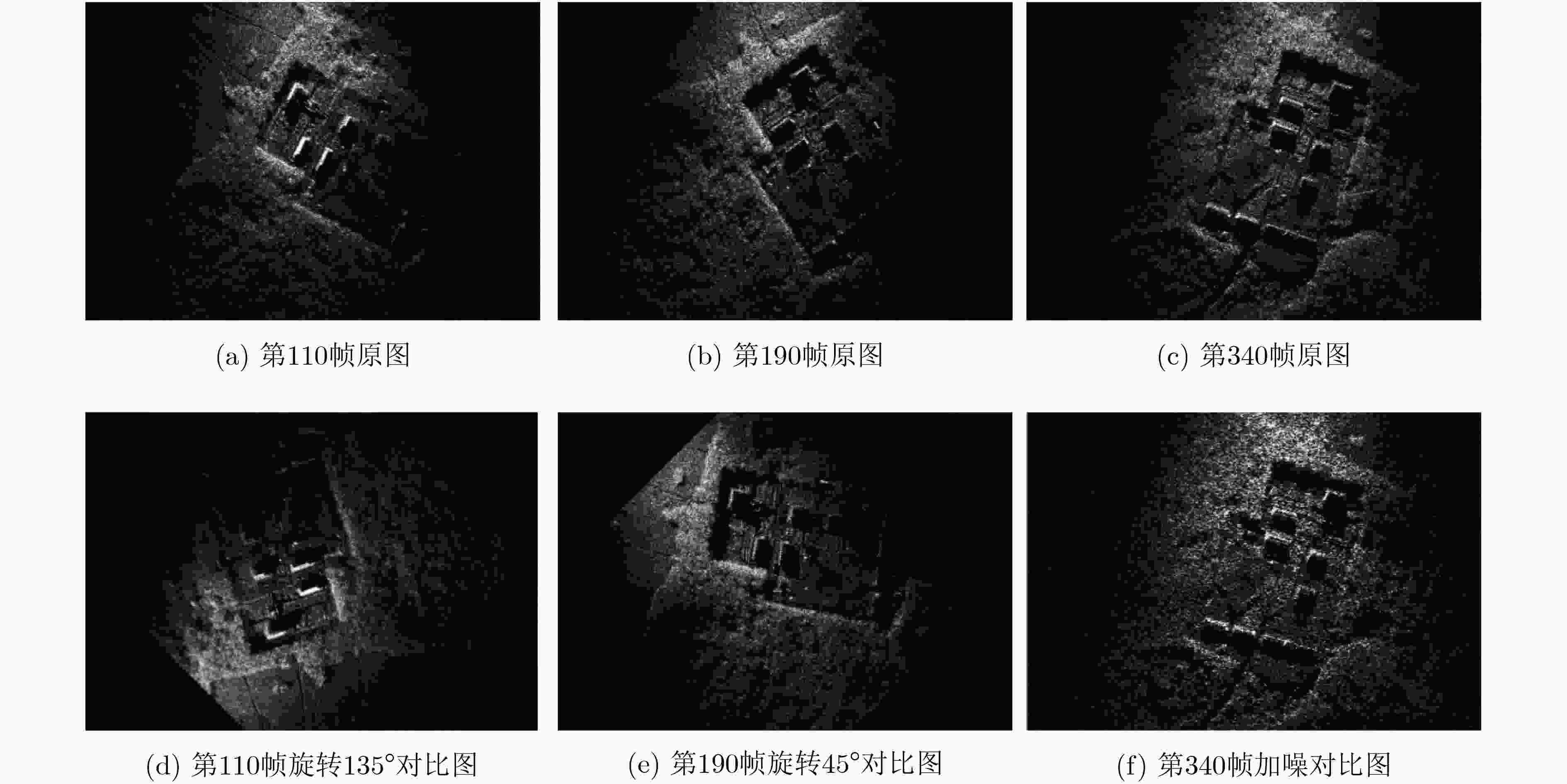

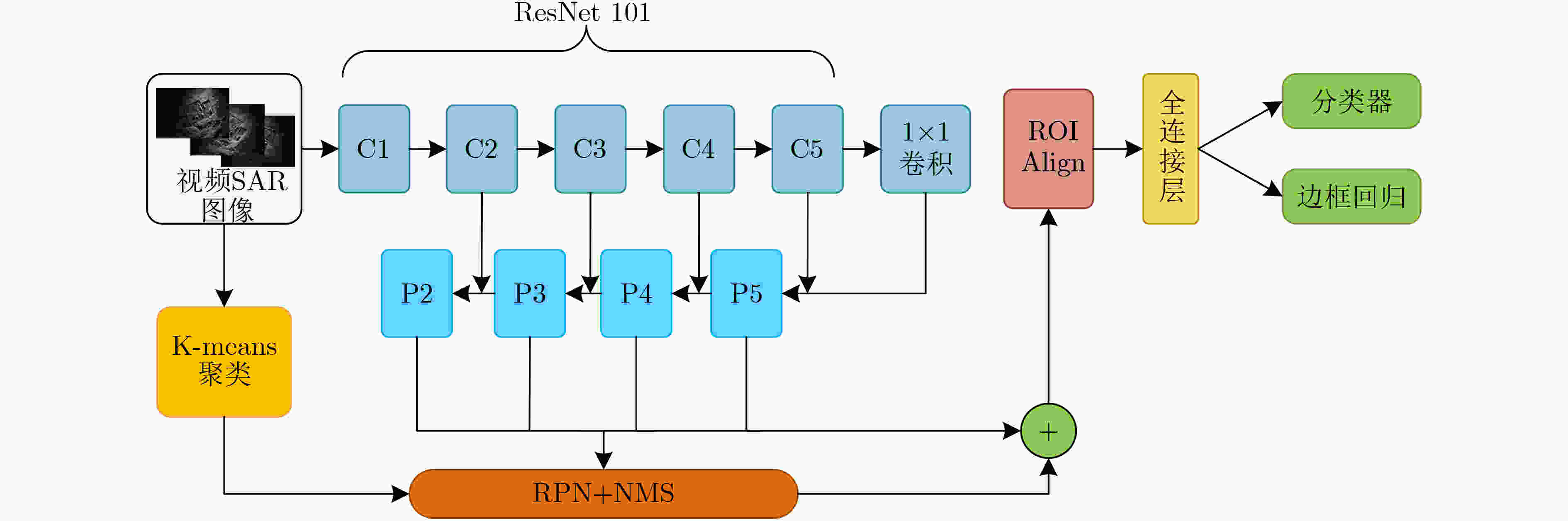

Abstract: To solve the problems of inter-frame registration difficult, unclear shadow characteristics of fast moving targets and high false alarm probability in traditional Video Synthetic Aperture Radar (ViSAR) moving target detection methods, a novel video SAR moving target detection method based on improved Faster Region-based Convolutional Neural Networks (Faster R-CNN) is proposed. Combining with the deep learning algorithm of Faster R-CNN, the new method applies the K-means clustering method to preprocess the length, width and aspect ratio of the anchor box. Besides, the Feature Pyramid Networks (FPN) network architecture is used to detect the ‘bright line’ feature of the video SAR moving targets. Compared with traditional methods, the proposed method has the advantages of simple implementation, high detection probability and low false alarm probability. Finally, the effectiveness of the new method is verified by the measured video SAR data obtained from the Mini-SAR system developed by our project team. -

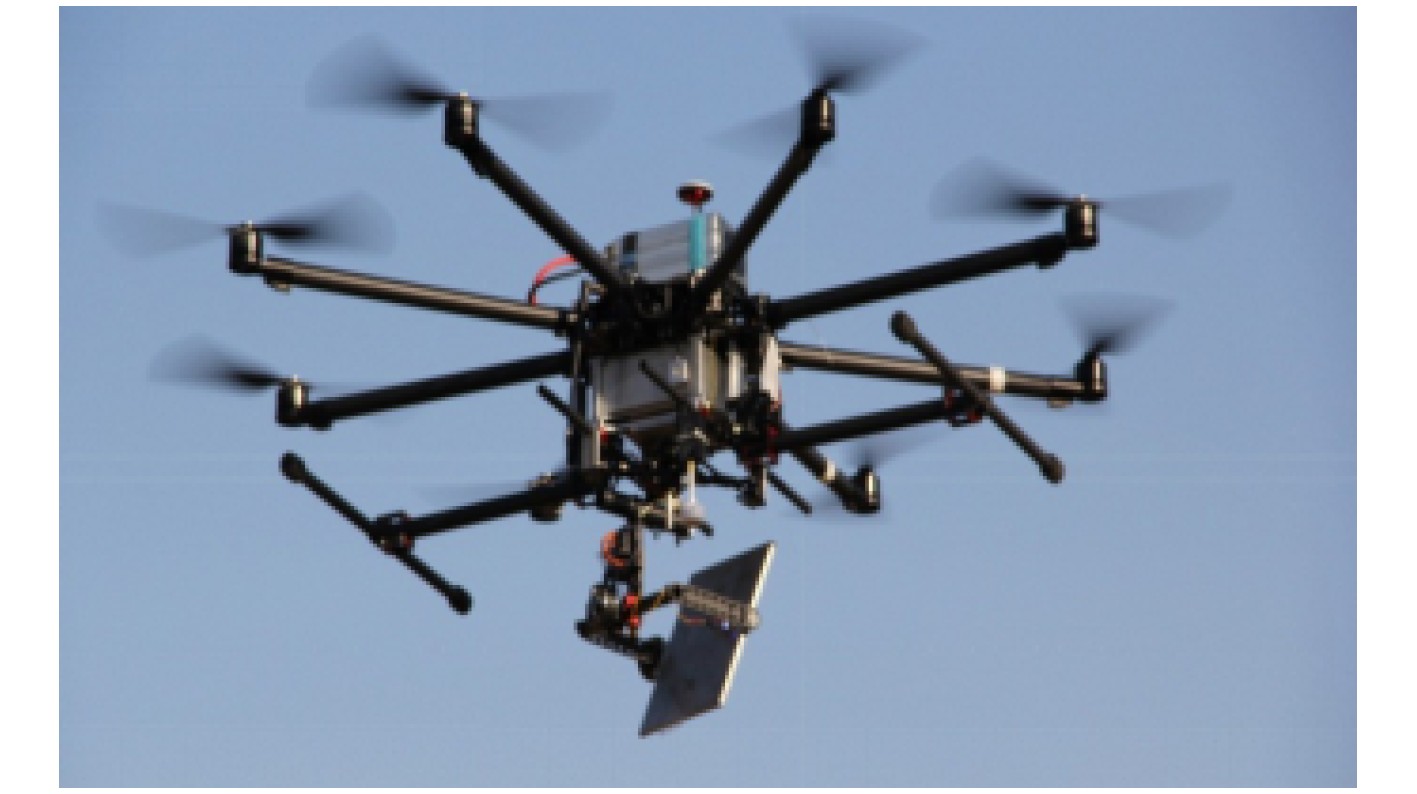

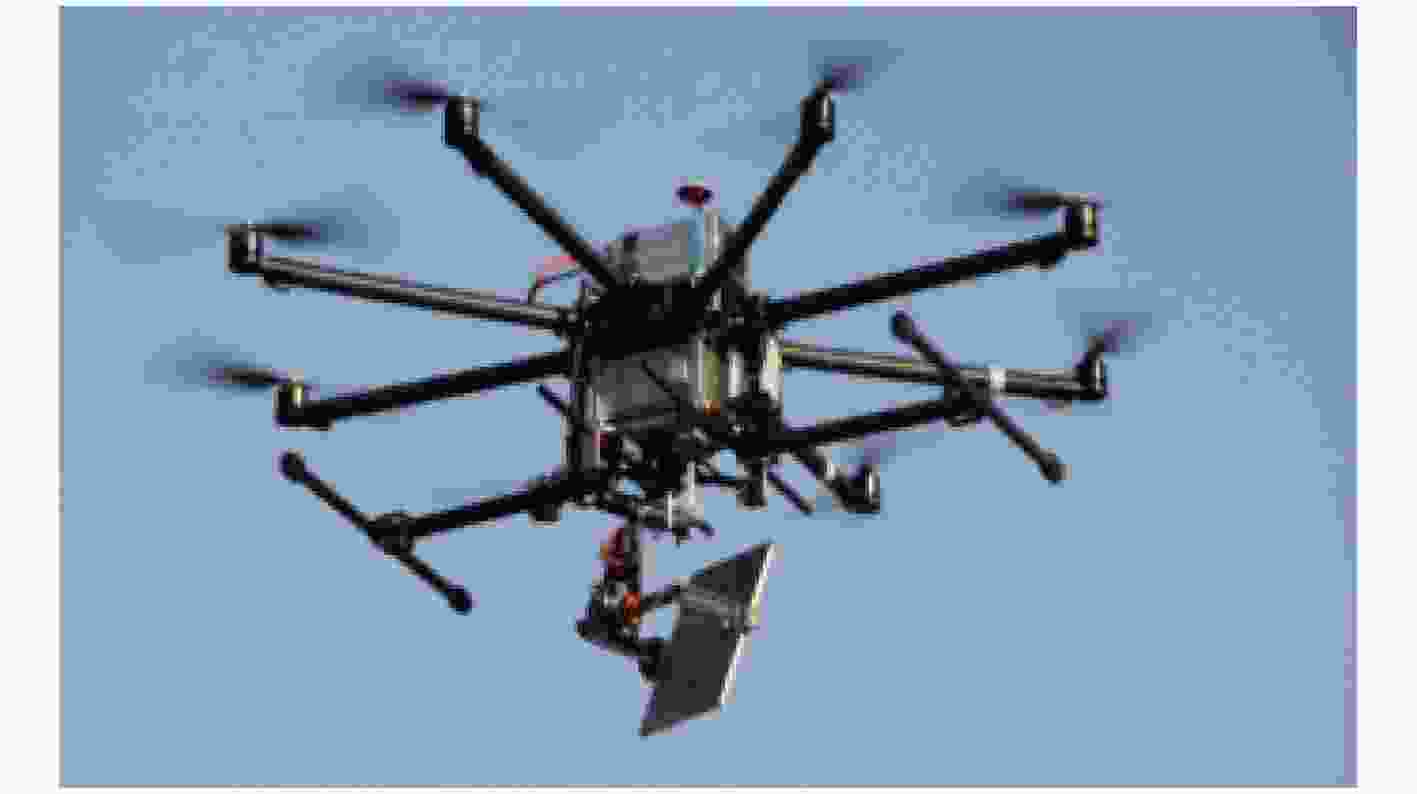

表 1 部分MiniSAR系统参数
雷达参数 具体参数 雷达体制 MCW, DECHIRP 工作频率 8.8～10.6 GHz 工作带宽 1.8 GHz\900 MHz\450 MHz 结构尺寸 150 mm×150 mm×60 mm 重量 ≤3 kg
下载: 导出CSV

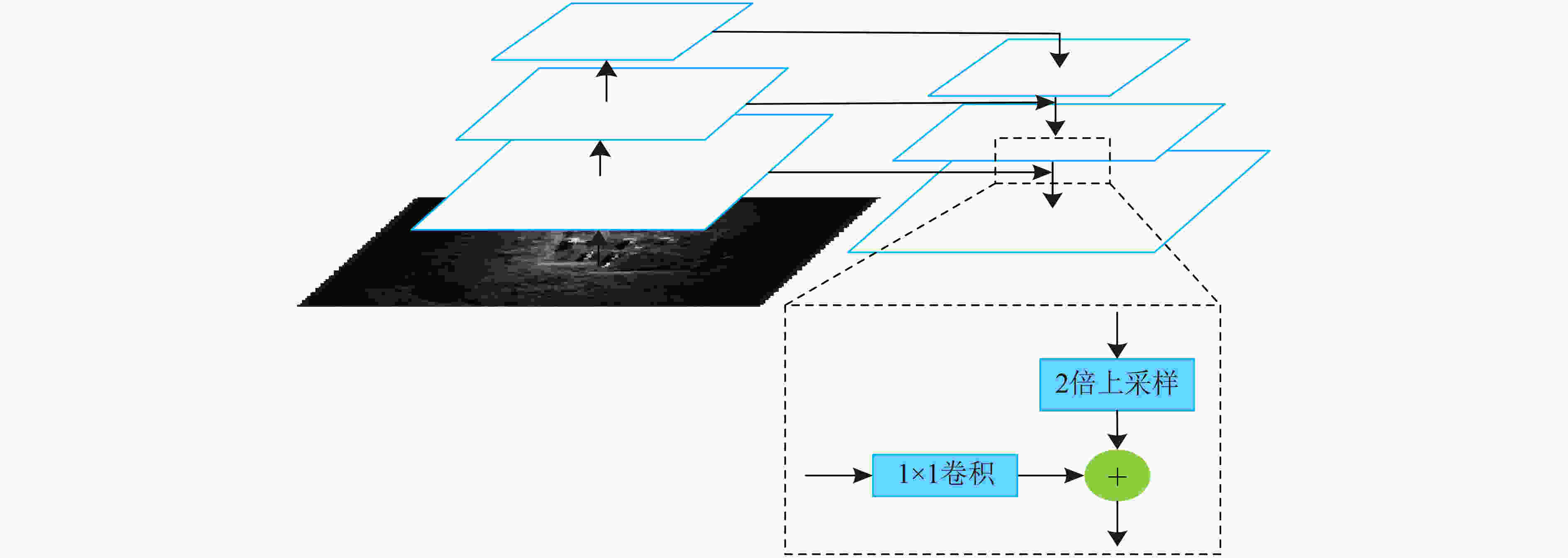

表 2 有无FPN 结构的性能对比
模型 准确率 漏检率 误检率 Faster R-CNN 0.590 0.410 0.108 结合FPN的Faster R-CNN 0.819 0.181 0.084
下载: 导出CSV
表 3 具体参数对训练结果的影响
不同参数 训练2w步 训练4w步 训练5w步 Loss 准确率 Loss 准确率 Loss 准确率 LR=0.010 ReLU 0.643 0.728 0.621 0.811 0.616 0.812 Leaky-ReLU 0.599 0.735 0.574 0.817 0.574 0.817 LR=0.001 ReLU 0.636 0.793 0.582 0.853 0.577 0.855 Leaky-ReLU 0.473 0.824 0.435 0.871 0.435 0.872
下载: 导出CSV
表 4 anchor box设置对训练结果的影响
anchor box 训练2w步 训练4w步 训练5w步 Loss 准确率 Loss 准确率 Loss 准确率 经验值 0.574 0.807 0.556 0.843 0.556 0.845 K-means聚类所得 0.477 0.824 0.433 0.871 0.433 0.872
下载: 导出CSV

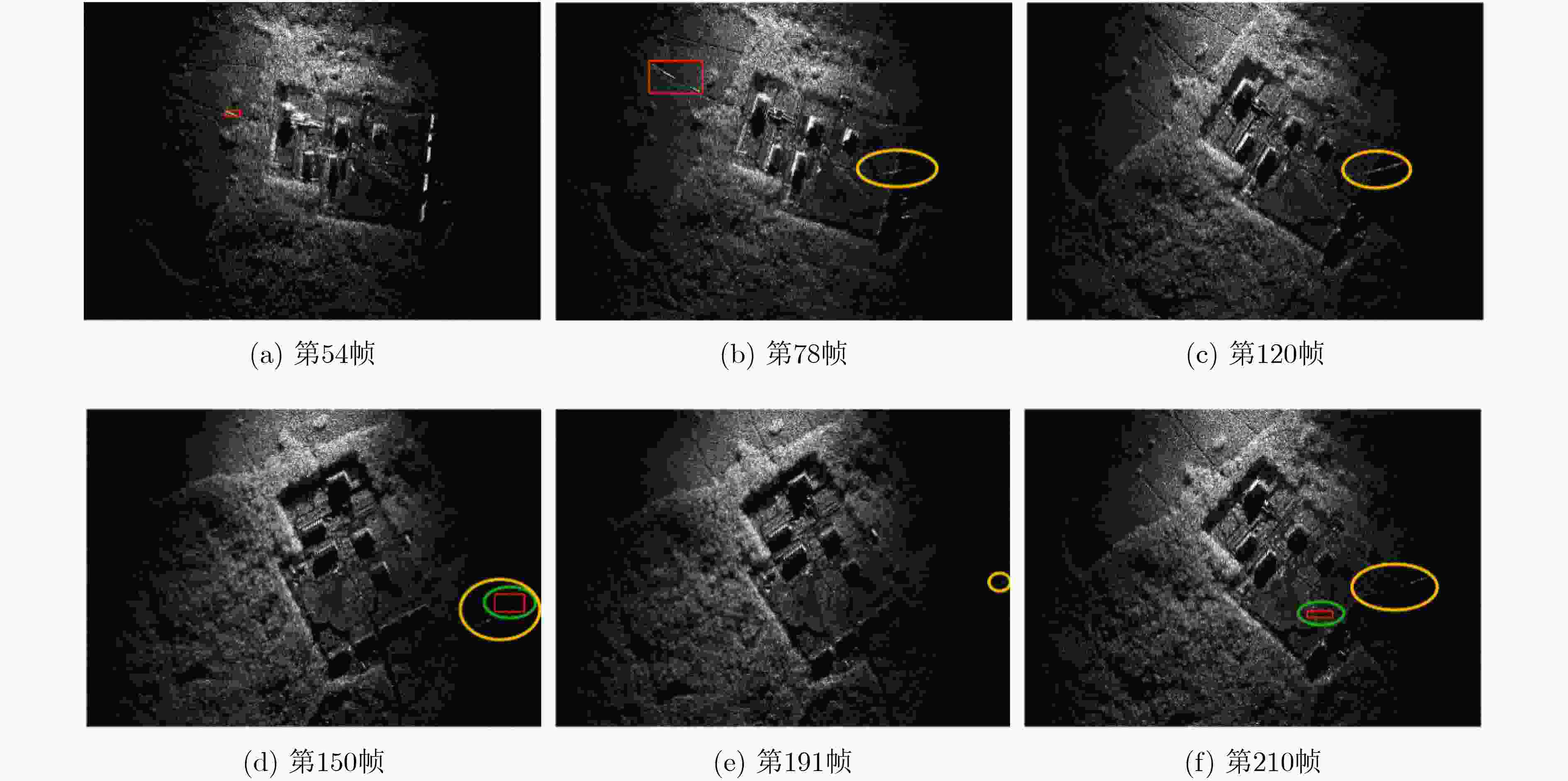

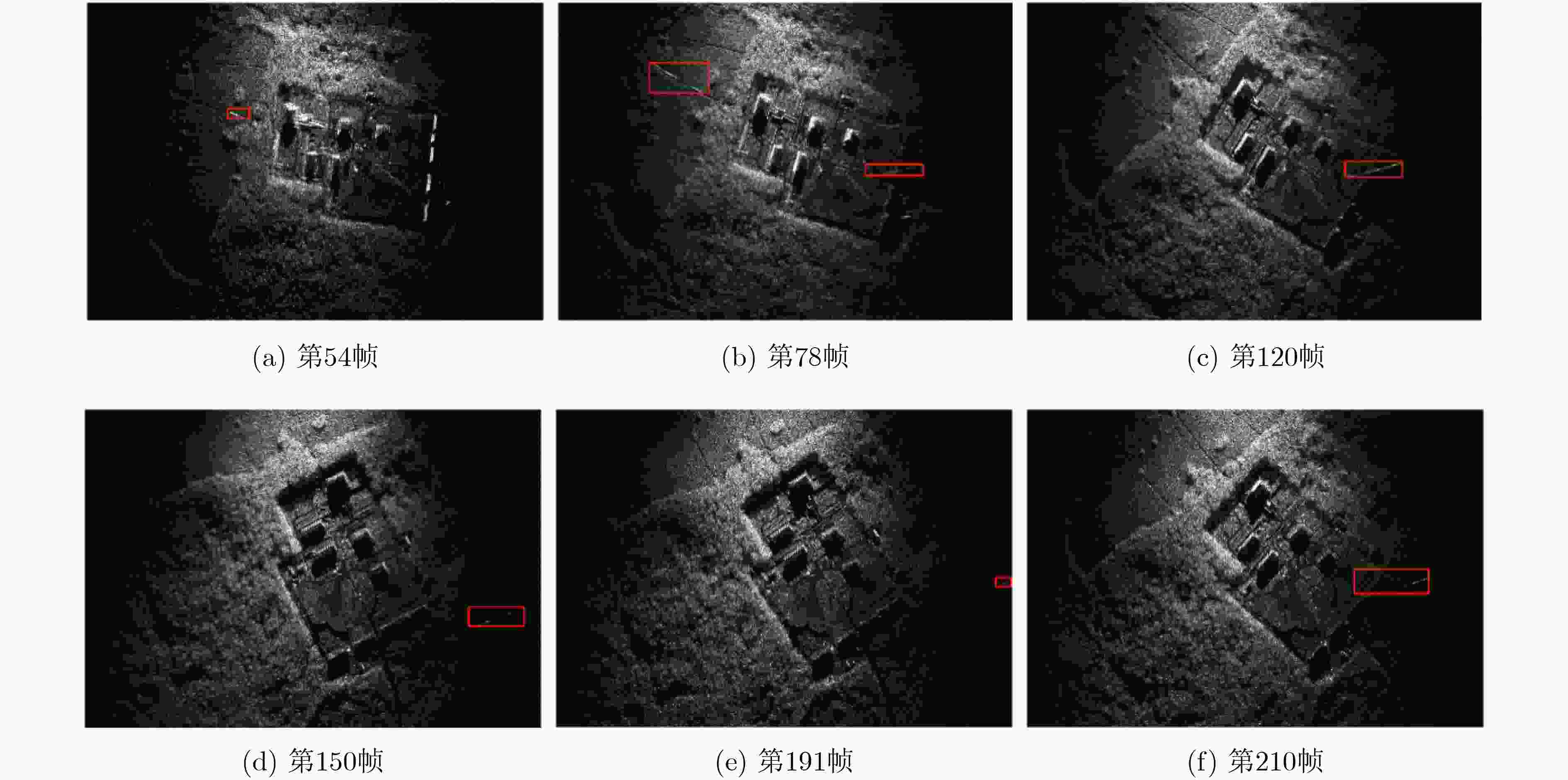

表 5 不同模型下运动目标检测性能对比
模型 准确率 漏检率 误检率 Faster R-CNN 0.774 0.226 0.083 Faster R-CNN+FPN 0.845 0.155 0.054 Faster R-CNN+FPN+K-means 0.872 0.128 0.047
下载: 导出CSV
-
