Time Delay Estimation Using Cross-power Spectrum Phase
-

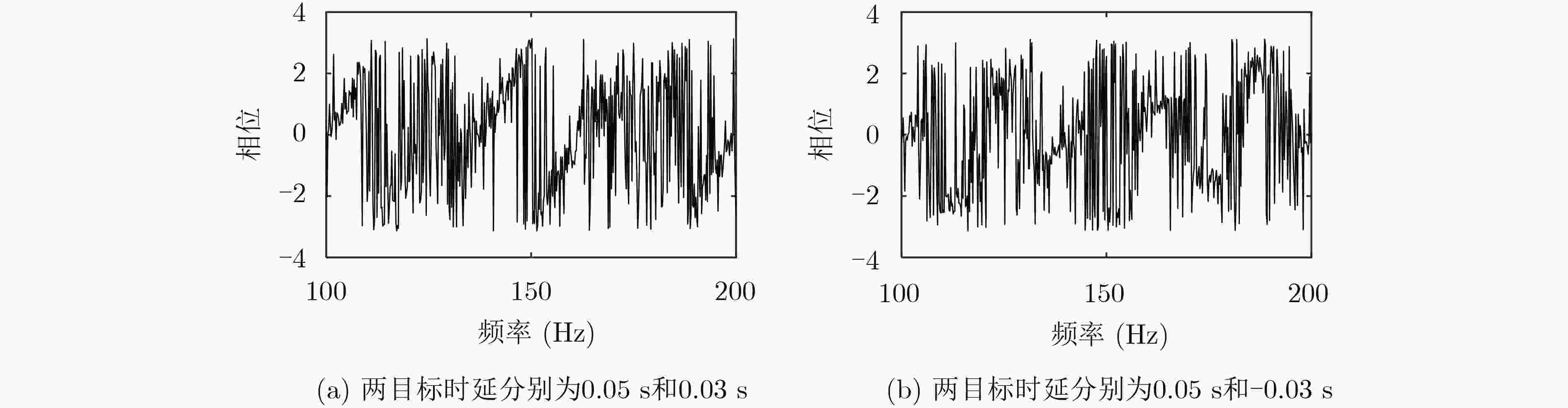

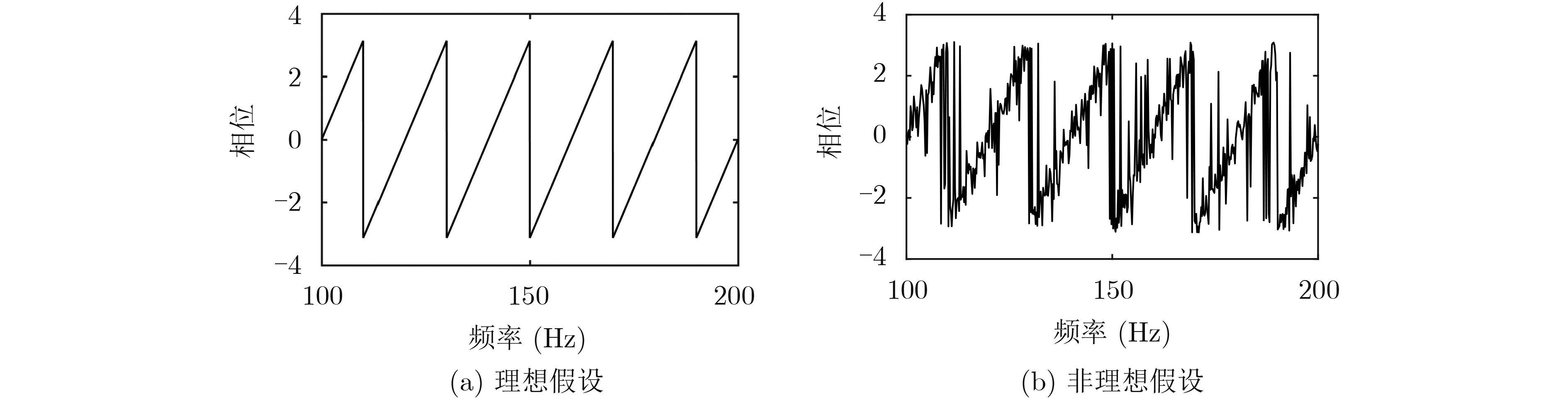

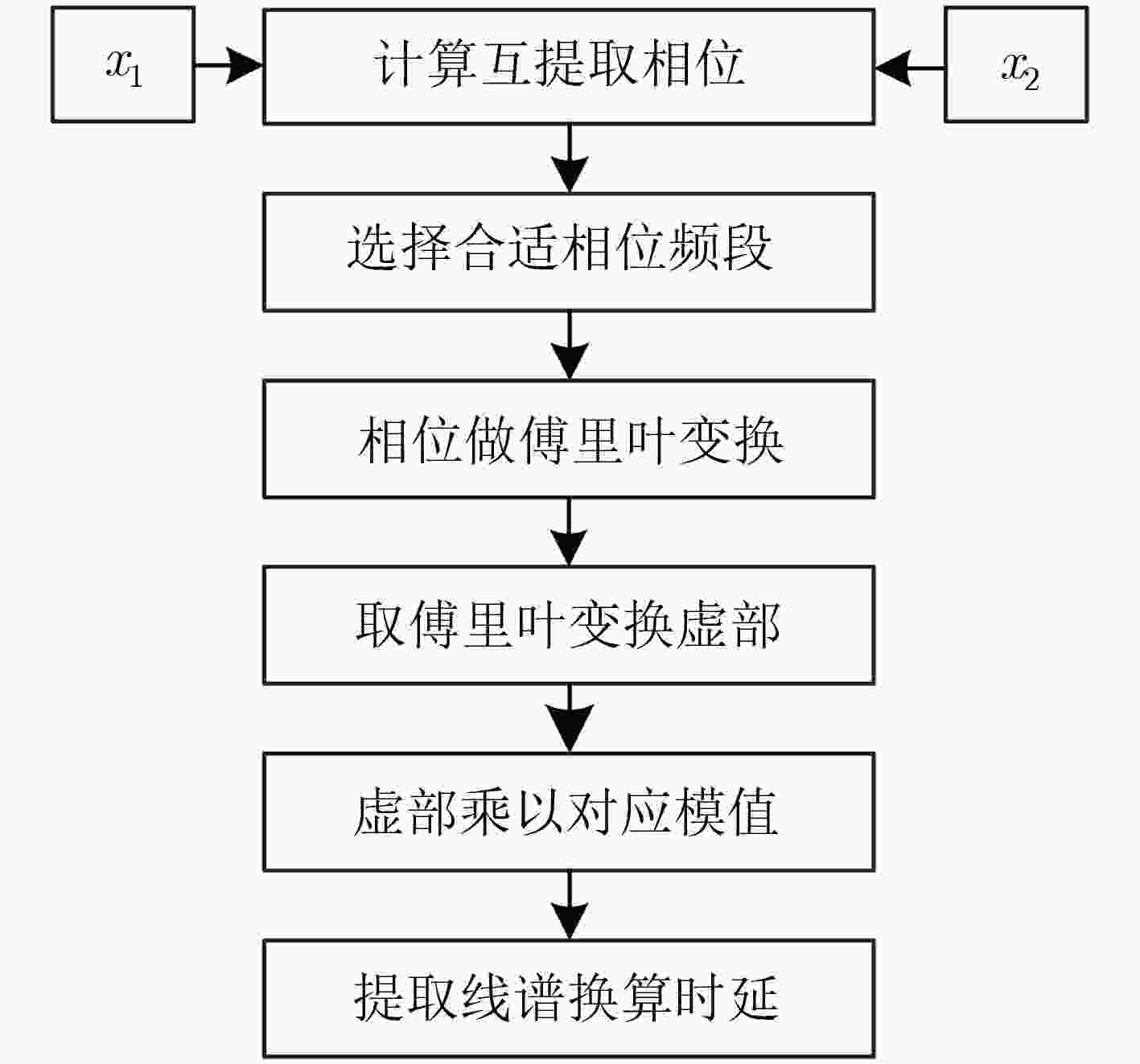

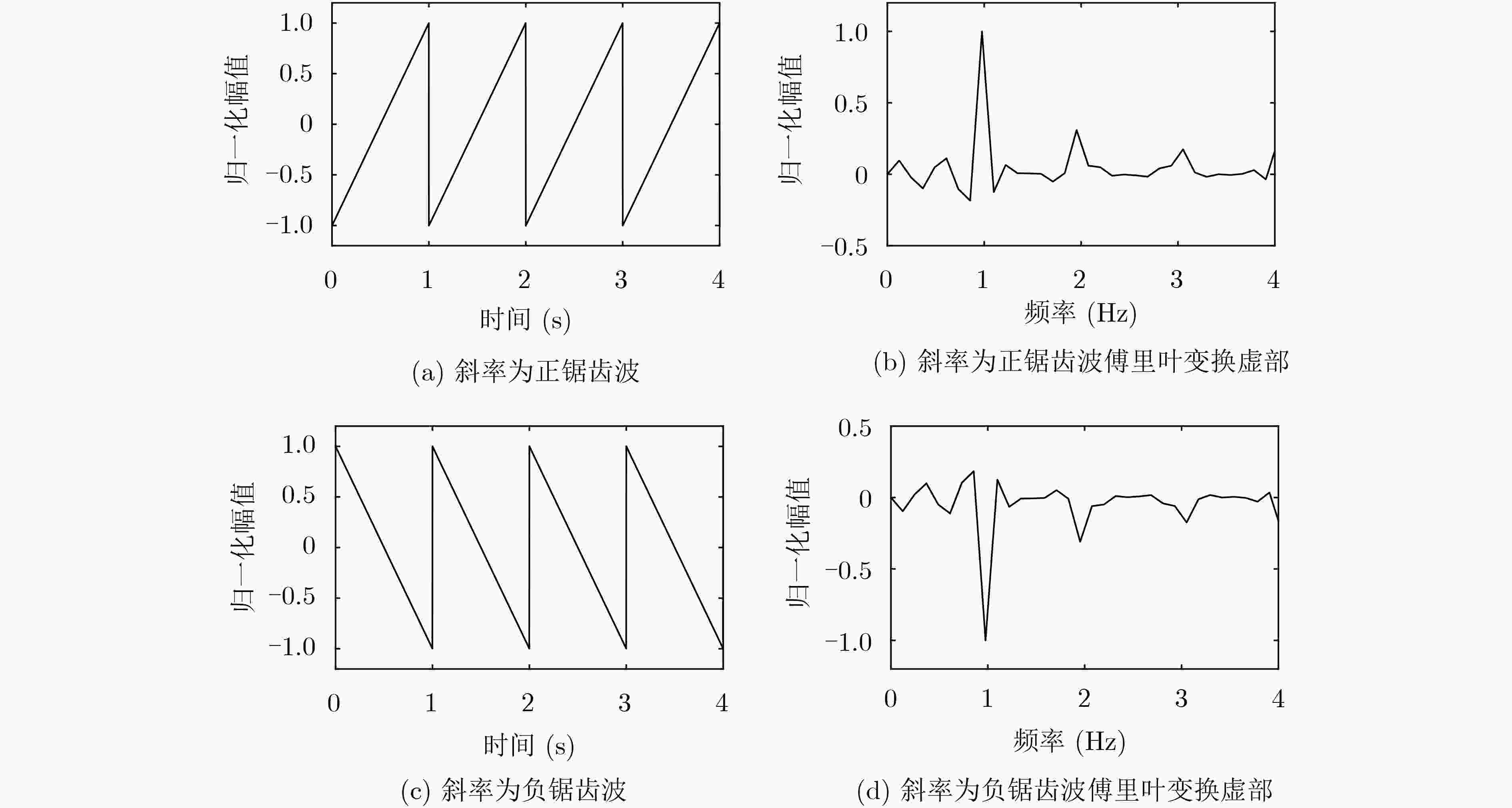

摘要: 时延估计(TDE)是水声领域的重要研究课题，基于时延估计的水声目标被动测向、被动定位技术是水声目标无源定位的重要分支。目前，较为常用的时延估计方法有基本互相关法(NCC)、广义互相关法(GCC)、自适应时延估计(LMS)等。不同于以上方法的思路，该文利用两路信号的互谱相位(CSP)设计了一种时延估计的新方法，该方法将互谱相位进行傅里叶变换，利用其变换域估算相位斜率以求取时延，能够实现多目标分辨、消除时延估计模糊与背景起伏。仿真实验证明，该方法效果要优于基本互相关，广义互相关等方法。Abstract: Time Delay Estimation(TDE) is an important research subject in underwater acoustic field. Passive direction-finding and passive location based on TDE are important brunches in passive location of underwater acoustic target. At present, the common TDE methods include Normalized Cross Correlation(NCC) method, Generalized Cross Correlation(GCC) method and Least Mean Square(LMS) method. Different from the above methods, a new method of TDE is designed by using Cross-power Spectrum Phase(CSP) in this paper. This method performs Fourier transform of CSP and uses the transform domain to estimate the CSP slope to get the time delay. This method can realize multi-target resolution and eliminate the ambiguity and background fluctuation. Simulation results show that this proposed method is better than NCC and GCC.
-

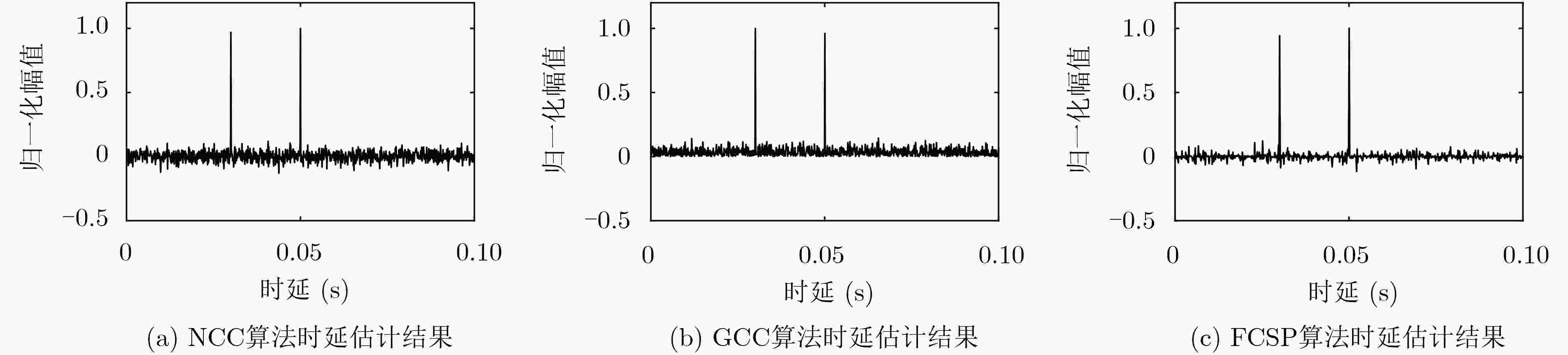

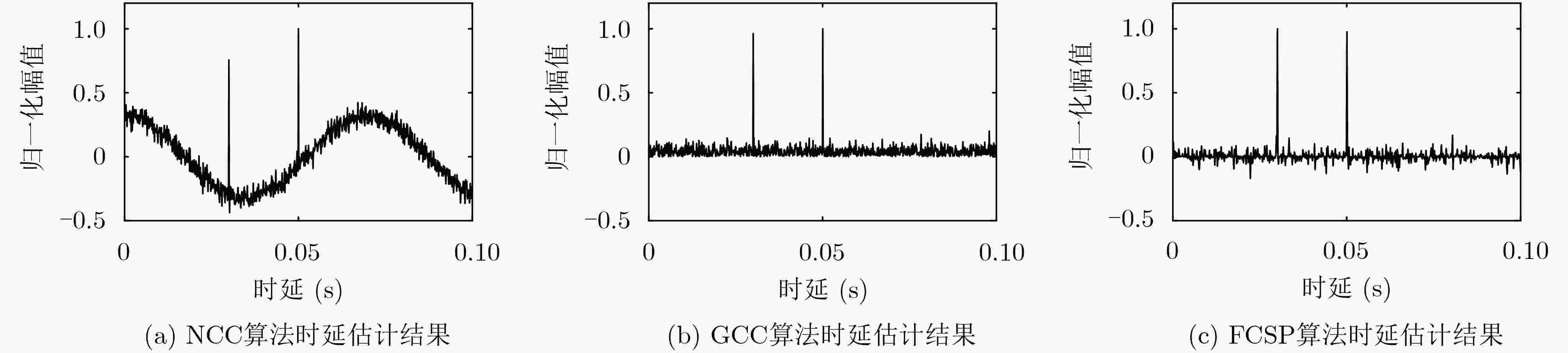

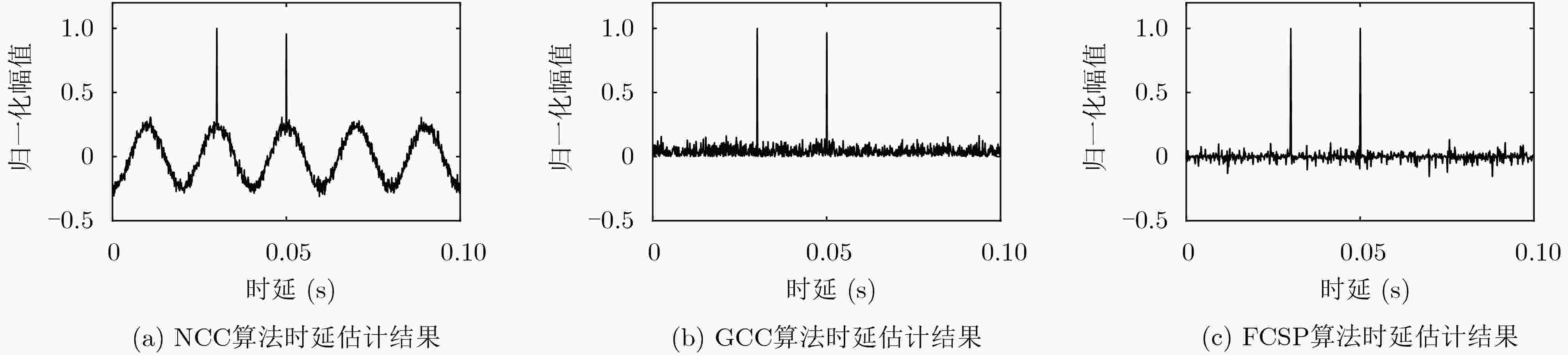

表 1 3种算法噪声RMSE均值对比
信噪比 –10 dB –5 dB 0 dB 5 dB 10 dB NCC算法噪声RMSE 0.0387 0.0242 0.0121 0.0100 0.0094 GCC算法噪声RMSE 0.0289 0.0172 0.0078 0.0058 0.0050 FCSP算法噪声RMSE 0.0162 0.0055 0.0015 0.0013 0.0012
下载: 导出CSV
-
DEHKORDI M B, ABUTALEBI H R, and TABAN M R. Sound source localization using compressive sensing-based feature extraction and spatial sparsity[J]. Digital Signal Processing, 2013, 23(4): 1239–1246. doi: 10.1016/j.dsp.2013.01.008 郝本建, 王林林, 李赞, 等. 面向TDOA被动定位的定位节点选择方法[J]. 电子与信息学报, 2019, 41(2): 462–468. doi: 10.11999/JEIT180293HAO Benjian, WANG Linlin, LI Zan, et al. Sensor selection method for TDOA passive localization[J]. Journal of Electronics &Information Technology, 2019, 41(2): 462–468. doi: 10.11999/JEIT180293 左燕, 陈志猛, 蔡立平. 基于约束总体最小二乘的单站DOA/TDOA联合误差校正与定位算法[J]. 电子与信息学报, 2019, 41(6): 1317–1323. doi: 10.11999/JEIT180655ZUO Yan, CHEN Zhimeng, and CAI Liping. Single-observer DOA/TDOA registration and passive localization based on constrained total least squares[J]. Journal of Electronics &Information Technology, 2019, 41(6): 1317–1323. doi: 10.11999/JEIT180655 孙霆, 董春曦, 毛昱. 一种基于半定松弛技术的TDOA-FDOA无源定位算法[J]. 电子与信息学报, 2020, 42(7): 1599–1605. doi: 10.11999/JEIT190435SUN Ting, DONG Chunxi, and MAO Yu. A TDOA-FDOA passive positioning algorithm based on the semi-definite relaxation technique[J]. Journal of Electronics &Information Technology, 2020, 42(7): 1599–1605. doi: 10.11999/JEIT190435 金光明, 谢植, 张传义, 等. 基于麦克风阵列多声源定位的新方法[J]. 东北大学学报: 自然科学版, 2012, 33(6): 769–773.JIN Guangming, XIE Zhi, ZHANG Chuanyi, et al. A new localization method of multiple sound sources based on microphone array[J]. Journal of Northeastern University:Natural Science, 2012, 33(6): 769–773. CARTER G C. The smoothed coherent transform SCOT[R]. Technical report TM TC-159-72, 1972. BRANDSTEIN M S, ADCOCK J E, and SILVERMAN H F. A practical time-delay estimator for localizing speech sources with a microphone array[J]. Computer Speech & Language, 1995, 9(2): 153–169. doi: 10.1006/csla.1995.0009 REED F, FEINTUCH P, and BERSHAD N. Time delay estimation using the LMS adaptive filter--static behavior[J]. IEEE Transactions on Acoustics, Speech, and Signal Processing, 1981, 29(3): 561–571. doi: 10.1109/TASSP.1981.1163614 YOUN D H, AHMED N, and CARTER G C. On using the LMS algorithm for time delay estimation[J]. IEEE Transactions on Acoustics, Speech, and Signal Processing, 1982, 30(5): 798–801. doi: 10.1109/TASSP.1982.1163961 马雯. 水下目标被动定位方法研究[D]. [硕士论文], 西北工业大学, 2000. GRIFFITHS L J. Rapid measurement of digital instantaneous frequency[J]. IEEE Transactions on Acoustics, Speech, and Signal Processing, 1975, 23(2): 207–222. doi: 10.1109/TASSP.1975.1162662 PIERSOL A G. Time delay estimation using phase data[J]. IEEE Transactions on Acoustics, Speech, and Signal Processing, 1981, 29(3): 471–477. doi: 10.1109/TASSP.1981.1163555 KAY S. A fast and accurate single frequency estimator[J]. IEEE Transactions on Acoustics, Speech, and Signal Processing, 1989, 37(12): 1987–1990. doi: 10.1109/29.45547 RIEDEL K S. Kernel estimation of the instantaneous frequency[J]. IEEE Transactions on Signal Processing, 1994, 42(10): 2644–2649. doi: 10.1109/78.324730 刘兴华, 罗景青, 刘伟山. 简化的基于时延线性拟合的宽带测向算法[J]. 现代防御技术, 2016, 44(1): 186–191. doi: 10.3969/j.issn.1009-086x.2016.01.032LIU Xinghua, LUO Jingqing, and LIU Weishan. Simplified wideband direction finding algorithm based on linear fitting time delay[J]. Modern Defense Technology, 2016, 44(1): 186–191. doi: 10.3969/j.issn.1009-086x.2016.01.032 蒋立平, 郭延芬. 去除相位卷绕的一种简单而有效的方法[J]. 南京理工大学学报, 1998, 22(4): 325–328. doi: 10.14177/j.cnki.32-1397n.1998.04.010JIANG Liping and GUO Yanfen. A simple and efficient method for removing phase wrap[J]. Journal of Nanjing University of Science and Technology, 1998, 22(4): 325–328. doi: 10.14177/j.cnki.32-1397n.1998.04.010 陈华伟. 低空目标声测被动定向技术研究[D]. [硕士论文], 西北工业大学, 2002. doi: 10.7666/d.Y428082. 敖金莲. 基于麦克风阵列声源定位的算法研究[D]. [硕士论文], 燕山大学, 2010.AO Jinlian. Research of algorithmsound source localizationbased on microphone arrays[D]. [Master dissertation], Yanshan University, 2010. -
图(7) / 表(1)
