基于改进迭代扩展卡尔曼滤波的3星时频差测向融合动目标跟踪方法

曲志昱 王超然 孙萌

曲志昱, 王超然, 孙萌. 基于改进迭代扩展卡尔曼滤波的3星时频差测向融合动目标跟踪方法[J]. 电子与信息学报, 2021, 43(10): 2871-2877. doi: 10.11999/JEIT200526
引用本文: 曲志昱, 王超然, 孙萌. 基于改进迭代扩展卡尔曼滤波的3星时频差测向融合动目标跟踪方法[J]. 电子与信息学报, 2021, 43(10): 2871-2877. doi: 10.11999/JEIT200526
Zhiyu QU, Chaoran WANG, Meng SUN. Tracking Method of Moving Target for Three-satellite TDOA/FDOA/DOA System Based on Improved IEKF Algorithm[J]. Journal of Electronics & Information Technology, 2021, 43(10): 2871-2877. doi: 10.11999/JEIT200526
Citation: Zhiyu QU, Chaoran WANG, Meng SUN. Tracking Method of Moving Target for Three-satellite TDOA/FDOA/DOA System Based on Improved IEKF Algorithm[J]. Journal of Electronics & Information Technology, 2021, 43(10): 2871-2877. doi: 10.11999/JEIT200526

基于改进迭代扩展卡尔曼滤波的3星时频差测向融合动目标跟踪方法

doi: 10.11999/JEIT200526
基金项目: 国家自然科学基金(61801143),中央高校基本科研业务费专项资金(3072020CF0814)
详细信息
    作者简介:

    曲志昱:女,1983年生,副教授,研究方向为电子侦察与对抗、阵列信号测向

    王超然:男,1996年生,硕士生,研究方向为星载侦察定位

    孙萌:男,1997年生,硕士生,研究方向为阵列信号测向

    通讯作者:

    王超然 xhxhxhwcr@163.com

  • 中图分类号: TN953

Tracking Method of Moving Target for Three-satellite TDOA/FDOA/DOA System Based on Improved IEKF Algorithm

Funds: The National Natural Science Foundation of China (61801143), The Fundamental Research Funds for the Central Universities (3072020CF0814)
  • 摘要: 针对传统3星时频差定位系统在未知高程情况下,对运动辐射源会产生由目标速度引发的定位误差的问题,该文提出一种利用主星的干涉仪测向信息的改进迭代扩展卡尔曼滤波(IEKF),结合3星时差、频差信息的无源融合动目标跟踪新方法。首先,在坐标系转换的基础上建立了定位模型,并在此基础上利用改进的迭代扩展卡尔曼滤波算法对未知高程的运动目标进行跟踪。仿真结果表明,该方法无需获知目标的高程信息即可实现对运动辐射源的定位、跟踪和测速,且对目标的位置、速度估计性能有较大的提高。

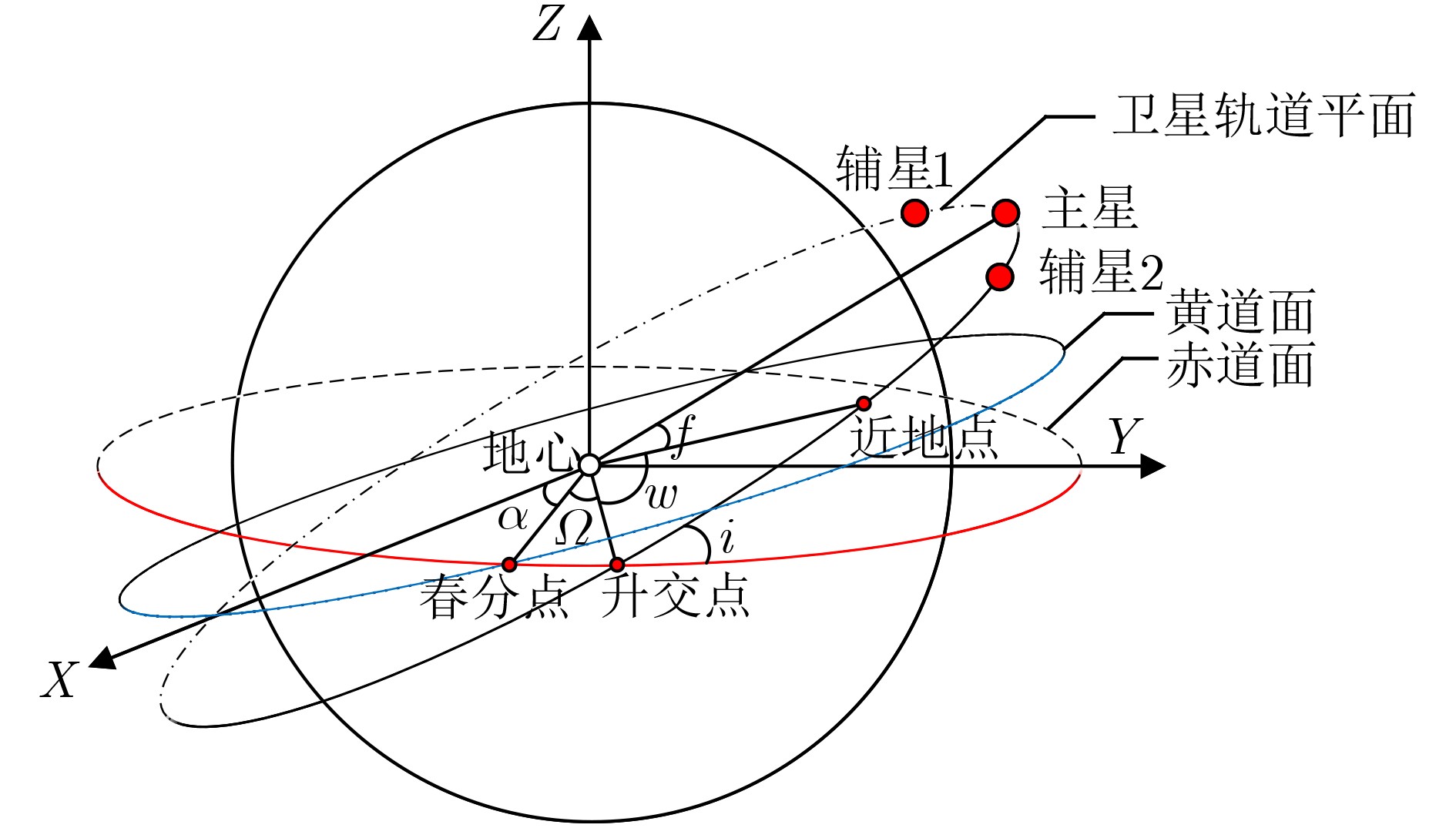

  • 图  1  TDOA-FDOA-DOA跟踪定位系统示意图

    图  2  改进IEKF流程示意图

    图  3  3星同轨GDOP分布

    图  4  2星同轨1星异轨GDOP分布

    图  5  目标定位跟踪结果

    图  6  目标高程跟踪结果

    图  7  目标位置估计误差

    图  8  目标速度估计误差
