语义分割网络重建单视图遥感影像数字表面模型

卢俊言; 贾宏光; 高放; 李文涛; 陆晴

doi:10.11999/JEIT200031

语义分割网络重建单视图遥感影像数字表面模型

doi: 10.11999/JEIT200031

卢俊言^{1, 2, 3},
贾宏光^{1, 2, 3, ,},
高放³,
李文涛³,
陆晴³

1.
中国科学院长春光学精密机械与物理研究所长春 130033
2.
中国科学院大学北京 100049
3.
长光卫星技术有限公司长春 130102

基金项目: 吉林省重大科技攻关项目(20170201006GX)，长春市科技局重大科技攻关项目(SA13RP2018040101)，吉林省科技厅重点科技研发项目(20180201109GX)

详细信息

作者简介:
卢俊言：男，1990年生，博士生，研究方向为基于深度学习的遥感影像数据挖掘

贾宏光：男，1971年生，研究员，博士生导师，研究方向为无人机总体技术，精确末制导技术，飞行器半物理仿真及小型快速机电伺服技术

高放：男，1987年生，工学博士，研究方向为遥感数据处理与应用

李文涛：男，1990年生，硕士，研究方向为遥感影像DSM, DOM, DEM生产

陆晴：女，1995年生，硕士，研究方向为基于深度学习的计算机视觉及数据挖掘

通讯作者:
贾宏光　jiahg@ciomp.ac.cn

中图分类号: TP394.1
计量
- 文章访问数: 1267
- HTML全文浏览量: 551
- PDF下载量: 80
- 被引次数: 0
出版历程
- 收稿日期: 2020-01-09
- 修回日期: 2020-09-10
- 网络出版日期: 2020-09-14
- 刊出日期: 2021-04-20

Reconstruction of Digital Surface Model of Single-view Remote Sensing Image by Semantic Segmentation Network

Junyan LU^{1, 2, 3},
Hongguang JIA^{1, 2, 3
, ,},
Fang GAO³,
Wentao LI³,
Qing LU³

1.
Changchun Institute of Optics, Fine Mechanics, and Physics, Chinese Academy of Sciences, Changchun 130033, China
2.
University of Chinese Academy of Sciences, Beijing 100049, China
3.
Chang Guang Satellite Technology Co., Ltd, Changchun 130102, China

Funds: The Key Technologies of Jilin Province (20170201006GX), The Major Science and Technology Research Project of Changchun Science and Technology Bureau (SA13RP2018040101); The Key Science and Technology Research Project of Jilin Province Science and Technology Department (20180201109GX)

摘要

摘要: 该文提出了一种仅依靠激光探测与测量数据，实现单视图遥感影像数字表面模型(DSM)重建的新方法。该方法基于深度学习技术设计了一种编码-解码结构的语义分割网络，该网络采用多尺度残差融合的编码块与解码(MRFED)块从输入图像中提取语义信息，进而逐像素预测高度值；采用特征图跳跃级联的策略保留输入图像的细节特征和结构信息。该文采用了一个包含DSM数据的遥感影像公开数据集训练与测试模型，实验结果表明：DSM重建结果与真值的平均绝对误差(MAE)为2.1e-02，均方根误差(RMSE)为3.8e-02，结构相似性(SSIM)为92.89%，均优于经典的深度学习语义分割网络。实验证实该方法能够有效实现单视图遥感影像的DSM重建，具有较高的精度，以及较强的地物分布结构重建能力。
- 语义分割网络 /
- 编码-解码 /
- 多尺度残差融合 /
- 跳跃级联 /
- 数字表面模型
Abstract: A novel method for Digital Surface Model (DSM) reconstruction of single-view remote sensing image is proposed which only relies on light detection and ranging data. Based on deep learning technology, a semantic segmentation network with an encode-decode structure is designed. The network uses Multi-scale Residual Fusion Encode and Decode (MRFED) blocks to extract semantic information from the input image, and then predicts the height value pixel by pixel, as well as adopts a strategy of skip connections with feature maps to preserves the detailed features and structural information of the input image. The model is trained and tested on a public dataset of remote sensing images containing DSM data. Experiments show that, the Mean Absolute Error (MAE) between DSM reconstruction results and true values is 2.1e-02, the Root Mean Square Error (RMSE) is 3.8e-02, and the Structural SIMilarity (SSIM) is 92.89%, which are all better than the classic deep learning semantic segmentation networks. Experiments confirm that the method can effectively reconstruct the DSM of single-view remote sensing images with high accuracy, as well as the structure of feature distribution.
- Semantic segmentation network /
- Encode-decode /
- Multi-scale residual fusion /
- Skip connections /
- Digital Surface Model (DSM)

HTML全文

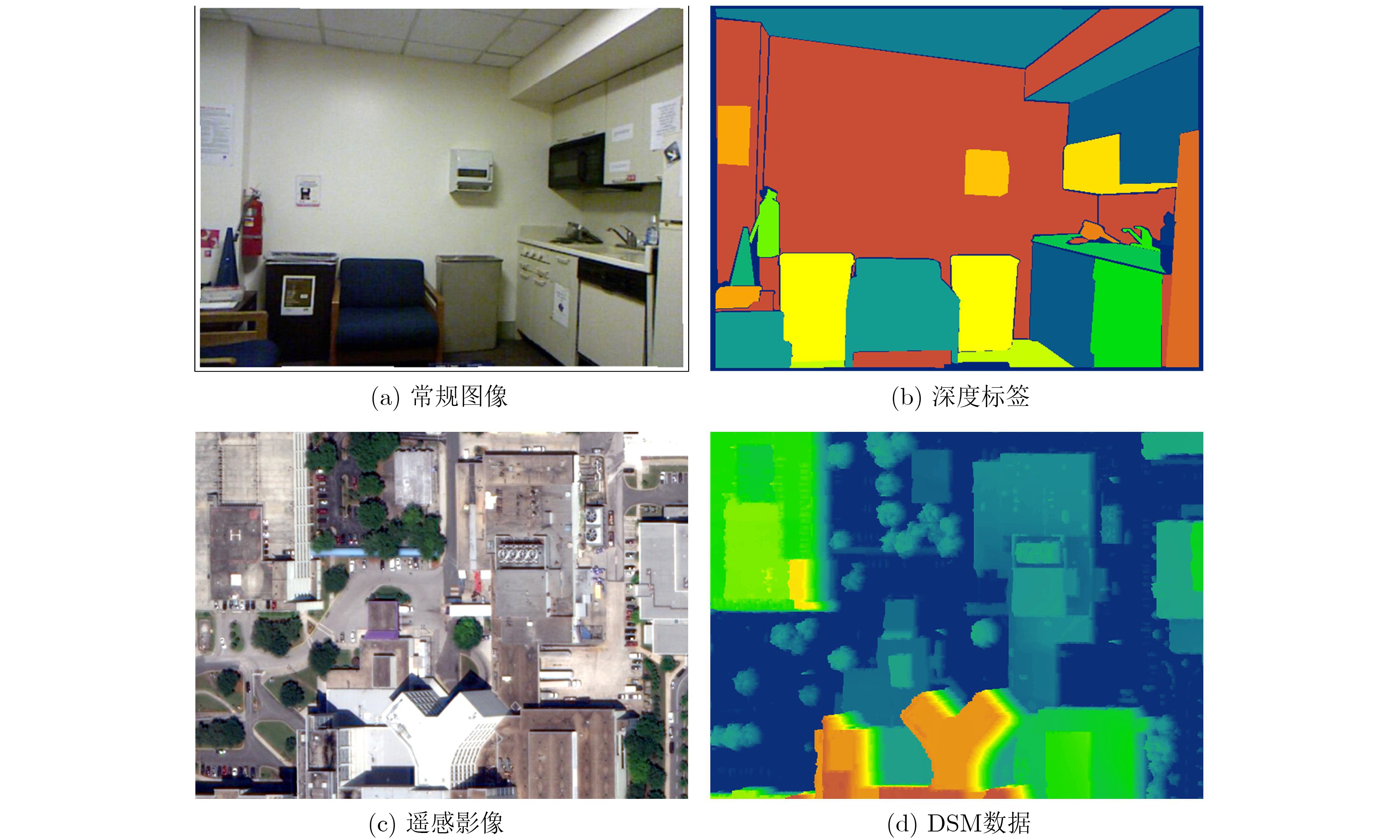

图 1 深度估计与高度预测

下载: 全尺寸图片幻灯片

图 2 MRFED网络结构示意图

下载: 全尺寸图片幻灯片

图 3 编码块与解码块结构

下载: 全尺寸图片幻灯片

图 4 MRFE的DSM重建结果

下载: 全尺寸图片幻灯片

图 5 测试结果的数据指标

下载: 全尺寸图片幻灯片

表 1 MRFED各层的特征图尺寸和通道数信息

网络层	尺寸	通道数
输入	512×512	3
特征图#1	256×256	64
特征图#2	128×128	128
特征图#3	64×64	256
特征图#4	32×32	512
特征图#5	16×16	1024
特征图#6	32×32	512×2
特征图#7	64×64	256×2
特征图#8	128×128	128×2
特征图#9	256×256	64×2
输出	512×512	1

下载: 导出CSV

表 2 测试结果的数据指标

算法模型	主干网络	平均绝对误差	均方根误差	结构相似性
FCN	VGG16	2.2e-01	4.1e-01	0.6611
U-net	ResNet-50	6.9e-02	1.0e-01	0.8534
MRFE	ResNet-50	3.3e-02	5.9e-02	0.8490
MRFE+跳跃级联	ResNet-50	2.1e-02	3.8e-02	0.9289

下载: 导出CSV

表 3 Vaihingen数据集上的DSM重建结果对比

方法	平均绝对误差	均方根误差
ST loss^[11]	6.3e-02	9.9e-02
本文	2.9e-02	5.1e-02

下载: 导出CSV

参考文献(21)

AUDEBERT N, LE SAUX B, and LEFÈVREY S. Fusion of heterogeneous data in convolutional networks for urban semantic labeling[C]. 2017 Joint Urban Remote Sensing Event, Dubai, United Arab Emirates, 2017: 1–4. doi: 10.1109/jurse.2017.7924566.

QIN Rongjun, HUANG Xin, GRUEN A, et al. Object-based 3-D building change detection on multitemporal stereo images[J]. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 2015, 8(5): 2125–2137. doi: 10.1109/jstars.2015.2424275

QIN Rongjun, TIAN Jiaojiao, and REINARTZ P. 3D change detection–approaches and applications[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2016, 122: 41–56. doi: 10.1016/j.isprsjprs.2016.09.013

BUADES A, COLL B, and MOREL J M. A review of image denoising algorithms, with a new one[J]. Multiscale Modeling & Simulation, 2005, 4(2): 490–530. doi: 10.1137/040616024

LIU Guilin, REDA F A, SHIH K J, et al. Image inpainting for irregular holes using partial convolutions[C]. The 15th European Conference on Computer Vision, Munich, Germany, 2018: 89–105. doi: 10.1007/978-3-030-01252-6_6.

DONG Chao, LOY C C, HE Kaiming, et al. Image super-resolution using deep convolutional networks[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2016, 38(2): 295–307. doi: 10.1109/TPAMI.2015.2439281

SHI Wenzhe, CABALLERO J, HUSZÁR F, et al. Real-time single image and video super-resolution using an efficient sub-pixel convolutional neural network[C]. 2016 IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, USA, 2016: 1874–1883. doi: 10.1109/cvpr.2016.207.

EIGEN D, PUHRSCH C, and FERGUS R. Depth map prediction from a single image using a multi-scale deep network[C]. The 27th International Conference on Neural Information Processing Systems, Montreal, Canada, 2014: 2366–2374.

EIGEN D and FERGUS R. Predicting depth, surface normals and semantic labels with a common multi-scale convolutional architecture[C]. 2015 IEEE International Conference on Computer Vision, Santiago, Chile, 2015: 2650–2658. doi: 10.1109/iccv.2015.304.

LIU Fayao, SHEN Chunhua, LIN Guosheng, et al. Learning depth from single monocular images using deep convolutional neural fields[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2016, 38(10): 2024–2039. doi: 10.1109/tpami.2015.2505283

SRIVASTAVA S, VOLPI M, and TUIA D. Joint height estimation and semantic labeling of monocular aerial images with CNNs[C]. 2017 IEEE International Geoscience and Remote Sensing Symposium, Fort Worth, USA, 2017: 5173–5176. doi: 10.1109/igarss.2017.8128167.

ZEILER M D and FERGUS R. Visualizing and understanding convolutional networks[C]. The 13th European Conference on computer Vision, Zurich, Switzerland, 2014: 818–833. doi: 10.1007/978-3-319-10590-1_53.

MAHENDRAN A and VEDALDI A. Understanding deep image representations by inverting them[C]. 2015 IEEE Conference on Computer Vision and Pattern Recognition, Boston, USA, 2015: 5188–5196. doi: 10.1109/CVPR.2015.7299155.

LONG J, SHELHAMER E, and DARRELL T. Fully convolutional networks for semantic segmentation[C]. 2015 IEEE Conference on Computer Vision and Pattern Recognition, Boston, USA, 2015: 3431–3440. doi: 10.1109/cvpr.2015.7298965.

杨宏宇, 王峰岩. 基于深度卷积神经网络的气象雷达噪声图像语义分割方法[J]. 电子与信息学报, 2019, 41(10): 2373–2381. doi: 10.11999/JEIT190098

YANG Hongyun and WANG Fengyan. Meteorological radar noise image semantic segmentation method based on deep convolutional neural network[J]. Journal of Electronics &Information Technology, 2019, 41(10): 2373–2381. doi: 10.11999/JEIT190098

HE Kaiming, ZHANG Xiangyu, REN Shaoqing, et al. Deep residual learning for image recognition[C]. 2016 IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, USA, 2016: 770–778. doi: 10.1109/cvpr.2016.90.

罗会兰, 卢飞, 孔繁胜. 基于区域与深度残差网络的图像语义分割[J]. 电子与信息学报, 2019, 41(11): 2777–2786. doi: 10.11999/JEIT190056

LUO Huilan, LU Fei, and KONG Fansheng. Image semantic segmentation based on region and deep residual network[J]. Journal of Electronics &Information Technology, 2019, 41(11): 2777–2786. doi: 10.11999/JEIT190056

ZEILER M D, TAYLOR G W, and FERGUS R. Adaptive deconvolutional networks for mid and high level feature learning[C]. 2011 International Conference on Computer Vision, Barcelona, Spain, 2011: 2018–2025. doi: 10.1109/iccv.2011.6126474.

GLOROT X and BENGIO Y. Understanding the difficulty of training deep feedforward neural networks[C]. The 13th International Conference on Artificial Intelligence and Statistics, Sardinia, Italy, 2010: 249–256.

SUTSKEVER I, MARTENS J, DAHL G, et al. On the importance of initialization and momentum in deep learning[C]. The 30th International Conference on Machine Learning, Atlanta, USA, 2013: 1139–1147.

RONNEBERGER O, FISCHER P, and BROX T. U-net: Convolutional networks for biomedical image segmentation[C]. The 18th International Conference on Medical Image Computing and Computer-Assisted Intervention, Munich, Germany, 2015: 234–241. doi: 10.1007/978-3-319-24574-4_28.
