用于14位210 MS/s电荷域ADC的4.5位子级电路

薛颜; 于宗光; 陈珍海; 魏敬和; 钱宏文

doi:10.11999/JEIT190592

用于14位210 MS/s电荷域ADC的4.5位子级电路

doi: 10.11999/JEIT190592

薛颜¹,
于宗光^1, ,,
陈珍海^{1, 2, 3},
魏敬和¹,
钱宏文¹

1.
中国电子科技集团第五十八研究所无锡 214035
2.
黄山学院信息工程学院黄山 245041
3.
智能微系统安徽省工程技术研究中心黄山 245041

详细信息

作者简介:
薛颜：男，1983年生，工程师，研究方向为物理电子学

于宗光：男，1964年生，教授，研究方向为微电子学

陈珍海：男，1982年生，高级工程师，研究方向为微电子学与固体电子学

魏敬和：男，1970年生，研究员，研究方向为集成电路设计

钱宏文：男，1975年生，研究员，研究方向为集成电路应用

通讯作者:
于宗光　yuzg58@163.com

中图分类号: TN47
计量
- 文章访问数: 1104
- HTML全文浏览量: 616
- PDF下载量: 50
- 被引次数: 0
出版历程
- 收稿日期: 2019-08-06
- 修回日期: 2020-08-06
- 网络出版日期: 2020-08-12
- 刊出日期: 2020-09-27

4.5 bit Sub-stage Circuit for 14 bit 210 MS/s Charge-domain ADC

Yan XUE¹,
Zongguang YU^{1
, ,},
Zhenhai CHEN^{1, 2, 3},
Jinghe WEI¹,
Hongwen QIAN¹

1.
No.58 Research Institute, China Electronic Technology Group Corporation, Wuxi 214035, China
2.
School of Information Engineering, Huangshan University, Huangshan 245041, China
3.
Engineering Technology Research Center of Intelligent Microsystems AnHui Province, Huangshan 245041, China

摘要

摘要: 该文提出了一种用于高速高精度电荷域流水线模数转换器(ADC)的电荷域4.5位前端子级电路。该4.5位子级电路使用增强型电荷传输(BCT)电路替代传统开关电容技术流水线ADC中的高增益带宽积运放来实现电荷信号传输和余量处理，从而实现超低功耗。所提4.5位子级电路被运用于一款14位210 MS/s电荷域ADC中作为前端第1级子级电路，并在1P6M 0.18 μm CMOS工艺下实现。测试结果显示，该14位ADC电路在210 MS/s条件下对于30.1 MHz单音正弦输入信号得到的无杂散动态范围为85.4 dBc，信噪比为71.5 dBFS, ADC内核面积为3.2 mm²，功耗仅为205 mW。
- 流水线模数转换器 /
- 电荷域 /
- 子级电路 /
- 低功耗
Abstract: A 4.5 bit sub-stage circuit for high speed high precision charge domain pipelined Analog-to-Digital Converter (ADC) is proposed. Instead of the high-performance opamps used in traditional switched-capacitor pipelined ADCs, charge transfer and residue charge calculation is realized with Boosted Charge Transfer (BCT) circuit in the proposed 4.5 bit sub-stage. Therefore, the power consumption of the 4.5 bit sub-stage circuit can be reduced remarkably. The proposed 4.5 bit sub-stage circuit is used as the 1st stage circuit for a 14 bit 210 MS/s charge domain pipelined ADC and realized in a 1P6M 0.18 μm CMOS process. Test results show the 14 bit 210 MS/s ADC achieves the signal-to-noise ratio of 71.5 dBFS and the spurious free dynamic range of 85.4 dB, with 30.1 MHz input single tone signal at 210 MS/s, while the ADC core consumes the power consumption of 205 mW and occupies an area of 3.2 mm².
- Pipelined Analog-to-Digital Converter(ADC) /
- Charge-domain /
- Sub-stage circuit /
- Low power

HTML全文

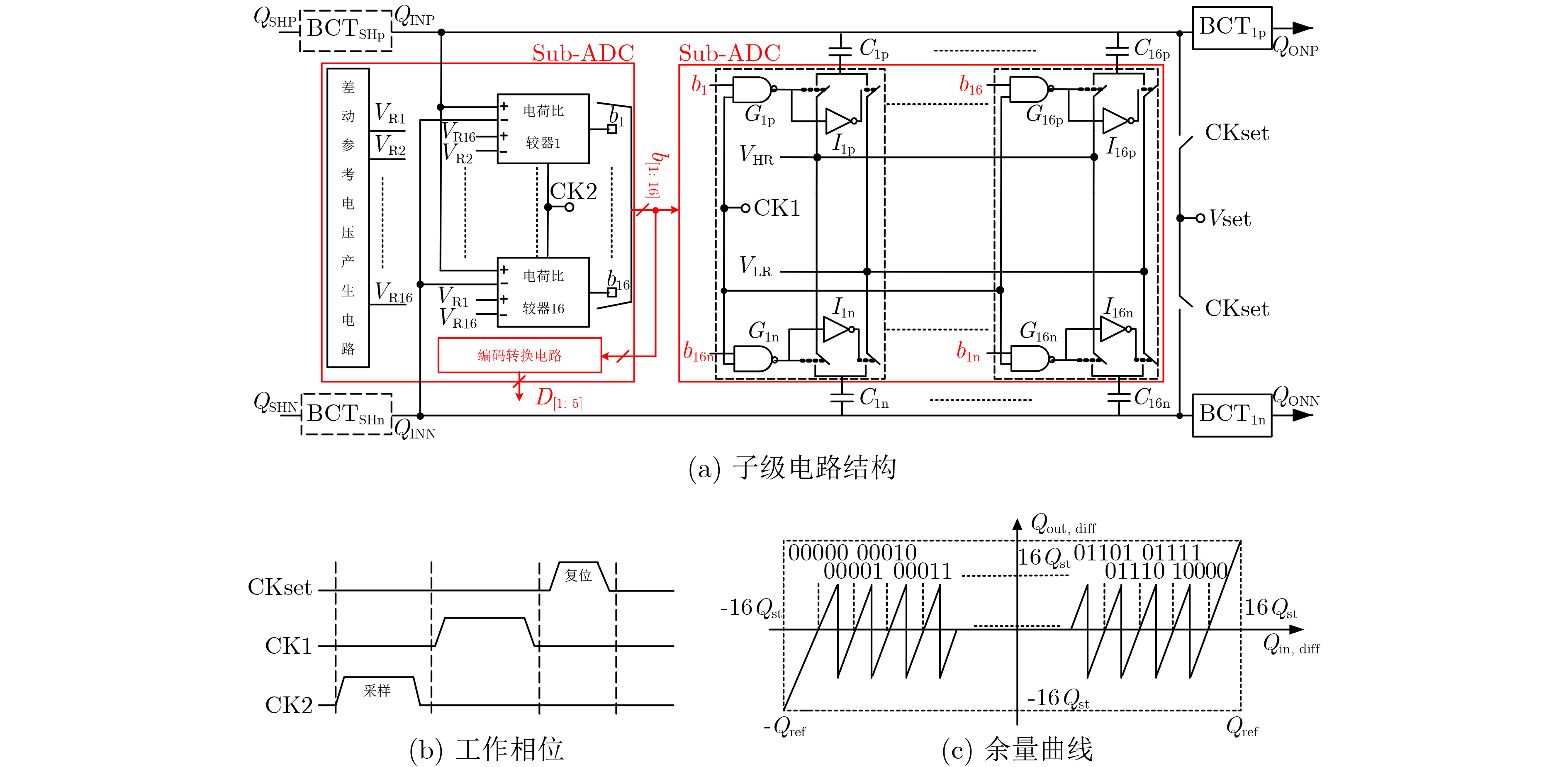

图 1 电荷域4.5位每级子级结构

下载: 全尺寸图片幻灯片

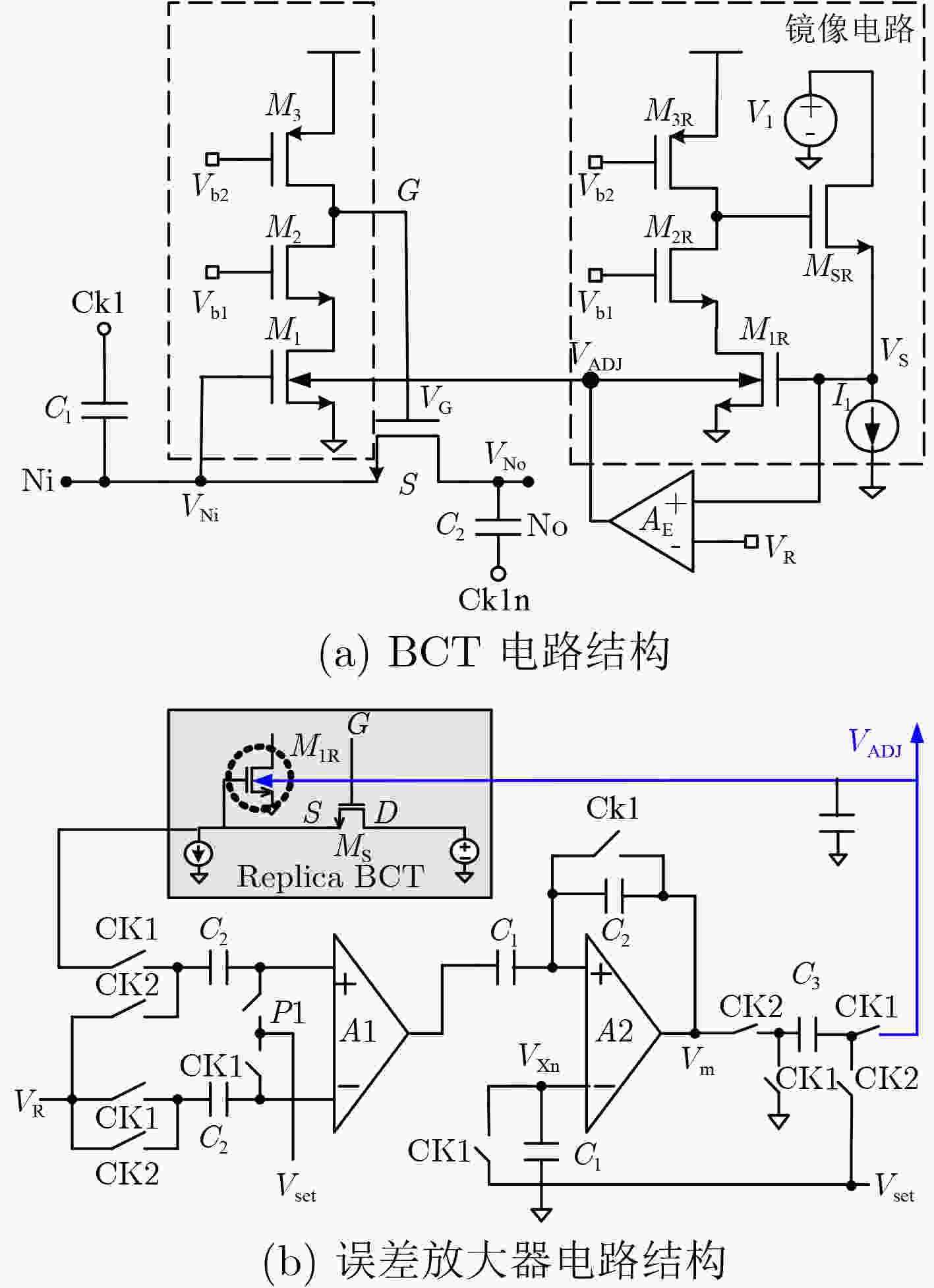

图 2 镜像控制BCT电路结构

下载: 全尺寸图片幻灯片

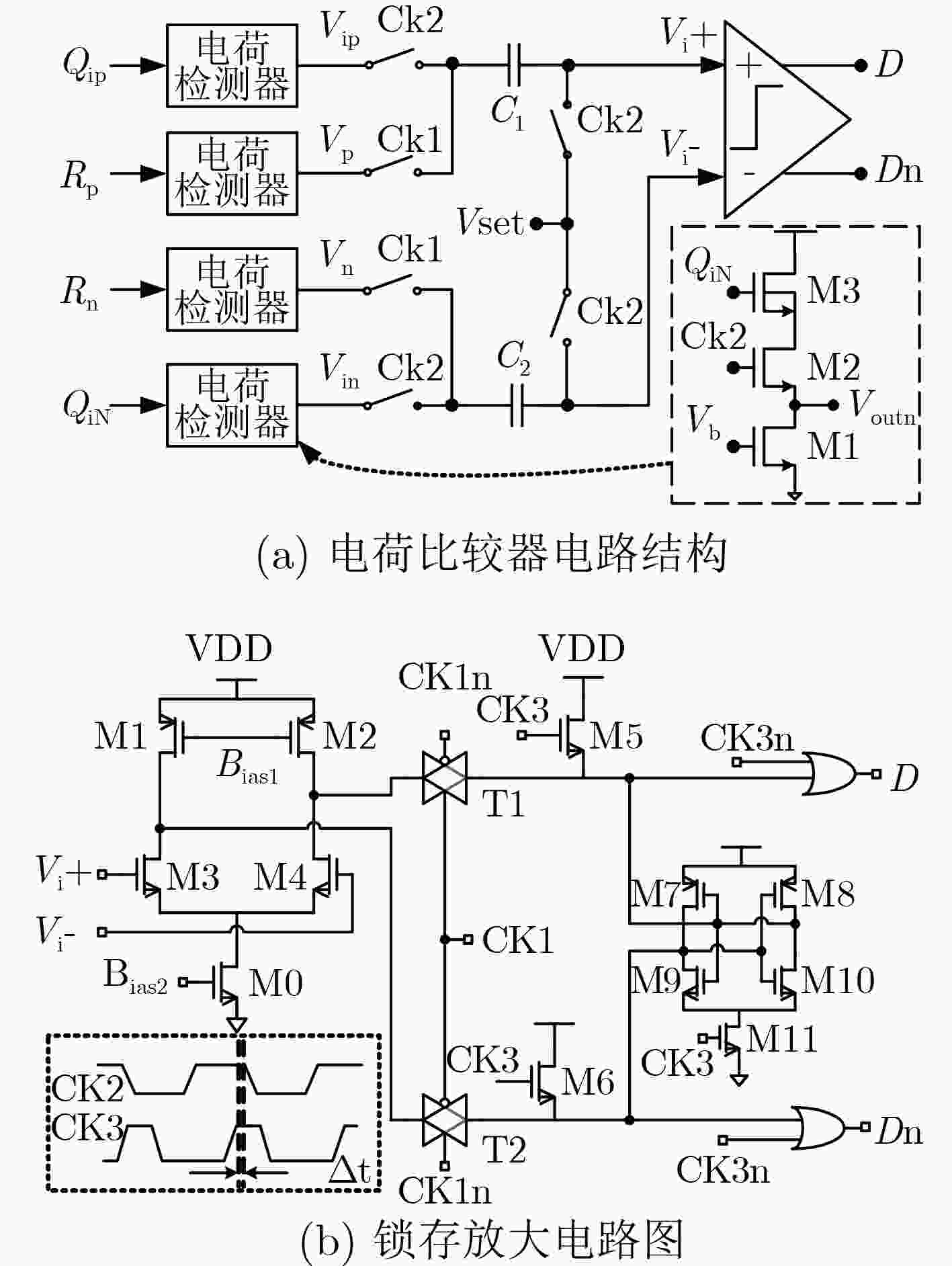

图 3 高速动态电荷比较器电路结构

下载: 全尺寸图片幻灯片

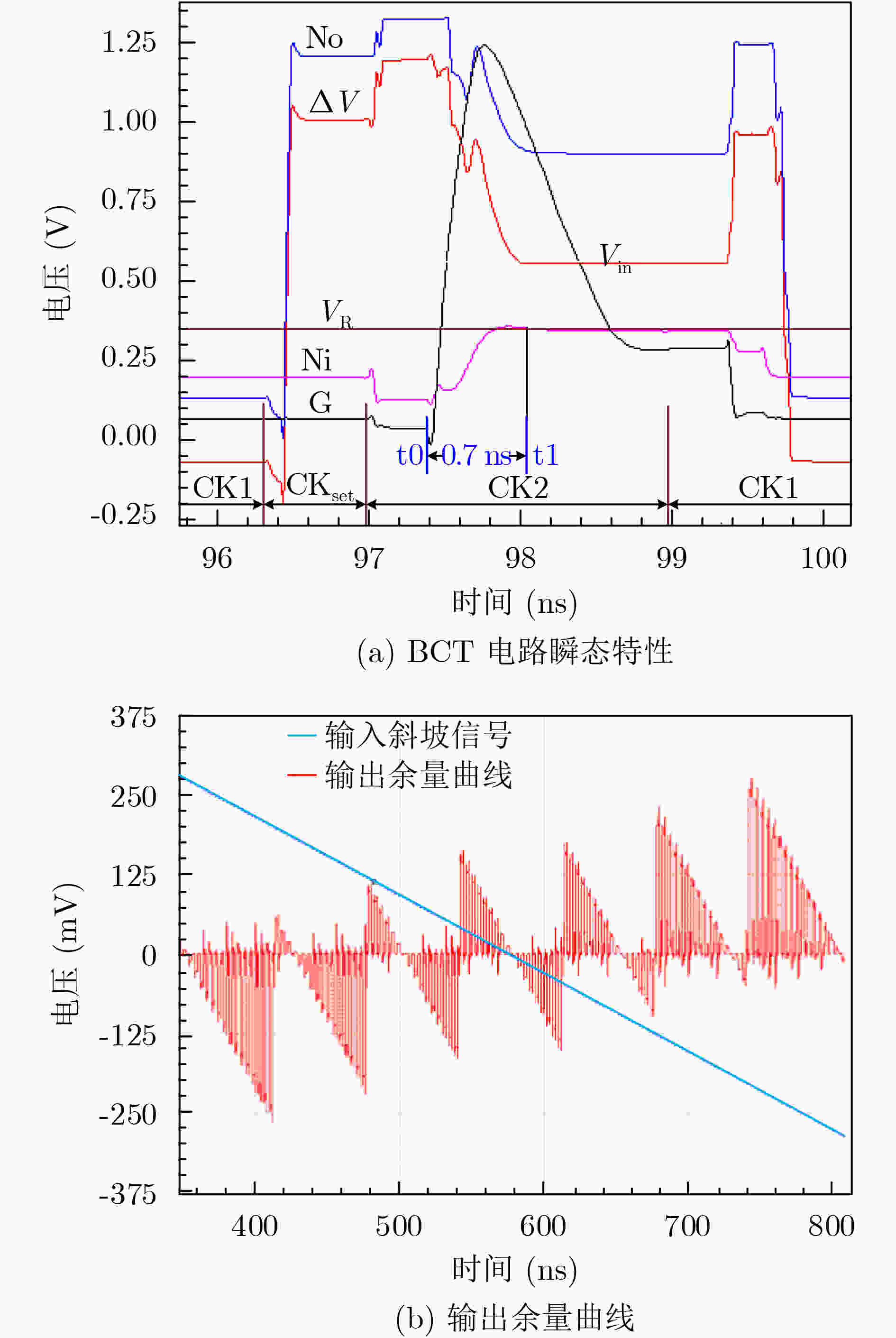

图 4 4.5位子级电路仿真曲线

下载: 全尺寸图片幻灯片

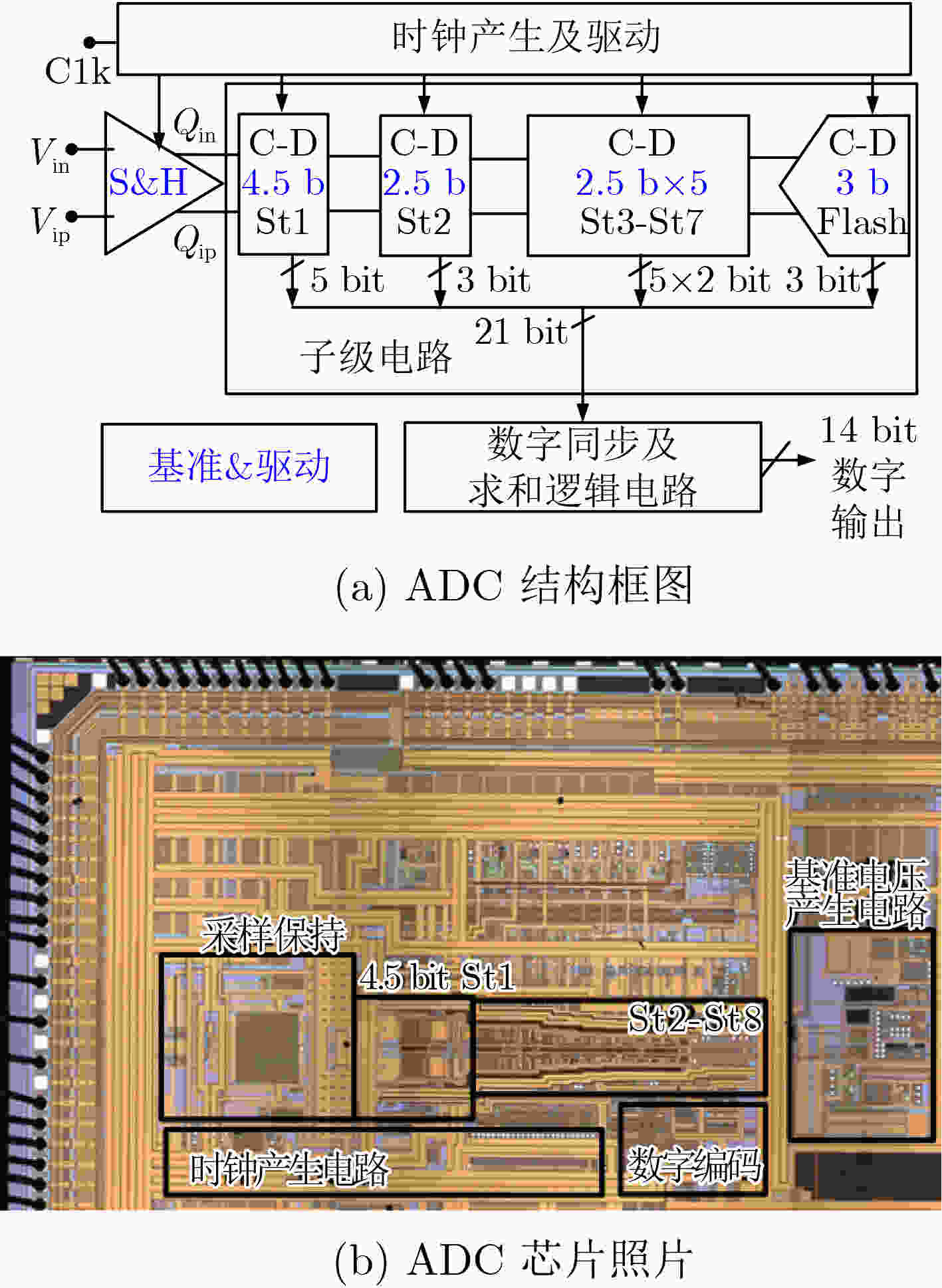

图 5 14位210 MS/s电荷域ADC框图及芯片照片

下载: 全尺寸图片幻灯片

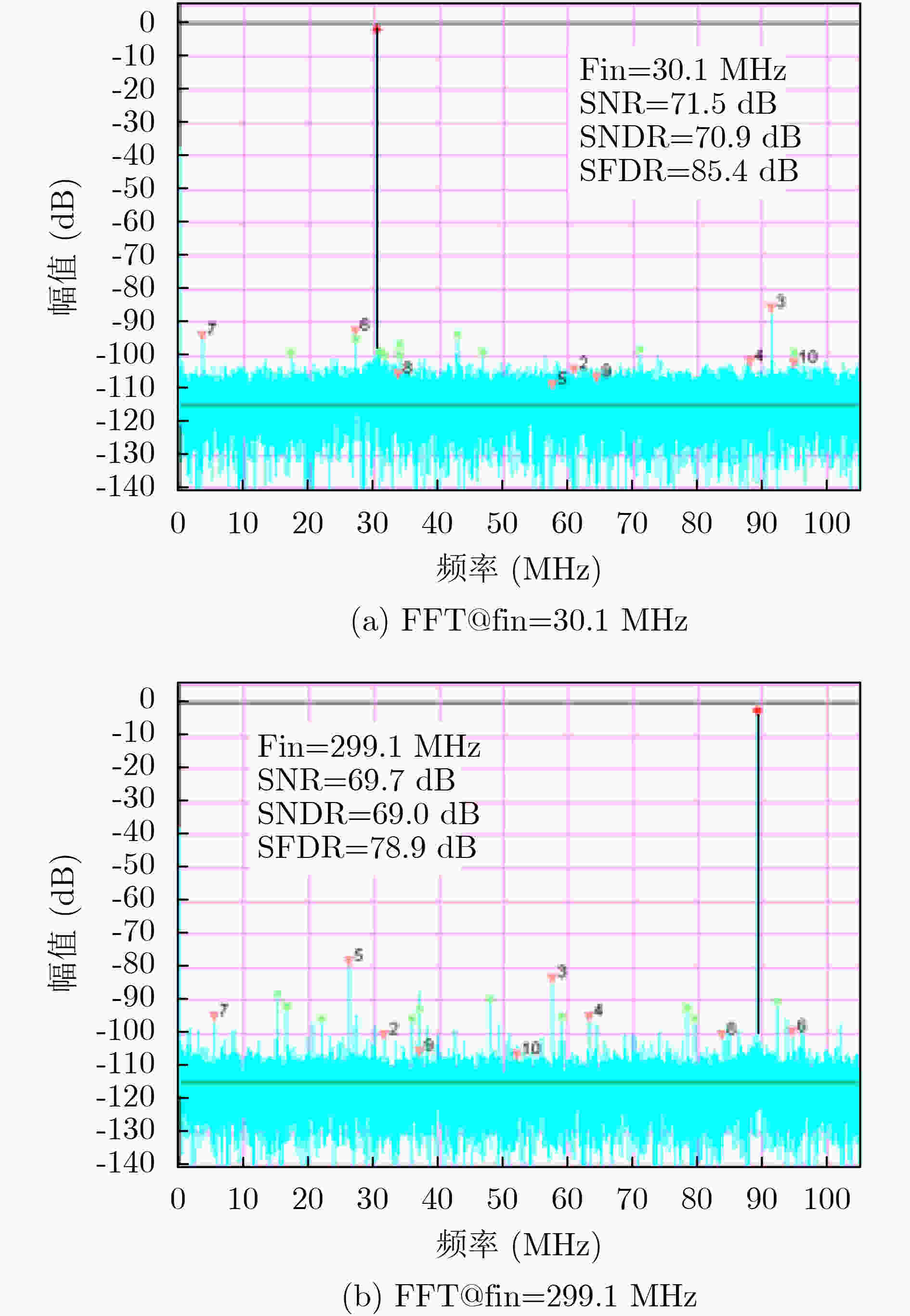

图 6 ADC实测FFT结果

下载: 全尺寸图片幻灯片

表 1 本电路部分关键实测数据

测试电路	精度(bit)	输入信号(MHz)	采样率(MS/s)	温度(°C)	SNR(dB)	SFDR(dB)	内核电流(mA)	内核功耗(mW)
电路1	14	30.1	210	–40	68.3	80.2	109	197
				25	71. 5	85.4	114	205
				85	71.3	83.6	119	214
电路2	14	30.1	210	–40	68.1	79.8	108	194
				25	71.4	85.2	113	203
				85	71.1	83.2	117	211

下载: 导出CSV

表 2 ADC性能对比

技术指标	精度 (bit)	采样率 (MS/s)	SNR (dB)	SFDR (dB)	电源电压 (V)	工艺 (nm)	内核功耗 (mW)	内核面积 (mm²)	FOM(pJ/step)功耗/ (2^ENOB·f_clk)
文献[4]	14	500	64.8	92.7	1.8/3.3	180	550	2.5*	0.71
文献[5]	14	1000	69	86	1.2/2.5	65	1200	5	0.55
文献[14]	14	200	68.5	88.5	1.8	180	460	22.5**	1.07
文献[15]	14	250	68.5	94.7	1.8	180	300	3.6	0.57
本文	14	210	71.5	85.4	1.8	180	205	3.2	0.39
注：采用SiGe BiCMOS工艺；*采用时间交织结构。

下载: 导出CSV

参考文献(15)

李光祚, 默迪, 王宁, 等. 一种新的高重频宽带相干激光雷达系统研究[J]. 电子与信息学报, 2018, 40(3): 525–531. doi: 10.11999/JEIT170479

LI Guangzuo, MO Di, WANG Ning, et al. A novel coherent ladar system with high repetition frequency and wide bandwidth[J]. Journal of Electronics &Information Technology, 2018, 40(3): 525–531. doi: 10.11999/JEIT170479

陈珍海, 魏敬和, 钱宏文, 等. 用于14位210 MS/s电荷域ADC的采样保持前端电路[J]. 电子与信息学报, 2019, 41(3): 732–738. doi: 10.11999/JEIT180337

CHEN Zhenhai, WEI Jinghe, QIAN Hongwen, et al. Sample and hold front-end circuit for 14-bit 210 MS/s charge-domain ADC[J]. Journal of Electronics &Information Technology, 2019, 41(3): 732–738. doi: 10.11999/JEIT180337

景国彬, 孙光才, 邢孟道, 等. 一种新的步进频MIMO-SAR带宽合成的处理方法[J]. 西安电子科技大学学报: 自然科学版, 2018, 45(2): 148–153, 159. doi: 10.3969/j.issn.1001-2400.2018.02.025

JING Guobin, SUN Guangcai, XING Mengdao, et al. Novel two-step method of bandwidth synthesis for SF-MIMO-SAR[J]. Journal of Xidian University, 2018, 45(2): 148–153, 159. doi: 10.3969/j.issn.1001-2400.2018.02.025

EL-CHAMMAS M, LI Xiaopeng, KIMURA S, et al. 15.8 90 dB-SFDR 14b 500 MS/s BiCMOS switched-current pipelined ADC[C]. 2015 IEEE International Solid-State Circuits Conference, San Francisco, USA, 2015: 286–287. doi: 10.1109/ISSCC.2015.7063038.

ALI A M A, DINC H, BHORASKAR P, et al. A 14 Bit 1 GS/s RF sampling pipelined ADC with background calibration[J]. IEEE Journal of Solid-State Circuits, 2014, 49(12): 2857–2867. doi: 10.1109/JSSC.2014.2361339

ALI A M A, DINC H, BHORASKAR P, et al. A 14-bit 2.5 GS/s and 5 GS/s RF sampling ADC with background calibration and Dither[C]. 2016 IEEE Symposium on VLSI Circuits, Honolulu, USA, 2016: 1–2. doi: 10.1109/VLSIC.2016.7573537.

WU Jiangfeng, CHOU A, LI Tianwei, et al. 26.7 A 4 GS/s 13b pipelined ADC with capacitor and amplifier sharing in 16 nm CMOS[C]. 2016 IEEE International Solid-State Circuits Conference, San Francisco, USA, 2016: 466–468. doi: 10.1109/ISSCC.2016.7418109.

ANTHONY M, KOHLER E, KURTZE J, et al. A process-scalable low-power charge-domain 13-bit pipeline ADC[C]. 2008 IEEE Symposium on VLSI Circuits, Honolulu, USA, 2008: 222–223. doi: 10.1109/VLSIC.2008.4586015.

CHEN Zhenhai, YU Zongguang, HUANG Songren, et al. A PVT Insensitive boosted charge transfer for high speed charge-domain pipelined ADCs[J]. IEICE Electronics Express, 2012, 9(6): 565–571. doi: 10.1587/elex.9.565

CHEN Zhenhai, HUANG Songren, ZHANG Hong, et al. A 27-mW 10-bit 125-MSPS charge domain pipelined ADC with a PVT insensitive boosted charge transfer circuit[J]. Journal of Semiconductors, 2013, 34(3): 035009. doi: 10.1088/1674-4926/34/3/035009

HUANG Songren, ZHANG Hong, CHEN Zhenhai, et al. A 10-bit 250 MSPS charge-domain pipelined ADC with replica controlled PVT insensitive BCT circuit[J]. Journal of Semiconductors, 2015, 36(5): 055012. doi: 10.1088/1674-4926/36/5/055012

YU Zongguang, SU Xiaobo, CHEN Zhenhai, et al. A 12-bit 250-MS/s charge-domain pipelined analog-to-digital converter with feed-forward common-mode charge control[J]. Tsinghua Science and Technology, 2018, 23(1): 87–94. doi: 10.26599/TST.2018.9010030

陈珍海, 魏敬和, 苏小波, 等. 低功耗时间交织12位500 MS/s电荷域ADC[J]. 西安电子科技大学学报: 自然科学版, 2017, 44(6): 109–115, 137. doi: 10.3969/j.issn.1001-2400.2017.06.020

CHEN Zhenhai, WEI Jinghe, SU Xiaobo, et al. Low power time-interleaved 12-bit 500 MS/s charge-domain ADC[J]. Journal of Xidian University, 2017, 44(6): 109–115, 137. doi: 10.3969/j.issn.1001-2400.2017.06.020

ZHANG Yiwen, CHEN Chixiao, YU Bei, et al. A 14-bit 200-MS/s time-interleaved ADC with sample-time error calibration[J]. Journal of Semiconductors, 2012, 33(10): 105010. doi: 10.1088/1674-4926/33/10/105010

ZHENG Xuqiang, WANG Zhijun, LI Fule, et al. A 14-bit 250 MS/s IF sampling pipelined ADC in 180 nm CMOS process[J]. IEEE Transactions on Circuits and Systems I: Regular Papers, 2016, 63(9): 1381–1392. doi: 10.1109/TCSI.2016.2580703
