A Synthesis Method of Hybrid Reflector Antenna for Satellite Communications
-

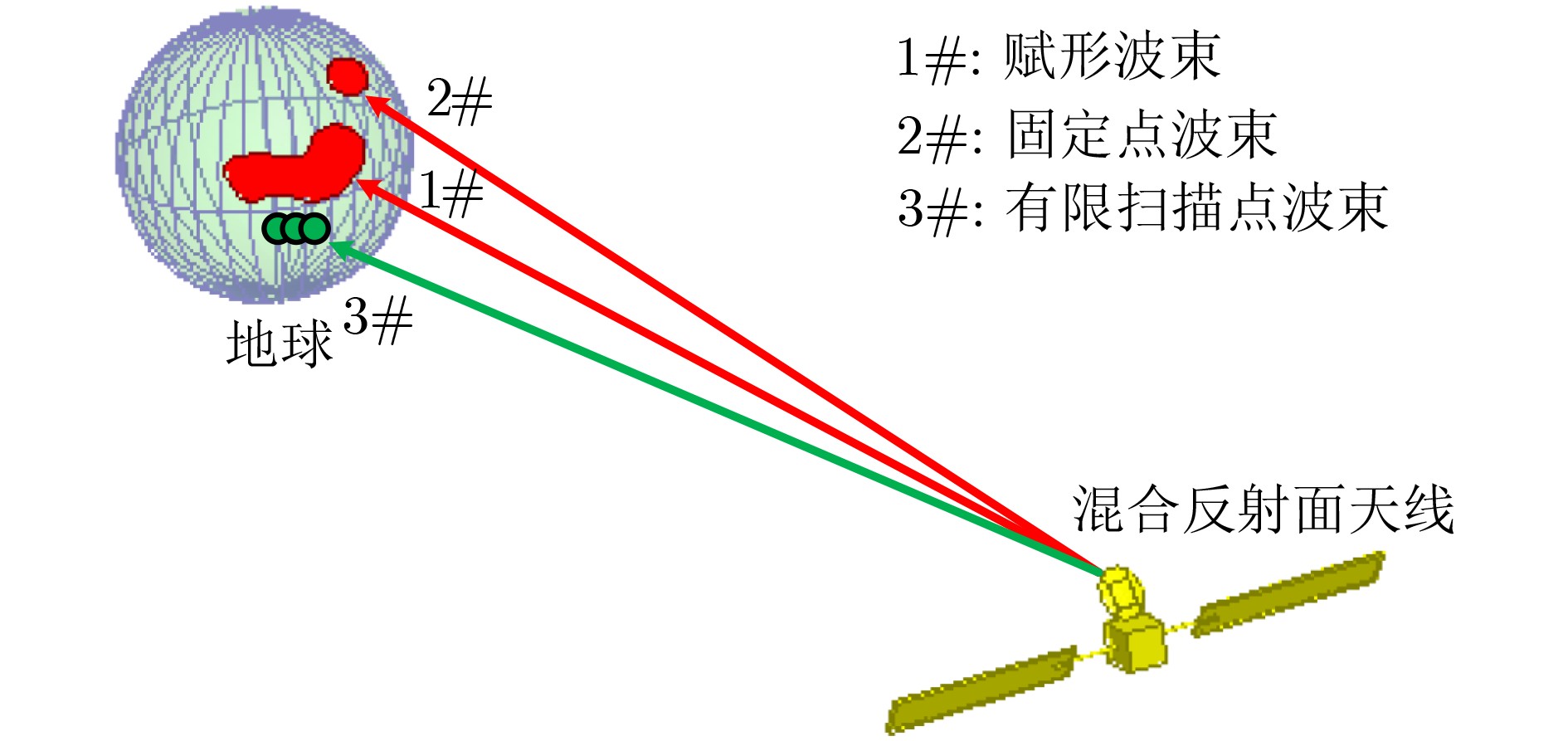

摘要: 为了使星载通信天线产生1个赋形波束覆盖服务区，同时产生1个固定点波束和1个有限扫描点波束，该文提出一种由2个赋形反射面和3个馈源组成的混合反射面天线。该天线是以赋形主反射面共用为基础，等效为2副单馈源单偏置反射面天线和1副双偏置格里高利型赋形反射面天线，分别产生赋形波束、固定点波束和有限扫描点波束。通过对一副口径为1.2 m的天线各个波束进行仿真实验，赋形波束在Ku收、发频段时波束覆盖区边缘(EoC)方向性系数为27.5 dBi，固定点波束在C收、发频段时天线口径效率高于70%，通过将赋形副反射面及对应馈源横向偏焦实现Ka收、发频段的点波束在服务区内外的扫描。仿真结果表明，该混合反射面天线可实现C/Ku/Ka频段的同时通信任务。Abstract: A hybrid reflector antenna is presented to generate a contoured beam over service area, an un-scanned and a scanned pencil beam from two shaped reflectors and three feeds, simultaneously. The shaped main reflector is shared by three beams, and the antenna is equivalent to two single-reflector antennas with single-feed for each beam and a pair of dual offset Gregorian shaped reflector antennas, and generating the contoured, un-scanned and scanned pencil beam, respectively. The proposed method is successfully applied to a 1.2 m hybrid reflector antenna. Simulations and experimentations of each beam has been performed. The Edge of Coverage(EoC) directivity over service area is 27.5 dBi for contoured beam in Tx and Rx working frequency of Ku-band, and the un-scanned pencil beam has a aperture efficiency higher than 70% in Tx and Rx working frequency of C-band. Meanwhile, the scanned pencil beam inside and outside the service area is realized by the lateral defocus of the sub-reflector and the corresponding feed in Tx and Rx working frequency of Ka-band. Simulation results show that the hybrid reflector antenna can realize C/Ku/Ka-band communication tasks simultaneously.
-
Key words:
- Hybrid antenna /
- Satellite communications /
- Contoured beam /
- Pencil beam /
- C/Ku/Ka-band
-
WAN Jixiang, YAN Tao, and WANG Feng. A hybrid reflector antenna for two contoured beams with different shapes[J]. IEEE Antennas and Wireless Propagation Letters, 2018, 17(7): 1171–1175. doi: 10.1109/LAWP.2018.2836927 ZHOU Min, SORENSEN S B, JORGENSEN R, et al. High-performance curved contoured beam reflectarrays with reusable surface for multiple coverages[C]. The 11th European Conference on Antennas and Propagation, Paris, France, 2017: 71–75. doi: 10.23919/EuCAP.2017.7928456. RAO S, HSU C C, and WANG J. Common aperture satellite antenna system for multiple contoured beams and multiple spot beams[C]. 2010 IEEE Antennas and Propagation Society International Symposium, Toronto, Canada, 2010: 1–4. doi: 10.1109/APS.2010.5561175. MERCADER-PELLICER S, RIGOBELLO F, GOUSSETIS G, et al. Dual Ka-band multiple beam reflector antenna for western European coverage[C]. The 13th European Conference on Antennas and Propagation, Krakow, Poland, 2019: 67–71. SOMMER A, SCHINAGL-WEIß A, HARTWANGER C, et al. Multiple spot beam reflector antenna for high throughput satellites using additive manufacturing technology[C]. The 13th European Conference on Antennas and Propagation, Krakow, Poland, 2019: 122–125. TIENDA C, ENCINAR J A, BARBA M, et al. Dual reflectarray antennas for contoured beam and beam scanning applications[C]. The 11th European Conference on Antennas and Propagation, Paris, France, 2017: 76–79. doi: 10.23919/EuCAP.2017.7928597. GUPTA R C, SAGI S K, RAJA K P, et al. Shaped prime-focus reflector antenna for satellite communication[J]. IEEE Antennas and Wireless Propagation Letters, 2017, 16: 1945–1948. doi: 10.1109/LAWP.2017.2689800 YANG Guigeng, ZHANG Yiqun, DUAN Baoyan, et al. A novel contoured beam synthesis method for astromesh reflectors based on integrated electromagnetic-structural design[J]. IEEE Antennas and Wireless Propagation Letters, 2016, 16: 181–185. doi: 10.1109/LAWP.2016.2567483 MAHAJAN M, JYOTI R, SOOD K, et al. A method of generating simultaneous contoured and pencil beams from single shaped reflector antenna[J]. IEEE Transactions on Antennas and Propagation, 2013, 61(10): 5297–5301. doi: 10.1109/tap.2013.2271492 李建军, 尹鹏飞, 赵现斌, 等. 双馈源双偏置结构星载通信多波束天线[J]. 微波学报, 2018, 34(4): 10–15. doi: 10.14183/j.cnki.1005-6122.201804003LI Jianjun, YIN Pengfei, ZHAO Xianbin, et al. Multi-beam antenna with double feeds and dual-offset configuration for space-borne communication[J]. Journal of Microwaves, 2018, 34(4): 10–15. doi: 10.14183/j.cnki.1005-6122.201804003 张新刚, 丁伟, 陶啸. 基于极小极大值算法的多波束天线优化设计[J]. 微波学报, 2015, 31(2): 45–49. doi: 10.14183/j.cnki.1005-6122.201502010ZHANG Xingang, DING Wei, and TAO Xiao. Optimized design of multibeam antenna based on the Minimax method[J]. Journal of Microwaves, 2015, 31(2): 45–49. doi: 10.14183/j.cnki.1005-6122.201502010 DUAN Yuhu. The study on the adjustment model of sub-reflector and engineering realization method[C]. The 28th Conference of Spacecraft TT&C Technology in China, Chengdu, China, 2016: 23–27. HOFERER R A and RAHMAT-SAMII Y. Subreflector shaping for antenna distortion compensation: An efficient Fourier-Jacobi expansion with GO/PO analysis[J]. IEEE Transactions on Antennas and Propagation, 2002, 50(12): 1676–1687. doi: 10.1109/TAP.2002.807375 RAHMAT-SAMII Y. Novel array-feed distortion compensation techniques for reflector antennas[J]. IEEE Aerospace and Electronic Systems Magazine, 1991, 6(6): 12–17. doi: 10.1109/62.88976 SMITH W T and STUTZMAN W L. A pattern synthesis technique for array feeds to improve radiation performance of large distorted reflector antennas[J]. IEEE Transactions on Antennas and Propagation, 1992, 40(1): 57–62. doi: 10.1109/8.123357 伍洋, 杜彪, 刘肖萌, 等. 焦面场分析与相控阵馈源设计[J]. 电子与信息学报, 2013, 35(5): 1236–1240. doi: 10.3724/SP.J.1146.2012.01059WU Yang, DU Biao, LIU Xiaomeng, et al. Focal field analysis and phased array feed design[J]. Journal of Electronics &Information Technology, 2013, 35(5): 1236–1240. doi: 10.3724/SP.J.1146.2012.01059 HENLEY M and POUR M. Reconfigurable displaced phase center reflector antennas with focal plane arrays[J]. IEEE Antennas and Wireless Propagation Letters, 2019, 18(6): 1298–1302. doi: 10.1109/LAWP.2019.2916043 DUBOK A, AL-RAWI A, GERINI G, et al. Reflector synthesis for wide-scanning focal plane arrays[J]. IEEE Transactions on Antennas and Propagation, 2019, 67(4): 2305–2319. doi: 10.1109/TAP.2018.2889136 KRICHEVSKY V and DIFONZO D. Optimum beam scanning in offset single and dual reflector antennas[J]. IEEE Transactions on Antennas and Propagation, 1985, 33(2): 179–188. doi: 10.1109/TAP.1985.1143547 -
