基于基片集成波导馈电的Ka波段渐变缝隙天线设计

郝宏刚 李江 张婷 阮巍

郝宏刚, 李江, 张婷, 阮巍. 基于基片集成波导馈电的Ka波段渐变缝隙天线设计[J]. 电子与信息学报, 2020, 42(3): 582-588. doi: 10.11999/JEIT190218
引用本文: 郝宏刚, 李江, 张婷, 阮巍. 基于基片集成波导馈电的Ka波段渐变缝隙天线设计[J]. 电子与信息学报, 2020, 42(3): 582-588. doi: 10.11999/JEIT190218
Honggang HAO, Jiang LI, Ting ZHANG, Wei RUAN. Design of Ka-band Linear Tapered Slot Antennas Based on Substrate Integrated Waveguide Feed[J]. Journal of Electronics & Information Technology, 2020, 42(3): 582-588. doi: 10.11999/JEIT190218
Citation: Honggang HAO, Jiang LI, Ting ZHANG, Wei RUAN. Design of Ka-band Linear Tapered Slot Antennas Based on Substrate Integrated Waveguide Feed[J]. Journal of Electronics & Information Technology, 2020, 42(3): 582-588. doi: 10.11999/JEIT190218

基于基片集成波导馈电的Ka波段渐变缝隙天线设计

doi: 10.11999/JEIT190218
基金项目: 重庆市自然科学基金(cstc2018jcyjAX0508),重庆市教委科学技术研究项目(KJQN201800639)
详细信息
    作者简介:

    郝宏刚:男,1977年生,博士,教授,研究方向为射频微波电路、电磁理论及应用

    李江:男,1995年生,硕士,研究方向为被动毫米波成像研究

    张婷:女,1995年生,硕士,研究方向为编码超材料

    阮巍:男,1982年生,硕士,讲师,研究方向为电磁场与无线技术

    通讯作者:

    李江 s170401025@stu.cqupt.edu.cn

  • 中图分类号: TN823

Design of Ka-band Linear Tapered Slot Antennas Based on Substrate Integrated Waveguide Feed

Funds: The Natural Science Foundation of Chongqing (cstc2018jcyjAX0508), The Science and Technology Research Program of Chongqing Municipal Education Commission (KJQN201800639)
  • 摘要:

    在被动毫米波 (PMMW) 成像焦平面阵列 (FPA) 馈源的天线中,直线渐变缝隙天线 (LTSA) 相对于传统的喇叭天线、介质棒天线具有其独特的优势。该文优化设计了一种新型的对跖直线渐变缝隙天线 (ALTSA),通过加载超材料结构使天线的增益得到了改善,天线采用基片集成波导 (SIW) 技术进行馈电。通过仿真与测试分析,该天线在较宽的频带内具有良好的阻抗特性、较低的副瓣电平及较高且平稳的增益,所设计的天线具有较小的口径宽度,在焦平面中易于组成较为密集的馈源阵列,以提高被动毫米波成像的空间分辨率。

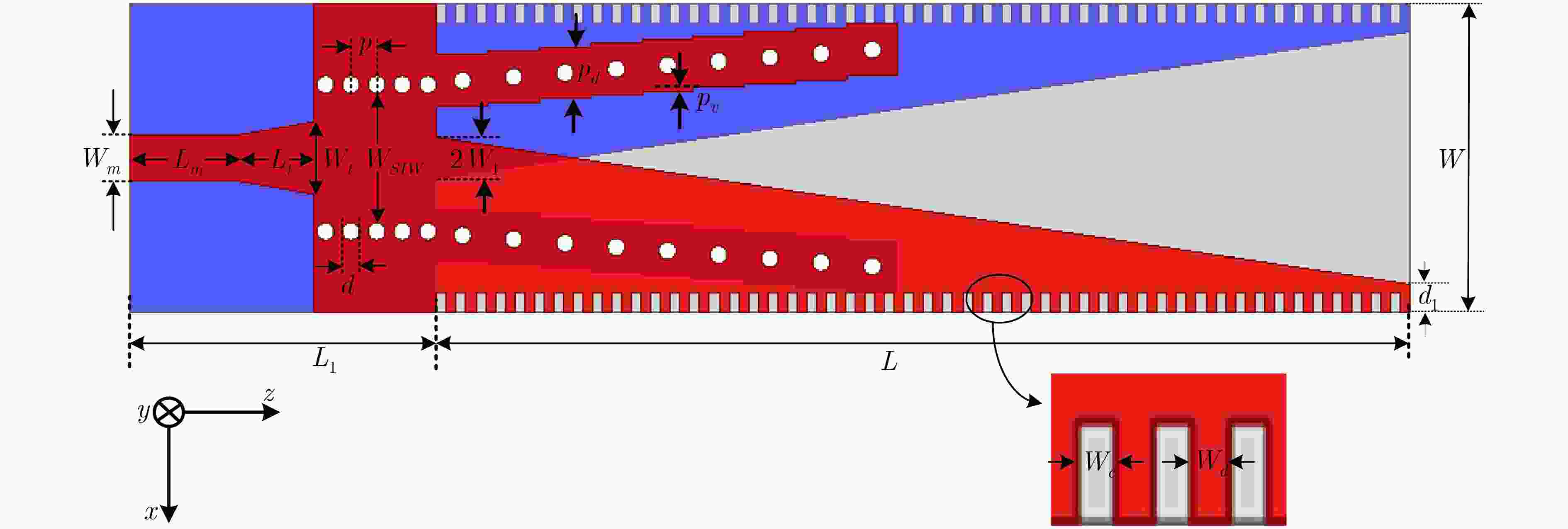

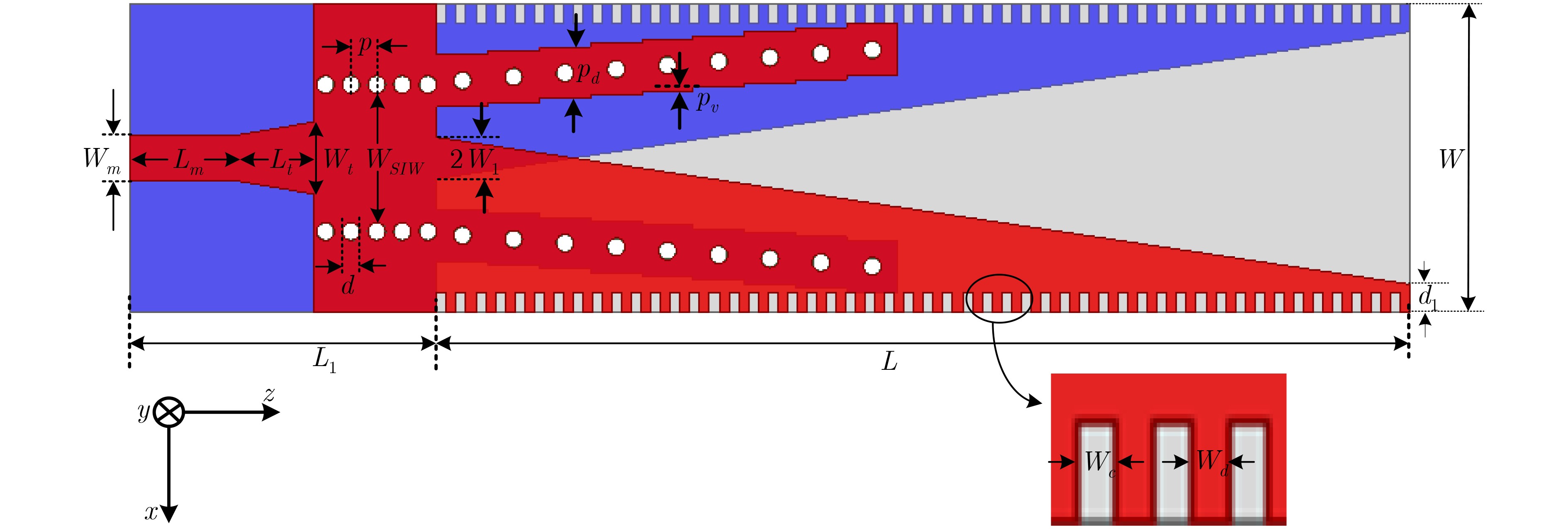

  • 图  1  基于SIW馈电的对跖直线渐变缝隙天线 W

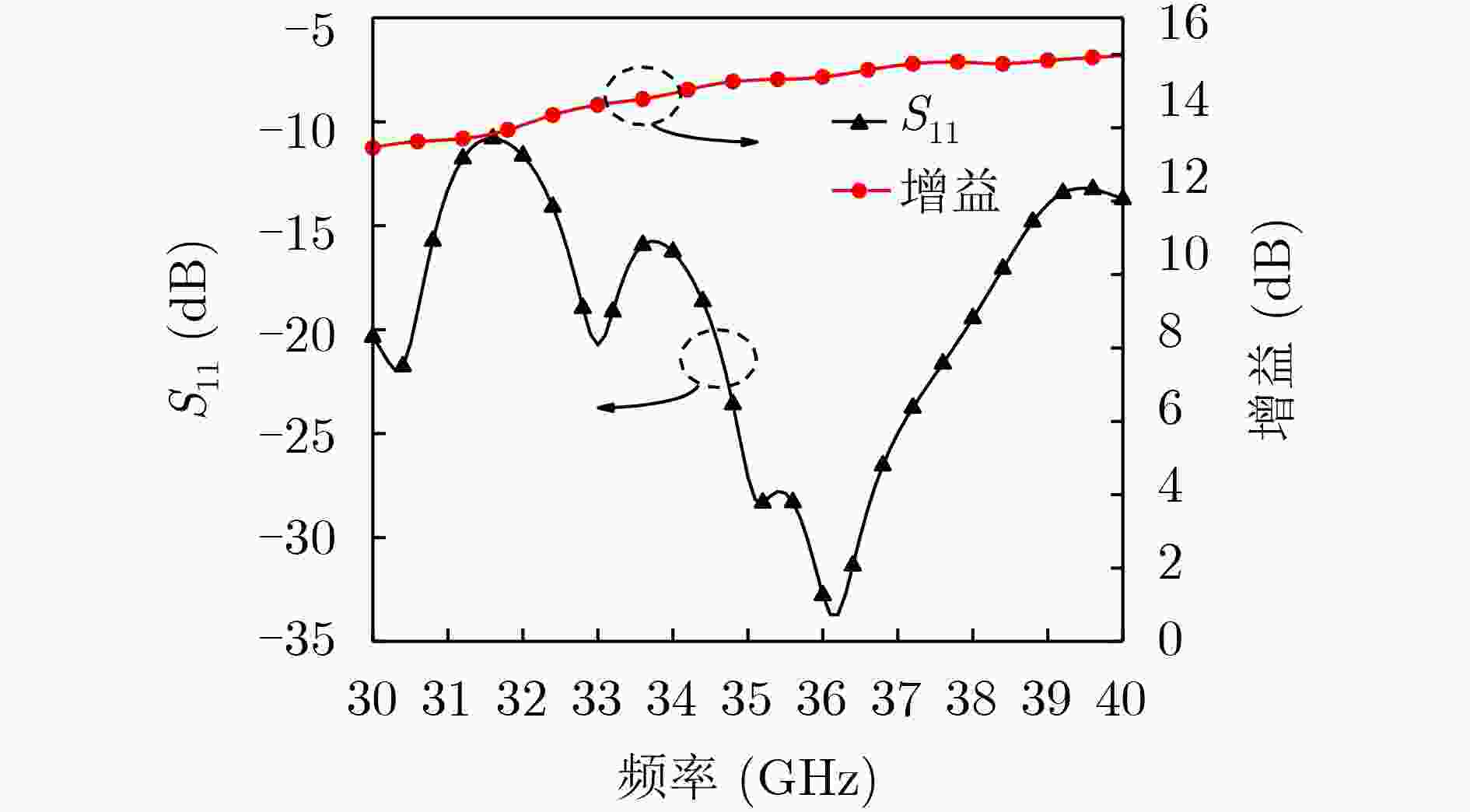

    图  2  ALTSA结构S11及增益曲线

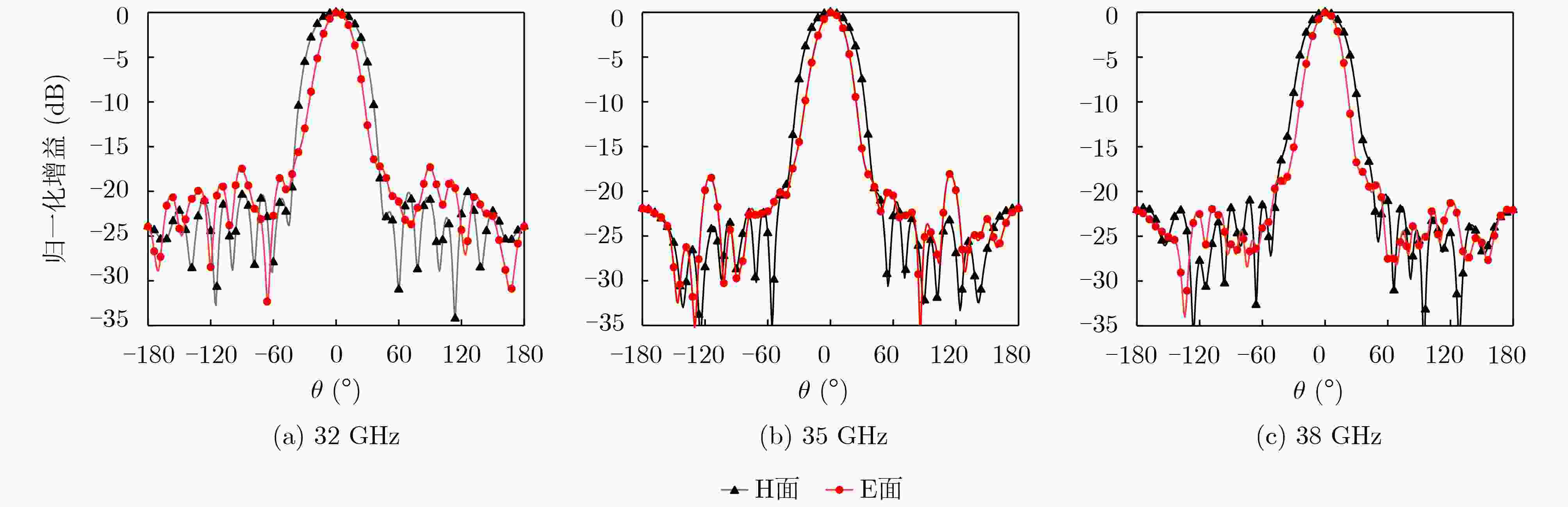

    图  3  天线辐射方向图

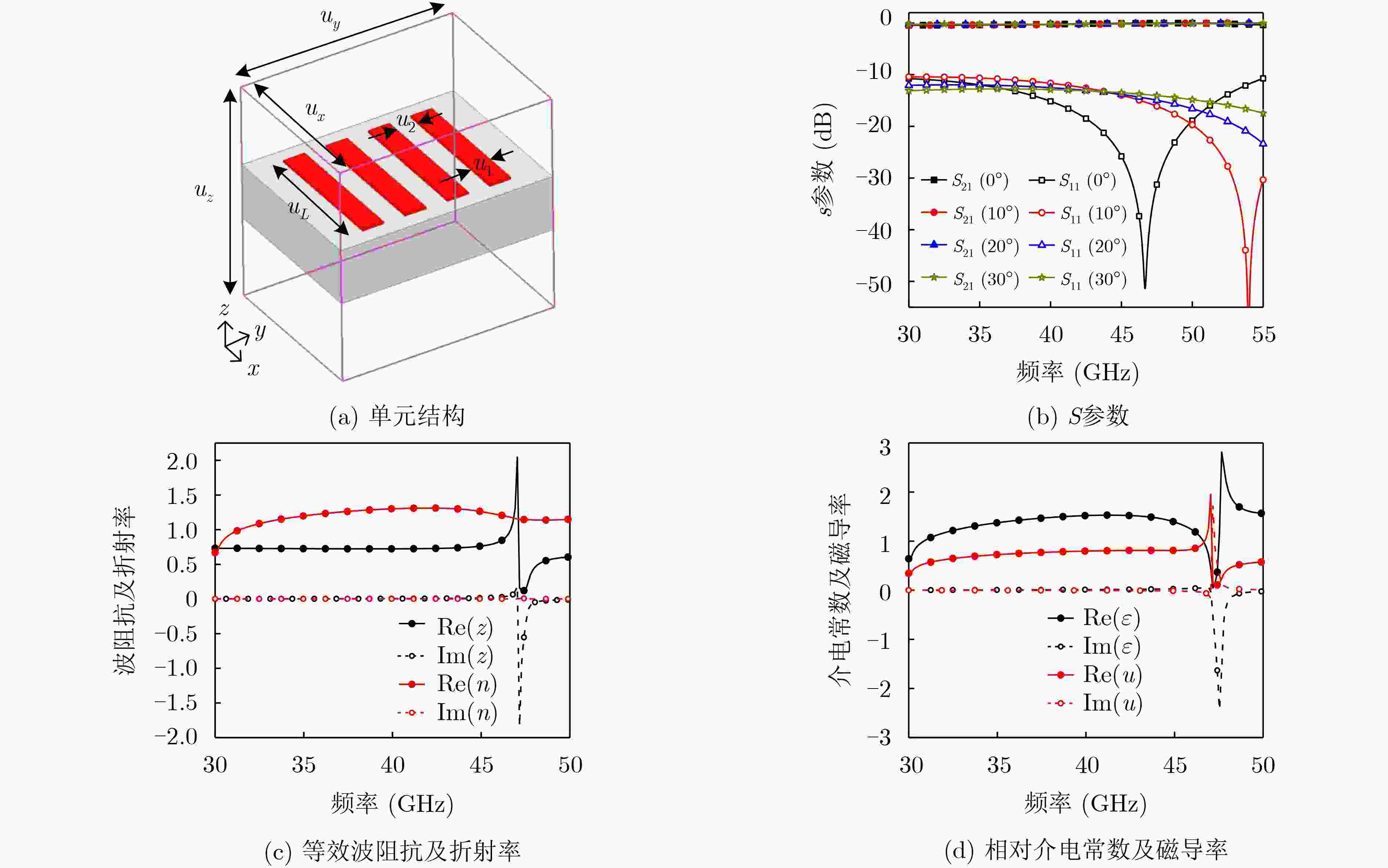

    图  4  超材料结构及S参数曲线

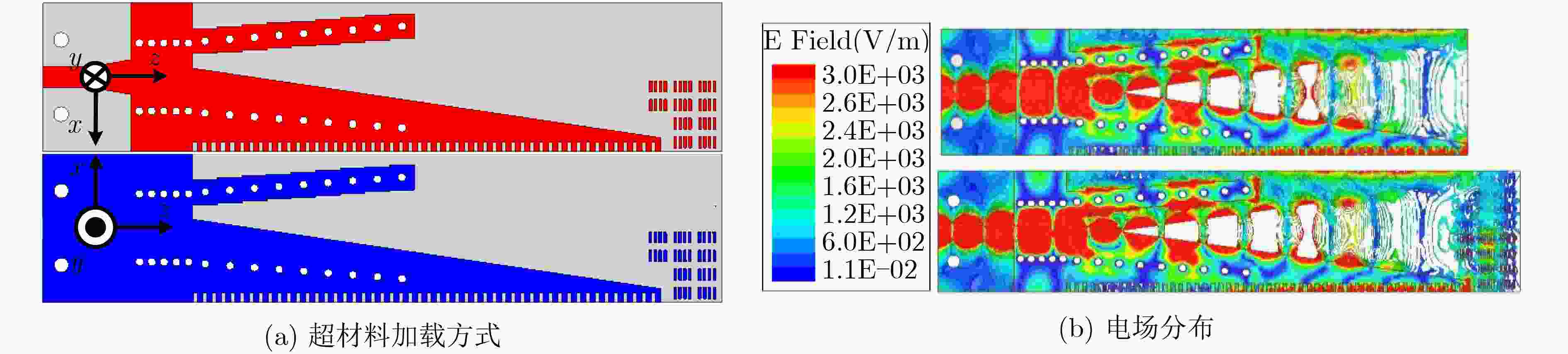

    图  5  加载超材料单元前后电场分布比较

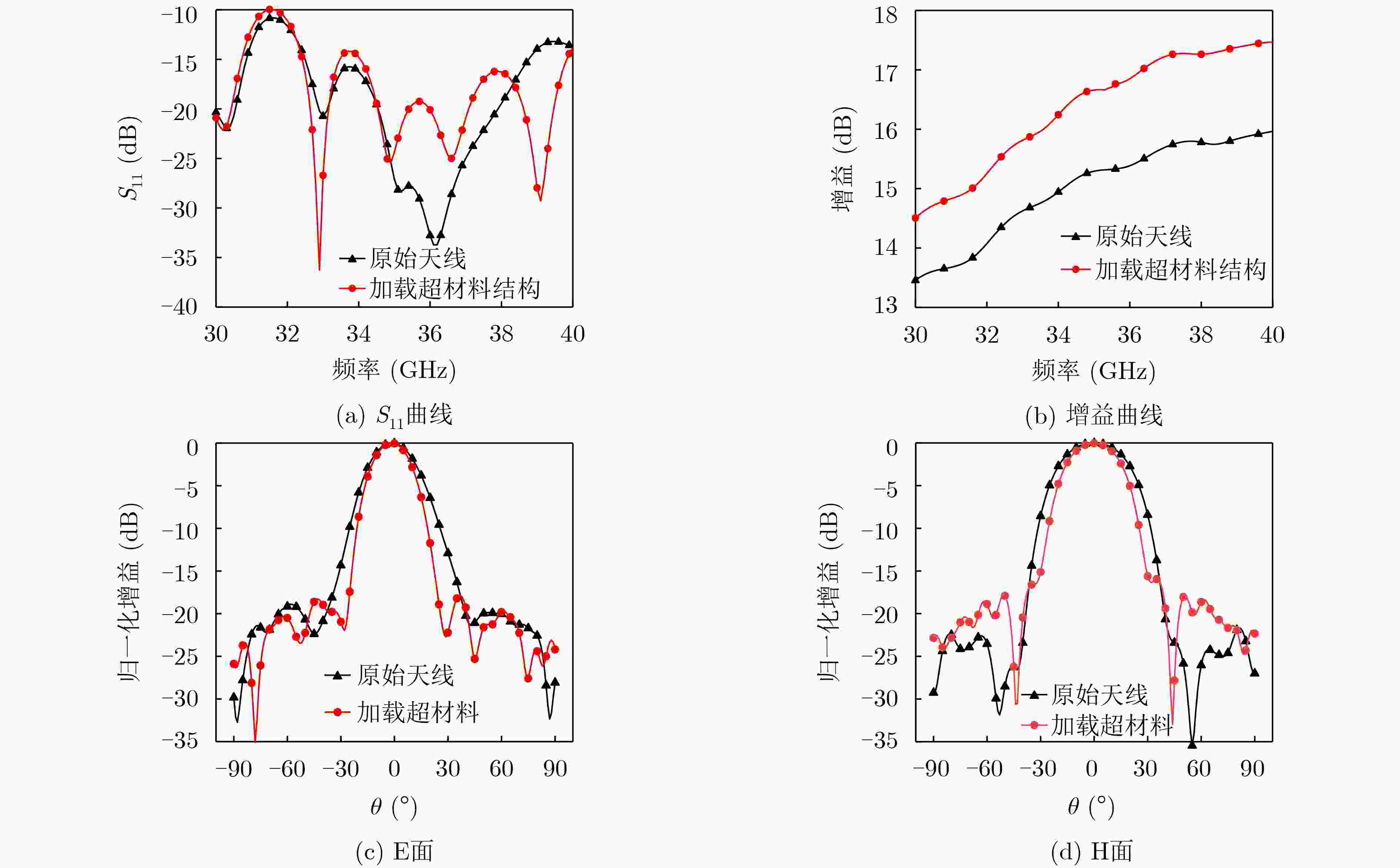

    图  6  加载超材料结构天线仿真结果

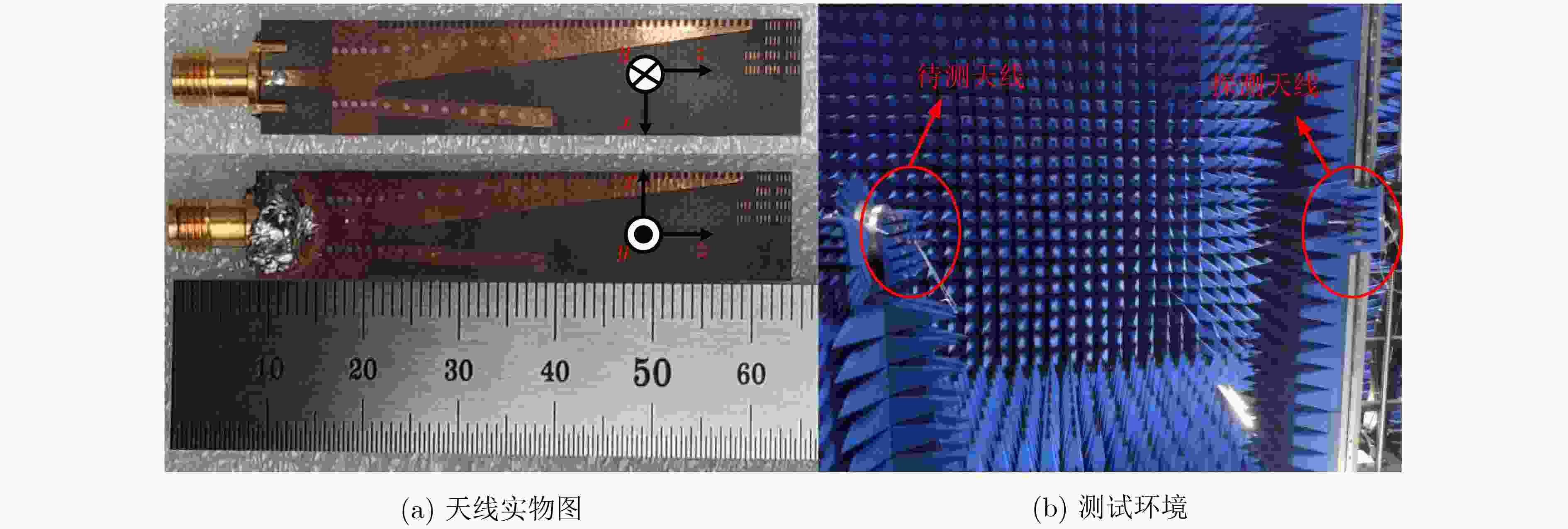

    图  7  天线测试

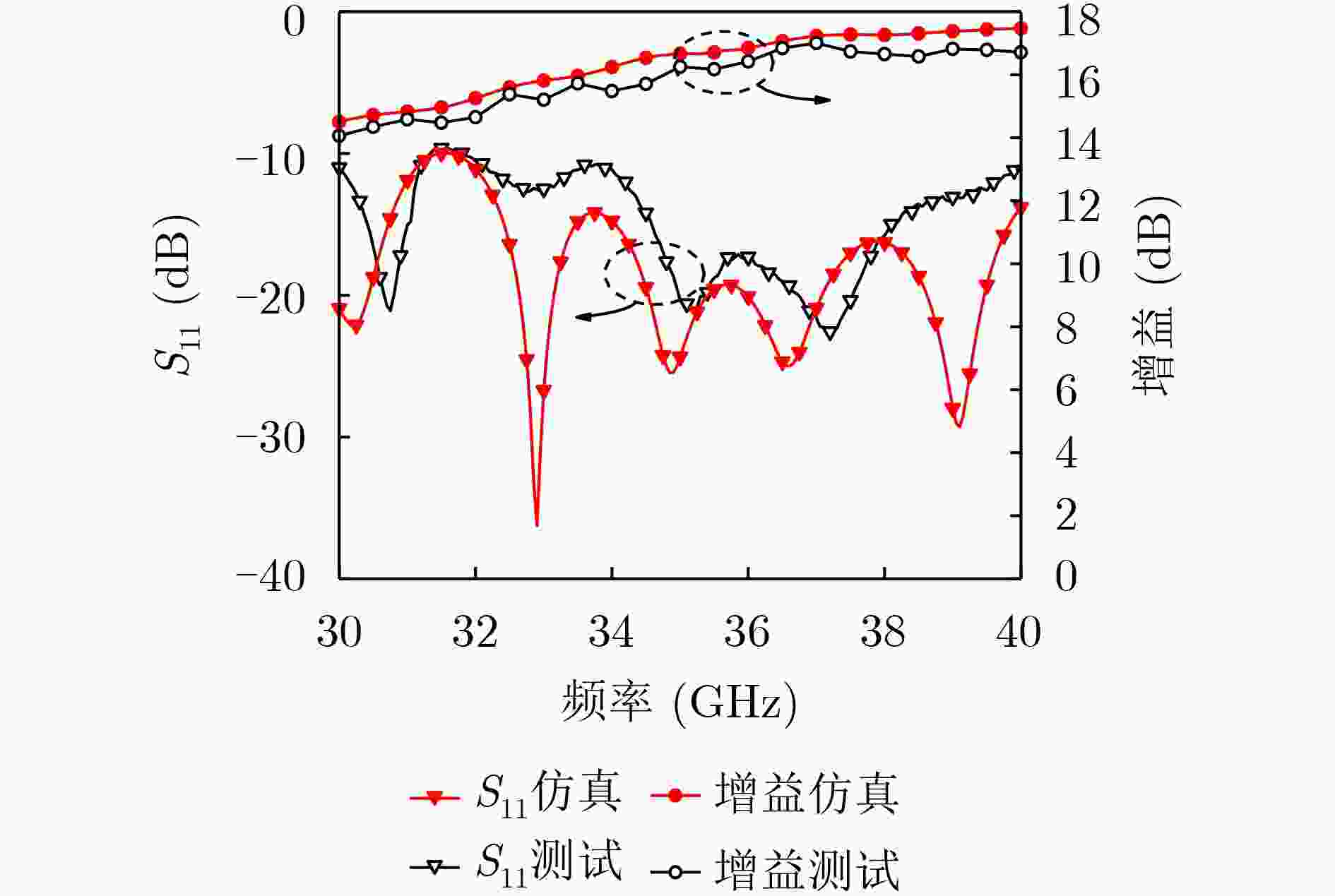

    图  8  超材料加载天线仿真及实测S11与增益曲线

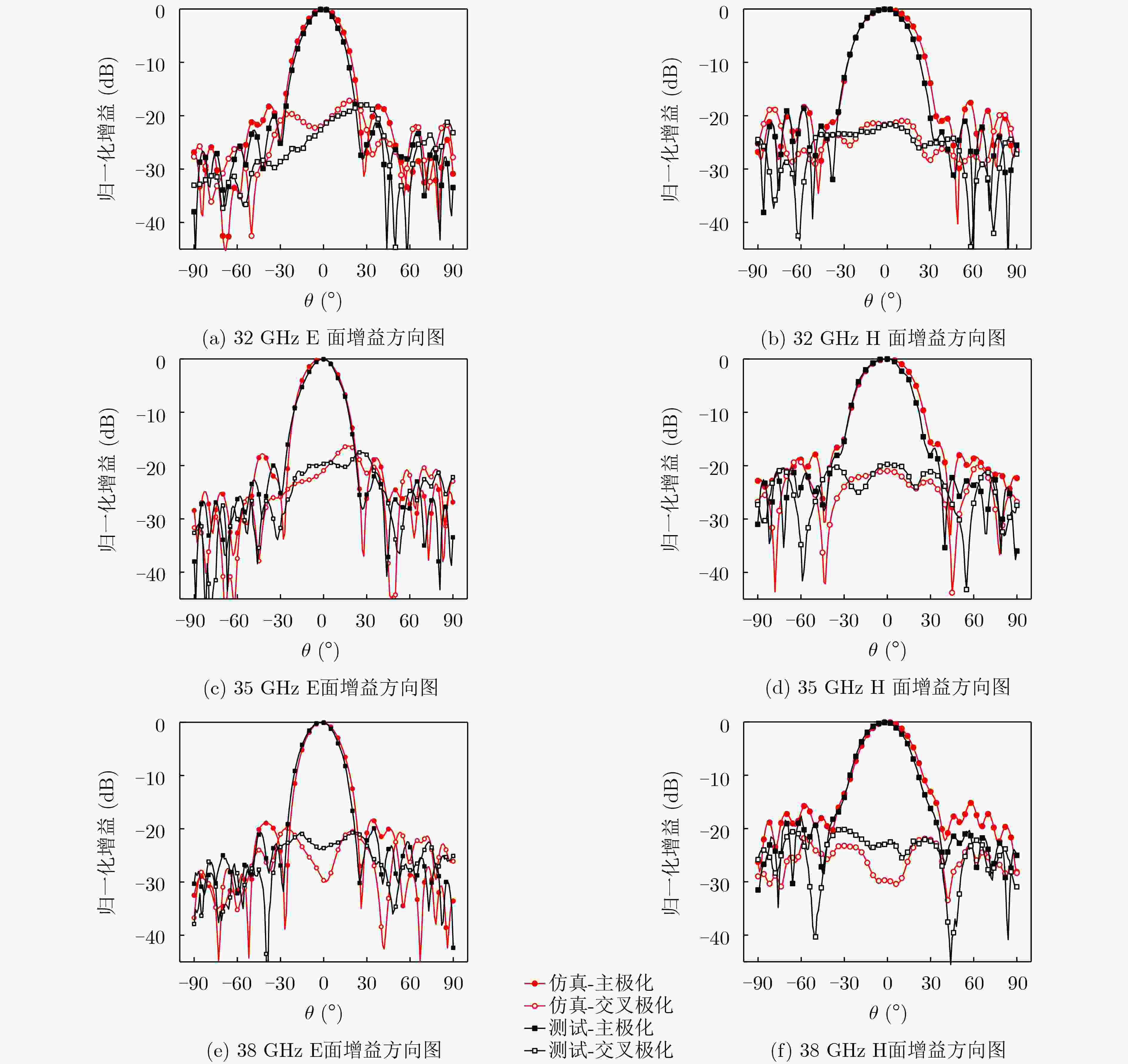

    图  9  仿真与测试天线辐射方向图

    表  1  天线结构尺寸(mm)

    LL1LmLtWWmWtWSIW
    341242.8121.72.85
    WcWdW1pdd1${p_v}$${p_d}$
    0.340.340.710.71.30.152
    下载: 导出CSV
  • CHENG Yayun, HU Fei, WU Hongfei, et al. Multi-polarization passive millimeter-wave imager and outdoor scene imaging analysis for remote sensing applications[J]. Optics Express, 2018, 26(16): 20145–20159. doi: 10.1364/OE.26.020145
    SALMON N A. Outdoor passive millimeter-wave imaging: Phenomenology and scene simulation[J]. IEEE Transactions on Antennas and Propagation, 2018, 66(2): 897–908. doi: 10.1109/TAP.2017.2781742
    王楠楠, 邱景辉, 李高飞, 等. Ka频段介质棒天线优化设计[J]. 电波科学学报, 2010, 25(1): 161–166.

    WANG Nannan, QIU Jinghui, LI Gaofei, et al. Optimal design of Ka-band dielectric rod antenna[J]. Chinese Journal of Radio Science, 2010, 25(1): 161–166.
    陈其科, 樊勇, 张永鸿, 等. 用于近程被动成像的3 mm波准光介质透镜天线设计[J]. 电子科技大学学报, 2016, 45(2): 168–173. doi: 10.3969/j.issn.1001-0548.2016.03.002

    CHEN Qike, FAN Yong, ZHANG Yonghong, et al. Design of quasi-optical lens antenna for 3 mm band near range passive MMW imaging[J]. Journal of University of Electronic Science and Technology of China, 2016, 45(2): 168–173. doi: 10.3969/j.issn.1001-0548.2016.03.002
    WANG Nannan, FANG Mu, CHOU H T, et al. Balanced antipodal Vivaldi antenna with asymmetric substrate cutout and dual-scale slotted edges for ultrawideband operation at millimeter-wave frequencies[J]. IEEE Transactions on Antennas and Propagation, 2018, 66(7): 3724–3729. doi: 10.1109/TAP.2018.2820422
    王友成, 董明宇, 张锋, 等. 渐变槽天线端射特性优化设计[J]. 电子与信息学报, 2017, 39(1): 124–128. doi: 10.11999/JEIT160203

    WANG Youcheng, DONG Mingyu, ZHANG Feng, et al. Design of tapered-slot antenna with optimized end-fire characteristics[J]. Journal of Electronics &Information Technology, 2017, 39(1): 124–128. doi: 10.11999/JEIT160203
    TARINGOU F, DOUSSET D, BORNEMANN J, et al. Broadband CPW feed for millimeter-wave SIW-based antipodal linearly tapered slot antennas[J]. IEEE Transactions on Antennas and Propagation, 2013, 61(4): 1756–1762. doi: 10.1109/tap.2012.2232270
    RAO T and TIWARI N. SIW based antipodal linear tapered slot antenna for inter-satellite communication links at 60 GHz[J]. Wireless Personal Communications, 2017, 96(3): 3403–3419. doi: 10.1007/s11277-017-4063-0
    MOHAMED I, BRIQECH Z, and SEBAK A. Antipodal fermi tapered slot antenna for 60-GHz band applications[J]. IEEE Antennas and Wireless Propagation Letters, 2015, 14: 96–99. doi: 10.1109/LAWP.2014.2356137
    GHASSEMI N and WU Ke. Planar high-gain dielectric-loaded antipodal linearly tapered slot antenna for E- and W-Band gigabyte point-to-point wireless services[J]. IEEE Transactions on Antennas and Propagation, 2013, 61(4): 1747–1755. doi: 10.1109/TAP.2012.2232269
    MOOSAZADEH M, KHARKOVSKY S, CASE J T, et al. Improved radiation characteristics of small antipodal Vivaldi antenna for microwave and millimeter-wave imaging applications[J]. IEEE Antennas and Wireless Propagation Letters, 2017, 16: 1961–1964. doi: 10.1109/LAWP.2017.2690441
    KUMAR M N and SHANMUGANANTHAM T. Microstrip fed SIW slot antenna backed with cavity for millimeter wireless communication applications[C]. 2017 IEEE International Conference on Antenna Innovations & Modern Technologies for Ground, Aircraft and Satellite Applications, Bangalore, India, 2017: 1–4. doi: 10.1109/IAIM.2017.8402531.
    刘红喜, 高军, 曹祥玉, 等. 一种基于开口谐振环的高增益端射天线设计[J]. 物理学报, 2015, 64(23): 234101. doi: 10.7498/aps.64.234101

    LIU Hongxi, GAO Jun, CAO Xiangyu, et al. A design of high-gain end-fire antenna based on split-ring resonator structures[J]. Acta Physica Sinica, 2015, 64(23): 234101. doi: 10.7498/aps.64.234101
    任宇辉, 丁君, 郭陈江. 一种基于开口谐振环的高增益宽带双极化天线设计[J]. 电子与信息学报, 2017, 39(11): 2790–2794. doi: 10.11999/JEIT170111

    REN Yuhui, DING Jun, and GUO Chenjiang. Design of a high-gain wideband dual-polarized antenna based on split ring resonators[J]. Journal of Electronics &Information Technology, 2017, 39(11): 2790–2794. doi: 10.11999/JEIT170111
    CUO Linyan, YANG Helin, ZHANG Qisheng, et al. A compact antipodal tapered slot antenna with artificial material lens and reflector for GPR applications[J]. IEEE Access, 2018, 6: 44244–44251. doi: 10.1109/ACCESS.2018.2864618
    LI Xiangxiang, ZHOU Hao, GAO Zhiming, et al. Metamaterial slabs covered UWB antipodal Vivaldi antenna[J]. IEEE Antennas and Wireless Propagation Letters, 2017, 16: 2943–2946. doi: 10.1109/LAWP.2017.2754860
    SZABO Z, PARK G H, HEDGE R, et al. A unique extraction of metamaterial parameters based on kramers-kronig relationship[J]. IEEE Transactions on Microwave Theory and Techniques, 2010, 58(10): 2646–2653. doi: 10.1109/TMTT.2010.2065310
