Neighbor Information Constrained Node Scheduling in Stochastic Heterogeneous Wireless Sensor Networks

Ningning QIN^{1
, ,},
Lei JIN¹,
Jian XU¹,
Fan XU²,
Le YANG³

1.
Key Laboratory of Advanced Process Control for Light Industry of Ministry of Education, Jiangnan University, Wuxi 214122, China
2.
Key Laboratory of Radar Imaging and Microwave Photonics, Ministry of Education, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China
3.
Department of Electrical and Computer Engineering, University of Canterbury, Christchurch 8011, New Zealand

Funds: The National Natural Science Foundation of China (61702228), The Natural Science Foundation of Jiangsu Province (BK20170198), The Open Fund of Key Laboratory of Radar Imaging and Microwave Photonics of Ministry of Education (NJ20170001-7), Jiangsu Province Planned Projects for Postdoctoral Research Funds (1601012A), The Eleventh Batch High-level Talents Project of “Six Talent Peaks” in Jiangsu Province(DZXX-026), Fundamental Research Funds for the Central Universities (JUSRP1805XNC)

摘要

摘要: 针对高密度部署的随机异构传感器网络内部存在的覆盖冗余问题，该文提出一种随机异构无线传感器网络的节点调度算法(NSSH)。在网络原型拓扑的支撑下构建Delaunary三角剖分，规划出节点进行本地化调度的局部工作子集。通过折中与邻近节点的空外接圆半径，完成对感知半径的独立配置；引入几何线、面概念，利用重叠面积和有效约束圆弧完成对灰、黑色节点的分类识别，使得节点仅依赖本地及邻居信息进行半径调整和冗余休眠。仿真结果表明，NSSH能以低复杂度的代价，近似追平贪婪算法的去冗余性能，并表现出了对网络规模、异构跨度和参数配置的低敏感性。
- 传感器网络 /
- 随机异构 /
- 覆盖 /
- 节点调度 /
- 邻近信息
Abstract: Considering coverage redundancy problem existed in random heterogeneous sensor networks with high density deployment, a Node Scheduling algorithm for Stochastic Heterogeneous wireless sensor networks(NSSH) is proposed. The Delaunary triangulation is constructed based on the network prototype topology to work out a local subset of nodes for localization scheduling. Independent configuration of the perceived radius is achieved by discounting the radius of the circumcircle with the adjacent node. The concept of geometric line and plane is introduced, and the overlapping area and the effective constrained arcs are used to classify and identify the grey and black nodes. So the node only relies on local and neighbor information for radius adjustment and redundant node sleep. The simulation results show that NSSH can approximately match the dropping redundancy of greedy algorithm at the cost of low complexity, and exhibit low sensitivity to network size, heterogeneous span and parameter configuration.
- Sensor network /
- Stochastic heterogeneous /
- Coverage /
- Node scheduling /
- Neighbor information

HTML全文

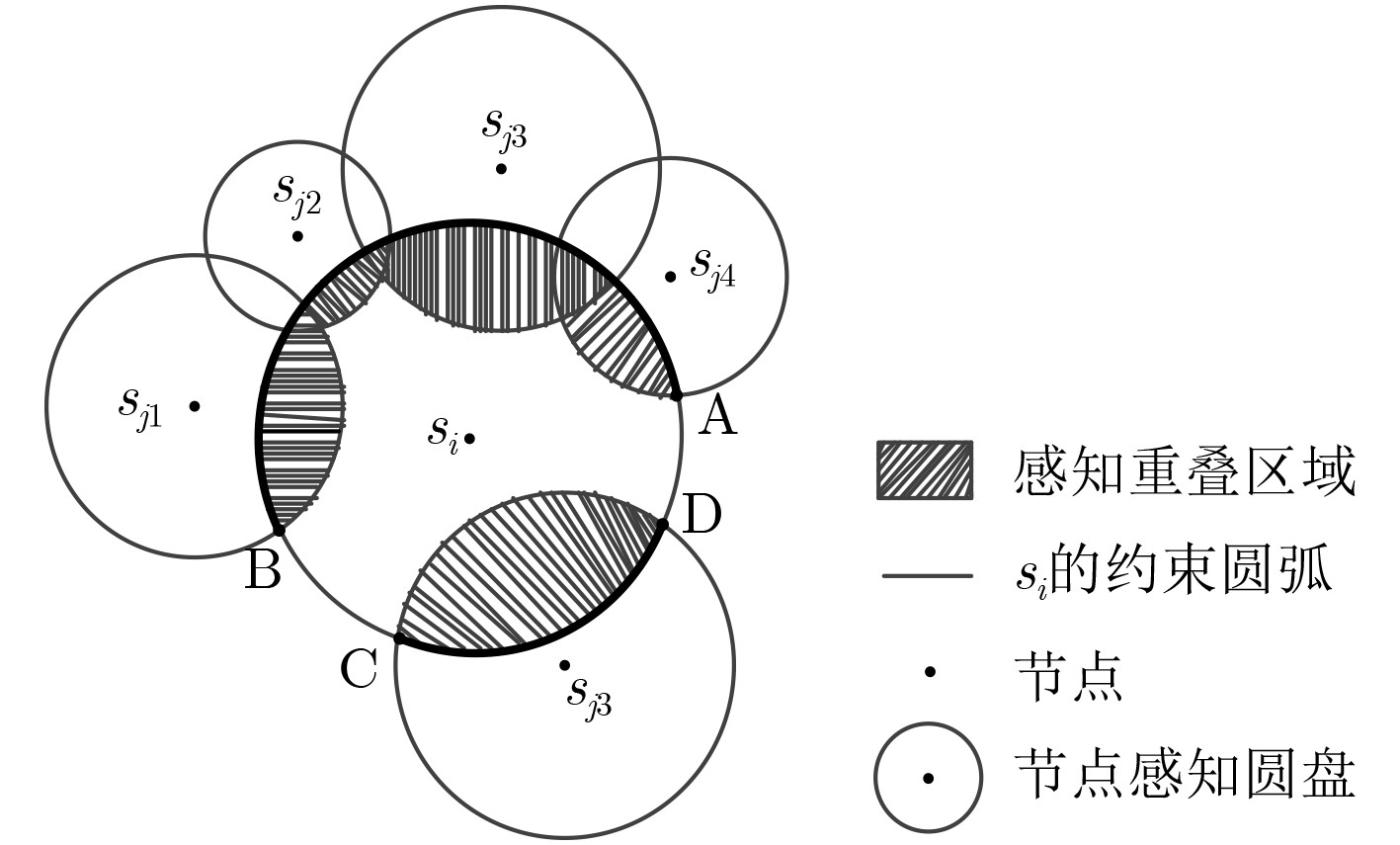

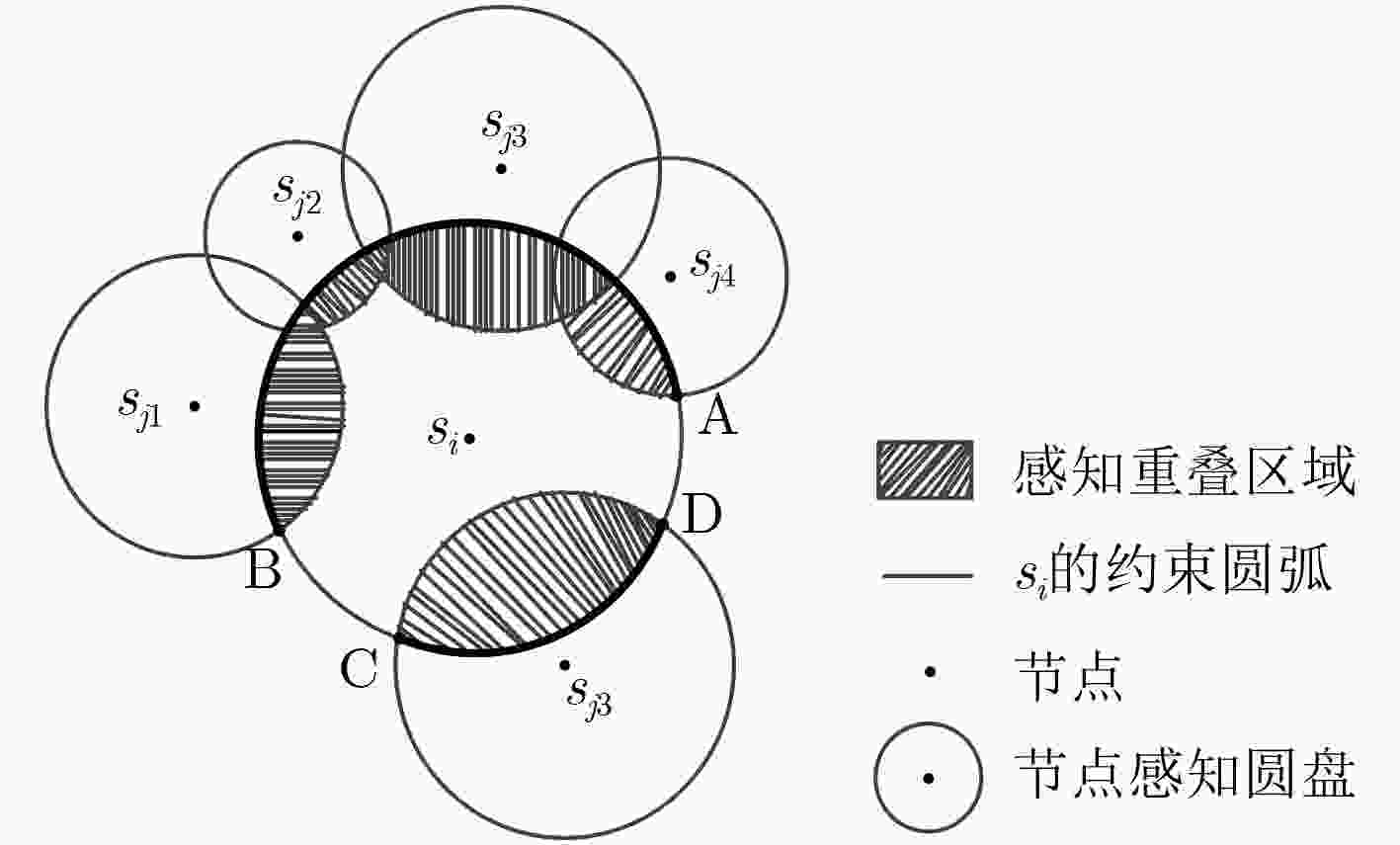

图 1 节点${s_i}$的有效约束圆弧${\stackrel \frown {{\rm{ar}}{{\rm{c}}_i}}}$

下载: 全尺寸图片幻灯片

图 2 节点${s_i}$感知半径${r_i}$调整图

下载: 全尺寸图片幻灯片

图 3 节点感知重叠面积求解

下载: 全尺寸图片幻灯片

图 4 黑色节点的标识与计算

下载: 全尺寸图片幻灯片

图 5 不满足圆心$k$覆盖的节点约束圆弧图

下载: 全尺寸图片幻灯片

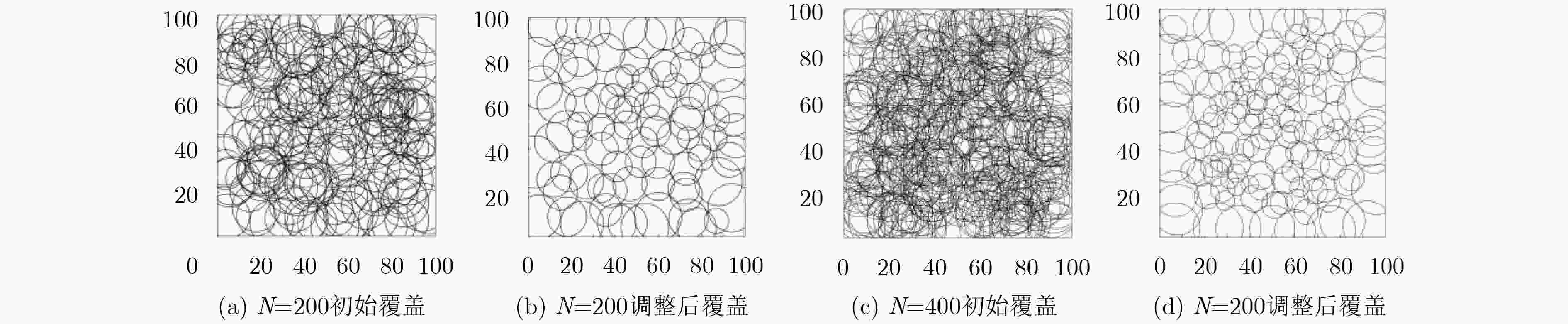

图 6 目标区域调整效果对比

下载: 全尺寸图片幻灯片

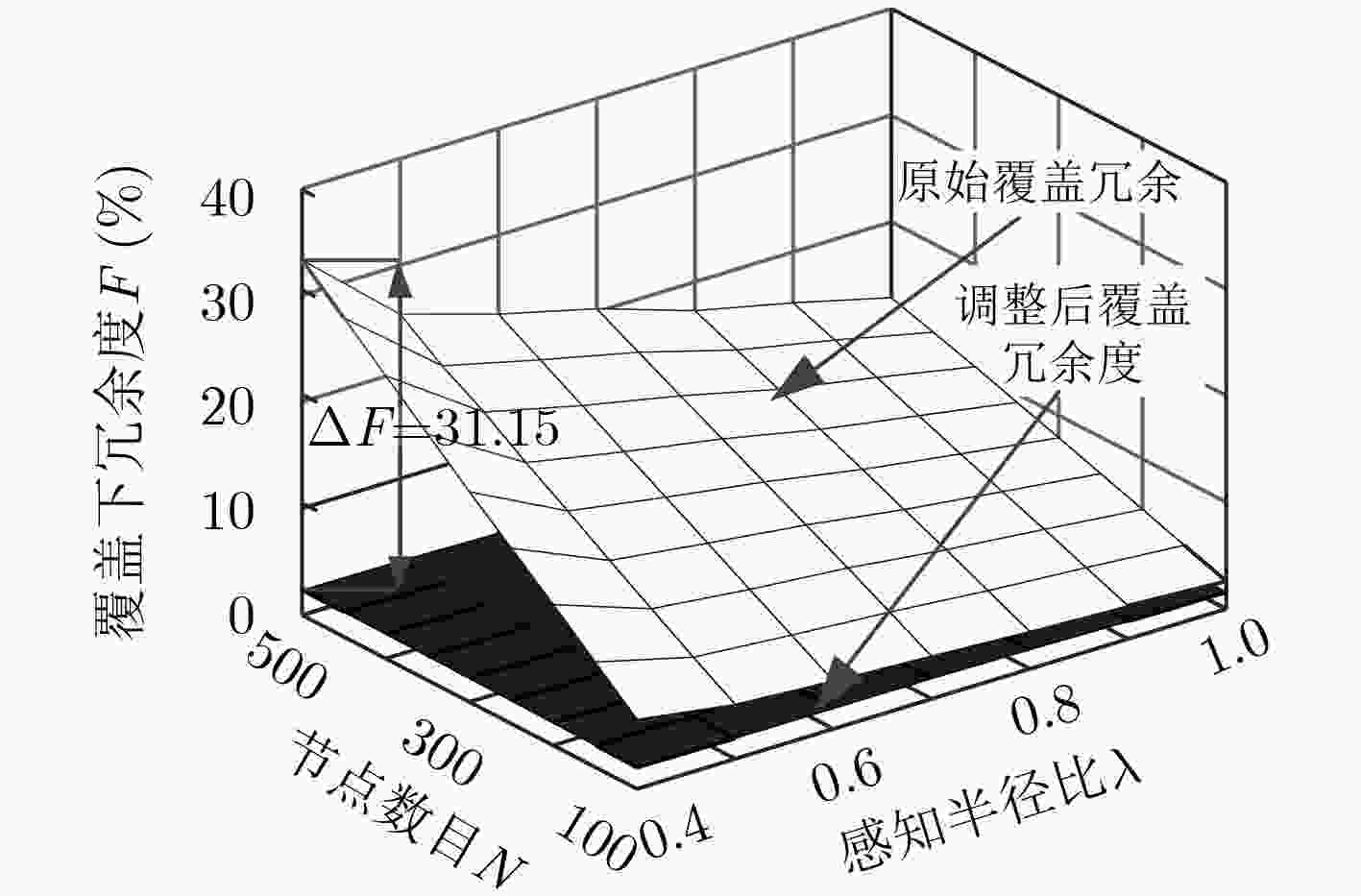

图 7 覆盖冗余度随节点个数和半径比变化情况

下载: 全尺寸图片幻灯片

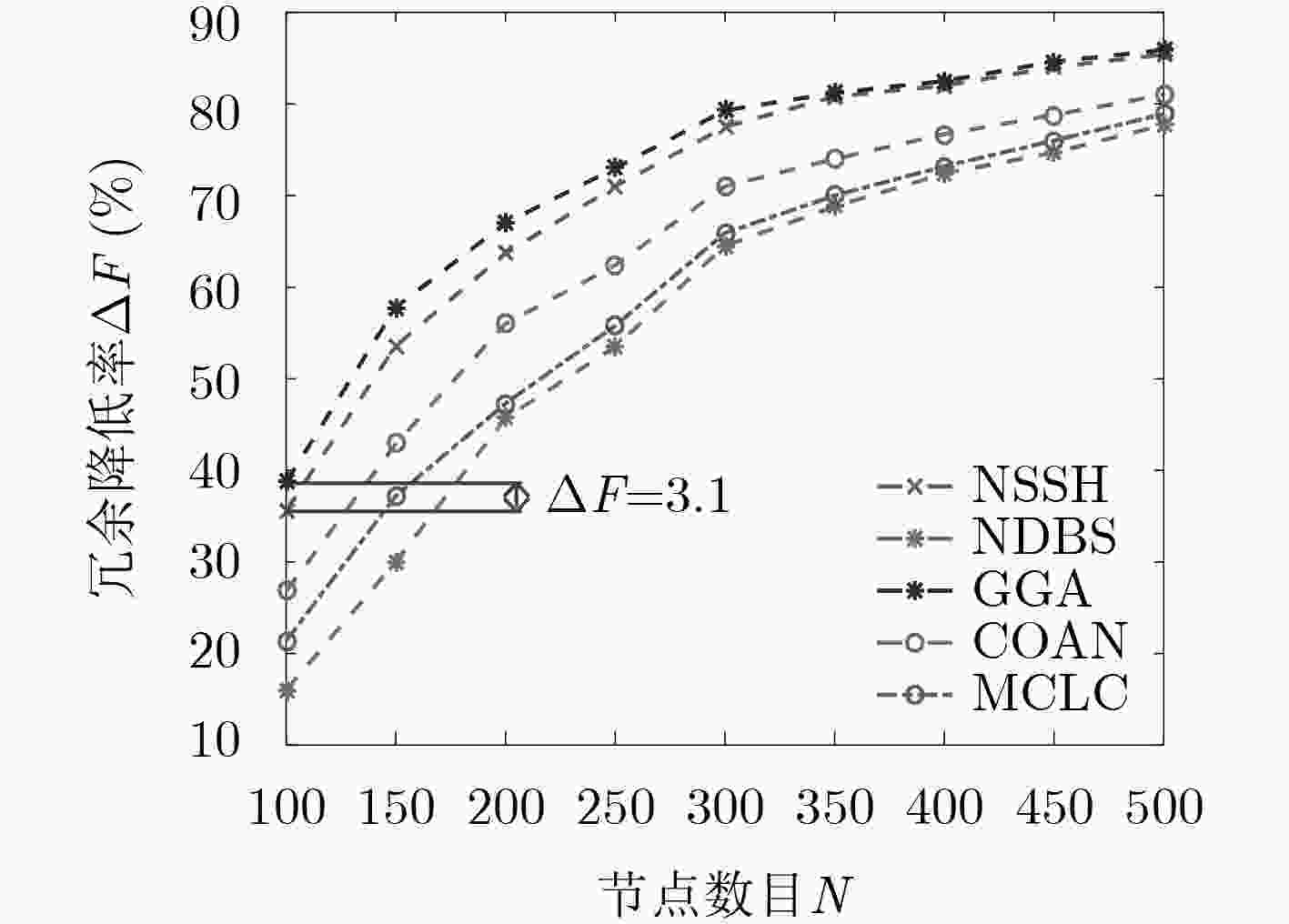

图 8 多级异构网络中$\Delta F\;$的变化

下载: 全尺寸图片幻灯片

图 9 二级异构网络中$\Delta F\;$的变化

下载: 全尺寸图片幻灯片

图 10 同构网络中$\Delta F\;$的变化

下载: 全尺寸图片幻灯片

表 1 半径调整算法步骤

半径调整算法(${T^i},{r_i}$)
(1)　$r_{\rm c}^i = \varnothing $
(2)　for $p = 1:P$
(3)　　　calculate the radius $r_{{\rm{cp}}}^i$ of ${T_p}^i$//计算空外接圆半径
(4)　　　　$r_{\rm c}^i = r_{\rm c}^i \cup r_{ {\rm{cp} } }^i$
(5)　end for
(6　　　${r_i} = \min ({r_i},\max \left( {r_{\rm c}^i} \right))$//若$\max \left( {r_{\rm c}^i} \right) > {r_i}$，则保留原${r_i}$
(7)　return (${r_i}$)

下载: 导出CSV

表 2 NSSH算法步骤

NSSH (${T^i}$,${r_i}$,${\rm{N}}{{\rm{e}}_i}$,${\theta _{{\rm{th}}}}$,${\left\| {{\rm{arc}}} \right\|_{{\rm{th}}}}$,$k$)
(1)　初始化：${\rm{s}}{{\rm{t}}_i} = 1$, ${\stackrel \frown {{\rm{ar}}{{\rm{c}}_i}}}=\varnothing$
(2)　${r_i}$=半径调整算法(${T^i},{r_i}$)
(3)　for $q = 1:Q$
(4)　　${\rm{if}}({\theta _{i,jq}} > {\theta _{{\rm{th}}}})$) //基于定义5和式(1)判定灰色节点
(5)　　　${\rm{s}}{{\rm{t}}_i} = 0$
(6)　　end if
(7)　　${\stackrel \frown {{\rm{ar}}{{\rm{c}}_i}}}={\stackrel \frown {{\rm{ar}}{{\rm{c}}_i}}} \cup {\stackrel \frown {{\rm{ar}}{{\rm{c}}_{i\_jq}}}}$ //计算有效约束圆弧
(8)　end for
(9)　calculate $\left\| {{\rm{ar}}{{\rm{c}}_i}} \right\|$ ${k_i}$ //基于式(2)—式(4)计算有效约束圆弧度数，统计${s_i}$的覆盖度${k_i}$
(10)　if ($\left\| {{\rm{ar}}{{\rm{c}}_i}} \right\| \ge {\left\| {{\rm{arc}}} \right\|_{{\rm{th}}}}{\rm{\& \& }}{k_i} \ge k$)//基于定义6判定黑色节点
(11)　　${\rm{s}}{{\rm{t}}_i} = 0$
(12)　end if
(13)　return (${\rm{s}}{{\rm{t}}_i}$)

下载: 导出CSV

表 3 5种算法参数

算法	节点数目
算法	$N = {\rm{100}}$, $N = {\rm{150}}$	$N = {\rm{200}}$, $N = {\rm{250}}$	$N = {\rm{300}}$, $N = {\rm{350}}$	$N = {\rm{400}}$, $N = {\rm{450}}$	$N = {\rm{500}}$
NSSH	${\theta _{{\rm{th}}}} = 0.82$ ${\left\| {{\rm{arc}}} \right\|_{{\rm{th}}}} = 1.96{\text{π}} $ $k{\rm{ = 2}}$
GGA	$\mu {\rm{ = 0}}{\rm{.9}}$
MCLC	$\Delta c < 0.05$
COAN	${r_{{\rm{thr}}}} = 4.4$ ${\eta _{{\rm{thr}}}} = 1.87{\text{π}} $ ${m_{{\rm{thr}}}} = 11$ $k = 1$	${r_{{\rm{thr}}}} = 4.6$ ${\eta _{{\rm{thr}}}} = 1.9{\text{π}} $ ${m_{{\rm{thr}}}} = 12$ $k = 1$	${r_{{\rm{thr}}}} = 4.8$ ${\eta _{{\rm{thr}}}} = 1.93{\text{π}}$ ${m_{t{\rm{hr}}}} = 13$ $k = 1$	${r_{{\rm{thr}}}} = 5.2$ ${\eta _{{\rm{thr}}}} = 1.96{\text{π}} $ ${m_{{\rm{thr}}}} = 13$ $k = 1$	${r_{{\rm{thr}}}} = 5.4$ ${\eta _{{\rm{thr}}}} = 1.98{\text{π}} $ ${m_{{\rm{thr}}}} = 15$ $k = 1$
NDBS	${k_2}({r_1}/{r_2}) = 4$ ${k_2}({r_2}/{r_1}) = 7$ ${k_3}({r_1}/{r_2}) = 7$ ${k_3}({r_2}/{r_1}) = 16$	${k_2}({r_1}/{r_2}) = 4$ ${k_2}({r_2}/{r_1}) = 8$ ${k_3}({r_1}/{r_2}) = 8$ ${k_3}({r_2}/{r_1}) = 16$	${k_2}({r_1}/{r_2}) = 4$ ${k_2}({r_2}/{r_1}) = 7$ ${k_3}({r_1}/{r_2}) = 8$ ${k_3}({r_2}/{r_1}){\rm{ = 15}}$	${k_2}({r_1}/{r_2}) = 3$ ${k_2}({r_2}/{r_1}) = 6$ ${k_3}({r_1}/{r_2}) = 7$ ${k_3}({r_2}/{r_1}) = 14$	${k_2}({r_1}/{r_2}) = 3$ ${k_2}({r_2}/{r_1}) = 6$ ${k_3}({r_1}/{r_2}) = 6$ ${k_3}({r_2}/{r_1}) = 13$
注：表中参数$\Delta c$代表MCLC算法覆盖子集的约束条件，${r_{{\rm{thr}}}}$, ${\eta _{{\rm{thr}}}}$, ${m_{{\rm{thr}}}}$仅针对COAN算法，${k_2}({r_1}/{r_2})$, ${k_2}({r_2}/{r_1})$, ${k_3}({r_1}/{r_2})$, ${k_3}({r_2}/{r_1})$仅针对NDBS算法，具体参数解释可查阅文献[8,9]。

下载: 导出CSV
