基于相邻互相关函数-参数化中心频率-调频率分布-Keystone变换的无源雷达机动目标相参积累方法

赵勇胜; 胡德秀; 刘智鑫; 赵拥军; 赵闯

doi:10.11999/JEIT180858

基于相邻互相关函数-参数化中心频率-调频率分布-Keystone变换的无源雷达机动目标相参积累方法

doi: 10.11999/JEIT180858

解放军战略支援部队信息工程大学数据与目标工程学院郑州 450001

基金项目: 国家自然科学基金(61703433)

详细信息

作者简介:
赵勇胜：男，1990年生，博士生，研究方向为无源雷达信号处理

胡德秀：男，1983年生，讲师，研究方向为无源定位、信号分析与处理

刘智鑫：男，1991年生，博士生，研究方向为辐射源定位、电子侦察等

赵拥军：男，1964年生，教授、博士生导师，研究方向为雷达信号处理

赵闯：男，1978年生，副教授，研究方向为雷达信号处理

通讯作者:
胡德秀　paper_hdx@126.com

中图分类号: TN971
计量
- 文章访问数: 2215
- HTML全文浏览量: 1284
- PDF下载量: 62
- 被引次数: 0
出版历程
- 收稿日期: 2018-09-03
- 修回日期: 2019-08-01
- 网络出版日期: 2019-08-21
- 刊出日期: 2019-10-01

Coherent Integration Algorithm Based on Adjacent Cross Correlation Function-Parameterized Centroid Frequency-Chirp Rate Distribution -Keystone Transform for Maneuvering Target in Passive Radar

School of Data and Target Engineering, PLA Strategic Support Force Information Engineering University, Zhengzhou 450001, China

Funds: The National Natural Science Foundation of China (61703433)

摘要

摘要: 延长积累时间可以有效提高无源雷达的目标探测能力，但是对于高速机动目标，其速度、加速度、第二加速度等因素导致现有的检测算法在积累过程中发生距离徙动(RM)和多普勒频率徙动(DFM)，使得目标检测性能恶化。该文针对无源雷达中变加速运动目标的长时间相参积累问题，提出一种基于相邻互相关函数(ACCF)-参数化中心频率-调频率分布(PCFCRD)-Keystone变换(KT)的相参积累算法(ACCF-PCFCRD-KT)。首先给出无源雷达中变加速运动目标的回波模型，分析了目标速度、加速度和第二加速度对相参积累的影响。针对目标第二加速度引起的多普勒频率弯曲，采用ACCF降低了距离和多普勒频率徙动的阶数，而后利用PCFCRD估计出目标加速度和第二加速度参数，在补偿了目标加速度和第二加速度引起的2次和3次徙动后，利用KT校正目标速度引起的线性徙动，并实现目标回波的积累。仿真结果表明，该算法可有效补偿无源雷达中目标运动导致的RM和DFM，对变加速机动目标的积累效果显著优于现有算法。
- 无源雷达 /
- 相参积累 /
- 机动目标 /
- 相邻互相关函数 /
- 参数化中心频率调频斜率分布 /
- Keystone变换
Abstract: Increasing the integration time can effectively improve the detection performance of passive radar. However, for maneuvering targets, the complex motions, such as high velocity, acceleration and jerk, cause existing detection methods to suffer the Range Migration (RM) and Doppler Frequency Migration (DFM) during the integration time, which deteriorates the detection performance. This paper addresses the long time coherent integration for a maneuvering target with high-order motion (e.g., jerk motion) in passive radar systems. A method based on Adjacent Cross Correlation Function (ACCF), Parameterized Centroid Frequency-Chirp Rate Distribution (PCFCRD) and Keystone Transform (KT)(ACCF-PCFCRD-KT), is proposed. Firstly, the signal model for the maneuvering targets is given, and the influence of the target velocity, acceleration and jerk on the coherent integration is analyzed. For the Doppler curvature induced by the jerk motion, the ACCF is firstly applied to reducing the order of RM and DFM. Then the PCFCRD operation is employed to estimate the acceleration and jerk parameters. After compensating the RM and DFM caused by the acceleration and jerk, the RM arising from the velocity is corrected via the KT operation and the target echo energy is coherently integrated. Simulation results demonstrate that the proposed method can effectively compensate the RM and DFM caused by the target motion parameters in passive radar, and for a maneuvering target with jerk motion, the proposed method achieves better integration performance over the existing methods.
- Passive radar /
- Coherent integration /
- Maneuvering target /
- Adjacent Cross Correlation Function (ACCF) /
- Parameterized Centroid Frequency-Chirp Rate Distribution (PCFCRD) /
- Keystone Transform (KT)

HTML全文

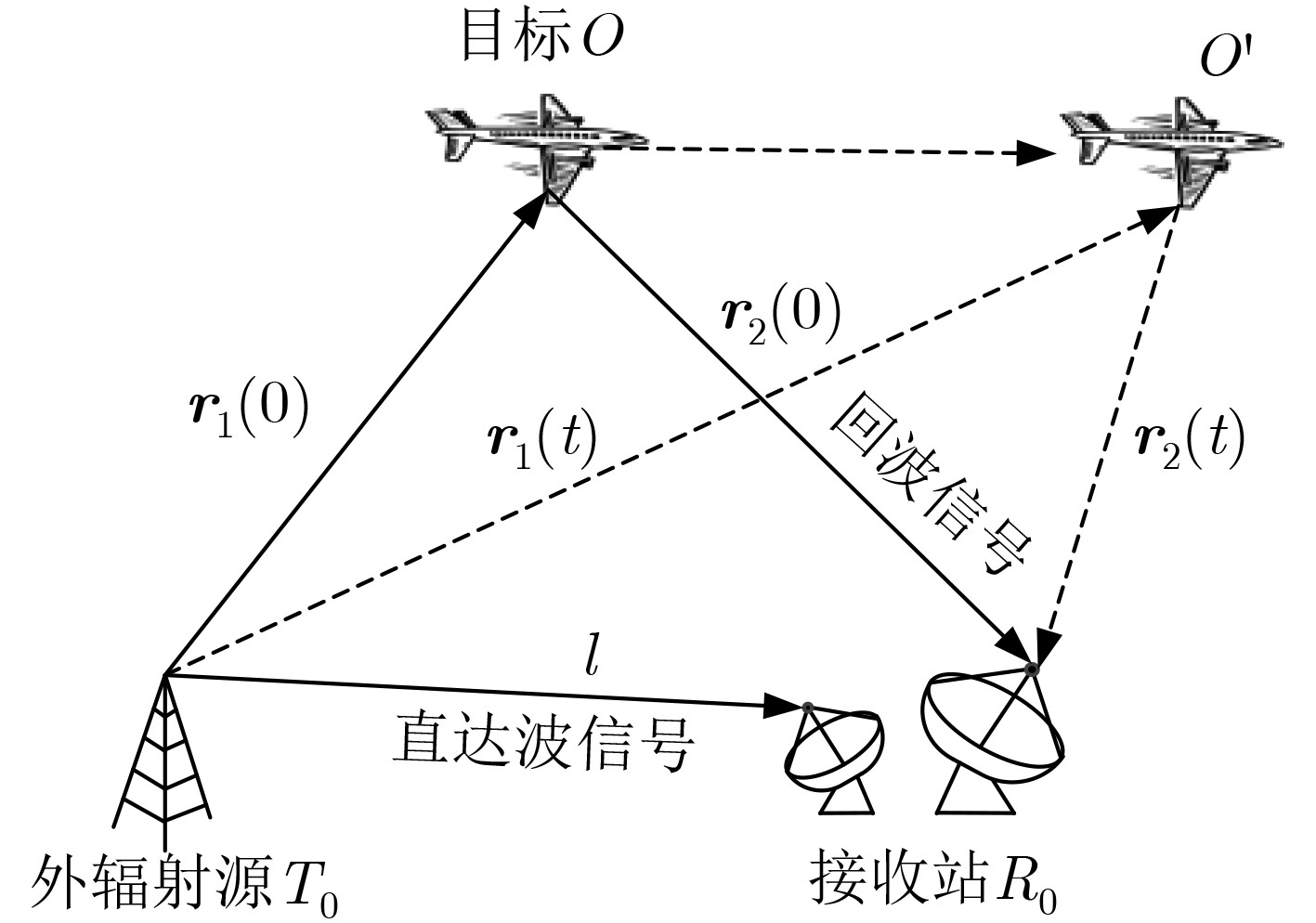

图 1 双基地无源雷达目标运动示意图

下载: 全尺寸图片幻灯片

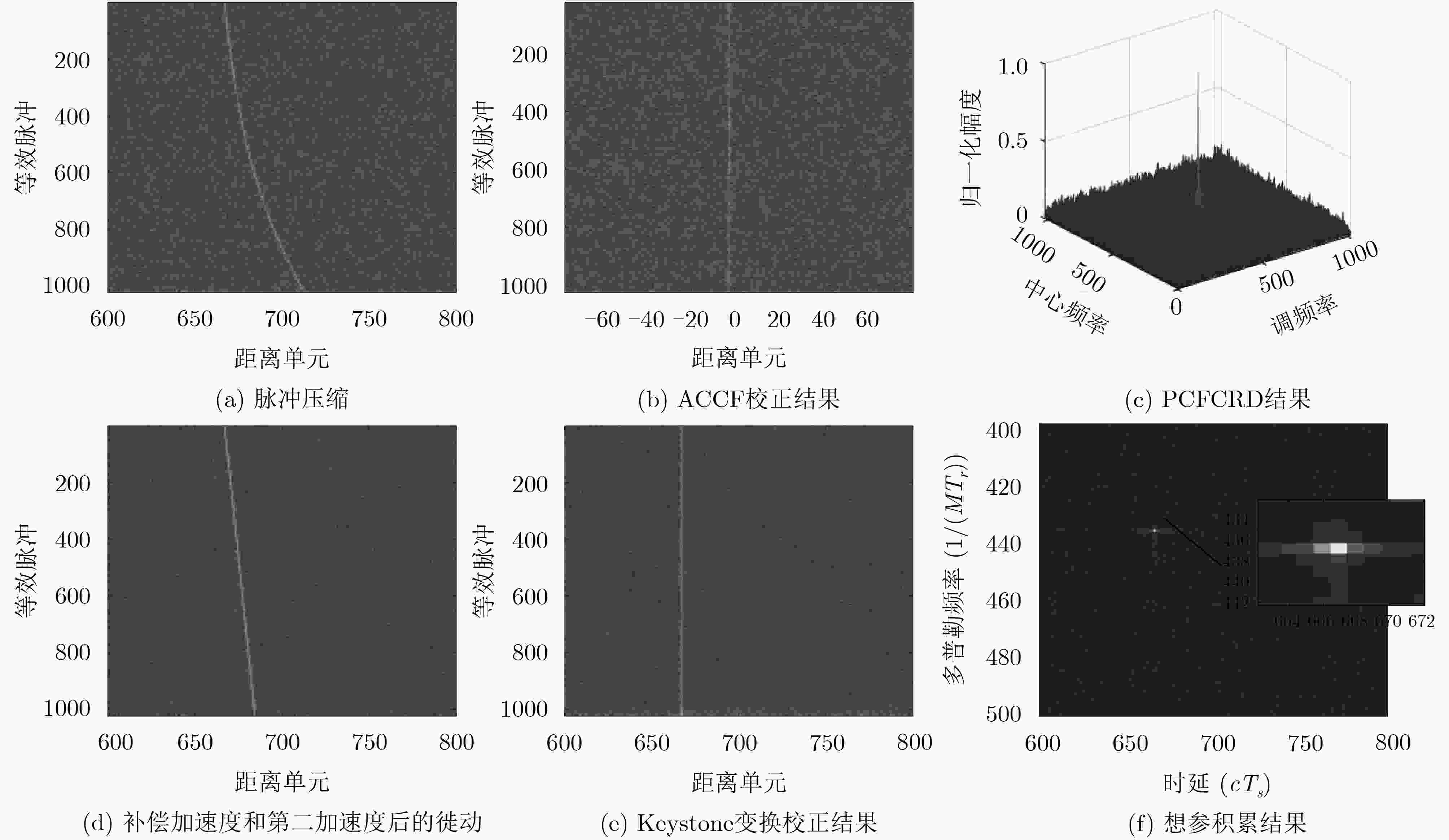

图 2 本文算法对回波积累效果

下载: 全尺寸图片幻灯片

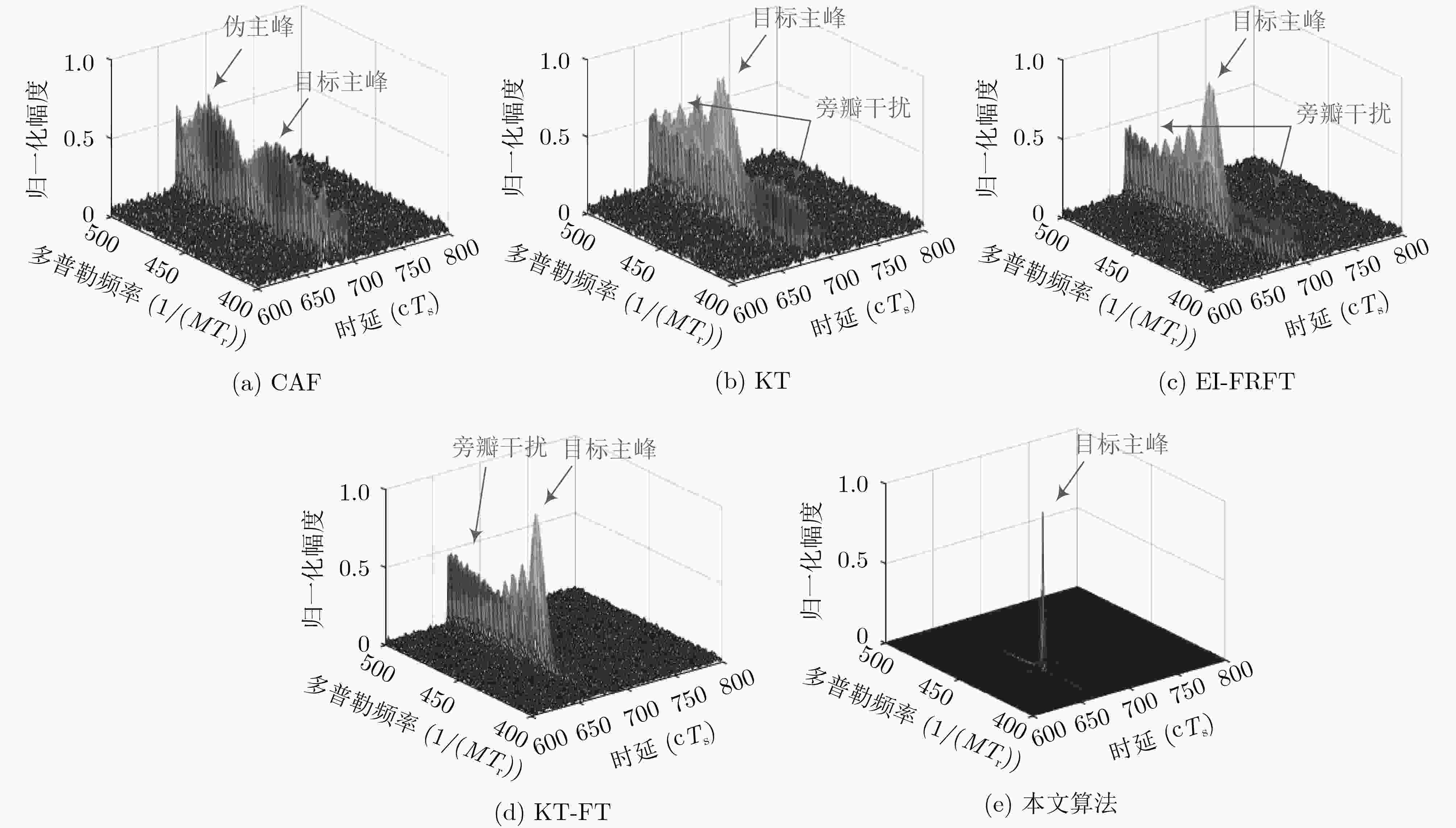

图 3 不同算法回波积累效果比较

下载: 全尺寸图片幻灯片

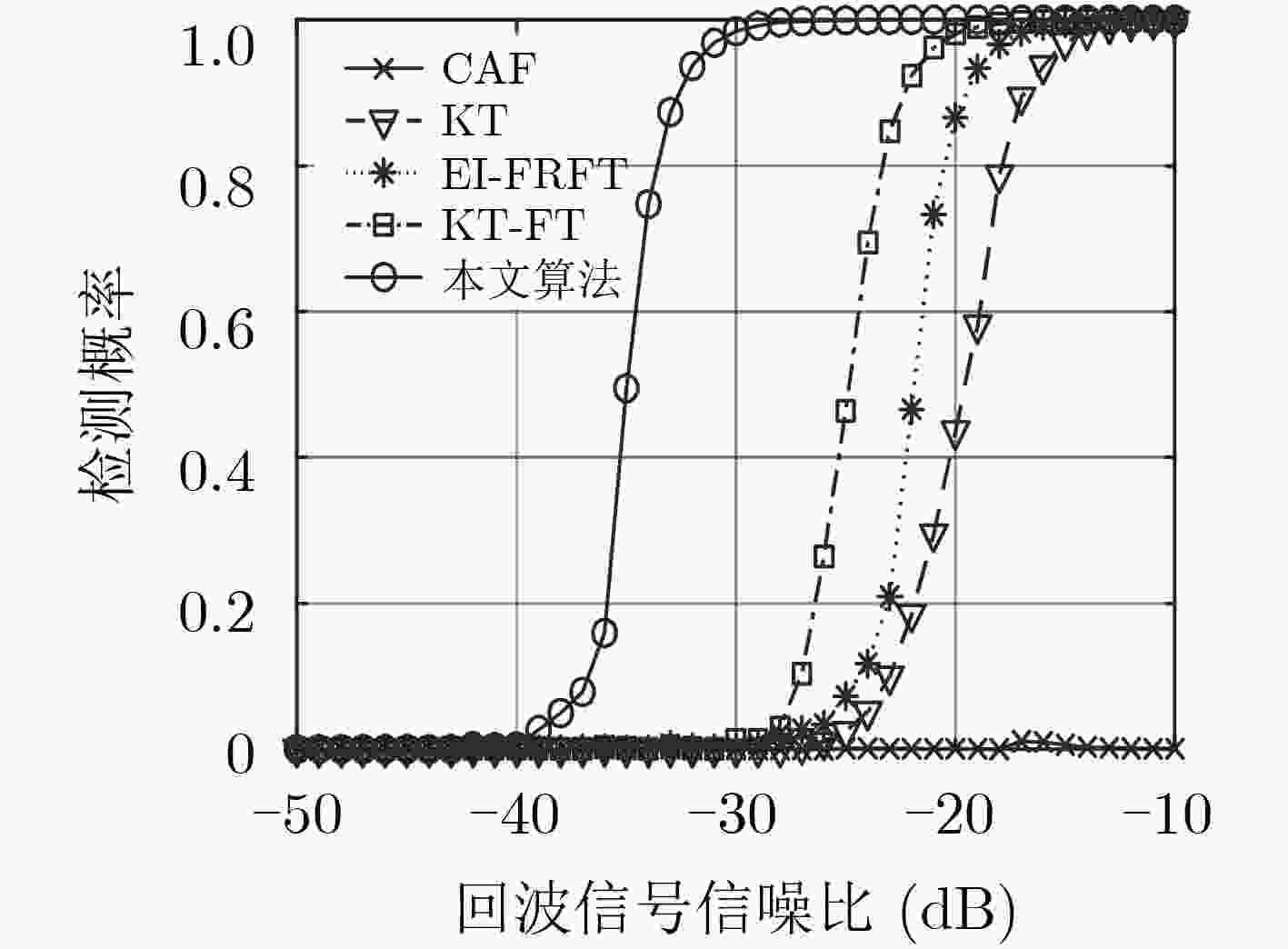

图 4 不同算法的检测性能曲线(${P_{\rm f}} = {10^{ - 4}}$)
