DC-6 GHz宽带同轴电磁辐照实验装置的设计研究

王诗棋; 房少军; 陈鹏

doi:10.11999/JEIT180593

DC-6 GHz宽带同轴电磁辐照实验装置的设计研究

doi: 10.11999/JEIT180593

大连海事大学信息科学技术学院大连 116026

详细信息

作者简介:
王诗棋：女，1993年生，博士生，研究方向为电磁场与微波技术、生物电磁学

房少军：男，1957年生，教授，博士生导师，研究方向为微波技术与微波通信

陈鹏：男，1977年生，副教授，研究方向为电磁场与微波技术、生物电磁学、无线传感器网络、超宽带无线通信技术与天线

通讯作者:
陈鹏　chenpeng213@126.com

中图分类号: TN814
计量
- 文章访问数: 1807
- HTML全文浏览量: 541
- PDF下载量: 47
- 被引次数: 0
出版历程
- 收稿日期: 2018-06-13
- 修回日期: 2018-12-26
- 网络出版日期: 2019-01-22
- 刊出日期: 2019-05-01

Design and Research of DC-6 GHz Broadband Electromagnetic Radiation Experimental Device

College of Information Science and Technology, Dalian Maritime University, Dalian 116026, China

摘要

摘要:
由于传统TEM小室的频带宽度不能满足日益增长的宽频带需求，该文采用同轴结构设计了一个DC-6 GHz的宽带电磁辐照装置。该装置基于传输线理论和阻抗匹配原理，采用锥形过渡与圆同轴连接的结构，在端口处选用N型连接器，与腔体的连接实现了良好的阻抗匹配。利用CST仿真软件进行建模优化，最后对仿真结构进行加工与调试，仿真结果表明，该同轴电磁辐照装置在DC-6 GHz频率范围内S11均在–10 dB以下，由于加工的误差测试结果在个别频点稍有偏差，但趋势和仿真结果具有较好的一致性，吻合较好，证明该辐照装置具有良好的传输性能。该文设计的同轴腔在电磁辐照系统中具有很好的应用价值。
- 电磁辐照装置 /
- DC-6 GHz宽带 /
- 阻抗匹配
Abstract:
As the bandwidth of the traditional TEM cell can not satisfy the growing demand for broadband, a broadband electromagnetic radiation device working from DC to 6 GHz is designed based on the coaxial structure. According to circuit principle and impedance matching of the transmission line, the device adopts the taper transition structure between the N connector and circular coaxial connected, which achieves the advantages of good impedance matching. The device is simulated by the CST software, and has been fabricated and measured. The simulated results show that S11 is better than –10 dB in the frequency range of DC-6 GHz. Due to the machining error, test results are slightly biased at individual frequencies, which have good consistency with the simulated results and demonstrate the desirable transmission performance of the radiation device. The design has great application value in electromagnetic radiation system.
- Electromagnetic radiation device /
- DC-6 GHz broadband /
- Impedance matching

HTML全文

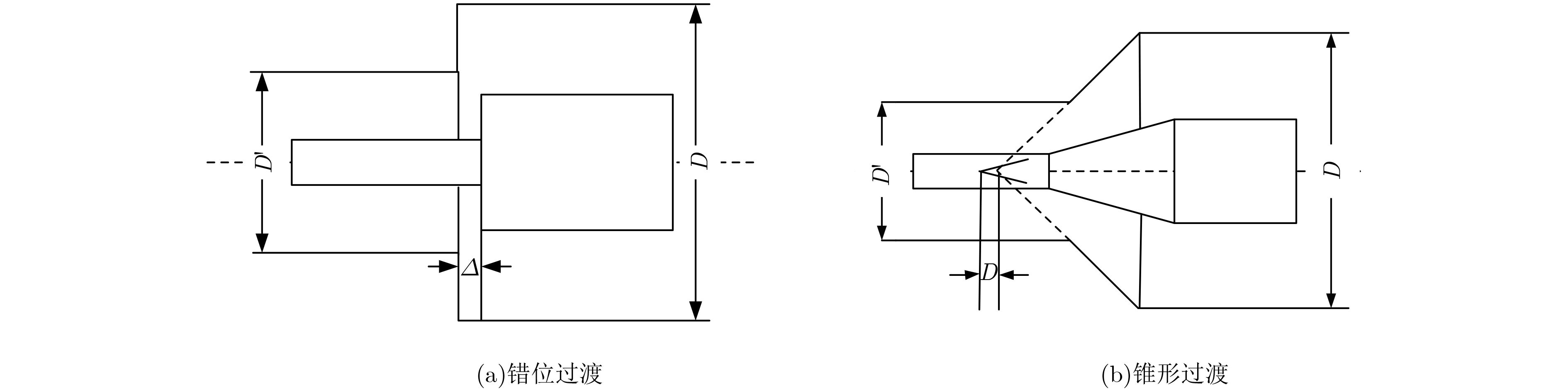

图 1 结构图

下载: 全尺寸图片幻灯片

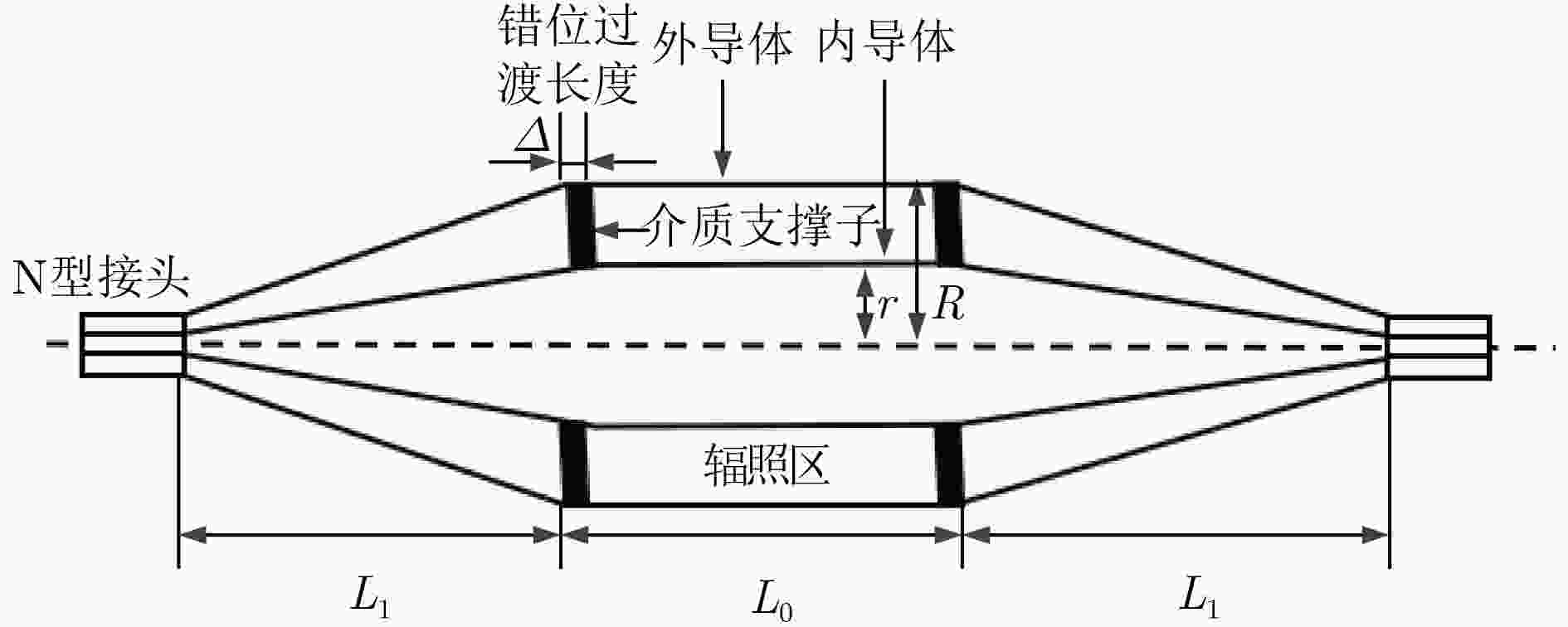

图 2 DC-6 GHz同轴电磁辐照装置结构图

下载: 全尺寸图片幻灯片

图 3 锥形过渡长度对回波损耗影响的仿真结果

下载: 全尺寸图片幻灯片

图 4 错位过渡长度对回波损耗影响的仿真结果

下载: 全尺寸图片幻灯片

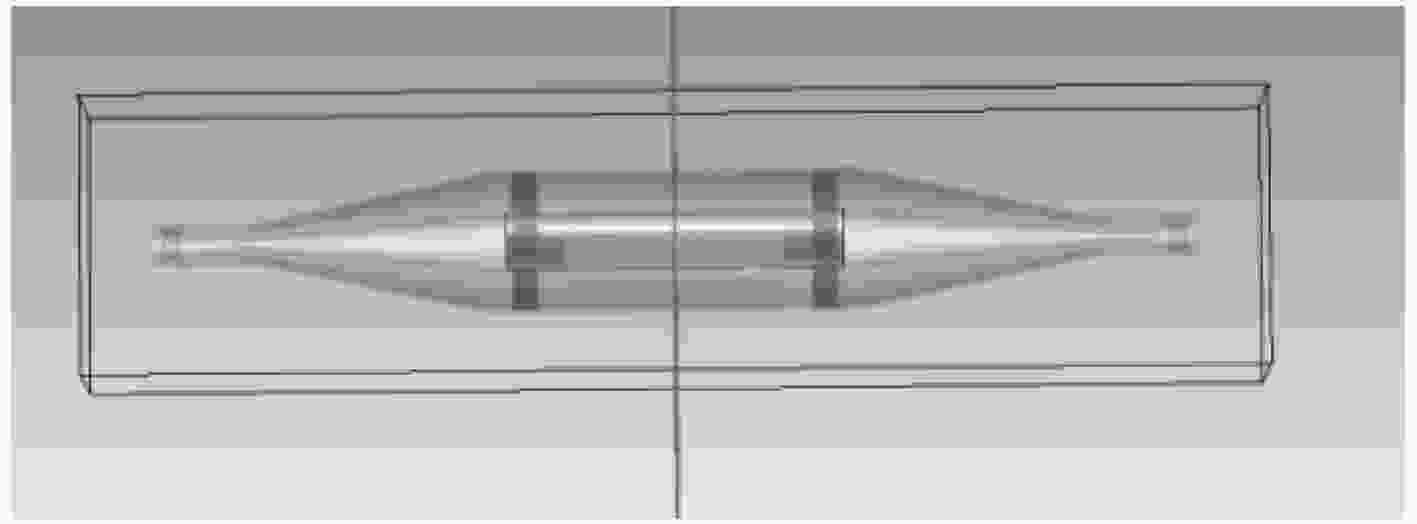

图 5 电磁辐照实验装置仿真模型

下载: 全尺寸图片幻灯片

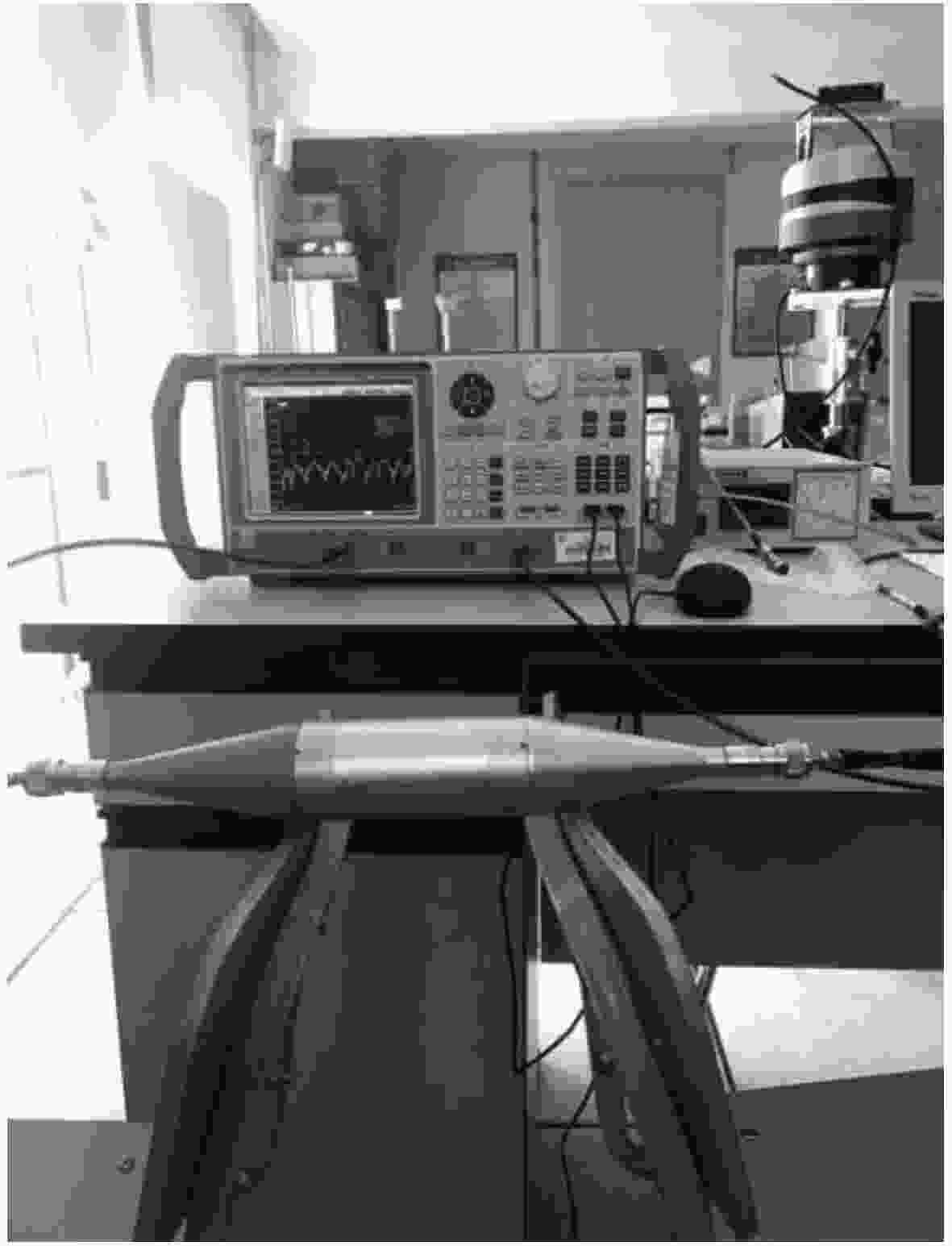

图 6 实验测试场景图

下载: 全尺寸图片幻灯片

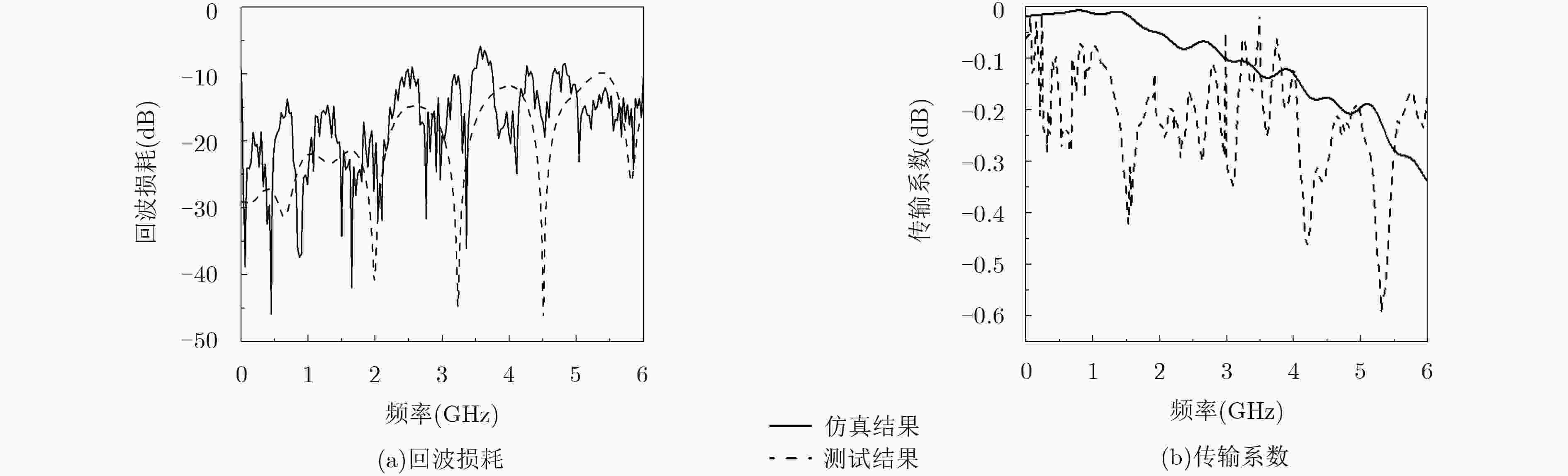

图 7 电磁辐照装置仿真与测试结果

下载: 全尺寸图片幻灯片

图 8 辐射电磁场图

下载: 全尺寸图片幻灯片

表 1 电磁辐照实验装置结构尺寸(mm)

L₁ L₀ R r D

117.31 119.40 25.60 11.10 2.04

下载: 导出CSV

参考文献(21)

习岗, 候建强, 王海彬, 等. 射频电磁波生物学效应实验系统的研制[J]. 华南农业大学学报: 自然科学版, 2003, 24(4): 92–95. doi: 10.3969/j.issn.1001-411X.2003.04.025

XI Gang, HOU Jianqiang, WANG Haibin, et al. Development of a system for studying the biological effect of radio frequency electromagnetic field[J]. Journal of South China Agricultural University:Natural Science Edition, 2003, 24(4): 92–95. doi: 10.3969/j.issn.1001-411X.2003.04.025

李海娟, 胡向军, 王丽峰, 等. 生物电磁学研究的新进展——从生物电磁学会第34届年会谈起[J]. 生物物理学报, 2013, 29(4): 310–318.

LI Haijuan, HU Xiangjun, WANG Lifeng, et al. Recent advances in the study of biological electromagnetics[J]. Acta Biophysica Sinica, 2013, 29(4): 310–318.

潘越越, 吴广芬, 李旭, 等. 大学生手机电磁辐射分析与监测[J]. 大学物理, 2017, 36(3): 63–65.

PAN Yueyue, WU Guangfen, LI Xu, et al. Analysis and check of cellphone’s electromagnetic radiation of undergraduates[J]. College Physics, 2017, 36(3): 63–65.

杨源. 电磁能量无线近场传输的研究[D]. [硕士论文], 电子科技大学, 2017.

YANG Yuan. Research of wireless near-field electromagnetic power transfer[D]. [Master dissertation], University of Electronic Science and Technology of China, 2017.

刘紫薇, 任伯绪, 江献旺. 生物标志物在电离辐射中的应用与研究进展[J]. 长江大学学报: 自科版, 2018, 15(8): 77–82.

LIU Ziwei, REN Boxu, and JIANG Xianwang. Application and research progress of biomarkers in ionizing radiation[J]. Journal of Yangtze University:Natural Science Edition, 2018, 15(8): 77–82.

孙立君, 高艳, 郭颖, 等. 高频电磁辐射对小鼠情绪-认知行为的损伤作用[J]. 中国比较医学杂志, 2018, 28(3): 15–20. doi: 10.3969/j.issn.1671-7856.2018.03.003

SUN Lijun, GAO Yan, GUO Ying, et al. Behavioral tests of mood-cognitive impairment of mice exposed to high-frequency electromagnetic radiation[J]. Chinese Journal of Comparative Medicine, 2018, 28(3): 15–20. doi: 10.3969/j.issn.1671-7856.2018.03.003

张应龙, 左汶奇. 模拟手机电磁辐射系统对SD大鼠耳蜗边缘细胞影响的研究[J]. 检验医学与临床, 2018, 15(5): 589–591, 595. doi: 10.3969/j.issn.1672-9455.2018.05.005

ZHANG Yinglong and ZUO Wenqi. The effects of mobile phone electromagnetic radiation system on cochlea marginal cells of the SD rats[J]. Laboratory Medicine and Clinic, 2018, 15(5): 589–591, 595. doi: 10.3969/j.issn.1672-9455.2018.05.005

赵龙, 温舒桦, 胡玉生. TEM小室结构设计的关键技术[J]. 安全与电磁兼容, 2015(2): 77–80. doi: 10.3969/j.issn.1005-9776.2015.02.016

ZHAO Long, WEN Shuhua, and HU Yusheng. Key technology on structure design of TEM cell[J]. Safety &EMC, 2015(2): 77–80. doi: 10.3969/j.issn.1005-9776.2015.02.016

NITTBY H, BRUN A, STRÖMBLAD S, et al. Nonthermal GSM RF and ELF EMF effects upon rat BBB permeability[J]. The Environmentalist, 2011, 31(2): 140–148. doi: 10.1007/s10669-011-9307-z

WASOONTARAJAROEN S, THANSANDOTE A, GAJDA G B, et al. Dosimetry evaluation of a cylindrical waveguide chamber for unrestrained small rodents at 1.9 GHz[J]. Bioelectromagnetics, 2012, 33(7): 575–584. doi: 10.1002/bem.21714

杨思凡, 庞小峰, 李斌. 生物电磁辐射实验装置的设计[J]. 生命科学仪器, 2011, 9(3): 51–53. doi: 10.3969/j.issn.1671-7929.2011.03.023

YANG Sifan, PANG Xiaofeng, and LI Bin. Design of biological electromagnetic radiation devices for biological effects experiment[J]. Life Science Instruments, 2011, 9(3): 51–53. doi: 10.3969/j.issn.1671-7929.2011.03.023

刘晓龙. 宽频电磁辐射腔及内置电磁场探头天线的设计[D]. [硕士论文], 大连海事大学, 2014.

LIU Xiaolong. Design of broadband electromagnetic radiation cavity and built-in electromagnetic field probe antenna[D]. [Master dissertation], Dalian Maritime University, 2014.

周峰, 王景伟, 熊宇飞, 等. IEEE STD1309—2013电场校准标准的公式与计算讨论[J]. 计量学报, 2017, 38(6): 763–764. doi: 10.3969/j.issn.1000-1158.2017.06.23

ZHOU Feng, WANG Jingwei, XIONG Yufei, et al. Discussion on the equations and calculations in the E-field calibration standard of IEEE STD 1309-2013[J]. Acta Metrologica Sinica, 2017, 38(6): 763–764. doi: 10.3969/j.issn.1000-1158.2017.06.23

陈军, 万发雨, 范盼. 新型宽带横电磁波小室的设计[J]. 合肥工业大学学报: 自然科学版, 2016, 39(7): 938–942.

CHEN Jun, WAN Fayu, and FAN Pan. Design of novel broadband TEM cell[J]. Journal of Hefei University of Technology:Natural Science, 2016, 39(7): 938–942.

LIU Xingxun, ZHANG Tao, and QI Wangquan. Propagation of electromagnetic wave in coaxial conical transverse electromagnetic wave cell[J]. Chinese Journal of Mechanical Engineering, 2015, 28(6): 1222–1228. doi: 10.3901/CJME.2015.0410.040

刘星汛, 张涛. 锥形同轴线阻抗渐变对S参数的影响研究[J]. 宇航计测技术, 2015, 35(3): 1–4. doi: 10.3969/j.issn.1000-7202.2015.03.001

LIU Xingxun and ZHANG Tao. Impact study on S parameters of conical coaxial line using impedance gradient matching section[J]. Journal of Astronautic Metrology and Measurement, 2015, 35(3): 1–4. doi: 10.3969/j.issn.1000-7202.2015.03.001

DI BIASIO A and CAMETTI C. Polarizability of spherical biological cells in the presence of localized surface charge distributions at the membrane interfaces[J]. Physical Review E, 2010, 82(2): 021917. doi: 10.1103/PhysRevE.82.021917

PAFFI A, APOLLONIO F, LOVISOLO G A, et al. Considerations for developing an RF exposure system: A review for in vitro biological experiments[J]. IEEE Transactions on Microwave Theory and Techniques, 2010, 58(10): 2702–2714. doi: 10.1109/TMTT.2010.2065351

黄乘顺, 李星亮. 传输线阻抗匹配的分析与设计[J]. 科学技术与工程, 2007, 7(4): 608–611. doi: 10.3969/j.issn.1671-1815.2007.04.047

HUANG Chengshun and LI Xingliang. Analysis and design of impedance matching on transmission line[J]. Science Technology and Engineering, 2007, 7(4): 608–611. doi: 10.3969/j.issn.1671-1815.2007.04.047

王楠, 苏涛, 梁昌洪. 微波传输线方程的分析[J]. 电气电子教学学报, 2014, 36(3): 12–13, 25. doi: 10.3969/j.issn.1008-0686.2014.03.003

WANG Nan, SU Tao, and LIANG Changhong. Analysis on microwave transmission line equation[J]. Journal of Electrical &Electronic Education, 2014, 36(3): 12–13, 25. doi: 10.3969/j.issn.1008-0686.2014.03.003

郑兆翁. 同轴式TEM模通用无源器件[M]. 北京, 人民邮电出版社, 1983: 38–49.

ZHENG Zhaoweng. Coaxial TEM Mode General Passive Device[M]. Beijing: Post & Telecommunications Press, 1983: 38–49.
