基于国产众核超级计算机的6×10<sup>5</sup>核并行矩量法

顾宗静; 吴昊翔; 赵勋旺; 林中朝; 张玉; 张崎

doi:10.11999/JEIT180562

基于国产众核超级计算机的6×10⁵核并行矩量法

doi: 10.11999/JEIT180562

西安电子科技大学陕西省超大规模电磁计算重点实验室西安 710071

基金项目: 国家重点研发计划(2017YFB0202102, 2016YFE0121600)，中国博士后科学基金(2017M613068)

详细信息

作者简介:
顾宗静：男，1989年生，博士生，研究方向为计算电磁学、大规模并行矩量法、区域分解算法

吴昊翔：男，1995年生，硕士生，研究方向为计算电磁学、大规模并行矩量法

赵勋旺：男，1983年生，副教授，研究方向为大型机载天线阵列分析

林中朝：男，1988年生，讲师，研究方向为计算电磁学

张玉：男，1978年生，教授，研究方向为计算电磁学、大规模并行算法

通讯作者:
赵勋旺　xwzhao@mail.xidian.edu.cn

中图分类号: TN820
计量
- 文章访问数: 2010
- HTML全文浏览量: 775
- PDF下载量: 65
- 被引次数: 0
出版历程
- 收稿日期: 2018-06-04
- 修回日期: 2018-12-13
- 网络出版日期: 2018-12-19
- 刊出日期: 2019-04-01

Parallel MoM Using the Six Hundred Thousand Cores on Domestically-made and Many-core Supercomputer

Shaanxi Key Laboratory of Large Scale Electromagnetic Computing, Xidian University, Xi’an 710077, China

Funds: The National Key Research and Development Program of China (2017YFB0202102, 2016YFE0121600), The China Postdoctoral Science Foundation (2017M613068)

摘要

摘要:
为实现电磁计算的安全可靠和自主可控，该文基于“天河二号”国产众核超级计算机平台，开展大规模并行矩量法(MoM)的开发工作。为减轻大规模并行计算时计算机集群的通信压力以及加速矩量法积分方程求解，通过分析矩量法电场积分方程离散生成的矩阵具有对角占优特性，提出一种新型LU分解算法，即对角块矩阵选主元LU分解(BDPLU)算法，该算法减少了panel列分解的计算量，更重要的是，完全消除了选主元过程的MPI通信开销。利用BDPLU算法，并行矩量法突破了6×10⁵ CPU核并行规模，这是目前在国产超级计算平台上实现的最大规模的并行矩量法计算，其矩阵求解并行效率可达51.95%。数值结果表明，并行矩量法可准确高效地在国产超级计算平台上解决大规模电磁问题。
- 矩量法 /
- LU分解 /
- 国产超级计算机 /
- 6×10⁵核
Abstract:
In order to realize safety, reliability and self-control of electromagnetic computing, the large-scale parallel MoM is studied based on domestically-made many-core supercomputer platform named " Tianhe-2”. A new LU decomposition algorithm named Block Diagonal matrix Pivoting LU decomposition (BDPLU) algorithm, is proposed by analyzing the diagonally dominant characteristics of the matrix generated through dispersing electric field integral equation of MoM, for the purpose of communication pressure reduction to computer cluster and solution acceleration to MoM integral equation during large-scale parallel computation. The BDPLU algorithm reduces the amount of calculation in the process of panel factorization. More importantly, the algorithm completely eliminates MPI communication when pivoting. Using BDPLU algorithm, the maximum number of CPU cores break through 6×10⁵ CPU cores, which is the largest scale of parallel MoM computation in domestically-made and many-core supercomputing platform at present, and the parallel efficiency of solving matrix can reach 51.95%. Numerical results show that parallel MoM can accurately and efficiently solve large-scale electromagnetic field problems on domestic supercomputing platform.
- Method of Moments (MoM) /
- LU decomposition /
- Domestically-made supercomputer /
- 6×10⁵ cores

HTML全文

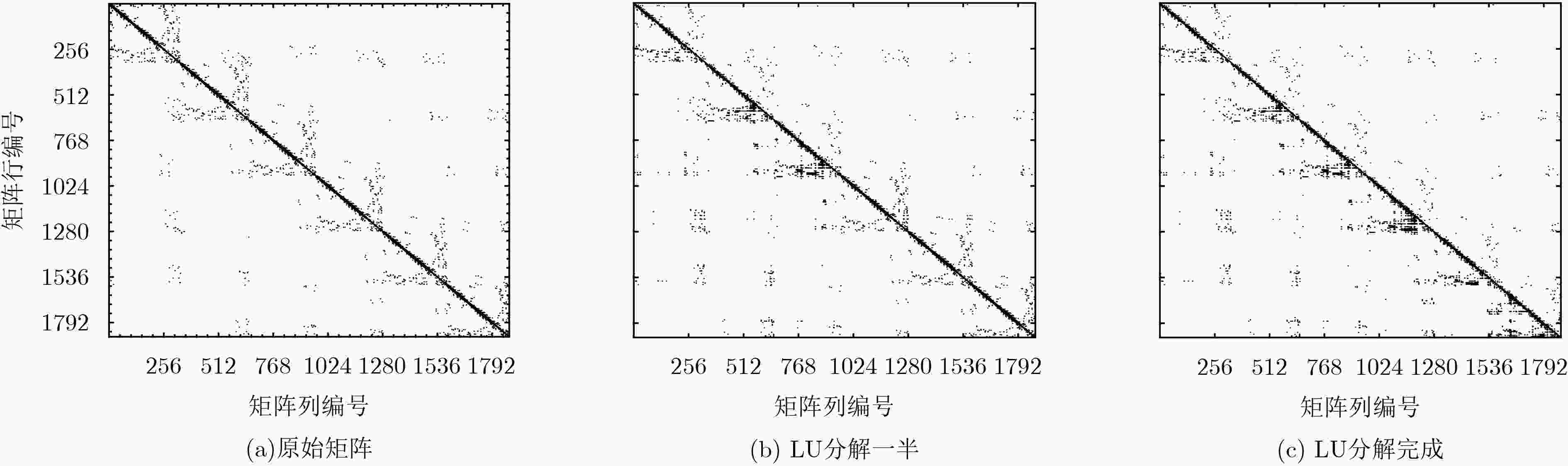

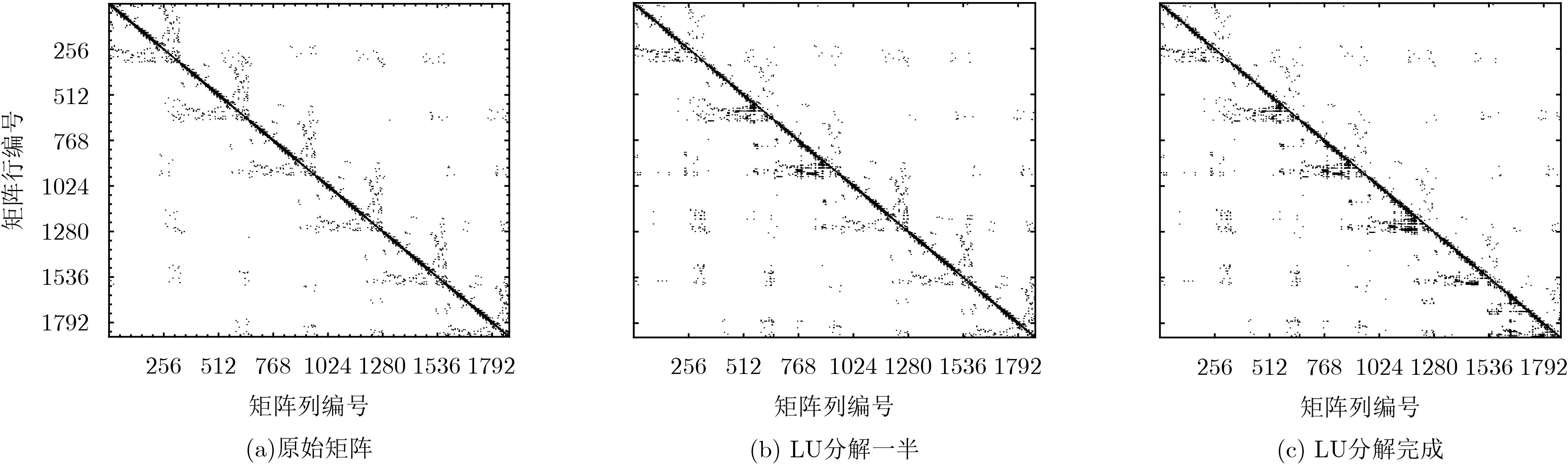

图 1 LU分解过程矩阵特性分布

下载: 全尺寸图片幻灯片

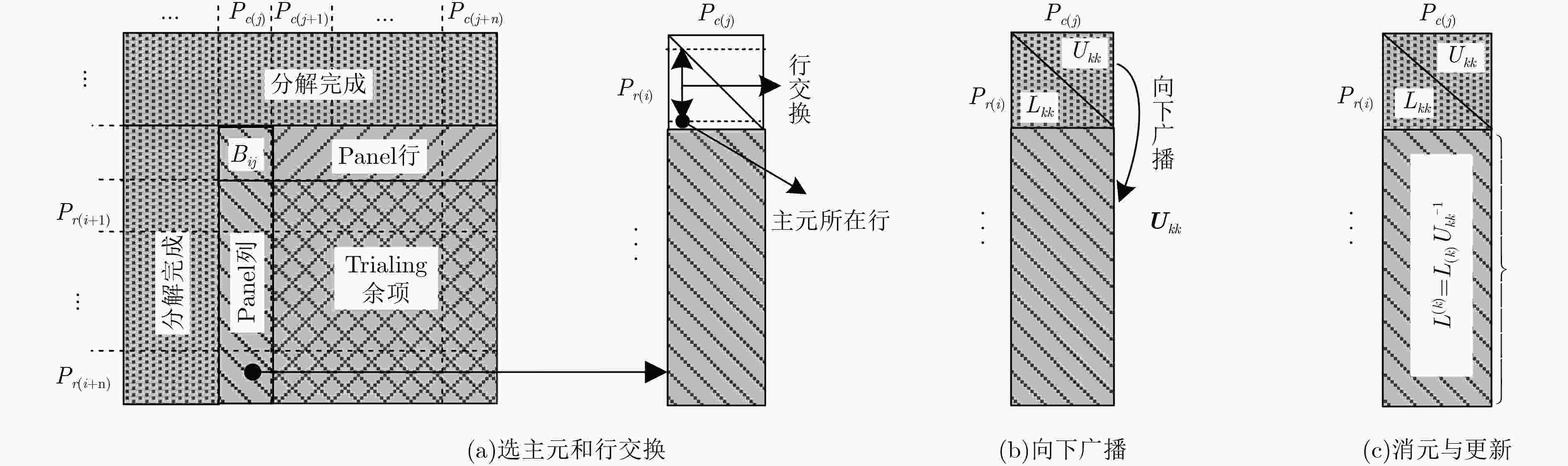

图 2 BDPLU算法原理图

下载: 全尺寸图片幻灯片

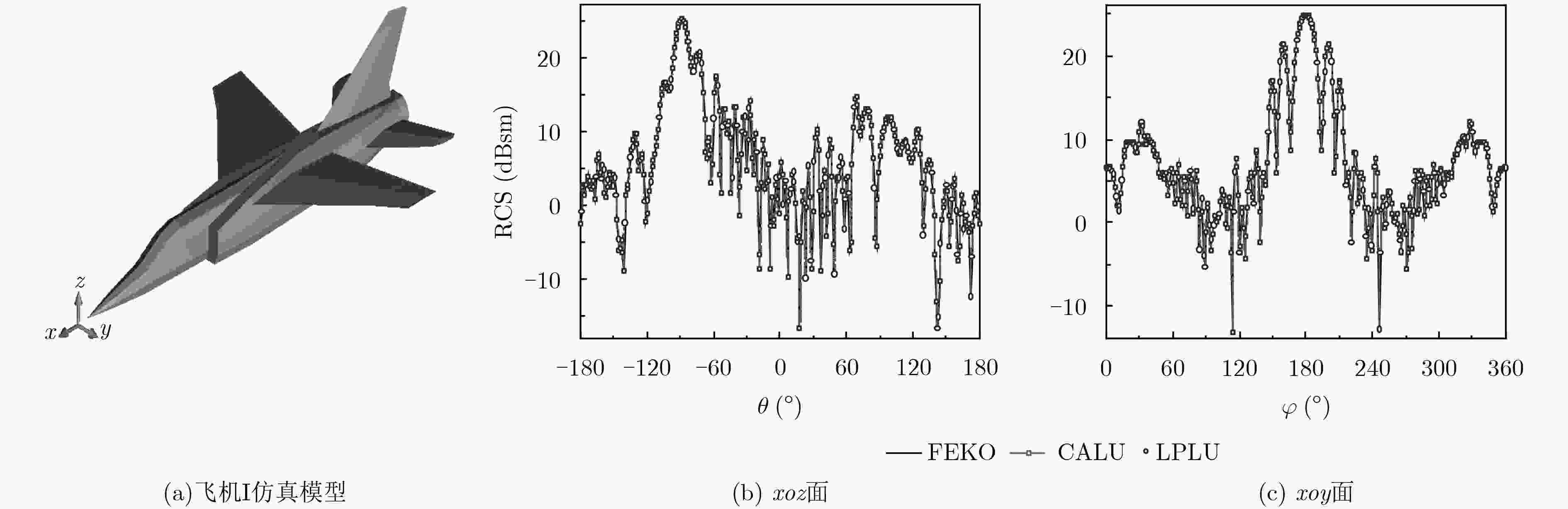

图 3 飞机I仿真模型和双站RCS结果

下载: 全尺寸图片幻灯片

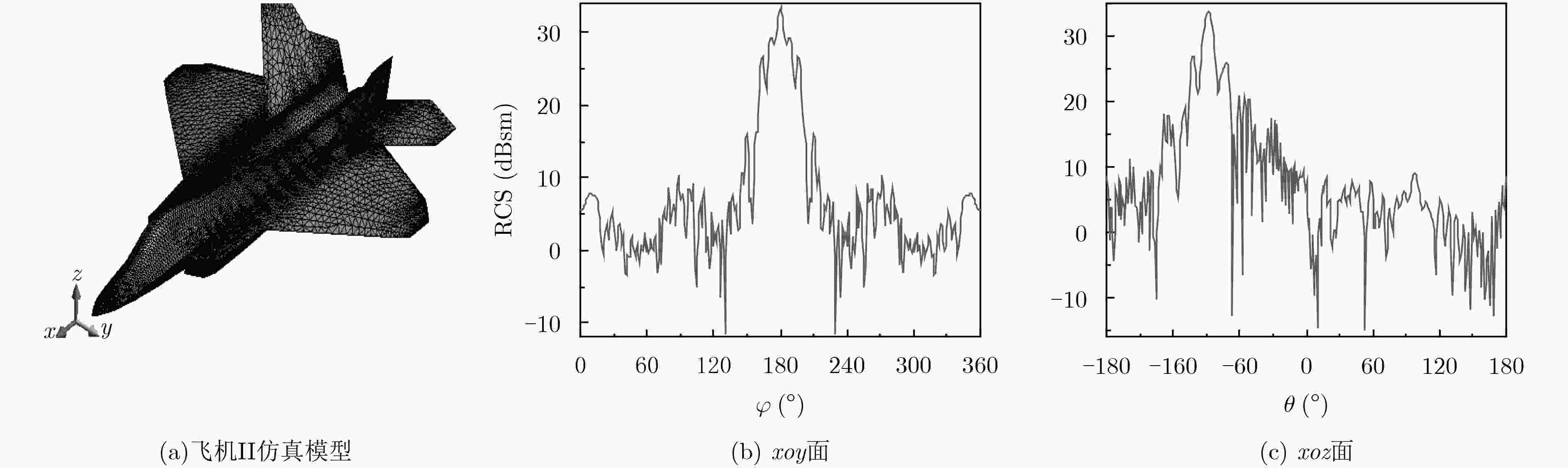

图 4 飞机II双站RCS结果

下载: 全尺寸图片幻灯片

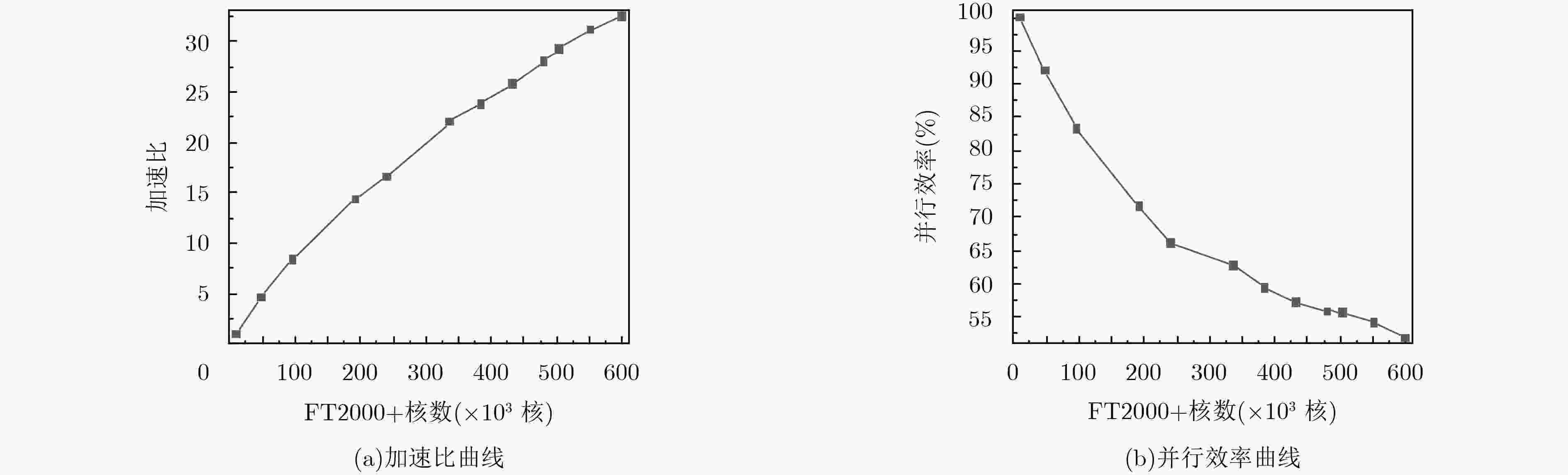

图 5 加速比和并行效率

下载: 全尺寸图片幻灯片

表 1 CALU算法与BDPLU算法矩阵求解时间对比

FT2000+核数	矩阵求解时间(s)		并行效率(%)
FT2000+核数	CALU	BDPLU	CALU	BDPLU
2000	796.54	742.57	100	100
3000	567.78	518.68	93.53	95.44
4000	463.93	421.12	85.85	88.17
5000	386.89	338.24	82.35	87.82
10000	226.57	187.83	70.31	79.07
15000	172.91	139.05	61.42	71.20
20000	133.97	118.38	59.46	62.73
40000	72.83	64.61	54.68	57.47

下载: 导出CSV

表 2 BDPLU算法求解矩阵的加速比和并行效率

FT2000+核数	矩阵求解时间(s)	加速比	并行效率(%)
9600	29183.33	1	100
48000	6336.53	4.61	92.11
96000	3501.73	8.33	83.34
192000	2035.35	14.34	71.69
240000	1764.53	16.54	66.16
336000	1328.13	21.97	62.78
384000	1227.91	23.77	59.42
432000	1133.64	25.74	57.21
480000	1043.45	27.97	55.94
504000	997.94	29.24	55.70
552000	937.82	31.12	54.12
600000	898.81	32.49	51.95

下载: 导出CSV

参考文献(19)

HARRINGTION R F. Field Computation by Moment Methods[M]. New York; IEEE Press, 1993.

王长清. 现代计算电磁学基础[M]. 北京: 北京大学出版社, 2005: 116–157.

WANG Changqing. Computational Advanced Electromagnetics[M]. Beijing: PeKing University Press, 2005: 116–157.

ZHANG Yu and SARKAR T K. Parallel Solution of Integral Equation Based EM Problems in the Frequency Domain [M].Hoboken, USA: Wiley-IEEE, 2009: 107–136.

张玉, 赵勋旺, 陈岩, 等. 计算电磁学中的大规模并行矩量法[M]. 西安: 西安电子科技大学出版社, 2016: 11210.

ZHANG Yu, ZHAO Xunwang, CHEN Yan, et al. Massively Parallel Method of Moment in Computational Electromagnetics[M].Xi’an: Xidian University Press, 2016: 11210.

林中朝, 张爽, 王星, 等. 高阶矩量法在国产超级计算机上的并行性能[J]. 微波学报, 2014, 30(S1): 44–47

LIN Zhongchao, ZHANG Shuang, WANG Xing, et al. Parallel performance of higher-order MoM on a domestically-made supercomputer[J]. Journal of Microwaves, 2014, 30(S1): 44–47

林中朝, 陈岩, 张玉, 等. 国产CPU平台中并行高阶矩量法研究[J]. 西安电子科技大学学报, 2015, 42(3): 43–47 doi: 10.3969/j.issn.1001-2400.2015.03.008

LIN Zhongchao, CHEN Yan, ZHANG Yu, et al. Study of the parallel higher-order MoM on a domestically-made CPU platform[J]. Journal of Xidian University, 2015, 42(3): 43–47 doi: 10.3969/j.issn.1001-2400.2015.03.008

ZHANG Yu, LIN Zhongchao, ZHAO Xunwang, et al. Performance of a massively parallel higher-order method of moment code using thousands of CPUs and its applications[J]. IEEE Transactions on Antenna Propagation, 2014, 62(12): 6317–6324 doi: 10.1109/TAP.2014.2361135

ZHAO Xunwang, CHEN Yan, ZHANG Huanhuan, et al. A New Decomposition Solver for Complex Electromagnetic Problems[J]. IEEE Antennas & Propagation Magazine, 2017, 59(3): 131–140 doi: 10.1109/MAP.2017.2687119

CHEN Yan, ZHANG Yu, ZHANG Guanghui, et al. Hybrid MIC/CPU parallel implementation of MoM on MIC cluster for electromagnetic problems[J]. IEICE Transactions on Electronics, 2016, 99(7): 735–743 doi: 10.1587/transele.E99.C.735

CHEN Yan, ZHANG Guanghui, LIN Zhongchao, et al. Solution of EM problems using hybrid parallel MIC/CPU implementation of higher-order MoM[C]. IEEE International Symposium on Microwave, Antenna, Propagation, and Emc Technologies. Shanghai, China, 2016: 789–791.

左胜, 陈岩, 张玉, 等. 一种可扩展异构并行核外高阶矩量法[J]. 西安电子科技大学学报, 2017, 44(1): 146–151 doi: 10.3969/j.issn.1001-2400.2017.01.026

ZUO Sheng, CHEN Yan, ZHANG Yu, et al. Study of the scalable heterogeneous parallel out-of-core higher order method of moments[J]. Journal of Xidian University, 2017, 44(1): 146–151 doi: 10.3969/j.issn.1001-2400.2017.01.026

CHEN Yan, ZUO Sheng, ZHANG Yu, et al. Large-scale parallel method of moments on CPU/MIC heterogeneous clusters[J]. IEEE Transactions on Antennas & Propagation, 2017, 65(7): 3782–3787 doi: 10.1109/TAP.2017.2700871

TANG Min, ZHAO Jieyi, TONG Ruofeng, et al. GPU accelerated convex hull computation[J]. Computers & Graphics, 2012, 36(5): 498–506 doi: 10.1016/j.cag.2012.03.015

陈岩. 高性能矩量法及其在复杂目标电磁模拟中的应用[D]. [博士论文], 西安电子科技大学, 2017: 86–91.

Chen Yan. High performance method of moments and its application in electromagnetic simulation of complex targets[D]. [Ph.D. dissertation], Xidian University, 2017: 86–91.

ZHANG Yu, CHEN Yan, ZHANG Guanghui, et al. A highly efficient communication avoiding LU algorithm for Methods of Moments[C]. IEEE International Symposium on Antennas and Propagation & Usnc/ursi National Radio Science Meeting, Vancouver, Canada, 2015: 1672–1673.

Intel® Developer Zone: Intel® Math Kernel Library [OL]. https://software.intel.com/en-us/forums/intel-math-kernel-library/, 2018.

徐晓飞, 曹祥玉, 高军, 等. 基于矩量法的电大目标RCS核外并行计算[J]. 电子与信息学报, 2011, 33(3): 758–762 doi: 10.3724/SP.J.1146.2010.00519

XU Xiaofei, CAO Xiangyu, GAO Jun, et al. Parallel out-of-core calculation of electrically large objects’ RCS based on MoM[J]. Journal of Electronics &Information Technology, 2011, 33(3): 758–762 doi: 10.3724/SP.J.1146.2010.00519

马骥, 龚书喜, 王兴, 等. 一种快速计算目标宽带雷达截面的电磁算法[J]. 西安电子科技大学学报, 2012, 39(4): 98–102 doi: 10.3969/j.issn.1001-2400.2012.04.018

MA Ji, GONG Shuxi, WANG Xing, et al. Fast computation of the wide-band radar cross section of arbitrary objects[J]. Journal of Xidian University, 2012, 39(4): 98–102 doi: 10.3969/j.issn.1001-2400.2012.04.018

国家超级计算广州中心: 产品中心[OL]. http://www.nscc-gz.cn/Product/HighPerformanceComputingService/ServiceCharacteristics.html, 2018.6.
