An Improvement Project of Roundoff Noise Performance of FIR Filters Based on Structure Optimization
-
摘要:
针对滤波器组系统硬件实现时原型滤波器的有限字长效应问题，该文研究如何改善FIR原型滤波器由信号量化引起的舍入噪声，即降低舍入噪声增益，提出一种FIR滤波器优化结构。通过分析舍入噪声来源，利用多项式参数化方法对舍入噪声增益表达式进行推导。仿真实例证明，在不同字长约束条件下所提结构滤波器的幅频相频响应与理想状态基本吻合；通过与现有算法对比，所提结构具有较小的舍入噪声增益。

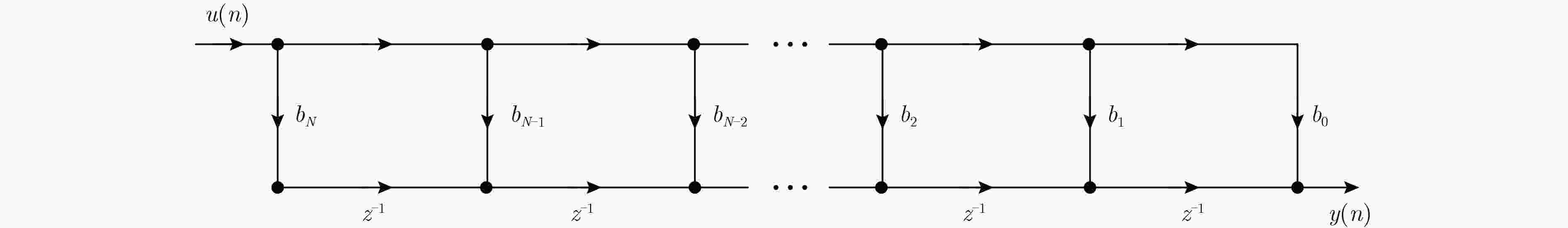

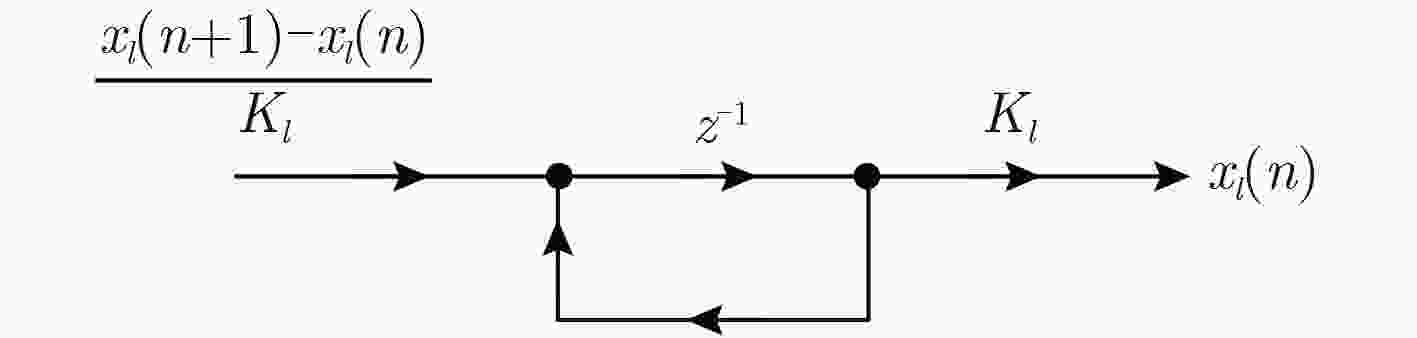

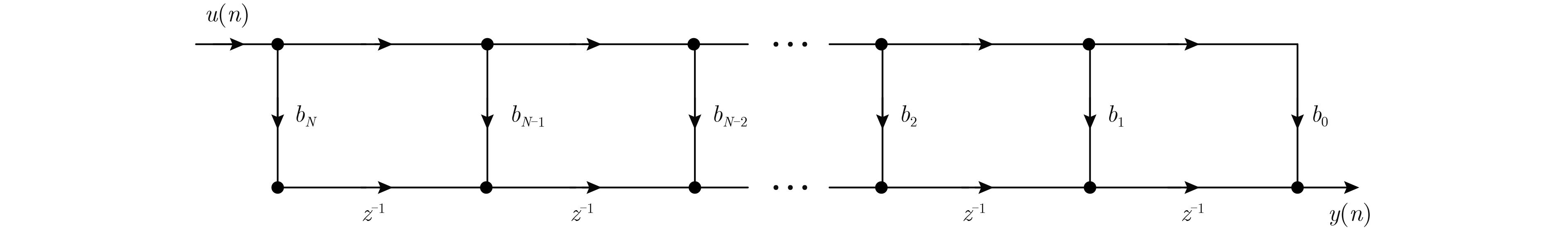

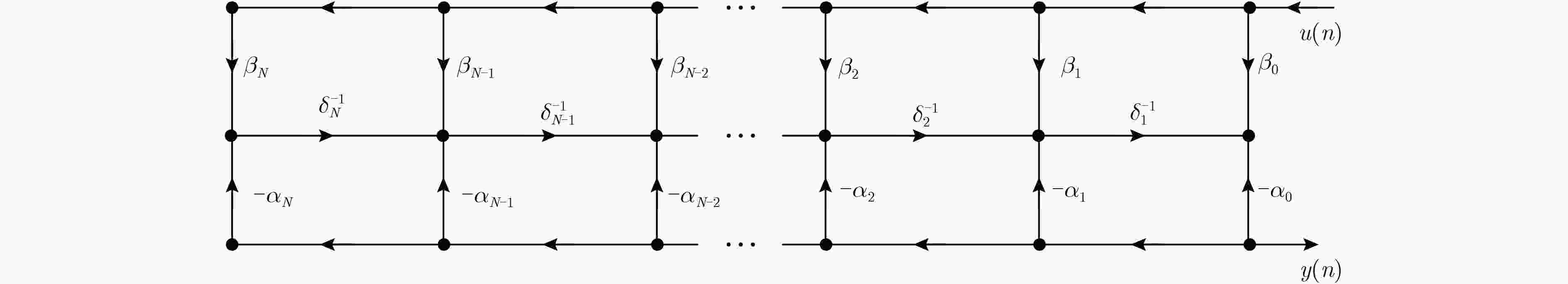

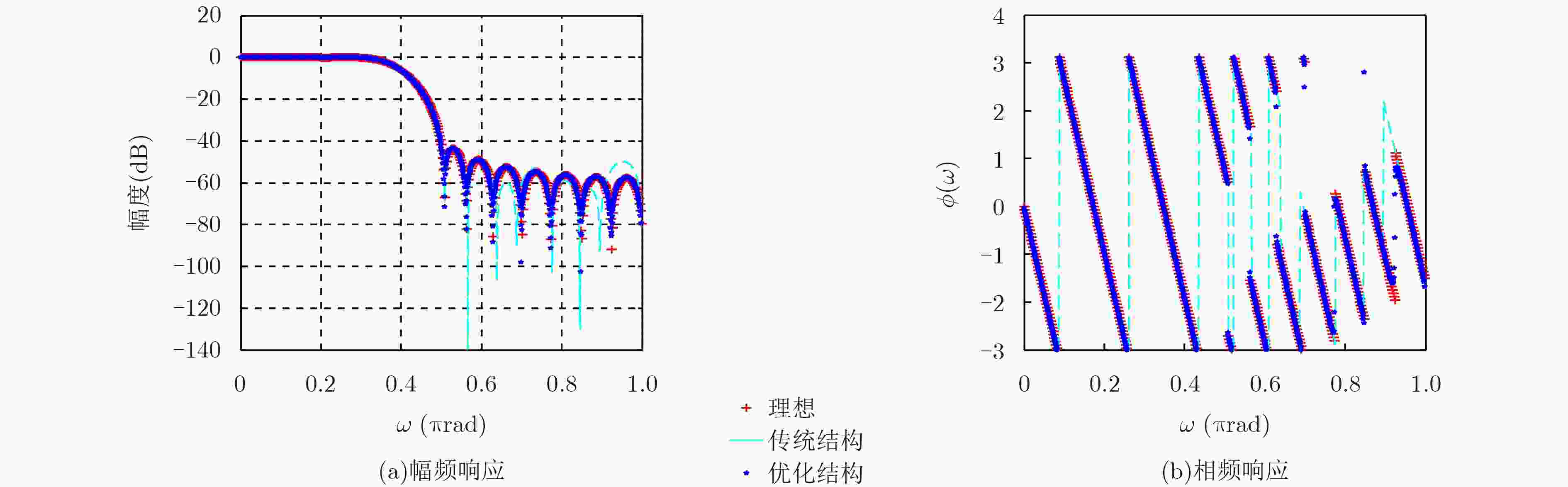

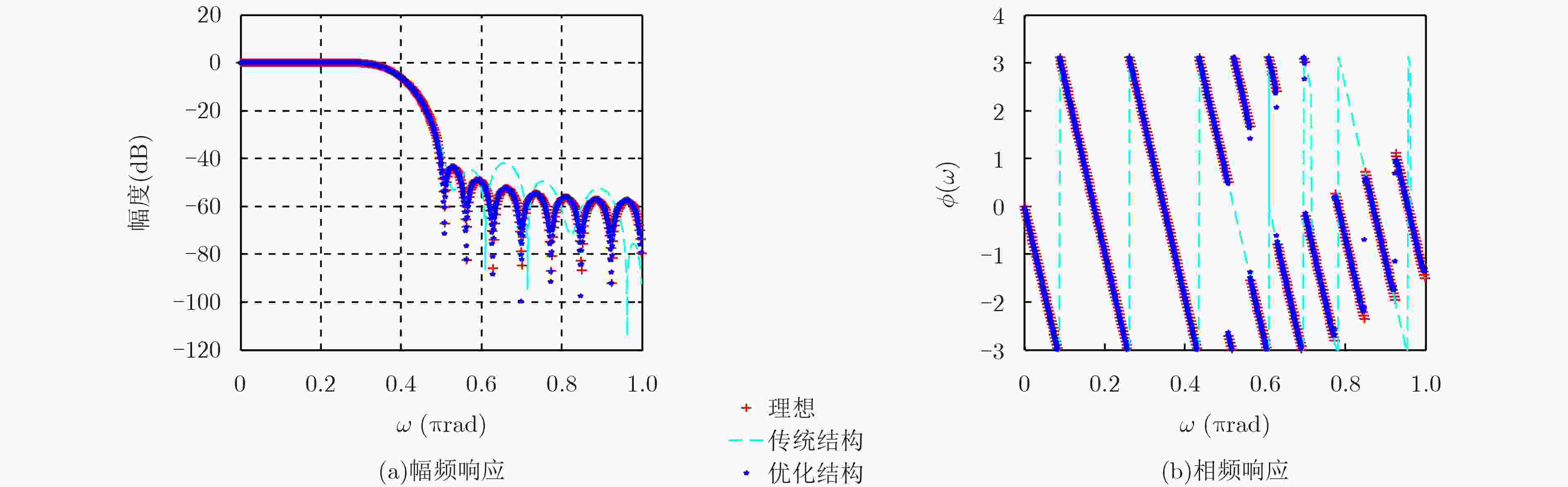

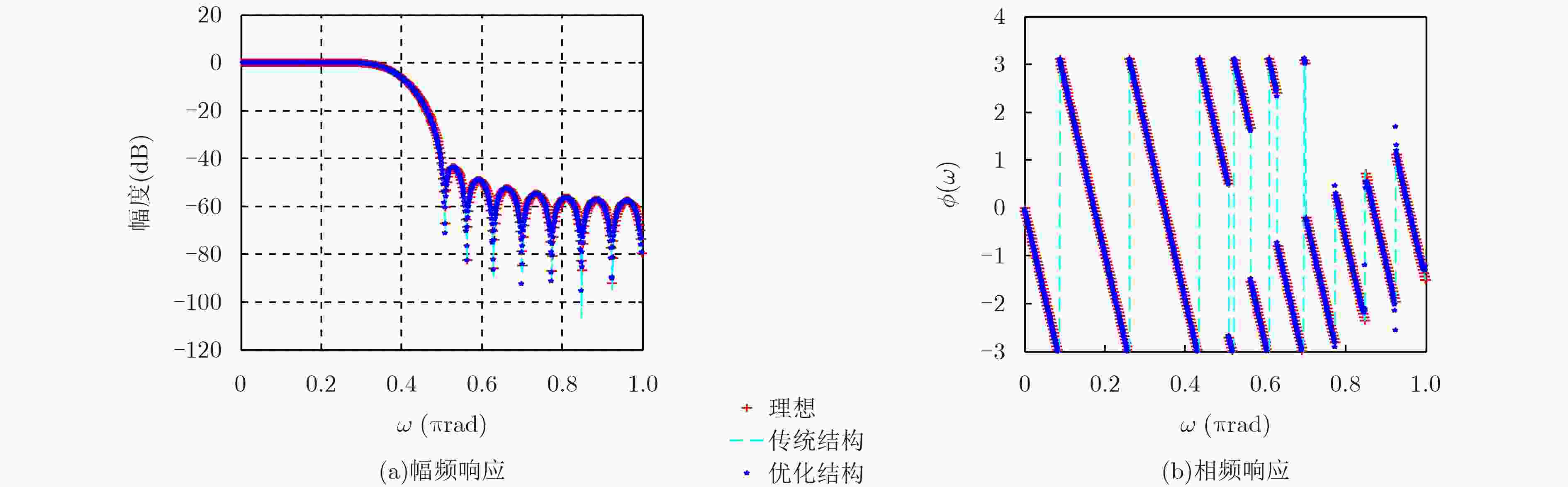

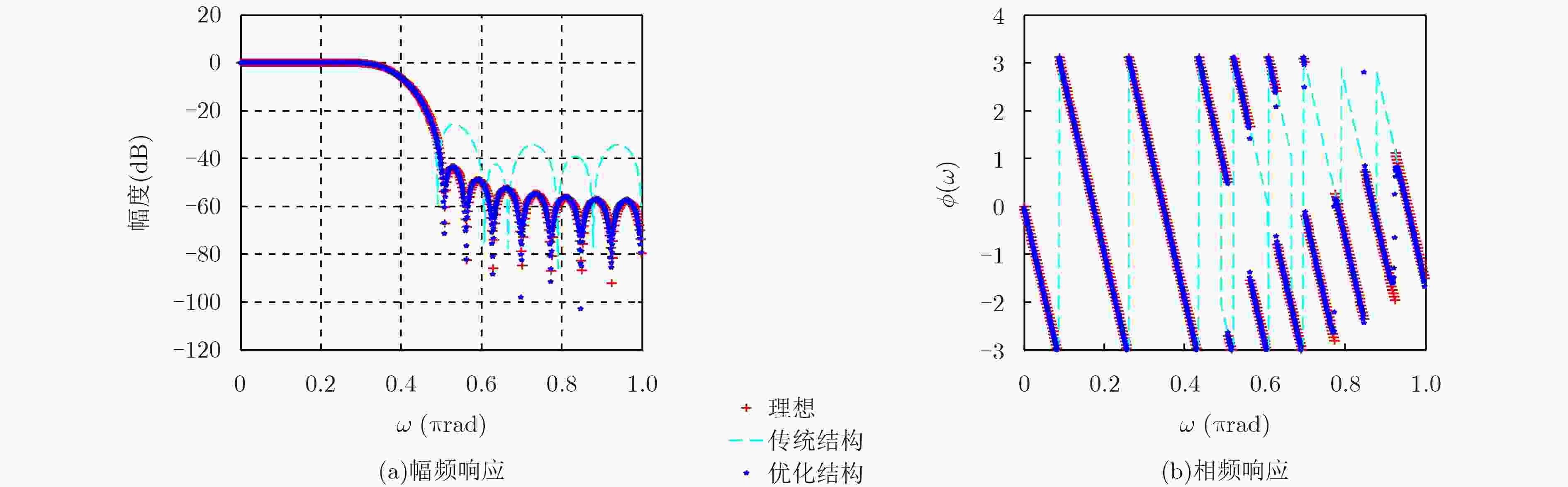

Abstract:For the problem of the finite word length effect of prototype filters in hardware implementation of the filter bank system, this paper studies how to improve the performance of roundoff noise caused by signal quantization for the FIR prototype filter, that is, to reduce the roundoff noise gain. An FIR filter optimization structure is proposed. By analyzing the source of roundoff noise, a polynomial parameterization method is used to derive the roundoff noise gain expression. The simulation example shows that the amplitude-frequency and phase-frequency response of the proposed structure filter are basically consistent with the ideal state under different constraint of word length. Compared with the existing algorithms, the proposed structure has a smaller roundoff noise gain.
-
Key words:
- FIR filter /
- Finite word length /
- Roundoff noise gain
-
表 1 低通滤波器仿真参数
参数 数值 通带截止频率 $0.3{{π}}\ {\rm{rad}}$ 阻带截止频率 $0.5{{π}}\ {\rm{rad}}$ 通带最大衰减 1 dB 阻带最小衰减 40 dB
下载: 导出CSV
表 2 各结构舍入噪声增益性能对比
自由因子$K$ ${10^{ - 7}}$ ${10^{ - 6}}$ ${10^{ - 5}}$ ${10^{ - 4}}$ ${10^{ - 3}}$ 优化结构 $6.248$ $6.248$ $6.248$ $8.425$ $10.210$ 传统结构 $24$ $24$ $24$ $24$ $24$
下载: 导出CSV
-
BELLANGER M, LERUYET D, ROVIRAS D, et al. FBMC physical layer: A primer[R]. P7-ICT Project PHYDYAS, 2010. FARHANG-BOROUJENY B. OFDM versus filter bank multicarrier[J]. IEEE Signal Processing Magazine, 2011, 28(3): 92–112 doi: 10.1109/MSP.2011.940267 NADAL J, NOUR C A, and BAGHDADI A. Design and evaluation of a novel short prototype filter for FBMC/OQAM modulation[J]. IEEE Access, 2018, 6: 19610–19625 doi: 10.1109/ACCESS.2018.2818883 SHARMA I, KUMAR A, SINGH G K, et al. Design of multiplierless prototype filter for two-channel filter bank using hybrid method in FCSD space[J]. IET Circuits, Devices & Systems, 2017, 11(1): 29–40 doi: 10.1049/iet-cds.2016.0124 JIANG Junzheng, LING Wingkuen, and OUYANG Shan. Efficient design of prototype filter for large scale filter bank-based multicarrier systems[J]. IET Signal Processing, 2017, 11(5): 521–526 doi: 10.1049/iet-spr.2016.0566 ROTTENBERG F, MESTRE X, HORLIN F, et al. Performance analysis of linear receivers for uplink Massive MIMO FBMC-OQAM systems[J]. IEEE Transactions on Signal Processing, 2018, 66(3): 830–842 doi: 10.1109/TSP.2017.2778682 NA D and CHOI K. Low PAPR FBMC[J]. IEEE Transactions on Wireless Communications, 2018, 17(1): 182–193 doi: 10.1109/TWC.2017.2764028 RENCZES B, KOLLÁR I, MOSCHITTA A, et al. Numerical optimization problems of Sine-wave fitting algorithms in the presence of roundoff errors[J]. IEEE Transactions on Instrumentation and Measurement, 2016, 65(8): 1785–1795 doi: 10.1109/TIM.2016.2562218 贾建华. FIR滤波器有限字长效应产生的特性畸变与零点分布的关系[J]. 上海铁道学院学报, 1994, 15(3): 26–31JIA Jianhua. The relation of zero distribution and distortion variation for finite register length effects in FIR digital filter[J]. Journal of Shanghai Institute of Railway Technology, 1994, 15(3): 26–31 KOTTERI K A, BELL A E, and CARLETTA J E. Quantized FIR filter design using compensating zeros[J]. IEEE Signal Processing Magazine, 2003, 20(6): 60–67 doi: 10.1109/MSP.2003.1253556 KODAR D. Design of optimal finite wordlength FIR digital filters using integer programming techniques[J]. IEEE Transactions on Acoustics, Speech, and Signal Processing, 1980, 28(3): 304–308 doi: 10.1109/TASSP.1980.1163407 LIM Y C and PARKER S R. FIR filter design over a discrete powers-of-two coefficient space[J]. IEEE Transactions on Acoustics, Speech, and Signal Processing, 1983, 31(3): 583–591 doi: 10.1109/TASSP.1983.1164085 殷福亮, 周浩洋. 设计有限字长FIR数字滤波器的Tabu优化算法[J]. 电子与信息学报, 2003, 25(10): 1367–1372YIN Fuliang and ZHOU Haoyang. Tabu optimization algorithm for designing finite wordlength FIR digital filters[J]. Journal of Electronics &Information Technology, 2003, 25(10): 1367–1372 BENVENUTO N and MARCHESI M. Digital filters design by simulated annealing[J]. IEEE Transactions on Circuits and Systems, 1989, 36(3): 459–460 doi: 10.1109/31.17597 WONG N and NG T S. A generalized direct-form delta-operator based IIR filter with minimum noise gain and sensitivity[J]. IEEE Transactions on Circuits and Systems II, 2001, 48(4): 425–431 doi: 10.1109/82.933811 -
