Robust Capon Beamforming for Towed Array Sonar During Maneuvering
-

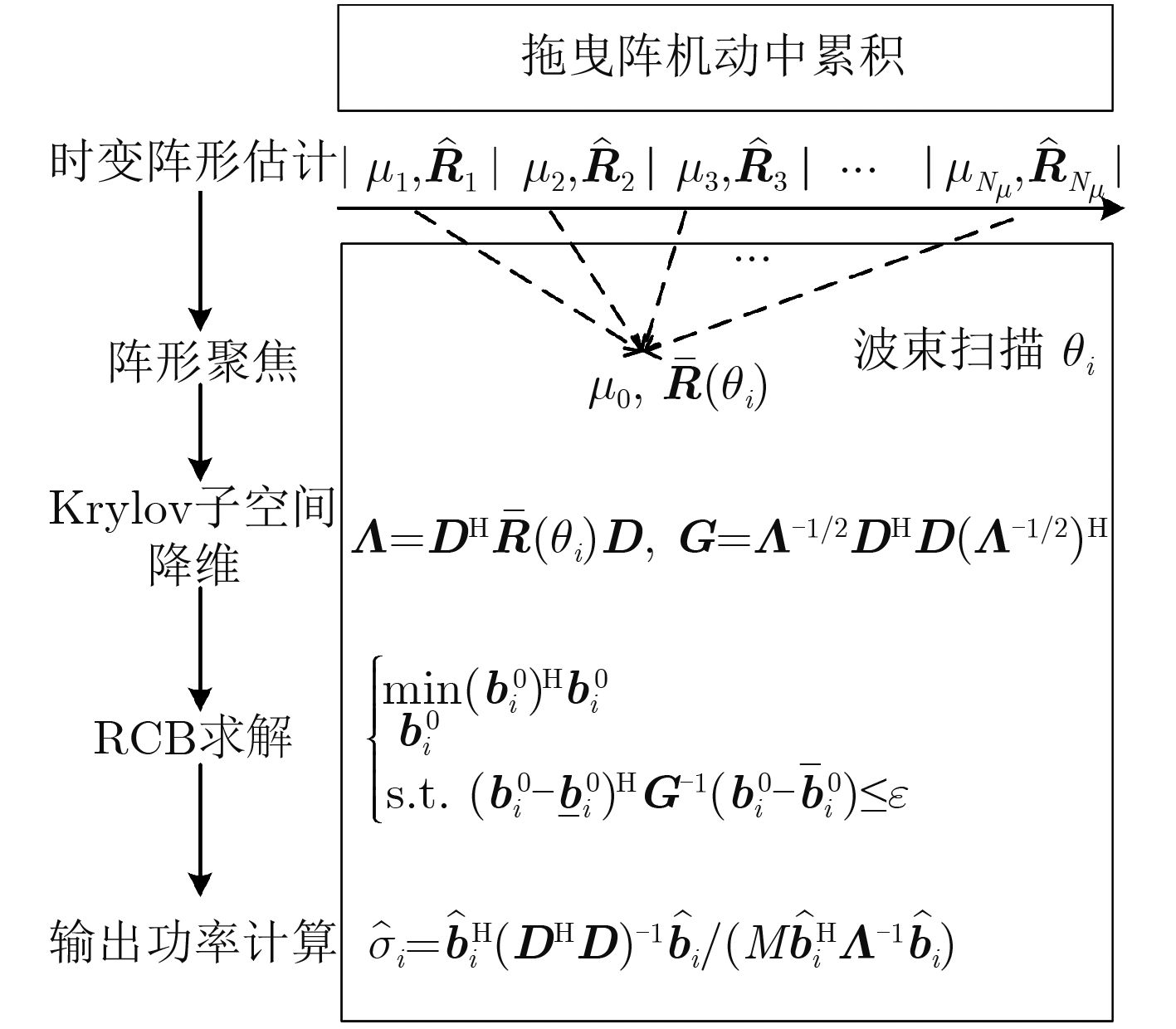

摘要: 针对柔性拖曳阵转弯机动过程，在积累时间内阵形变化导致自适应波束形成性能下降的问题，该文提出一种基于时变阵形聚焦和降维处理的低复杂度鲁棒波束形成方法。首先，基于阵列Water-Pulley模型估计时变阵形，以基准阵形为参考采用预成导向方法对阵形进行聚焦，消除数据中阵形模型偏差；然后，以阵形聚焦后数据协方差矩阵的共轭梯度方向矢量构成降维矩阵，构造大孔径阵列降维鲁棒Capon波束形成器。仿真结果表明：所提方法能够提高转弯机动拖曳阵波束形成输出信号-干扰噪声比(SINR)。海试验证表明：该方法能够提高测向空间谱上目标输出信噪比，提高大孔径阵列机动状态下对弱目标检测能力，同时能区分目标左右舷。
-
关键词:
- 拖曳阵声呐 /
- 鲁棒Capon波束形成 /
- 阵形估计 /
- Krylov子空间
Abstract: The robust beamformer suffers performance degradation due to the distortion of towed array shape caused by the maneuverings of tow platform. To address this problem, a low complexity robust Capon beamforming method is proposed based on time-varying array focusing and dimension reduction. First, the array shape is estimated sequentially using the array heading data based on Water-Pulley model. The Sample Covariance Matrix (SCM) at each recording time is focused to a reference array model via the STeered Covariance Matrix (STCM) technique to eliminate the array model error. Then, the reducing transform matrix is formed based on the conjugate gradient direction vectors of the focused SCM. The reduced-dimension Capon beamformer is finally derived to calculate the spatial spectrum. The results of the simulations show that, the proposed method can improve the Signal-to-Interference-plus-Noise Ratio (SINR) of the beamforming during the maneuvering of towed array. The results of sea-trial data processing show that the proposed method can improve the output Signal-to-Noise Ratio (SNR) of the target, as well as the performance of detecting weak targets and solving the left-right ambiguity during maneuvering.-
Key words:
- Towed array sonar /
- Robust Capon beamformer /
- Array shape estimation /
- Krylov subspace
-
GERSTOFT P, HODGKISS W S, KUPERMAN W A, et al. Adaptive beamforming of a towed array during a turn[J]. IEEE Journal of Oceanic Engineering, 2003, 28(1): 44–54 doi: 10.1109/JOE.2002.808203 林鹏, 宫在晓, 郭永刚, 等. 拖线阵机动时的自适应波束形 成[J]. 声学学报, 2013, 38(3): 251–257 doi: 10.15949/j.cnki.0371-0025.2013.03.001LIN Peng, GONG Zaixiao, GUO Yonggang, et al. Adaptive beamforming of a time-varying towed array[J]. Acta Acustica, 2013, 38(3): 251–257 doi: 10.15949/j.cnki.0371-0025.2013.03.001 钱宇宁, 曹欣荣, 陈亚伟, 等. 被动声呐盲分离自适应-自适应波束形成算法研究[J]. 电子与信息学报, 2017, 39(10): 2390–2396 doi: 10.11999/JEIT170099QIAN Yuning, CAO Xinrong, CHEN Yawei, et al. Research on adaptive-adaptive beamforming algorithm based on blind separation for passive sonar[J]. Journal of Electronics&Information Technology, 2017, 39(10): 2390–2396 doi: 10.11999/JEIT170099 薄连坤, 熊瑾煜, 罗来源. 应用稀疏表示的宽带相干超分辨方位估计方法[J]. 声学学报, 2015, 40(6): 772–778 doi: 10.15949/j.cnki.0371-0025.2015.06.002BO Liankun, XIONG Jinyu, and LUO Laiyuan. Wideband super-resolution bearing estimation method utilizing sparse representation solver after focusing transformation[J]. Acta Acustica, 2015, 40(6): 772–778 doi: 10.15949/j.cnki.0371-0025.2015.06.002 SOMASUNDARAM S D. Wideband robust Capon beamforming for passive sonar[J]. IEEE Journal of Oceanic Engineering, 2013, 38(2): 308–322 doi: 10.1109/JOE.2012.2223560 SOMASUNDARAM S D, PARSONS N H, LI Peng, et al. Reduced-dimension robust Capon beamforming using Krylov-subspace techniques[J]. IEEE Transactions on Aerospace and Electronic Systems, 2015, 51(1): 270–289 doi: 10.1109/TAES.2014.130485 KAOURI K and ALLWRIGHT D J. Determining the probability of correct resolution of the left-right ambiguity in towed array sonar[J]. European Journal of Applied Mathematics, 2017, 28(5): 716–735 doi: 10.1017/S0956792516000498 ROGERS J S and KROLIK J L. Time-varying spatial spectrum estimation with a maneuverable towed array[J]. Journal of the Acoustical Society of America, 2010, 128(6): 3543–3553 doi: 10.1121/1.3505121 ODOM J L and KROLIK J L. Passive towed array shape estimation using heading and acoustic data[J]. IEEE Journal of Oceanic Engineering, 2015, 40(2): 465–474 doi: 10.1109/JOE.2014.2318531 SOMASUNDARAM S D and PARSONS N H. Evaluation of robust Capon beamforming for passive sonar[J]. IEEE Journal of Oceanic Engineering, 2011, 36(4): 686–695 doi: 10.1109/JOE.2011.2167374 GRAY D A, ANDERSON B D O, and BITMEAD R R. Towed array shape estimation using Kalman filters— Theoretical models[J]. IEEE Journal of Oceanic Engineering, 1993, 18(4): 543–556 doi: 10.1109/48.262304 SOMASUNDARAM S, BUTT N, JAKOBSSON A, et al. Low-complexity uncertainty-set-based robust adaptive beamforming for passive sonar[J]. IEEE Journal of Oceanic Engineering, 2015, 40(1): 1–17 doi: 10.1109/JOE.2015.2474495 LI Jian, STOICA P, and WANG Zhisong. On robust Capon beamforming and diagonal loading[J]. IEEE Transactions on Signal Processing, 2003, 51(7): 1702–1715 doi: 10.1109/TSP.2003.812831 ZHANG Ming, ZHANG Anxue, and YANG Qingqing. Robust adaptive beamforming based on conjugate gradient algorithms[J]. IEEE Transactions on Signal Processing, 2016, 64(22): 6046–6057 doi: 10.1109/TSP.2016.2605075 RUAN Hang and LAMARE R C D. Robust adaptive beamforming based on low-rank and cross-correlation techniques[J]. IEEE Transactions on Signal Processing, 2016, 64(15): 3919–3932 doi: 10.1109/TSP.2016.2550006 -
