Beam Performance and Optimization Method for Meter-wave Frequency Diverse MIMO Radar in Multipath Scenario
-
摘要: 针对传统米波雷达低仰角下波瓣分裂和盲区问题，该文提出一种频率分集子孔径MIMO雷达，构建了该体制下多径特性定量分析的理论框架，推导了镜面反射和扰动多径模型及其联合发射-接收方向图增益闭合表达式；提出了多径抑制区概念及其边界条件，定义了描述低空波束覆盖性能的低可观测率定量评价指标；根据边界条件的解集优化了波束覆盖性能。理论分析和仿真结果表明由于充分利用了频率分集产生的距离依赖波束，该体制雷达相对传统MIMO相控阵雷达具有更优的低空波束覆盖性能，减小了米波雷达波瓣分裂和探测盲区。
-
关键词:
- 频率分集MIMO雷达 /
- 距离依赖波束 /
- 多径特性 /
- 低空波束性能
Abstract: Traditional meter-wave radar usually suffers from the problem of Beam Split (BS) and Radar Blind Area (RBA) in the situation of low-grazing angle. To alleviate this difficulty, a Frequency Diverse Subaperturing Multiple-Input Multiple-Output (FDS-MIMO) radar is proposed and a theoretical framework for the analytical investigation of multipath characteristics is presented. The specular and perturbational multipath model is built, along with closed-form expression of the joint transmit-receive beampattern gain. Moreover, a notional concept of Multipath Mitigation Area (MMA) is defined together with the corresponding boundary conditions, and the Low Observability Rate (LOR) is defined as a performance benchmarkan to evaluate the FDS-MIMO radar beam overage capability. Next, the FDS-MIMO radar low-altitude beam coverage performance is optimized according to the soutions of the boundary conditions. Both theoretical analysis and numerical results demonstrate the advantages of FDS-MIMO radar over the conventional phased-MIMO radar in terms of low altitude beam coverage performance, and the BS and RBA of meter-wave radar is decreased by ultilizing the range-dependent beampattern. -

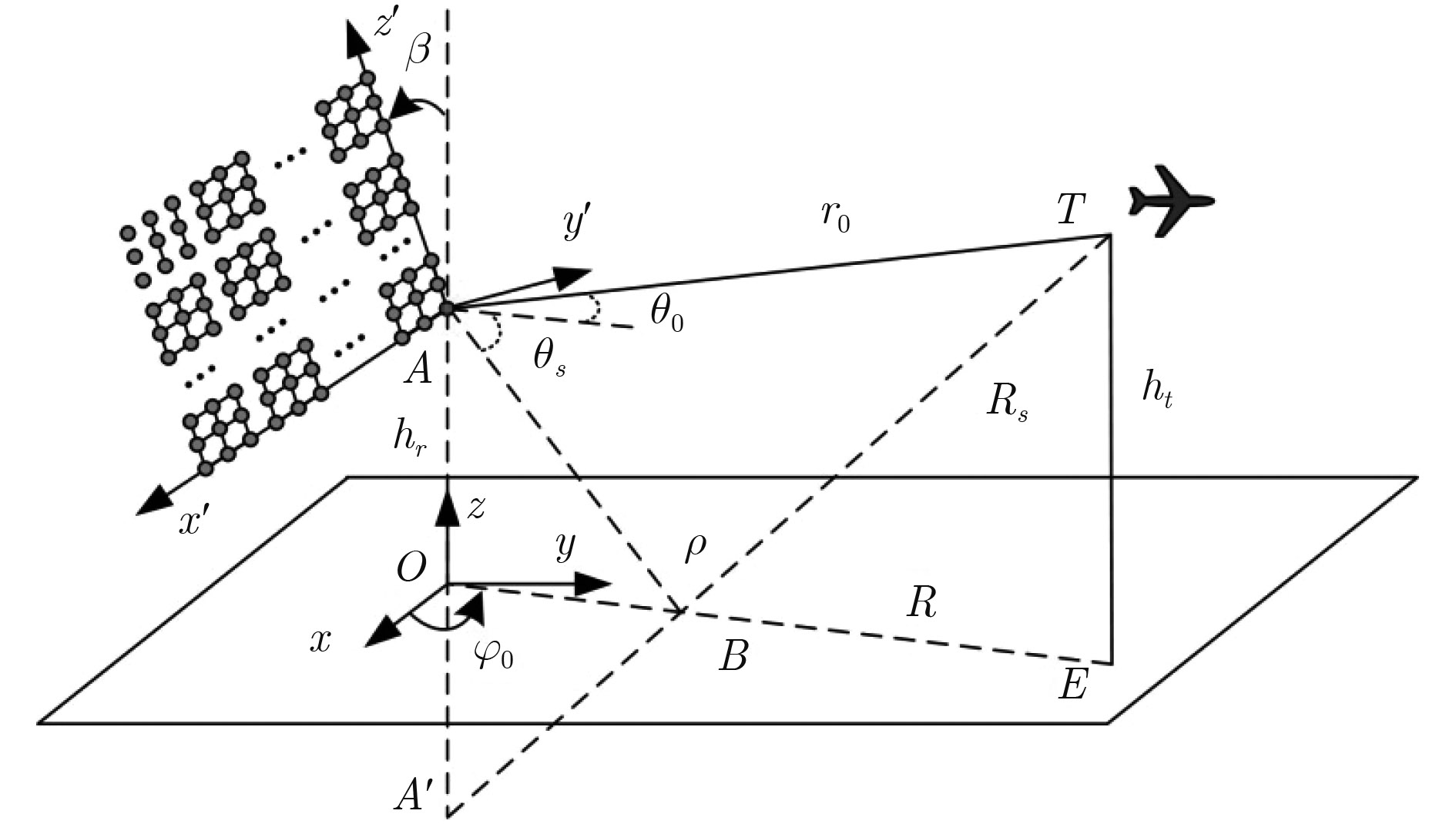

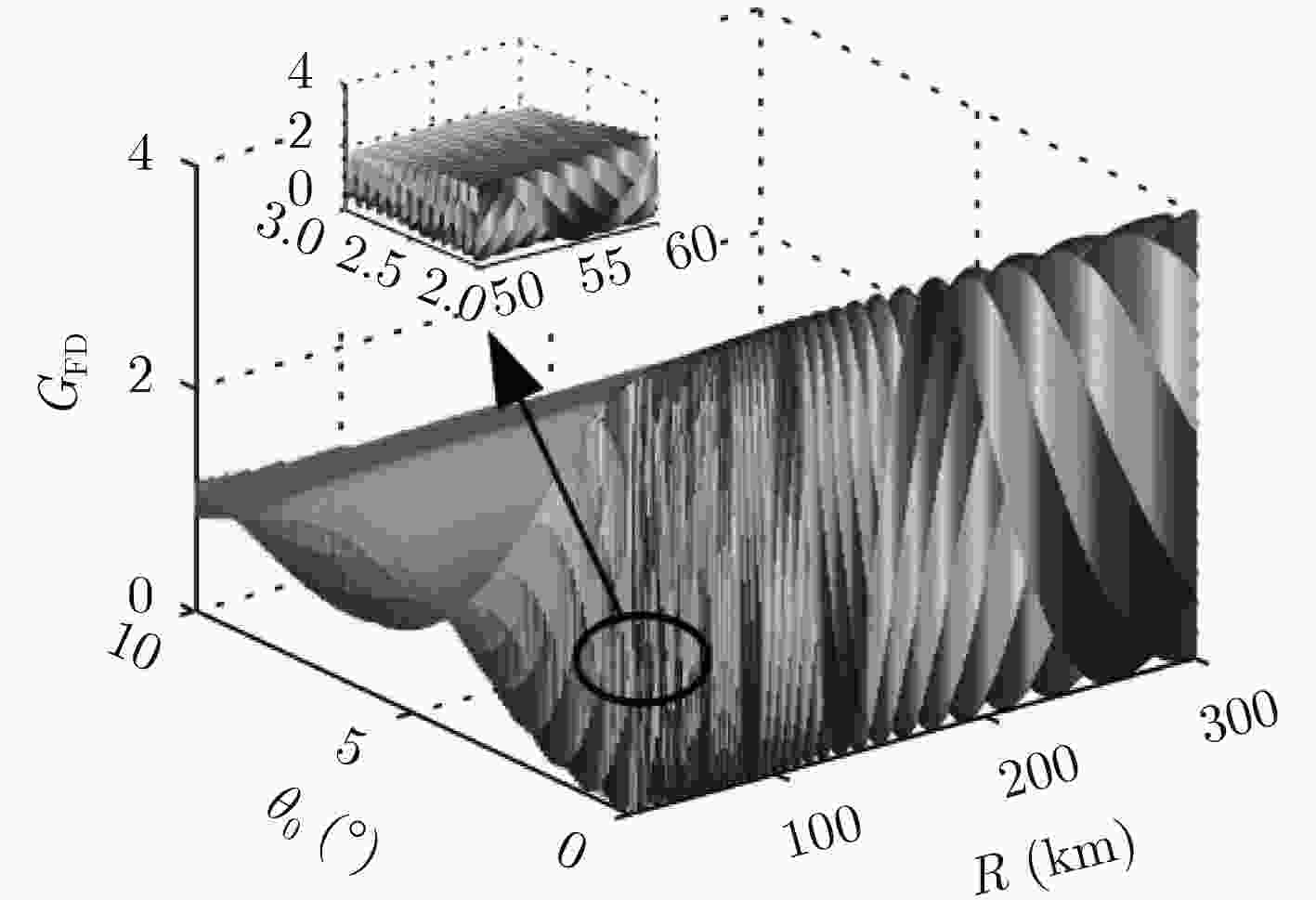

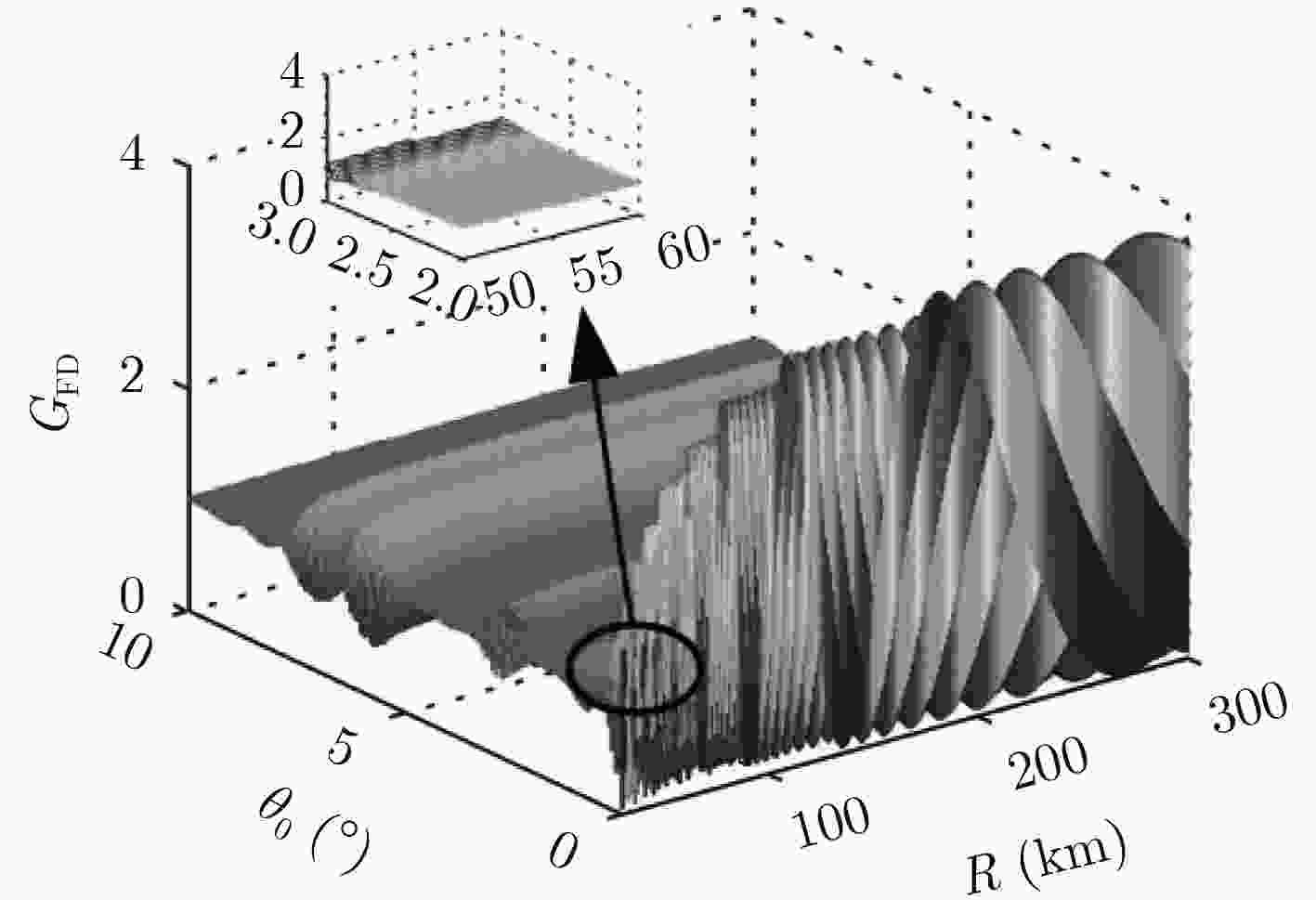

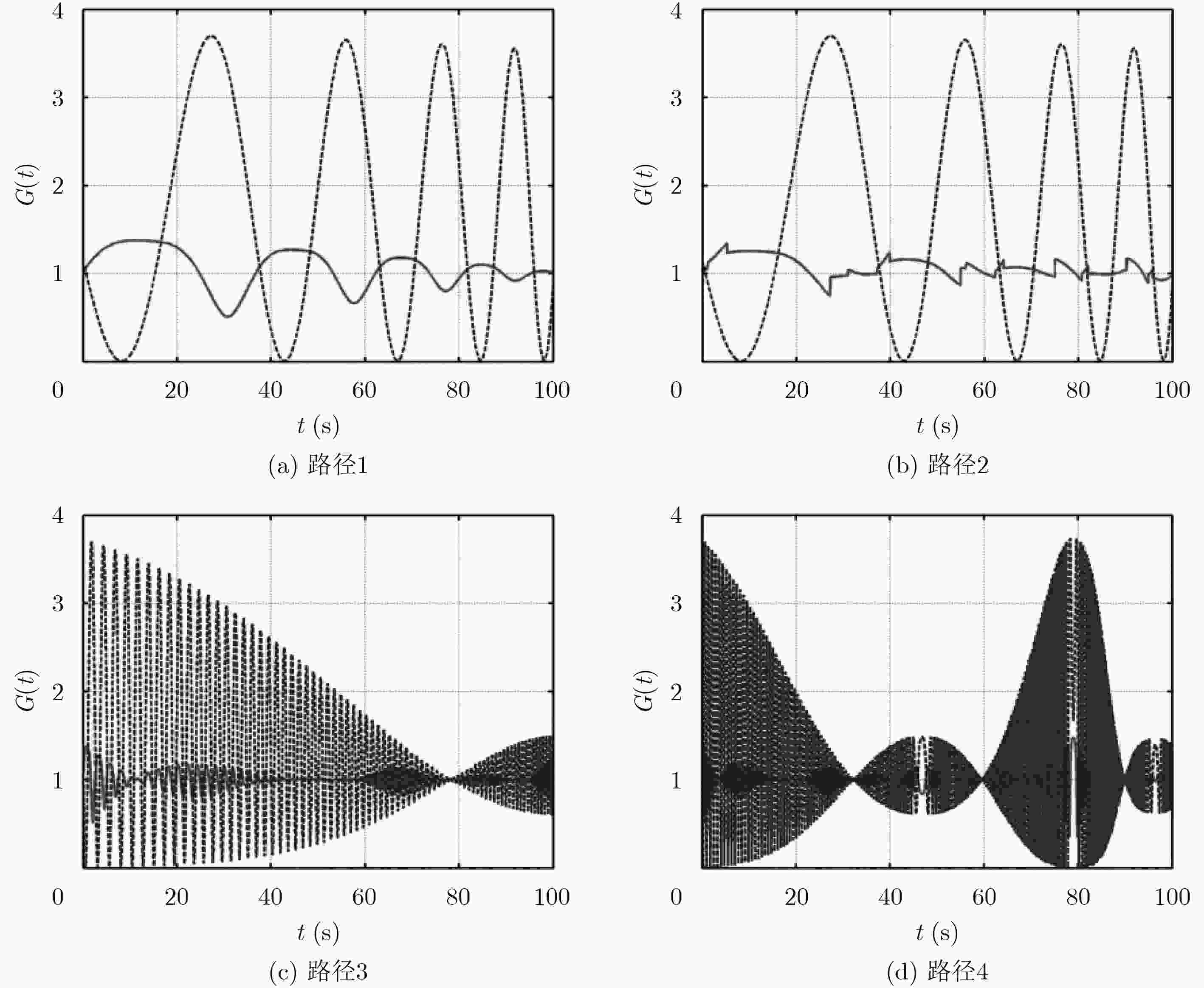

表 1 低可观测时间(s)
飞行路径 1 2 3 4 MIMO相控阵体制 34.15 34.15 22.39 18.87 MIMO频率分集体制(优化 $\Delta f$) 8.70 0 0.75 1.00
下载: 导出CSV

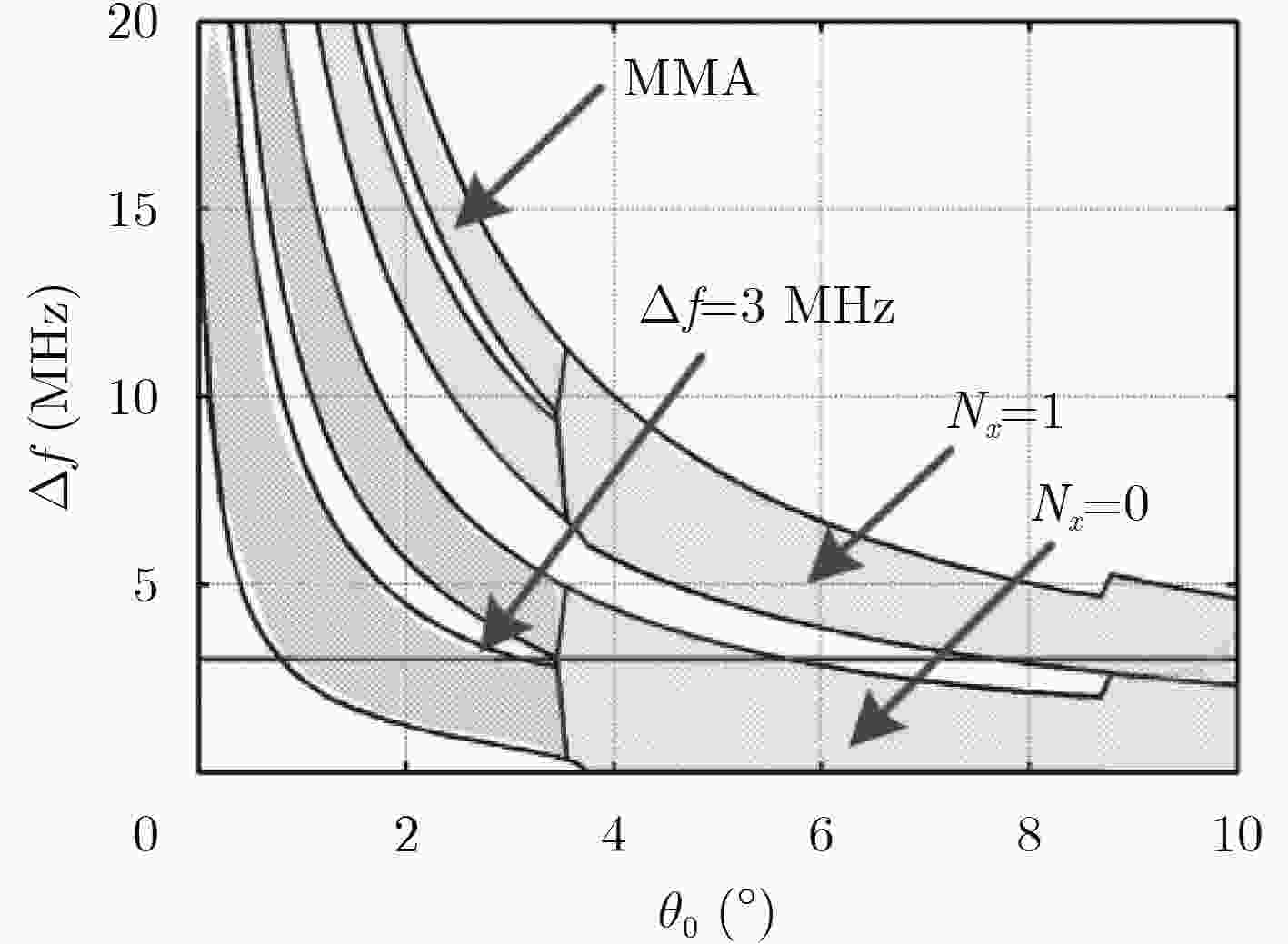

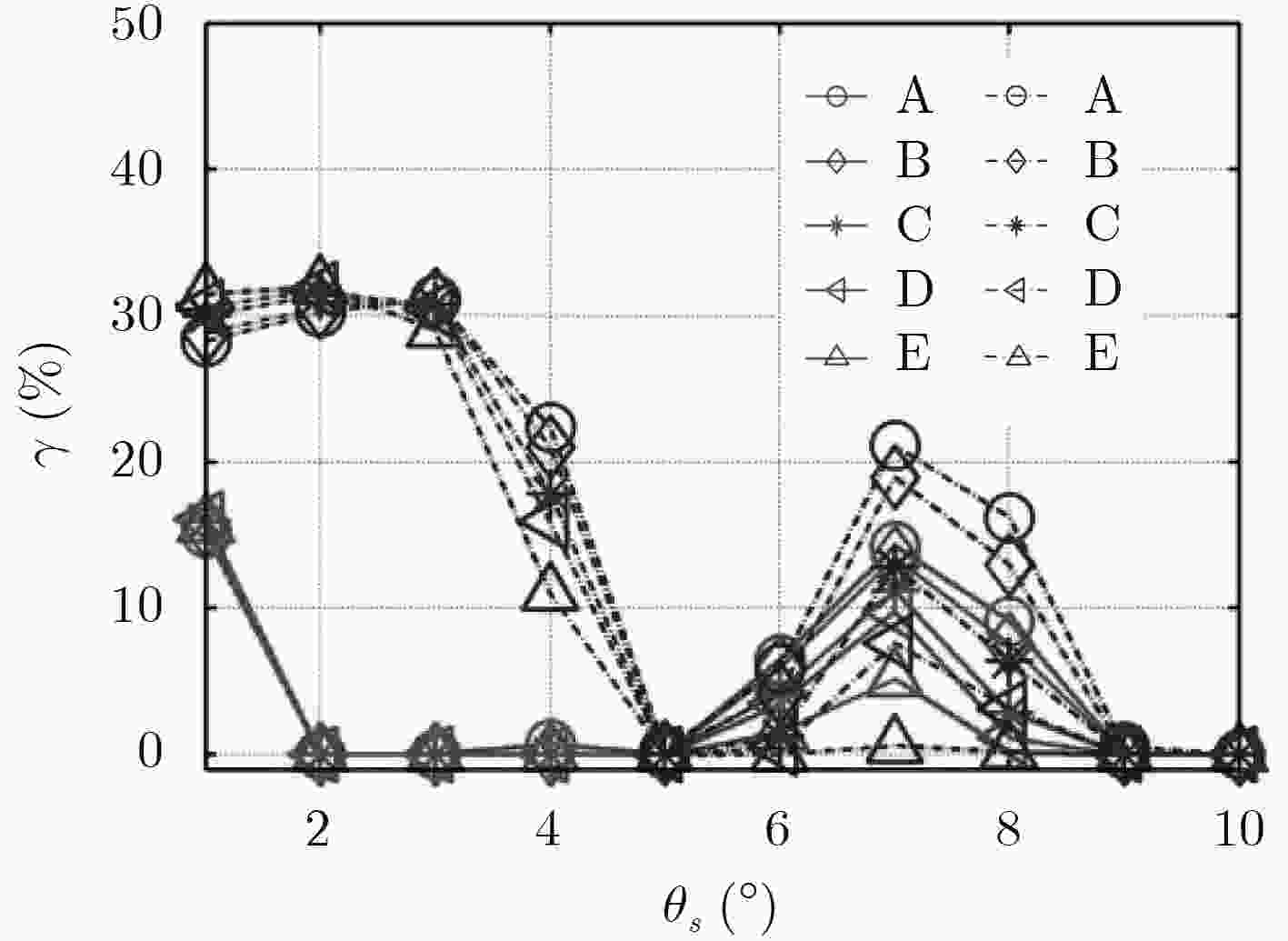

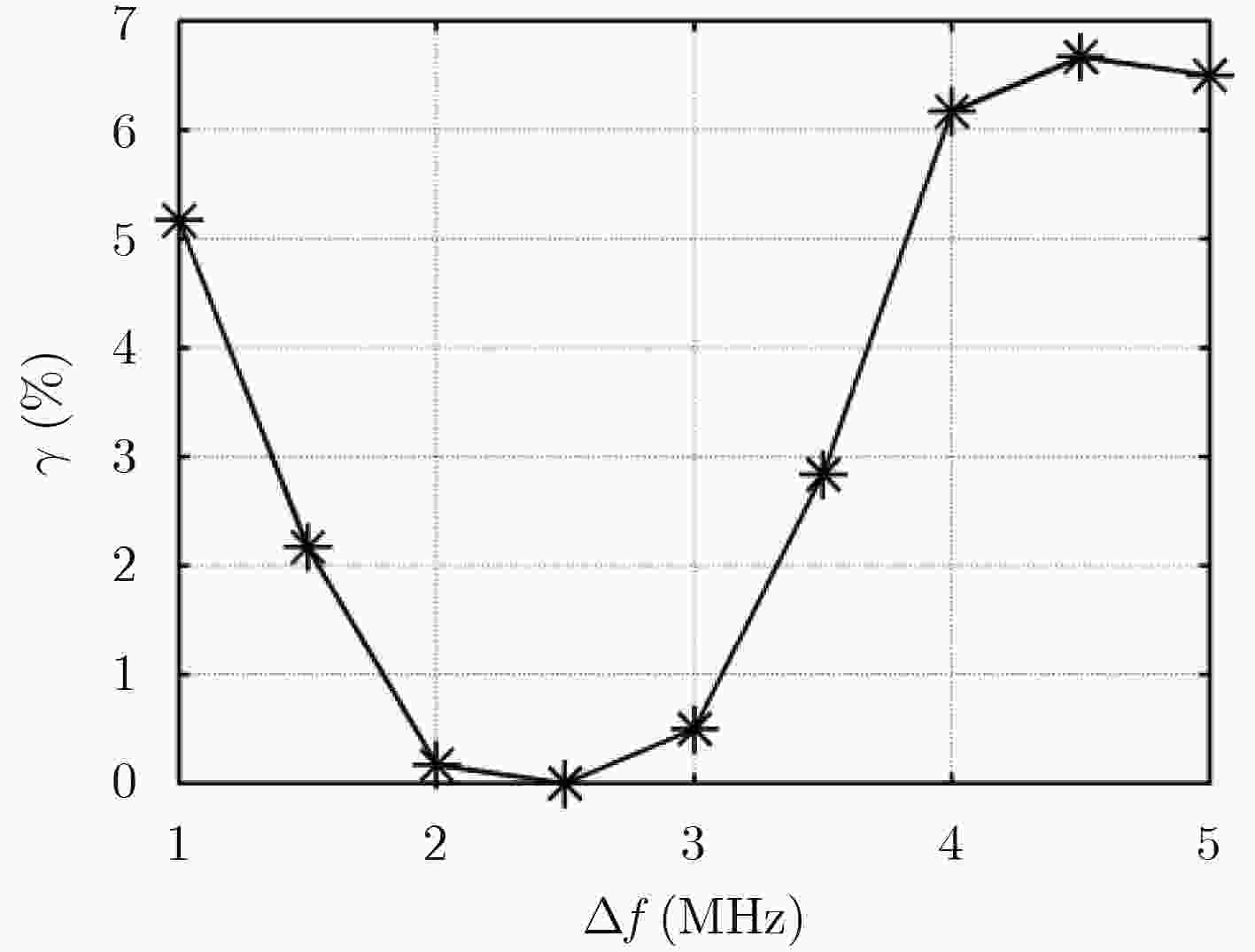

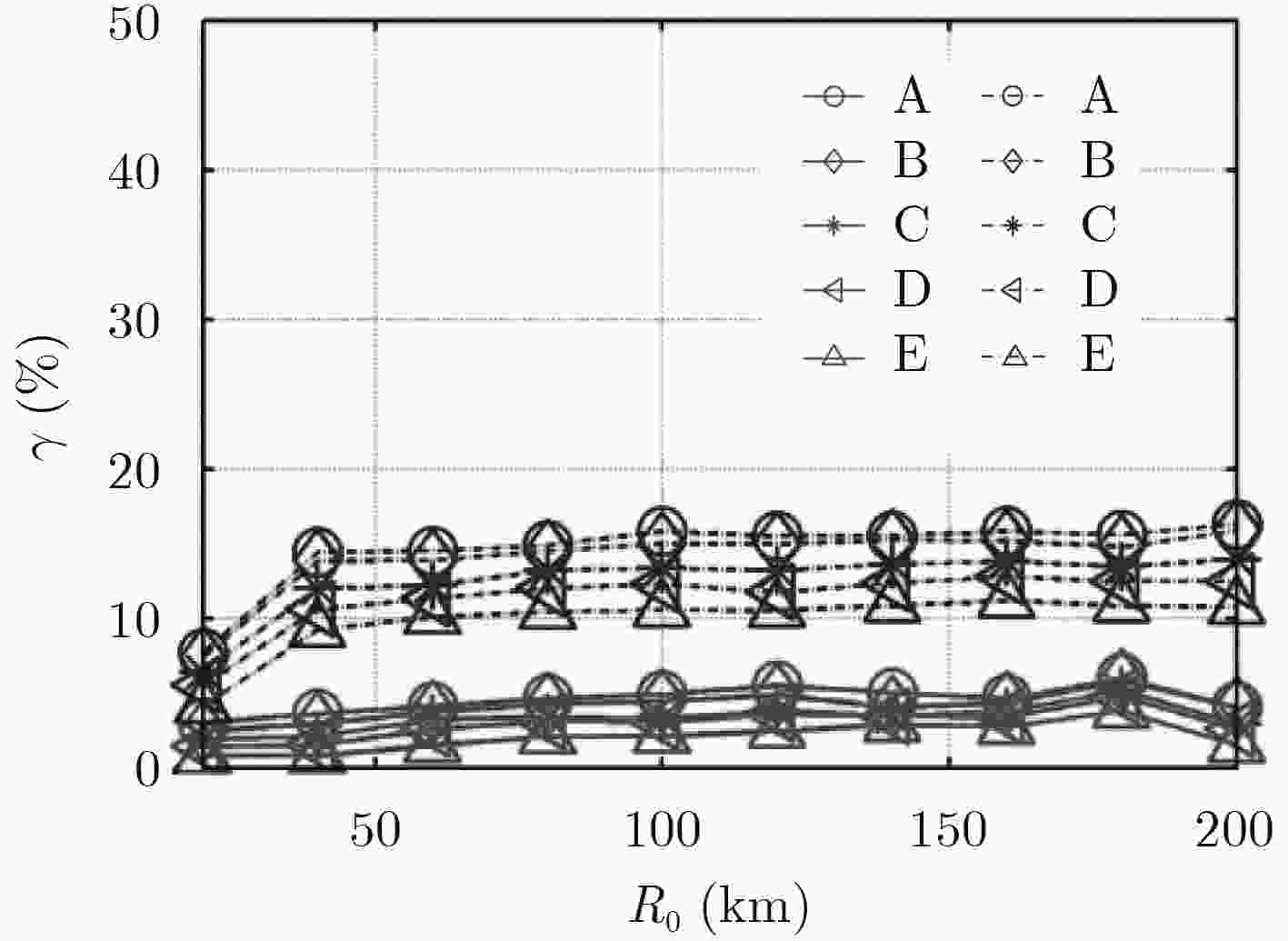

表 2 扰动散射系数分布
编号 A B C D E 幅度 1 (0.9, 10) (0.7, 1) (0.6, 1) (0.4, 1) 相位 $(^\circ )$ –180 (–190, –170) (–200, –160) (–200, –150) (–220, –140)
下载: 导出CSV
-
WHITE W D. Low-angle radar tracking in the presence of multipath[J]. IEEE Transaction on Aerospace and Electronic Systems, 1974, 10(6): 835–852. DOI: 10.1109/TAES.1974.307892. SHERMAN S M. Complex indicated angles applied to unresolved radar targets and multipath[J]. IEEE Transaction on Aerospace and Electronic Systems, 1971, 7(1): 160–170. DOI: 10.1109/TAES.1971.310264. SCHMIDT R O. Multiple emitter location and signal parameter estimation[J]. IEEE Transactions on Antennas and Propagation, 1986, 24(3): 276–280. DOI: 10.1109/TAP.1986.1143830. GAO F and GERAHMAN A B. A generalized ESPRIT approach to direction of arrival estimation[J]. IEEE Signal Processing Letters, 2005, 12(3): 254–257. DOI: 10.1109/LSP.2004.842276. STOICA P, OTTERATEN B, VIBERG M, et al. Maximum likelihood array processing for stochastic coherent sources[J]. IEEE Transactions on Signal Processing, 1996, 44(1): 96–105. DOI: 10.1109/78.482015. 王文钦, 邵怀宗, 陈慧. 频控阵雷达: 概念、原理与应用[J]. 电子与信息学报, 2016, 38(4): 1000–1011. DOI: 10.11999/JEIT151235.WANG Wenqing, SHAO Huaizong, and CHEN Hui. Frequency diverse array radar: Concept, principle and application[J]. Journal of Electronics & Information Technology, 2016, 38(4):1000–1011. DOI: 10.11999/JEIT151235. 高宽栋. 频控阵雷达阵列优化设计及其目标参数估计方法研究[D]. [博士论文], 电子科技大学, 2016.GAO Kuandong. Research of optimal array design and parameter estimation on frequency diverse array radar[D]. [Ph.D. dissertation], University of Electronic Science and Technology, 2016. YAO Amin, WU Wen, FANG Dagang, et al. Frequency diverse array antenna using time-modulated optimized frequency offset to obtain time-invariant spatial fine focusing beampattern[J]. IEEE Transactions on Antennas and Propagation, 2016, 64(10):4434–4446. DOI: 10.1109/TAP.2016.2594075. FAROOQ J, TEMPLE M, and SAVILLE M. Exploiting frequency diverse array processing to improve SAR image resolution[C]. Proceedings of the IEEE Radar Conference, Rome, Italy, 2008: 1–5. doi: 10.1109/RADAR.2008.4721083. LI Xingxing, WANG Dangwei, and MA Xiaoyan. Three-dimensional target localization and Cramér-Rao bound for two-dimensional OFDM-MIMO radar[J]. International. Journal of Antennas and Propagation, 2017(1): 1–14. DOI: 10.1155/2017/4171452. XU Jingwei, LIAO Guisheng, ZHU Shengqi, et al. Joint range and angle estimation using MIMO radar with frequency diverse array[J]. IEEE Transactions on Signal Processing, 2015, 63(13): 3396–3410. DOI: 10.1109/TSP.2015.2422680. XU Jingwei, LIAO Guisheng, ZHU Shengqi, et al. Deceptive jamming suppression with frequency diverse MIMO radar[J]. Signal Processing, 2015, 113: 9–17. DOI: 10.1016/j.sigpro.2015.01.014. CAGRI C and SIMSEK D. Multipath characteristics of frequency diverse arrays over a ground plane[J]. IEEE Transactions on Antennas and Propagation, 2014, 62(7): 3567–3574. DOI: 10.1109/TAP.2014.2316292. 郑轶松, 陈伯孝. 米波雷达低仰角目标多径模型及其反演方法研究[J]. 电子与信息学报,2016, 38(6): 1468–1474. DOI: 10.11999/JEIT151013.ZHENG Yisong and CHEN Baixiao. Multipath model and inversion method for low-angle target in very high frequency radar[J]. Journal of Electronics & Information Technology, 2016, 38(6): 1468–1474. DOI: 10.11999/JEIT151013. 刘源, 王洪先, 纠博, 等. 米波MIMO雷达低空目标波达方向估计新方法[J]. 电子与信息学报,2016, 38(3): 622–628. DOI: 10.11999/JEIT150555.LIU Yuan, WANG Hongxian, JIU Bo, et al. A new method for DOA estimation for VHF MIMO radar low-angle tracking environment[J]. Journal of Electronics & Information Technology, 2016, 38(3):622–628. DOI: 10.11999/JEIT150555. HASSANIEN A and VOROBYOV S A. Phased-MIMO radar: A tradeoff between phased-array and MIMO radars[J]. IEEE Transaction on Signal Processing, 2010, 58(6): 3137–3151. DOI: 10.1109/TSP.2010.2043976. CHEN Baixiao, ZHAO Guanghui, and ZHANG Shouhong. Altitude measurement based on beam split and frequency diversity in VHF radar[J]. IEEE Transactions on Aerospace and Electronic Systems, 2010, 46(1): 3–13. DOI: 10.1109/TAES.2010.5417144. -
图(8) / 表(2)
