深度学习使能的自动调制分类技术研究进展

郑庆河; 李秉霖; 于治国; 姜蔚蔚; 朱政宇; 许驰; 黄崇文; 桂冠

doi:10.11999/JEIT250674

深度学习使能的自动调制分类技术研究进展

doi: 10.11999/JEIT250674 cstr: 32379.14.JEIT250674

1.
山东管理学院智能工程学院济南 250357
2.
北京邮电大学信息与通信工程学院北京 100876
3.
郑州大学电气与信息工程学院郑州 450001
4.
中国科学院沈阳自动化研究所沈阳 110034
5.
浙江大学信息与电子工程学院杭州 310058
6.
南京邮电大学通信与信息工程学院南京 210023

基金项目: 国家自然科学基金(62401070)，山东省重点研发计划(2024TSGC0055)，山东省自然科学基金(ZR2023QF125)，山东省高等学校青年创新团队计划(2024KJH005)

详细信息

作者简介:
郑庆河：男，副教授，研究方向为人工智能、信号处理、模式识别、无线通信

李秉霖：男，研究方向为深度学习、故障诊断、信号分析

于治国：男，教授，研究方向为人工智能、信号分析、工业互联网、物联网

姜蔚蔚：男，讲师，研究方向为物联网、人工智能、深度学习、信号处理

朱政宇：男，副教授，研究方向为无线通信、机器学习、智能反射面辅助通信、毫米波通信

许驰：男，研究员，研究方向为工业互联网、5G/6G、边缘计算

黄崇文：男，教授，研究方向为智能通感算、无线通信、人工智能

桂冠：男，教授，研究方向为智能通信、深度学习、认知计算

通讯作者:
郑庆河　zqh@sdmu.edu.cn

中图分类号: TN929.5
计量
- 文章访问数: 24
- HTML全文浏览量: 10
- PDF下载量: 8
- 被引次数: 0
出版历程
- 收稿日期: 2025-07-17
- 修回日期: 2025-09-30
- 网络出版日期: 2025-10-22

Research Progress of Deep Learning Enabled Automatic Modulation Classification Technology

1.
School of Intelligent Engineering, Shandong Management University, Jinan 250357, China
2.
School of Information and Communication Engineering, Beijing University of Posts and Telecommunications, Beijing 100876, China
3.
School of Electrical and Information Engineering, Zhengzhou University, Zhengzhou 450001, China
4.
Shenyang Institute of Automation, Chinese Academy of Sciences, Shenyang 110034, China
5.
School of Information and Electronic Engineering, Zhejiang University, Hangzhou 310058, China
6.
School of Communication and Information Engineering, Nanjing University of Posts and Telecommunications, Nanjing 210023, China

Funds: The National Natural Science Foundation of China (62401070), The Shandong Provincial Key R&D Program (2024TSGC0055), The Shandong Provincial Natural Science Foundation (ZR2023QF125), The Shandong Provincial Youth Innovation Team Plan of Higher Education Institutions (2024KJH005)

摘要

摘要: 随着第六代无线通信系统向太赫兹频段以及空天地海一体化网络发展，通信环境呈现出高度异构化和超密集化的趋势，对自动调制识别技术提出了亚符号周期级别的精度要求。在复杂信道条件下，自动调制识别技术面临着时变多径信道引起的特征混叠、低信噪比环境下传统方法识别性能衰减以及稀疏码多址技术引发的混合调制信号检测复杂性提升等多重挑战。基于上述技术难题，该文从通信系统的信号传输特性出发，探讨自动调制分类方法设计的关键约束，系统回顾了深度学习使能的自动调制分类技术，综述了不同应用场景下自动调制分类方法面临的挑战，对经典深度学习模型进行了性能评估，最后概述了自动调制分类存在的问题及未来关键研究方向。
- 无线通信 /
- 深度学习 /
- 自动调制分类 /
- 时变多径信道
Abstract: Significance With the advancement of sixth-generation (6G) wireless communication systems towards the terahertz frequency band and space–air–ground integrated networks, the communication environment is becoming increasingly heterogeneous and densely deployed. This evolution imposes stringent precision requirements at the sub-symbol period level for Automatic Modulation Classification (AMC). Under complex channel conditions, AMC faces several challenges: feature mixing and distortion caused by time-varying multipath channels, substantial degradation in recognition accuracy of traditional methods under low Signal-to-Noise Ratio (SNR) conditions, and elevated complexity in detecting mixed modulation signals introduced by Sparse Code Multiple Access (SCMA) techniques. Addressing these challenges, this paper first analyzes the fundamental constraints on AMC method design from the perspective of signal transmission characteristics in communication models. It then systematically reviews Deep Learning (DL)-based AMC approaches, summarizes the difficulties these methods encounter in different wireless communication scenarios, evaluates the performance of representative DL models, and concludes with a discussion of current limitations in AMC together with promising research directions. Process Current research on AMC technology under complex channel conditions mainly focuses on three methodological categories: Likelihood-Based (LB), Feature-Based (FB), and DL, emphasizing both theoretical exploration and algorithmic innovation. Among these, end-to-end DL approaches have demonstrated superior performance in AMC tasks. By stacking multiple layers of nonlinear activation functions, DL models establish strong nonlinear fitting capabilities that allow them to uncover hidden patterns in radio signals. This enables DL to achieve high robustness and accuracy in complex environments. Convolutional Neural Networks (CNNs), leveraging their hierarchical local perception mechanism, can effectively capture amplitude and phase distortion characteristics of modulated signals, showing distinctive advantages in spatial feature extraction. Recurrent Neural Networks (RNNs), through the temporal memory function of gated units, exhibit theoretical superiority in modeling dynamic signal impairments such as inter-symbol interference, carrier frequency offset, carrier phase offset, and timing errors. More recently, Transformer architectures have achieved global feature association modeling through self-attention mechanisms, thereby enhancing the ability to identify key features and markedly improving AMC accuracy under low SNR conditions. The application potential of Transformers in AMC can be further extended by integrating multi-scale feature fusion, optimizing computational efficiency, and improving generalization. Prospects With the continuous growth of communication demands and the increasing complexity of application scenarios, the efficient and reliable management and utilization of wireless spectrum resources has become a central research focus. AMC enables mobile communication systems to achieve dynamic channel adaptation and heterogeneous network integration. Driven by the development of space–air–ground integrated networks, the application scope of AMC has expanded beyond traditional terrestrial cellular systems to emerging domains such as satellite communication and vehicular networking. DL-based AMC frameworks can capture dynamic channel responses through joint time–frequency domain representations, enhance transient feature extraction via attention mechanisms, and effectively decouple the coupling effects of multipath fading and Doppler shifts. By applying neural architecture search and model quantization–compression techniques, DL models can achieve low-complexity, real-time inference at the edge, thereby supporting end-to-end latency control in Vehicle-to-Everything (V2X) communication links. Furthermore, advanced DL architectures introduce feature enhancement mechanisms to preserve signal phase integrity, improving resilience against channel distortion. In dynamic optical network monitoring, feature extraction networks tailored to time-varying channels can adaptively capture the evolution of nonlinear phase shifts. Through implicit channel compensation, DL enables collaborative learning of time-domain and frequency-domain features. At present, AMC technology is progressing towards elastic architectures that support dynamic reconstruction of model parameters through online knowledge distillation and meta-learning frameworks, offering adaptive and lightweight solutions for Internet-of-Things (IoT) scenarios. Conclusions This paper systematically reviews the current research and challenges of AMC technology in the context of 6G networks. First, the applications of CNNs, RNNs, Transformers, and hybrid DL models in AMC are discussed in detail, with analysis of the technical advantages and limitations of each approach. Next, three representative application scenarios are examined: the mobile communication, the optical communication, and the IoT, highlighting the specific challenges faced by AMC technology. At present, the development of DL-driven AMC has moved beyond model design to include deployment and application challenges in real wireless communication environments. For example, constructing DL architectures with continuous learning capabilities is essential for adapting to dynamic communication conditions, while developing large-scale DL models provides an effective way to improve cross-scenario generalization. Future research should emphasize directions that integrate prior knowledge of the physical layer with DL architectures, strengthen feature fusion strategies, and advance hardware–algorithm co-design frameworks.
- Wireless communication /
- Deep Learning (DL) /
- Automatic Modulation Classification (AMC) /
- Time-varying multipath channel

HTML全文

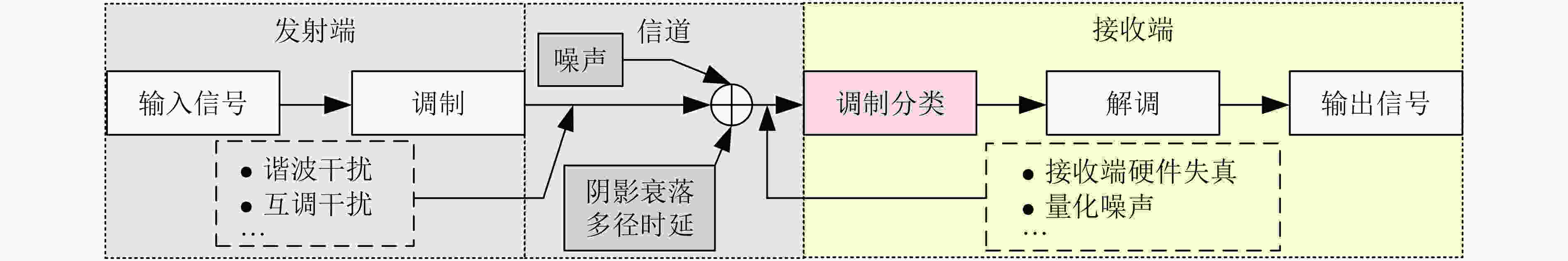

图 1 无线通信系统模型

下载: 全尺寸图片幻灯片

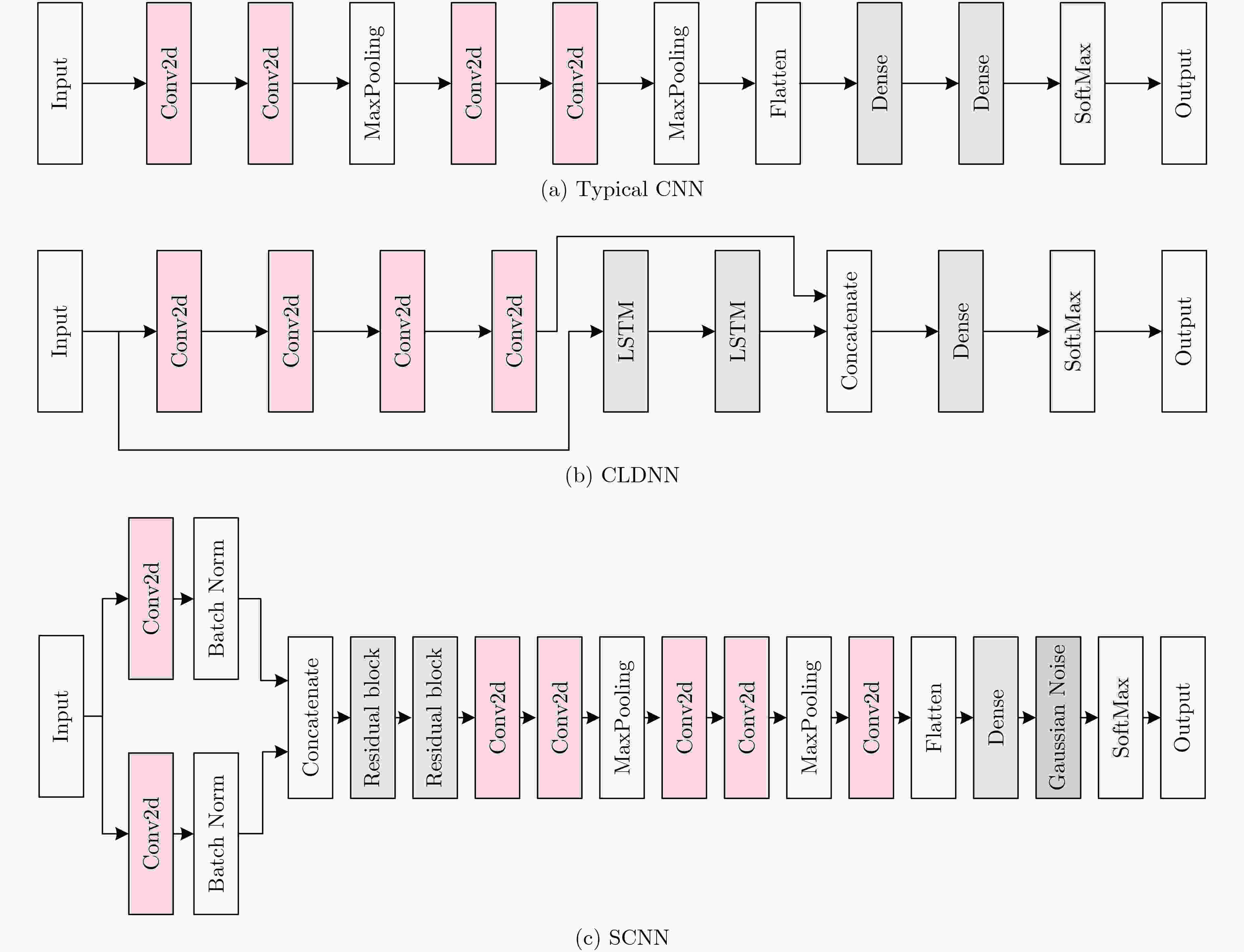

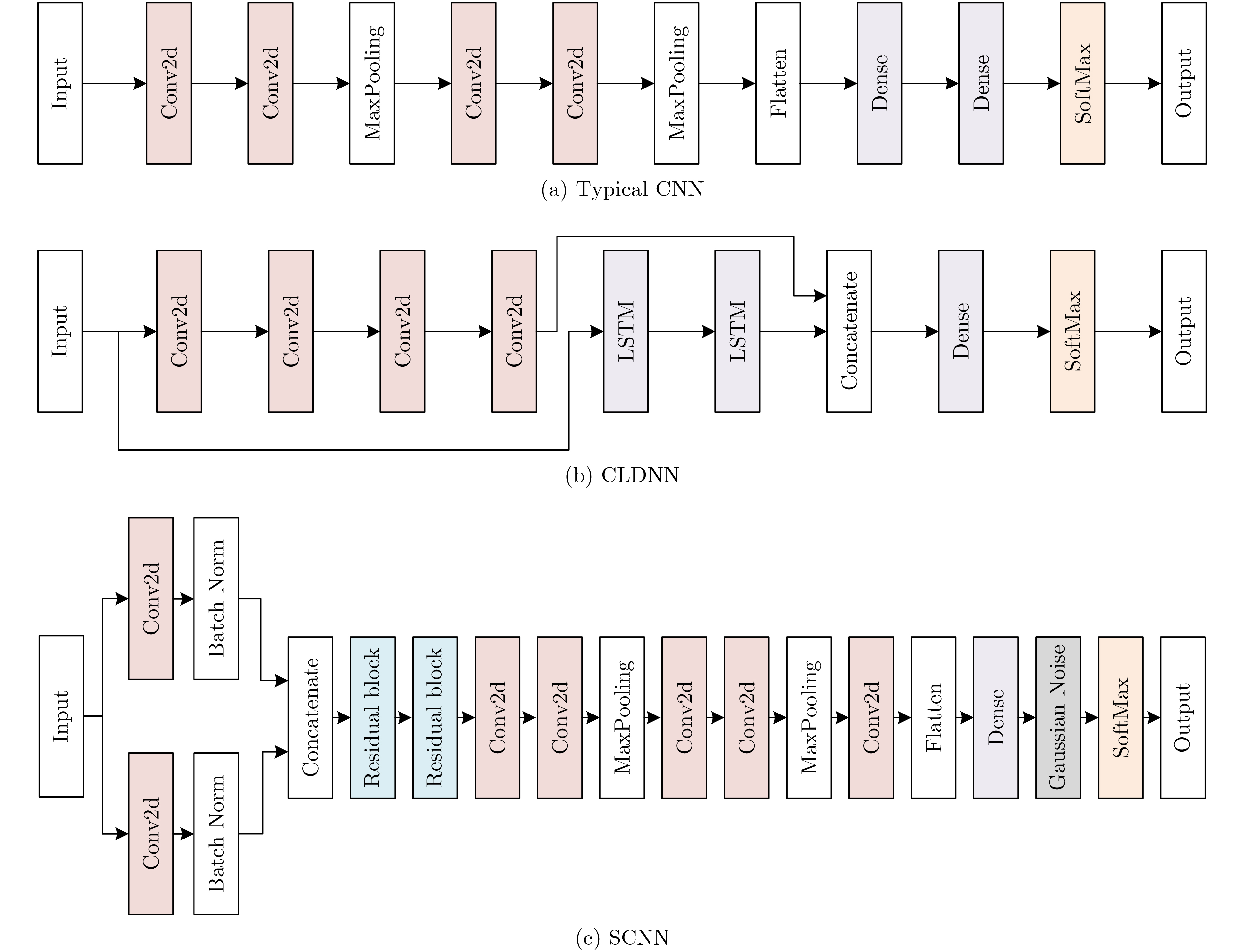

图 2 典型CNN模型结构

下载: 全尺寸图片幻灯片

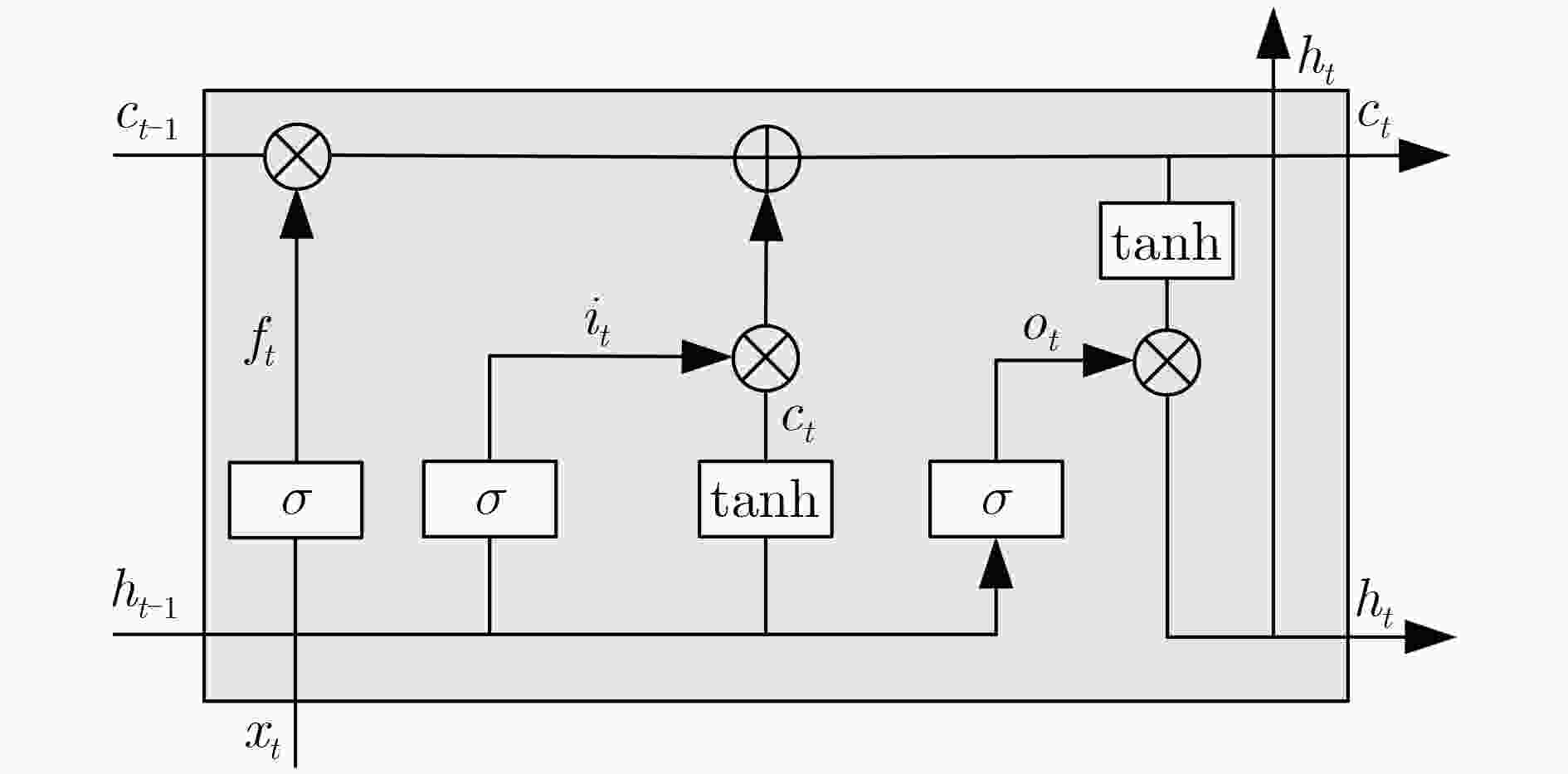

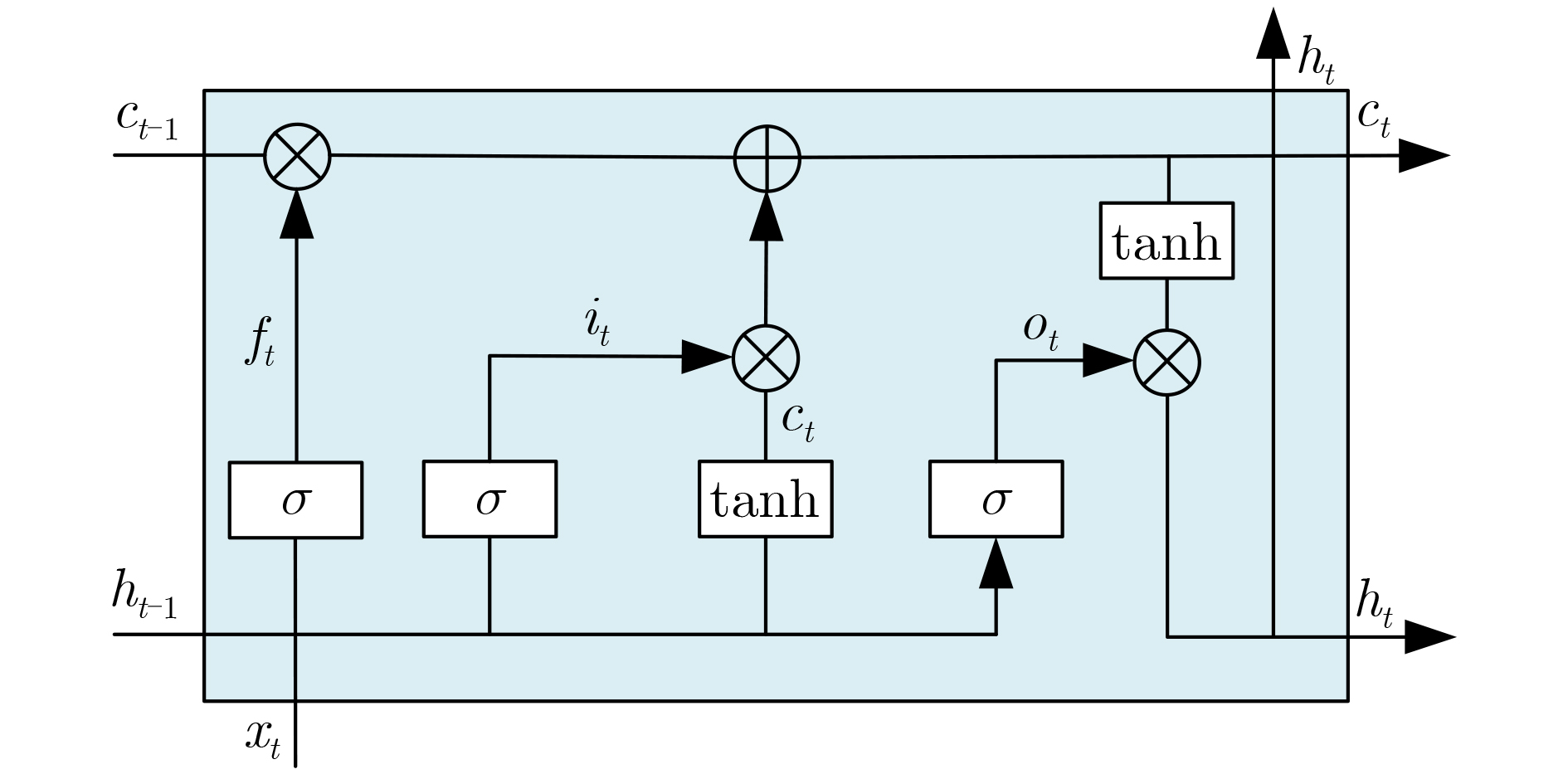

图 3 典型LSTM单元

下载: 全尺寸图片幻灯片

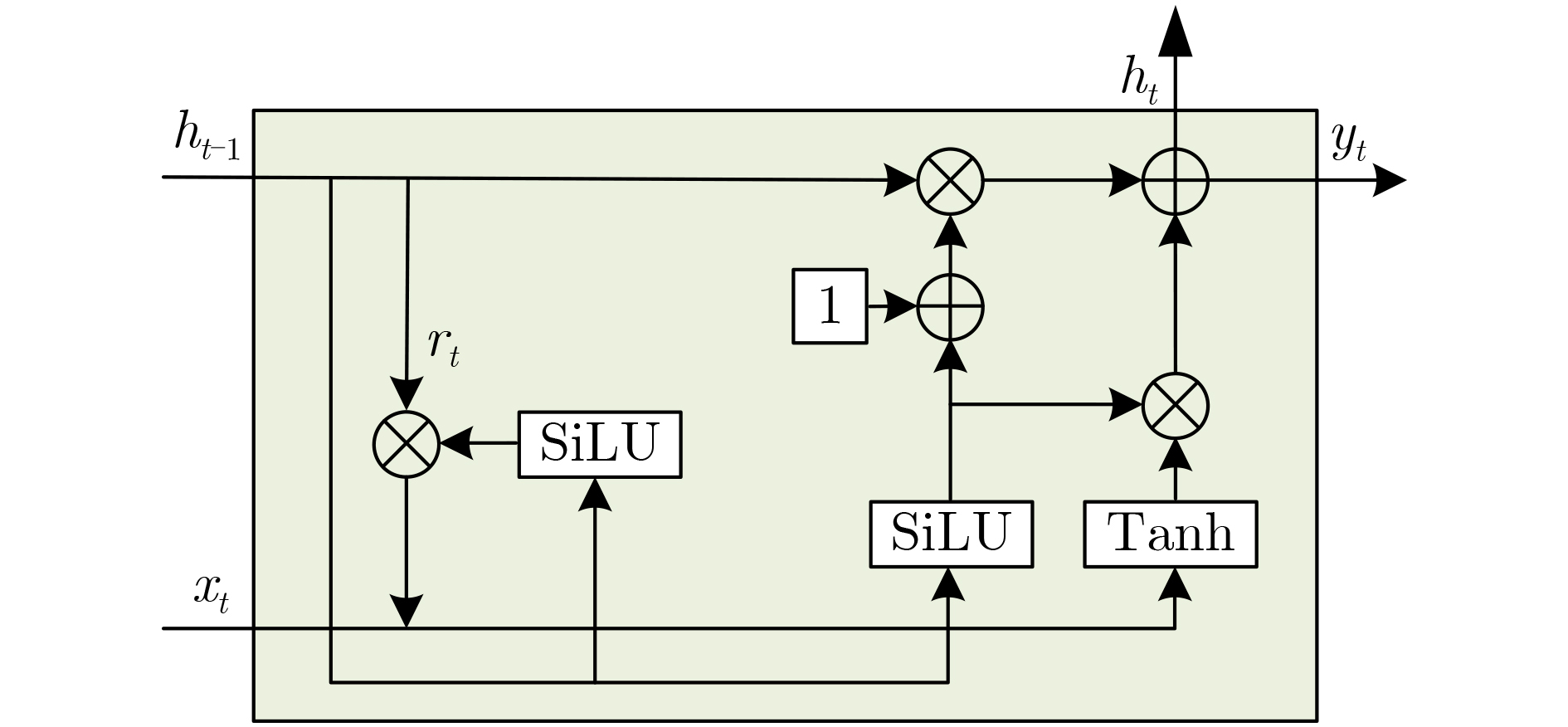

图 4 典型GRU单元

下载: 全尺寸图片幻灯片

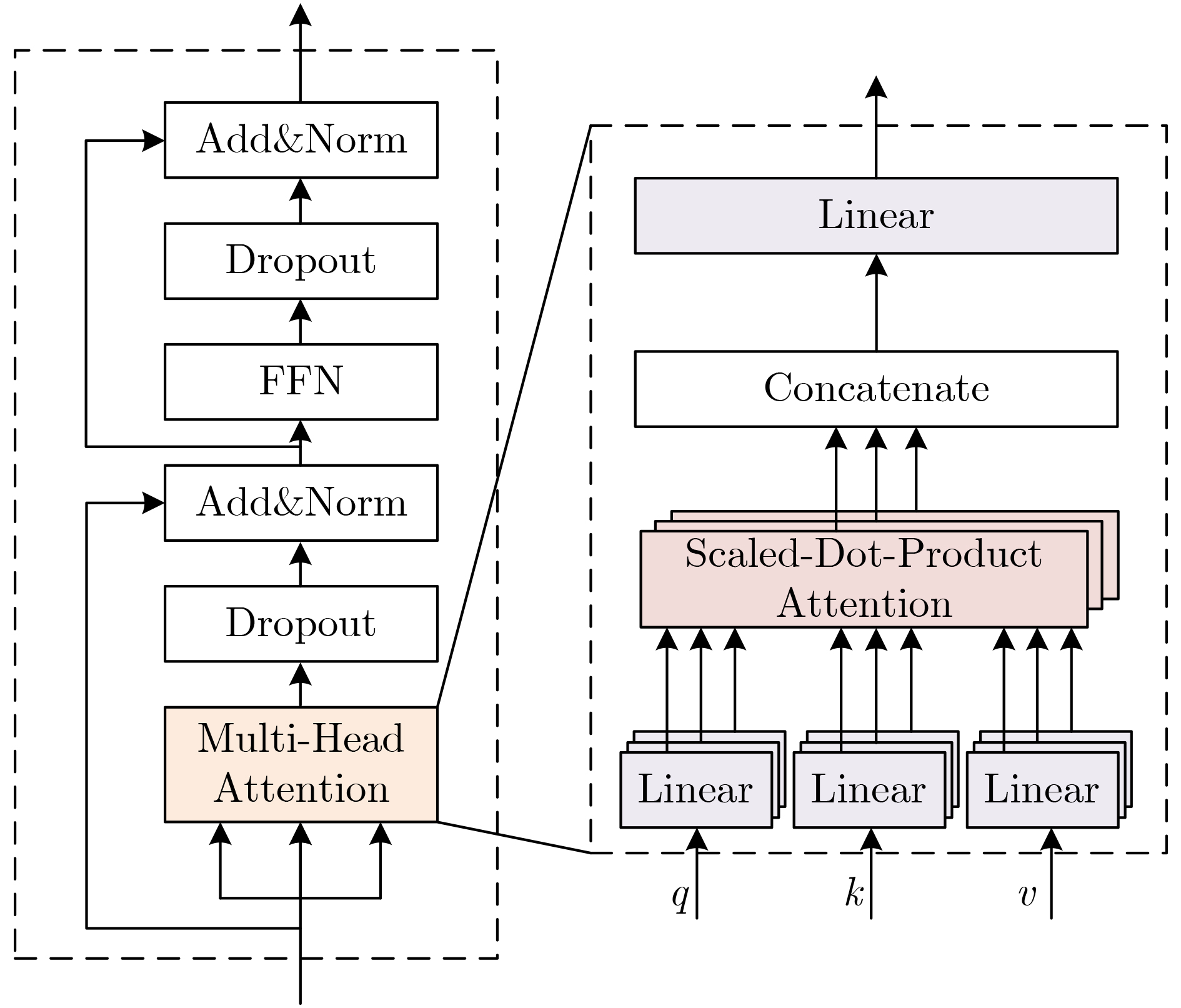

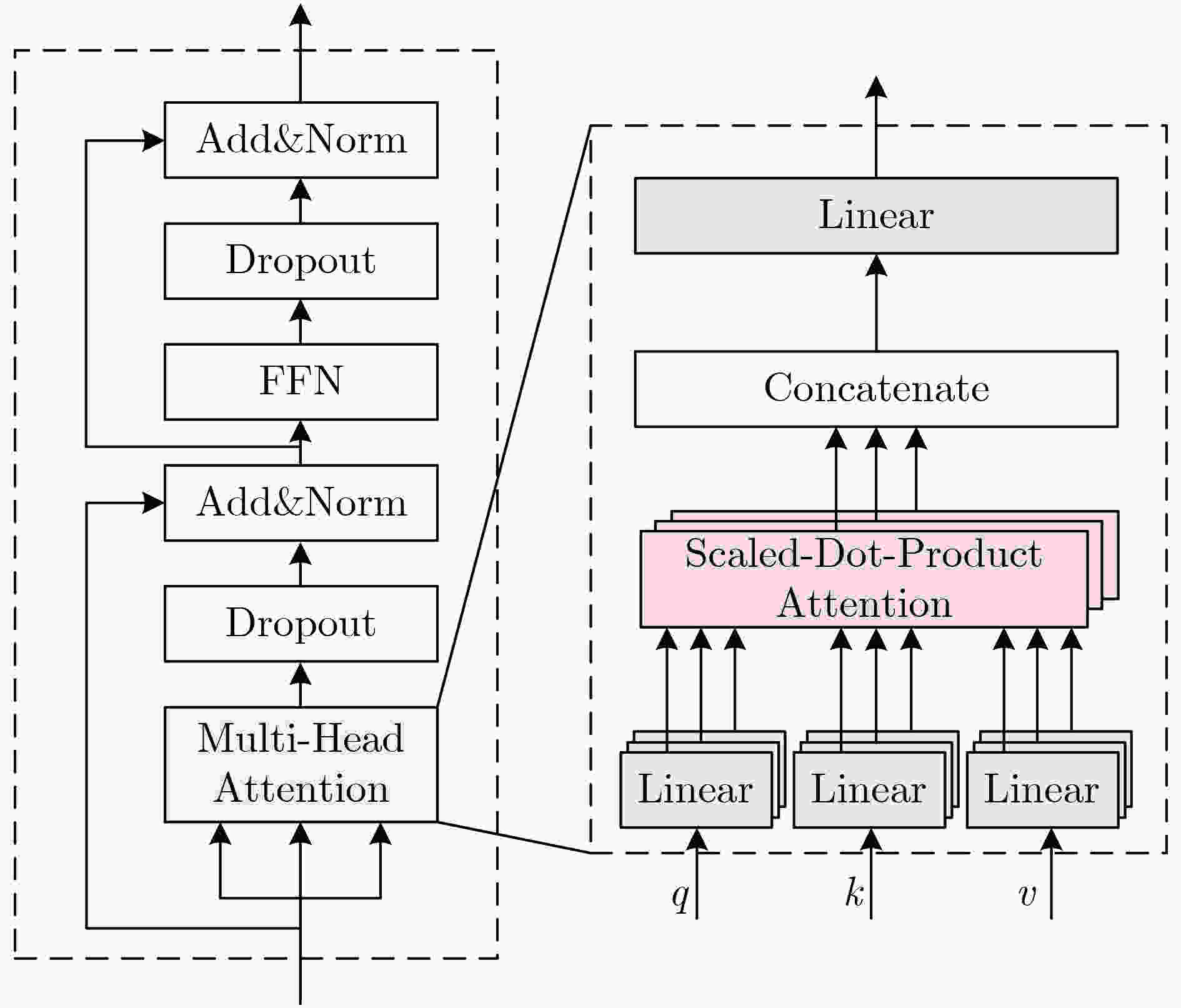

图 5 用于AMC的Transformer模型结构

下载: 全尺寸图片幻灯片

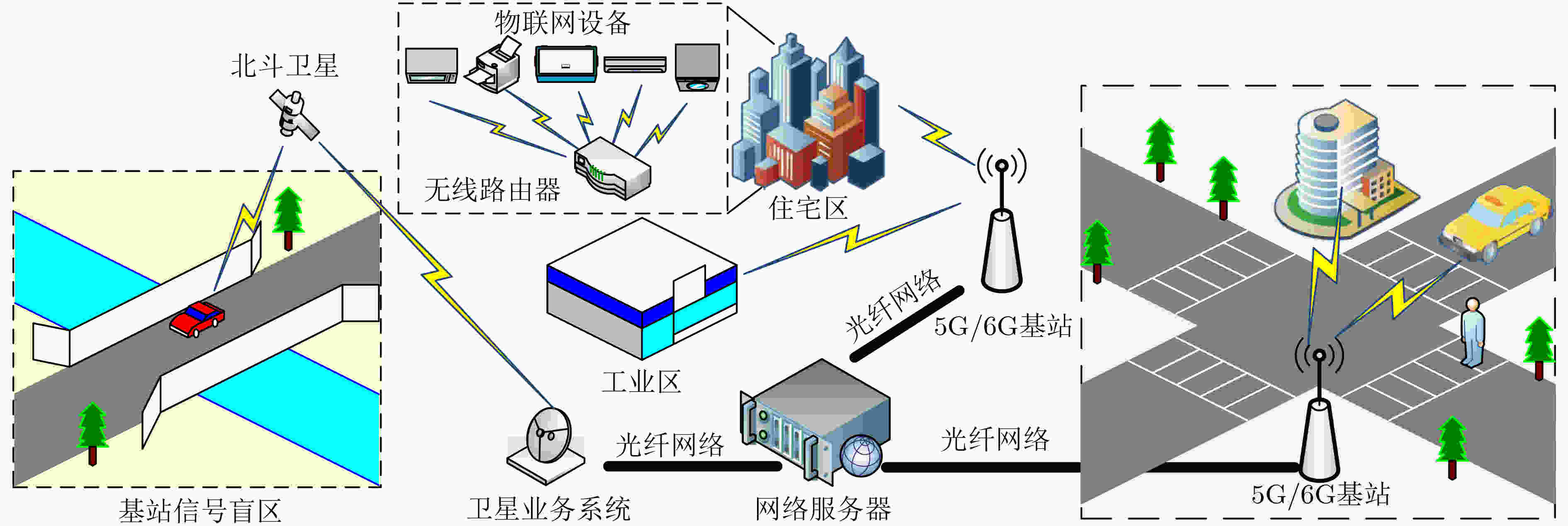

图 6 AMC系统应用场景

下载: 全尺寸图片幻灯片

表 1 典型AMC方法性能对比

AMC方法	候选调制方式	信噪比(dB)	准确率(%)
P-LSTM^[24]	{B/Q/8PSK, 16/32QAM}	0:5:20	99.30 at 5 dB
3D CNN^[26]	{B/Q/8PSK, 16QAM}	–15:5:30	> 95.00 at 0 dB
可分离CNN^[29]	{2/4/8FSK, B/Q/8PSK, 16QAM}	–10:2:20	83.44
分布式CNN^[31]	RadioML 2016.10a	–20:2:18	平均62.41
信噪比分类网络^[32]	RadioML 2016.10a	–20:2:18	86.00 at 0 dB
CNN^[33]	RadioML 2018.01a	0:2:30	> 90.00 at 0 dB
CNN^[34]	RadioML 2016.10a	–20:2:18	平均63.8
CNN^[35]	RadioML 2016.10a	–20:2:18	> 85.00 at 0 dB
MWD-CNN^[36]	RadioML 2016.10a	–20:2:18	平均62.52
CNN^[37]	{BPSK, QPSK, 16QAM, 64QAM, GFSK, CPFSK}	30	97.00
ANR CNN^[38]	RadioML 2016.10a	–20:2:18	平均61.75
MobileNetV2^[39]	RadioML 2016.10a	20	95.00
ResNet-LSTM^[41]	RadioML 2016.10b	–20:2:18	> 90.00 at 0 dB
CBAM-GRU^[43]	RadioML 2016.10a	–20:2:18	> 92.79 at 0 dB
GR-ResNet^[44]	RadioML 2016.10a	–6:2:18	平均83.57
多注意力ResNet-GRU^[45]	RadioML 2016.10b	–20:2:18	平均64.78
LSTM-Transformer^[46]	RadioML 2016.10a	–20:2:18	> 89.90 at 0 dB
ResNet-Transformer^[48]	RadioML 2018.01a	–20:2:30	平均62.61
Bottleneck Transformer^[49]	{PAM2, PAM4, PAM8, PAM16, BPSK, QPSK}	8:2:30	99.16 at 8 dB
Transformer^[50]	RadioML 2016.10a	0:2:18	平均91.90
CNN-Transformer^[51]	RadioML 2016.10b	–20:2:18	平均64.01
Meta-Transformer^[52]	RadioML 2018.01a	–20:2:30	95.76 at 20 dB
稀疏Transformer^[71]	RadioML 2016.10a, RML22	–20:2:20	平均71.13
KAN-CNN^[70]	RadioML 2018.01a	–20:2:30	平均65.56
Ultra Lite CNN^[69]	RadioML 2016.10a	–20:2:18	平均62.47
PCTNet^[72]	RadioML 2016.10b	–20:2:18	平均64.60
双流Transformer^[73]	{OFDM, 2/4/8FSK, B/Q/8PSK, 16/64QAM}	–10:2:20	> 85.00 at 0 dB
自适应小波网络^[74]	RadioML 2016.10a/b, RadioML 2018.01a	–20:2:18/-20:2:30	平均62.44
时空CNN^[75]	RadioML 2016.10a	–20:2:18	平均61.50
多端CNN^[76]	{B/Q/OQ/8PSK, 16/64QAM, 16/32APSK}	0:1:10	95.00 at 5 dB
HKDD^[53]	HKDD_AMC12, HKDD_AMC36	–20:2:20/-20:2:30	> 90.00 at 20 dB
GGCNN^[54]	RadioML 2018.01a	–20:2:30	> 80.00 at 20 dB
ResSwinT–SwinT^[58]	{CW, SIN/LFM, B/4FSK, B/QPSK, polyphase codes}	–14:2:10	99.80 at 0 dB
DL-EVT^[61]	RadioML 2018.01a	0:2:30	> 90.00 at 8 dB
图卷积神经网络^[68]	{2/4ASK, 2/4FSK, B/QPSK, 16/64QAM}	–14:2:10	> 70.00 at 2 dB
对比自监督学习^[77]	RadioML 2018.01a	–20:2:30	49.50 at -5 dB
阈值去噪RNN^[78]	RadioML 2018.01a	–20:2:30	平均63.50
GIGNet^[79]	RadioML 2016.10a	–20:2:18	平均63.83
多尺度自适应小波分解网络^[80]	HisarMod 2019.1	–20:2:18	平均74.40
DCTFANet^[81]	RadioML 2016.10a	–20:2:18	平均71.60
卷积双注意力Transformer^[82]	RadioML 2018.01a	–20:2:30	平均63.86
M²–Net^[83]	Multiband signals	–20:2:10	平均51.17
自监督对齐数据增强网络^[84]	RadioML 2016.10a	–10:2:0	平均72.19
KG-MTSNet^[85]	RadioML 2016.10a	–6:2:18	平均86.63
FTPNet^[86]	RadioML 2018.01a	–20:2:30	平均56.44

下载: 导出CSV
