面向AI计算服务的算网融合轻量化部署方法

王钦定; 谭斌; 黄光平; 段威; 杨冬; 张宏科

doi:10.11999/JEIT250663

面向AI计算服务的算网融合轻量化部署方法

doi: 10.11999/JEIT250663 cstr: 32379.14.JEIT250663

王钦定^{1, 2, ,},
谭斌³,
黄光平⁴,
段威⁵,
杨冬^{1, 2},
张宏科^{1, 2}

1.
先进轨道交通自主运行全国重点实验室(北京交通大学) 北京 100044
2.
北京交通大学电子信息工程学院北京 100044
3.
中兴通讯股份有限公司上海 201203
4.
中兴通讯股份有限公司南京 210012
5.
中兴通讯股份有限公司深圳 518057

基金项目: 国家自然科学基金(No.62394325)

详细信息

作者简介:
王钦定：男，博士生，研究方向为未来网络体系架构、算力网络、算网融合

谭斌：男，高级工程师，研究方向为IP网络、SDN系统架构与技术

黄光平：男，高级工程师，研究方向为算力网络、确定性网络以及下一代IP网络

段威：男，高级工程师，研究方向为IP网络、智算中心网络关键技术

杨冬：男，教授，研究方向为新一代信息网络关键理论与技术以及工业互联网、网络智能化技术

张宏科：男，教授，研究方向为新一代信息网络理论与关键技术

通讯作者:
王钦定　22110022@bjtu.edu.cn

中图分类号: TN913.21
计量
- 文章访问数: 8
- HTML全文浏览量: 1
- PDF下载量: 5
- 被引次数: 0
出版历程
- 收稿日期: 2025-07-15
- 修回日期: 2025-09-10
- 网络出版日期: 2025-09-15

Lightweight Incremental Deployment for Computing-Network Converged AI Services

WANG Qinding^{1, 2
, ,},
TAN bin³,
HUANG Guangping⁴,
DUAN Wei⁵,
YANG Dong^{1, 2},
ZHANG Hongke^{1, 2}

1.
State Key Laboratory of Advanced Rail Autonomous Operation, Beijing Jiaotong University, Beijing 100044, China
2.
School of Electronic and Information Engineering, Beijing Jiaotong University, Beijing 100044, China
3.
ZTE Corporation, Shanghai 201203, China
4.
ZTE Corporation, Nanjing 210012, China
5.
ZTE Corporation, Shenzhen 518057, China

Funds: The National Key Research and Development Program of China (2022YFB2901302)

摘要

摘要: 近年来，人工智能(AI)计算服务的规模和复杂性迅速增长要求算力资源能够被灵活访问和高效使用。作为用户与算力资源间访问和交互的重要通道，网络的能力和性能也亟需进行提升以支持AI计算服务的应用需求，如低时延、高并发等。然而，传统的域名系统(DNS)和基于IP的调度机制在满足这些需求方面面临适应性不足和智能化缺失的问题。因此，计算与网络资源的一体化(即算网融合)成为了解决上述问题的关键途径。鉴于此，该文引入了一种面向AI计算的语义化服务标识(AISID)，用于对服务进行编码，AISID的引入实现了服务请求与资源位置的解耦，从而支持更灵活精确的服务调度。在此基础上，提出一种算网融合的轻量化增量部署方案，通过将智能路由与资源调度相结合以优化服务请求的路由及资源分配。通过对核心设备实施轻量化的增量部署，可在最小改动现有网络的情况下优化网络性能，并增强系统可扩展性。实验结果表明，在500个并发请求的负载条件下，相较于传统的DNS调度和网络架构，AISID机制将请求响应时间降低了61.3%；轻量化部署方案使链路带宽使用率方差和算力使用率方差分别降低32.8%和12.3%。这些结果验证了所提方法在提升AI计算服务性能和资源利用效率方面的有效性，表明该方法为实现算网融合提供了一种有效途径。
- 服务标识 /
- 人工智能计算服务 /
- 轻量化部署 /
- 资源调度
Abstract: Objective The rapid expansion of Artificial Intelligence (AI) computing services has heightened the demand for flexible access and efficient utilization of computing resources. Traditional Domain Name System (DNS) and IP-based scheduling mechanisms are constrained in addressing the stringent requirements of low latency and high concurrency, highlighting the need for integrated computing-network resource management. To address these challenges, this study proposes a lightweight deployment framework that enhances network adaptability and resource scheduling efficiency for AI services. Methods The AI-oriented Service IDentifier (AISID) is designed to encode service attributes into four dimensions: Object, Function, Method, and Performance. Service requests are decoupled from physical resource locations, enabling dynamic resource matching. AISID is embedded within IPv6 packets (Fig. 5), consisting of a 64-bit prefix for identification and a 64-bit service-specific suffix (Fig. 4). A lightweight incremental deployment scheme is implemented through hierarchical routing, in which stable wide-area routing is managed by ingress gateways, and fine-grained local scheduling is handled by egress gateways (Fig. 6). Ingress and egress gateways are incrementally deployed under the coordination of an intelligent control system to optimize resource allocation. AISID-based paths are encapsulated at ingress gateways using Segment Routing over IPv6 (SRv6), whereas egress gateways select optimal service nodes according to real-time load data using a weighted least-connections strategy (Fig. 8). AISID lifecycle management includes registration, query, migration, and decommissioning phases (Table 2), with global synchronization maintained by the control system. Resource scheduling is dynamically adjusted according to real-time network topology and node utilization metrics (Fig. 7). Results and Discussions Experimental results show marked improvements over traditional DNS/IP architectures. The AISID mechanism reduces service request initiation latency by 61.3% compared to DNS resolution (Fig. 9), as it eliminates the need for round-trip DNS queries. Under 500 concurrent requests, network bandwidth utilization variance decreases by 32.8% (Fig. 10), reflecting the ability of AISID-enabled scheduling to alleviate congestion hotspots. Computing resource variance improves by 12.3% (Fig. 11), demonstrating more balanced workload distribution across service nodes. These improvements arise from AISID’s precise semantic matching in combination with the hierarchical routing strategy, which together enhance resource allocation efficiency while maintaining compatibility with existing IPv6/DNS infrastructure (Fig. 2–3). The incremental deployment approach further reduces disruption to legacy networks, confirming the framework’s practicality and viability for real-world deployment. Conclusions This study establishes a computing-network convergence framework for AI services based on semantic-driven AISID and lightweight deployment. The key innovations include AISID’s semantic encoding, which enables dynamic resource scheduling and decoupled service access, together with incremental gateway deployment that optimizes routing without requiring major modifications to legacy networks. Experimental validation demonstrates significant improvements in latency reduction, bandwidth efficiency, and balanced resource utilization. Future research will explore AISID’s scalability across heterogeneous domains and its robustness under dynamic network conditions.
- Service identifier /
- AI computing services /
- Lightweight deployment /
- Resource scheduling

HTML全文

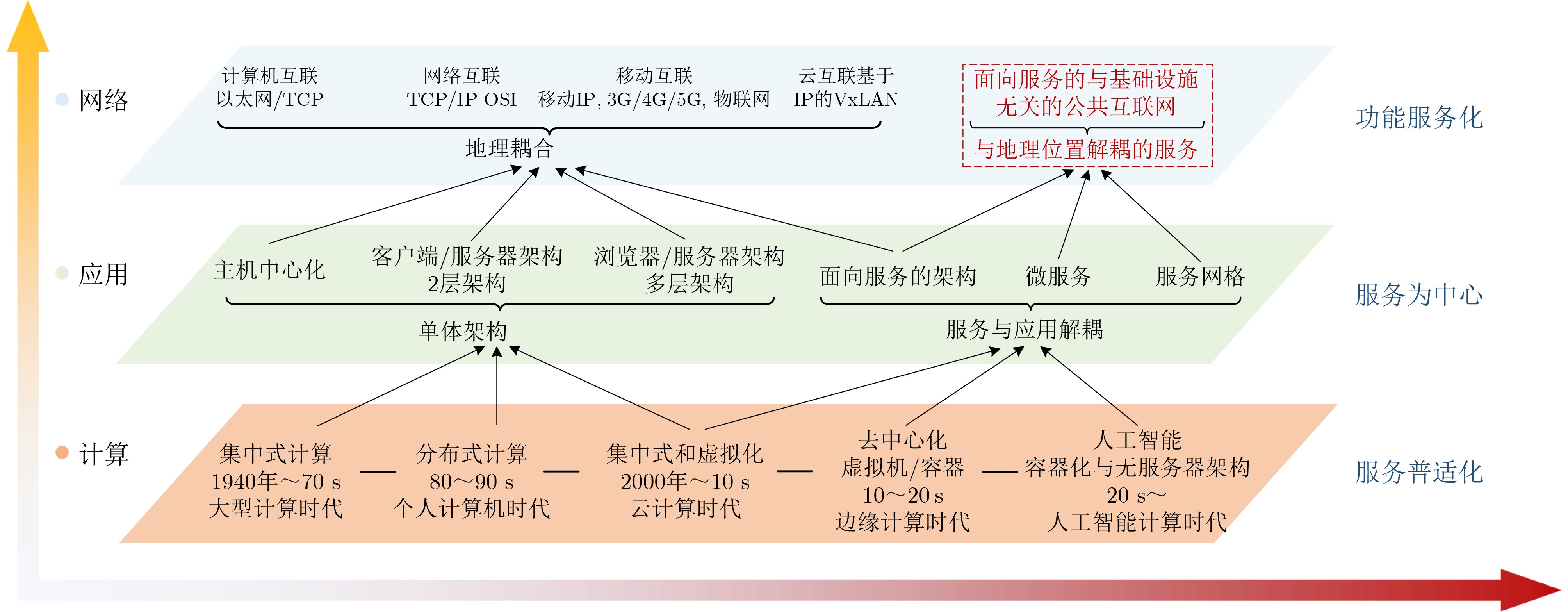

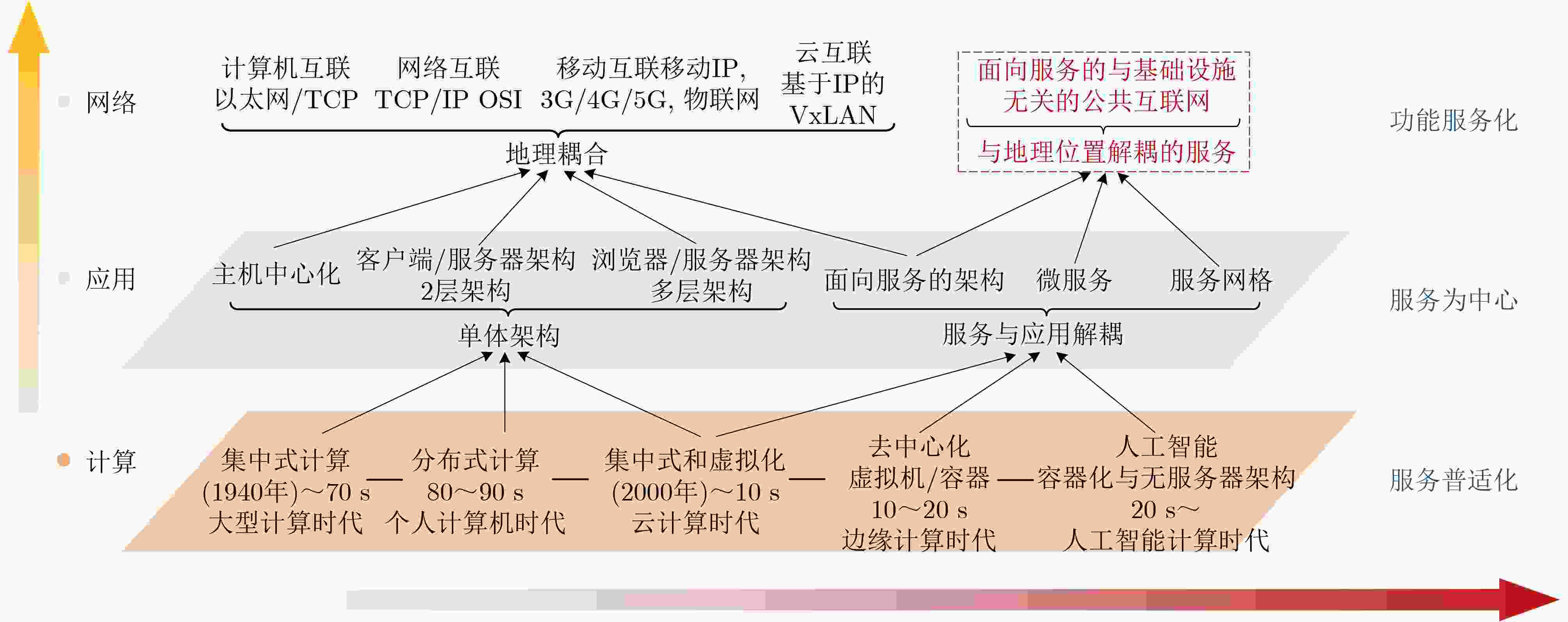

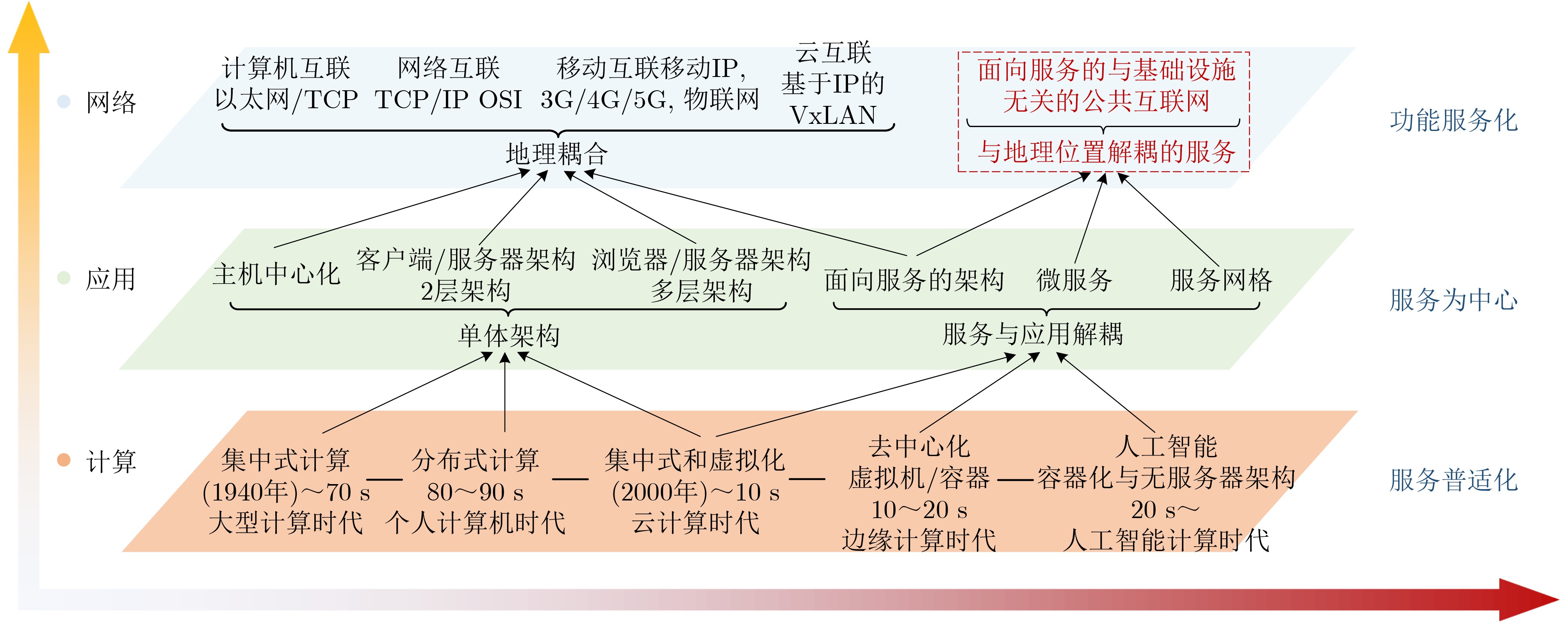

图 1 网络、应用、计算的演进

下载: 全尺寸图片幻灯片

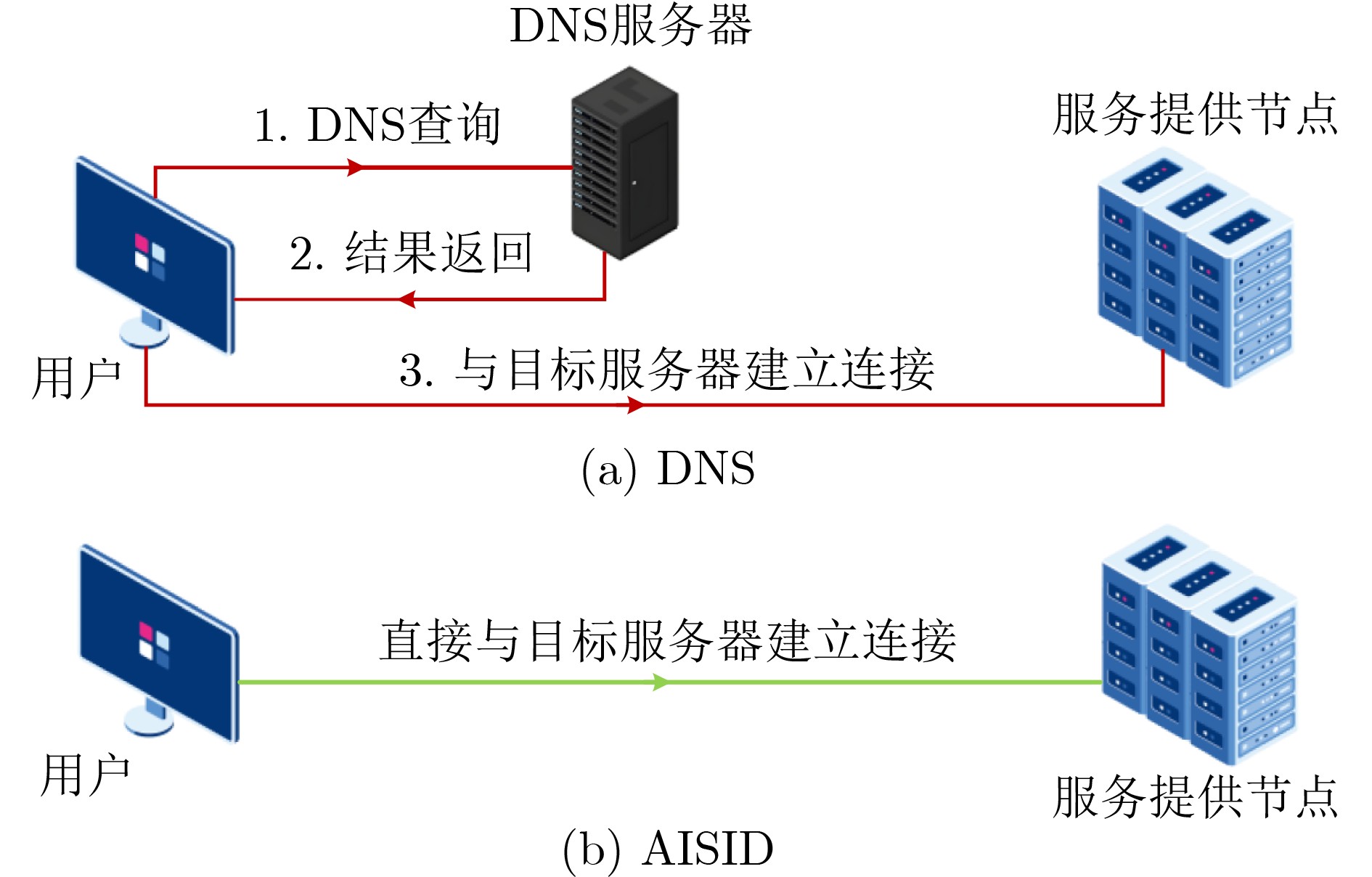

图 2 DNS与AISID流程对比

下载: 全尺寸图片幻灯片

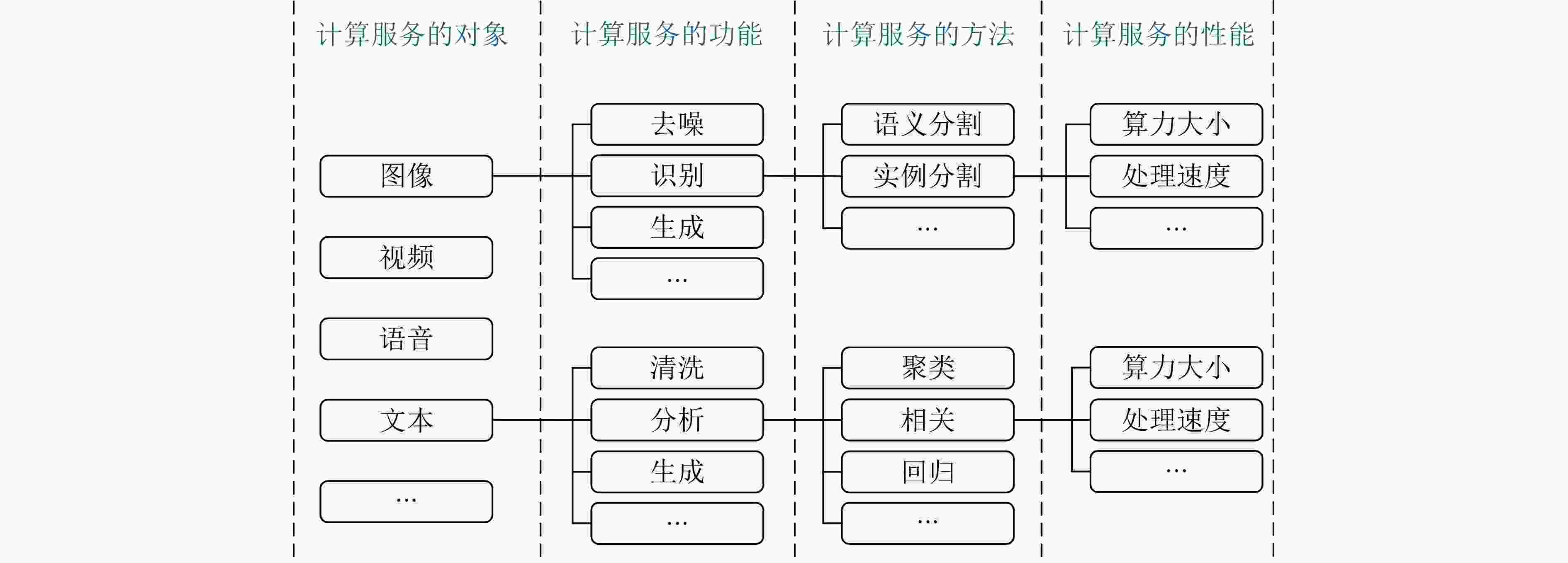

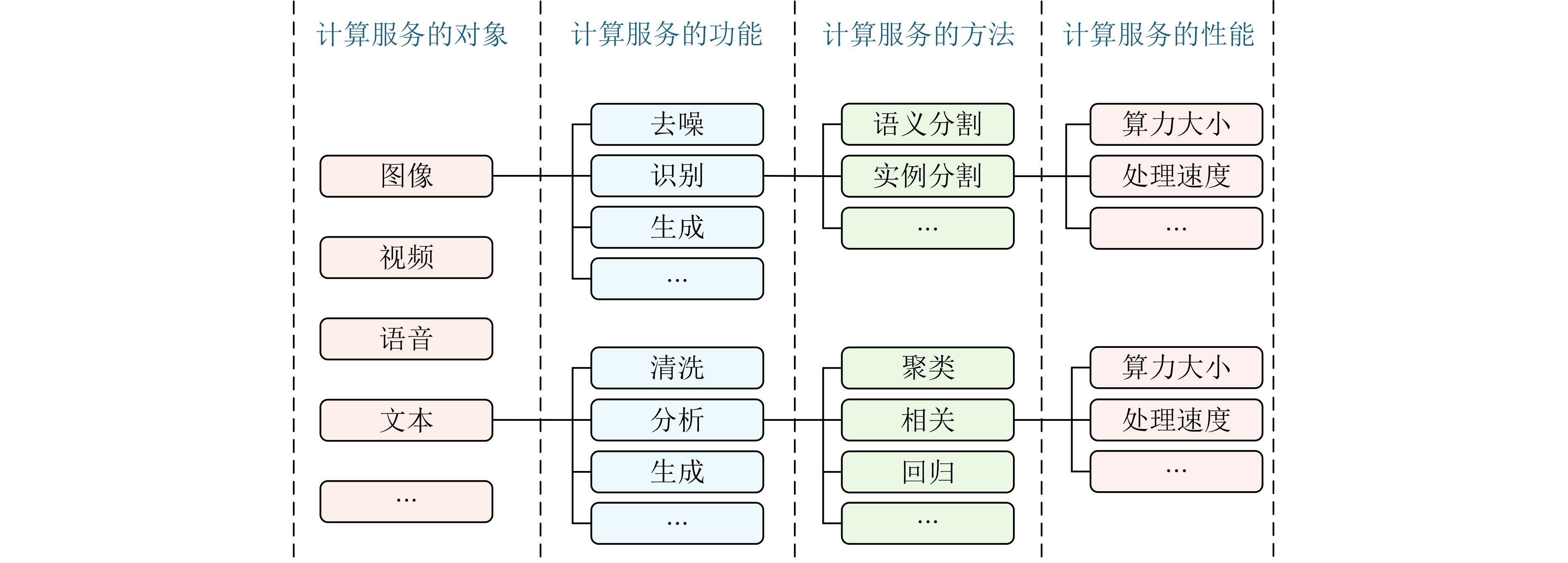

图 3 AISID生成实例

下载: 全尺寸图片幻灯片

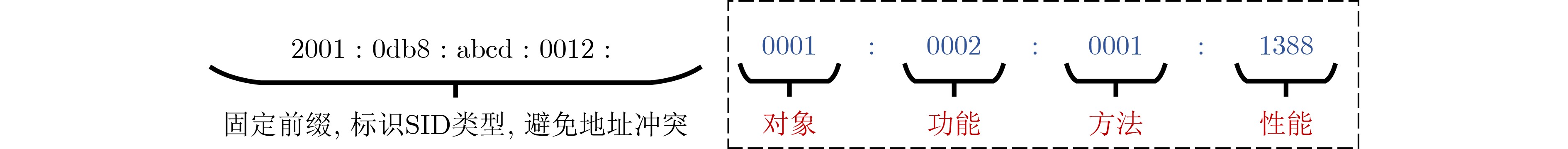

图 4 AISID的编码生成表示

下载: 全尺寸图片幻灯片

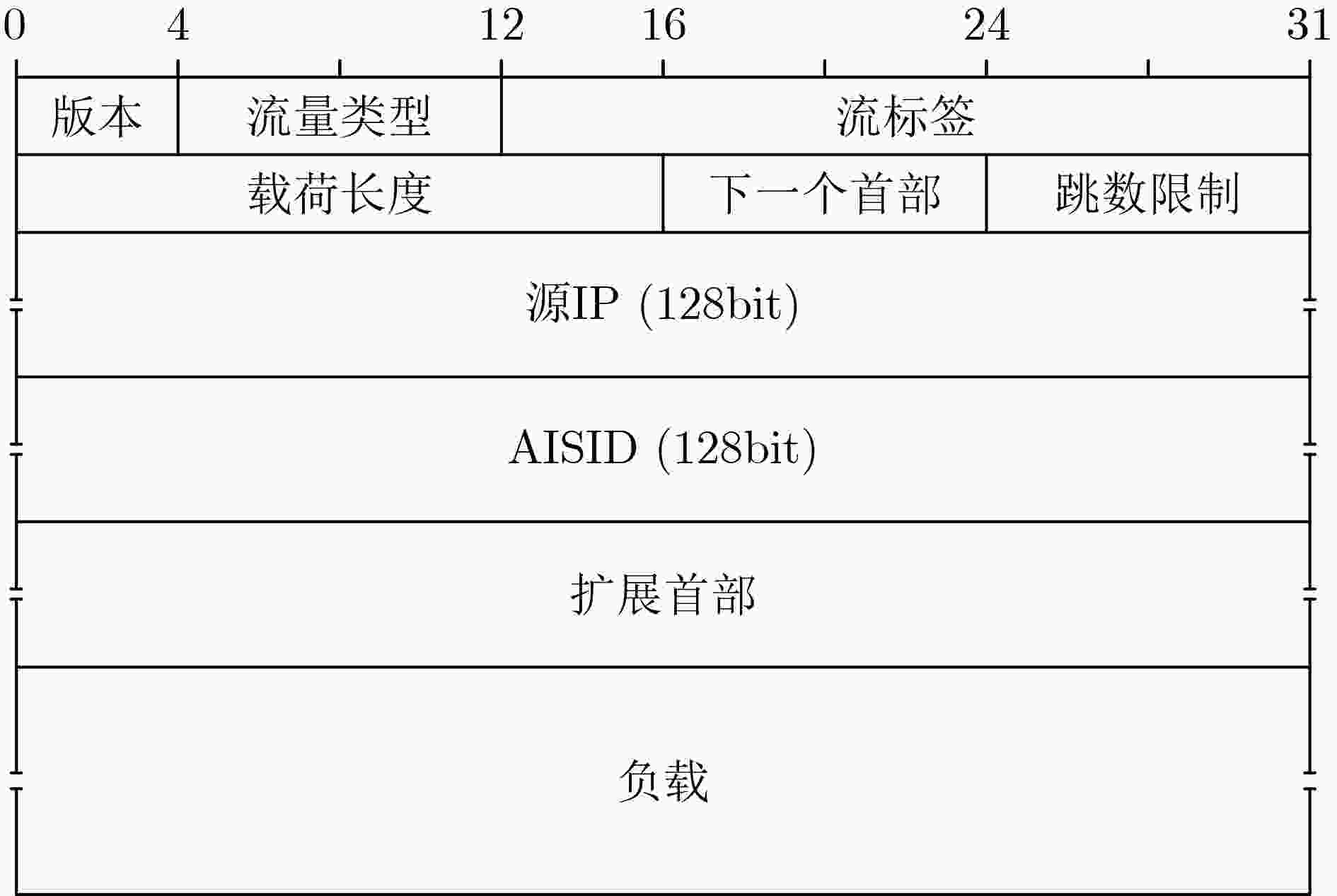

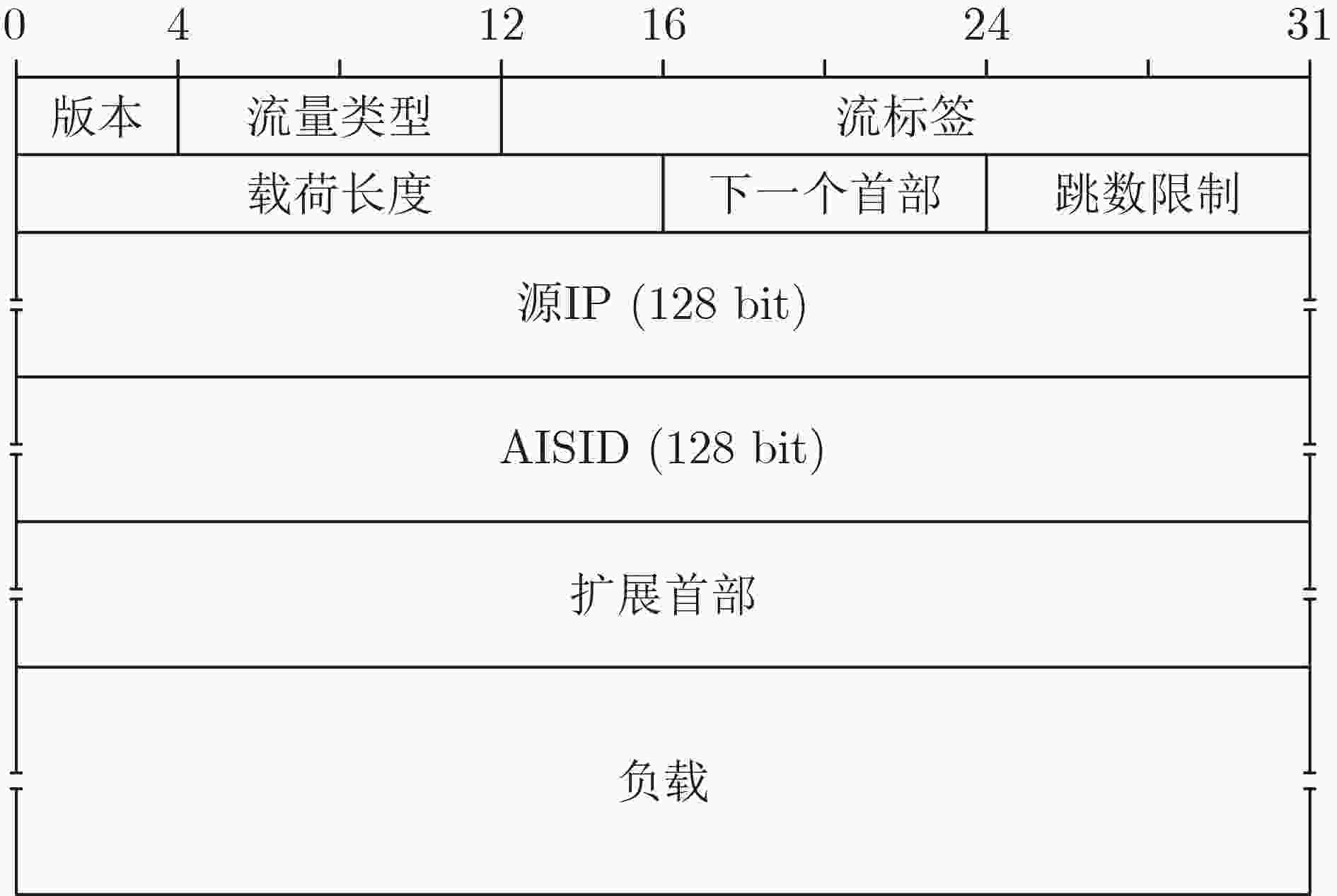

图 5 携带AISID的服务请求报文结构

下载: 全尺寸图片幻灯片

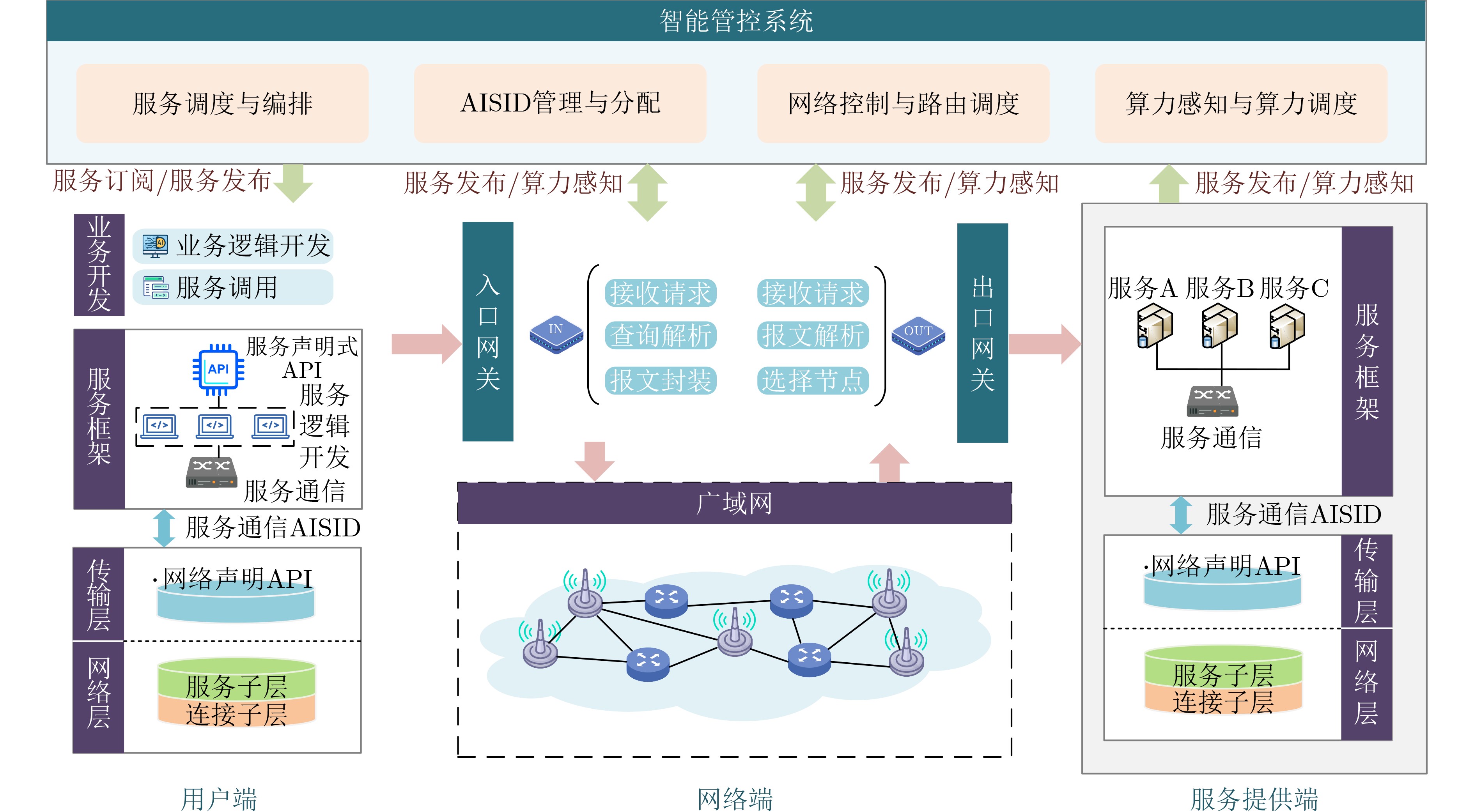

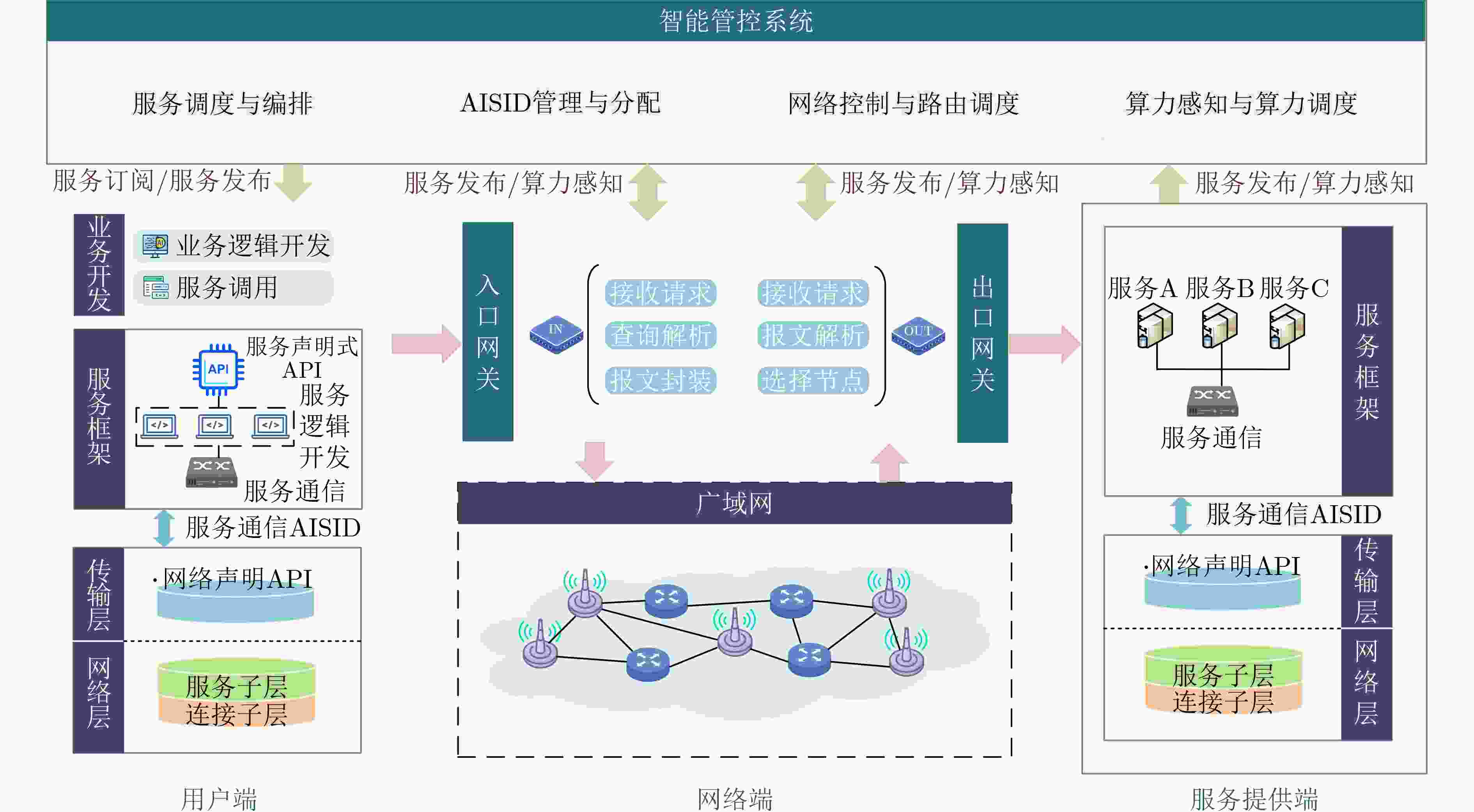

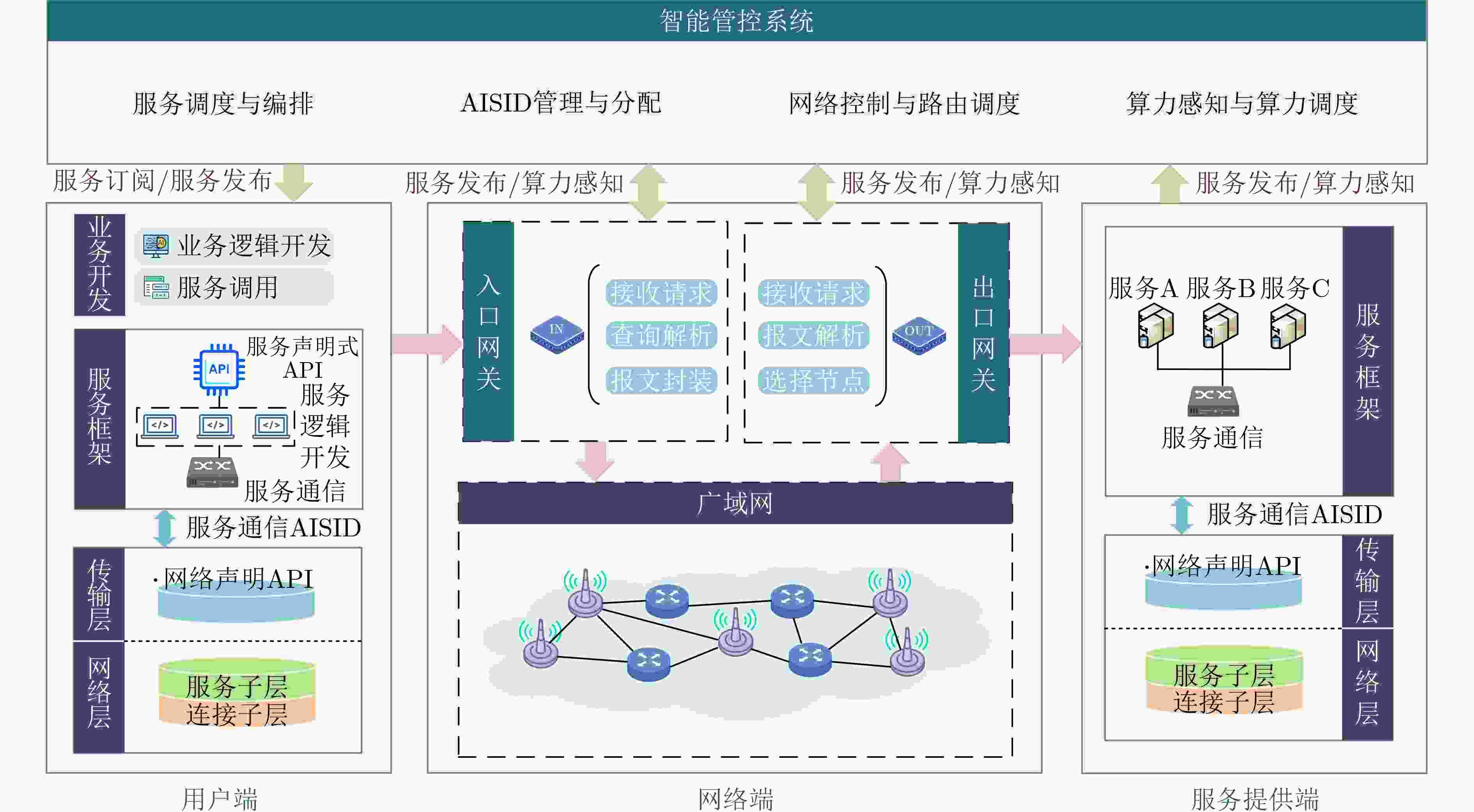

图 6 基于AISID的算网融合轻量化部署方法

下载: 全尺寸图片幻灯片

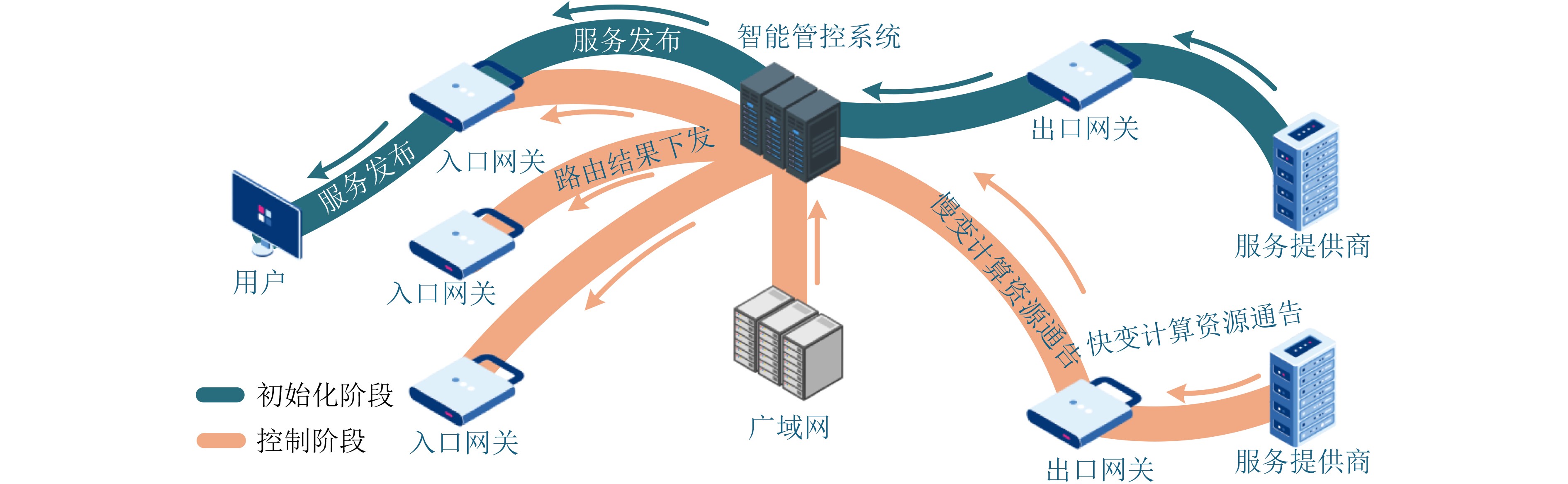

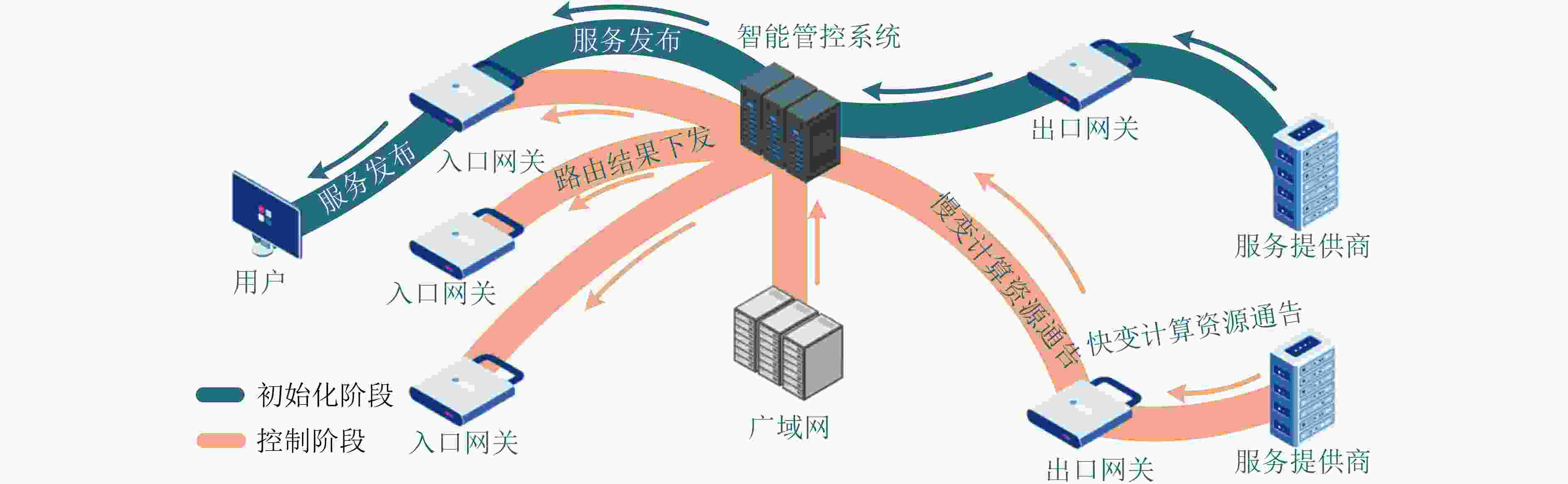

图 7 初始化与控制阶段

下载: 全尺寸图片幻灯片

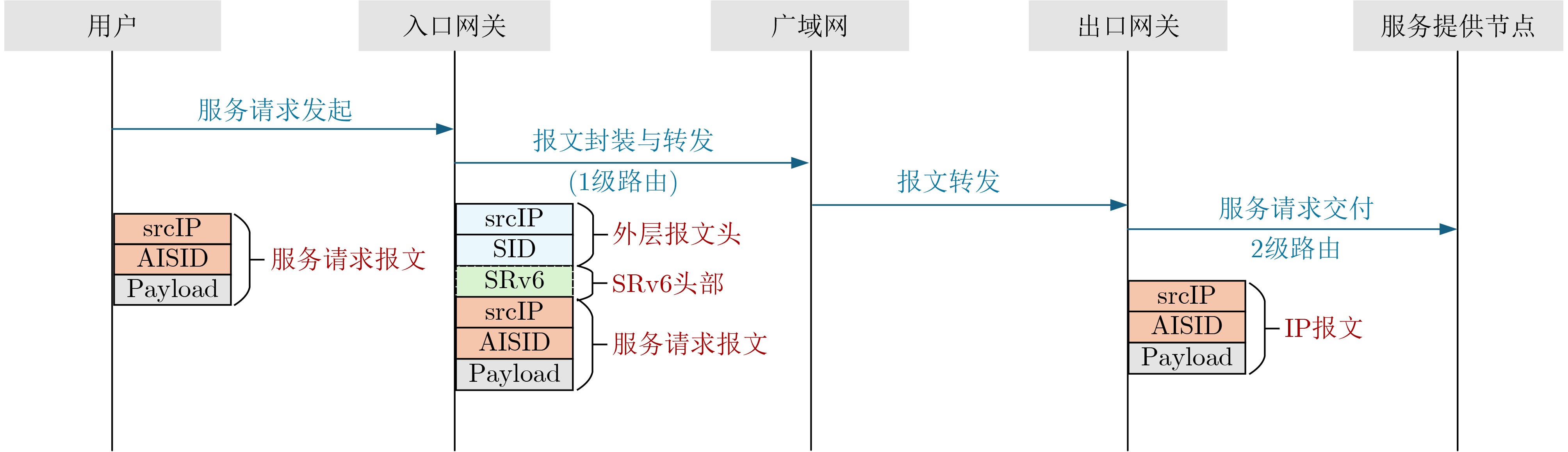

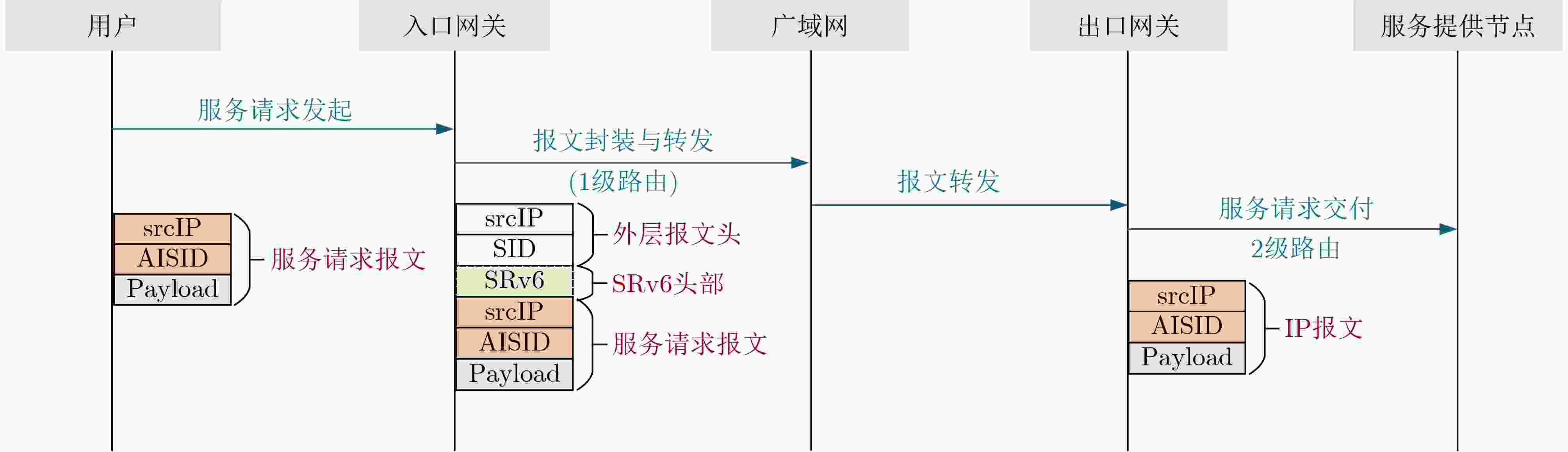

图 8 业务阶段

下载: 全尺寸图片幻灯片

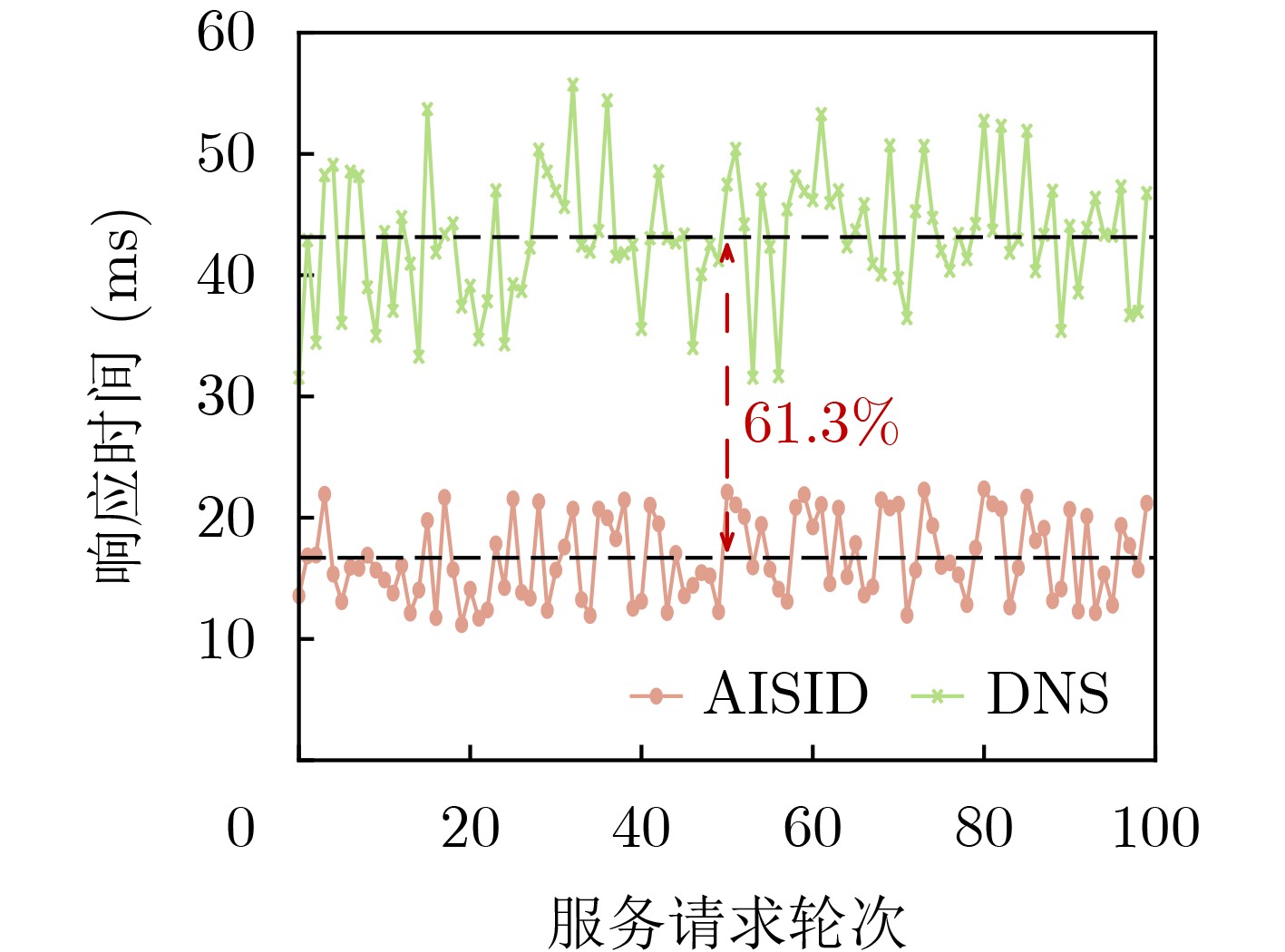

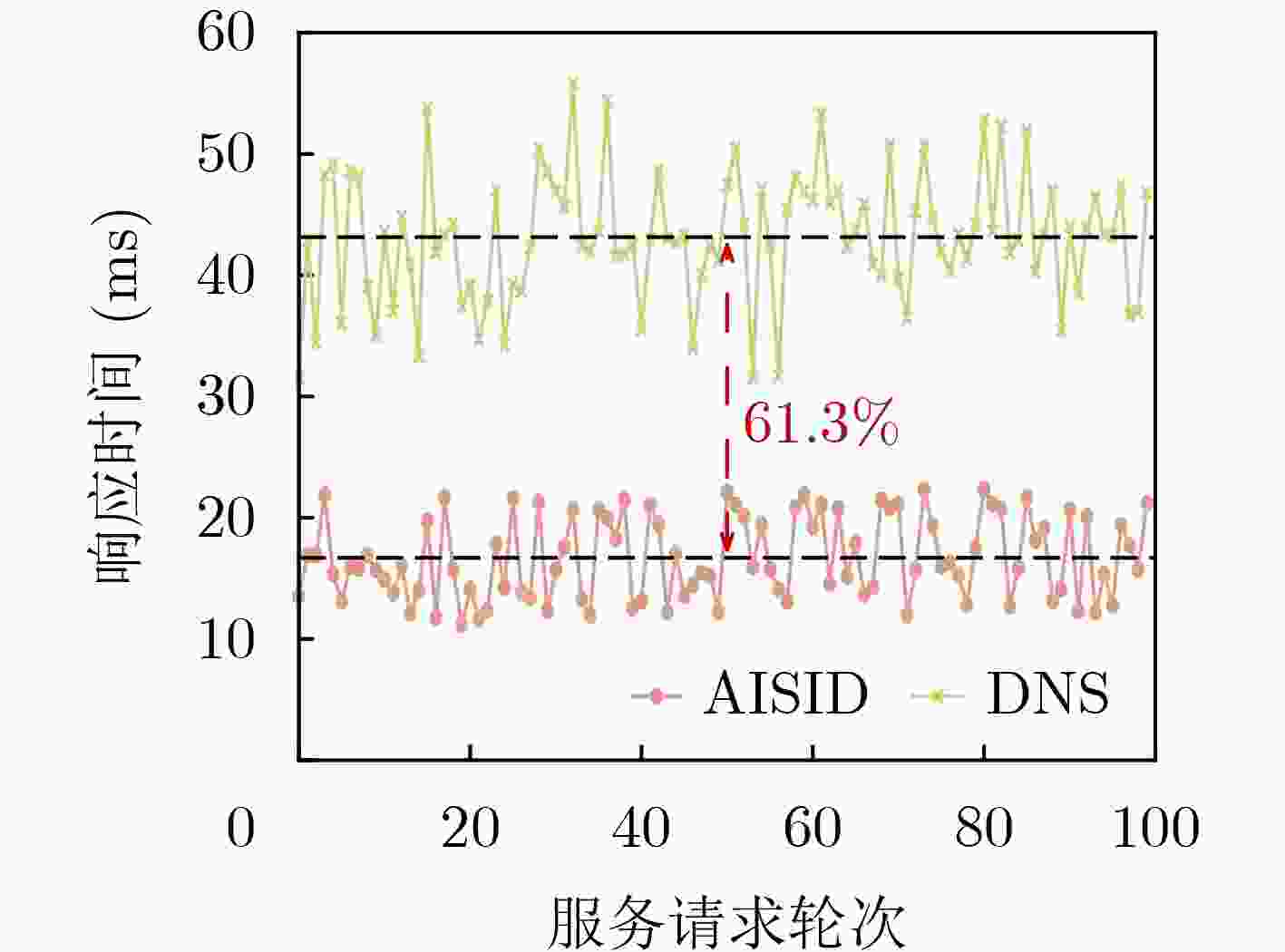

图 9 AISID与DNS服务请求响应时间对比

下载: 全尺寸图片幻灯片

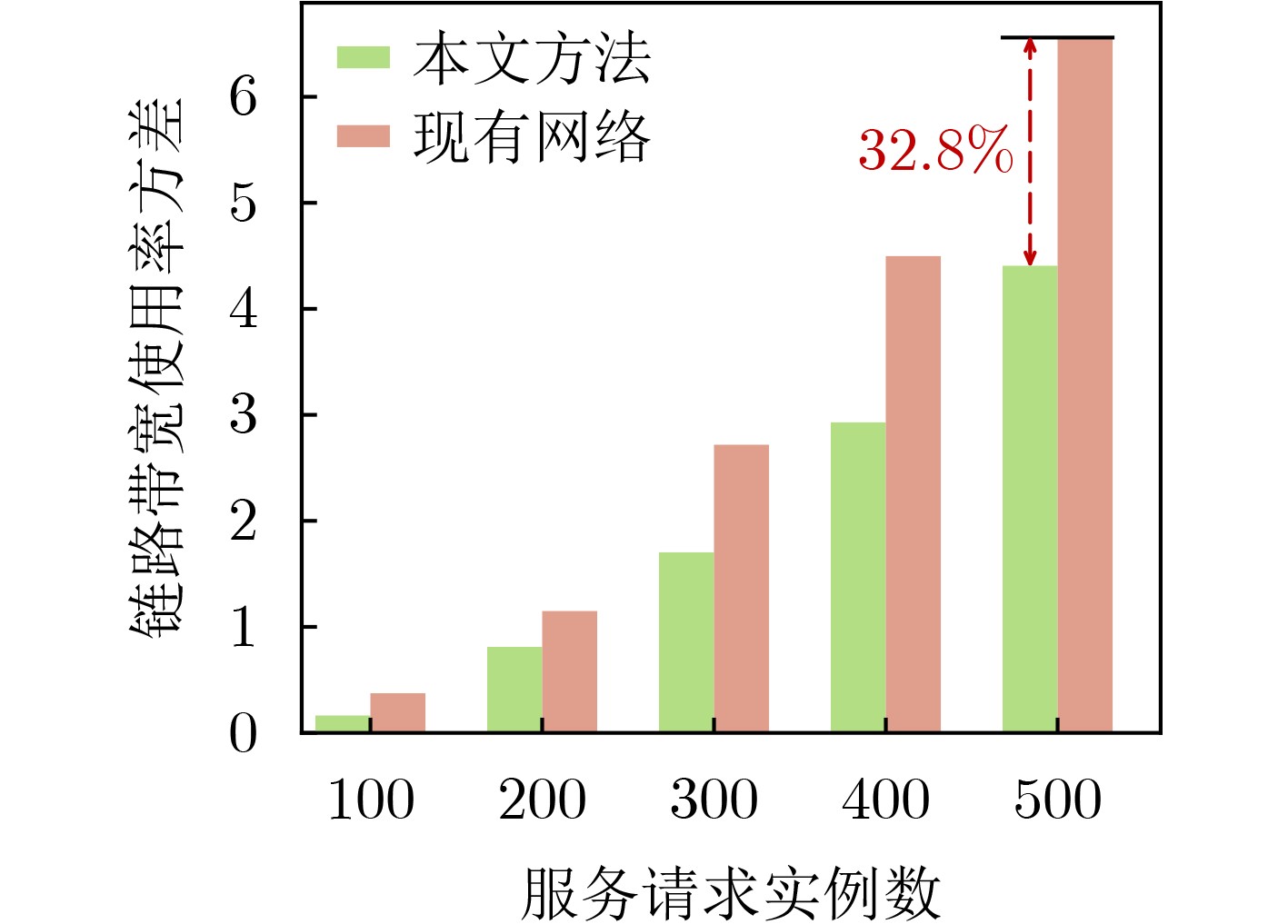

图 10 链路带宽使用率方差对比

下载: 全尺寸图片幻灯片

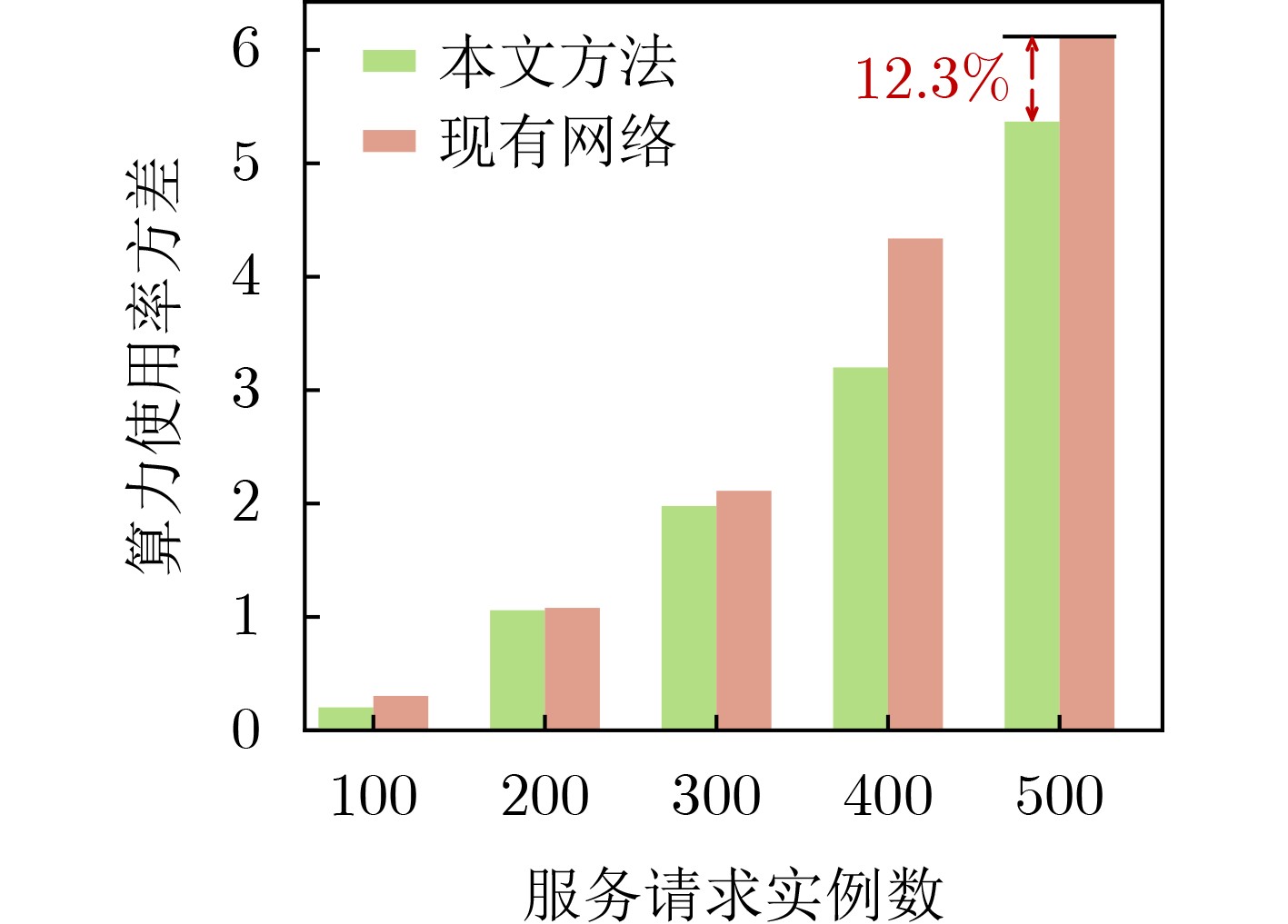

图 11 算力使用率方差对比

下载: 全尺寸图片幻灯片

表 1 携带AISID的IPv6报文示例

字段	描述	值/示例
版本	IPv6协议版本，固定为6位	6
流量类	用于流量标识，通常为0，长度8位	0x00
流量标签	用于标识流量类型，长度20位	0x00000
负载长度	报文有效负载的长度，16位	40(假设有效载荷长度为40字节)
下一个头部	表示协议类型，长度8位，表示传输协议类型	17(例如UDP协议，假设为17)
跳数限制	TTL(Time-To-Live)，最大跳数，长度8位	64
源IP地址	发起请求的源设备的IPv6地址，128位	fd00:abcd:1234:5678: 90ab:cdef:2345:6789
AISID	存储AISID, 128位	2001:0db8:abcd:0012: 0001:0002:0001:1388

下载: 导出CSV

表 2 AISID生命周期管理的任务与实现机制

阶段	主要任务	关键接口与机制
服务注册	AISID生成、验证并登记；智能管控系统全局注册与同步更新	服务注册接口，AISID唯一性校验机制
服务查询	用户发起AISID请求；入口/出口网关执行路由与节点定位	AISID路由表，1级/2级路由机制
服务迁移	更新AISID与节点位置映射；向智能管控系统同步变更信息	服务迁移通知接口，智能管控系统同步机制
服务下线	AISID注销、缓存清理与回收；通知相关用户	服务下线接口，AISID回收机制

下载: 导出CSV

表 3 网络和服务请求参数设置

网络参数
网络节点数	42
入口网关数	10
出口网关数	4
链路数	66
链路带宽	100 Gbit/(s·Hz)
链路传播时延	5 ms
服务提供商局域网内设备总算力	10000TFLOPS
服务提供商可提供的服务类型数	10
服务请求参数
用户可请求的服务类型数	20
带宽需求	20Mbps～100 Mbit/(s·Hz)
算力需求	1TFLOPS～10TFLOPS

下载: 导出CSV
