面向短包通信的PAC码低复杂度序贯译码算法

戴景鑫; 尹航; 王玉环; 吕岩松; 杨占昕; 吕锐; 夏治平

doi:10.11999/JEIT250533

面向短包通信的PAC码低复杂度序贯译码算法

doi: 10.11999/JEIT250533 cstr: 32379.14.JEIT250533

1.
中国传媒大学媒体融合与传播国家重点实验室北京 100024
2.
国家广播电视总局广播电视科学研究院北京 100024

基金项目: 国家重点研发计划(2024YFC3015303)，中国传媒大学中央高校基本科研业务费专项资金资助(CUC25GT16)

详细信息

作者简介:
戴景鑫：男，博士生，研究方向为信道编译码技术

尹航：男，博士，副教授，研究方向为先进编码调制理论及无线通信系统设计

王玉环：女，博士，讲师，研究方向为信道编译码技术、不确定性理论中的数学方法

吕岩松：男，博士，讲师，研究方向为信道编译码技术

杨占昕：男，博士，教授，研究方向为先进编码调制理论、智能音视频处理

吕锐：男，博士，教授，研究方向为广义信息理论及应用、先进信道编码及调制、星地一体广播与通信融合技术

夏治平：男，硕士，教授级高工，研究方向为5G广播、地面数字电视

通讯作者:
尹航　yinhang@cuc.edu.cn

中图分类号: TN911.22
计量
- 文章访问数: 45
- HTML全文浏览量: 12
- PDF下载量: 5
- 被引次数: 0
出版历程
- 收稿日期: 2025-06-09
- 修回日期: 2025-09-18
- 网络出版日期: 2025-09-24

Low Complexity Sequential Decoding Algorithm of PAC Code for Short Packet Communication

1.
State Key Laboratory of Media Convergence and Communication, Communication University of China, Beijing 100024, China
2.
China Academy of Broadcasting Sciences, National Radio and Television Administration, Beijing 100024, China

Funds: National Key Research and Development Project of China (2024YFC3015303), Fundamental Research Funds for the Central Universities (CUC25GT16)

摘要

摘要: 随着智能物联网的出现，海量物联网设备间的短包通信在低时延、高可靠和极短数据包长方面的严苛要求给信道编译码方案的设计带来了新的挑战。极化调整卷积(PAC)码在短码长下的某些码型下具有接近散度近似(DA)的纠错性能，但其极高的译码运算复杂度限制了在短包通信中的应用。针对这一问题，该文提出了低复杂度Fano序贯(LC-FS)译码算法和低复杂度堆栈(LC-S)译码算法。首先，LC-FS译码算法将译码码树中的特殊节点分为低码率和高码率2类，并提出了相应的特殊节点译码器和回溯策略，从而在译码码树更高层完成译码以避免冗余运算。其次，LC-FS译码算法中的特殊节点分类方法被扩展到堆栈类译码算法，进一步提出了LC-S译码算法。该算法在保留堆栈类译码算法低回溯次数特点的同时具有更低的运算复杂度。最后，仿真结果表明在对码长为256和信息长度为128的PAC码进行译码时，相较于快速Fano序贯(FFS)译码算法和传统堆栈译码算法，所提LC-FS译码算法和LC-S译码算法保证纠错性能基本无损的同时运算复杂度平均降低了13.77%和56.48%。
- 短包通信 /
- PAC码 /
- 低复杂度 /
- 序贯译码 /
- 特殊节点
Abstract: Objective With the rise of the intelligent Internet of Things (IoT), short packet communication among IoT devices must meet stringent requirements for low latency, high reliability, and very short packet length, posing challenges to the design of channel coding schemes. As an advanced variant of polar codes, Polarization-Adjusted Convolutional (PAC) codes enhance the error-correction performance of polar codes at medium and short code lengths, approaching the dispersion bound in some cases. This makes them promising for short packet communication. However, the high decoding complexity required to achieve near-bound error-correction performance limits their practicality. To address this, we propose two low complexity sequential decoding algorithms: Low Complexity Fano Sequential (LC-FS) and Low Complexity Stack (LC-S). Both algorithms effectively reduce decoding complexity with negligible loss in error-correction performance. Methods To reduce the decoding complexity of Fano-based sequential decoding algorithms, we propose the LC-FS algorithm. This method exploits special nodes to terminate decoding at intermediate levels of the decoding tree, thereby reducing the complexity of tree traversal. Special nodes are classified into two types according to decoder structure: low-rate nodes (Type-$T$ node) and high-rate nodes [Rate-1 and Single Parity-Check (SPC) nodes]. This classification minimizes unnecessary hardware overhead by avoiding excessive subdivision of special nodes. For each type, a corresponding LC-FS decoder and node-movement strategy are developed. To reduce the complexity of stack-based decoding algorithms, we propose the LC-S algorithm. While preserving the low backtracking feature of stack-based decoding, this method introduces tailored decoding structures and node-movement strategies for low-rate and high-rate special nodes. Therefore, the LC-S algorithm achieves significant complexity reduction without compromising error-correction performance. Results and Discussions The performance of the proposed LC-FS and LC-S decoding algorithms is evaluated through extensive simulations in terms of Frame Error Rate (FER), Average Computational Complexity (ACC), Maximum Computational Complexity (MCC), and memory requirements. Traditional Fano sequential, traditional stack, and Fast Fano Sequential (FFS) decoding algorithms are set as benchmarks. The simulation results show that the LC-FS and LC-S algorithms exhibit negligible error-correction performance loss compared with traditional Fano sequential and stack decoders (Fig. 5). Across different PAC codes, both algorithms effectively reduce decoding complexity. Specifically, as increases, the reductions in ACC and MCC become more pronounced. For ACC, LC-FS decoding algorithm ($T = 4$) achieves reductions of 13.77% ($N = 256$, $K = 128$), 11.42% ($N = 128$, $K = 64$), and 25.52% ($N = 64$, $K = 32$) on average compared with FFS (Fig. 6). LC-S decoding algorithm ($T = 4$) reduces ACC by 56.48% ($N = 256$, $K = 128$), 47.63% ($N = 128$, $K = 64$), and 49.61% ($N = 64$, $K = 32$) on average compared with the traditional stack algorithm (Fig. 6). For MCC, LC-FS decoding algorithm ($T = 4$) achieves reductions of 29.71% ($N = 256$, $K = 128$), 21.18% ($N = 128$, $K = 64$), and 23.62% ($N = 64$, $K = 32$) on average compared with FFS (Fig. 7). LC-S decoding algorithm ($T = 4$) reduces MCC by 67.17% ($N = 256$, $K = 128$), 49.33% ($N = 128$, $K = 64$), and 51.84% ($N = 64$, $K = 32$) on average compared with the traditional stack algorithm (Fig. 7). By exploiting low-rate and high-rate special nodes to terminate decoding at intermediate levels of the decoding tree, the LC-FS and LC-S algorithms also reduce memory requirements (Table 2). However, as $T$ increases, the memory usage of LC-S rises because all extended paths of low-rate special nodes are pushed into the stack. The increase in $T$ enlarges the number of extended paths, indicating its critical role in balancing decoding complexity and memory occupation (Fig. 8). Conclusions To address the high decoding complexity of sequential decoding algorithms for PAC codes, this paper proposes two low complexity approaches: the LC-FS and LC-S algorithms. Both methods classify special nodes into low-rate and high-rate categories and design corresponding decoders and movement strategies. By introducing Type-$T$ nodes, the algorithms further eliminate redundant computations during decoding, thereby reducing complexity. Simulation results demonstrate that the LC-FS and LC-S algorithms substantially decrease decoding complexity while maintaining the error-correction performance of PAC codes at medium and short code lengths.
- Short-packet communication /
- PAC code /
- Low complexity /
- Sequential decoding /
- Special node

HTML全文

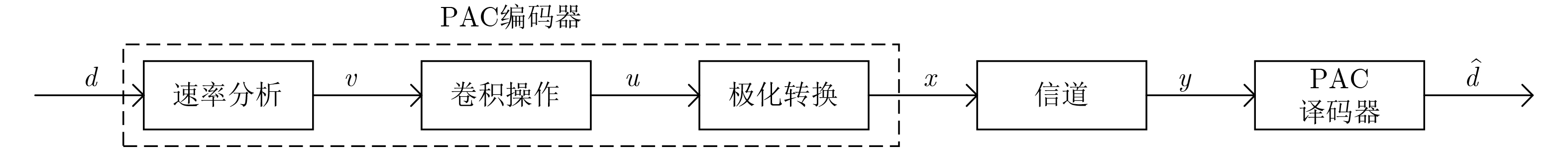

图 1 PAC码的编译码方案框架图

下载: 全尺寸图片幻灯片

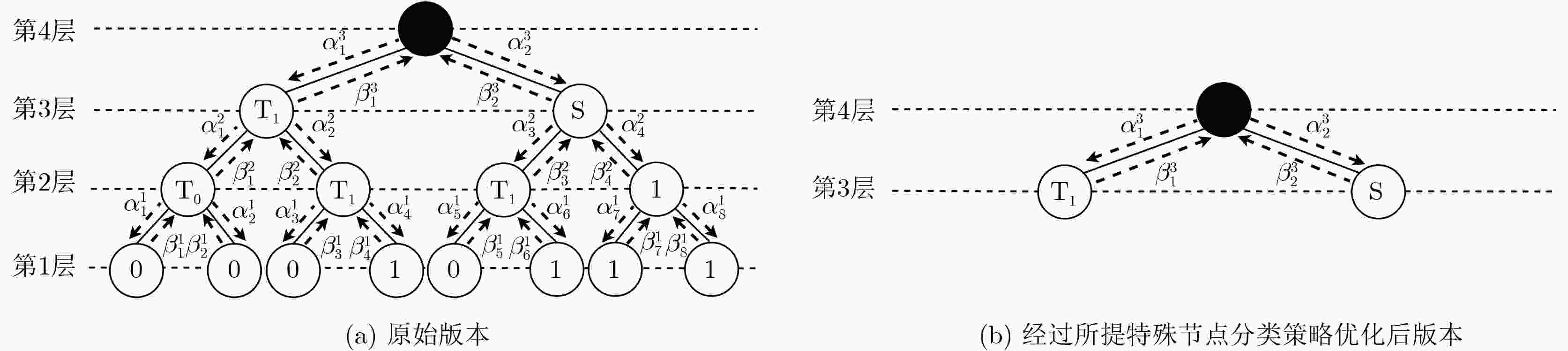

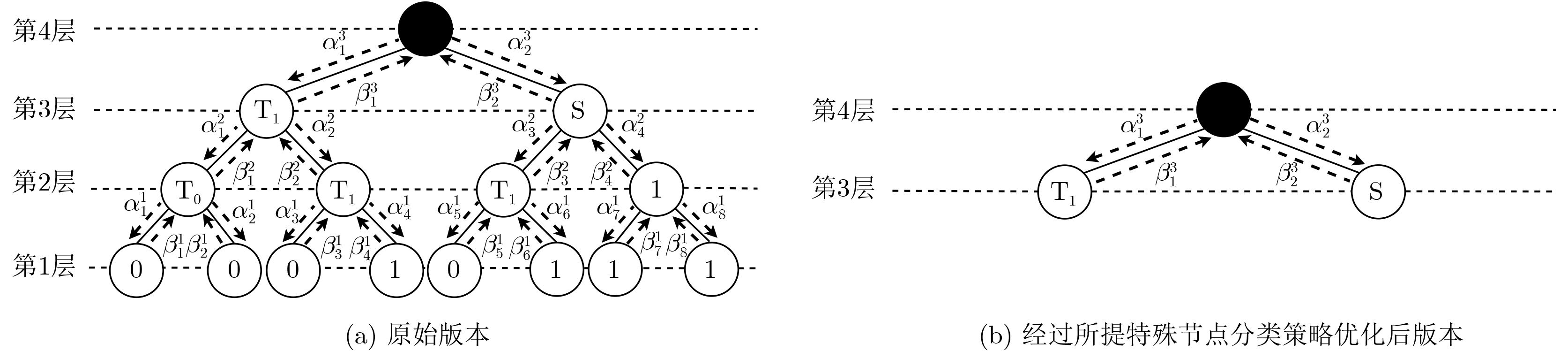

图 2 PAC码的译码码树($N = 8$,$K = 3$)

下载: 全尺寸图片幻灯片

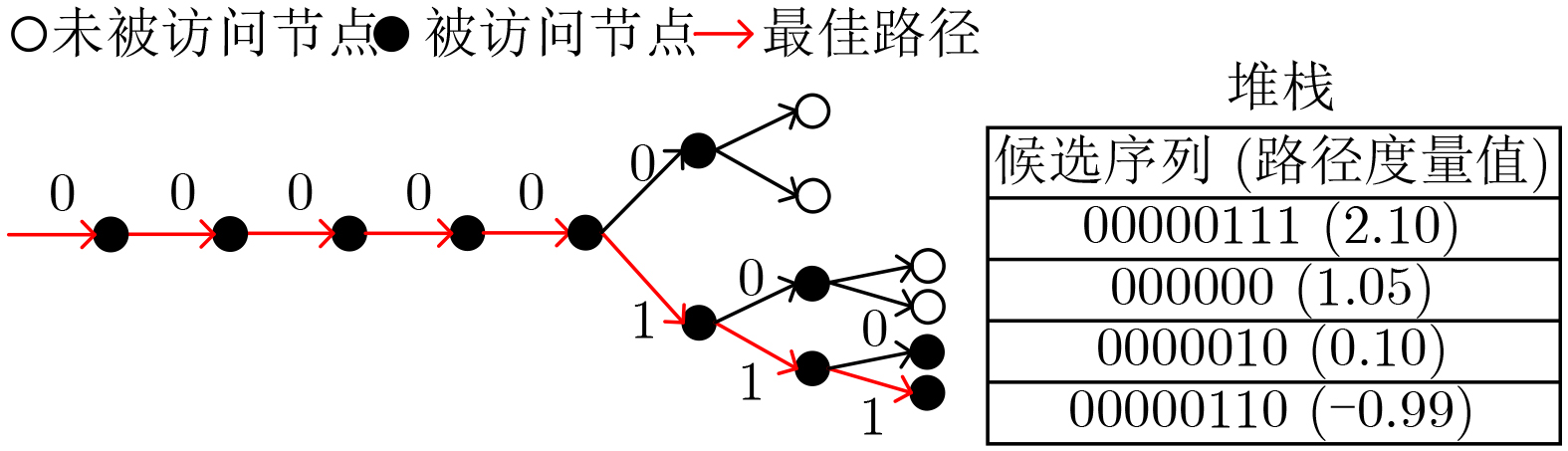

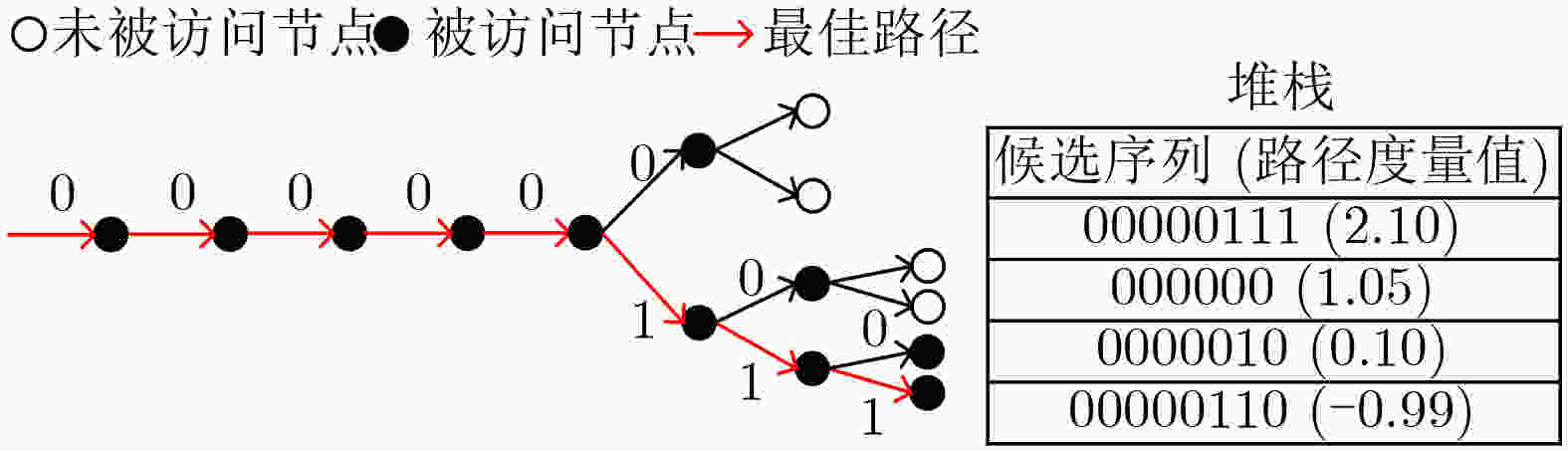

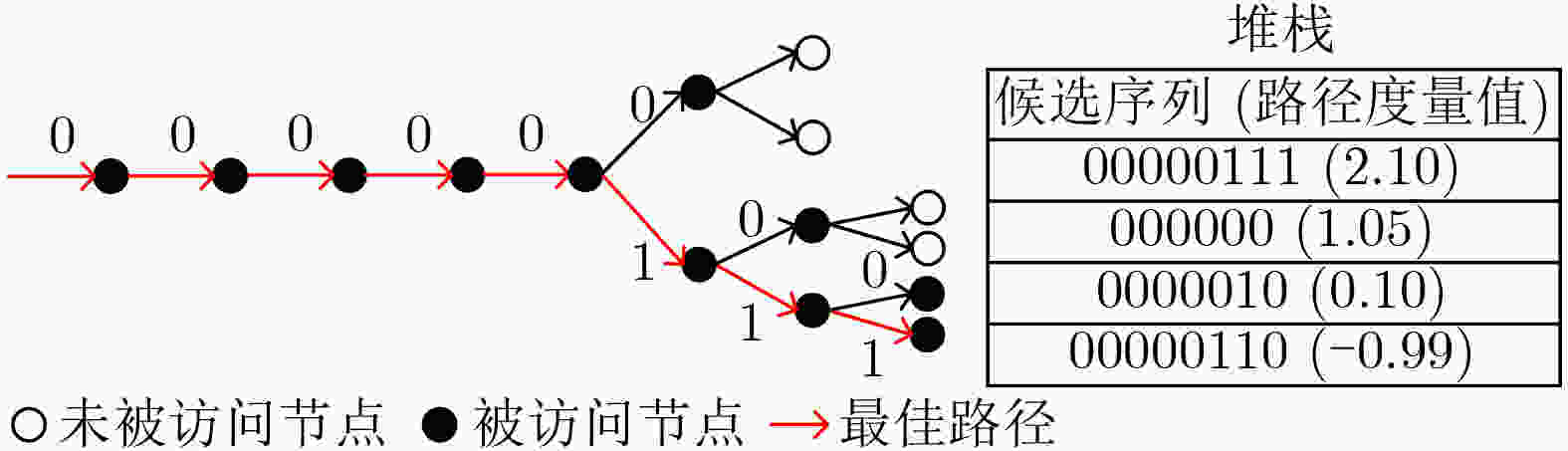

图 3 PAC码的堆栈译码算法译码过程($N = 8$,$K = 3$)

下载: 全尺寸图片幻灯片

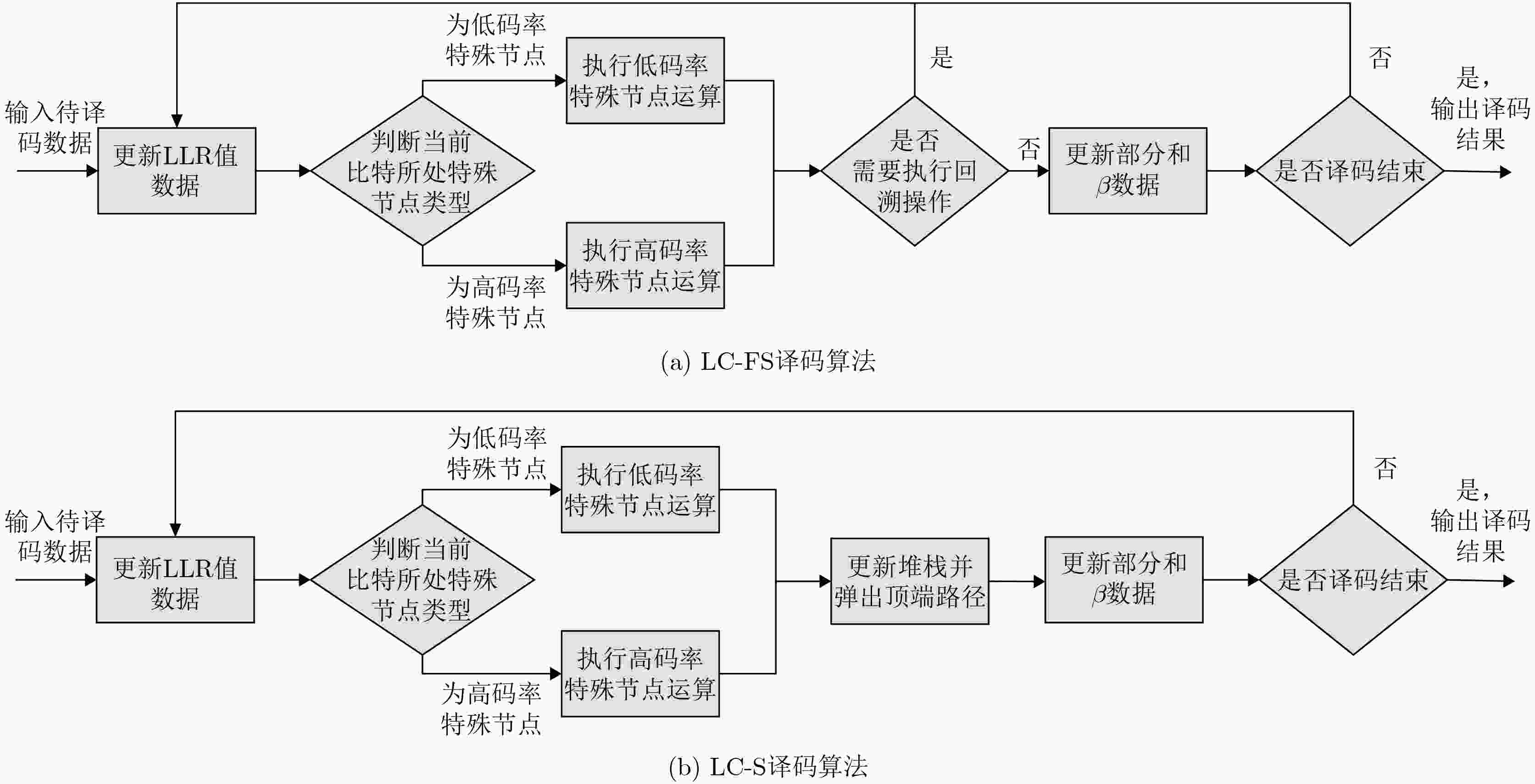

图 4 所提低复杂度序贯类译码算法译码流程图

下载: 全尺寸图片幻灯片

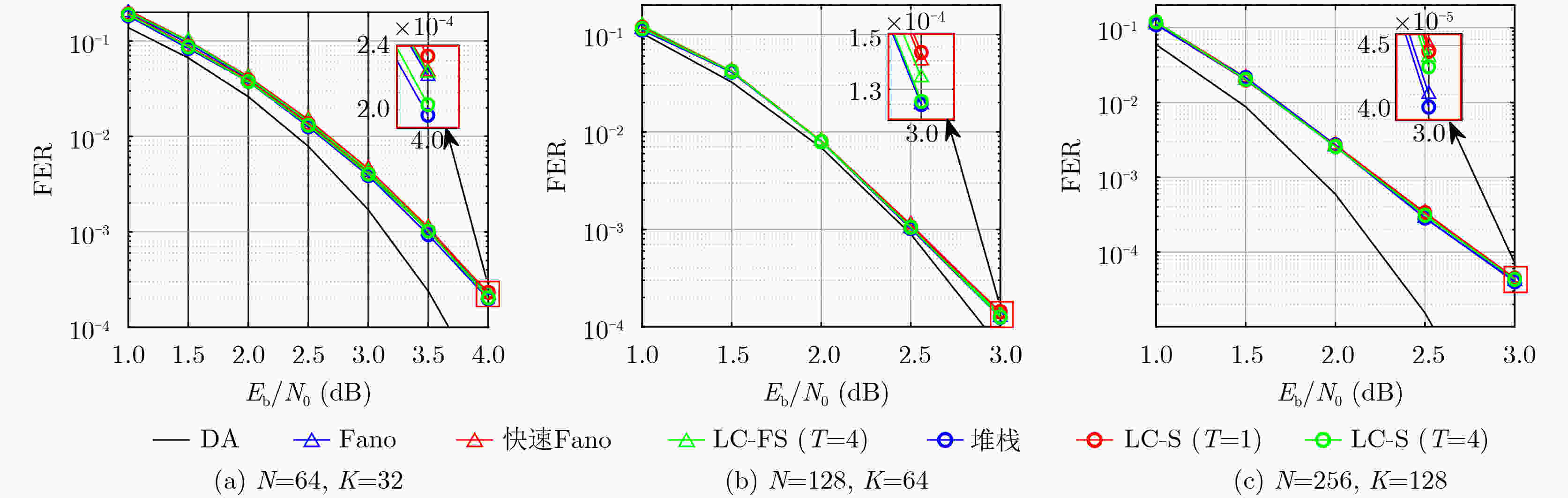

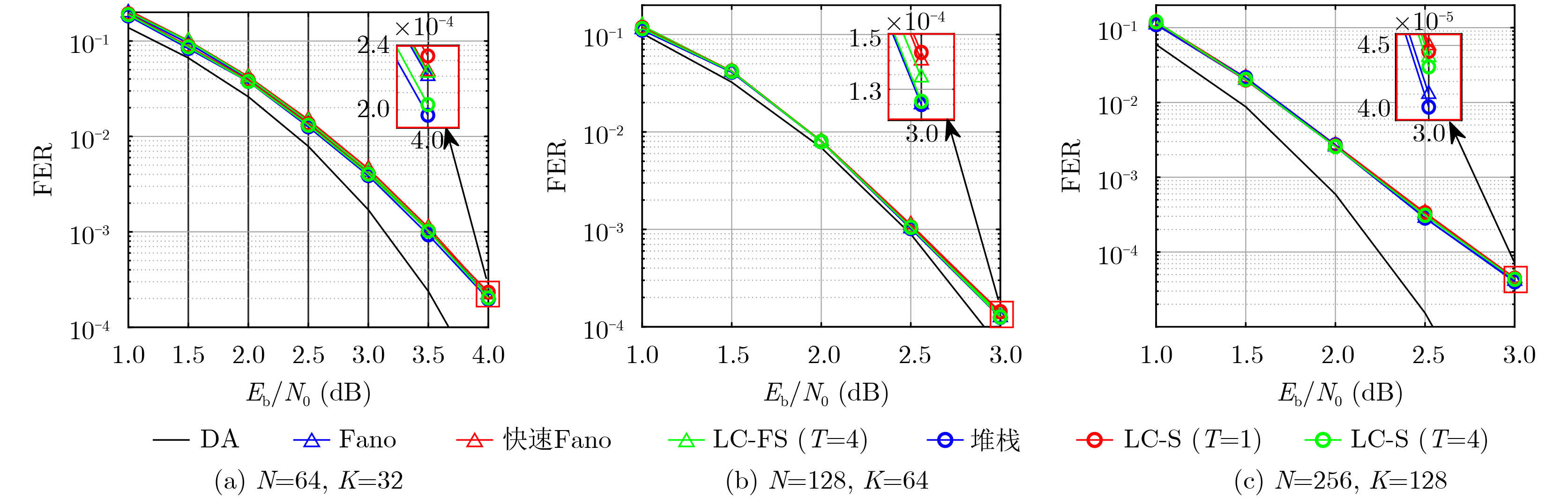

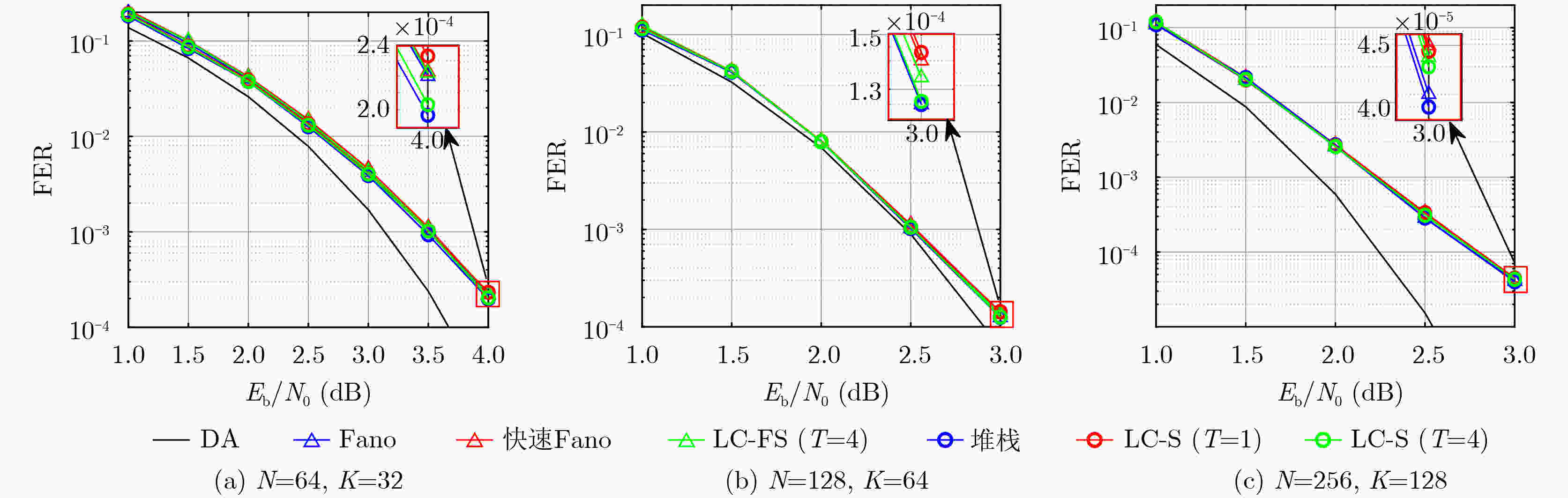

图 5 不同译码算法的纠错性能对比

下载: 全尺寸图片幻灯片

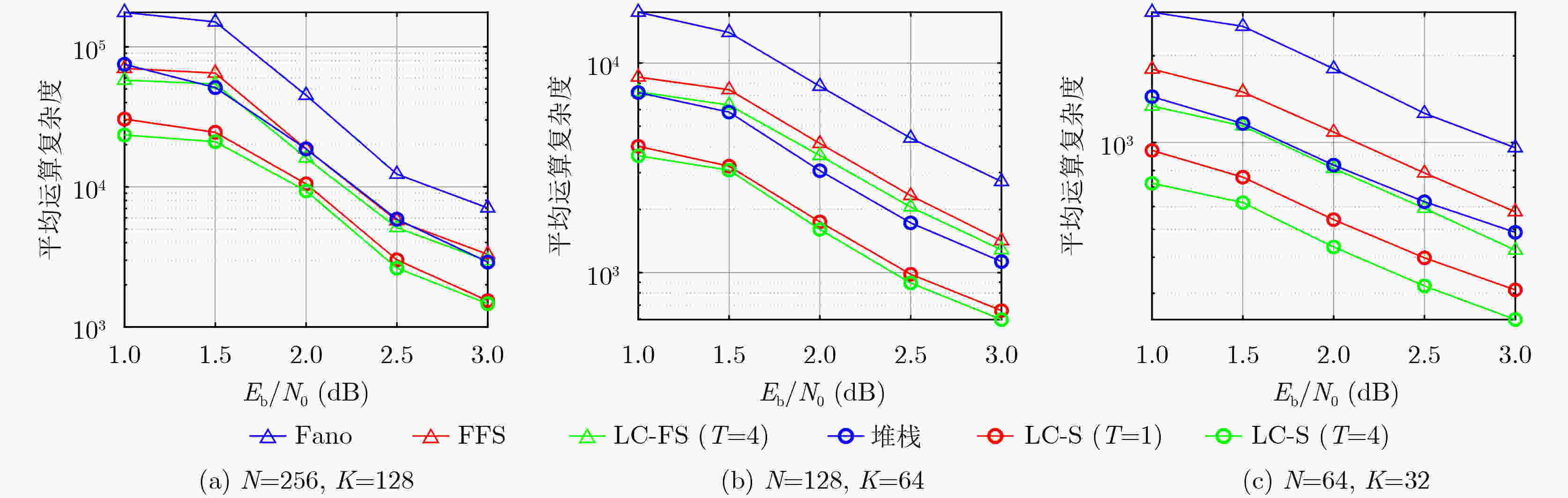

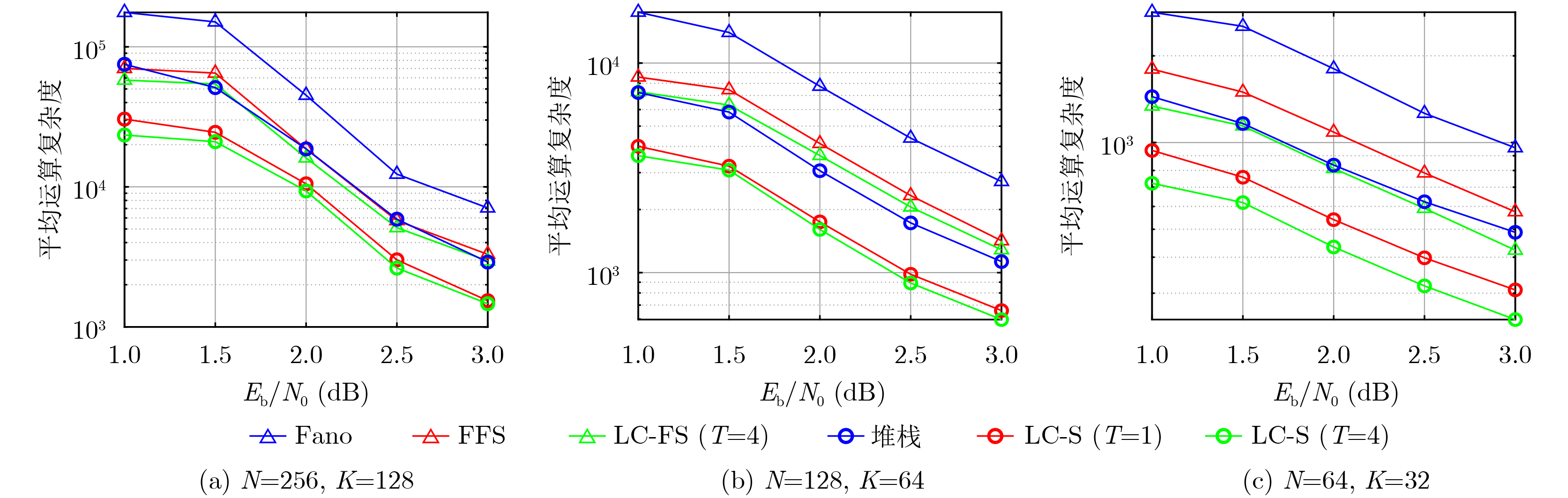

图 6 不同译码算法的平均运算复杂度对比

下载: 全尺寸图片幻灯片

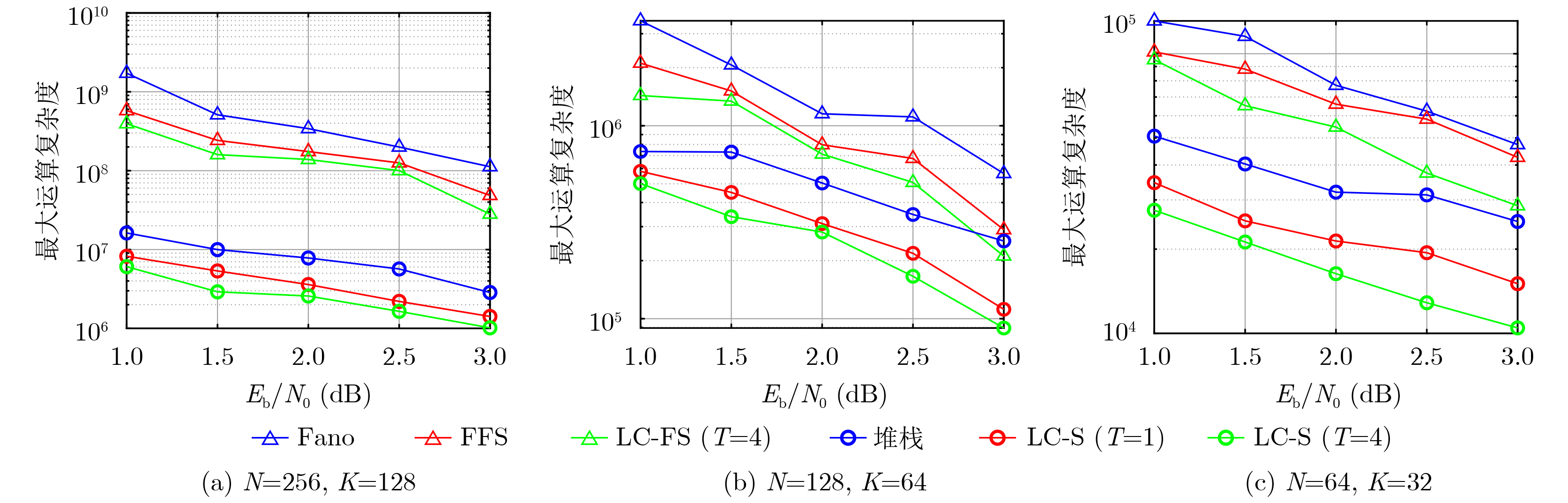

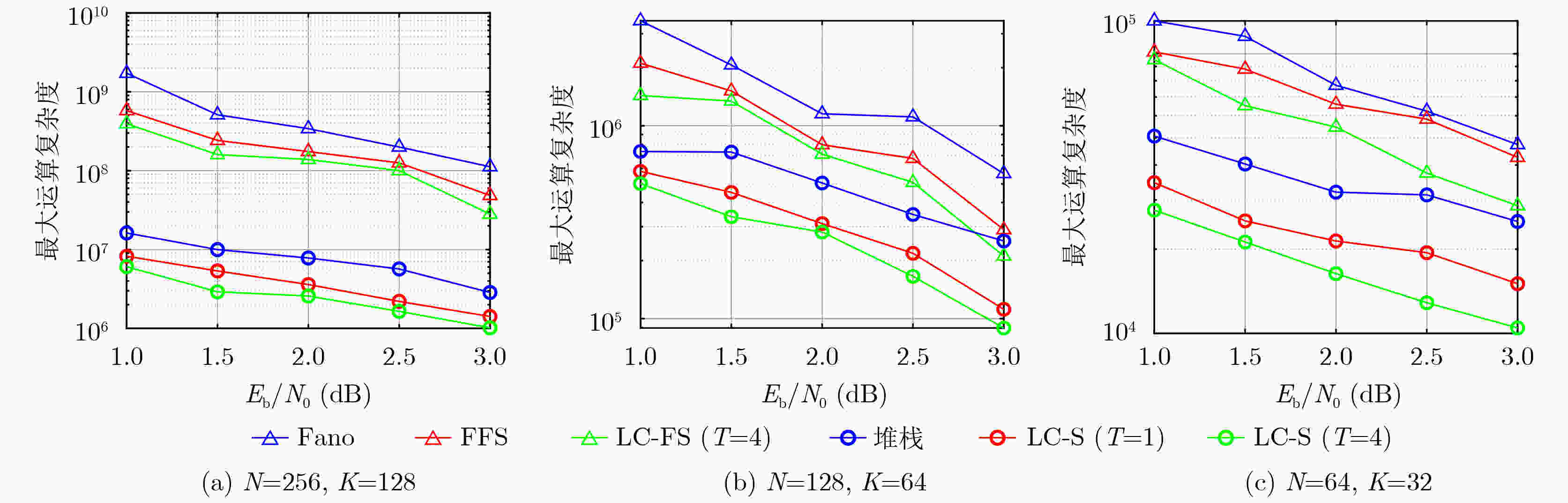

图 7 不同译码算法的最大运算复杂度对比

下载: 全尺寸图片幻灯片

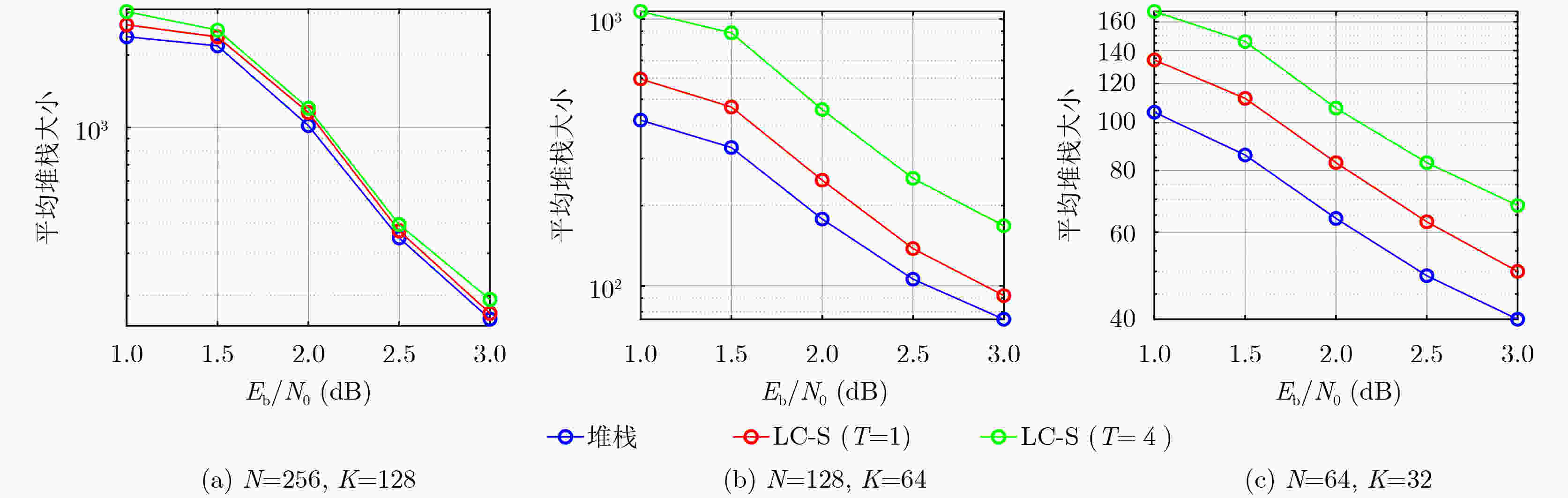

图 8 不同译码算法的平均堆栈大小对比

下载: 全尺寸图片幻灯片

1 低码率特殊节点的LC-FS译码算法

输入：译码位置参数$ {\text{count}} $，节点位置参数$ {\text{CNT}} $，路径选择系数$ \lambda $，特殊节点长度${N_r}$，特殊节点信息比特个数${K_r}$，Fano路径度量值　$ {\mathrm{PM}}_{{\mathrm{CNT}}}^F $，节点LLR向量$\alpha _w^h$，估计的消息向量$ \hat v $，卷积脉冲响应$ c $
输出：节点部分和向量$\beta _w^h$，$ {\mathrm{PM}}_{{\mathrm{CNT}}}^F $， $ \hat v $，$ {\mathrm{count}} $，$ {\mathrm{CNT}} $
初始化：$\chi = {2^{{K_r}}}$； $ {\hat v^\sigma } = \hat v $；${\mathrm{ PM}}_{{\mathrm{CNT}}}^{F,\sigma } = {\mathrm{PM}}_{{\mathrm{CNT}}}^F $；$ \sigma \in [1:{2^{{K_r}}}] $；
(1) if $count + {N_r} - 1 \in A$ do {$ \chi = \chi /2 $；}
(2) end if
(3) for $i = 1:{2^{{K_r}}}$ do
(4) 　if ${\mathrm{count}} + {N_r} - 1 \in A$ and $i \ge \chi $ do {$ {\hat v^i}[{\mathrm{count}} + {N_r} - 1] = 0 $；$ {\hat v^{i + \chi }}[{\mathrm{count}} + {N_r} - 1] = 1 $；$ \beta _w^{h,i + \chi } = 1 - \beta _w^{h,i} $；}
(5) 　else {$ {\hat v^i}[{\mathrm{count}}:{\mathrm{count}} + {N_r} - 1] = {\text{dec2bin}}(i - 1,{A_T},{N_r}) $； $ {\hat u^i} = {\mathrm{Conv}}({\hat v^i}[{\mathrm{count}}:{\mathrm{count}} + {N_r} - 1],c,{\mathrm{count}}) $； $ \beta _w^{h,i} = {\hat u^i} $；}
(6) 　end if
(7) 　for $j = 1:{N_r}$ do {$ {\mathrm{PM}}_{{\mathrm{CNT}}}^{F,i} = {{{\mathrm{PM}}\_{\mathrm{Com}}(}}{\mathrm{PM}}_{{\mathrm{CNT}}}^{F,i},\beta _w^{h,i}[j],\alpha _w^h[j]{\text{)}} $；}
(8) 　end for
(9) end for
(10) $ \partial = {\text{SortInd}}({\mathrm{PM}}_{{\mathrm{CNT}}}^{F,\sigma },'{\text{descend',}}\lambda [{\mathrm{CNT}}]) $；$ {\mathrm{PM}}_{{\mathrm{CNT}} + 1}^F = {\mathrm{PM}}_{{\mathrm{CNT}}}^{F,\partial } $； $\beta _w^h = \beta _w^{h,\partial }$；$ \hat v = {\hat v^\partial } $； $ {\mathrm{count}} = {\mathrm{count}} + {N_r} $；　$ {\mathrm{CNT}} = {\mathrm{CNT}} + 1 $。

下载: 导出CSV

2 高码率特殊节点的LC-FS译码算法

输入：译码位置参数$ count $，节点位置参数$ {\mathrm{CNT}} $，路径选择系数$ \lambda $，特殊节点长度${N_r}$，特殊节点起始比特位置$ {\text{node\_index}} $，Fano路径度　量值$ {\mathrm{PM}}_{{\mathrm{CNT}}}^F $，节点LLR向量$\alpha _w^h$，估计的消息向量$ \hat v $，卷积脉冲响应$ c $
输出：节点部分和向量$\beta _w^h$，$ {\mathrm{PM}}_{{\mathrm{CNT}}}^F $，$ \hat v $，$ count $，$ {\mathrm{CNT}} $
初始化：$ {\mathrm{count}} = {\mathrm{count}} + 1 $；$ i = {\mathrm{count}} - {\text{node\_index}} + 1 $；$\beta _w^{h,1}[i] = 0$；$\beta _w^{h,2}[i] = 1$；$ \sigma \in [1:2] $；
(1) $ {\mathrm{PM}}_{{\mathrm{CNT}}}^{F,1} = {{{\mathrm{PM}}\_{\mathrm{Com}}}}({\mathrm{PM}}_{{\mathrm{CNT}}}^F,\beta _w^{h,1}[i],\alpha _w^h[i]) $；$ {\mathrm{PM}}_{{\mathrm{CNT}}}^{F,2} = {\text{PM\_Com}}({\mathrm{PM}}_{{\mathrm{CNT}}}^F,\beta _w^{h,2}[i],\alpha _w^h[i]) $；
(2) if $i = = {N_r}$ do
(3) 　${\hat u^1} = \beta _w^{h,1}{F_{{N_r}}}$； $ {\hat u^2} = 1 - {\hat u^1} $；
(4) 　for $f = 1:2$ do
(5) 　　if 特殊节点为SPC节点 do {$ {\text{test\_bit}} = {\text{Conv1bit}}([\hat v[1:{\text{start\_bit}} - 1],0],{\text{node\_index}},c) $；$ {\text{SPC\_Flag}} = {\text{test\_bit}} \oplus {\text{sum}}(\beta _w^{h,f}) $；}
(6) 　　end if
(7) 　　if 特殊节点为SPC节点 and $ {\text{SPC\_Flag}} = = 1 $ do {$ {\mathrm{PM}}_{{\mathrm{CNT}}}^{F,f} = - \infty $；}
(8) 　　else
(9) 　　　for $j = 1:{N_r}$ do {$ {\hat v^f}[1:{\text{node\_index}} + j - 1] = {\mathrm{ReConv1bit}}([{\hat v^f}[1:{\text{start\_bit}} + j - 2],0],{\hat u^f}[j],{\text{node\_index}} + j - 1,c) $；}
(10) 　　 end for
(11) 　 end if
(12) end for
(13)end if
(14)$ \partial = {\text{SortInd}}({\mathrm{PM}}_{{\mathrm{CNT}}}^{F,\sigma },'{\text{descend}}',\lambda [{\mathrm{CNT}}]) $；$ {\mathrm{PM}}_{{\mathrm{CNT}} + 1}^F = {\mathrm{PM}}_{{\mathrm{CNT}}}^{F,\partial } $；$\beta _w^h = \beta _w^{h,\partial }$；$ \hat v = {\hat v^\partial } $；$ {\mathrm{CNT}} = {\mathrm{CNT}} + 1 $。

下载: 导出CSV

3 LC-FS译码算法

输入：初始LLR值向量$ y $，Fano路径阈值$ M $，Fano路径移动值$ \Delta $，路径选择系数$ \lambda $，路径选择系数阈值向量$ {\lambda ^{\max }} $，卷积脉冲响应$ c $
输出：估计的消息向量$ \hat v $
初始化：${\mathrm{count}} = 1$；${\mathrm{CNT}} = 1$；${\text{Move\_Flag}} = 0$；
(1) while ${\mathrm{count}} \lt = N$ do
(2) 　$ \lambda [{\mathrm{CNT}}] = 1 $
(3) 　while $1$ do
(4) 　　根据公式(5)～(6)得出向量$\alpha _w^h$；
(5) 　　if ${\mathrm{CNT}}$位于低码率特殊节点 do {调用算法1；}
(6) 　　elseif ${\mathrm{CNT}}$位于高码率特殊节点 do {调用算法2；}
(7) 　　end if
(8) 　　if $ {\mathrm{PM}}_{{\mathrm{CNT}}}^F > M $ do
(9) 　　　if $ {\mathrm{PM}}_{{\mathrm{CNT}} - 1}^F \lt M + \Delta $ and ${\mathrm{ CNT}} \gt 1 $ do
(10) 　　 while $ {\mathrm{PM}}_{{\mathrm{CNT}}}^F \gt M + \Delta $ do {$M = M + \Delta $；}
(11) 　　 end while
(12) 　 end if
(13) 　 ${\text{Move\_Flag}} = 1$；${\mathrm{CNT}} = {\mathrm{CNT}} + 1$；break；
(14) else
(15) 　 ${\text{break\_flag}} = 0$
(16) 　 while $ 1 $ do
(17) 　　 if $ {\mathrm{PM}}_{{\mathrm{CNT}} - 2}^F \lt M $ and $ {\mathrm{CNT}} > 2 $ do {$M = M - \Delta $；${\text{break\_flag}} = 1$；${\text{Move\_Flag}} = 1$；break；}
(18) 　　 else
(19) 　　　 ${\mathrm{CNT}} = {\mathrm{CNT}} - 1$；${\text{Move\_Flag}} = 0$；
(20) 　　　 if $ \lambda [{\mathrm{CNT}}] < {\lambda ^{\max }}[{\mathrm{CNT}}] $ do {$ \lambda [{\mathrm{CNT}}] = \lambda [{\mathrm{CNT}}] + 1 $；break；}
(21) 　　　 else {continue；}
(22) 　　　 end if
(23) 　　 end if
(24) 　 end while
(25) 　 if ${\text{break\_flag}}$ do {break；}
(26) 　 end if
(27) end if
(28) if ${\text{Move\_Flag}}$ do {根据公式(7)更新向量$ \beta _w^h $；}
(29) end if
(30) end while
(31) end while

下载: 导出CSV

4 低码率特殊节点的LC-S译码算法

输入：译码位置参数$ count $，节点位置参数$ {\mathrm{CNT}} $，特殊节点长度${N_r}$，特殊节点信息比特个数${K_r}$，堆栈路径度量值$ {\mathrm{PM}}_{{\mathrm{CNT}}}^S $，节点LLR向　量$\alpha _w^h$，估计的消息向量$ \hat v $，堆栈中路径的数目${S_{{\text{num}}}}$，堆栈大小$S$，堆栈$\Upsilon $，卷积脉冲响应$ c $
输出：节点部分和向量$\beta _w^h$， $ \hat v $，$ count $，$ {\mathrm{CNT}} $，${S_{{\text{num}}}}$，$ {\mathrm{PM}}_{{\mathrm{CNT}}}^S $
初始化：$\chi = {2^{{K_r}}}$；$ {\hat v^\sigma } = \hat v $；$ {\mathrm{PM}}_{{\mathrm{CNT}}}^{S,\sigma } = {\mathrm{PM}}_{{\mathrm{CNT}}}^S $；$ \sigma \in [1:{2^{{K_r}}}] $；
(1)执行算法1中步骤(1)～(2)；
(2)for $i = 1:{2^{{K_r}}}$ do
(3) 　执行算法1中步骤(4)～(6)；
(4) 　for $j = 1:{N_r}$ do {$ {\mathrm{PM}}_{{\mathrm{CNT}}}^{S,i} = {\text{PM\_Com(}}{\mathrm{PM}}_{C{\mathrm{}}NT}^{S,i},\beta _w^{h,i}[j],\alpha _w^h[j]{\text{)}} $；}
(5) 　end for
(6) end for
(7) $ \Upsilon = {\text{S\_Push(}}\Upsilon ,{\mathrm{PM}}_{{\mathrm{CNT}}}^{S,\sigma },\beta _w^{h,\sigma },\alpha _w^h{\text{)}} $；$ {\text{S\_Sort(}}\Upsilon {\text{)}} $；$ {\mathrm{count}} = {\mathrm{count}} + {N_r} $；$ {\mathrm{CNT}} = {\mathrm{CNT}} + 1 $；$ {S_{{\text{num}}}} = {S_{{\text{num}}}} + {2^{{K_r}}} $；
(8) if ${S_{{\text{num}}}} \gt S$ do {$ \Upsilon = {\text{S\_Delete(}}\Upsilon ,{S_{{\text{num}}}} - S{\text{)}} $；${S_{{\text{num}}}} = S$；}
(9) end if

下载: 导出CSV

5 高码率特殊节点的LC-S译码算法

输入：译码位置参数$ {\mathrm{count}} $，节点位置参数$ {\mathrm{CNT}} $，特殊节点长度${N_r}$，特殊节点信息比特个数${K_r}$，堆栈路径度量值$ {\mathrm{PM}}_{{\mathrm{CNT}}}^S $，节点LLR向　量$\alpha _w^h$，估计的消息向量$ \hat v $，堆栈中路径的数目${S_{{\text{num}}}}$，堆栈大小$S$，堆栈$\Upsilon $，卷积脉冲响应$ c $
输出：堆栈路径度量值$ {\mathrm{PM}}_{{\mathrm{CNT}}}^S $，节点部分和向量$\beta _w^{h,i}$， $ \hat v $，$ {\mathrm{count}} $，$ {\mathrm{CNT}} $，${S_{{\text{num}}}}$
初始化：$ {\mathrm{count}} = {\mathrm{count}} + 1 $；$ i = {\mathrm{count}} - {\text{node\_index}} + 1 $；$\beta _w^{h,1}[i] = 0$；$\beta _w^{h,2}[i] = 1$；
(1) $ {\mathrm{PM}}_{{\mathrm{CNT}}}^{S,1} = {\text{PM\_Com(}}PM_{CNT}^S,\beta _w^{h,1}[i],\alpha _w^h[i]{\text{)}} $；$ {\mathrm{PM}}_{{\mathrm{CNT}}}^{S,2} = {\text{PM\_Com(}}PM_{CNT}^S,\beta _w^{h,2}[i],\alpha _w^h[i]{\text{)}} $；
(2) 执行算法2中步骤(2)～(13)；
(3) $ \Upsilon = {\text{S\_Push(}}\Upsilon ,PM_{CNT}^{S,\sigma },\beta _w^{h,\sigma },\alpha _w^h{\text{)}} $；$ {\text{S\_Sort(}}\Upsilon {\text{)}} $；$ {\mathrm{CNT}} = {\mathrm{CNT}} + 1 $；${S_{{\text{num}}}} = {S_{{\text{num}}}} + 1$；
(4) if ${S_{{\text{num}}}} \gt S$ do {$ \Upsilon = {\text{S\_Delete(}}\Upsilon ,{S_{{\text{num}}}} - S{\text{)}} $；${S_{{\text{num}}}} = S$；}
(5) end if

下载: 导出CSV

6 LC-S译码算法

输入：初始LLR值向量$ y $，堆栈大小$S$，堆栈$\Upsilon $，卷积脉冲响应$ c $
输出：估计的消息向量$ \hat v $
初始化：$count = 1$；$CNT = 1$；
(1) while ${\mathrm{count}} < = N$ do
(2) 　根据公式(5)～(6)得出向量$\alpha _w^h$；
(3) 　if $CNT$位于低码率特殊节点 do {调用算法4；}
(4) 　elseif ${\mathrm{CNT}}$位于高码率特殊节点 do {调用算法5；}
(5) 　end if
(6) 　$ {\text{S\_Pop(}}\Upsilon {\text{)}} $；根据公式(7)更新向量$ \beta _w^h $；
(7) end while

下载: 导出CSV

表 1 仿真测试条件

参数	配置	参数	配置
调制方式	二进制相移键控	堆栈大小$S$	$ \infty $
传输信道	加性高斯白噪声信道	卷积长度$m$	7
阈值间距参数$\Delta $	2	卷积脉冲响应${c}$	$(1,0,1,1,0,1,1)$

下载: 导出CSV

表 2 不同译码算法的内存占用对比

译码算法	LLR向量	部分和向量	消息向量	路径度量值	路径选择系数	神经网络参数
Fano	$N{\log _2}(N){Q_\alpha }$	$N - 1$	$N$	$N{Q_{{\text{PM}}}}$	$N$	0
NN-LC^[16]	$L\displaystyle\sum\nolimits_{i = 1}^{{I_{{\text{pro}}}}} {N_{{\text{pro}}}^i{{\log }_2}(N_{{\text{pro}}}^i)} {Q_\alpha }$	$L(N - N_{{\text{pro}}}^{'})$	$LN$	$\max (L,{Y_{{\text{pro}}}}){Q_{{\text{PM}}}}$	$N$	${N_{{\text{NN}}}}{Q_{{\text{MM}}}}$
FFS^[18]	$ \displaystyle\sum\nolimits_{i = 1}^{{I_{{\text{fast}}}}} {N_{{\text{fast}}}^i{{\log }_2}} (N_{{\text{fast}}}^i){Q_\alpha } $	$N - N_{{\text{fast}}}^{'}$	$N$	${Y_{{\text{fast}}}}{Q_{{\text{PM}}}}$	$N$	0
LC-FS	$ \displaystyle\sum\nolimits_{i = 1}^{{I_{{\text{pro}}}}} {N_{{\text{pro}}}^i{{\log }_2}} (N_{{\text{pro}}}^i){Q_\alpha } $	$N - N_{{\text{pro}}}^{'}$	$N$	${Y_{{\text{pro}}}}{Q_{{\text{PM}}}}$	$N$	0
堆栈	${S_{{\text{final}}}}N{\log _2}(N){Q_\alpha }$	${S_{{\text{final}}}}(N - 1)$	$\displaystyle\sum\nolimits_{i = 1}^{{S_{{\text{final}}}}} {N_{{\text{stack}}}^i} $	${S_{{\text{final}}}}{Q_{{\text{PM}}}}$	0	0
LC-S	$ {S_{{\text{final}}}}\displaystyle\sum\nolimits_{i = 1}^{{I_{{\text{pro}}}}} {N_{{\text{pro}}}^i{{\log }_2}(N_{{\text{pro}}}^i)} {Q_\alpha } $	$ {S_{{\text{final}}}}(N - N_{{\text{pro}}}^{'}) $	$ \displaystyle\sum\nolimits_{i = 1}^{{S_{{\text{final}}}}} {N_{{\text{stack}}}^i} $	${S_{{\text{final}}}}{Q_{{\text{PM}}}}$	0	0

下载: 导出CSV
