针对KASLR绕过的脆弱性指令挖掘

李周阳; 邱朋飞; 卿昱; 王春露; 汪东升

doi:10.11999/JEIT250366

针对KASLR绕过的脆弱性指令挖掘

doi: 10.11999/JEIT250366 cstr: 32379.14.JEIT250366

李周阳^{1, 2, 3},
邱朋飞^{1, 2, 3, ,},
卿昱³,
王春露^{1, 2},
汪东升^{3, 4}

1.
北京邮电大学网络空间安全学院北京 100876
2.
北京邮电大学可信分布式计算与服务教育部重点实验室北京 100876
3.
中关村实验室北京 100194
4.
清华大学计算机科学与技术系北京 100084

基金项目: 国家重点研发计划青年科学家项目(2023YFB4403000)，国家自然科学基金 (62372258)，北京市自然科学基金 (4242026)

详细信息

作者简介:
李周阳：男，博士生，研究方向为处理器安全

邱朋飞：男，副教授，研究方向为处理器安全

卿昱：女，研究员，研究方向为处理器安全

王春露：女，教授，研究方向为计算机体系结构

汪东升：男，教授，研究方向为计算机体系结构、高性能计算和系统安全

通讯作者:
邱朋飞　qpf@bupt.edu.cn

中图分类号: TP309
计量
- 文章访问数: 68
- HTML全文浏览量: 40
- PDF下载量: 5
- 被引次数: 0
出版历程
- 收稿日期: 2025-05-06
- 修回日期: 2025-08-11
- 网络出版日期: 2025-08-28

Automated Discovery of Exploitable Instruction Patterns for KASLR Circumvention

LI Zhouyang^{1, 2, 3},
QIU Pengfei^{1, 2, 3
, ,},
QING Yu³,
WANG Chunlu^{1, 2},
WANG Dongsheng^{3, 4}

1.
School of Cyberspace Security, Beijing University of Posts and Telecommunications, Beijing 100876, China
2.
Key Laboratory of Trustworthy Distributed Computing and Service (BUPT), Ministry of Education, Beijing 100876, China
3.
Zhongguancun Laboratory, Beijing 100194, China
4.
Tsinghua University, Beijing 100084, China

Funds: The National Key Research and Development Program of China (2023YFB4403000), The National Natural Science Foundation of China (62372258), Beijing Natural Science Foundation (4242026)

摘要

摘要: 现代操作系统采用内核地址空间随机化(KASLR)技术来抵御内核代码重用攻击。处理器微架构侧信道能够泄漏内核代码段的页表信息，进而可以被用来绕过KASLR 保护，但是现有研究局限于MOV, CMASKMOV, PREFETCHNTA和CLDEMOTE等少数的几条指令来探测内核地址，攻击面有限。为系统评估KASLR攻击面，该文从指令多样性出发，设计一个自动化分析框架，挖掘可以绕过 KASLR 保护并暴露计算机系统安全脆弱性的指令。该框架不需要逆向微架构部件的实现细节，专注于攻击任务本身，首先将攻击流程抽象为环境准备、内存探测、微架构信息记录和差分分析的4个阶段，然后定位绕过 KASLR 保护的关键攻击代码，最后研究不同指令在替换关键代码后的攻击效果。该文分别从指令的汇编形式和字节形式出发提出两套KASLR攻击面的评估算法，互相验证和补充。实验结果表明，该文在Intel x86指令集挖掘出699条可实现KASLR绕过的汇编指令，相比现有研究依赖的6条指令，实现了KASLR脆弱性指令的跨数量级增长。此外，从字节形式出发的实验数据表明，Intel x86指令集有39个单字节操作码、121个双字节操作码和24个3字节操作码指令可以实现KASLR绕过。该文的发现不仅显著扩展了KASLR的攻击面，更为基于特征检测的防御机制带来挑战和新思路。
- 硬件安全 /
- 处理器微架构安全 /
- 脆弱性指令 /
- 内核地址空间随机化
Abstract: Objective Kernel Address Space Layout Randomization (KASLR) remains a core defense against kernel-level exploits; however, its robustness is increasingly undermined by microarchitectural side-channel attacks that exploit specific processor instructions. Existing research has largely concentrated on isolated attack vectors, lacking a systematic evaluation of the entire x86 instruction set. This study addresses this limitation by developing an automated framework to identify and characterize KASLR-bypass instructions comprehensively, assess their attack efficacy across multiple Intel processor generations, and derive defensible instruction patterns to inform the reinforcement of current security mechanisms. Methods This study systematically addresses three core challenges in analyzing instruction-level mechanisms for bypassing KASLR. The first challenge is achieving comprehensive coverage of the x86 Instruction Set Architecture (ISA), which includes thousands of historical and modern instructions characterized by variable-length encoding and complex microarchitectural dependencies. To address this, the proposed framework combines static and dynamic analysis. Instruction semantics are extracted statically from Intel Software Developer Manuals and uops.info XML datasets. Dynamic profiling on Intel Core processors is used to verify instruction support across processor generations. Byte-level pattern matching is applied to accurately handle variable-length encodings. The second challenge concerns the generation of attack-compliant machine code that satisfies strict encoding requirements and bypasses compiler-level checks. This is achieved using a template-driven approach, which modifies a CLFLUSH-based attack prototype by replacing inline assembly instructions through pattern substitution. Memory operands are redirected to target addresses preloaded into the EDX register, with boundary values used to ensure operand validity. For nonstandard or undocumented instructions, self-modifying code techniques dynamically inject opcodes at runtime, thereby bypassing compiler restrictions and enabling broader instruction coverage. The third challenge focuses on evaluating attack effectiveness through accurate localization of kernel symbols. To this end, the framework applies a dual-verification strategy. RDTSC instructions are used to timestamp memory probes across 512 predefined address slots. Differential timing analysis identifies latency outliers (i.e., maximum and minimum values), indicating potential KASLR bypasses. Signal handlers suppress exceptions caused by access to privileged or unmapped memory regions, while debug symbol cross-referencing is used to confirm actual kernel address leakage. All generated code undergoes Monte Carlo simulation to reduce false positives and ensure statistical robustness. Results and Discussions Experiments are performed on Intel Core i7-11700K, i7-12700K, and i7-13700 processors (Table 1). In the Assembly-Level Instruction Analysis (Fig. 4), 699 assembly instructions are identified as effective KASLR bypass vectors on the i7-11700K. Variations in support for AVX512 instruction set extensions account for differences in the attack surface, with the number of effective instructions decreasing slightly to 542 on the i7-12700K and 547 on the i7-13700, reflecting minor microarchitectural differences. In the Byte-Level Instruction Analysis (Table 2), 39 one-byte, 121 two-byte, and 24 three-byte opcodes are found to bypass KASLR without relying on predefined assembly semantics. These opcodes demonstrate consistent attack efficacy across all evaluated processors, indicating similar behavioral patterns across Intel architectures. Overall, the results—supported by (Fig. 4, Table 2, Table 3)—demonstrate two principal findings: comprehensive coverage of the x86 ISA and cross-generation consistency of effective KASLR bypass instructions. Although the current study focuses on Intel processors, the findings raise open questions regarding the vulnerability of AMD processors that share the same ISA, as well as ARM-based platforms used in Android devices and Apple M series chips. Future work is intended to extend the framework to analyze KASLR bypass vectors on non-Intel architectures. Furthermore, an automated analysis framework is proposed to assess KASLR attack efficacy through differential analysis. To enhance detection across heterogeneous architectures and instruction sets, future efforts will incorporate data preprocessing techniques to improve the scalability and precision. Conclusions KASLR remains a critical defense against kernel memory exploitation; however, its resilience is increasingly challenged by instruction-dependent microarchitectural side-channel attacks. This study presents an automated framework that systematically identifies potential KASLR-bypass instructions, quantifies their attack effectiveness across multiple Intel processor generations, and derives actionable defense signatures to address emerging threats. The findings reveal a significantly underestimated attack surface: hundreds of x86 instructions, at both the assembly and byte levels, are capable of leaking sensitive address information. The broader implications of this work are threefold: (1) Defensive Improvement: The experimental results may be directly applied to enhance signature-based detection systems. (2) Hardware–Software Co-Design: The consistent vulnerability observed across Intel microarchitectures highlights the need to redesign timing isolation mechanisms at the hardware level. (3) Methodological Contribution: The proposed dual-analysis framework offers a generalizable approach for evaluating instruction-level attack surfaces, with applicability to other contexts such as cache-based side-channel attacks. Future research will extend this methodology to alternative architectures, including ARM and RISC-V, and explore the integration of machine learning techniques.
- Hardware security /
- Microarchitectural side-channel attacks /
- Instructions /
- Kernel address space layout randomization

HTML全文

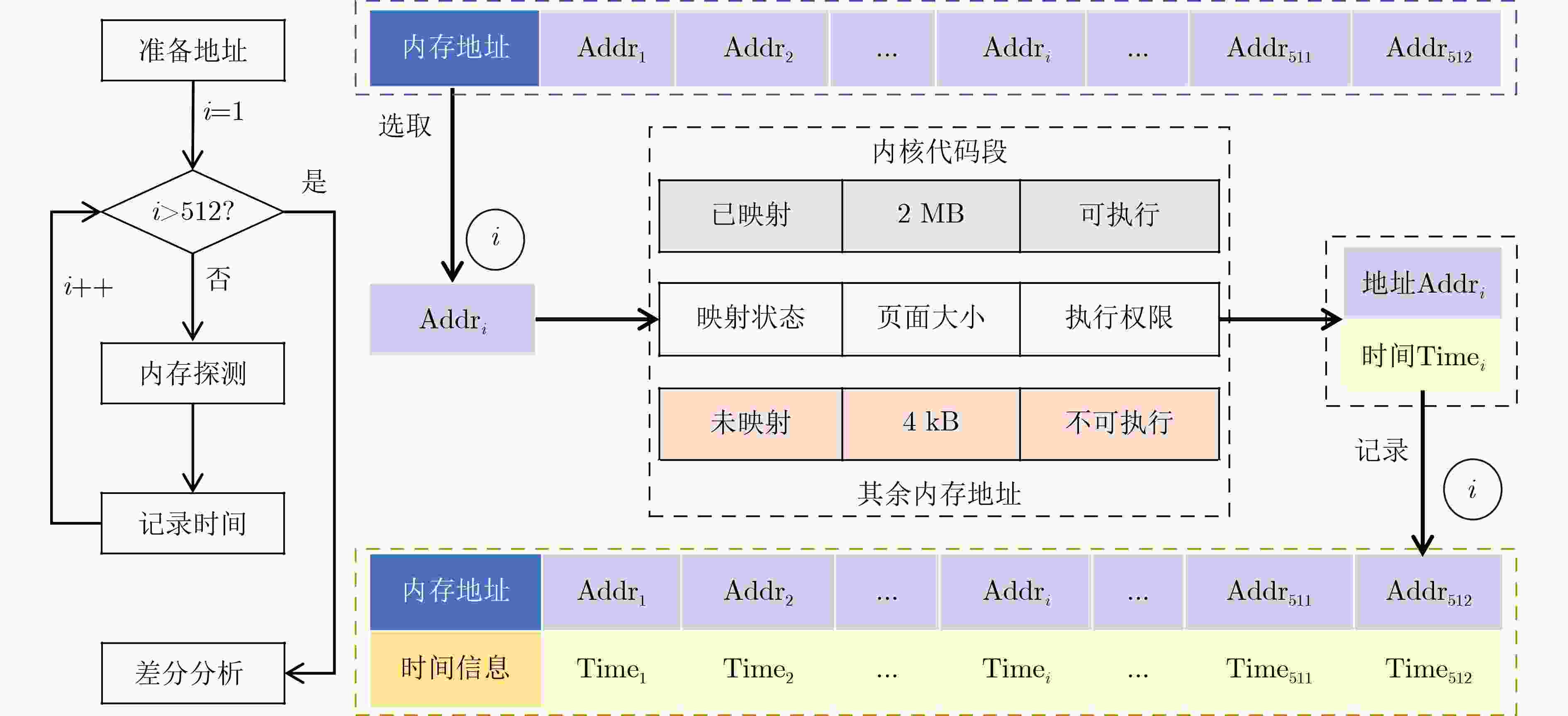

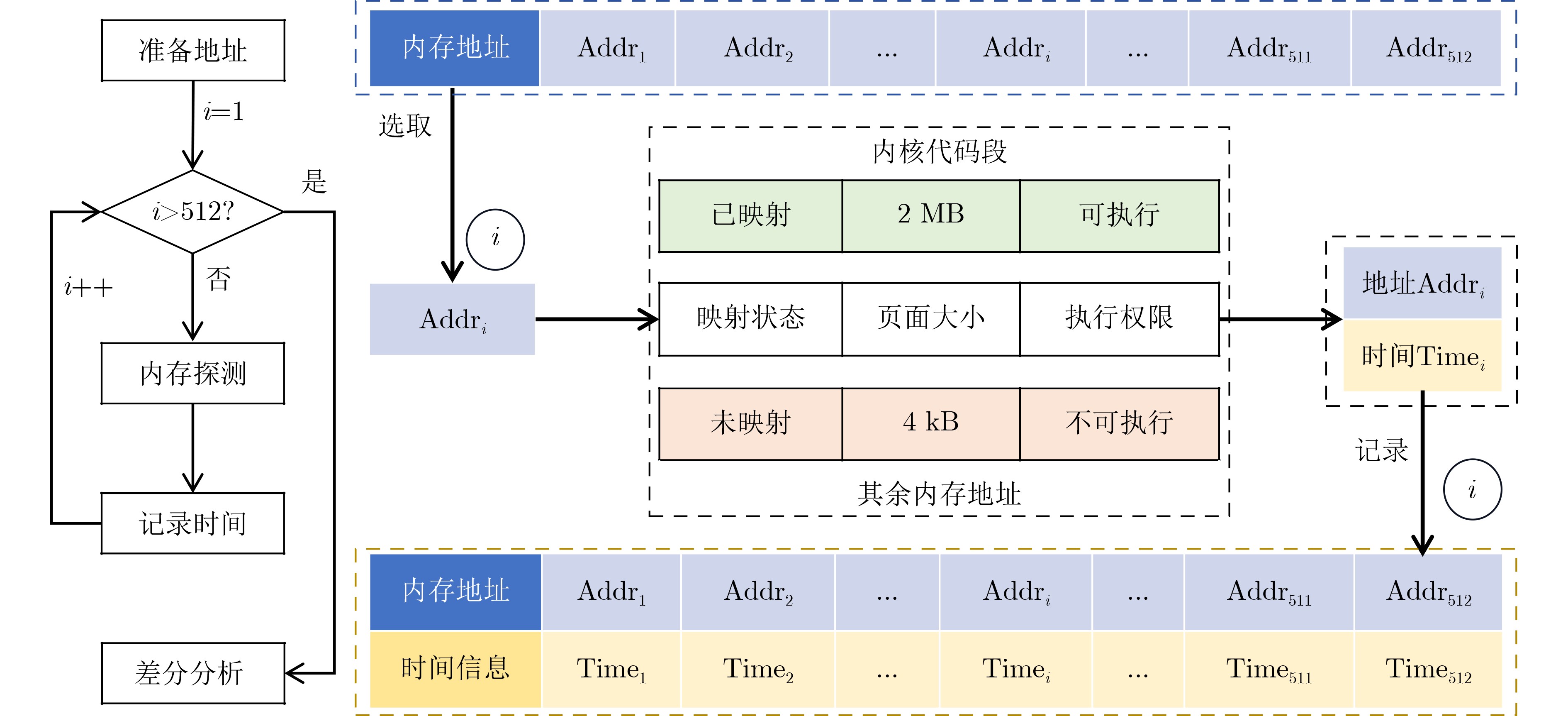

图 1 基本 KASLR 绕过攻击

下载: 全尺寸图片幻灯片

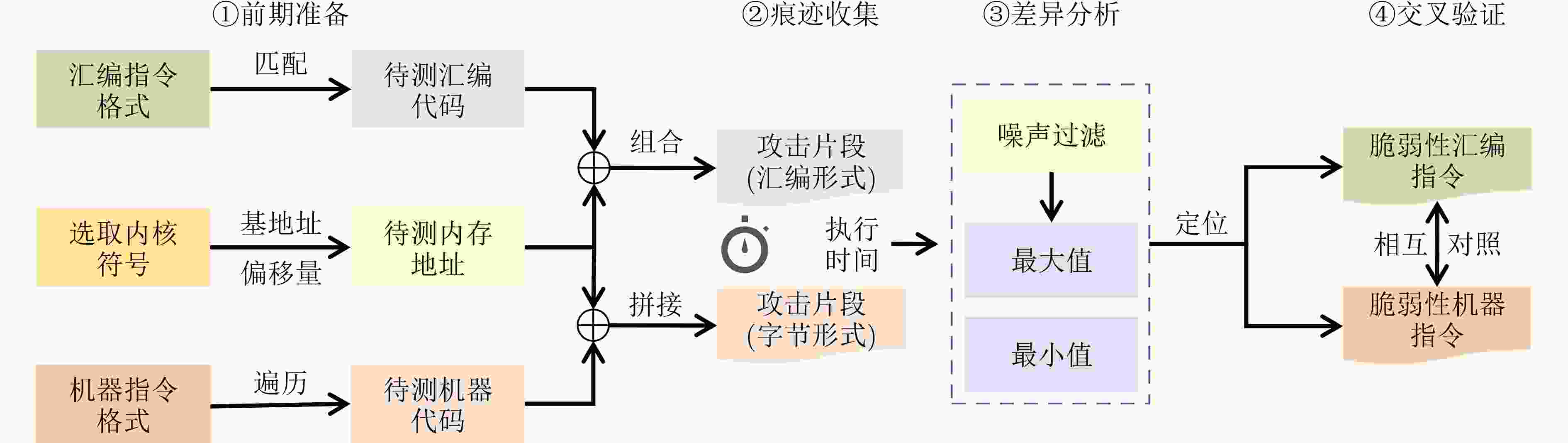

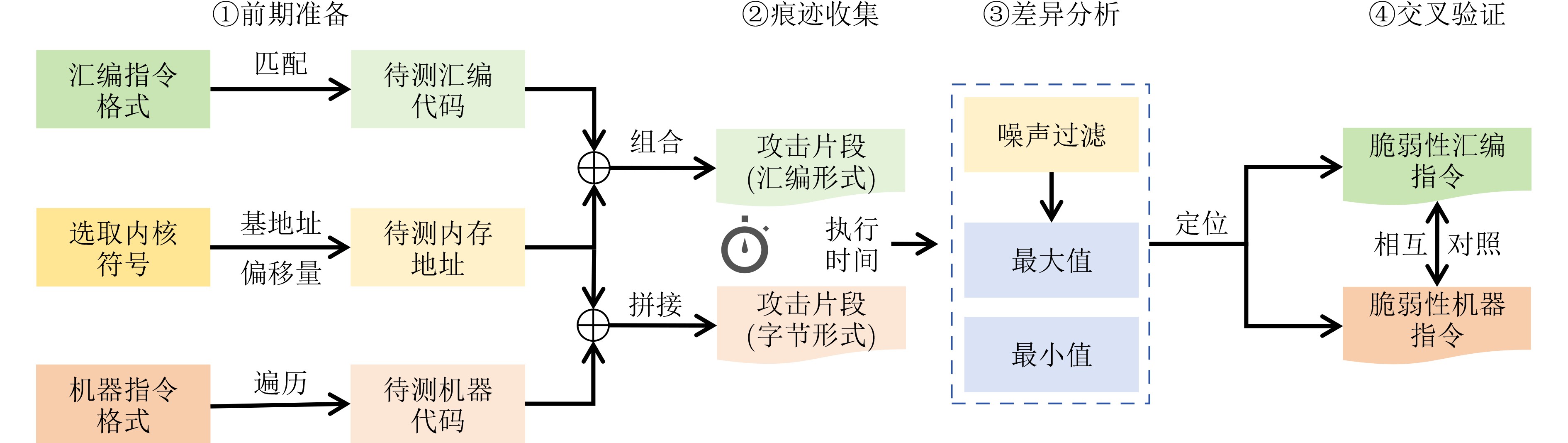

图 2 KASLR 脆弱性指令挖掘的自动化分析框架

下载: 全尺寸图片幻灯片

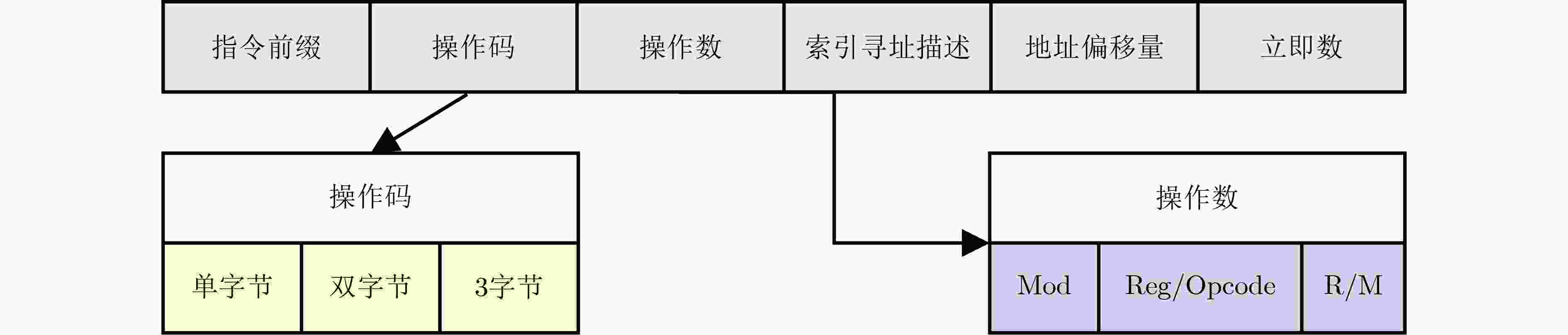

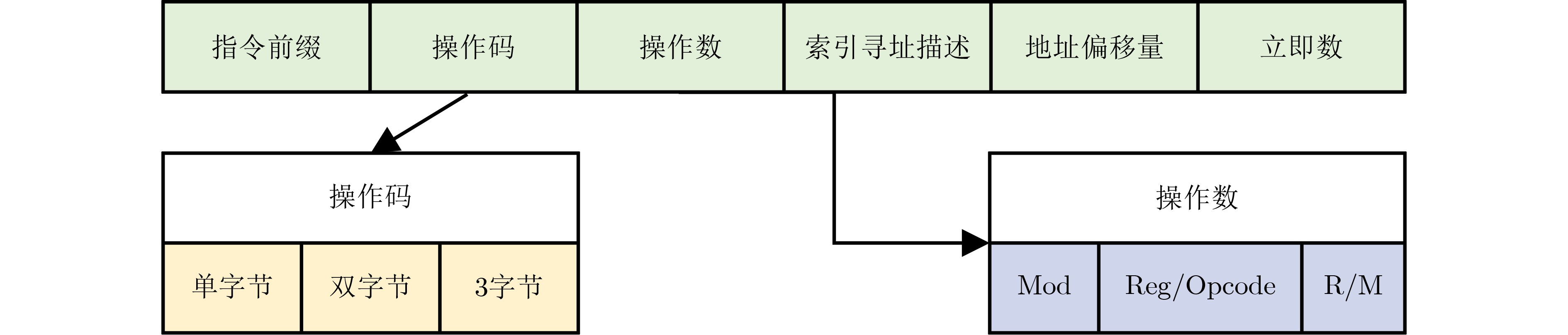

图 3 Intel x86 指令格式

下载: 全尺寸图片幻灯片

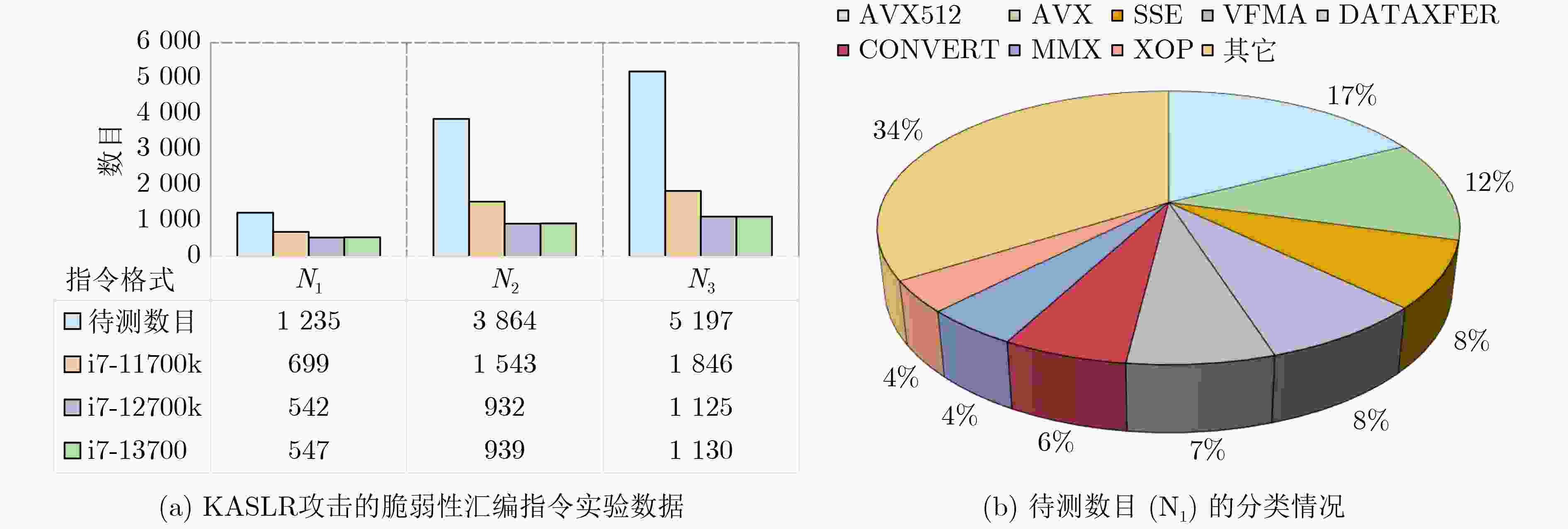

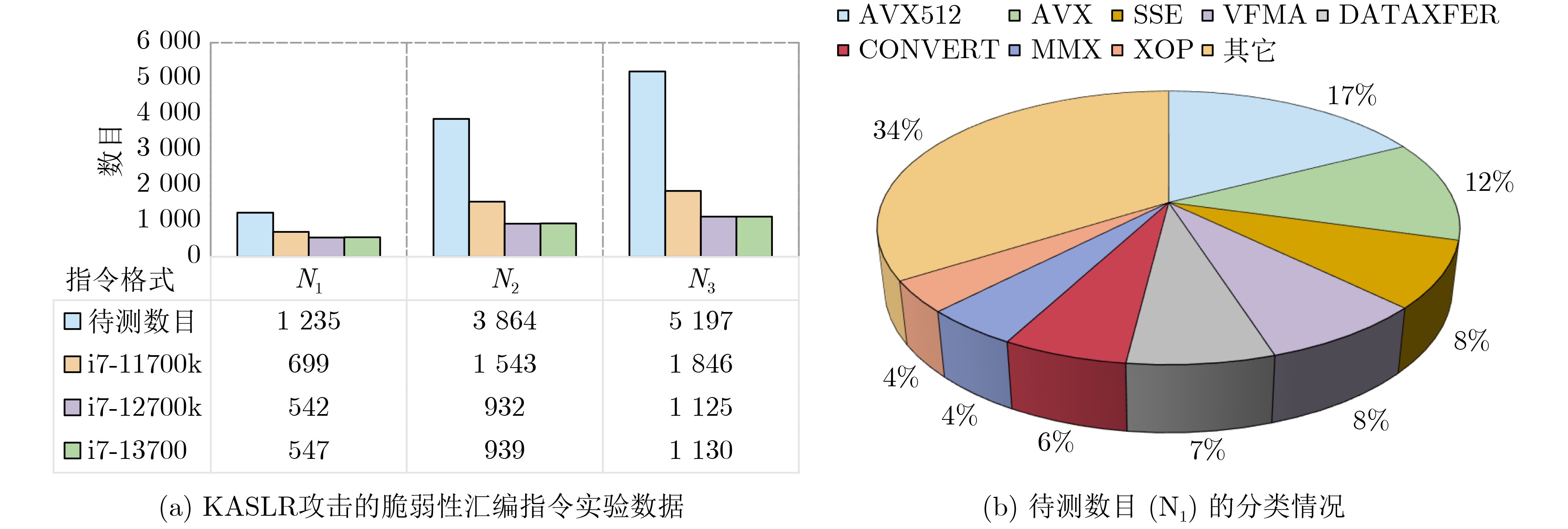

图 4 KASLR 脆弱性汇编指令挖掘实验结果

下载: 全尺寸图片幻灯片

1 基于 CLFLUSH 指令的内存访问时间测量

输入：待探测地址集合 addr[1···512], 攻击次数 cycles
输出：内核符号地址
1: 数组初始化 count[512][cycles] ← 0，time[512] ← 0
2: for i = 1 to 512 do
3: 　for j = 1 to cycles do
4: 　　start ← RDTSC()
5: 　　for k = 1 to 1000 do
6: 　　　CLFLUSH(addr[i])
7: 　　end for
8: 　　end ← RDTSC()
9: 　　count[i][j] ← (end - start)
10: end for
11: end for
12: for i = 1 to 512 do
13: /* 处理 count[i][1..cycles] 的数据 */
14: repeat
15: 　移除零值，并计算有效值的平均数 μ
16: 　计算标准差 σ
17: 　移除超出 (μ ± 2σ) 范围的异常值
18: until 没有新的异常值被移除
19: time[i] ← μ
20: end for
21: 找出 time[1..512] 中最小值的索引 index
22: return addr[index]

下载: 导出CSV

表 1 实验环境设置

处理器	微架构	微码	操作系统	内核	页表层级
i7-11700k	Rocket Lake	0x63	Ubuntu 22.04	5.15.0-136-generic	4
i7-12700k	Alder Lake	0x38	Ubuntu 22.04	5.15.0-135-generic	4
i7-13700	Raptor Lake	0x12C	Ubuntu 22.04	6.8.0-52-generic	4

下载: 导出CSV

表 2 KASLR 攻击的脆弱性机器指令实验数据(单字节)

	0	1	2	3	4	5	6	7	8	9	a	b	c	d	e	f
0	add	add	add	add	add	add	push es	pop es	or	or	or	or	or	or	push cs	转义
1	adc	adc	adc	adc	adc	adc	push ss	pop ss	sbb	sbb	sbb	sbb	sbb	sbb	push ds	pop ds
2	and	and	and	and	and	and	前缀	daa	sub	sub	sub	sub	sub	sub	前缀	das
3	xor	xor	xor	xor	xor	xor	前缀	aaa	cmp	cmp	cmp	cmp	cmp	cmp	前缀	aas
4	inc	inc	inc	inc	inc	inc	inc	inc	dec	dec	dec	dec	dec	dec	dec	dec
5	push	push	push	push	push	push	push	push	pop	pop	pop	pop	pop	pop	pop	pop
6	pusha	popa	bound	arpl	前缀	前缀	前缀	前缀	push	imul	push	imul	ins	ins	outs	outs
7	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc
8	组	组	组	组	test	test	xchg	xchg	mov	mov	mov	mov	mov	lea	mov	组
9	nop	xchg	xchg	xchg	xchg	xchg	xchg	xchg	cbw	cwq	call	fwait	pushf	popf	sahf	lahf
a	mov	mov	mov	mov	movs	movs	cmps	cmps	test	test	stos	stos	lods	loads	scas	scas
b	mov	mov	mov	mov	mov	mov	mov	mov	mov	mov	mov	mov	mov	mov	mov	mov
c	组	组	ret	ret	les	lds	mov	mov	enter	leave	ret	ret	int3	int	into	iret
d	组	组	组	组	aam	aad	salc	xlat	组	组	组	组	组	组	组	组
e	loopne	loope	loop	jrcxz	in	in	out	out	call	jmp	jmp	jmp	in	in	out	out
f	前缀	int1	前缀	前缀	hlt	cmc	组	组	clc	stc	cli	sti	cld	std	组	组

下载: 导出CSV

表 3 KASLR 攻击的脆弱性机器指令实验数据(双字节、0x0F 转义)

	0	1	2	3	4	5	6	7	8	9	a	b	c	d	e	f
0	组	组	lar	lsl		syscal	clts	sysret	invd	wbinvd		非法		prefetchw
1	vmovups	vmovups	vmovlps	vmovlps	vunpcklps	vunpckhps	vmovhps	vmovhps	prefetch	nop	bndldx	bndstx	nop	nop	nop	nop
2	mov	mov	mov	mov					vmovaps	vmovaps	cvtsi2ps	vmovntps	cvttps2pi	cvttps3pi	vucomiss	vcomiss
3	wrmsr	rdtsc	rdmsr	rdpmc	sysenter	sysexit		getsec	转义		转义
4	cmovcc	cmovcc	cmovcc	cmovcc	cmovcc	cmovcc	cmovcc	cmovcc	cmovcc	cmovcc	cmovcc	cmovcc	cmovcc	cmovcc	cmovcc	cmovcc
5	vmovmskps	vsqrtps	vsqrtps	vrcpps	vandps	vandnps	vorps	vxorps	vaddps	vmulps	vcvtps2pd	vcvtdq2ps	vsubps	vminps	vdivps	vmaxps
6	punpcklbw	punpcklwd	punpckldq	packsswb	pcmpgtb	pcmpgtw	pcmpgtd	packuswb	punpckhbw	punpckhwd	punpckhdq	pqckssdw			movd	movq
7	pshufw	组	组	组	pcmpeqb	pcmpegw	pcmpeqd	emms	vmread	vmwrite					movd	movq
8	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc	jcc
9	setcc	setcc	setcc	setcc	setcc	setcc	setcc	setcc	setcc	setcc	setcc	setcc	setcc	setcc	setcc	setcc
a	push fs	pop fs	cpuid	bt	shld	shld			push gs	pop gs	rsm	bts	shrd	shrd	组	imul
b	cmpxchg	cmpxchg	lss	btr	lfs	lgs	movzx	movzx	jmpe	组	组	btc	bsf	bsr	movsx	movsx
c	xadd	xadd	xcmpps	movnti	pinsrw	pextrw	vshufps	组	bswap	bswap	bswap	bswap	bswap	bswap	bswap	bswap
d		psrlw	psrld	psrlq	paddq	pmullw		pmovmskb	psubusb	psubusw	pminub	pand	paddusb	paddusw	pmaxub	pandn
e	pavgb	psraw	psrad	pavgw	pmulhuw	pmulhw		movntq	psubsb	psubsw	pminsw	por	paddsb	paddsw	pmaxsw	pxor
f		psllw	pslld	psllq	pmuludq	pmadd	psadbw	maskmovq	psubb	psubw	psubd	psubq	psubd	paddw	paddd

下载: 导出CSV
