超大规模可重构智能表面混合远-近场信道估计

邵凯; 花凡玉; 王光宇

doi:10.11999/JEIT250306

超大规模可重构智能表面混合远-近场信道估计

doi: 10.11999/JEIT250306 cstr: 32379.14.JEIT250306

邵凯^{1, 2, ,},
花凡玉¹,
王光宇¹

1.
重庆邮电大学通信与信息工程学院重庆 400065
2.
移动通信技术重庆市重点实验室重庆 400065

详细信息

作者简介:
邵凯：男，副教授，硕士生导师，研究方向为智能感知与信息系统、信号与信息智能处理等

花凡玉：女，硕士生，研究方向为可重构智能表面、信道估计等

王光宇：男，教授，硕士生导师，研究方向为数字信号处理、滤波器组理论等

通讯作者:
邵凯　shaokai@cqupt.edu.cn

中图分类号: TN929
计量
- 文章访问数: 64
- HTML全文浏览量: 47
- PDF下载量: 5
- 被引次数: 0
出版历程
- 收稿日期: 2025-04-25
- 修回日期: 2025-08-20
- 网络出版日期: 2025-08-27

Hybrid Far-Near Field Channel Estimation for XL-RIS Assisted Communication Systems

SHAO Kai^{1, 2
, ,},
HUA Fanyu¹,
WANG Guangyu¹

1.
School of Communications and Information Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
2.
Chongqing Key Laboratory of Mobile Communications Technology, Chongqing 400065, China

摘要

摘要: 超大规模可重构智能表面(XL-RIS)辅助通信系统的信道估计，需解决混合远-近场级联信道建模、远/近场分量区分及参数估计等问题。该文建立了混合远-近场级联信道参数化模型，并针对性地提出两阶段的混合场级联信道参数估计方案：第1阶段估计基站侧的角度参数；第2阶段基于所提出的混合场前向空间平滑降秩多信号分类算法估计RIS侧的远/近场角度参数和近场距离参数，其中根据混合场效应处理远/近场分量，设计了功率谱对比方案区分远/近场分量及路径数量。仿真结果表示，相比于单一远场、近场估计方案和基于混合场正交匹配跟踪算法的估计方案，所提算法可以实现更高的估计精度。
- 超大规模可重构智能表面 /
- 信道估计 /
- 混合远近场 /
- 多信号分类算法
Abstract: Objective With the rapid development of sixth-generation mobile communication, Extra-Large Reconfigurable Intelligent Surfaces (XL-RIS) have attracted significant attention due to their potential to enhance spectral efficiency, expand coverage, and reduce energy consumption. However, conventional channel estimation methods, primarily based on Far-Field (FF) or near-field (NF) models, face limitations in addressing the hybrid far-NF environment that arises from the coexistence of NF spherical waves and FF planar waves in XL-RIS deployments. These limitations restrict the intelligent control capability of RIS technology due to inaccurate channel modeling and reduced estimation accuracy. To address these challenges, this paper constructs a hybrid-field channel model for XL-RIS and proposes a robust channel estimation method to resolve parameter estimation challenges under coupled FF and NF characteristics, thereby improving channel estimation accuracy in complex propagation scenarios. Methods For channel estimation in XL-RIS-aided communication systems, several key challenges must be addressed, including the modeling of hybrid far-NF cascaded channels, separation of FF and NF channel components, and individual parameter estimation. To capture the hybrid-field effects of XL-RIS, a hybrid-field cascaded channel model is constructed. The RIS-to-User Equipment (UE) channel is modeled as a hybrid far-NF channel, whereas the Base Station (BS)-to-RIS channel is characterized under the FF assumption. A unified representation of FF and NF models is established by introducing equivalent cascaded angles for the angle of departure and angle of arrival on the RIS side. The XL-RIS hybrid-field cascaded channel is parameterized through BS arrival angles, RIS-UE cascaded angles, and distances. To reduce the computational complexity of joint parameter estimation, a Two-Stage Hybrid-Field (TS-HF) channel estimation scheme is proposed. In the first stage, the BS arrival angle is estimated using the MUltiple SIgnal Classification (MUSIC) algorithm. In the second stage, a Hybrid-Field forward spatial smoothing Rank-reduced MUSIC (HF-RM) algorithm is proposed to estimate the parameters of the RIS-UE hybrid-field channel. The received signals are pre-processed using a forward spatial smoothing technique to mitigate multipath coherence effects. Subsequently, the Rank-reduced MUSIC (RM) algorithm is applied to separately estimate the FF and NF angle parameters, as well as the NF distance parameter. During this stage, a power spectrum comparison scheme is designed to distinguish FF and NF angles based on power spectral characteristics, thereby providing high-precision angular information to support NF distance estimation. Finally, channel attenuation is estimated using the least squares method. To validate the effectiveness of the proposed hybrid-field channel estimation scheme, comparative analyses are conducted against FF, NF, and the proposed TS-HF-RM schemes. The FF estimation approximates the hybrid-field channel using a FF channel model and estimates FF angle parameters with the MUSIC algorithm, referred to as the TS-FF-M scheme. The NF estimation applies a NF channel model to characterize the hybrid channel and estimates angle and distance parameters using the RM algorithm, referred to as the TS-NF-RM scheme. To further evaluate the estimation performance, additional benchmark schemes are considered, including the Two-Stage Near-Field Orthogonal Matching Pursuit (TS-NOMP) scheme, the Two-Stage Hybrid Orthogonal Matching Pursuit with Prior (TS-HOMP-P) scheme that requires prior knowledge of FF and NF quantities, and the Two-Stage Hybrid Orthogonal Matching Pursuit with No Prior (TS-HOMP-NP) scheme that operates without requiring such prior information. Results and Discussions Compared with the TS-FF-M and TS-NF-RM schemes, the proposed TS-HF-RM approach achieves effective separation and accurate estimation of both FF and NF components by jointly modeling the hybrid-field channel. The method consistently demonstrates superior estimation accuracy across a wide range of Signal-to-Noise Ratio (SNR) conditions (Fig. 4). These results confirm both the necessity of hybrid-field channel modeling and the effectiveness of the proposed estimation scheme. Experimental findings show that the TS-HF-RM approach significantly improves channel estimation performance in XL-RIS-assisted communication systems. Further comparative analysis reveals that the TS-HF-RM scheme outperforms TS-NOMP and TS-HOMP-P by mitigating power leakage effects and overcoming limitations associated with unknown path numbers through distinct processing of FF and NF components. Without requiring prior knowledge of the propagation environment, the proposed method achieves lower Normalized Mean Square Error (NMSE) while demonstrating improved robustness and estimation precision (Fig. 5). Although TS-HOMP-NP also operates without prior field information, the TS-HF-RM scheme provides superior parameter resolution, attributed to its subspace decomposition principle. Additionally, both the TS-HF-RM and TS-HOMP-P schemes exhibit improved performance as the number of pilot signals increases. However, TS-HF-RM consistently outperforms TS-HOMP-P under low-SNR conditions (0 dB). At high SNR (10 dB) with a limited number of pilot signals (<280), TS-HOMP-P temporarily achieves better performance due to its higher sensitivity to SNR. Nevertheless, the proposed TS-HF-RM approach demonstrates greater stability and adaptability under low-SNR and resource-constrained conditions (Fig. 6). Conclusions This study addresses the challenge of hybrid-field channel estimation for XL-RIS by constructing a hybrid-field cascaded channel model and proposing a two-stage estimation scheme. The HF-RM algorithm is specifically designed for accurate hybrid component estimation in the second stage. Theoretical analysis and simulation results demonstrate the following: (1) The hybrid-field model reduces inaccuracies associated with traditional single-field assumptions, providing a theoretical foundation for reliable parameter estimation in complex propagation environments; (2) The proposed TS-HF-RM algorithm enables high-resolution parameter estimation with effective separation of FF and NF components, achieving lower NMSE compared to hybrid-field OMP-based methods.
- Extra-Large Reconfigurable Intelligent Surface (XL-RIS) /
- Channel estimation /
- Hybrid far- and near-field /
- MUltiple SIgnal Classification (MUSIC) algorithm

HTML全文

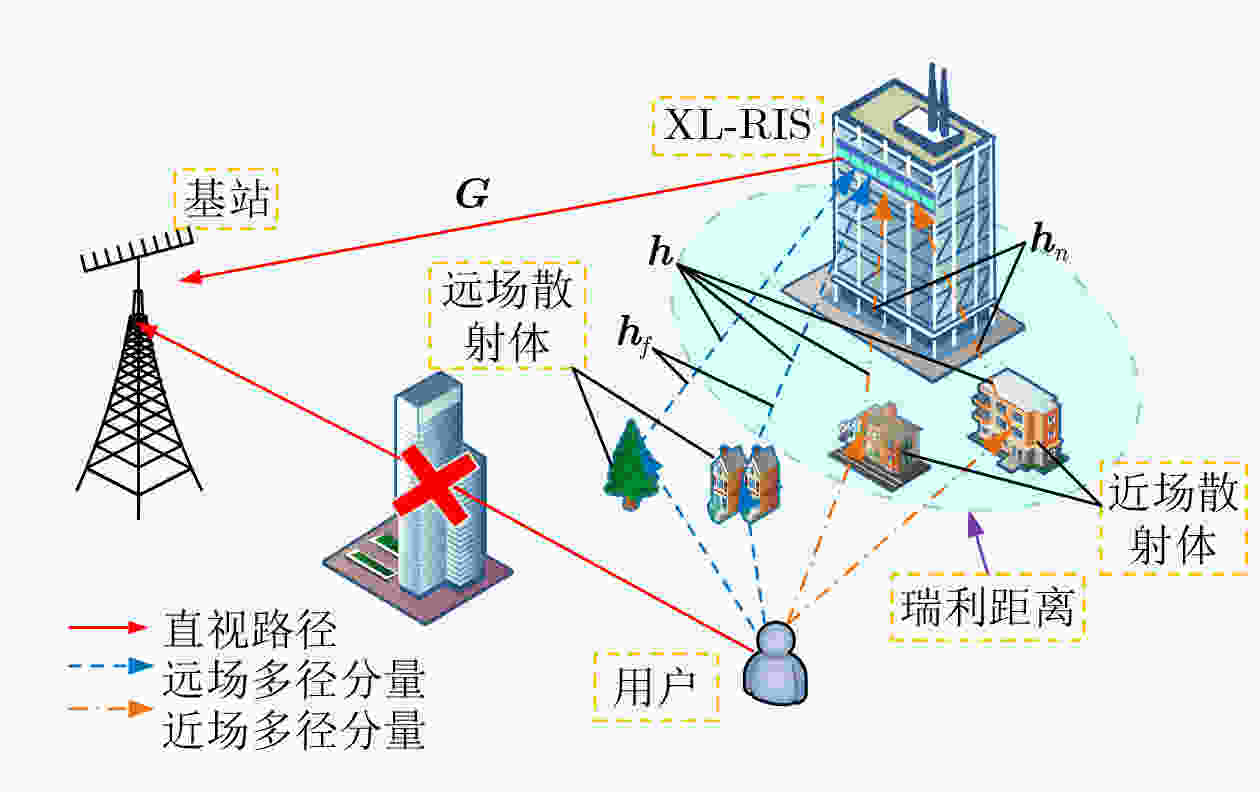

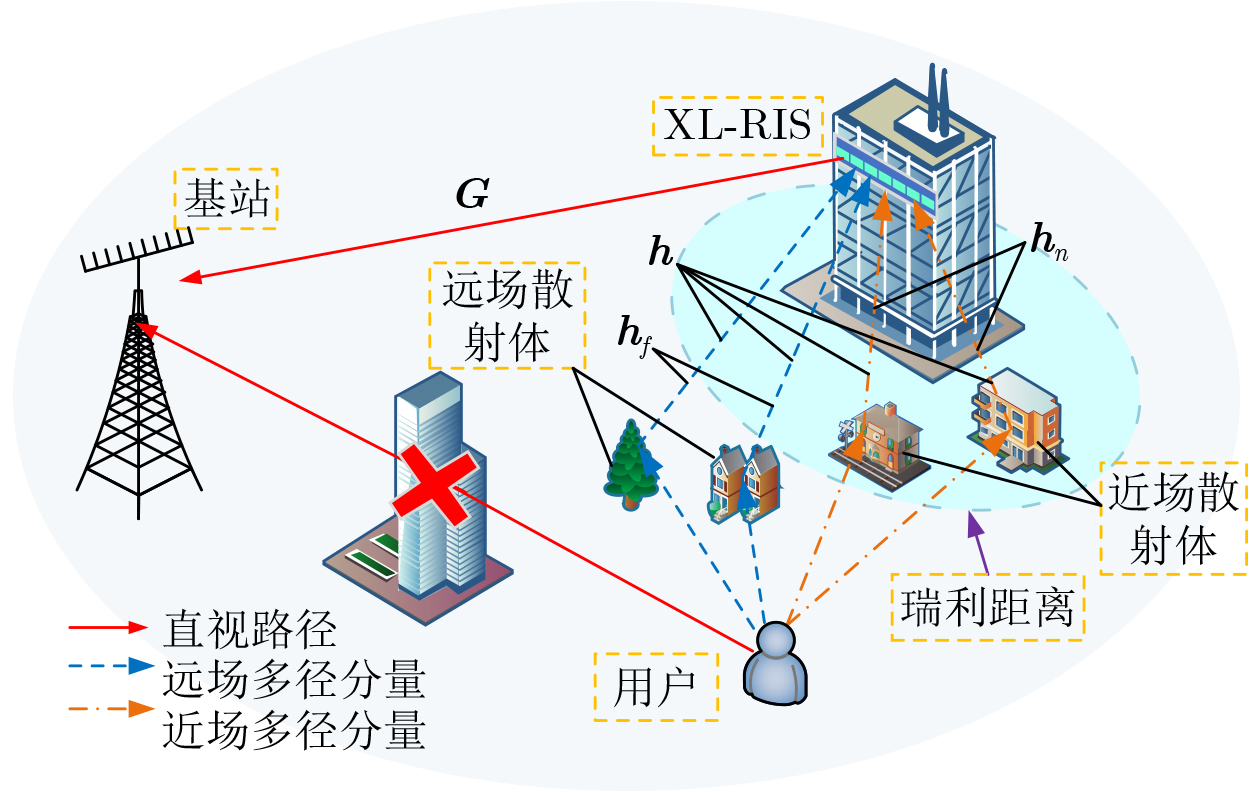

图 1 XL-RIS辅助系统模型

下载: 全尺寸图片幻灯片

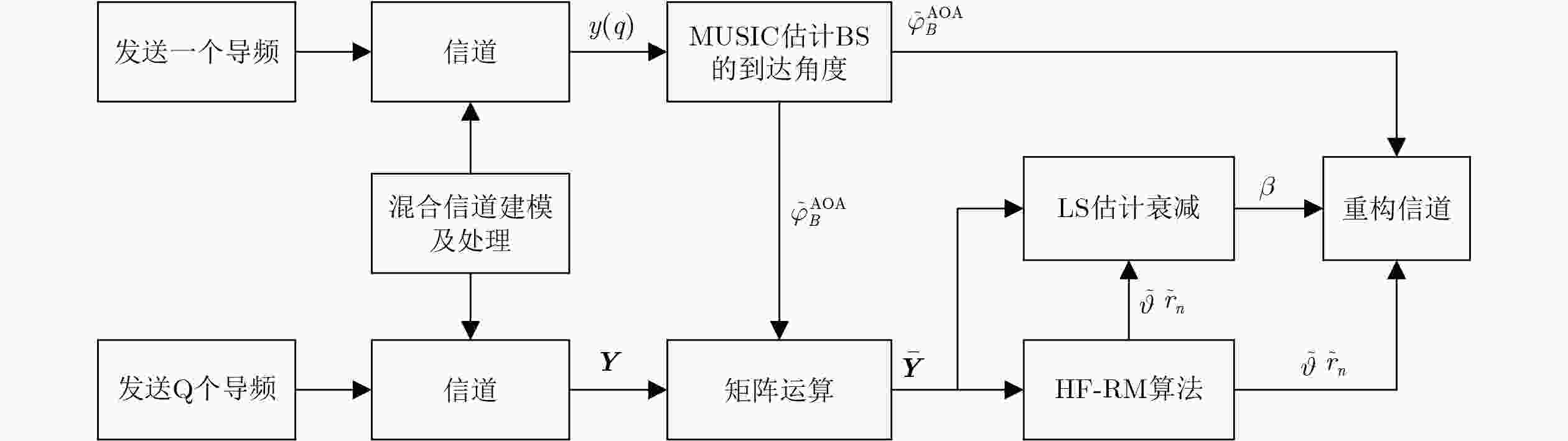

图 2 系统框图

下载: 全尺寸图片幻灯片

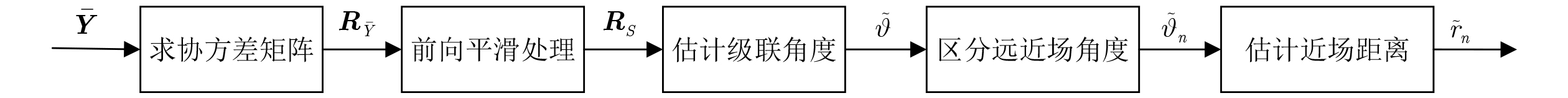

图 3 级联角度和距离估计过程

下载: 全尺寸图片幻灯片

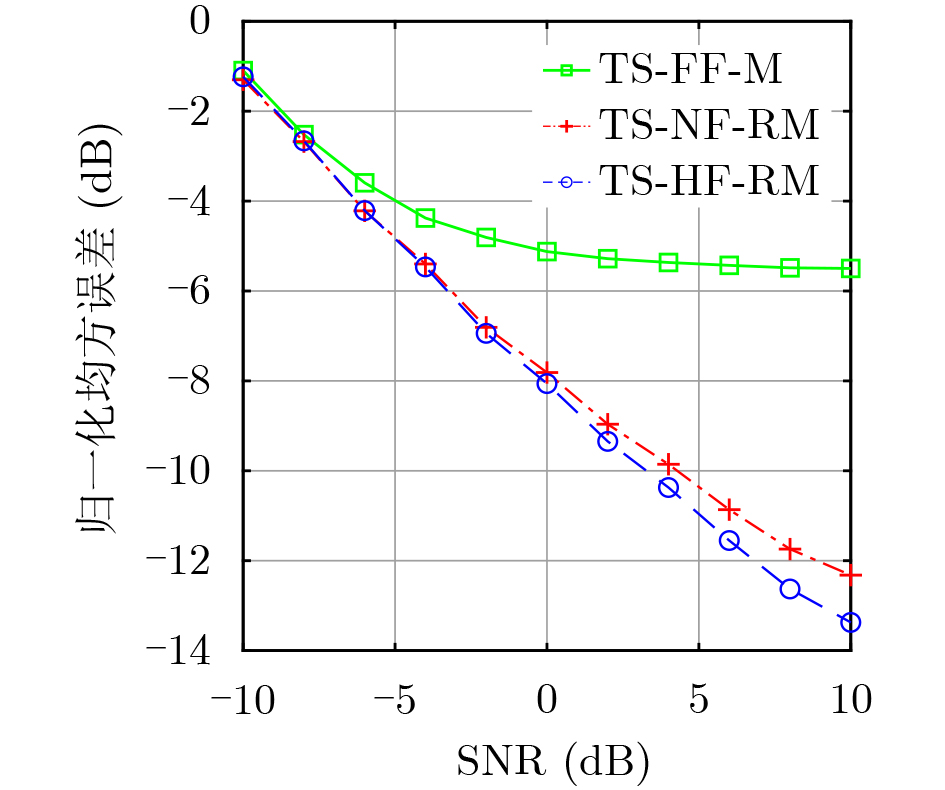

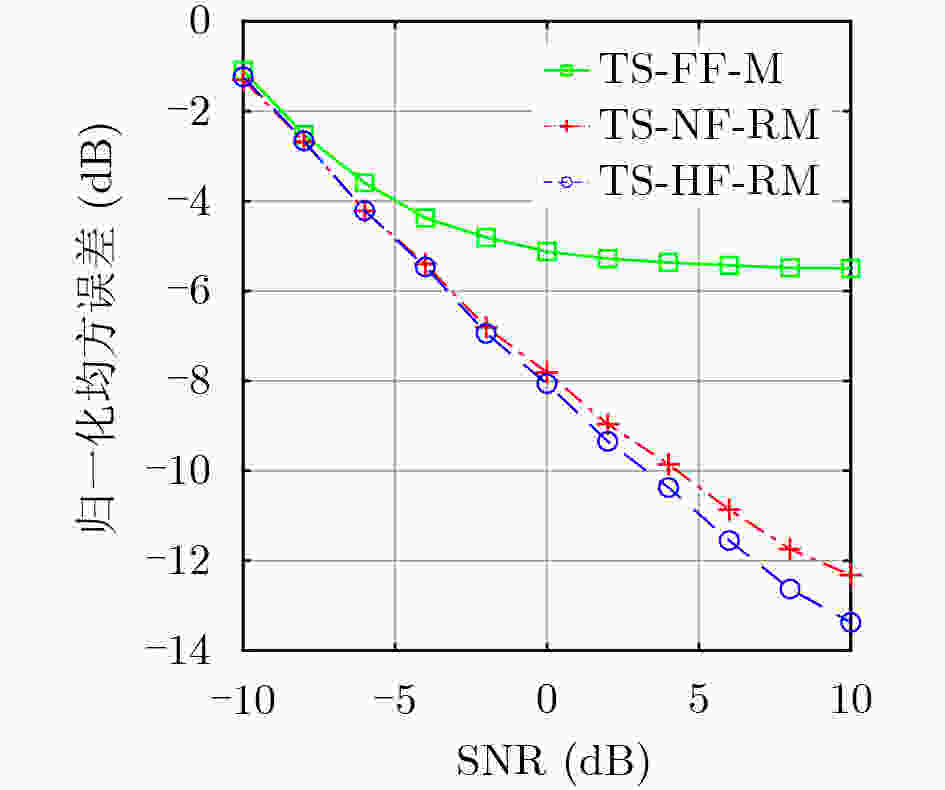

图 4 不同信噪比下所提方案和单一远近场方案性能对比

下载: 全尺寸图片幻灯片

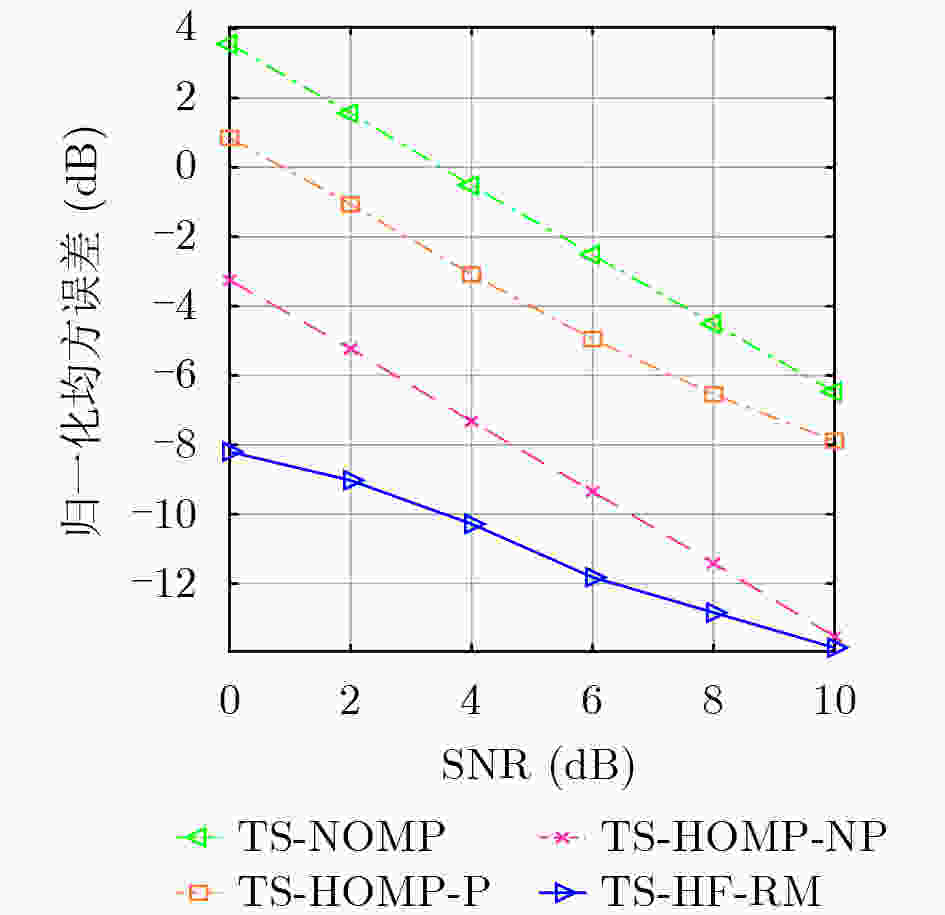

图 5 不同信噪比下各个方案归一化均方误差性能对比

下载: 全尺寸图片幻灯片

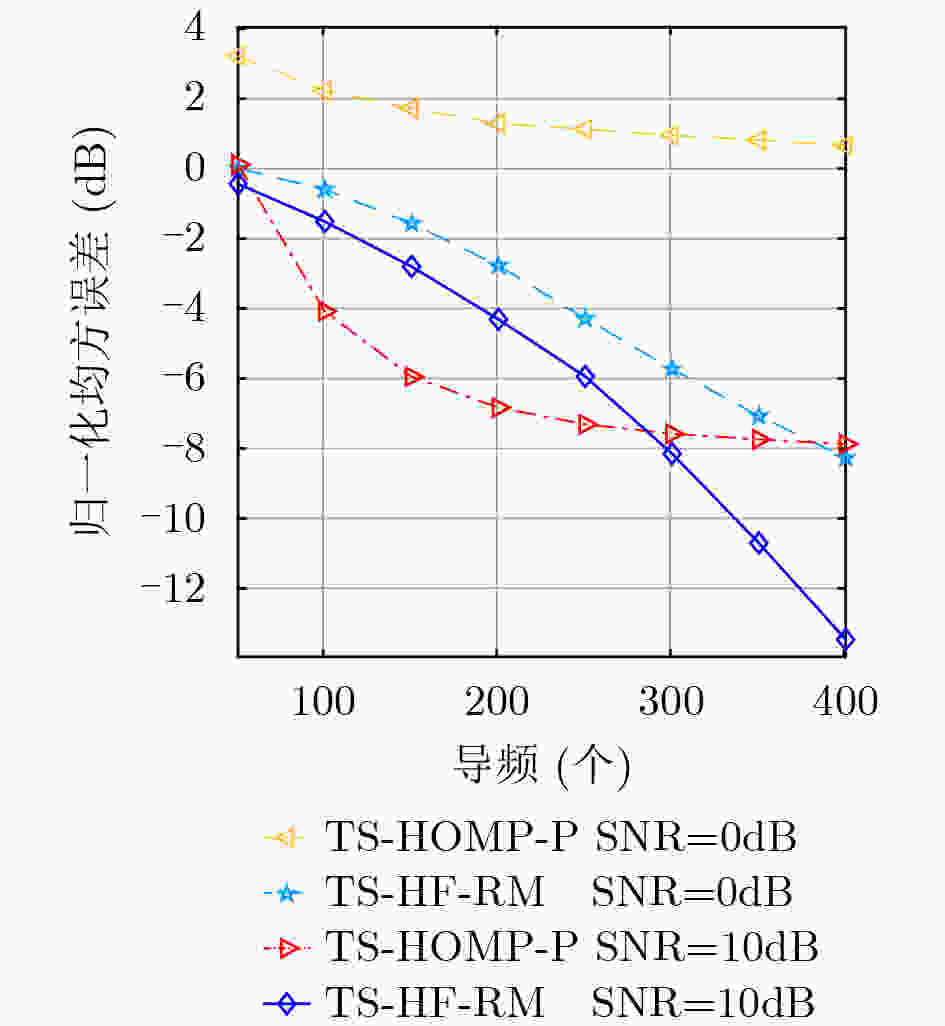

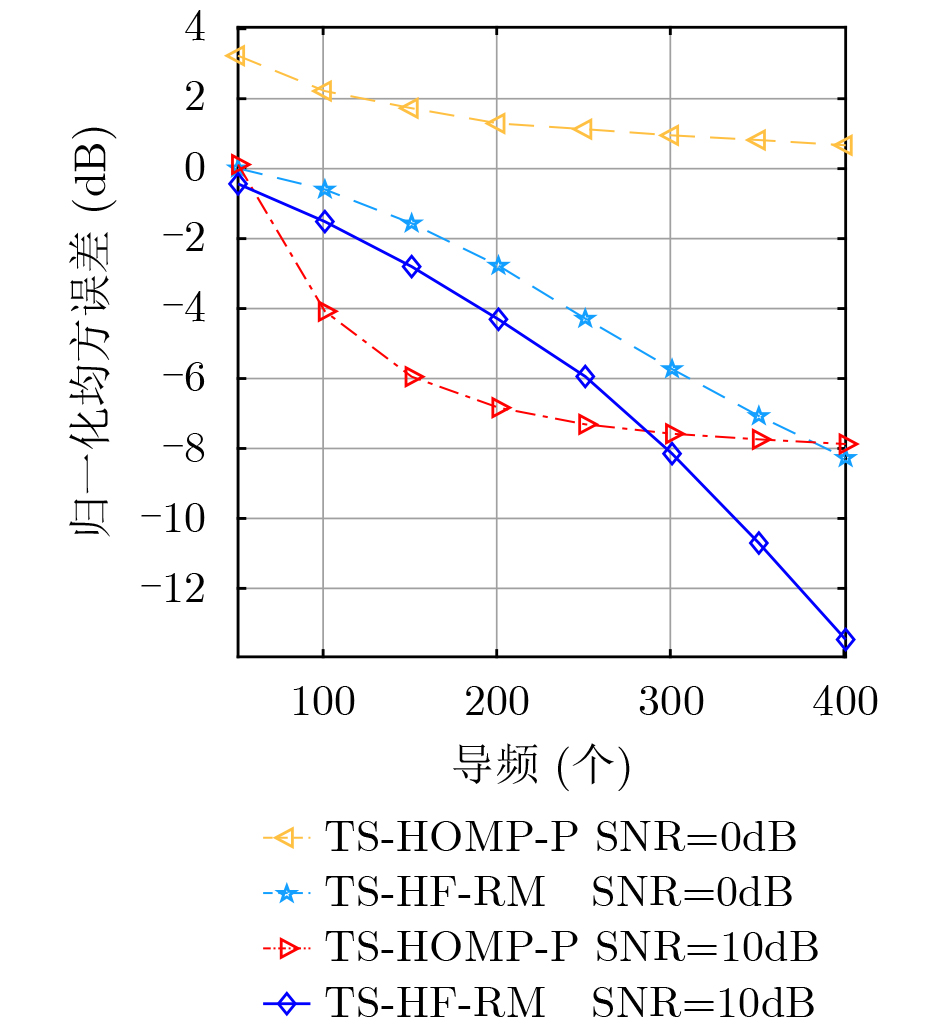

图 6 TS-HF-RM和TS-HOMP-P方案性能对比

下载: 全尺寸图片幻灯片

1 混合场前向空间平滑降秩MUSIC算法

输入：$ \tilde \varphi _B^{{\text{AOA}}} $，接收信号$ {\boldsymbol{Y}} $，瑞利距离$ {r_{{\mathrm{Ra}}}} $，远场角度集合　$ {\tilde {\boldsymbol{\vartheta}} _f} = \varnothing $和近场角度集合$ {\tilde {\boldsymbol{\vartheta}} _n} = \varnothing$；
输出：级联信道$ {{\tilde {\boldsymbol{H}}}} $。
(1)根据式(19)得到处理的接收信号$ {{\bar {\boldsymbol{Y}}}} $；
(2)根据式(20)得到协方差矩阵$ {{\boldsymbol{R}}_{\bar Y}} $；
(3)根据式(24)得到空间平滑处理的协方差矩阵$ {{\boldsymbol{R}}_S} $；
(4)根据式(28)得到估计的级联角度$ {\tilde \vartheta _l} $，$ l = 1,2, \cdots ,L $；
(5)for $ l = 1,2, \cdots ,L $ do
(a)根据式(29)计算$ P({\tilde \vartheta _l},\infty ) $，根据式(30)计算$ P({\tilde \vartheta _l},{r_{{\mathrm{Ra}}}}) $；
(b)if $ P({\tilde \vartheta _l},\infty ) > P({\tilde \vartheta _l},{r_{{\mathrm{Ra}}}}) $ then
(i)$ {\tilde {\boldsymbol{\vartheta}} _f} = {\tilde{\boldsymbol{ \vartheta}} _f} \cup {\tilde \vartheta _l} $
(c)else
(i)$ {\tilde{\boldsymbol{ \vartheta}} _n} = {\tilde {\boldsymbol{\vartheta}} _n} \cup {\tilde \vartheta _l} $
(d)end
(6)end
(7)根据式(31)计算近场距离$ {{\boldsymbol{\tilde r}}_n} $；
(8)根据式(33)得到信道衰减$ \tilde {\boldsymbol{\beta}} $；
(9)根据式(34)得到级联信道$ {\boldsymbol{\tilde H}} $；

下载: 导出CSV

表 1 仿真参数

参数	数值
BS天线数量$ M $	81
XL-RIS元件数量$ N $	401 ^[20]
载波频率(GHz)	30^[20]
载波波长$ \lambda $(m)	0.01
RIS元件间距$ d $	$ \lambda /4 $^[30]
远场分量路径数$ {L_f} $	2
近场分量路径数$ {L_n} $	4
瑞利距离(m)	200
近场范围(m)	10～80^[20]
导频数量范围	51～401

下载: 导出CSV

表 2 计算复杂度对比

方案	计算复杂度
TS-NOMP	$ O(SQL) + O(NS) + O({K_\theta }{M^2}) $
TS-HOMP-P	$ O(NQ{L_f}) + O(SQ{L_n}) + O(NS) + O({K_\theta }{M^2}) $
TS-HOMP-NP	$ O(NQL) + O(SQL(L + 1)) + O(N(N + S)) + O({K_\theta }{M^2}) $
TS-HF-RM	$ O(N{T^{\text{2}}}) + O({T^3}) + O({K_\theta }{T^2}) + O({L_n}{K_r}{T^2}) $

下载: 导出CSV
