海上目标多源数据特征提取与特征相关性分析

刘宁波; 张子豪; 陈宝欣; 董云龙; 李佳

doi:10.11999/JEIT250200

海上目标多源数据特征提取与特征相关性分析

doi: 10.11999/JEIT250200 cstr: 32379.14.JEIT250200

1.
海军航空大学烟台 264001
2.
哈尔滨工程大学烟台研究院烟台 264001

基金项目: 国家自然科学基金(62388102, 62101583)，泰山学者工程(tsqn202211246)

详细信息

作者简介:
刘宁波：男，教授，研究方向为雷达信号智能处理、海上目标探测技术

张子豪：男，硕士生，研究方向为海上目标多源数据特征融合检测技术

陈宝欣：男，工程师，研究方向为阵列信号处理、雷达多维信号处理

董云龙：男，教授，研究方向为多传感器信息融合、雷达目标检测与跟踪

李佳：女，硕士生，研究方向为海上目标多源数据特征融合分类技术

通讯作者:
张子豪　zhangzh0611@foxmail.com

中图分类号: TN959
计量
- 文章访问数: 147
- HTML全文浏览量: 62
- PDF下载量: 29
- 被引次数: 0
出版历程
- 收稿日期: 2025-03-25
- 修回日期: 2025-07-25
- 网络出版日期: 2025-07-30

Features Extraction and Correlation Analysis of Multi-Source Data for Maritime Targets

1.
Naval Aviation University, Yantai 264001, China
2.
Harbin Engineering University Yantai Research Institute, Yantai 264001, China

Funds: The National Natural Science Foundation of China (62388102, 62101583), The Taishan Scholars Program (tsqn202211246)

摘要

摘要: 随着对海上目标检测识别需求的不断提高，多源信息联合处理快速发展。针对多源特征融合的目标检测问题：该文提取了3类9种物理可解释特征，包括雷达特征(径向尺寸、峰值个数、位置分布熵、横向尺寸、相对平均幅度)、可见光图像特征(边缘点数、水平投影宽度)和红外图像特征(高温连通区域数、热纹理能量)。采用斯皮尔曼相关系数衡量非同源数据特征之间的相关性，并结合假设检验方法判别相关显著性，以揭示多源特征的内在联系。实验结果表明，在多源特征间，尺寸特征稳定性较强，相关性较高；结构特征受观测条件影响显著，相关性较低。雷达极化方式、舰船运动状态及船只类型均对雷达回波特征提取有重要影响。可见光图像在结构信息提取上具有优势，红外图像尺寸特征在复杂环境中更稳定。研究结果揭示了多源特征的互补性，为后续多源特征融合目标检测算法提供了理论支撑。
- 海上目标特性 /
- 多源观测 /
- 目标特征 /
- 相关性分析
Abstract: Objective The growing demand for maritime target detection and recognition has made multi-source information fusion a critical area of research. Different sensing modalities including radar, visible-light imaging, and infrared imaging offer complementary information that can improve detection and classification. However, the correlation among heterogeneous features extracted from these sources remains insufficiently understood. In addition, the effects of observational conditions on feature stability and discriminability needs further investigation. This study investigates the intrinsic relationships among multi-source features, evaluates their robustness under varying conditions, and provides theoretical support for effective multi-source feature fusion in maritime target detection. Methods Nine physically interpretable features are extracted across three categories: radar features (radial dimension, number of peaks, position distribution entropy, cross-range dimension, and relative average amplitude), visible image features (number of edges and horizontal projected width), and infrared image features (high-temperature connected component count and thermal texture energy). To ensure accurate feature extraction, data preprocessing consists of cleaning each compressed dataset. Radar data with excessively low signal-to-noise ratios and images with extensive occlusion are excluded. For dataset construction, radar echo data are visualized frame by frame, and a subset of radar, visible-light, and infrared images is manually annotated using LabelImg. Targets are classified into five types: passenger ships, dry cargo ships, container ships, tugboats, and search-and-rescue vessels. Based on these annotations, deep learning models are independently trained for each modality to automate annotation, and the results are manually validated to ensure quality. A standardized target dataset is then constructed by integrating the manually and automatically labeled data. Radar echo data are temporally aligned with visible-light and infrared images using prior time synchronization information. Features are extracted from each modality, and inter-feature correlations are analyzed. Spearman correlation coefficients are used to quantify relationships, and hypothesis testing is conducted to assess significance, revealing intrinsic associations among multi-source features. Results and Discussions Comparative analysis indicates that the correlation between radar echo and image features is strongly affected by feature attributes. Size-related features show stronger correlations, reflecting greater stability for multi-source data fusion, whereas structural features are more sensitive to observation conditions and exhibit weaker correlations. External factors including target motion state, ship type, and radar polarization mode also influence feature extraction and intermodal correlation. When targets are anchored, posture remains stable and motion blur is reduced, strengthening the correlation between radar structural features and image features. Larger vessels, such as container ships and passenger ships, benefit from multiple scattering centers and larger physical dimensions, which enhance feature extraction and intermodal correlation. In contrast, smaller vessels, such as tugboats and search-and-rescue boats, exhibit irregular structures and weaker radar backscatter, leading to lower correlations. The HH polarization mode, being less sensitive to background clutter, improves radar feature stability across various target types and enhances alignment with image features. Image feature stability also varies by modality: visible-light imaging is effective for extracting structural features, such as contours and edges, but is sensitive to illumination and occlusion; infrared imaging offers more stable size-related features and performs robustly in complex and low-visibility environments. These results highlight the complementary properties of multi-source features and establish a theoretical basis for their integration, supporting improved maritime target detection and classification. Conclusions This study demonstrates the complementary characteristics of multi-source features and their potential to improve maritime target detection and recognition. By analyzing feature correlations and stability across varying observational conditions, the results provide a theoretical foundation for refining multi-source fusion strategies. These insights support the development of more robust and reliable detection algorithms, contributing to enhanced situational awareness in maritime surveillance and defense.
- Marine target feature /
- Multi-source observation /
- Target feature /
- Correlation analysis

HTML全文

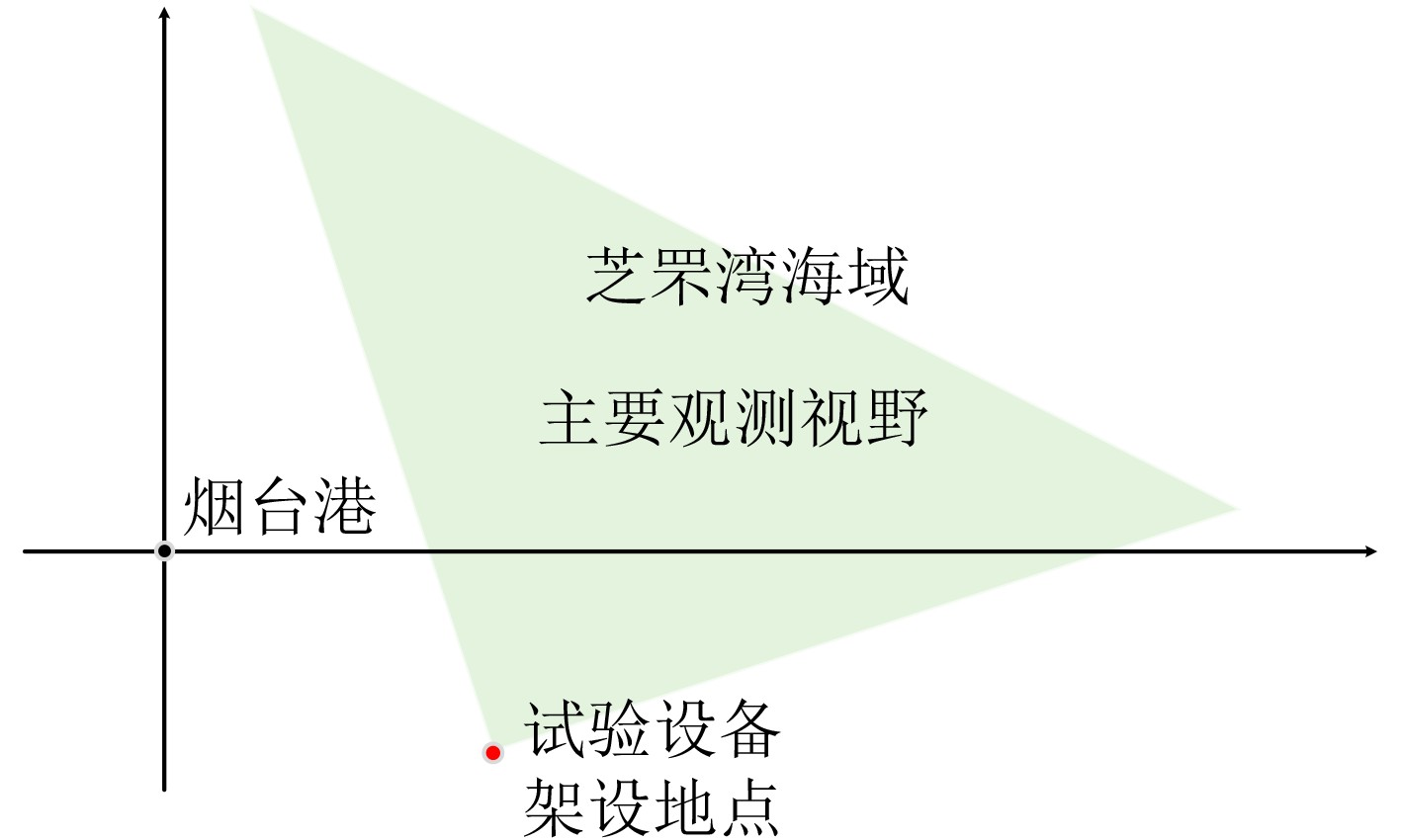

图 1 数据采集示意图

下载: 全尺寸图片幻灯片

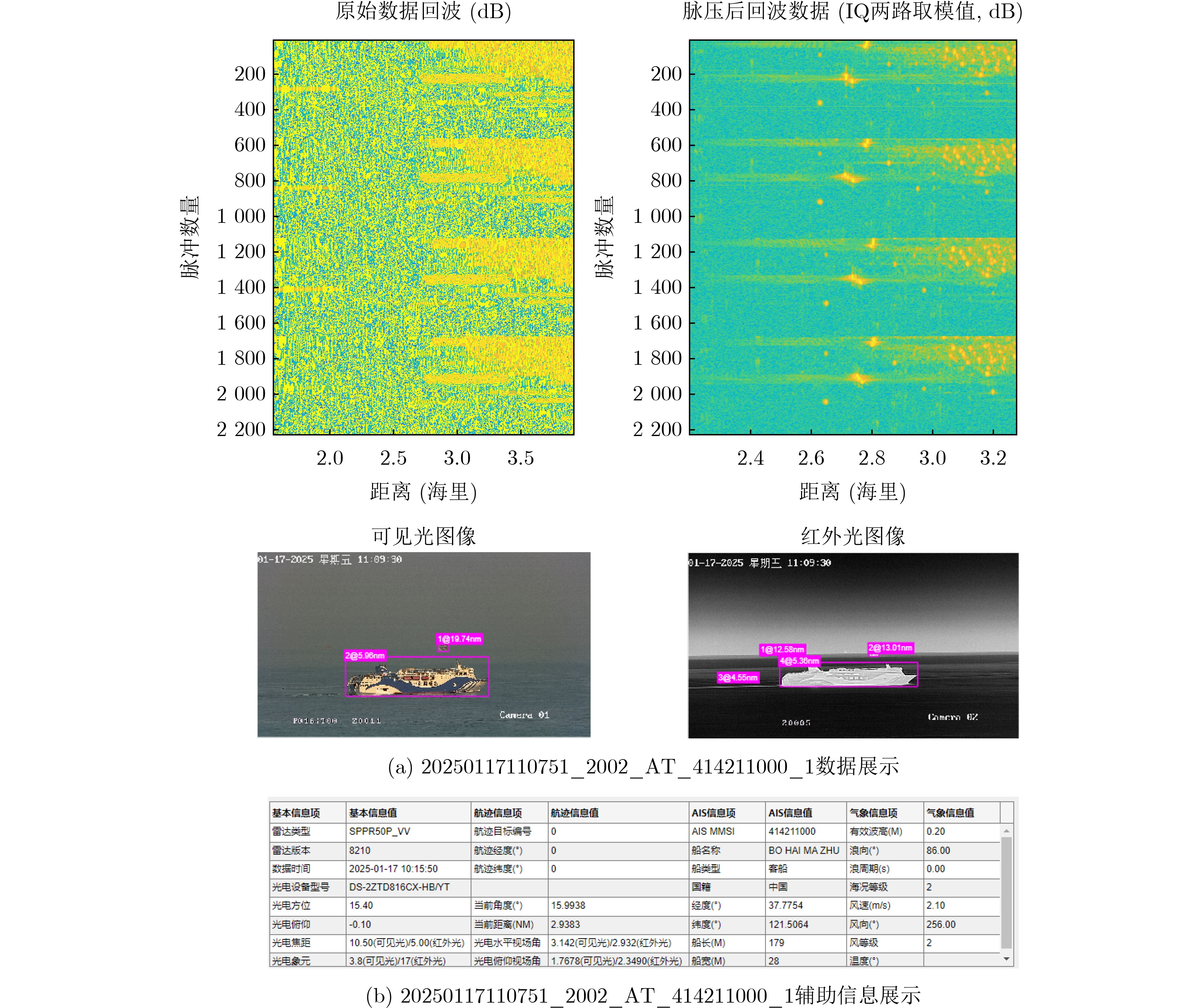

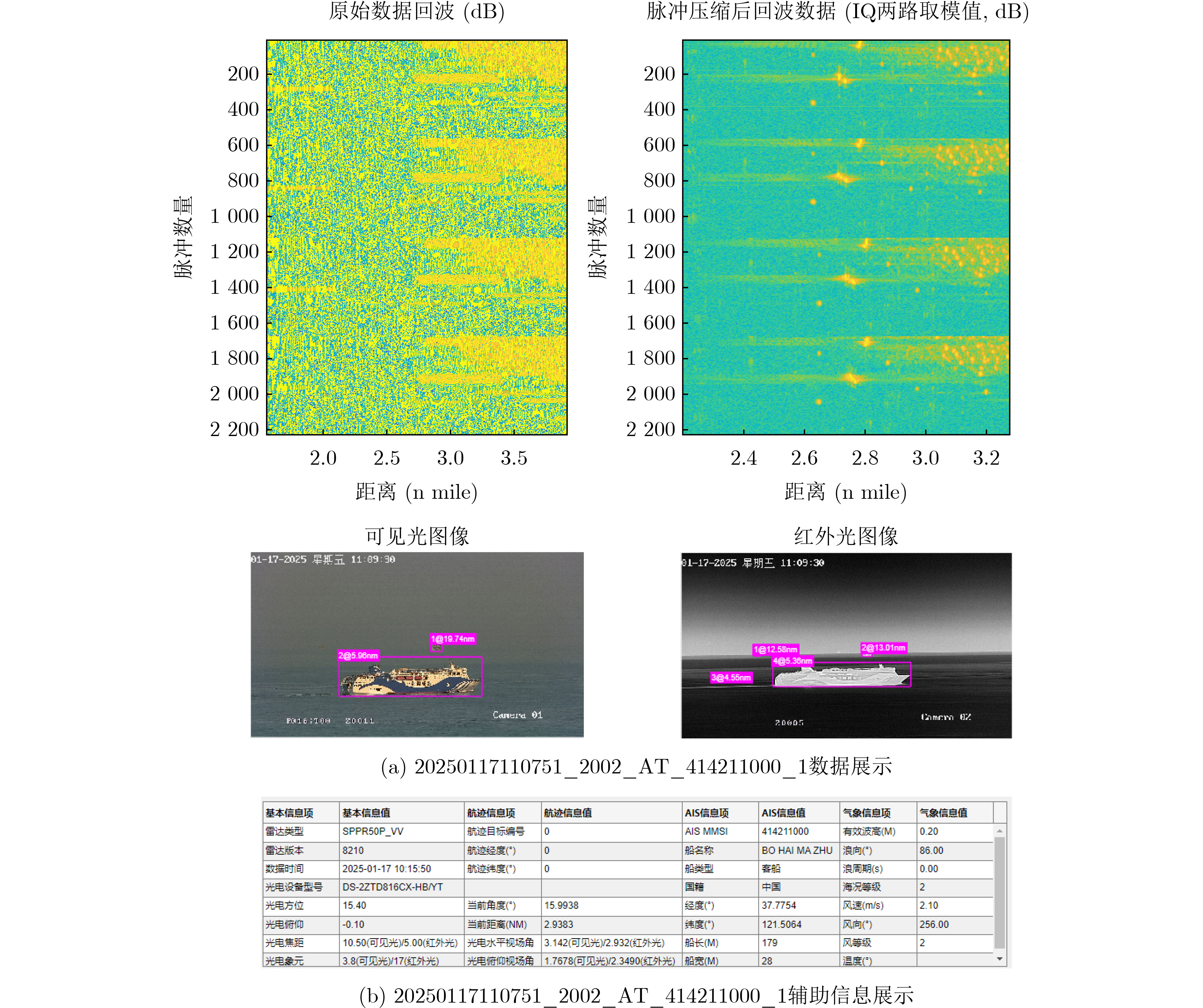

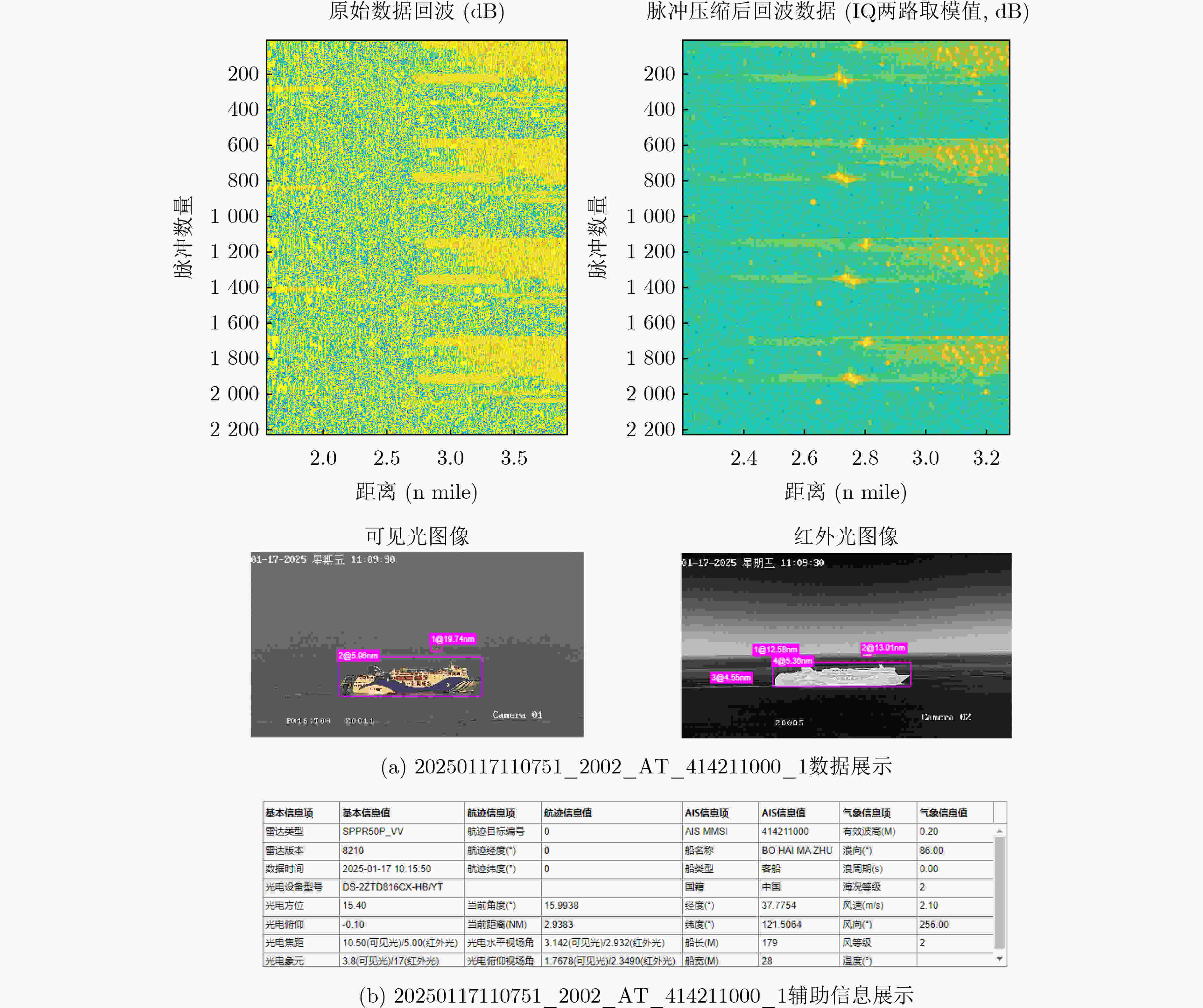

图 2 实验数据复盘解析结果

下载: 全尺寸图片幻灯片

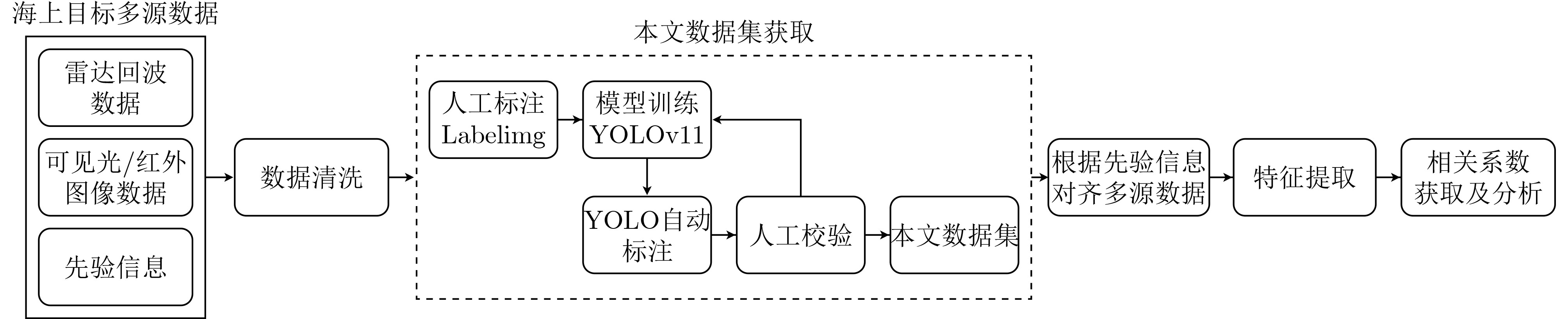

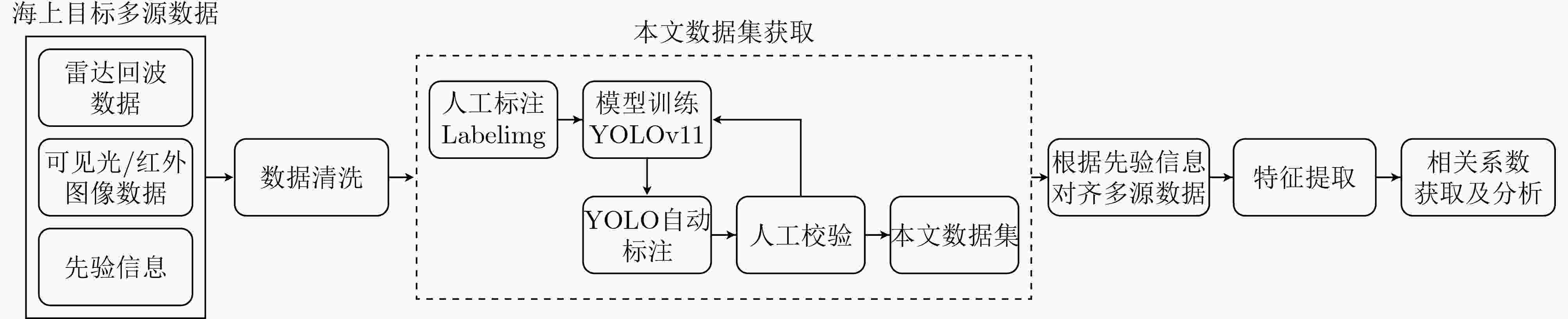

图 3 实验流程图

下载: 全尺寸图片幻灯片

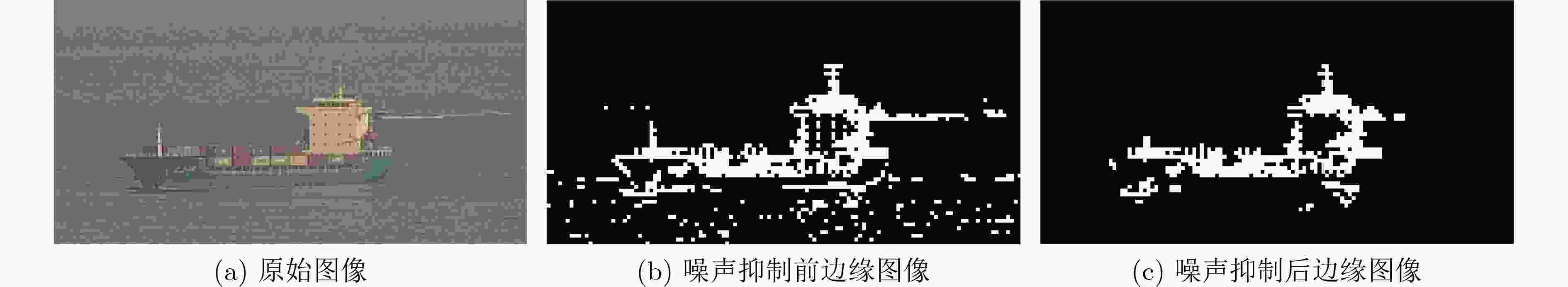

图 4 噪声抑制前后边缘图像对比图

下载: 全尺寸图片幻灯片

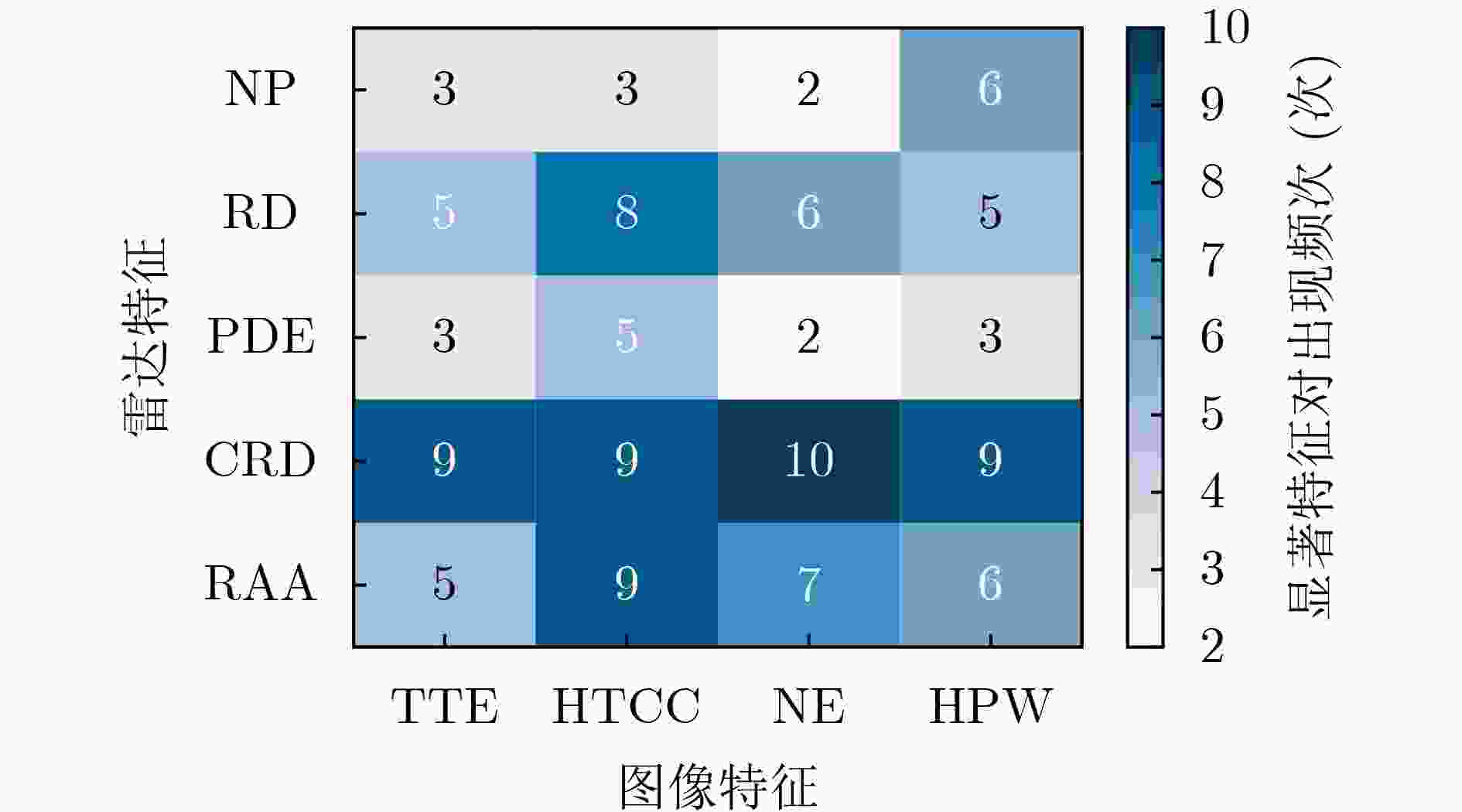

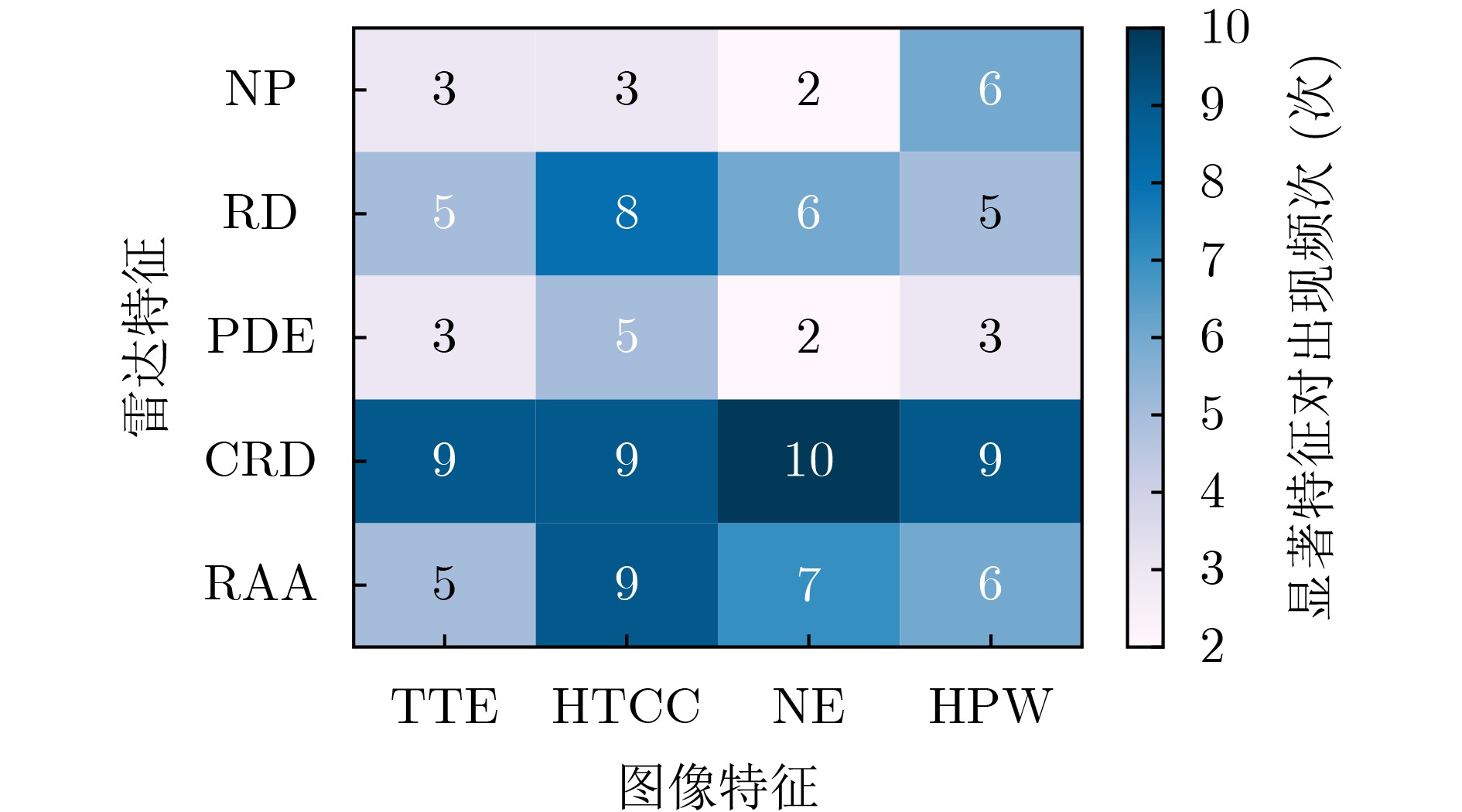

图 5 显著相关特征对热力图

下载: 全尺寸图片幻灯片

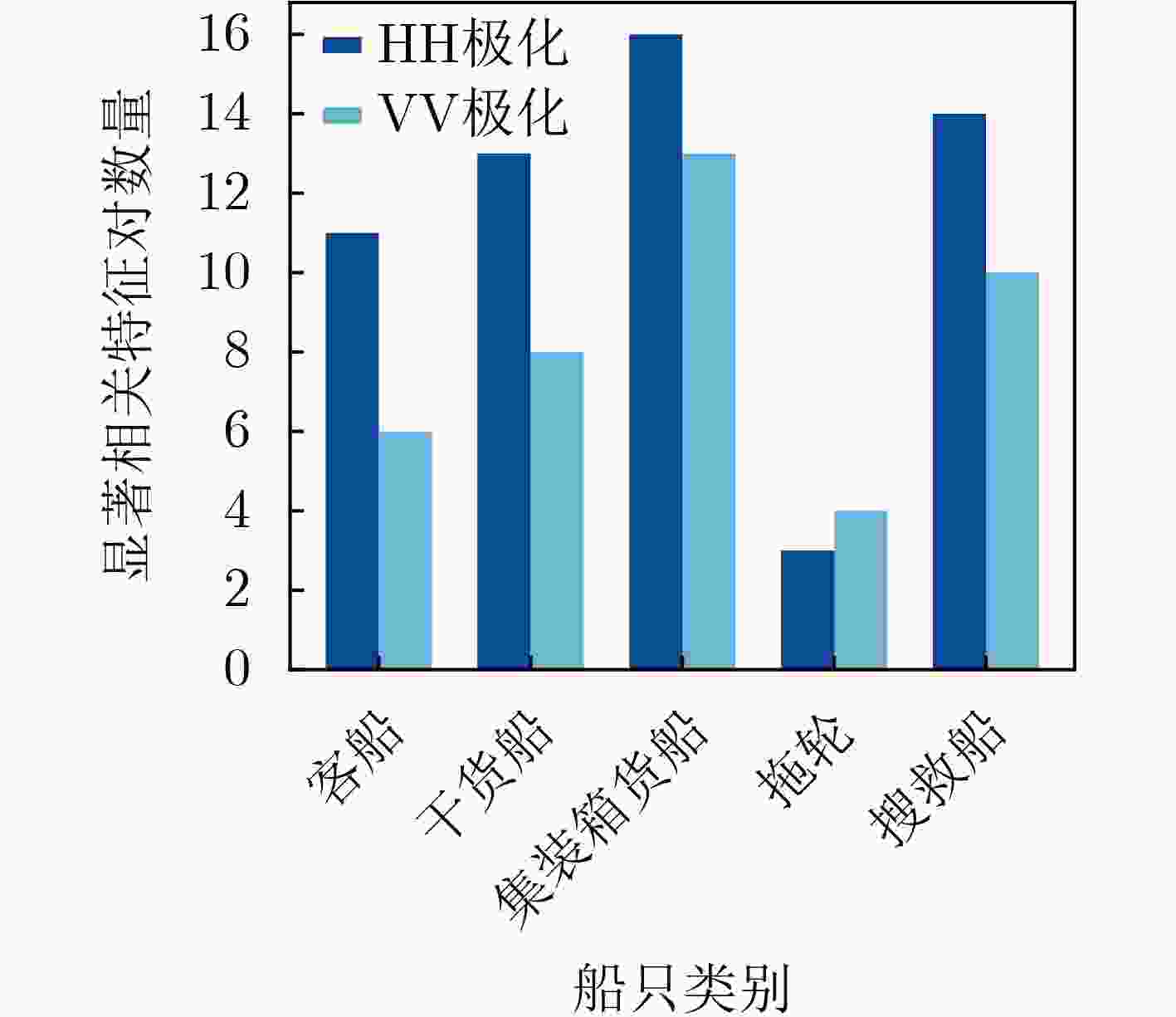

图 6 不同极化方式下显著相关特征对数量对比

下载: 全尺寸图片幻灯片

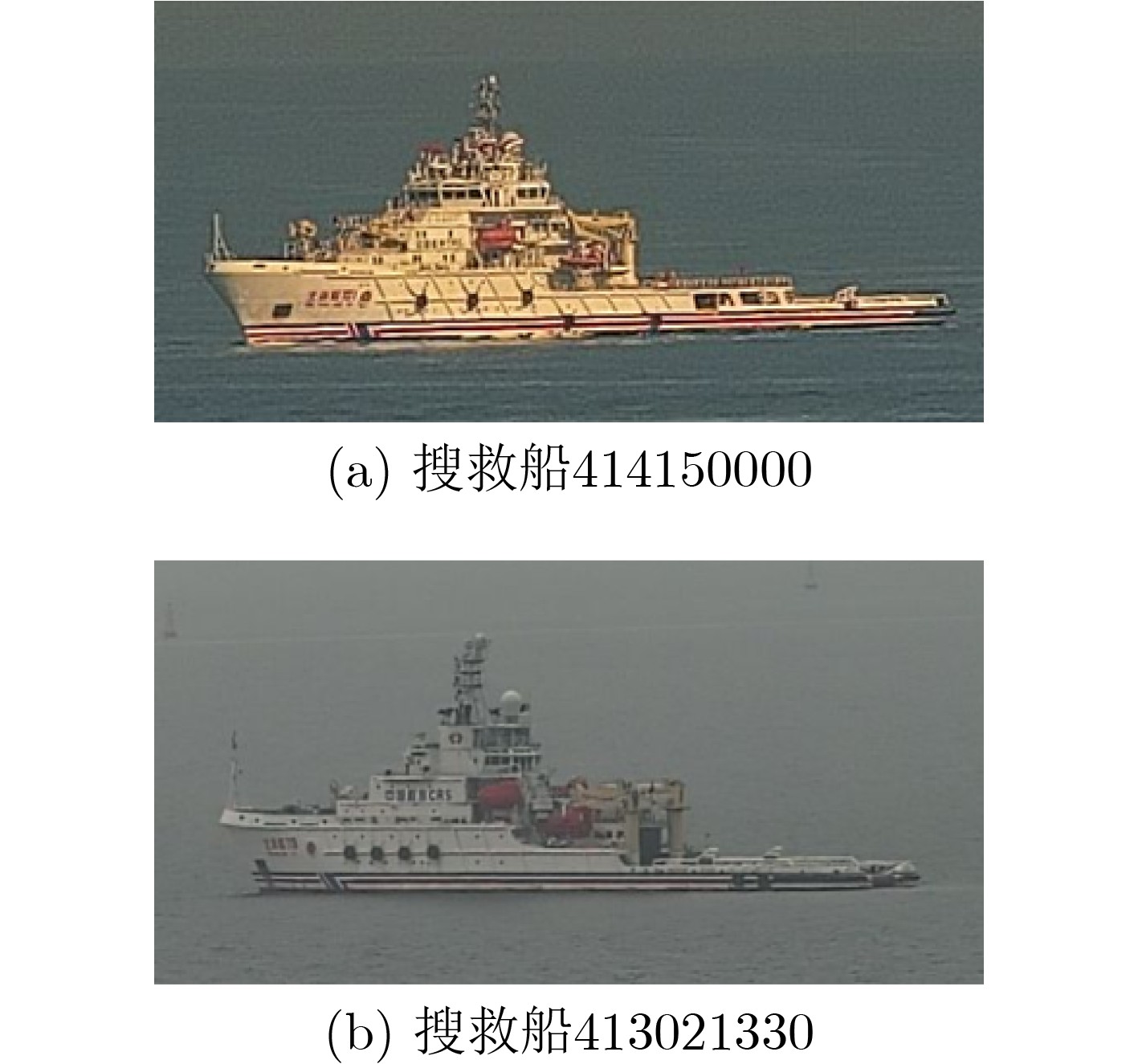

图 7 搜救船对比图

下载: 全尺寸图片幻灯片

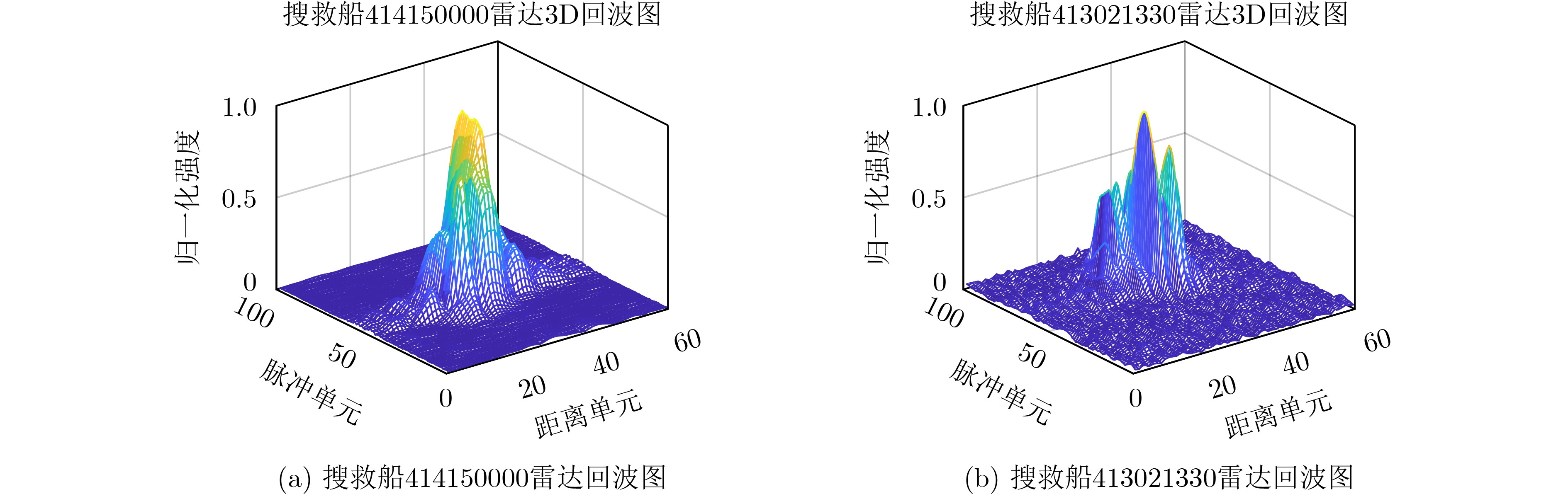

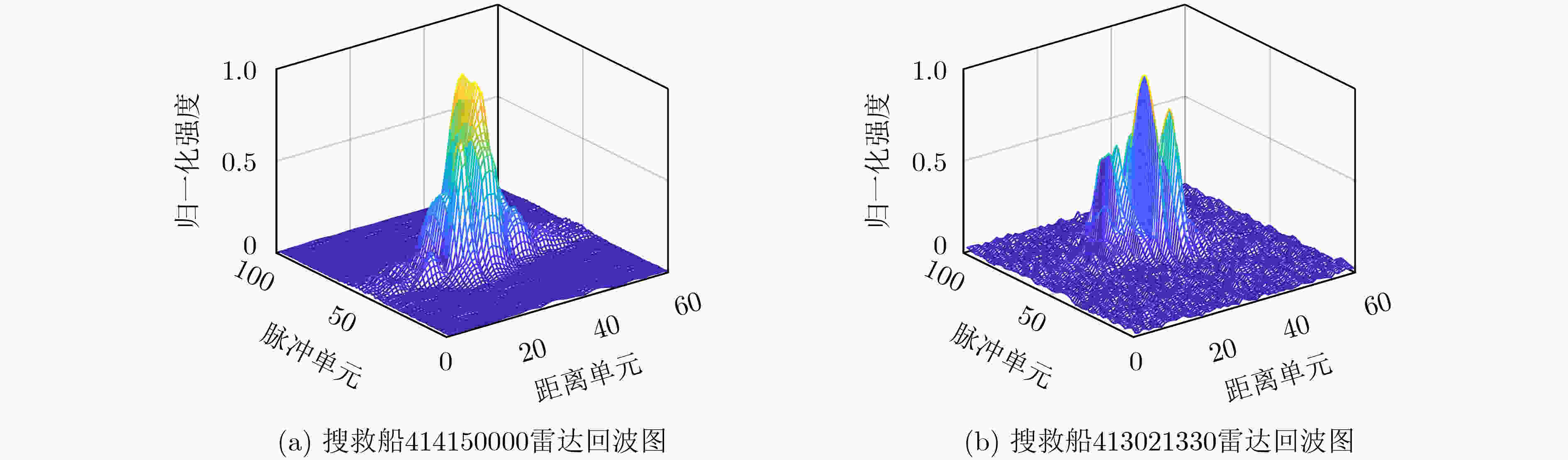

图 8 同一姿态下搜救船雷达回波对比图

下载: 全尺寸图片幻灯片

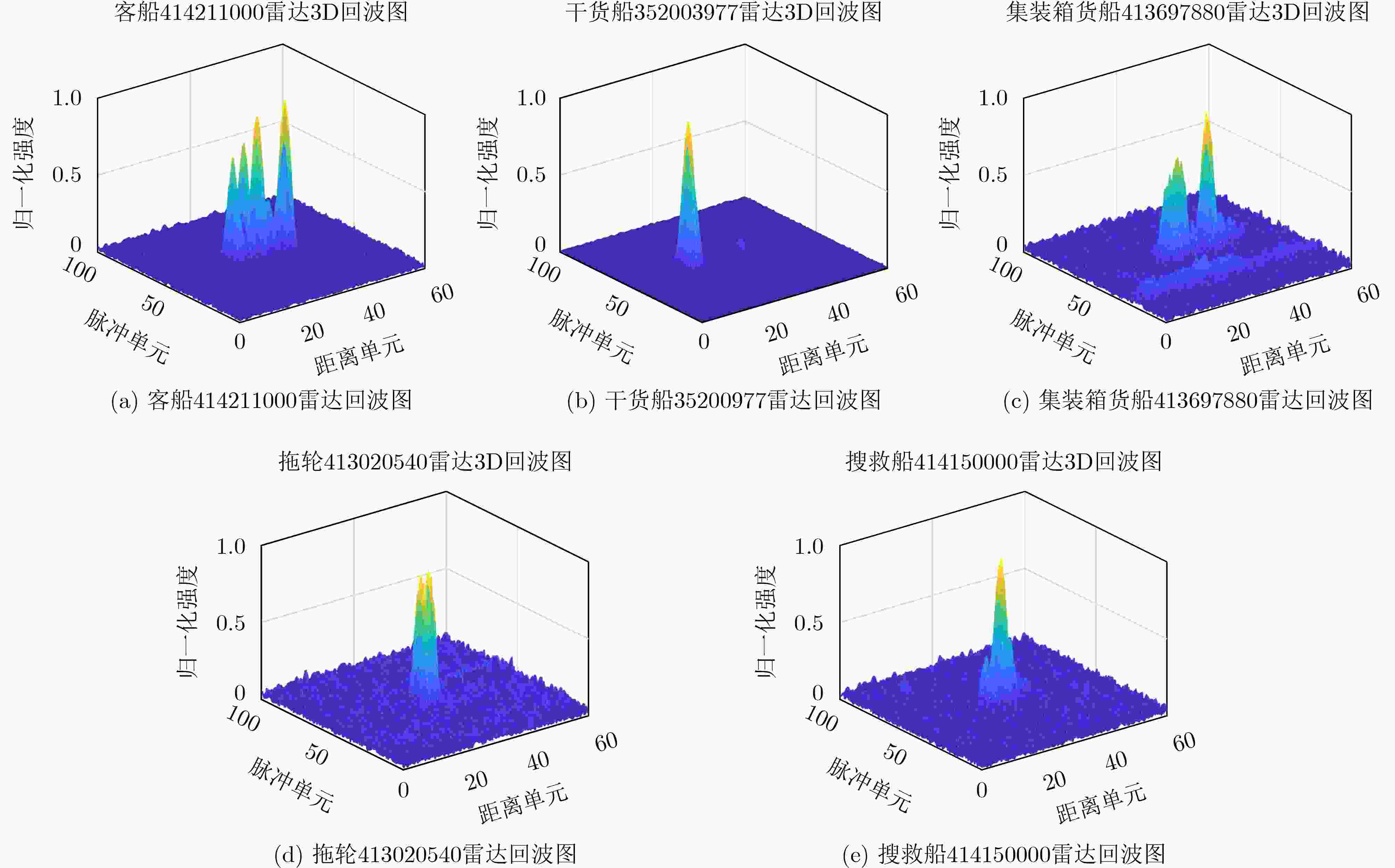

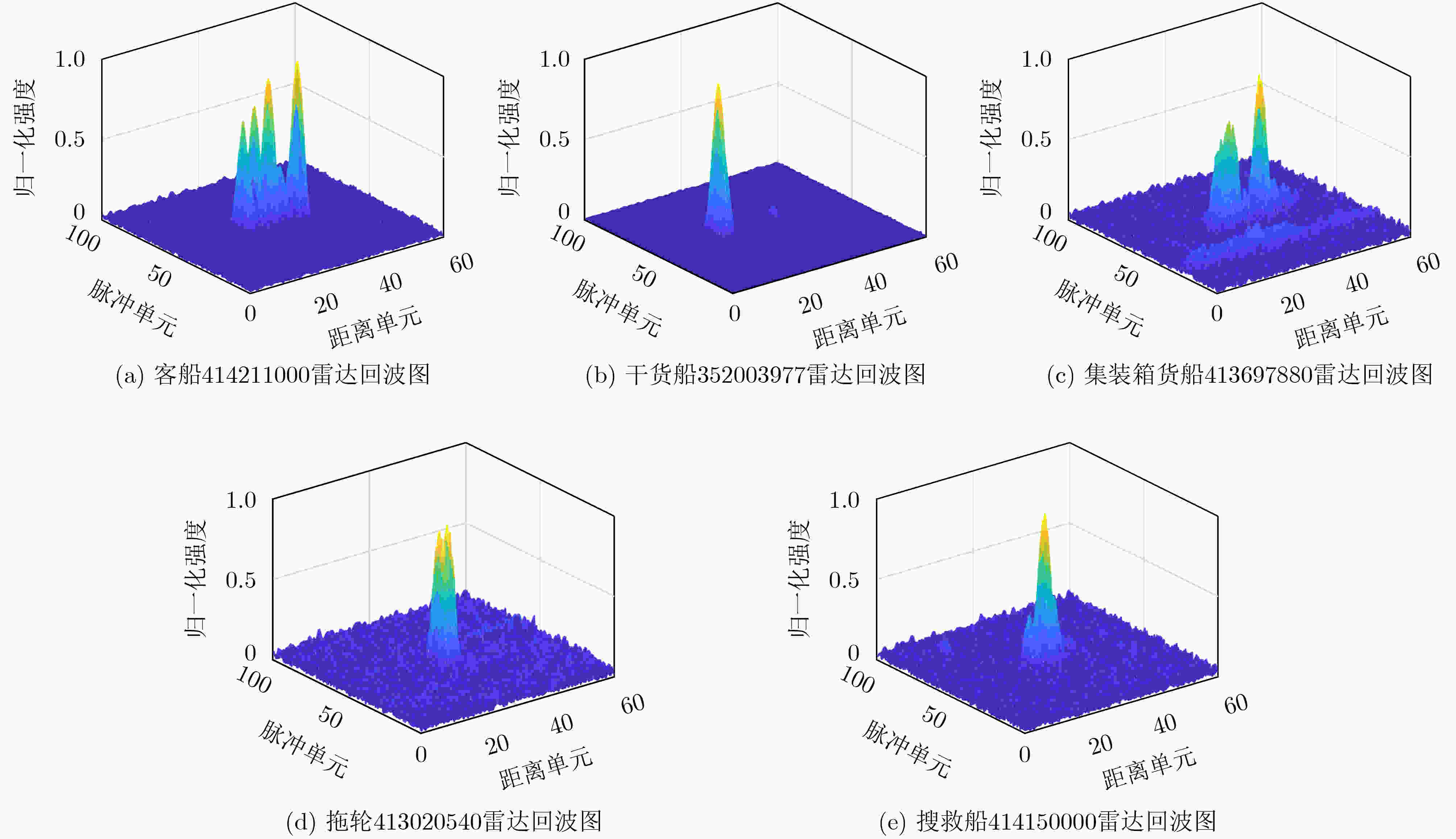

图 9 不同类型船只雷达回波对比图

下载: 全尺寸图片幻灯片

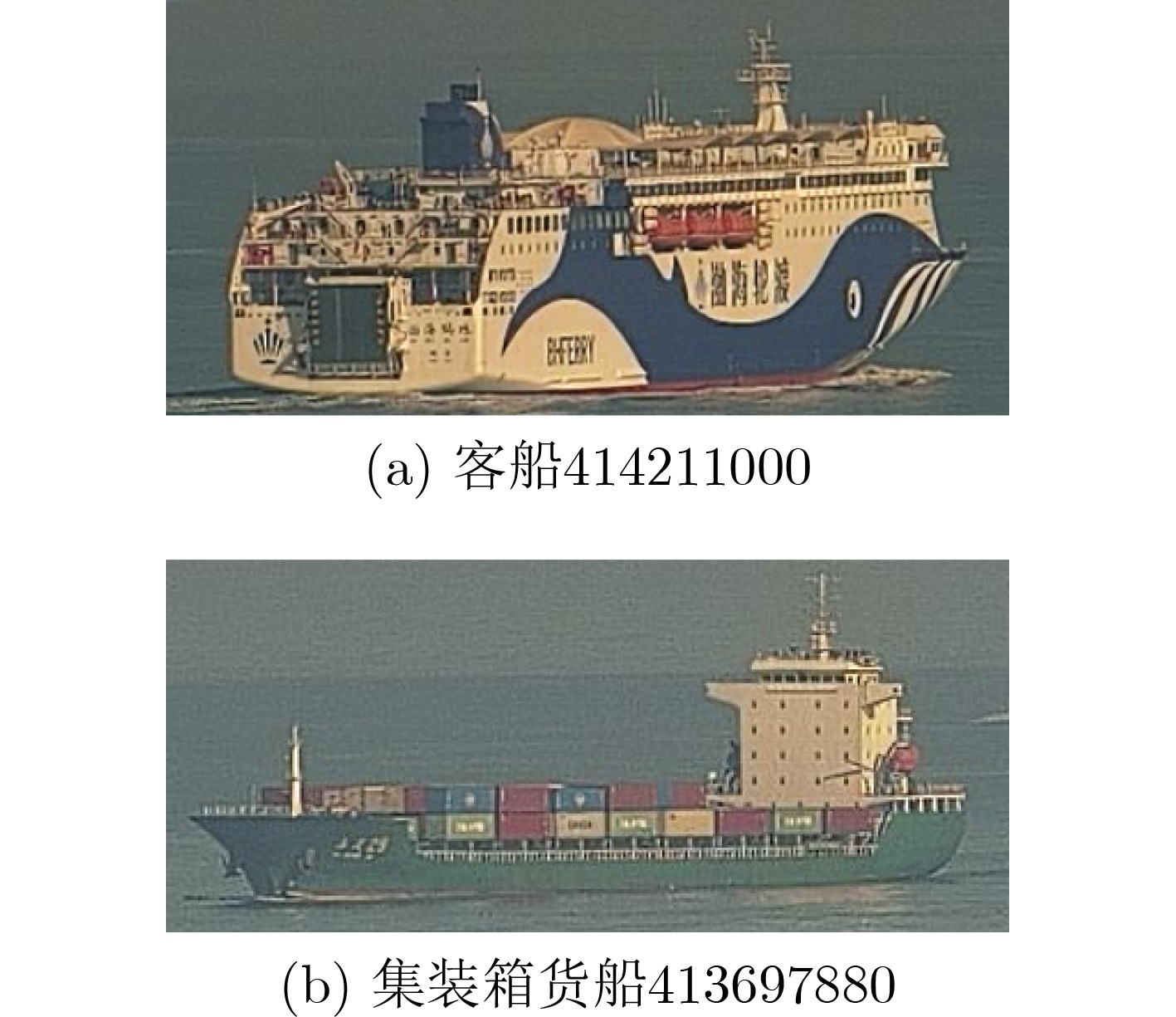

图 10 客船与集装箱货船对比图

下载: 全尺寸图片幻灯片

表 1 数据名称及船只参数

船只类型	数据压缩包名称	船只状态	船只尺寸
客船	20250117110753_2003_AT_414211000_1 20250117110751_2002_AT_414211000_1	在航	180 m/28 m
干货船	20250117101738_2003_AT_352003977_1 20250117101739_2002_AT_352003977_1	在航	289 m/45 m
集装箱货船	20250117103453_2003_AT_413697880_1 20250117103454_2002_AT_413697880_1	在航	161 m/23 m
拖轮	20250117103143_2003_AT_413020540_1 20250117103141_2002_AT_413020540_1	在航	39 m/11 m
搜救船	20250124121319_2003_AT_414150000_1 20250124121318_2002_AT_414150000_1	在航	117 m/16 m
搜救船	20240930153712_2002_ST_413021330_1	锚泊	100 m/15 m

下载: 导出CSV

表 2 客船相关系数表

		热纹理能量TTE	高温连通区域数HTCC	边缘点数NE	水平投影宽度HPW
414211000_HH	峰值个数NP	–0.063	0.034	–0.002	0.030
	径向尺寸RD	0.002	0.245	–0.179	–0.242
	位置分布熵PDE	–0.088	0.067	0.008	0.043
	横向尺寸CRD	–0.279	–0.792	–0.284	–0.335
	相对平均幅度RAA	0.285	0.546	0.235	0.316
414211000_VV	峰值个数NP	0.101	0.039	–0.086	–0.042
	径向尺寸RD	0.098	0.128	–0.051	0.013
	位置分布熵PDE	0.093	0.062	–0.073	–0.042
	横向尺寸CRD	–0.133	–0.803	–0.354	–0.237
	相对平均幅度RAA	–0.197	–0.499	–0.176	–0.143

下载: 导出CSV

表 3 干货船相关系数表

		热纹理能量TTE	高温连通区域数HTCC	边缘点数NE	水平投影宽度HPW
352003977_HH	峰值个数NP	0.177	–0.251	–0.252	–0.281
	径向尺寸RD	0.276	–0.295	–0.134	–0.269
	位置分布熵PDE	0.220	–0.270	–0.244	–0.297
	横向尺寸CRD	0.547	–0.609	–0.460	–0.525
	相对平均幅度RAA	–0.215	0.301	0.125	0.318
352003977_VV	峰值个数NP	–0.011	–0.037	0.096	0.034
	径向尺寸RD	–0.223	0.346	0.187	0.232
	位置分布熵PDE	–0.098	0.038	0.124	0.062
	横向尺寸CRD	0.562	–0.499	–0.462	–0.367
	相对平均幅度RAA	0.262	–0.259	–0.264	–0.197

下载: 导出CSV

表 4 集装箱货船相关系数表

		热纹理能量TTE	高温连通区域数HTCC	边缘点数NE	水平投影宽度HPW
413697880_HH	峰值个数NP	–0.121	–0.309	–0.207	–0.325
	径向尺寸RD	–0.393	–0.638	–0.505	–0.550
	位置分布熵PDE	–0.089	–0.253	–0.161	–0.291
	横向尺寸CRD	–0.439	–0.612	0.555	0.608
	相对平均幅度RAA	0.570	0.772	0.697	0.784
413697880_VV	峰值个数NP	–0.313	–0.073	0.111	0.363
	径向尺寸RD	–0.522	–0.354	0.099	0.158
	位置分布熵PDE	–0.347	–0.076	0.148	0.322
	横向尺寸CRD	–0.534	–0.435	0.232	0.352
	相对平均幅度RAA	0.409	0.349	–0.251	–0.276

下载: 导出CSV

表 5 拖轮相关系数表

		热纹理能量TTE	高温连通区域数HTCC	边缘点数NE	水平投影宽度HPW
413020540_HH	–0.151	0.231	0.222	–0.097
	径向尺寸RD	0.077	0.029	0.602	0.154
	位置分布熵PDE	–0.149	0.324	0.101	0.008
	横向尺寸CRD	–0.181	0.116	–0.563	–0.160
	相对平均幅度RAA	0.027	0.131	–0.067	0.201
413020540_VV	峰值个数NP	–0.297	–0.248	–0.111	0.228
	径向尺寸RD	–0.163	–0.272	–0.032	0.185
	位置分布熵PDE	–0.378	–0.304	0.015	0.270
	横向尺寸CRD	0.419	0.060	–0.079	–0.075
	相对平均幅度RAA	–0.019	0.228	–0.057	0.064

下载: 导出CSV

表 6 搜救船相关系数表

		热纹理能量TTE	高温连通区域数HTCC	边缘点数NE	水平投影宽度HPW
414150000_HH	峰值个数NP	–0.126	–0.352	–0.044	–0.363
	径向尺寸RD	–0.321	–0.432	–0.444	–0.256
	位置分布熵PDE	–0.154	–0.299	–0.171	–0.201
	横向尺寸CRD	0.409	0.508	0.522	0.404
	相对平均幅度RAA	0.125	–0.569	–0.276	–0.398
414150000_VV	峰值个数NP	–0.132	–0.144	–0.210	–0.391
	径向尺寸RD	–0.278	–0.373	–0.349	–0.201
	位置分布熵PDE	–0.118	–0.151	–0.154	–0.121
	横向尺寸CRD	0.457	0.402	0.398	0.438
	相对平均幅度RAA	–0.061	0.508	–0.033	–0.380

下载: 导出CSV

表 7 锚泊搜救船VV极化相关系数表

		热纹理能量TTE	高温连通区域数HTCC	边缘点数NE	水平投影宽度HPW
413021330_VV	峰值个数NP	–0.321	–0.134	–0.352	–0.363
	径向尺寸RD	–0.206	–0.306	–0.432	–0.344
	位置分布熵PDE	–0.307	–0.121	–0.213	–0.173
	横向尺寸CRD	0.416	0.428	0.508	0.522
	相对平均幅度RAA	0.117	0.409	0.307	0.341

下载: 导出CSV
