多模型融合的无人机异常航迹校正方法

王威; 佘丁辰; 王加琪; 韩戴如; 晋本周

doi:10.11999/JEIT241026

多模型融合的无人机异常航迹校正方法

doi: 10.11999/JEIT241026

1.
南京航空航天大学电子信息工程学院南京 211106
2.
南京理工大学电子工程与光电技术学院南京 210094

基金项目: 国家自然科学基金(62371231)，江苏省前沿引领技术基础研究重大项目(BK20222001)，江苏省重点研发计划(产业前瞻与关键核心技术)竞争项目(BE2023027)

详细信息

作者简介:
王威：男，研究员，研究方向为无线通信，空天地一体化网络

佘丁辰：男，硕士生，研究方向为无人机异常行为监管

王加琪：男，硕士生，研究方向为低空无人机监管技术

韩戴如：男，博士后，研究方向为星地一体化网络中的卫星通信与协同传输

晋本周：男，教授，研究方向为为雷达信号处理、雷达抗干扰

通讯作者:
佘丁辰　sz2204829@nuaa.edu.cn

1¹ https://ieee-dataport.org/open-access/uav-attack-dataset² https://github.com/osqzss/gps-sdr-sim
中图分类号: TN97
计量
- 文章访问数: 108
- HTML全文浏览量: 45
- PDF下载量: 5
- 被引次数: 0
出版历程
- 收稿日期: 2024-11-18
- 修回日期: 2025-03-13
- 网络出版日期: 2025-03-21

Multi-Model Fusion-Based Abnormal Trajectory Correction Method for Unmanned Aerial Vehicles

1.
College of Electronic and Information Engineering, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China
2.
School of Electronic and Optical Engineering, Nanjing University of Science and Technology, Nanjing 210094, China

Funds: The National Natural Science Foundation of China (62371231), The Natural Science Foundation on Frontier Leading Technology Basic Research Project of Jiangsu (BK20222001), The Jiangsu Provincial Key Research and Development Program (BE2023027)

摘要

摘要: 低空空域的开放和无人机的大规模应用使得低空飞行活动日益增多，航迹规划是确保无人机在复杂低空环境下有序飞行的关键。然而由于无线遥控链路中存在的干扰、欺骗等各种攻击，导致无人机偏离规划的航迹，给低空安全带来严峻挑战。为减小位置欺骗攻击引起的航迹异常，该文提出一种多模型融合的无人机异常航迹校正方法，通过预测无人机的位置参数进行航迹校正。为了降低长期预测误差对无人机航迹校正的影响，提出融合长短期记忆网络(LSTM)和Transformer的长短期记忆网络-Transformer (LSTM-Transformer)预测模型，并在此基础上提出了分块注意力优化策略，以降低Transformer子模型的计算复杂度，提高无人机异常航迹的校正效率。基于公开数据集，通过与基准方法比较和消融实验，证明了所提方法相比其它方法能够降低无人机异常航迹的校正误差，实现对无人机异常航迹的校正。
- 无人机 /
- 航迹校正 /
- 多模型融合 /
- 长短期记忆网络-Transformer预测模型 /
- 分块注意力优化策略
Abstract: Objective The opening of low-altitude airspace and the widespread deployment of Unmanned Aerial Vehicles (UAVs) have significantly increased low-altitude flight activities. Trajectory planning is essential for ensuring UAVs operate safely in complex environments. However, wireless remote control links are vulnerable to interference and spoofing attacks, leading to deviations from planned trajectories and posing serious safety risks. To mitigate these risks, UAV position parameters can be predicted and used to replace erroneous navigation system values, thereby correcting abnormal trajectories. Existing prediction-based correction methods, however, exhibit low efficiency and error accumulation over long-term predictions, limiting their practical application. To address these limitations, this study proposes a multi-model fusion method to improve the efficiency and accuracy of abnormal trajectory correction, providing a robust solution for real-world UAV operations. Methods An LSTM-Transformer prediction model, integrating Long Short-Term Memory (LSTM) and Transformer, is proposed to exploit the strengths of both architectures in time series forecasting. LSTM efficiently captures short-term dependencies in sequential data, whereas Transformer is well-suited for modeling long-term dependencies. By combining these architectures, the proposed model enhances the capture of both short-term and long-term dependencies, reducing prediction errors. The overall framework of the LSTM-Transformer prediction model is illustrated in (Fig. 3). The input time series data undergoes preprocessing before being fed into the LSTM and Transformer sub-models, each generating a corresponding feature vector. These feature vectors are concatenated and further processed by a fully connected layer to extract intrinsic data features, ultimately producing the prediction results. To further optimize the model, a blockwise attention strategy is proposed. The detailed computation process is shown in (Fig. 4). During self-attention calculations in the Transformer sub-model, the input sequence is divided into multiple sub-blocks, allowing for parallel computation. The results are then concatenated to obtain the final output. This approach effectively reduces the computational complexity of the Transformer sub-model while improving the efficiency of abnormal trajectory correction. The blockwise attention strategy not only enhances computational efficiency but also maintains prediction accuracy, making it a crucial component of the proposed method. Results and Discussions Experiments are conducted using a public dataset to predict UAV positional parameters, including longitude, latitude, and altitude. The dataset’s feature parameters are presented in (Table 1). The trajectory correction performance of the proposed method is evaluated and compared with other correction methods using Root Mean Square Error (RMSE), Mean Absolute Error (MAE), and Mean Absolute Percentage Error (MAPE). (Fig. 5) and (Fig. 6) present the error metrics of the proposed method in comparison with Support Vector Regression (SVR), CNN-LSTM, and LSTM-RF under different prediction step sizes and measurement noise standard deviation conditions. The results indicate that the proposed method achieves the lowest correction errors. At a prediction step size of 20 and a measurement noise standard deviation of 0.19, the proposed method achieves RMSE, MAE, and MAPE values of 0.2971, 0.2208, and 21.688%, respectively. Compared with SVR, CNN-LSTM, and LSTM-RF, the RMSE is reduced by 39.52%, 6.22%, and 20.65%, the MAE by 45.5%, 8.46%, and 20.52%, and the MAPE by 8.955%, 2.03%, and 3.532%, respectively. (Fig. 7) and (Fig. 8) compare the proposed method with the original LSTM-Transformer, the Transformer with the blockwise attention optimization strategy, and individual LSTM and Transformer models in terms of error metrics under different prediction steps and measurement noise standard deviation conditions. When the prediction step is 20 and the measurement noise standard deviation is 0.19, the proposed method achieves RMSE reductions of 12.23%, 4.07%, 1.36%, and 3.48%, MAE reductions of 19.36%, 6.76%, 3.83%, and 4.21%, and MAPE reductions of 3.84%, 3.616%, 2.075%, and 2.087%, compared to the other four correction methods. These findings demonstrate the superior performance of the proposed method in reducing trajectory correction errors. The runtime efficiency of the proposed method under different prediction steps is evaluated, as shown in (Fig. 9). With a prediction step size of 20, the proposed method completes the prediction in 0.699 s, which is 35.87% faster than the original LSTM-Transformer model. This confirms that the blockwise attention optimization strategy enhances correction efficiency. Finally, (Fig. 10) presents trajectory comparisons, illustrating the accuracy of the proposed method. The predicted trajectories closely align with actual trajectories, outperforming baseline methods in correcting UAV abnormal trajectories under various conditions. Conclusions The proposed multi-model fusion method for UAV abnormal trajectory correction enhances correction efficiency and reduces errors more effectively than benchmark methods. The results demonstrate that the method achieves accurate and reliable trajectory correction, making it suitable for practical UAV applications.
- Unmanned Aerial Vehicles (UAVs) /
- Trajectory correction /
- Multi-model fusion /
- Long Short-Term Memory(LSTM)-Transformer prediction model /
- Blockwise attention optimization strategy

HTML全文

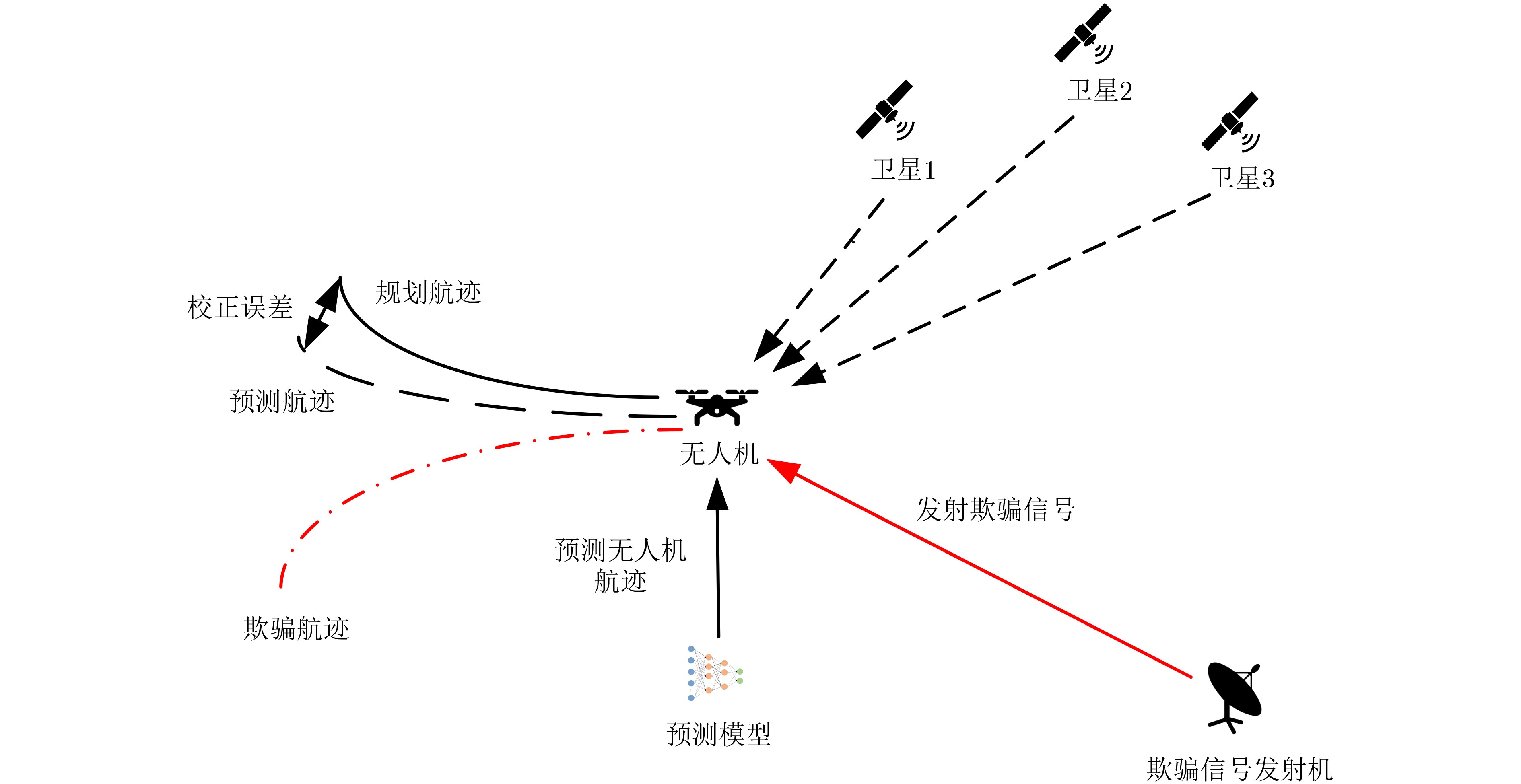

图 1 无人机位置欺骗攻击示意图

下载: 全尺寸图片幻灯片

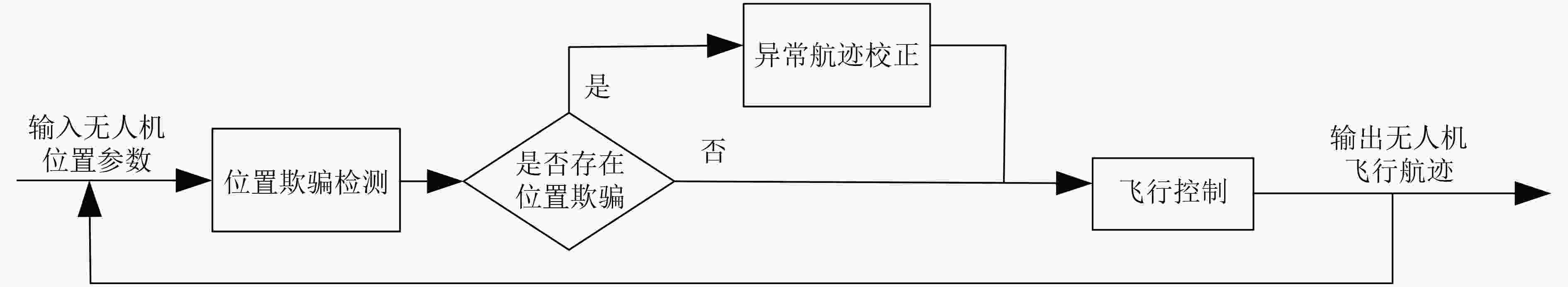

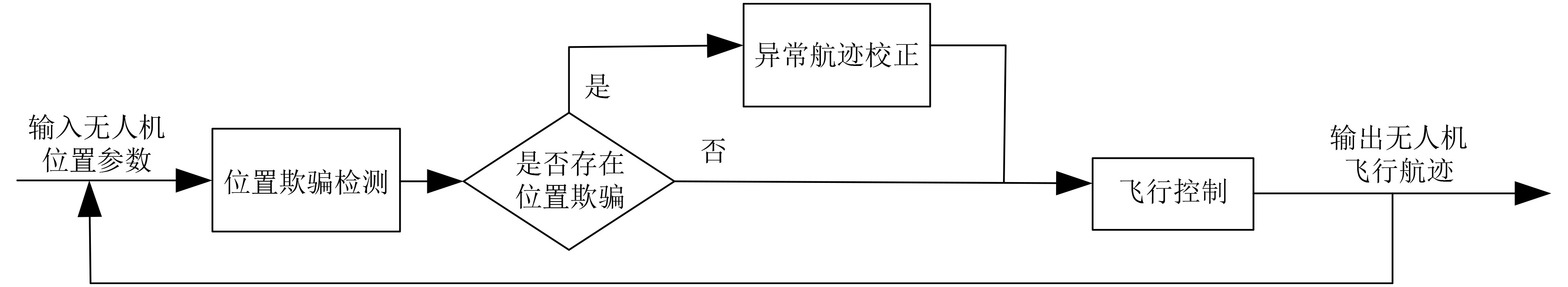

图 2 无人机异常航迹校正流程

下载: 全尺寸图片幻灯片

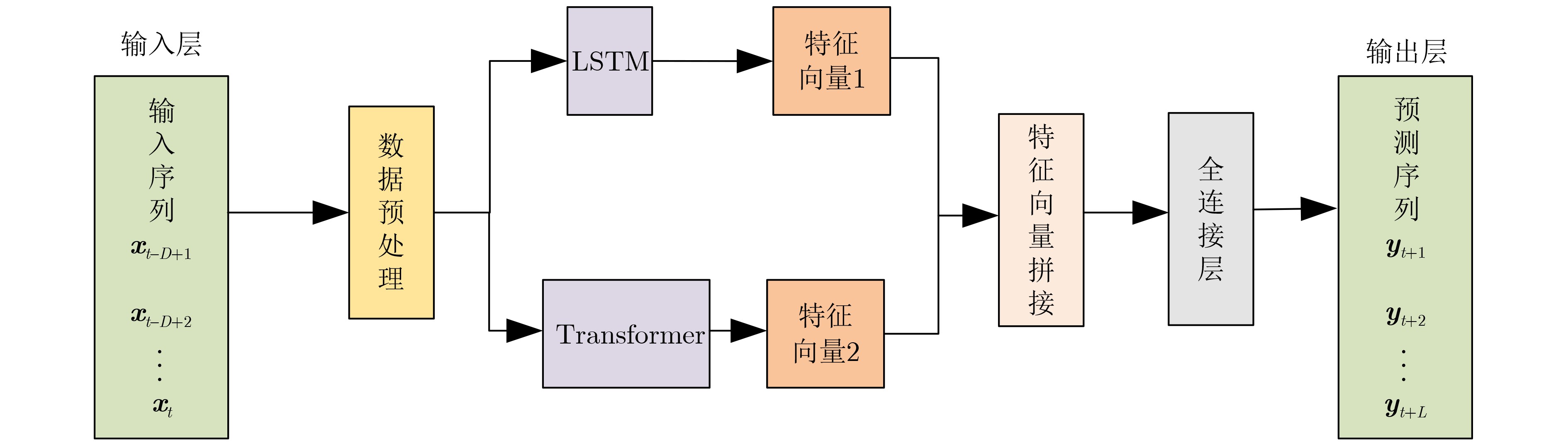

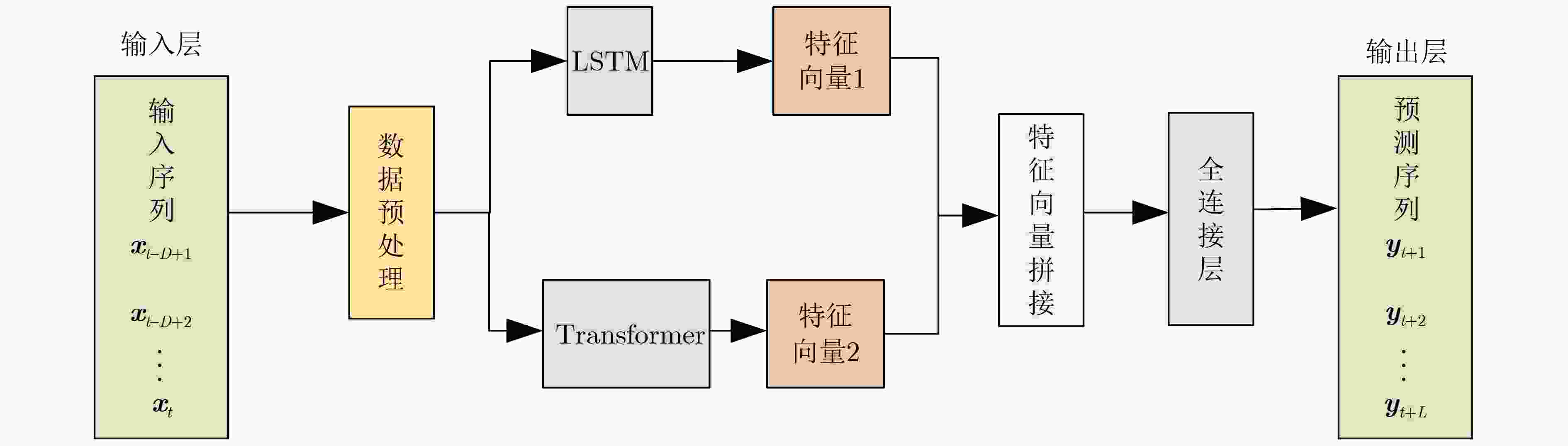

图 3 LSTM-Transformer预测模型总体框架

下载: 全尺寸图片幻灯片

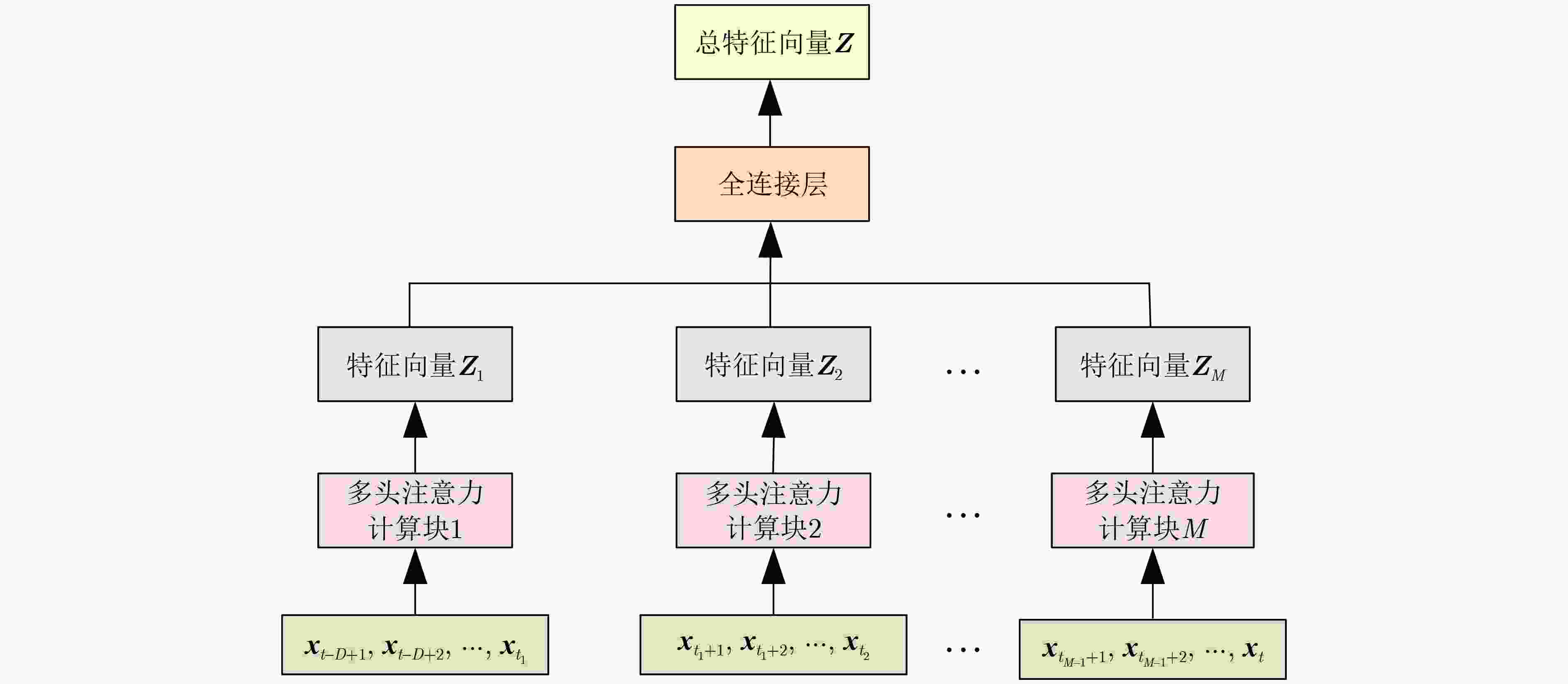

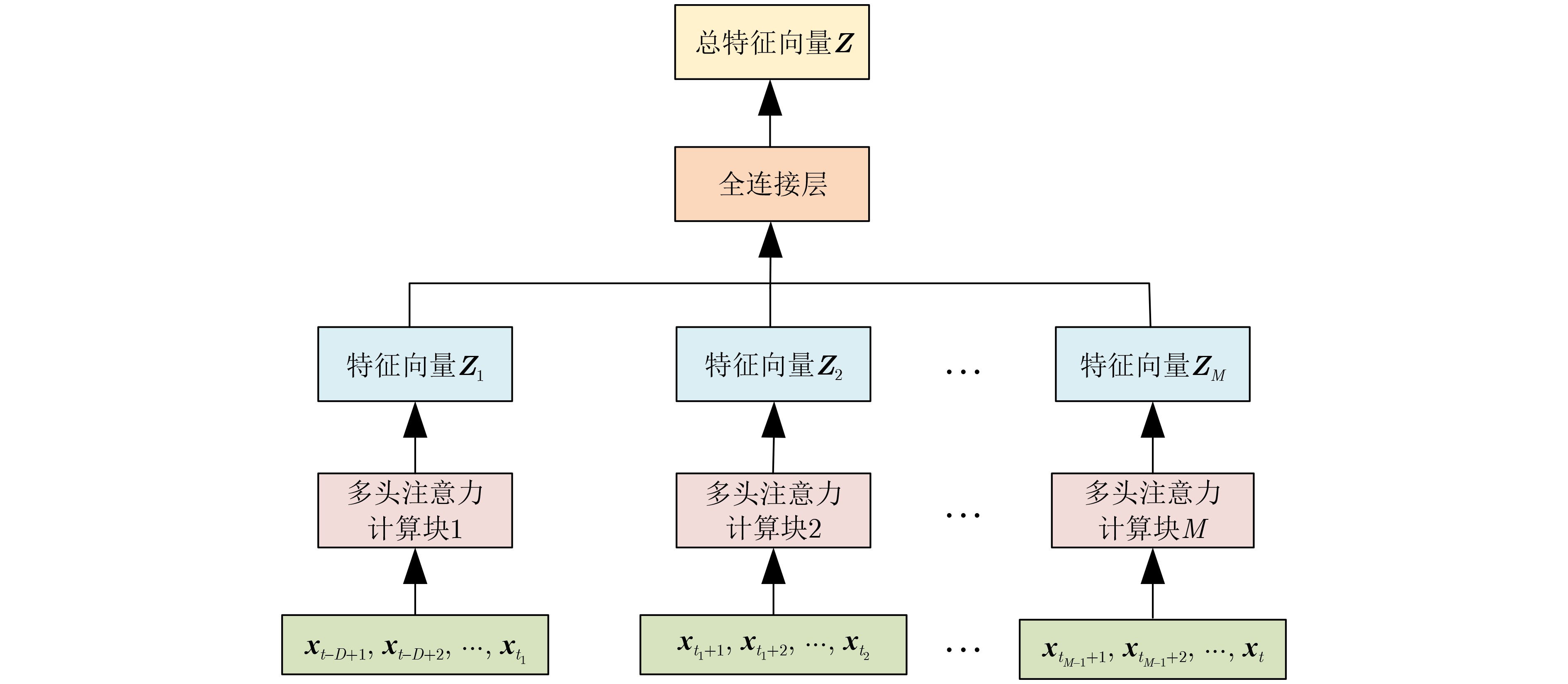

图 4 分块注意力优化策略计算流程

下载: 全尺寸图片幻灯片

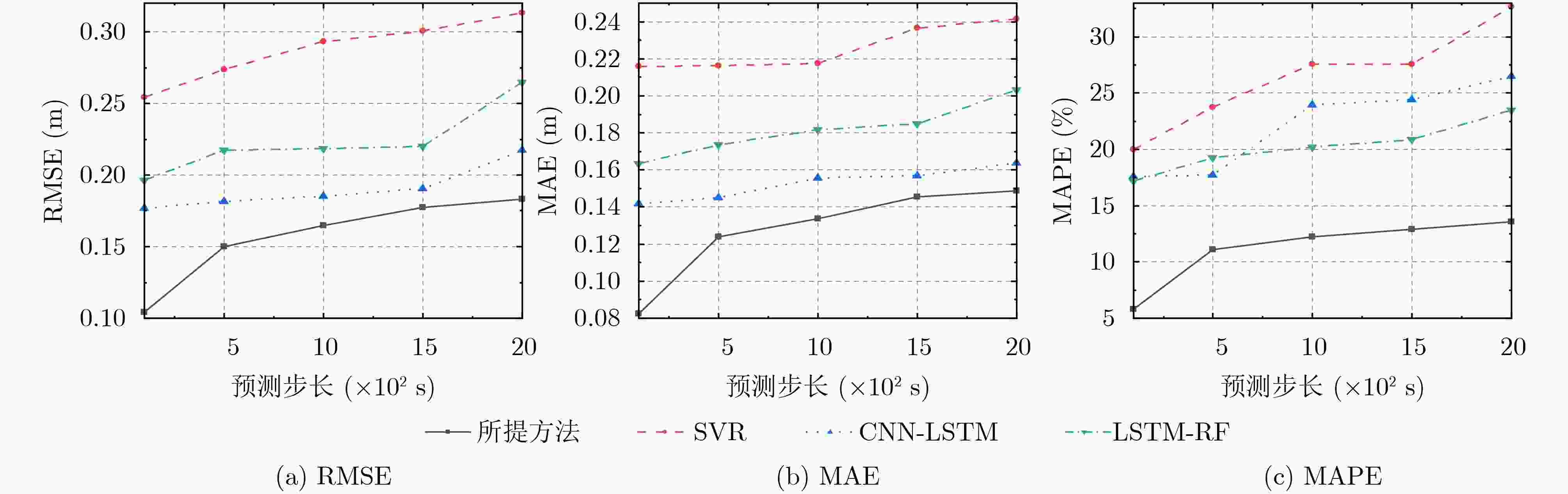

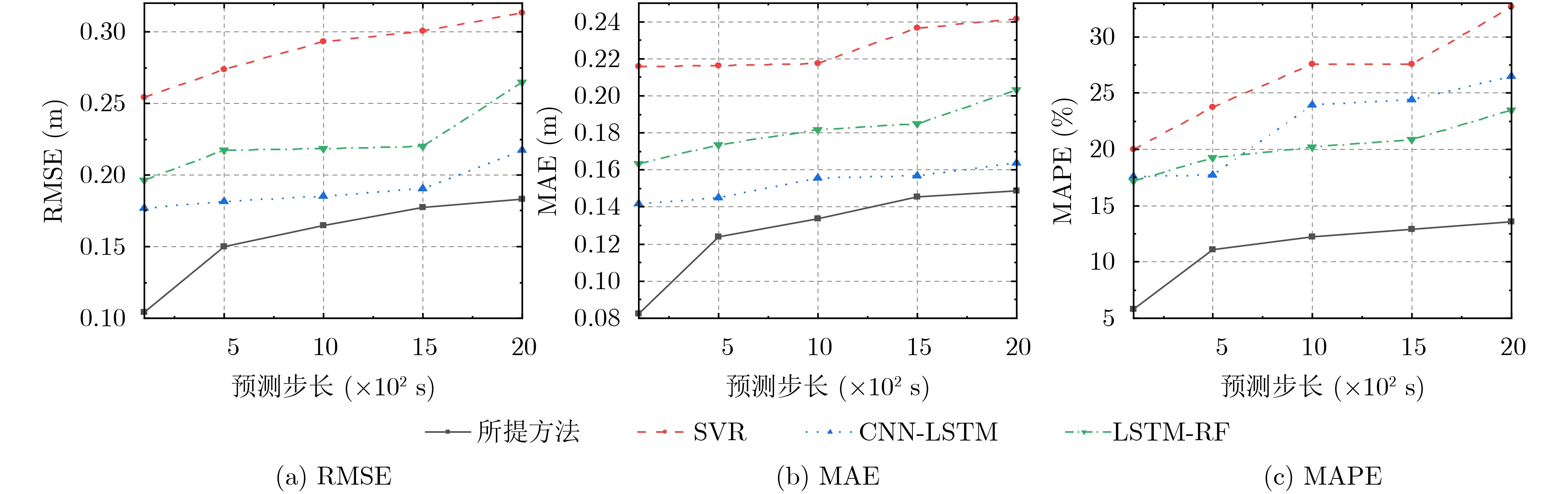

图 5 四种校正方法在不同预测步长下的校正误差

下载: 全尺寸图片幻灯片

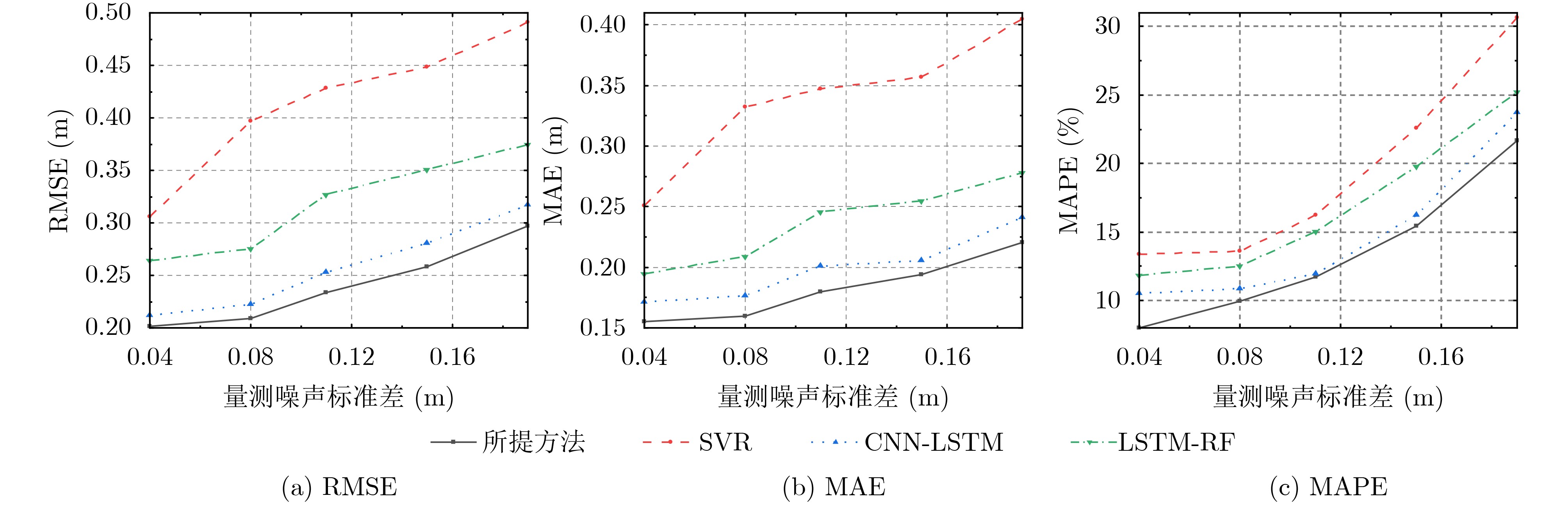

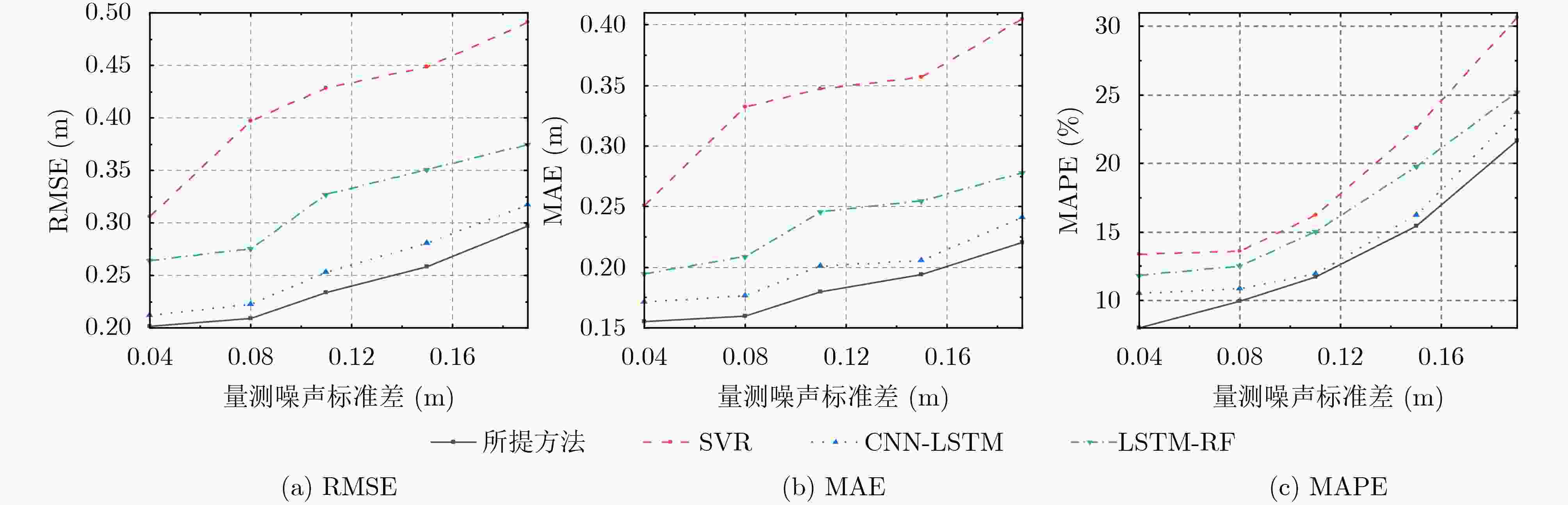

图 6 预测步长为20时，4种校正方法在不同量测噪声标准差下的校正误差

下载: 全尺寸图片幻灯片

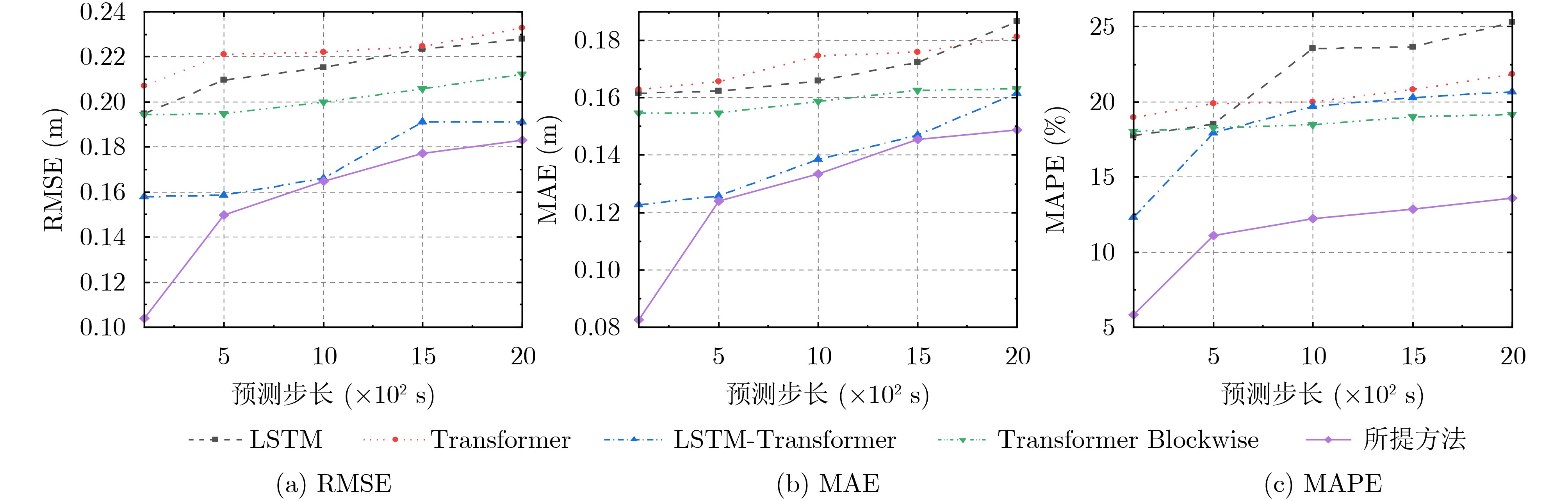

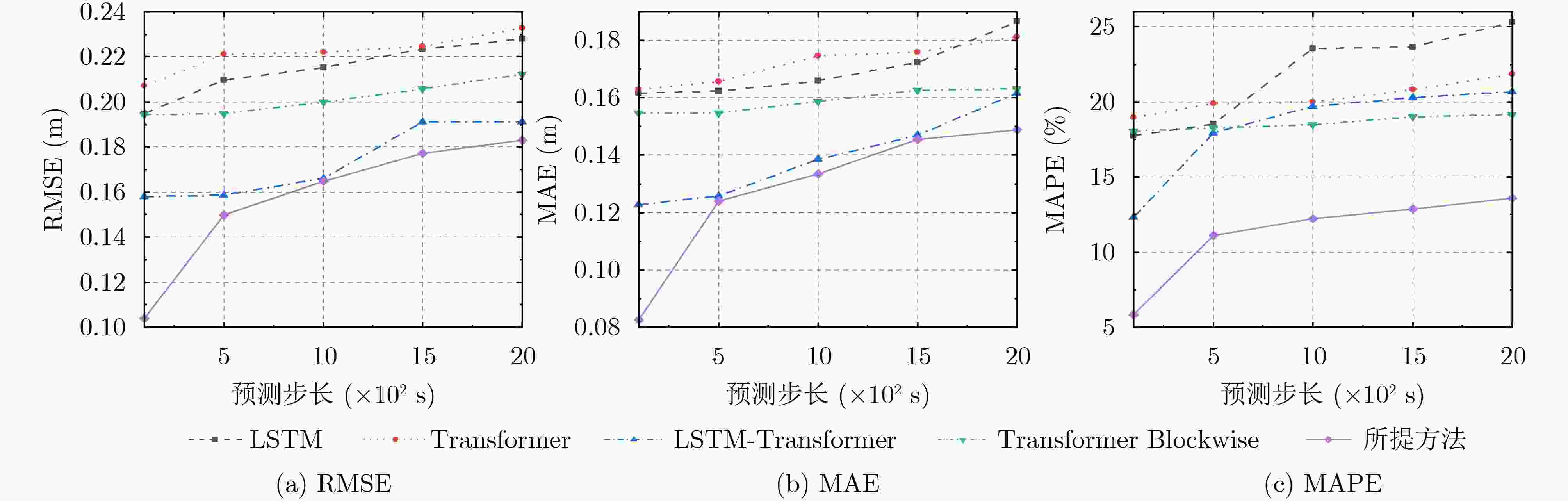

图 7 所提方法与其不同成分在不同预测步长下的校正误差

下载: 全尺寸图片幻灯片

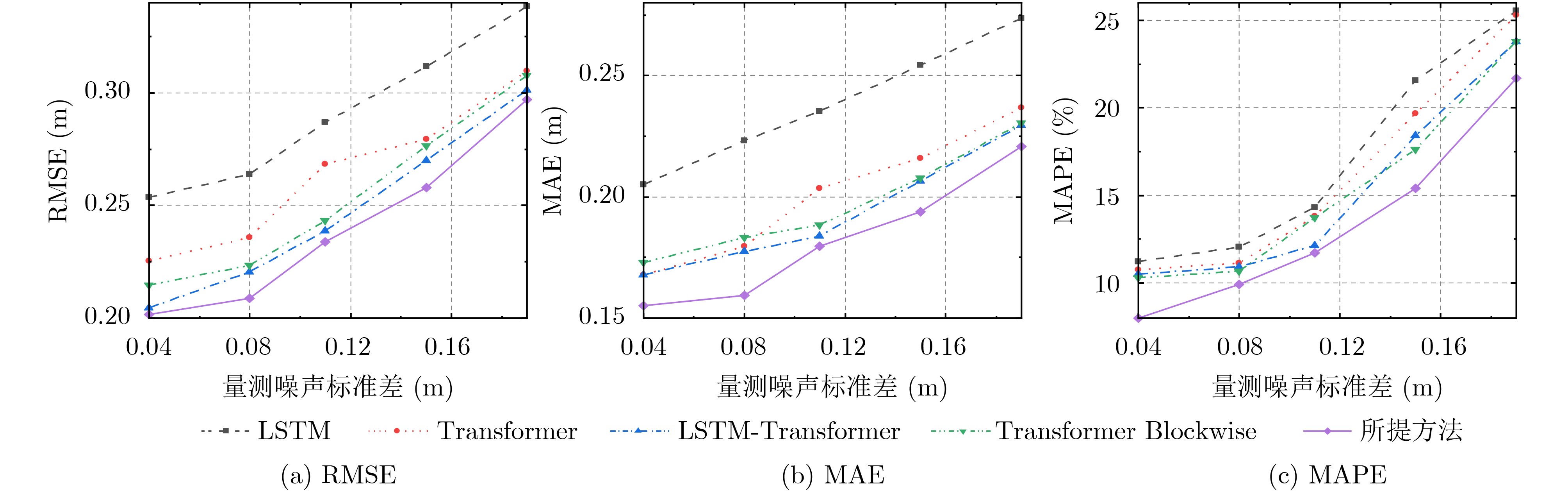

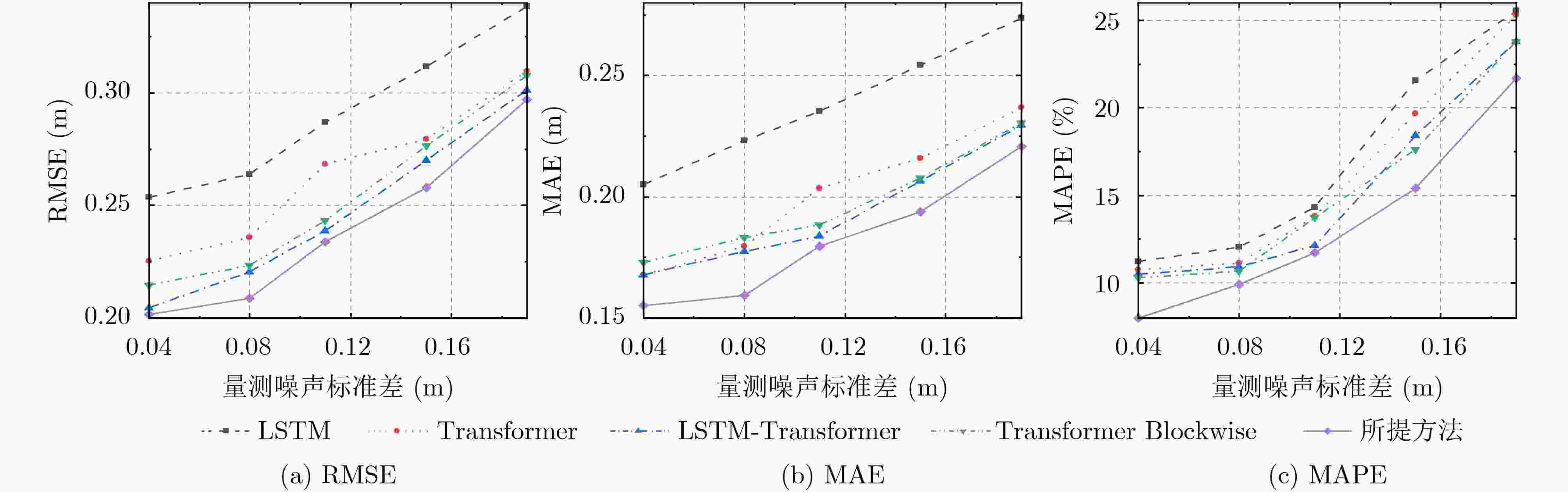

图 8 预测步长为20时，所提方法与其不同成分在不同量测噪声标准差下的校正误差

下载: 全尺寸图片幻灯片

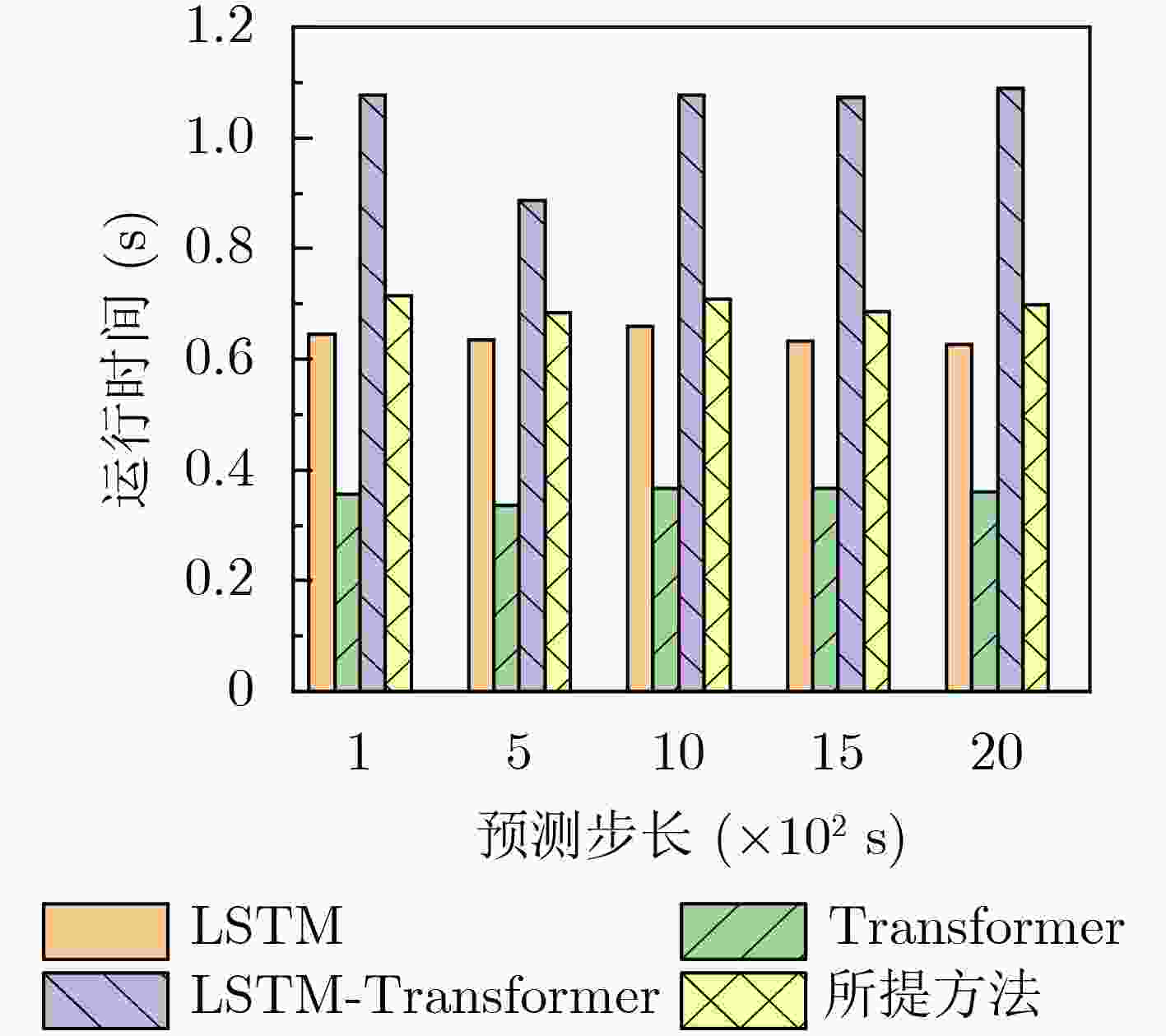

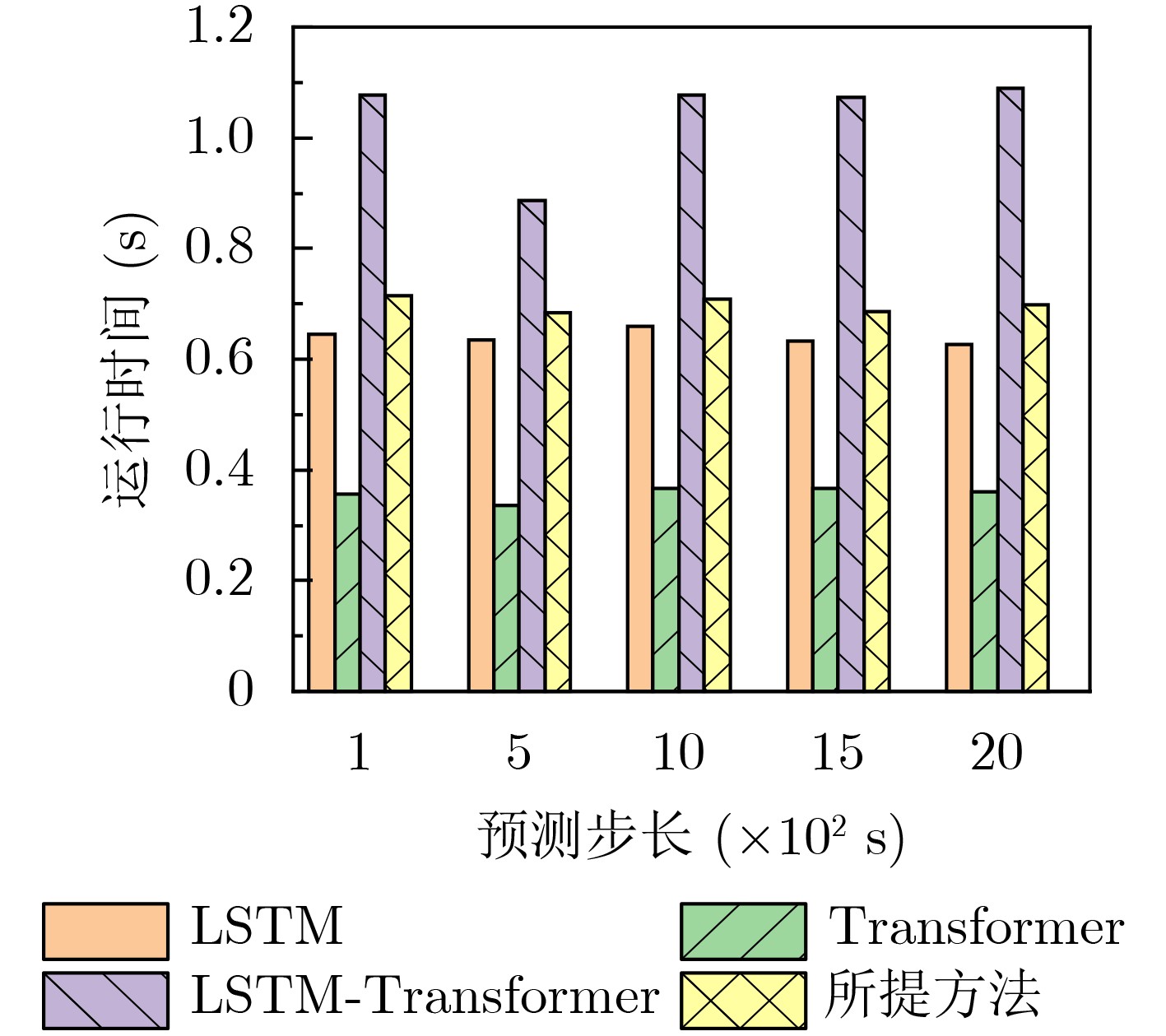

图 9 所提方法与其不同成分在不同预测步长下的运行时间

下载: 全尺寸图片幻灯片

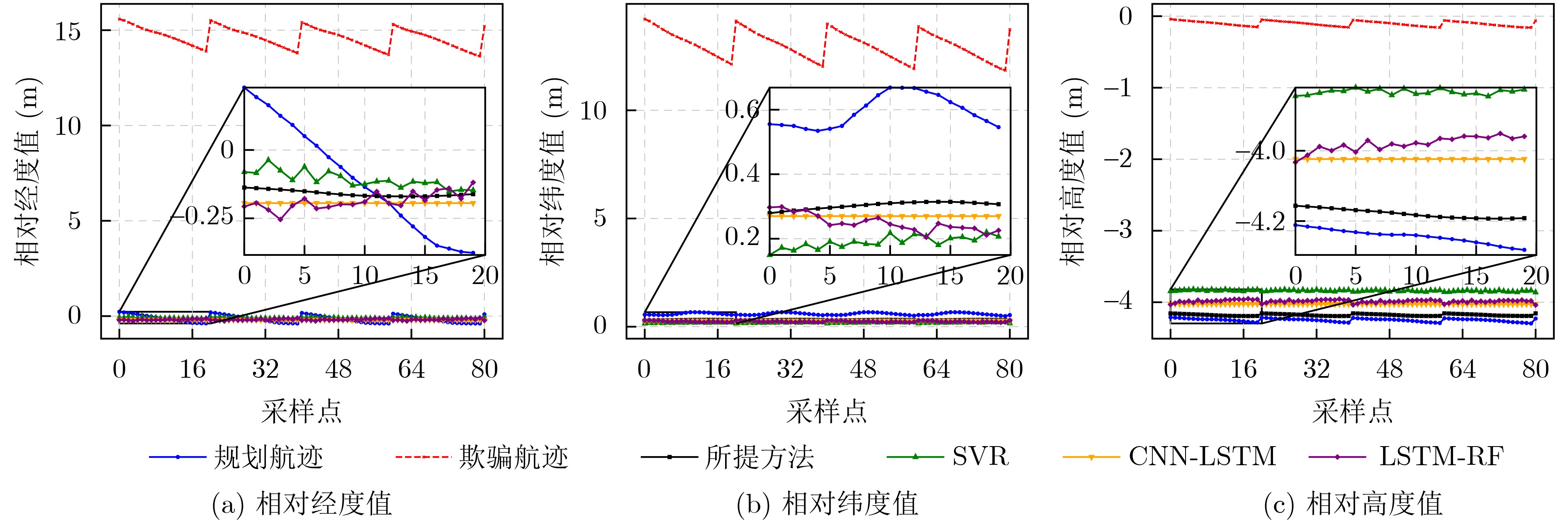

图 10 4种校正方法在预测步长为20下的无人机异常航迹校正结果

下载: 全尺寸图片幻灯片

表 1 无人机航迹预测特征参数

输入特征	预测特征(输出特征)
局部位置$ (x,y,z) $	局部位置$ (x,y,z) $
局部速度$ ({v_x},{v_y},{v_z}) $
局部加速度$ ({a_x},{a_y},{a_z}) $
横滚角速度(Roll Speed)
俯仰角速度(Pitch Speed)
偏航角速度(Yaw Speed)
横滚角(Roll)
俯仰角(Pitch)
偏航角(Yaw)

下载: 导出CSV

表 2 LSTM子模型神经网络配置

神经网络层(layer)	配置参数(configuration)
LSTM 1	50 Neurons, Tanh
LSTM 2	50 Neurons, Tanh
Fully connected	64 Neurons, Relu

下载: 导出CSV

表 3 CNN-LSTM神经网络配置

神经网络层(layer)	配置参数(configuration)
1D Convolution	64 kernels, 2 × 1 kernel size, Relu
Max-Pooling	2 × 1 kernel size
LSTM 1	50 Neurons, Tanh
LSTM 2	50 Neurons, Tanh
Fully connected	future steps×3 Neurons, SoftMax

下载: 导出CSV
