一种基于时空频多维特征的短时窗口脑电听觉注意解码网络

王春丽; 李金絮; 高玉鑫; 王晨名; 张珈豪

doi:10.11999/JEIT240867

一种基于时空频多维特征的短时窗口脑电听觉注意解码网络

doi: 10.11999/JEIT240867

兰州交通大学电子与信息工程学院兰州 730000

基金项目: 兰州交通大学-天津大学高校联合创新基金(LH2023002)，天津市自然科学基金(21JCZXJC00190)

详细信息

作者简介:
王春丽：女，副教授，研究方向为脑机接口、语音分离、声源定位

李金絮：女，硕士生，研究方向为基于脑电的听觉注意解码

高玉鑫：女，硕士生，研究方向为基于脑电的听觉注意解码

王晨名：男，硕士生，研究方向为脑机接口

张珈豪：男，硕士生，研究方向为脑机接口

通讯作者:
李金絮　l17339820919@163.com

中图分类号: TN911.7
计量
- 文章访问数: 195
- HTML全文浏览量: 70
- PDF下载量: 23
- 被引次数: 2
出版历程
- 收稿日期: 2024-10-15
- 修回日期: 2025-02-18
- 网络出版日期: 2025-02-25
- 刊出日期: 2025-03-01

A Short-time Window ElectroEncephaloGram Auditory Attention Decoding Network Based on Multi-dimensional Characteristics of Temporal-spatial-frequency

School of Electronic and Information Engineering, Lanzhou Jiaotong University, Lanzhou 730000, China

Funds: Lanzhou Jiaotong University-Tianjin University Joint Innovation Fund (LH2023002), Tianjin Natural Science Foundation (21JCZXJC00190)

摘要

摘要: 在鸡尾酒会场景中，听力正常的人有能力选择性地注意特定的说话者语音，但听力障碍者在这种场景中面临困难。听觉注意力解码(AAD)的目的是通过分析听者的脑电信号(EEG)响应特征来推断听者关注的是哪个说话者。现有的AAD模型只考虑脑电信号的时域或频域单个特征或二者的组合(如时频特征)，而忽略了时-空-频域特征之间的互补性，这在一定程度上限制了模型的分类能力，进而影响了模型在决策窗口上的解码精度。同时，已有AAD模型大多在长时决策窗口(1～5 s)中有较高的解码精度。该文提出一种基于时-空-频多维特征的短时窗口脑电信号听觉注意解码网络(TSF-AADNet)，用于提高短时决策窗口(0.1～1 s)的解码精度。该模型由两个并行的时空、频空特征提取分支以及特征融合和分类模块组成，其中，时空特征提取分支由时空卷积块和高阶特征交互模块组成，频空特征提取分支采用基于频空注意力的3维卷积模块(FSA-3DCNN)，最后将双分支网络提取的时空和频空特征进行融合，得到最终的听觉注意力二分类解码结果。实验结果表明，TSF-AADNet模型在听觉注意检测数据集KULeuven(KUL)和听觉注意检测的脑电和音频数据集(DTU)的0.1 s决策窗口下，解码精度分别为91.8%和81.1%，与最新的AAD模型一种基于时频融合的双分支并行网络(DBPNet)相比，分别提高了5.40%和7.99%。TSF-AADNet作为一种新的短时决策窗口的AAD模型，可为听力障碍诊断以及神经导向助听器研发提供有效参考。
- 脑电信号 /
- 听觉注意力解码 /
- 短时决策窗口 /
- 时空频特征 /
- 神经导向助听器
Abstract: Objective In cocktail party scenarios, individuals with normal hearing can selectively focus on specific speakers, whereas individuals with hearing impairments often struggle in such environments. Auditory Attention Decoding (AAD) aims to infer the speaker that a listener is attending to by analyzing their brain’s electrical response, recorded through ElectroEncephaloGram (EEG). Existing AAD models typically focus on a single feature of EEG signals in the time domain, frequency domain, or time-frequency domain, often overlooking the complementary characteristics across the time-space-frequency domain. This limitation constrains the model’s classification ability, ultimately affecting decoding accuracy within a decision window. Moreover, while many current AAD models exhibit high accuracy over long-term decision windows (1～5 s), real-time AAD in practical applications necessitates a more robust approach to short-term EEG signals. Methods This paper proposes a short-window EEG auditory attention decoding network, Temporal-Spatial-Frequency Features-AADNet (TSF-AADNet), designed to enhance decoding accuracy in short decision windows (0.1～1 s). TSF-AADNet decodes the focus of auditory attention from EEG signals, eliminating the need for speech separation. The model consists of two parallel branches: one for spatiotemporal feature extraction, and another for frequency-space feature extraction, followed by feature fusion and classification. The spatiotemporal feature extraction branch includes a spatiotemporal convolution block, a high-order feature interaction module, a two-dimensional convolution layer, an adaptive average pooling layer, and a Fully Connected (FC) layer. The spatiotemporal convolution block can effectively extract EEG features across both time and space dimensions, capturing the correlation between signals at different time points and electrode positions. The high-order feature interaction module further enhances feature interactions at different levels, improving the model’s feature representation ability. The frequency-space feature extraction branch is composed of an FSA-3DCNN module, a 3D convolutional layer, and an adaptive average pooling layer, all based on frequency-space attention. The FSA-3DCNN module highlights key information in the EEG signals’ frequency and spatial dimensions, strengthening the model’s ability to extract features specific to certain frequencies and spatial positions. The spatiotemporal features from the spatiotemporal attention branch and the frequency-space features from the frequency-space attention branch are fused, fully utilizing the complementarity between the spatiotemporal and frequency domains of EEG signals. This fusion enables the final binary decoding of auditory attention and significantly improves decoding performance within the short decision window. Results and Discussions The TSF-AADNet model proposed in this paper is evaluated on four types of short-time decision windows using the KUL and DTU datasets. The decision window durations range from very short to relatively short, covering various real-world scenarios such as instantaneous information capture in real-time communication and rapid auditory response situations. The experimental results are presented in Figure 4. Under the short decision window conditions, the TSF-AADNet model demonstrates excellent performance on both the KUL and DTU datasets. In testing with the KUL dataset, the model’s decoding accuracy increases steadily and significantly as the decision window duration extends from the shortest time. This indicates that the model effectively adapts to decision windows of varying lengths, accurately extracting key information from complex EEG signals to achieve precise decoding. Similarly, for the DTU dataset, the decoding accuracy of the TSF-AADNet model improves as the decision window lengthens. This result aligns with prior studies in the field, further confirming the robustness and effectiveness of TSF-AADNet in short-time decision window decoding tasks. Additionally, to evaluate the specific contributions of each module in the TSF-AADNet model, ablation experiments are conducted on various modules. Ablation of two single-branch networks, without feature fusion, highlights the importance of integrating time-space-frequency features simultaneously. The contributions of the frequency attention and spatial attention mechanisms in the FSA-3DCNN module are also verified by removing key modules and comparing the model’s performance before and after each removal. (Figure 7) Accuracy of the TSF-AADNet model for decoding auditory attention of all subjects on the KUL and DTU datasets with short decision windows; Average AAD accuracy of various models with four types of short decision windows on KUL and DTU datasets are shown. (Table 3) Conclusions To evaluate the performance of the proposed AAD model, TSF-AADNet is compared with five other AAD classification models across four short-time decision windows using the KUL and DTU datasets. The experimental results demonstrate that the decoding accuracy of the TSF-AADNet model is 91.8% for the KUL dataset and 81.1% for the DTU dataset under the 0.1 s decision window, exceeding the latest AAD model, DBPNet, by 5.4% and 7.99%, respectively. Therefore, TSF-AADNet, as a novel model for short-time decision window AAD, provides an effective reference for the diagnosis of hearing disorders and the development of neuro-oriented hearing aids.
- ElectroEncephaloGram (EEG) /
- Auditory Attention Decoding (AAD) /
- Short-term decision window /
- Temporal-Spatial-Frequency features (TSF) /
- Neuro-oriented hearing aids

HTML全文

图 1 TSF-AADNet示意图

下载: 全尺寸图片幻灯片

图 2 时空卷积块的示意图，包括时间卷积层、空间卷积层和平均池化层

下载: 全尺寸图片幻灯片

图 3 频率-空间注意力的示意图：由频率注意模块(FAM)和空间注意模块(SAM)组成

下载: 全尺寸图片幻灯片

图 4 TSF-AADNet模型在短决策窗口的KUL和DTU数据集上所有受试者听觉注意解码的准确性

下载: 全尺寸图片幻灯片

图 5 TSAnet和FSAnet对KUL和DTU数据集中所有受试者的AAD准确度

下载: 全尺寸图片幻灯片

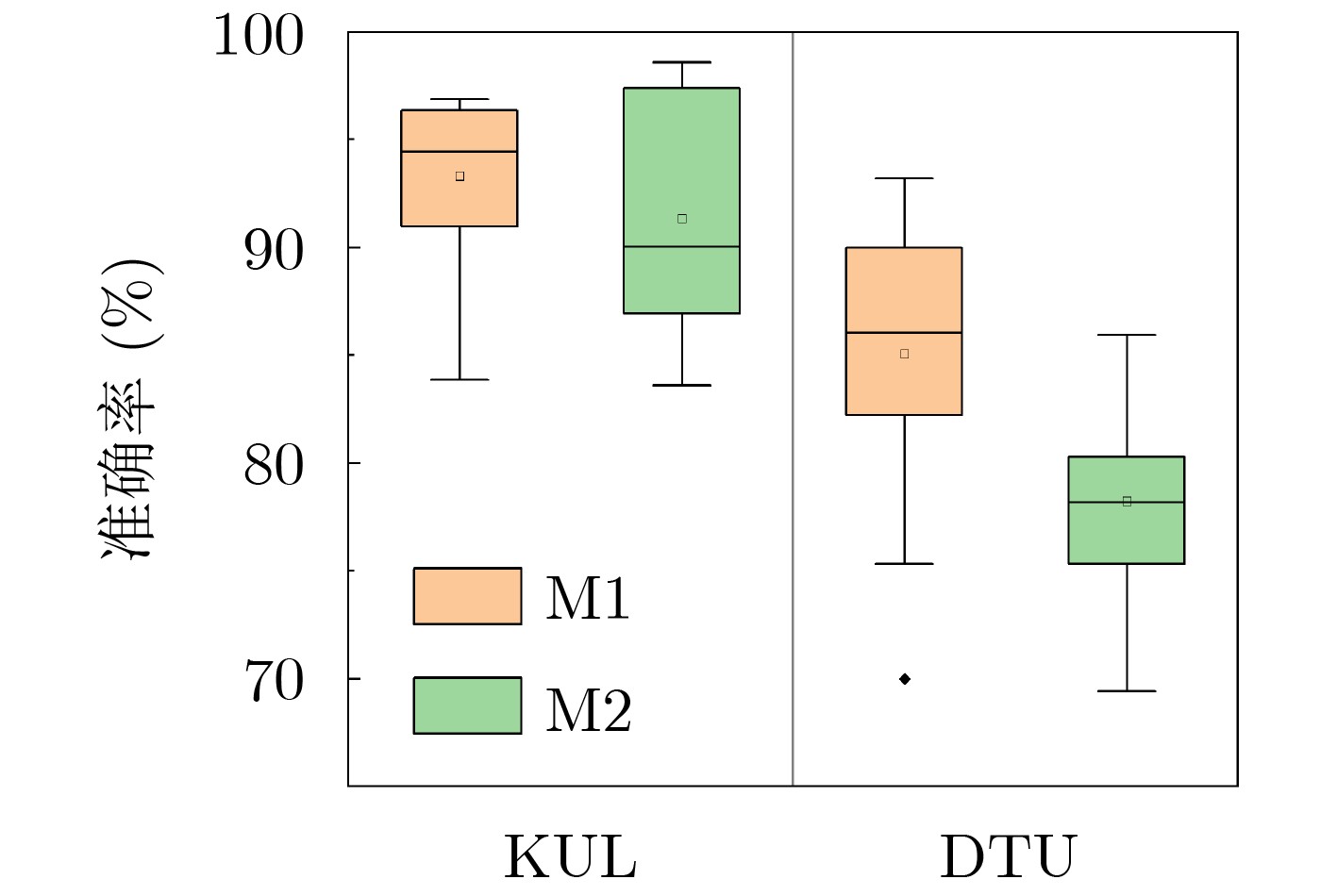

图 6 M1和M2对KUL和DTU数据集中所有受试者的AAD准确度

下载: 全尺寸图片幻灯片

图 7 不同注意力模型对KUL和DTU数据集中所有受试者的AAD准确度

下载: 全尺寸图片幻灯片

表 1 时空、频空特征提取分支和特征融合与分类层中各层的输出值

分支	层	输入特征维度	输出特征维度
时空特征提取分支(TSAnet)	卷积块(Convolutional Block)	$1 \times 64 \times 128$	$64 \times 1 \times 64$
	高阶特征交互模块(HFI)	$64 \times 1 \times 64$	$64 \times 1 \times 64$
	2维卷积层	$64 \times 1 \times 64$	$4 \times 1 \times 64$
	自适应平均池化层	$4 \times 1 \times 64$	$4 \times 1 \times 1$
	全连接层	$4 \times 1 \times 1$	$4$
频空特征提取分支(FSAnet)	FSA-3DCNN	$1 \times 5 \times 32 \times 32$	$128 \times 5 \times 4 \times 4$
	3维卷积层	$128 \times 5 \times 4 \times 4$	$4 \times 5 \times 4 \times 4$
	自适应平均池化层	$4 \times 5 \times 4 \times 4$	$4 \times 1 \times 1 \times 1$
	全连接层	$4 \times 1 \times 1 \times 1$	$4$
特征融合与分类层	拼接(Concat)	8	8
特征融合与分类层	全连接层	8	2

下载: 导出CSV

表 2 实验中使用的脑电图数据集KUL, DTU的详细信息

数据集	受试者个数	刺激语言	每个受试者的试验持续时间(min)	总时长(h)
KUL	16	佛兰德语	48	12.8
DTU	18	丹麦语	50	15.0

下载: 导出CSV

表 3 KUL, DTU数据集上4种短决策窗口的各种模型的平均AAD准确率(%)

数据集	模型	样本时长(s)
数据集	模型	0.1	0.2	0.5	1.0
KUL	CNN^[14]	74.3	78.2	80.6	84.1
	STAnet^[17]	80.8	84.3	87.2	90.1
	RGCnet^[29]	87.6	88.9	90.1	91.4
	mRFInet^[30]	87.4	89.7	90.8	92.5
	DBPNet^[31]	87.1	89.9	92.9	95.0
	TSF-AADNet(本文)	91.8	94.1	96.3	98.3
DTU	CNN^[14]	56.7	58.4	61.7	63.3
	STAnet^[17]	65.7	68.1	70.8	71.9
	RGCnet^[29]	66.4	68.4	72.1	76.9
	mRFInet^[30]	65.4	68.7	72.3	75.1
	DBPNet^[31]	75.1	78.9	81.9	83.9
	TSF-AADNet(本文)	81.1	83.5	86.1	88.8

下载: 导出CSV
