Spatial Deployment and Beamforming for Design Multi-Unmanned Aerial Vehicle-integrated Sensing and Communication Based on Transmission Fairness
-

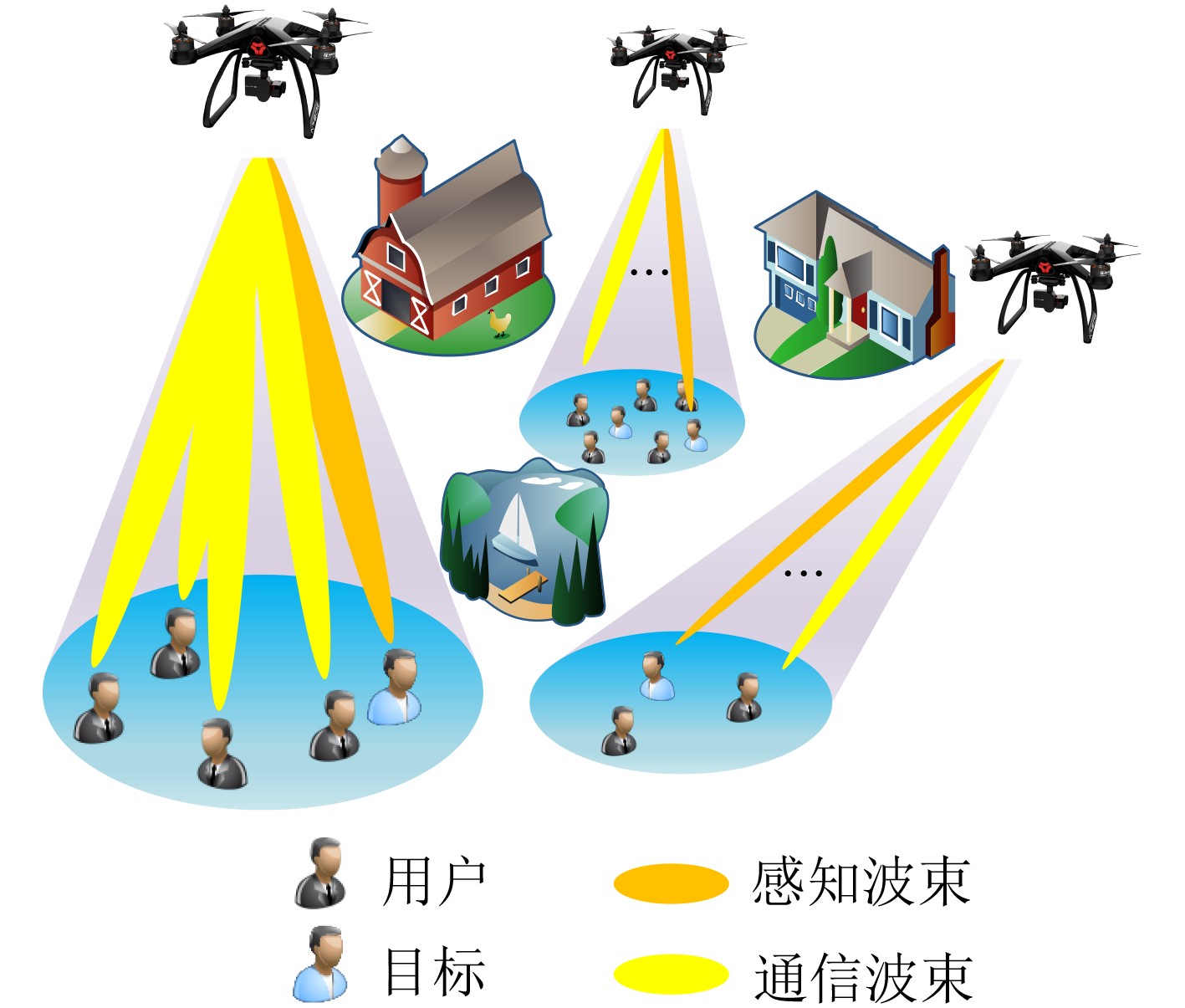

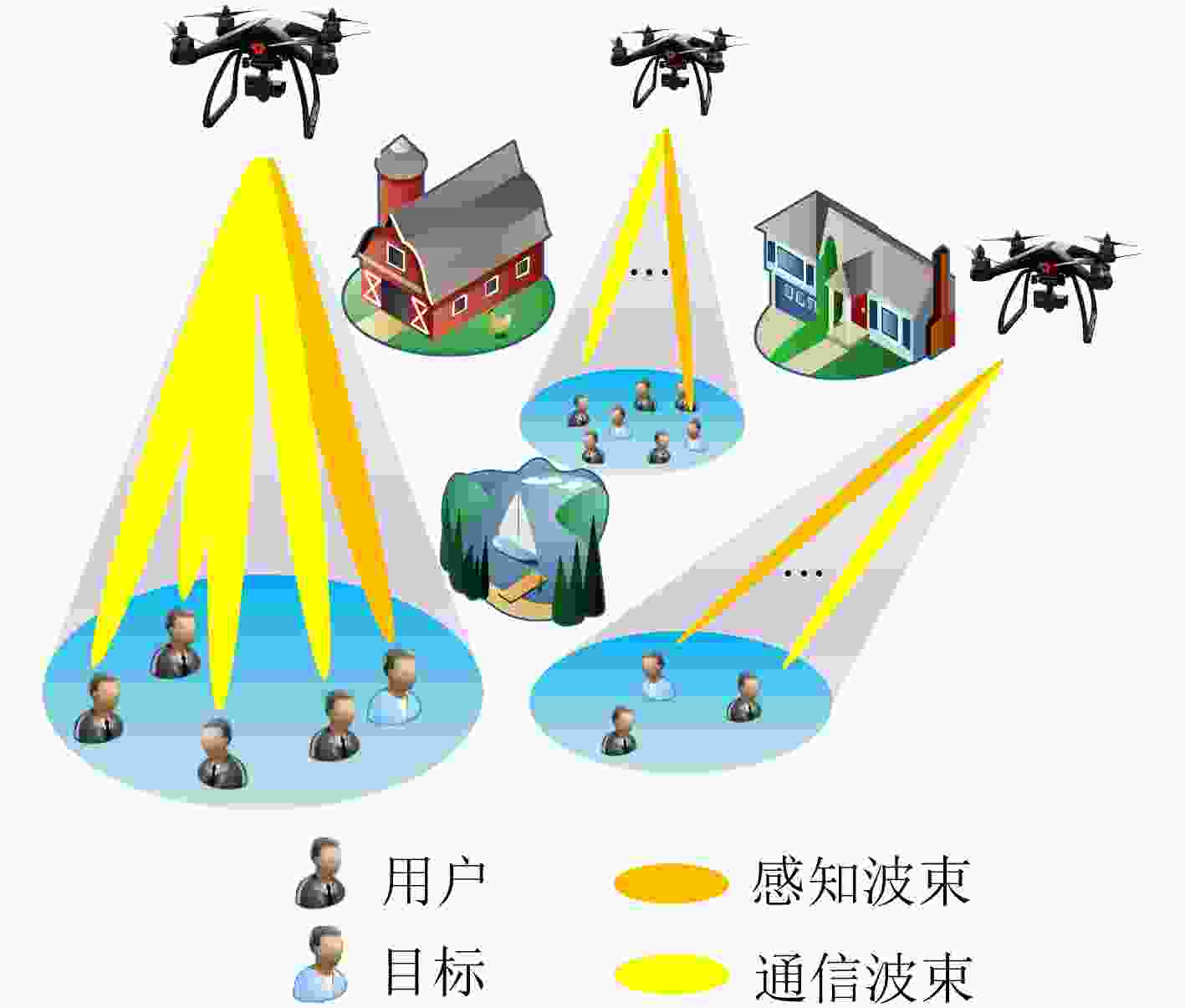

摘要: 针对农村偏远地区通信不畅的临时突发性问题，该文提出一种自适应的多无人机(UAV)辅助通感一体化(ISAC)机制，在地面用户和感测目标呈簇状随机分布的情况下，通过合理调度多无人机实现覆盖式通信保障，为无人机使能的通感一体系统提供了一种新的解决思路和方案。该文主要研究了无人机空间部署及其对地面设备的波束成形等问题，在空地关联约束条件下，系统可通过优化无人机的通信和感知波束成形变量组，最大限度地提高用户传输可达速率的下限，同时保证基本的通感需求。为了有效解决所考虑的非凸优化问题，该文借助基于高斯核的均值漂移算法(MS)，用以处理关联策略中的混合整型线性问题，此外，结合2次变换与连续凸逼近(SCA)的相关技巧，采用块坐标下降(BCD)的方式优化波束成形，以获取次优解。数值结果验证了自适应机制的有效性。Abstract:
Objective: As economic and social development rapidly progresses, the demand for applications across various sectors is increasing. The use of higher frequency bands for future 6G communication is advancing to facilitate enhanced perception. Additionally, due to the inherent similarities in signal processing and hardware configurations between sensing and communication, Integrated Sensing And Communication (ISAC) is becoming a vital area of research for future technological advancements. However, during sudden emergencies, communication coverage and target detection in rural and remote areas with limited infrastructure face considerable challenges. The integration of communication and sensing in Unmanned Aerial Vehicles (UAVs) presents a unique opportunity for equipment flexibility and substantial research potential. Despite this, current academic research primarily focuses on single UAV systems, often prioritizing communication rates while neglecting fairness in multi-user environments. Furthermore, existing literature on multiple UAV systems has not sufficiently addressed the variations in user or target numbers and their random distributions, which impedes the system’s capability to adaptively allocate resources based on actual demands and improve overall efficiency. Therefore, exploring the application of integrated communication and sensing technologies within multi-UAV systems to provide essential services to ground-based random terminals holds significant practical importance. Methods: This paper addresses the scenario in which ground users and sensing targets are randomly distributed within clusters. The primary focus is on the spatial deployment of UAVs and their beamforming techniques tailored for ground-based equipment. The system seeks to enhance the lower bound of user transmission achievable rates by optimizing the communication and sensing beamforming variables of the UAVs, while also adhering to essential communication and sensing requirements. Key constraints considered include the aerial-ground coverage correlation strategy, UAV transmission power, collision avoidance distances, and the spatial deployment locations. To effectively address the non-convex optimization problem, the study divides it into two sub-problems: the joint optimization of aerial-ground correlation and planar position deployment, and the joint optimization of communication and sensing beamforming. The first sub-problem is solved using an improved Mean Shift algorithm (MS), which focuses on optimizing aerial-ground correlation variables alongside UAV planar coordinate variables (Algorithm 1). The second sub-problem employs a quadratic transformation technique to optimize communication beamforming variables (Algorithm 2), further utilizing a successive convex approximation strategy to tackle the optimization challenges associated with sensing beamforming (Algorithm 3). Ultimately, a Block Coordinate Descent algorithm is implemented to alternately optimize the two sets of variables (Algorithm 4), leading to a relatively optimal solution for the system. Results and Discussions: Algorithm 1 focuses on establishing aerial-ground correlations and determining the planar deployment of UAVs. During the clustering phase, users and targets are treated as equivalent sample entities, with ground sample points generated through a Poisson clustering random process. These points are subsequently categorized into nine optimal clusters using an enhanced mean shift algorithm. Samples within the same Voronoi category are assigned to a single UAV, positioned at the mean shift center for optimal service coverage. Algorithm 4 addresses the beamforming requirements for UAVs servicing ground users or targets. Remarkably, multiple UAVs achieve convergence within seven iterations concerning regional convergence. The dynamic interplay between communication and sensing resources is highlighted by variations in the number of sensing targets and the altitude of UAV deployment. The fairness-first approach proposed in this paper, in contrast to a rate-centric strategy, ensures maximum individual transmission quality while maintaining balanced system performance. Furthermore, the overall scheme, referred to as MS+BCD, is compared with two benchmark algorithms: Block Coordinate Descent beamforming optimization with Central point Sensing Deployment (CSD+BCD) and Random Sensing Beamforming with Mean Shift deployment (MS+RSB). The proposed optimization strategy clearly demonstrates advantages in system effectiveness, irrespective of changes in beam pattern gain or increases in UAV antenna numbers. Conclusions: This paper addresses the multi-UAV coverage challenge within the framework of Integrated Sensing and Communication. With a focus on equitable user transmission rates, this study incorporates constraints related to communication and sensing power, beam pattern gain, and aerial-ground correlation. By employing an enhanced Mean Shift algorithm along with the Block Coordinate Descent method, this research optimizes a variety of parameters, including aerial-ground correlation strategies, UAV planar deployment, and communication-sensing beamforming. The objective is to maximize the system’s transmission rate while ensuring high-quality user transmission and fair resource allocation, thereby providing a novel approach for multi-UAV systems enhanced by integrated communication and sensing. Future research will extend these findings to tackle additional altitude optimization challenges and to ensure equitable resource distribution across different UAV coverage zones. -
1 空地关联与空中基站二维笛卡尔坐标部署的解决策略
步骤1 初始化地面用户(目标)集合，设定初始迭代次数为${l_1} = 1$，任选一用户或目标点作为中心点，位置为$ {\boldsymbol{q}}_i^1,i \in \{ 1,2,\cdots,K + J\} $； 步骤2 计算均值漂移向量${\boldsymbol{M}}\left( {{\boldsymbol{q}}_i^{{l_1}}} \right)$，其中半径$r$设为${d_{{\text{min}}}}$，注意：同一水平面无人机满足防撞约束，则3维环境下同样适用； 步骤3 移动密度估计窗口${\boldsymbol{q}}_i^{{l_1} + 1} = {\boldsymbol{q}}_i^{{l_1}} + {\boldsymbol{M}}\left( {{\boldsymbol{q}}_i^{{l_1}}} \right)$； 步骤4 迭代更新${l_1} = {l_1} + 1$； 步骤5 当均值漂移向量的模值小于阈值$ \varepsilon _{{\mathrm{th}}}^{\boldsymbol{q}} $或移动窗口内用户(目标)数不再增加时，迭代停止，否则重复步骤2～4； 步骤6 重新选定未被覆盖的随机点作为中心点，继续执行步骤2～5，直至所有用户(目标)点都被分配到对应聚类中心； 步骤7 构建Voronoi图和相应的凸包区域； 步骤8 计算凸包区域范围内的所有用户(目标)的位置均值； 步骤9 输出所有聚类中心坐标和对应坐标下的聚类用户(目标)。
下载: 导出CSV
2 无人机通信波束成形子算法
步骤1 初始化通信波束成形${\boldsymbol{W}}_{b,k}^{\left( 0 \right)}$，设定初始迭代次数为
${l_2} = 1$, $b = 1$；步骤2 给定${\boldsymbol{W}}_{b,k}^{\left( {{l_2} - 1} \right)}$，利用式 (18) 更新辅助变量$\delta _{b,k}^{\left( {{l_2}} \right)}$； 步骤3 给定${\boldsymbol{W}}_{b,k}^{\left( {{l_2} - 1} \right)}$和$\delta _{b,k}^{\left( {{l_2}} \right)}$，求解问题P3.1.1，获得${\boldsymbol{W}}_{b,k}^{\left( {{l_2}} \right)}$，
迭代更新${l_2} = {l_2} + 1$；步骤4 当信息传输速率增量小于阈值$\varepsilon _{{\text{th}}}^{\boldsymbol{V}}$时，迭代停止，否则重
复步骤2～3；步骤5 无人机选择切换$b = b + 1$，继续执行步骤2～4，直至所
有无人机的通信波束成形均已优化；步骤6 输出所有无人机通信波束成形矩阵${{\boldsymbol{W}}_{b,k}}$。
下载: 导出CSV
3 无人机感知波束成形子算法
步骤1 初始化感知波束成形${\boldsymbol{V}}_{b,j}^{\left( 0 \right)}$，设定初始迭代次数为
${l_3} = 1$, $b = 1$；步骤2 给定${\boldsymbol{V}}_{b,j}^{\left( {{l_3} - 1} \right)}$，求解凸优化问题P3.2.1，获取${\boldsymbol{V}}_{b,j}^*$，令 ${\boldsymbol{V}}_{b,j}^{\left( {{l_3}} \right)} = {\boldsymbol{V}}_{b,j}^*$，迭代更新${l_3} = {l_3} + 1$； 步骤3 当信息传输速率增量小于阈值$\varepsilon _{{\text{th}}}^{\boldsymbol{V}}$时，迭代停止，否则重 复步骤2； 步骤4 无人机选择切换$b = b + 1$，继续执行步骤2～3，直至所 有无人机的感知波束成形均已优化； 步骤5 输出所有无人机感知波束成形矩阵$ {{\boldsymbol{V}}_{b,j}} $。
下载: 导出CSV
4 无人机波束成形总体算法
步骤1 初始化通信和感知波束成形${\boldsymbol{W}}_{b,k}^{\left( 0 \right)}$, ${\boldsymbol{V}}_{b,j}^{\left( 0 \right)}$，设定初始迭
代次数为${l_4} = 1$, $b = 1$；步骤2 给定${\boldsymbol{W}}_{b,k}^{\left( {{l_4} - 1} \right)}$,${\boldsymbol{V}}_{b,j}^{\left( {{l_4} - 1} \right)}$，通过算法2求解通信波束成形子
问题，获得${\boldsymbol{W}}_{b,k}^{\left( {{l_4}} \right)}$；步骤3 给定${\boldsymbol{W}}_{b,k}^{\left( {{l_4}} \right)}$,${\boldsymbol{V}}_{b,j}^{\left( {{l_4} - 1} \right)}$，通过算法3求解感知波束成形子
问题，获得${\boldsymbol{V}}_{b,j}^{\left( {{l_4}} \right)}$；步骤4 迭代更新${l_4} = {l_4} + 1$，当信息传输速率增量小于阈值
$\varepsilon _{{\mathrm{th}}}^{{\mathrm{all}}}$时，迭代停止，否则重复步骤2～3；步骤5 无人机选择切换$b = b + 1$，继续执行步骤2～4，直至所
有无人机的波束成形均已优化；步骤6 输出所有无人机波束成形矩阵${{\boldsymbol{W}}_{b,k}}$, $ {{\boldsymbol{V}}_{b,j}} $。
下载: 导出CSV

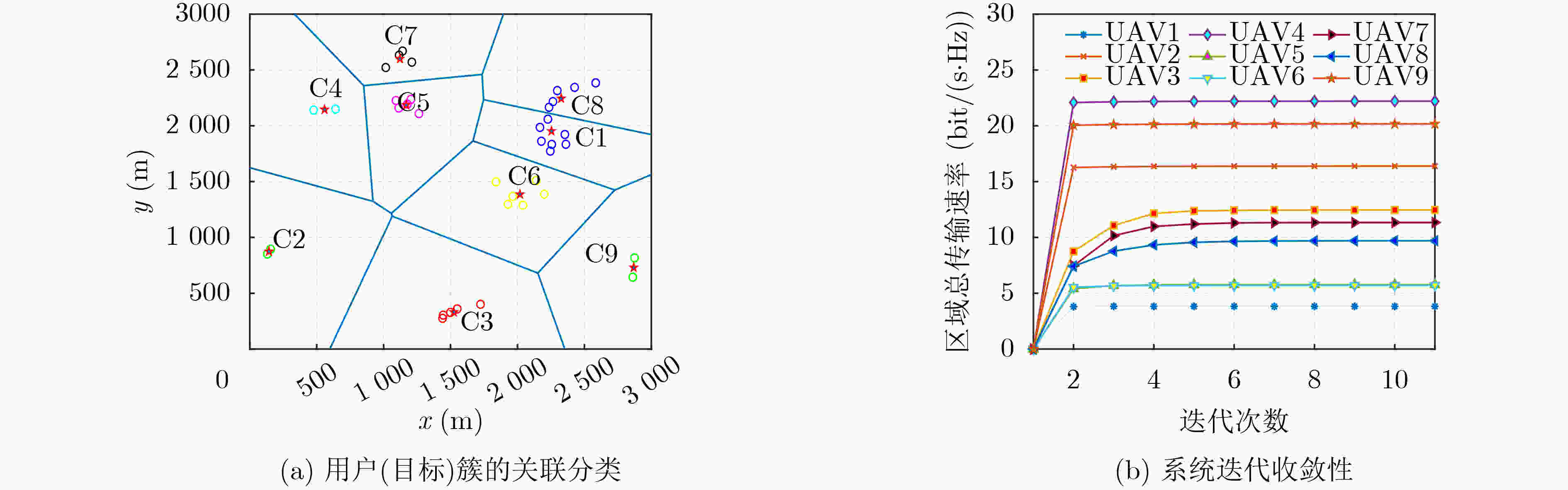

表 1 主要仿真参数
参数名称 数值 单位距离的信道功率增益${\beta _0}$ –60 dB 噪声功率${\sigma ^2}$ –110 dBm 无人机防撞距离${d_{{\text{min}}}}$ 0.3 km 单无人机发射功率上限${P_{{\text{max}}}}$ 0.5 W 波束图增益下限${\varGamma _{{\text{th}}}}$ –17 dBm 迭代收敛阈值$ \varepsilon _{{\text{th}}}^{\boldsymbol{q}},\varepsilon _{{\text{th}}}^{\boldsymbol{W}},\varepsilon _{{\text{th}}}^{\boldsymbol{V}},\varepsilon _{{\text{th}}}^{{\text{all}}} $ 1 × 10–4

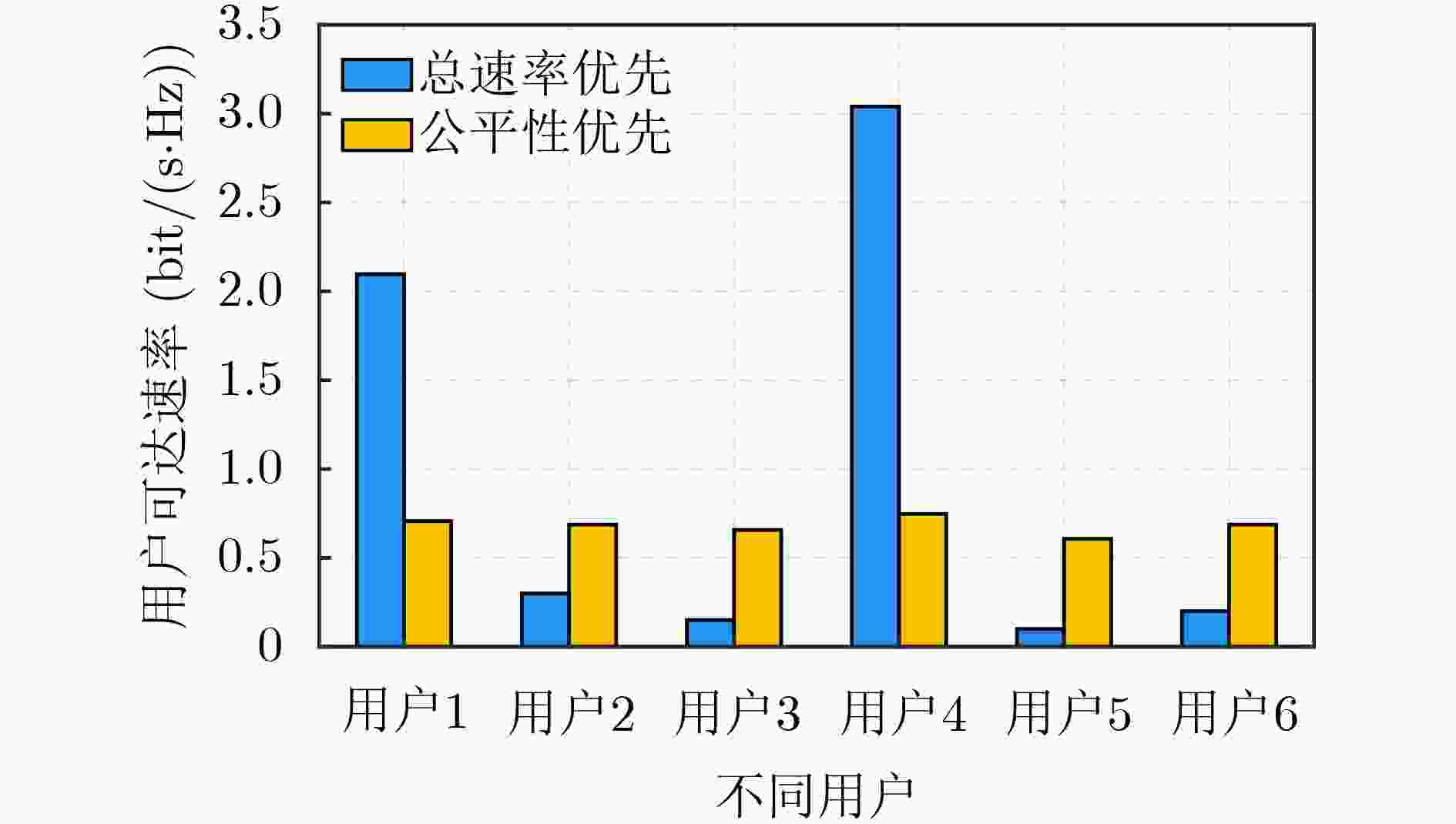

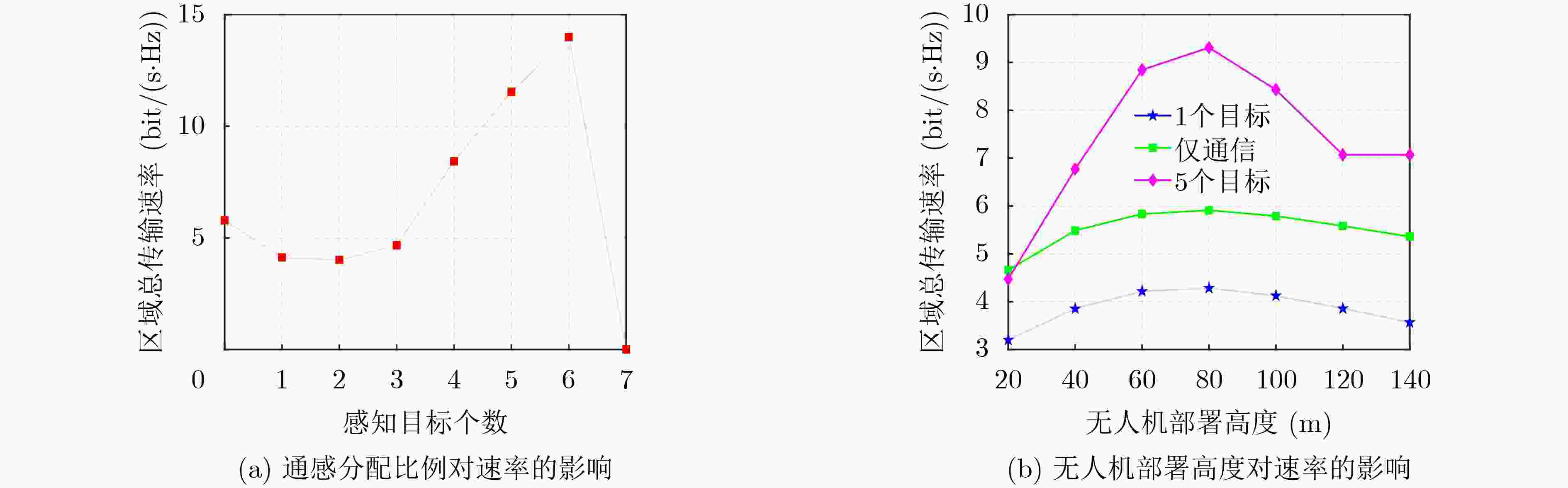

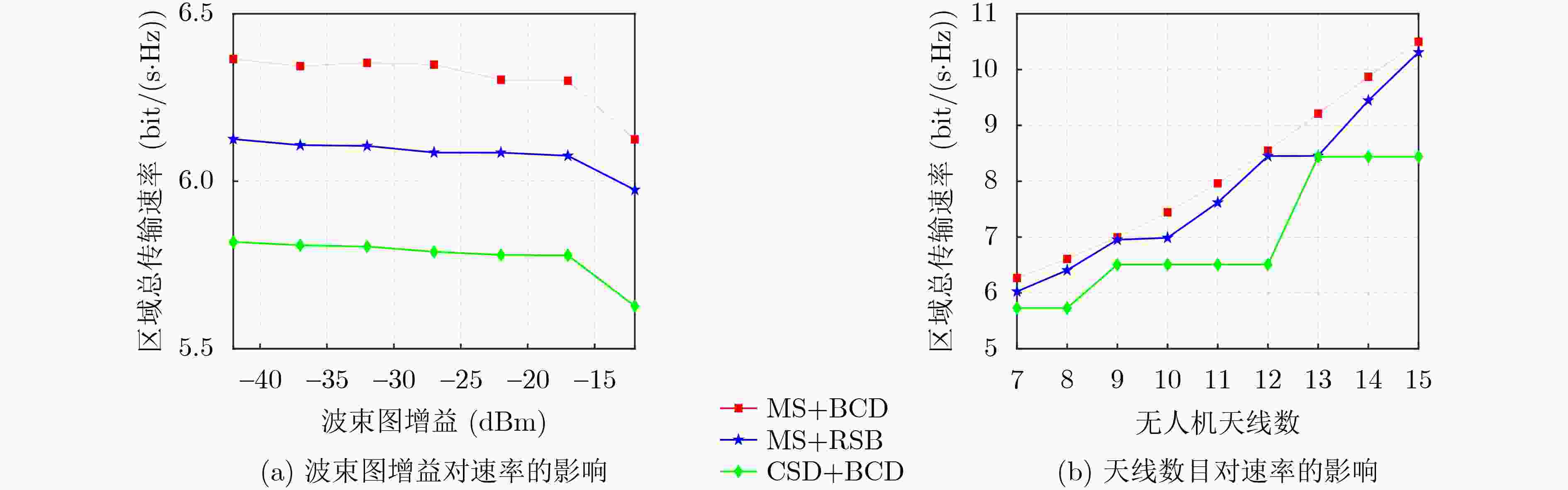

下载: 导出CSV
-
[1] CUI Yanpeng, FENG Zhiyong, ZHANG Qixun, et al. Toward trusted and swift UAV communication: ISAC-enabled dual identity mapping[J]. IEEE Wireless Communications, 2023, 30(1): 58–66. doi: 10.1109/MWC.003.2200207. [2] MU Junsheng, ZHANG Ronghui, CUI Yuanhao, et al. UAV meets integrated sensing and communication: Challenges and future directions[J]. IEEE Communications Magazine, 2023, 61(5): 62–67. doi: 10.1109/MCOM.008.2200510. [3] DENG Cailian, FANG Xuming, and WANG Xianbin. Beamforming design and trajectory optimization for UAV-empowered adaptable integrated sensing and communication[J]. IEEE Transactions on Wireless Communications, 2023, 22(11): 8512–8526. doi: 10.1109/TWC.2023.3264523. [4] MENG Kaitao, WU Qingqing, MA Shaodan, et al. Throughput maximization for UAV-enabled integrated periodic sensing and communication[J]. IEEE Transactions on Wireless Communications, 2023, 22(1): 671–687. doi: 10.1109/TWC.2022.3197623. [5] SAVKIN A V, NI Wei, and ESKANDARI M. Effective UAV navigation for cellular-assisted radio sensing, imaging, and tracking[J]. IEEE Transactions on Vehicular Technology, 2023, 72(10): 13729–13733. doi: 10.1109/TVT.2023.3277426. [6] WU Jun, YUAN Weijie, and HANZO L. When UAVs meet ISAC: Real-time trajectory design for secure communications[J]. IEEE Transactions on Vehicular Technology, 2023, 72(12): 16766–16771. doi: 10.1109/TVT.2023.3290033. [7] WANG Qianli and FAN Pingzhi. A multi-symbol compressive sensing model for OTFS based ISAC system[C]. 2023 IEEE Global Communications Conference, Kuala Lumpur, Malaysia, 2023: 2487–2492. doi: 10.1109/GLOBECOM54140.2023.10437965. [8] LIU Qian, LIANG Hairong, LUO Rui, et al. Energy-efficiency computation offloading strategy in UAV aided V2X network with integrated sensing and communication[J]. IEEE Open Journal of the Communications Society, 2022, 3: 1337–1346. doi: 10.1109/OJCOMS.2022.3195703. [9] WU Jun, YUAN Weijie, and BAI Lin. Multi-UAV enabled sensing: Cramér-Rao bound optimization[C]. 2023 IEEE International Conference on Communications Workshops (ICC Workshops), Rome, Italy, 2023: 925–930. doi: 10.1109/ICCWorkshops57953.2023.10283770. [10] LIU Xin, LIU Yuemin, LIU Zechen, et al. Fair integrated sensing and communication for multi-UAV-enabled internet of things: Joint 3-D trajectory and resource optimization[J]. IEEE Internet of Things Journal, 2024, 11(18): 29546–29556. doi: 10.1109/JIOT.2023.3327445. [11] JIANG Wangjun, WANG Ailing, WEI Zhiqing, et al. Improve sensing and communication performance of UAV via integrated sensing and communication[C]. 2021 IEEE 21st International Conference on Communication Technology (ICCT), Tianjin, China, 2021: 644–648, doi: 10.1109/ICCT52962.2021.9657955. [12] PAN Yu, LI Ruoguang, DA Xinyu, et al. Cooperative trajectory planning and resource allocation for UAV-enabled integrated sensing and communication systems[J]. IEEE Transactions on Vehicular Technology, 2024, 73(5): 6502–6516. doi: 10.1109/TVT.2023.3337106. [13] CHENG Yizong. Mean shift, mode seeking, and clustering[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 1995, 17(8): 790–799. doi: 10.1109/34.400568. [14] SHEN Kaiming and YU Wei. Fractional programming for communication systems—Part I: Power control and beamforming[J]. IEEE Transactions on Signal Processing, 2018, 66(10): 2616–2630. doi: 10.1109/TSP.2018.2812733. [15] XU Dongfang, YU Xianghao, SUN Yan, et al. Resource allocation for IRS-assisted full-duplex cognitive radio systems[J]. IEEE Transactions on Communications, 2020, 68(12): 7376–7394. doi: 10.1109/TCOMM.2020.3020838. -
图(5) / 表(5)
