一种基于合作协同进化的智能超表面辅助无人机通信系统联合波束成形方法

仲伟志 万诗晴 段洪涛 范振雄 林志鹏 黄洋 毛开

仲伟志, 万诗晴, 段洪涛, 范振雄, 林志鹏, 黄洋, 毛开. 一种基于合作协同进化的智能超表面辅助无人机通信系统联合波束成形方法[J]. 电子与信息学报. doi: 10.11999/JEIT240561
引用本文: 仲伟志, 万诗晴, 段洪涛, 范振雄, 林志鹏, 黄洋, 毛开. 一种基于合作协同进化的智能超表面辅助无人机通信系统联合波束成形方法[J]. 电子与信息学报. doi: 10.11999/JEIT240561
ZHONG Weizhi, WAN Shiqing, DUAN Hongtao, FAN Zhenxiong, LIN Zhipeng, HUANG Yang, MAO Kai. A Joint Beamforming Method Based on Cooperative Co-evolutionary in Reconfigurable Intelligent Surface-Assisted Unmanned Aerial Vehicle Communication System[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT240561
Citation: ZHONG Weizhi, WAN Shiqing, DUAN Hongtao, FAN Zhenxiong, LIN Zhipeng, HUANG Yang, MAO Kai. A Joint Beamforming Method Based on Cooperative Co-evolutionary in Reconfigurable Intelligent Surface-Assisted Unmanned Aerial Vehicle Communication System[J]. Journal of Electronics & Information Technology. doi: 10.11999/JEIT240561

一种基于合作协同进化的智能超表面辅助无人机通信系统联合波束成形方法

doi: 10.11999/JEIT240561
基金项目: 国家自然科学基金(62217250),江苏省重点研发计划(产业前瞻与关键核心技术)(BE2022067, BE2022067-1, BE2022067-3),南京航空航天大学研究生科研与实践创新计划(xcxjh20231507)
详细信息
    作者简介:

    仲伟志:女,副教授,研究方向为高频通信、无人机通信、频谱感知等

    万诗晴:女,硕士生,研究方向为无人机通信、可重构智能表面联合波束赋形

    段洪涛:男,正高级工程师,研究方向为无人机通信与反制,频谱管理,短波及超短波监测等

    范振雄:男,高级工程师,研究方向为无人机通信与反制,超短波干扰定位及查找,短波测向等

    林志鹏:男,副研究员,研究方向为高维信道参数估计、大规模阵列信号处理、无人机通信、频谱信号感知及重构等

    黄洋:男,副教授,研究方向为电磁博弈、频谱管控、物联网技术、B5G及未来无线网络等

    毛开:男,博士生,研究方向为信道测量与建模

    通讯作者:

    仲伟志 zhongwz@nuaa.edu.cn

  • 中图分类号: TN929

A Joint Beamforming Method Based on Cooperative Co-evolutionary in Reconfigurable Intelligent Surface-Assisted Unmanned Aerial Vehicle Communication System

Funds: The National Natural Science Foundation of China (62271250), The Key Technologies R&D Program of Jiangsu (Prospective and Key Technologies for Industry) (BE2022067, BE2022067-1, BE2022067-3), The Postgraduate Research and Practice Innovation Program of Nanjing University of Aeronautics and Astronautics (xcxjh20231507)
  • 摘要: 针对传统联合波束成形方法在智能超表面(RIS)辅助无人机(UAV)通信系统优化中存在的局限性,包括针对RIS仅考虑相移矩阵优化、优化方法缺乏应用普适性等问题,该文面向RIS辅助无人机通信服务多用户场景,创新性提出一种基于合作协同进化(CCEA)的联合波束优化方法。该方法利用两个子种群的独立进化将联合波束成形问题分解成RIS反射波波束设计和发射端波束设计两个子问题进行求解,通过进化过程中的信息交互与协作来实现联合波束成形设计。数值仿真结果表明,相较于仅考虑RIS相移矩阵设计的联合波束优化,CCEA通过设计RIS反射波波束形状改变了反射波在3维空间中的能量分布,进而提升了接收端信干噪比(SINR)和频谱效率;此外,基于种群的CCEA算法能够产生更加多样的解,因此在UAV和用户的不同位置设置下均能实现反射波对用户方向的有效覆盖,相对于传统方法能够避免局部最优、具有更强的应用普适性。

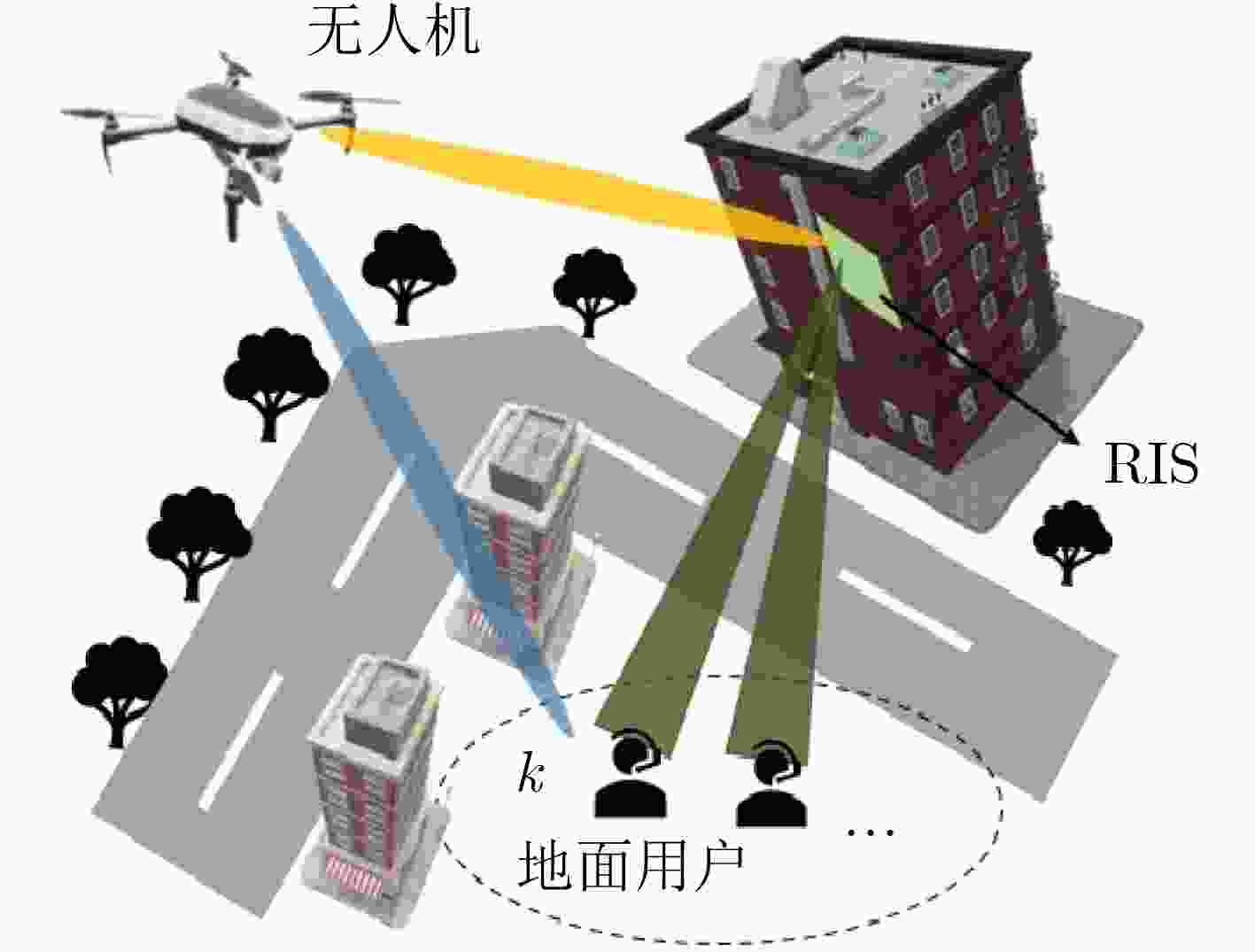

  • 图  1  RIS辅助无人机MU-MISO通信系统

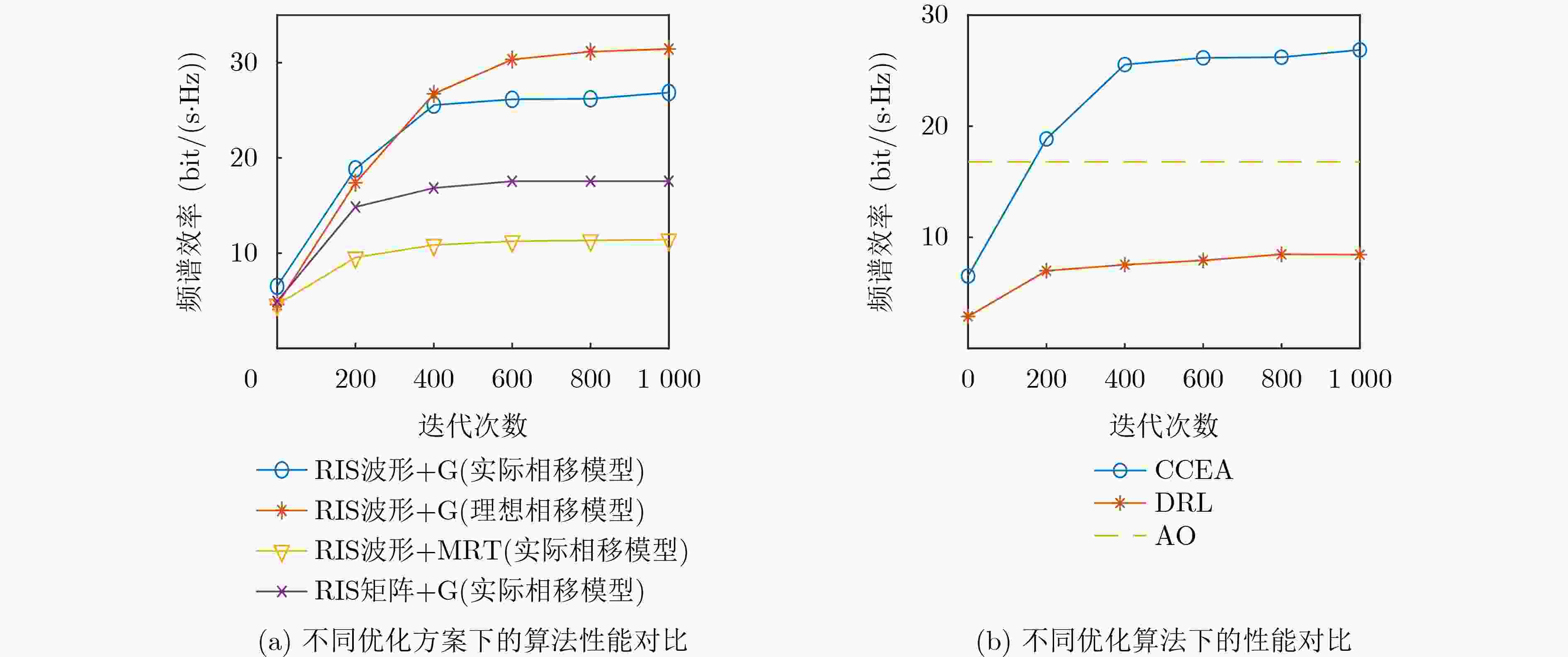

    图  2  CCEA性能比较

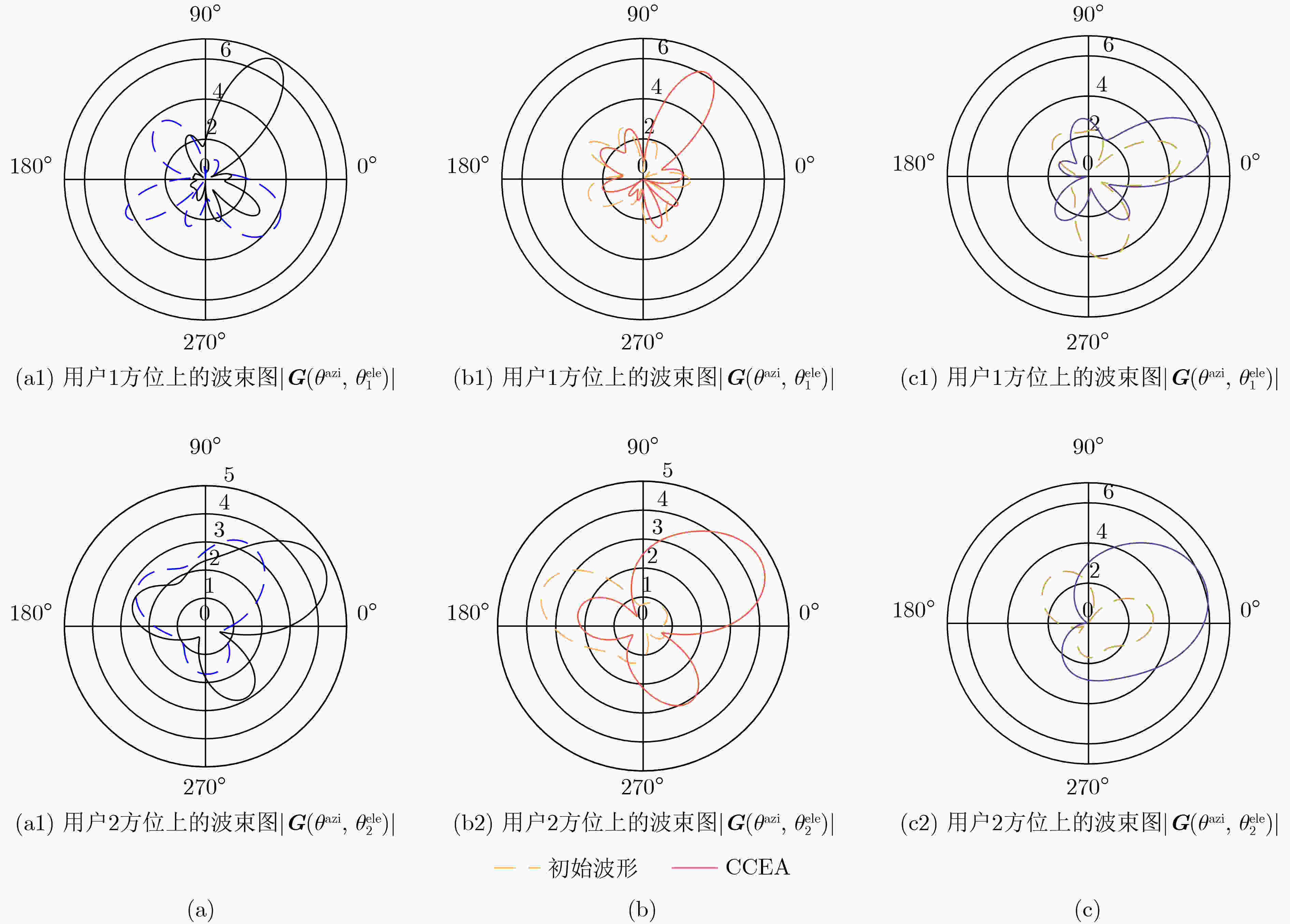

    图  3  不同UAV、用户位置下得到的RIS反射波波束方向图

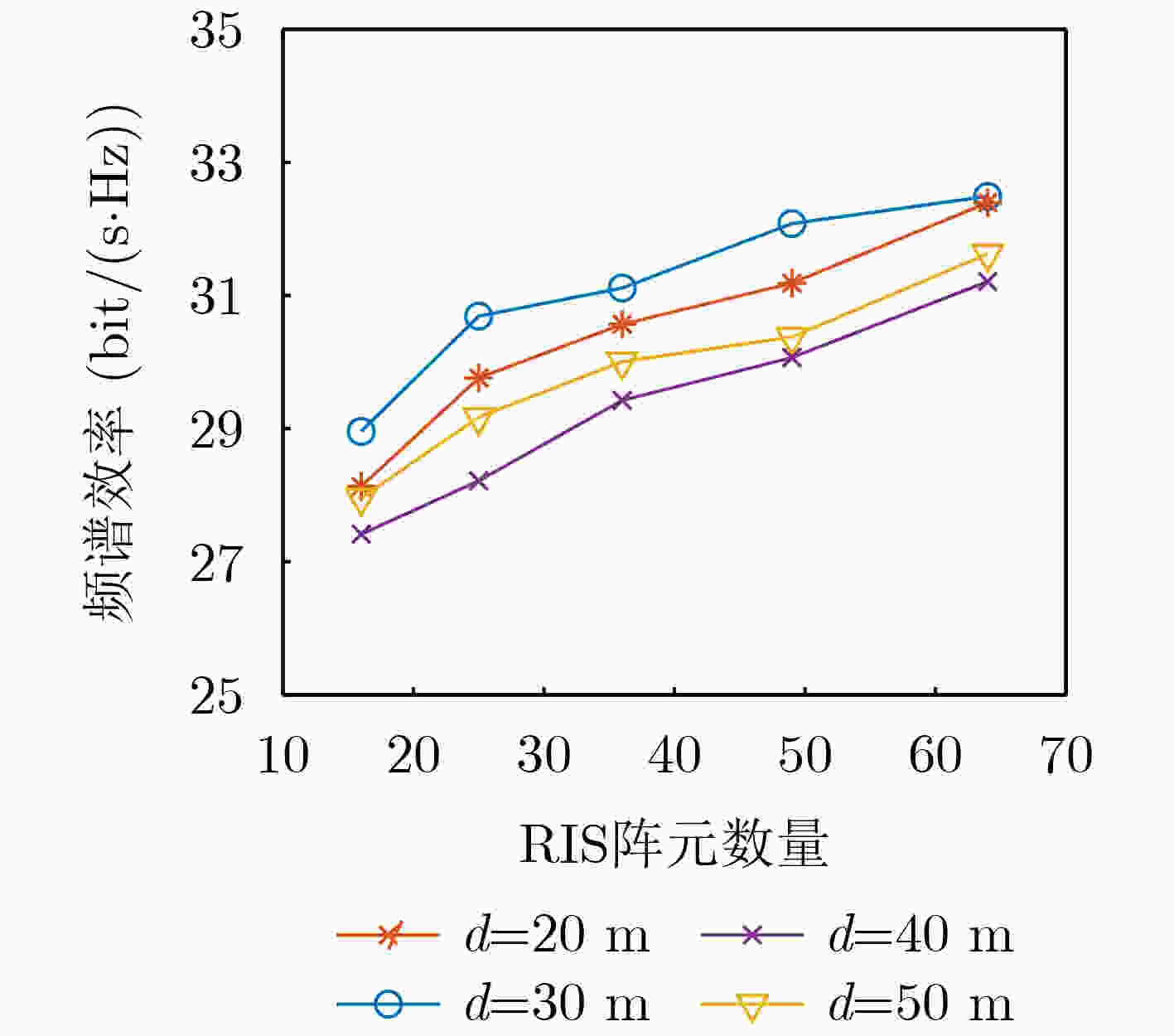

    图  4  不同RIS阵元设置下系统频谱效率

    1  基于CCEA的RIS辅助无人机通信联合波束成形优化算法

     (1)输入初始位置信息${{\boldsymbol{w}}_{\rm{U}}},{{\boldsymbol{w}}_{\rm{R}}},{{\boldsymbol{w}}_k}$和其他基本系统参数;获得
     $ {{\boldsymbol{H}}_{{\mathrm{U}} {\text{-}}{\mathrm{ R}}}} $, $ {{\boldsymbol{h}}_{{\mathrm{R}}{\text{-}} k}} $, ${{\boldsymbol{h}}_{{\mathrm{U}} {\text{-}} k}}$
     (2)根据式(16)及式(9)生成初始子种群:
     ${\bf{pop}}_0^{\boldsymbol{\varPhi}} = [{{\boldsymbol{\varPhi}} _1},{{\boldsymbol{\varPhi}} _2},\cdots,{{\boldsymbol{\varPhi}} _{{\text{pop}}}}]$, $ {\bf{pop}}_0^{\mathrm{G}} = [{{\boldsymbol{G}}_1},{{\boldsymbol{G}}_2},\cdots,{{\boldsymbol{G}}_{{\text{pop}}}}] $
     (3)随机初始化两个子种群的代表解${{\boldsymbol{\varPhi}} _{{\text{best}}}}$, $ {{\boldsymbol{G}}_{{\text{best}}}} $
     (4)根据式(17)计算两个子种群组合解的初始综合适应度,并将子种群中的个体根据综合适应度排序,即
     $\begin{aligned} {\text{Fitnes}}{{\text{s}}_1}({\bf{pop}}_0^{\boldsymbol{\varPhi}} ;{{\boldsymbol{G}}_{{\text{best}}}}) =\;& [{\text{Fitness}}({{\boldsymbol{\varPhi}} _1},{{\boldsymbol{G}}_{{\text{best}}}}),\cdots,\\& {\text{Fitness}}({{\boldsymbol{\varPhi}} _{{\text{pop}}}},{{\boldsymbol{G}}_{{\text{best}}}})]\end{aligned}$
      $\begin{aligned} {\text{Fitnes}}{{\text{s}}_2}({{\boldsymbol{\varPhi}} _{{\text{best}}}};{\bf{pop}}_0^{\boldsymbol{G}}) = \;& [{\text{Fitness}}({{\boldsymbol{\varPhi}} _{{\text{best}}}},{{\boldsymbol{G}}_1}),\cdots,\\& {\text{Fitness}}({{\boldsymbol{\varPhi}} _{{\text{best}}}},{{\boldsymbol{G}}_{{\text{pop}}}})]\end{aligned}$
     (5)for i = 1, 2, ···, inter do
     (6)  从${\bf{pop}}_{i - 1}^{\boldsymbol{\varPhi}} $和$ {\bf{pop}}_{i - 1}^{\boldsymbol{G}} $选择${\text{pop}} \times {\text{Selectrate}}$个体作为父代
     (7)  if rand< 交叉概率Crossrate
     (8)   在两个子种群父代中随机选择个体进行染色体交叉;
     (9)  end if
     (10) if rand< 突变概率Mutationrate
     (11)   在两个子种群的个体随机选择染色体进行突变;
     (12) end if
     (13) 得到两个子种群对应的子代种群${\bf{pop}}_i^{\boldsymbol{\varPhi}} $和$ {\bf{pop}}_i^{\boldsymbol{G}} $
     (14) 利用式(17)计算组合解综合适应度:${\text{Fitnes}}{{\text{s}}_1}({\bf{pop}}_i^{\boldsymbol{\varPhi }};{{\boldsymbol{G}}_{{\text{best}}}})$
     和${\text{Fitnes}}{{\text{s}}_2}({{\boldsymbol{\varPhi}} _{{\text{best}}}};{\bf{pop}}_i^{\boldsymbol{G}})$,并将得到的解按适应度降序排序;
     (15) if max(${\text{Fitnes}}{{\text{s}}_1}({\bf{pop}}_i^\varPhi ;{{\boldsymbol{G}}_{{\text{best}}}})$)>${\text{Fitness}}({{\boldsymbol{\varPhi}} _{{\text{best}}}},{{\boldsymbol{G}}_{{\text{best}}}})$
     (16)  更新${{\boldsymbol{\varPhi }}_{{\text{best}}}}$;
     (17) end if
     (18) if max(${\text{Fitnes}}{{\text{s}}_2}({{\boldsymbol{\varPhi }}_{{\text{best}}}};{\bf{pop}}_i^{\boldsymbol{G}})$)>${\text{Fitness}}({{\boldsymbol{\varPhi}} _{{\text{best}}}},{{\boldsymbol{G}}_{{\text{best}}}})$
     (19)  更新$ {{\boldsymbol{G}}_{{\text{best}}}} $;
     (20) end if
     (21) 计算并更新代表解的适应度${\text{Fitness}}({{\boldsymbol{\varPhi}} _{{\text{best}}}},{{\boldsymbol{G}}_{{\text{best}}}})$
     (22)end for
     (23)得到$[{{\boldsymbol{\varPhi}} _{{\text{best}}}},{{\boldsymbol{G}}_{{\text{best}}}}]$作为联合波束成形优化解;
    下载: 导出CSV

    表  1  系统参数

    参数符号参数值参数符号参数值参数符号参数值参数符号参数值
    ${P_{\max }}$ 30 dBm ${\sigma ^2}$ –114 dBmf2.4 GHz $\rho $ 0.01
    ${\alpha _{{\mathrm{U}} {\text{-}} {\mathrm{R}}}}$ 2.2 ${\alpha _{{\mathrm{U}} {\text{-}} k}}$ 3.5 ${\alpha _{{\mathrm{R}} {\text{-}} k}}$ 2.8K2
    M4 ${L_x}$ 4 ${L_y}$ 4 $\phi $ $0.43\pi $
    ${A_{\min }}$0.2 $\alpha $ 1.6 ${K_1}$ 10 ${K_2}$ 10
    下载: 导出CSV

    表  2  CCEA算法参数

    参数名参数值参数名参数值
    种群个体数量pop20选择率 Selectrate0.2
    交叉概率 Crossrate0.6突变率 Mutationrate0.1
    最大迭代次数 inter1 000k10.5
    c160c21.0
    下载: 导出CSV

    表  3  图3对应的位置参数及频谱效率对比

    UAV和用户位置参数 用户1方位
    $[\theta _1^{{\text{azi}}},\theta _1^{{\text{ele}}}]$
    用户2方位
    $[\theta _2^{{\text{azi}}},\theta _2^{{\text{ele}}}]$
    初始频谱效率
    (bit/(s·Hz))
    优化后的频谱效率
    (bit/(s·Hz))
    图3(a) $ {{\boldsymbol{w}}_{\rm{U}}} = {(25\,{\text{m}},30\,{\text{m}},30\,{\text{m}})^{\mathrm{T}}} $
    $ {{\mathbf{w}}_1} = {(47\,m,15\,m,0\,m)^{\mathrm{T}}} $
    $ {{\boldsymbol{w}}_2} = {(25\,m,5\,m,0\,m)^{\mathrm{T}}} $
    [59.04°, 64.99°] [30.96°, 23.21°] 6.511 7 26.868 9
    图3(b) $ {{\boldsymbol{w}}_{\rm{U}}} = {(25\,{\text{m}},15\,{\text{m}},30\,{\text{m}})^{\mathrm{T}}} $
    $ {{\mathbf{w}}_1} = {(47\,m,15\,m,0\,m)^{\mathrm{T}}} $
    $ {{\boldsymbol{w}}_2} = {(25\,m,5\,m,0\,m)^{\mathrm{T}}} $
    [59.04°, 64.99°] [30.96°, 23.21°] 3.320 4 28.713 6
    图3(c) $ {{\mathbf{w}}_{\rm{U}}} = {(25\,{\text{m}},30\,{\text{m}},30\,{\text{m}})^{\mathrm{T}}} $
    $ {{\boldsymbol{w}}_1} = {(30\,m,15\,m,0\,m)^{\mathrm{T}}} $
    $ {{\boldsymbol{w}}_2} = {(5\,m,5\,m,0\,m)^{\mathrm{T}}} $
    [36.67°, 26.36°] [6.30°, 15.47°] 6.234 8 27.642 8
    下载: 导出CSV
  • [1] ZENG Yong, ZHANG Rui, and LIM T J. Wireless communications with unmanned aerial vehicles: Opportunities and challenges[J]. IEEE Communications Magazine, 2016, 54(5): 36–42. doi: 10.1109/MCOM.2016.7470933.
    [2] 朱秋明, 华博宇, 毛开, 等. 无人机毫米波信道建模进展和挑战[J]. 数据采集与处理, 2020, 35(6): 1049–1059. doi: 10.16337/j.1004-9037.2020.06.004.

    ZHU Qiuming, HUA Boyu, MAO Kai, et al. Advances and challenges of UAV millimeter-wave channel modeling[J]. Journal of Data Acquisition and Processing, 2020, 35(6): 1049–1059. doi: 10.16337/j.1004-9037.2020.06.004.
    [3] 朱秋明, 倪浩然, 华博宇, 等. 无人机毫米波信道测量与建模研究综述[J]. 移动通信, 2022, 46(12): 2–11. doi: 10.3969/j.issn.1006-1010.20221114-0001.

    ZHU Qiuming, NI Haoran, HUA Boyu, et al. A survey of UAV millimeter-wave channel measurement and modeling[J]. Mobile Communications, 2022, 46(12): 2–11. doi: 10.3969/j.issn.1006-1010.20221114-0001.
    [4] PANG Xiaowei, SHENG Min, ZHAO Nan, et al. When UAV meets IRS: Expanding air-ground networks via passive reflection[J]. IEEE Wireless Communications, 2021, 28(5): 164–170. doi: 10.1109/MWC.010.2000528.
    [5] WU Qingqing and ZHANG Rui. Intelligent reflecting surface enhanced wireless network via joint active and passive beamforming[J]. IEEE Transactions on Wireless Communications, 2019, 18(11): 5394–5409. doi: 10.1109/TWC.2019.2936025.
    [6] MA Dong, DING Ming, and HASSAN M. Enhancing cellular communications for UAVs via intelligent reflective surface[C]. 2020 IEEE Wireless Communications and Networking Conference (WCNC), Seoul, Korea (South), 2020: 1–6. doi: 10.1109/WCNC45663.2020.9120632.
    [7] LIU Xin, YU Yingfeng, PENG Bao, et al. RIS-UAV enabled worst-case downlink secrecy rate maximization for mobile vehicles[J]. IEEE Transactions on Vehicular Technology, 2023, 72(5): 6129–6141. doi: 10.1109/TVT.2022.3231376.
    [8] NA Zhenyu, LIU Yue, SHI Jingcheng, et al. UAV-supported clustered NOMA for 6G-enabled internet of things: Trajectory planning and resource allocation[J]. IEEE Internet of Things Journal, 2021, 8(20): 15041–15048. doi: 10.1109/JIOT.2020.3004432.
    [9] NA Zhenyu, JI Chenglan, LIN Bin, et al. Joint optimization of trajectory and resource allocation in secure UAV relaying communications for internet of things[J]. IEEE Internet of Things Journal, 2022, 9(17): 16284–16296. doi: 10.1109/JIOT.2022.3151105.
    [10] YE Jia, QIAO Jingping, KAMMOUN A, et al. Nonterrestrial communications assisted by reconfigurable intelligent surfaces[J]. Proceedings of the IEEE, 2022, 110(9): 1423–1465. doi: 10.1109/JPROC.2022.3169690.
    [11] HUANG Chongwen, MO Ronghong, and YUEN C. Reconfigurable intelligent surface assisted multiuser MISO systems exploiting deep reinforcement learning[J]. IEEE Journal on Selected Areas in Communications, 2020, 38(8): 1839–1850. doi: 10.1109/JSAC.2020.3000835.
    [12] 万诗晴, 仲伟志, 何艺, 等. 基于深度强化学习的可重构智能超表面辅助无人机通信联合波束成形与轨迹优化[J]. 电波科学学报, 2024, 39(4): 722–731. doi: 10.12265/j.cjors.2023233.

    WAN Shiqing, ZHONG Weizhi, HE Yi, et al. The optimization of beamforming and trajectory for reconfigurable intelligent surface assisted UAV communication system based on deep reinforcement learning[J]. Chinese Journal of Radio Science, 2024, 39(4): 722–731. doi: 10.12265/j.cjors.2023233.
    [13] DANG Jian, ZHANG Zaichen, LI Yewei, et al. Fast and arbitrary beam pattern design for RIS-assisted terahertz wireless communication[J]. IEEE Transactions on Vehicular Technology, 2023, 72(2): 2620–2625. doi: 10.1109/TVT.2022.3209669.
    [14] RAJAGOPALAN H and RAHMAT-SAMII Y. Loss quantification for microstrip reflectarray: Issue of high fields and currents[C]. 2008 IEEE Antennas and Propagation Society International Symposium, San Diego, USA, 2008: 1–4. doi: 10.1109/APS.2008.4619755.
    [15] ABEYWICKRAMA S, ZHANG Rui, WU Qingqing, et al. Intelligent reflecting surface: Practical phase shift model and beamforming optimization[J]. IEEE Transactions on Communications, 2020, 68(9): 5849–5863. doi: 10.1109/TCOMM.2020.3001125.
    [16] SAREMI S, MIRJALILI S, and LEWIS A. Biogeography-based optimisation with chaos[J]. Neural Computing and Applications, 2014, 25(5): 1077–1097. doi: 10.1007/s00521-014-1597-x.
    [17] 何艺, 仲伟志, 万诗晴, 等. 智能反射面辅助的MU-MISO车联网毫米波通信联合波束赋形[J]. 信号处理, 2024, 40(2): 336–344. doi: 10.16798/j.issn.1003-0530.2024.02.011.

    HE Yi, ZHONG Weizhi, WAN Shiqing, et al. Joint beamforming for IRS-aided MU-MISO millimeter wave communication of vehicular network[J]. Journal of Signal Processing, 2024, 40(2): 336–344. doi: 10.16798/j.issn.1003-0530.2024.02.011.
