导联注意力及脑连接驱动的虚拟现实晕动症识别模型研究

化成城; 周占峰; 陶建龙; 杨文清; 刘佳; 付荣荣

doi:10.11999/JEIT240440

导联注意力及脑连接驱动的虚拟现实晕动症识别模型研究

doi: 10.11999/JEIT240440

化成城^{1, 2},
周占峰^{1, 2},
陶建龙^{1, 2},
杨文清^{1, 2},
刘佳^{1, 2},
付荣荣^3, ,

1.
南京信息工程大学江苏省智能气象探测机器人工程研究中心南京 210044
2.
南京信息工程大学江苏省大气环境与装备技术协同创新中心南京 210044
3.
燕山大学电气工程学院秦皇岛 066004

基金项目: 国家自然科学基金(62206130, 62073283)，江苏省自然科学基金(BK20200821)，南京信息工程大学人才启动经费(2020r075)，河北省自然科学金(F2022203092)

详细信息

作者简介:
化成城：男，讲师，研究方向为脑电信号与脑机接口

周占峰：男，硕士生，研究方向为脑电信号、虚拟现实晕动症

陶建龙：男，硕士生，研究方向为脑电信号、虚拟现实晕动症

杨文清：女，硕士生，研究方向为脑电信号、脑电微状态、脑功能网络

刘佳：女，教授，研究方向为多模态情感分析、计算机视觉与图像处理、虚拟/增强现实

付荣荣：女，副教授，研究方向为脑电信号处理及特征提取、脑意图动态识别、脑机接口系统研究

通讯作者:
付荣荣　frr1102@aliyun.com

中图分类号: TN911.7; TP391
计量
- 文章访问数: 109
- HTML全文浏览量: 49
- PDF下载量: 19
- 被引次数: 0
出版历程
- 收稿日期: 2024-06-03
- 修回日期: 2025-03-04
- 网络出版日期: 2025-03-15

Virtual Reality Motion Sickness Recognition Model Driven by Lead-attention and Brain Connection

HUA Chengcheng^{1, 2},
ZHOU Zhanfeng^{1, 2},
TAO Jianlong^{1, 2},
YANG Wenqing^{1, 2},
LIU Jia^{1, 2},
FU Rongrong^{3
, ,}

1.
Jiangsu Province Engineering Research Center of Intelligent Meteorological Exploration Robot, Nanjing University of Information Science and Technology, Nanjing 210044, China
2.
Jiangsu Collaborative Innovation Center of Atmospheric Environment and Equipment Technology, Nanjing University of Information Science and Technology, Nanjing 210044, China
3.
Department of Electrical Engineering, Yanshan University, Qinhuangdao 066004, China

Funds: The National Natural Science Foundation of China (62206130, 62073282), The Natural Science Foundation of Jiangsu Province (BK20200821), The Startup Foundation for Introducing Talent of NUIST (2020r075), The Natural Science Foundation of Hebei Province (F2022203092)

摘要

摘要: 虚拟现实晕动症(VRMS)是阻碍虚拟现实技术行业发展的重要问题，检测VRMS水平是研究并克服这一问题的先决条件。所以该文引入并改进了一种脑电端到端识别模型定量识别用户在使用虚拟现实时的VRMS水平。该模型首先利用一维卷积神经网络(CNN)对脑电信号进行滤波，然后计算导联间相关性构成功能脑网络，最后利用CNN和全连接层提取脑网络特征和回归分析。该文通过优化1维卷积核大小及加入一种新型导联注意力结构来增强该模型特征提取能力。最后采用虚拟现实场景《VRQ test》诱发受试者产生VRMS并记录受试者脑电信号及主观评价VRMS水平(模拟器眩晕量表SSQ)，所得数据用于验证该模型。结果显示经过10折交叉验证该方法检测到的VRMS水平与真实值之间平均均方误差为15.10，平均拟合优度为：96.63%。该结果表明该文所提模型可用于虚拟现实晕动症的检测，该脑电检测方法有望成为一种通用的虚拟现实产品评估方法。
- 虚拟现实晕动症(VRMS) /
- 脑电(EEG) /
- 功能脑网络 /
- 导联注意力 /
- 模拟器眩晕量表(SSQ)
Abstract: Objective Virtual Reality Motion Sickness (VRMS) hinders the development of virtual reality technology and affects users’ experience, potentially threatening their health. Accurately assessing VRMS levels is essential for studying its causes and treatment strategies. ElectroEncephaloGram (EEG) provides a non-invasive, low-cost method with high temporal resolution, reflecting real-time neural activity, making it suitable for VRMS assessment. This paper introduces and improves an end-to-end EEG regression model based on Convolutional Neural Networks (CNN) and functional brain networks, termed Brain Connection-based CNN (BCCNN), to quantitatively recognize VRMS in users within a VR environment. Methods The BCCNN utilizes a 1D-CNN to filter EEG signals and compute correlation coefficients among electrodes, forming functional brain networks. It then employs CNN and fully connected layers to extract network features and perform regression analysis (Figure 2). This study optimizes the kernel size of the 1D-CNN and proposes a novel lead attention module to enhance feature extraction. The attention module, inspired by the squeeze-and-excitation mechanism, computes the weights from the filtered EEG signals rather than the extracted features. Additionally, the attention weights are derived from and applied to the leads of the EEG (Figure 3). To induce VRMS, a virtual reality scene called “VRQ test” is used. The subject’s EEG signal and subjective VRMS level, recorded via the Simulator Sickness Questionnaire (SSQ), are collected. These data are then used to validate the model (Figure 1). The model’s performance is evaluated using Mean Squared Error (MSE), Mean Absolute Error (MAE), and the goodness of fit (R2), comparing the predicted VRMS levels with the real values. A comparison with reference methods is conducted to assess the effectiveness of the BCCNN and its optimizations. Results and Discussions The results show that the optimized kernel size of the 1D-CNN layer is 16, reducing the average MSE of the original BCCNN by 6.53 (Table 1, Table 2, Figure 4). Additionally, the lead attention module further improves the BCCNN, lowering the average MSE by 7.65 compared to the original model, outperforming the channel attention module (Table 2). The optimized BCCNN achieves an average MSE of 15.10 and an average R2 of 96.63% in 10-fold cross-validation, significantly exceeding the original BCCNN and ten state-of-the-art and baseline models (Table 2). Among the reference methods, the combination of difference entropy and Gaussian process regression yields the best performance. Furthermore, reference models using a filter bank outperform other reference models, indicating that handcrafted processing of the EEG data can enhance model performance (Table 2). Visualizing the functional connections and extracted features of the BCCNN reveals that functional connections are stronger at higher VRMS levels compared to lower VRMS levels. Conclusions This study introduces and optimizes the BCCNN for assessing VRMS using EEG. The main innovation of this work lies in optimizing the kernel size of the 1D-CNN and proposing a novel lead attention module. The results demonstrate that these optimizations enhance the accuracy of VRMS assessment, with the updated model offering a more precise evaluation. EEG is thus expected to become a standard method for assessing VRMS in VR products. The proposed approach enables VRMS assessment during and after a user’s experience in a VR scene.
- Virtual Reality Motion Sickness (VRMS) /
- ElectroEncephaloGram (EEG) /
- Functional brain network /
- Lead attention /
- Simulation Sickness Questionnaire (SSQ)

HTML全文

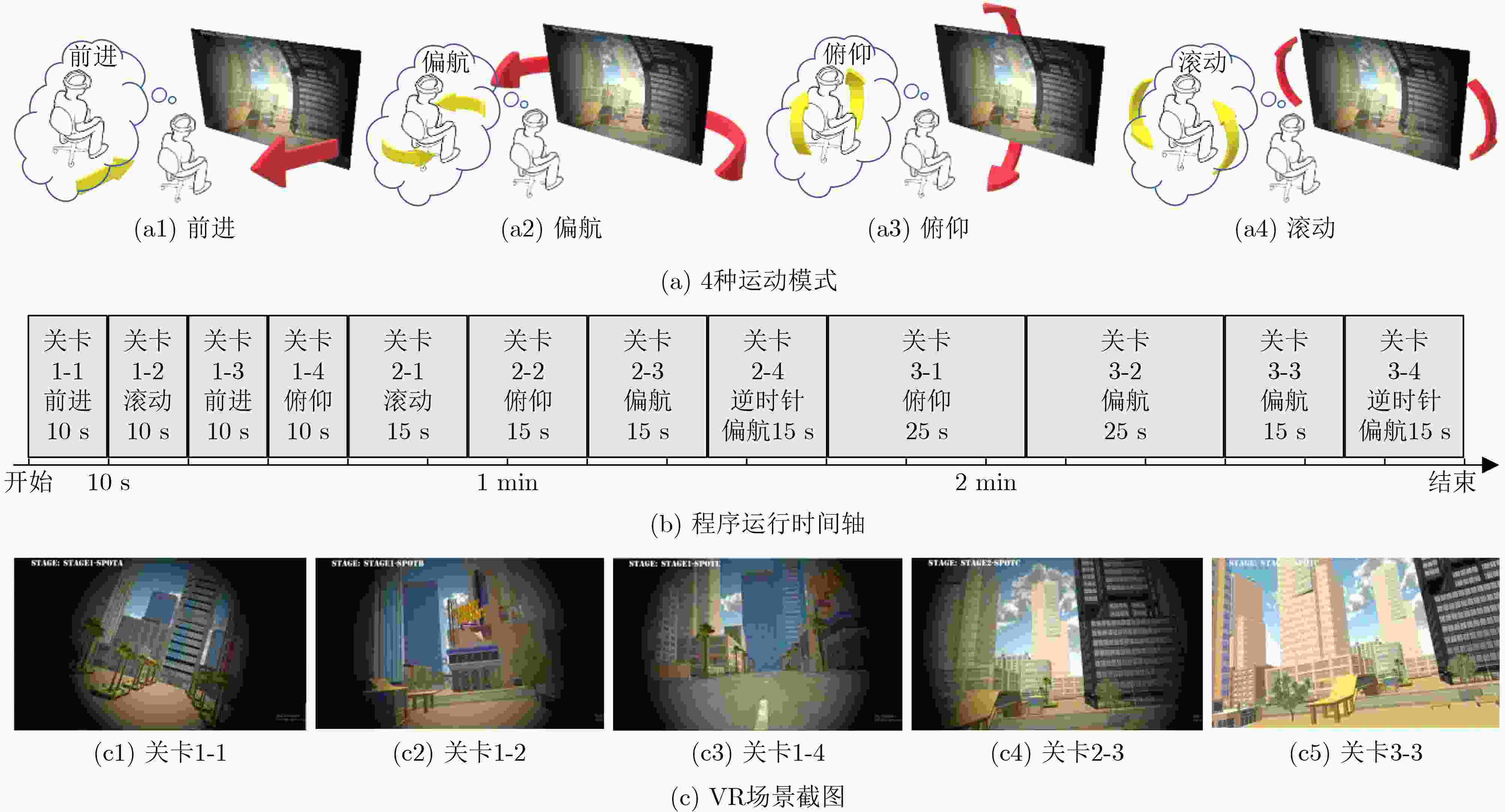

图 1 虚拟现实晕动症诱发实验设计

下载: 全尺寸图片幻灯片

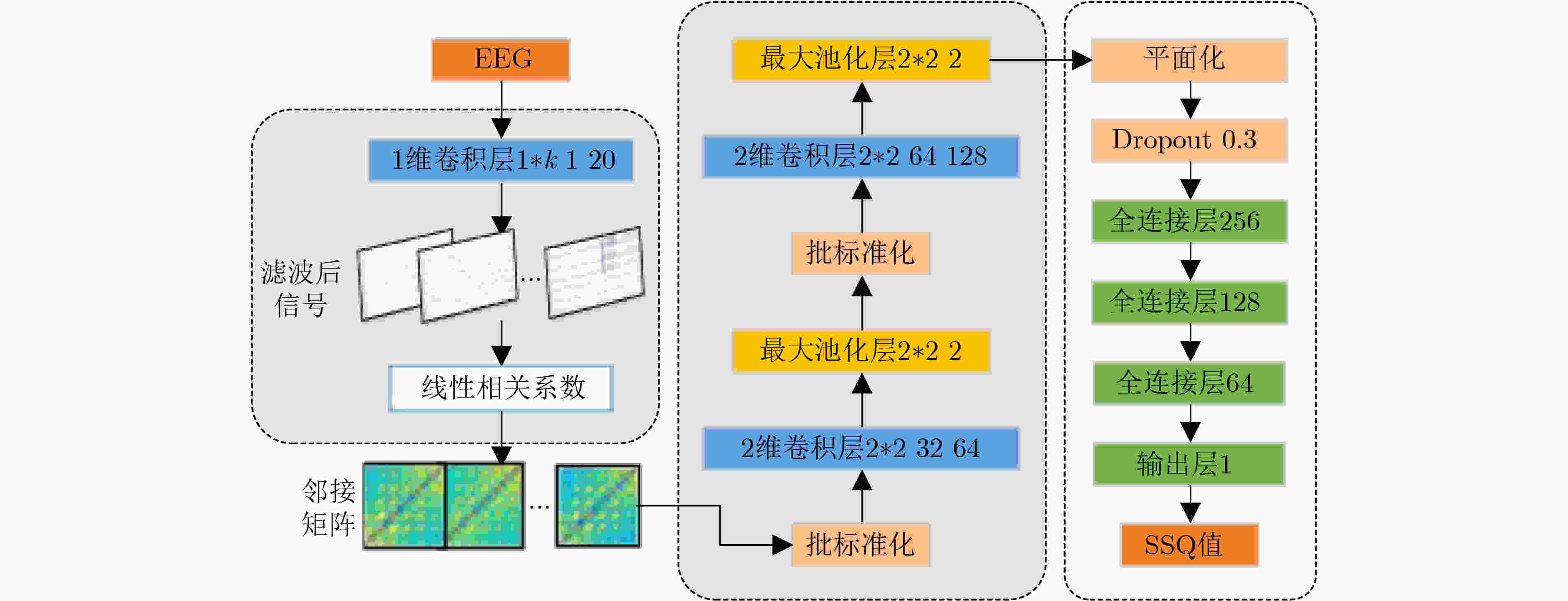

图 2 基于CNN的脑连接模型(BCCNN)结构

下载: 全尺寸图片幻灯片

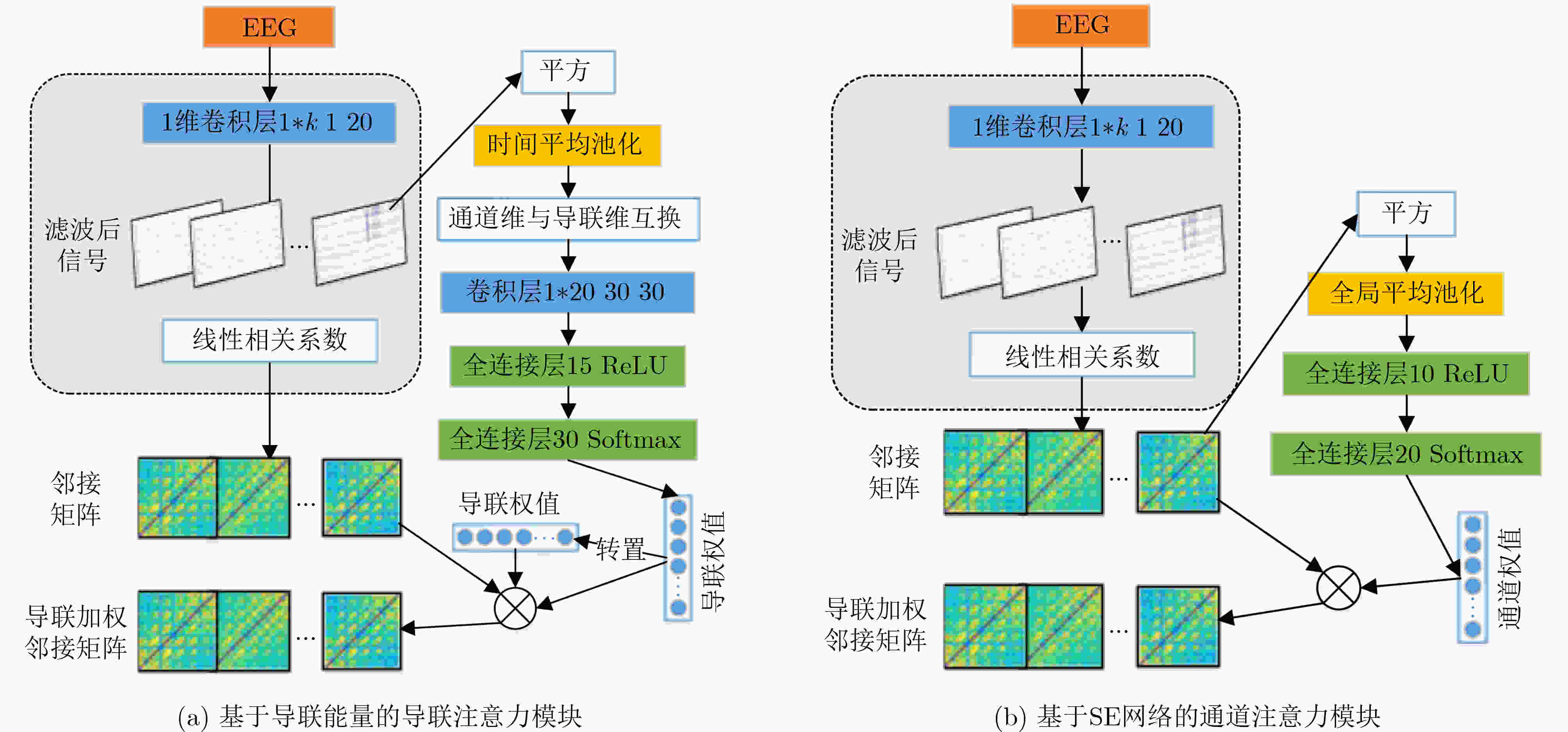

图 3 注意力模块结构

下载: 全尺寸图片幻灯片

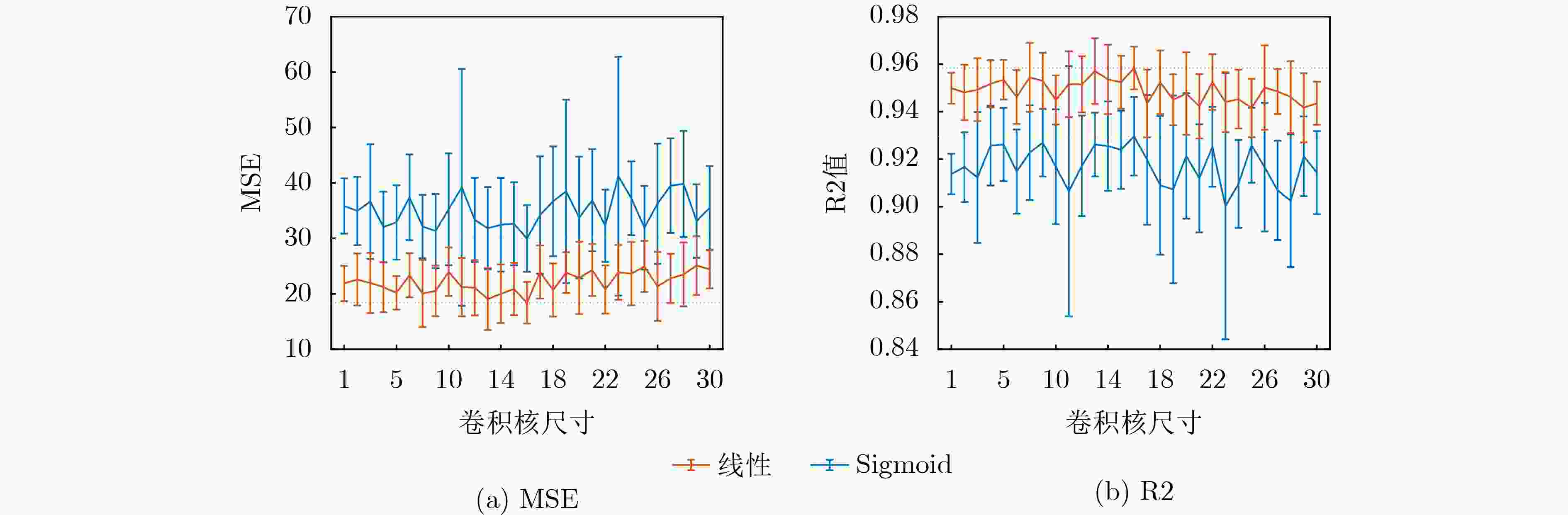

图 4 回归结果随1维卷积层卷积核大小变化

下载: 全尺寸图片幻灯片

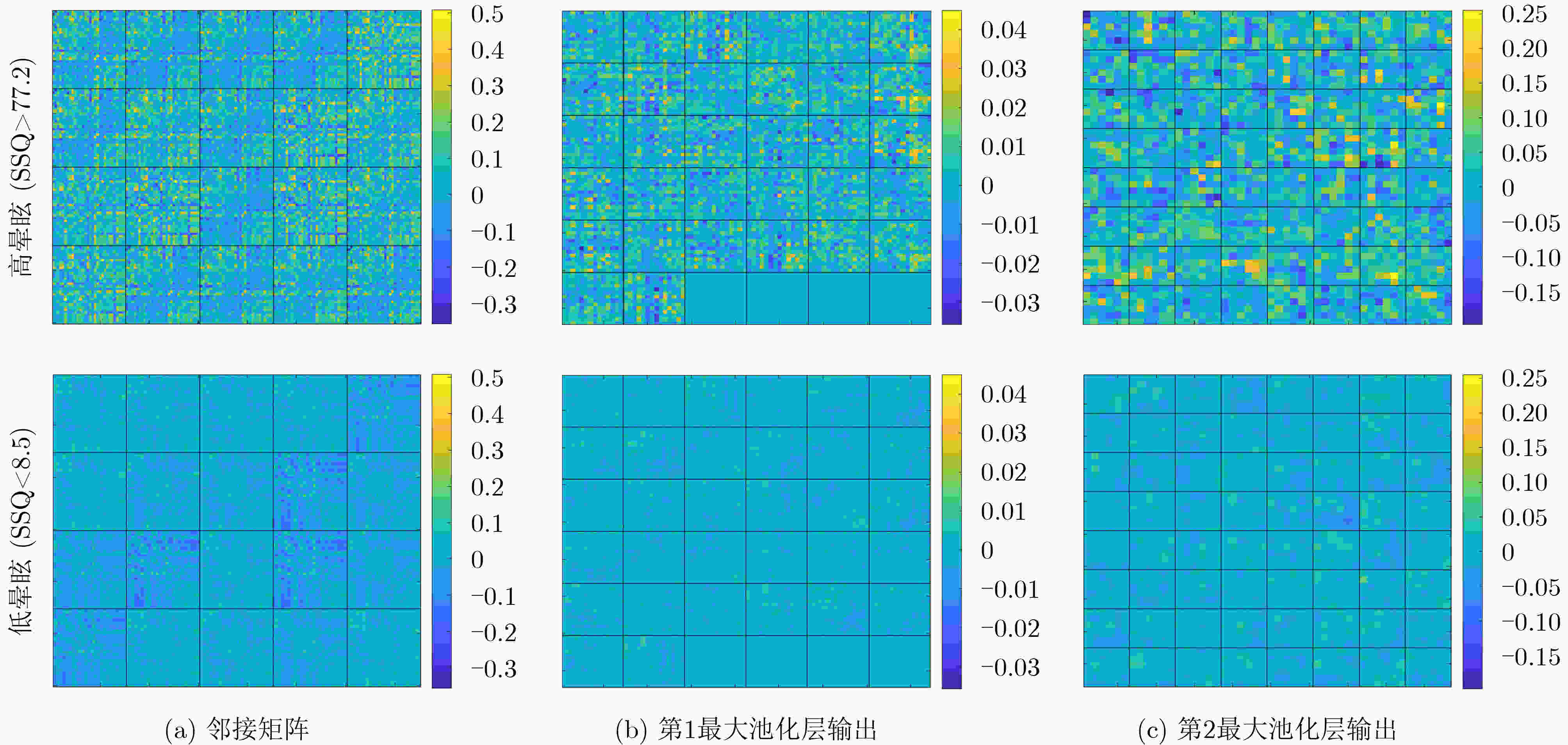

图 5 基于BCCNN模型构建和提取的平均邻接矩阵及平均脑功能网络特征(高眩晕SSQ>77.2 vs.低眩晕SSQ<8.5)

下载: 全尺寸图片幻灯片

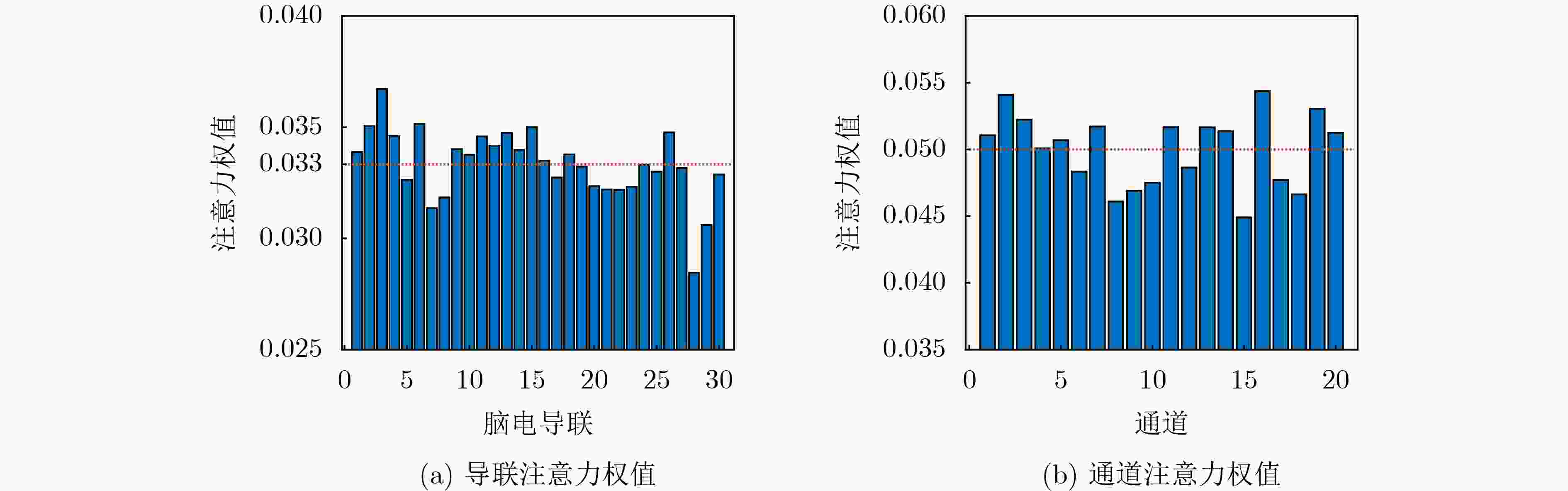

图 6 导联注意力与通道注意力的权值平均分布

下载: 全尺寸图片幻灯片

表 1 不同类型1D卷积核及不同类型输出层激活函数下BCCNN模型的回归表现

激活函数	卷积核长度	均方误差(MSE)	平均绝对误差(MAE)	拟合优度(R2,%)
Sigmoid	最优16	18.40±3.76	2.34±0.26	95.84±0.90
Sigmoid	最差29	25.1±5.30	2.73±0.44	94.16±1.45
线性	最优16	29.98±6.00	3.35±0.46	92.96±1.65
线性	最差23	41.21±21.54	3.82±0.93	90.02±5.61

下载: 导出CSV

表 2 改进BCCNN模型与其他常用模型对VRMS数据的回归表现对比(Mean±std.)

#	方法	均方误差(MSE)	平均绝对误差(MAE)	拟合优度(R2,%)
1	节律能量及能量比^[12]+mRMR^[29]+高斯过程回归	60.50±3.68	5.13±0.13	83.86±1.74
2	微分熵^[27]+mRMR+高斯过程回归	38.65±2.37	4.18±0.11	90.84±0.86
3	EMDPLV+图论指标+mRMR+高斯过程回归	154.37±14.17	9.29±0.27	50.04±5.74
4	Shallow ConvNet^[30]	217.76±27.20	11.17±0.80	6.22±11.10
5	Deep ConvNet^[30]	213.55±49.97	11.62±1.53	2.58±5.98
6	FBtCNN^[31]	171.03±16.94	9.91±0.55	23.47±11.78
7	SSVEPNet^[32]	166.29±22.23	8.91±0.69	67.24±4.05
8	1D-CNN(时间、导联)+LSTM	123.92±17.95	7.16±0.75	68.74±5.68
9	ADFCNN^[33]	122.74±22.05	7.42±0.79	67.45±7.38
10	MOCNN^[34]	91.74±22.28	7.17±1.02	77.38±6.63
11	Conformer^[35]	82.15±9.86	5.44±0.27	80.92±2.58
12	FBCNet^[36]	77.29±8.19	6.87±0.38	80.08±2.63
13	滤波器组+1D-CNN(导联)+LSTM	53.62±6.55	5.61±0.36	86.83±3.25
14	原版BCCNN	24.93±4.60	2.8±0.399	94.16±1.23
15	BCCNN+优化卷积核	18.40±3.76	2.34±0.26	95.84±0.90
16	BCCNN+通道注意力	22.73±6.49	2.25±0.32	94.90±1.39
17	BCCNN+优化卷积核+通道注意力	20.80±6.72	2.22±0.34	95.29±1.65
18	BCCNN+导联注意力	17.28±3.68	2.08±0.28	96.10±0.90
19	BCCNN+优化卷积核+导联注意力	15.10±4.32	1.93±0.28	96.63±1.09

下载: 导出CSV
