基于密集残差和质量评估引导的频率分离生成对抗超分辨率重构网络

韩玉兰; 崔玉杰; 罗轶宏; 兰朝凤

doi:10.11999/JEIT240388

基于密集残差和质量评估引导的频率分离生成对抗超分辨率重构网络

doi: 10.11999/JEIT240388

1.
哈尔滨理工大学测控技术与通信工程学院哈尔滨 150080
2.
哈尔滨理工大学模式识别与信息感知黑龙江省重点实验室哈尔滨 150080

基金项目: 国家自然科学基金(11804068)，黑龙江省省属高等学校基本科研业务(2020-KYYWF-0342)

详细信息

作者简介:
韩玉兰：女，讲师，研究方向为人工智能与计算机视觉、大数据分析与预测等

崔玉杰：女，硕士，研究方向为图像重构

罗轶宏：女，硕士，研究方向为图像重构

兰朝凤：女，副教授，研究方向为语音信号处理与分析、水下信号分析与处理等

通讯作者:
韩玉兰　hanyulan@hrbust.edu.cn

中图分类号: TN911.73; TP391
计量
- 文章访问数: 153
- HTML全文浏览量: 55
- PDF下载量: 27
- 被引次数: 0
出版历程
- 收稿日期: 2024-05-16
- 修回日期: 2024-11-09
- 网络出版日期: 2024-11-18
- 刊出日期: 2025-12-01

Frequency Separation Generative Adversarial Super-resolution Reconstruction Network Based on Dense Residual and Quality Assessment

1.
School of Measurement and Control Technology and Communication Engineering, Harbin University of Science and Technology, Harbin 150080, China
2.
Heilongjiang Province Key Laboratory of Pattern Recognition and Information Perception, Harbin University of Science and Technology, Harbin 150080, China

Funds: The National Natural Science Foundation of China (11804068), The Fundamental Research Funds for the Provincial Universities (2020-KYYWF-0342)

摘要

摘要: 生成对抗网络因其为盲超分辨率重构提供了新的思路而备受关注。针对现有方法未充分考虑图像退化过程中的低频保留特性而对高低频成分采用相同的处理方式，缺乏对频率细节有效利用，难以获得较好重构效果的问题，该文提出一种基于密集残差和质量评估引导的频率分离生成对抗超分辨率重构网络。该网络采用频率分离思想，对图像的高频和低频信息分开处理，从而提高高频信息捕捉能力，简化低频特征处理。该文对生成器中的基础块进行设计，将空间特征变换层融入密集宽激活残差中，增强深层特征表征能力的同时对局部信息差异化处理。此外，利用视觉几何组网络(VGG)设计了专门针对超分辨率重构图像的无参考质量评估网络，为重构网络提供全新的质量评估损失，进一步提高重构图像的视觉效果。实验结果表明，同当前先进的同类方法比，该方法在多个数据集上具有更佳的重构效果。由此表明，采用频率分离思想的生成对抗网络进行超分辨率重构，可以有效利用图像频率成分，提高重构效果。
- 超分辨率 /
- 生成对抗网络 /
- 频率分离 /
- 质量评估 /
- 密集残差
Abstract: With generative adversarial networks have attracted much attention because they provide new ideas for blind super-resolution reconstruction. Considering the problem that the existing methods do not fully consider the low-frequency retention characteristics during image degradation, but use the same processing method for high and low-frequency components, which lacks the effective use of frequency details and is difficult to obtain better reconstruction result, a frequency separation generative adversarial super-resolution reconstruction network based on dense residual and quality assessment is proposed. The idea of frequency separation is adopted by the network to process the high-frequency and low-frequency information of the image separately, so as to improve the ability of capturing high-frequency information and simplify the processing of low-frequency features. The base block in the generator is designed to integrate the spatial feature transformation layer into the dense wide activation residuals, which enhances the ability of deep feature representation while differentiating the local information. In addition, no-reference quality assessment network is designed specifically for super-resolution reconstructed images using Visual Geometry Group (VGG), which provides a new quality assessment loss for the reconstruction network and further improves the visual effect of reconstructed images. The experimental results show that the method has better reconstruction effect on multiple datasets than the current state-of-the-art similar methods. It is thus shown that super-resolution reconstruction using generative adversarial networks with the idea of frequency separation can effectively utilize the image frequency components and improve the reconstruction effect.
- Super-resolution /
- Generative adversarial network /
- Frequency separation /
- Quality assessment /
- Dense residual

HTML全文

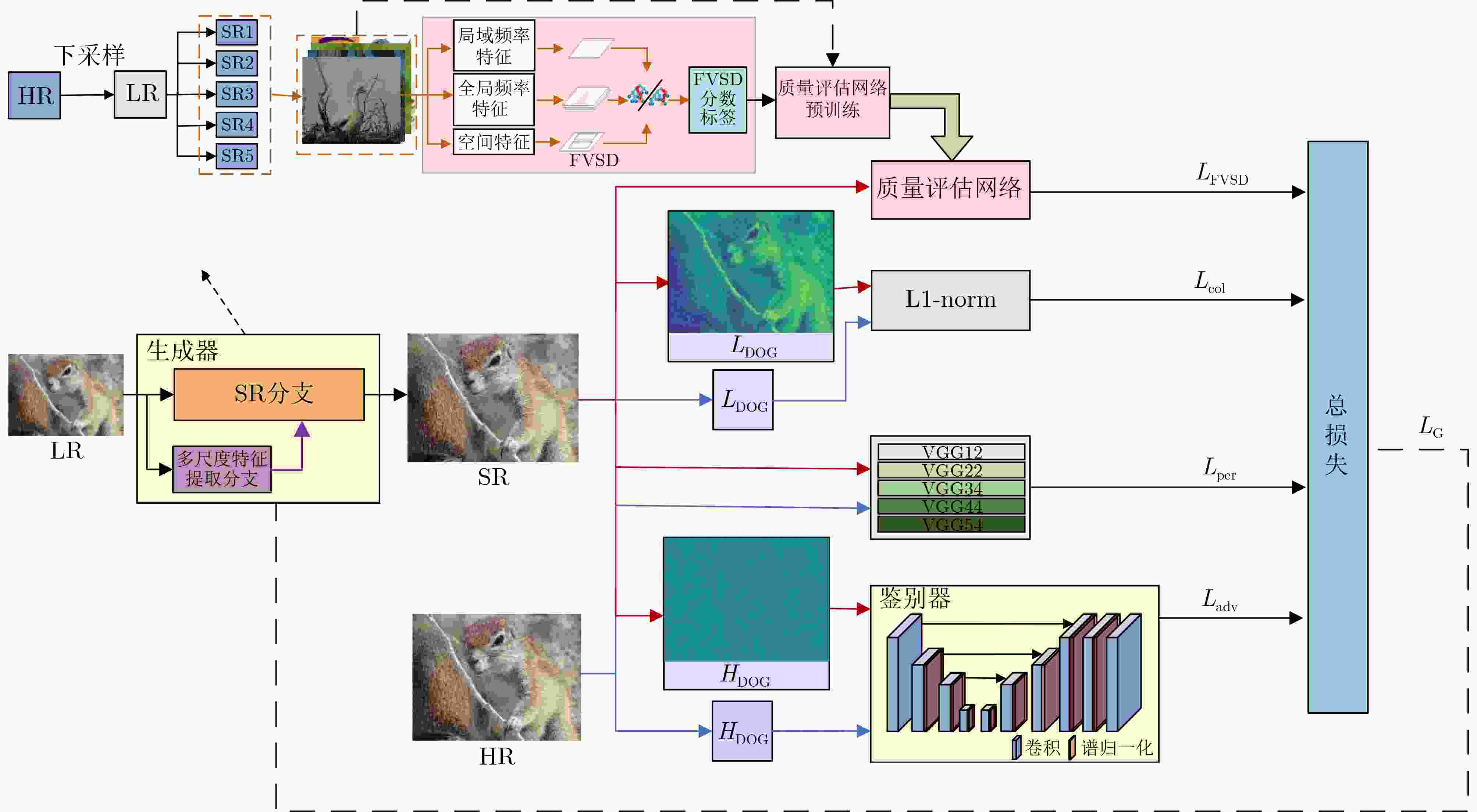

图 1 DR-QA-FSGAN网络总体结构

下载: 全尺寸图片幻灯片

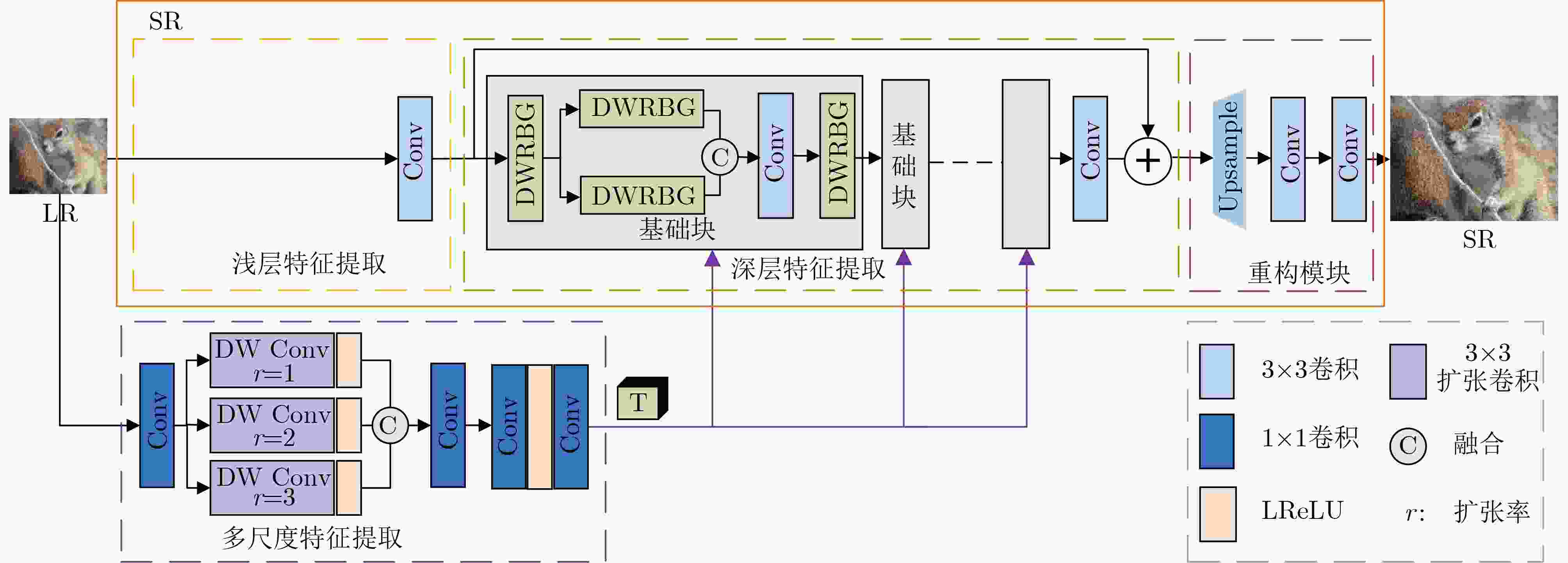

图 2 生成器

下载: 全尺寸图片幻灯片

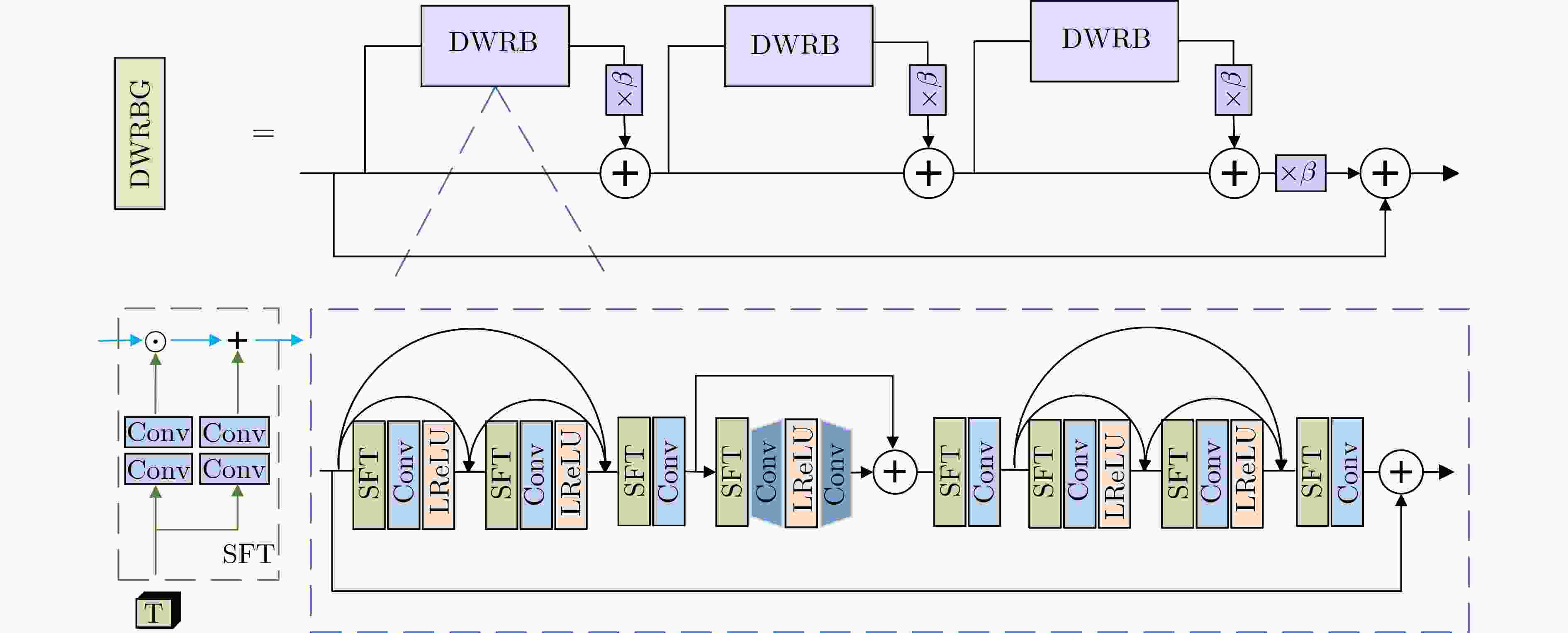

图 3 带SFT层的密集宽激活残差块DWRB

下载: 全尺寸图片幻灯片

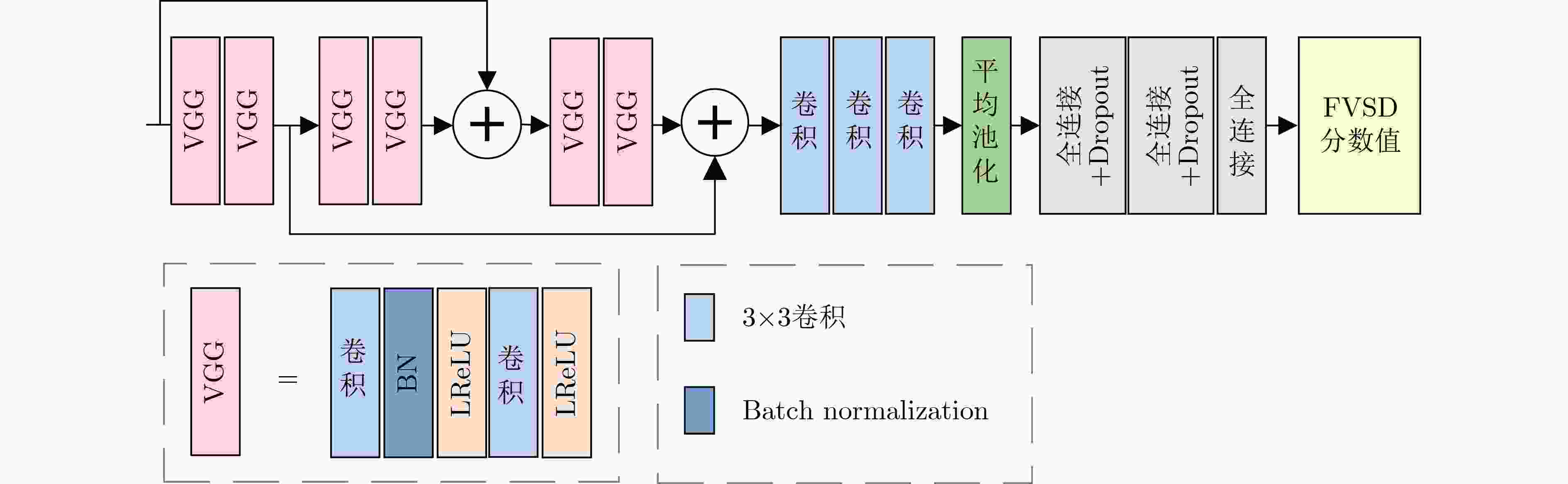

图 4 质量评估网络

下载: 全尺寸图片幻灯片

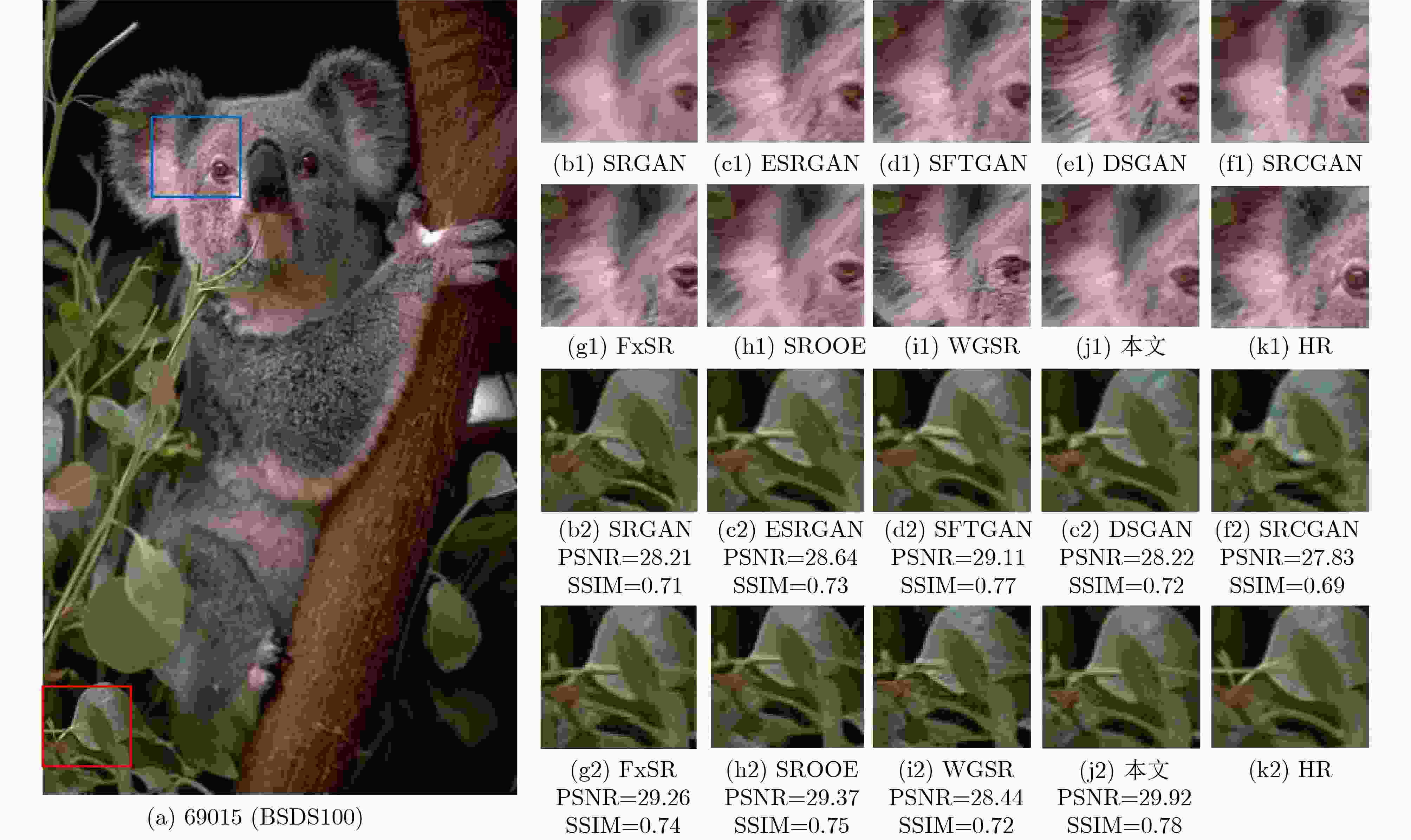

图 5 不同方法在BSDS100数据集“69015”图像4倍超分辨率重构比较

下载: 全尺寸图片幻灯片

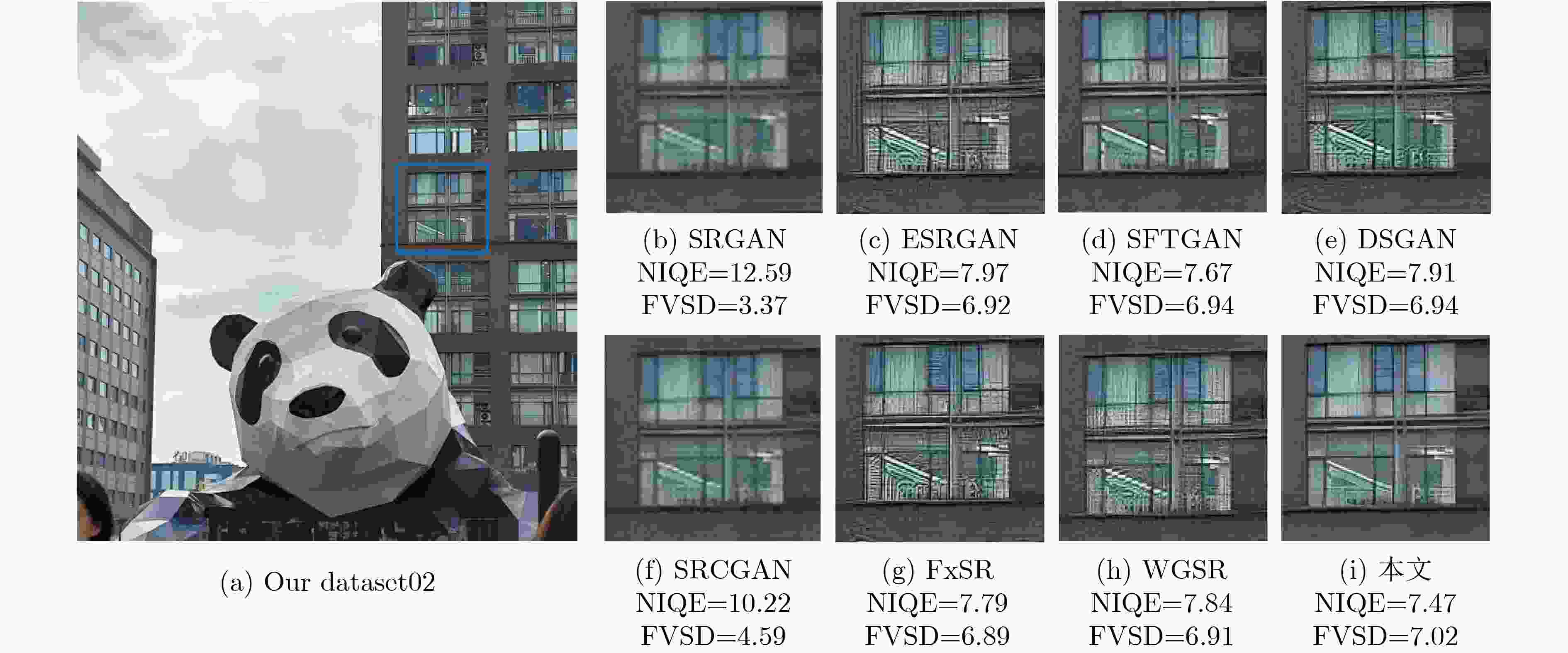

图 6 不同方法在自制数据集“02”图像4倍超分辨率重构比较

下载: 全尺寸图片幻灯片

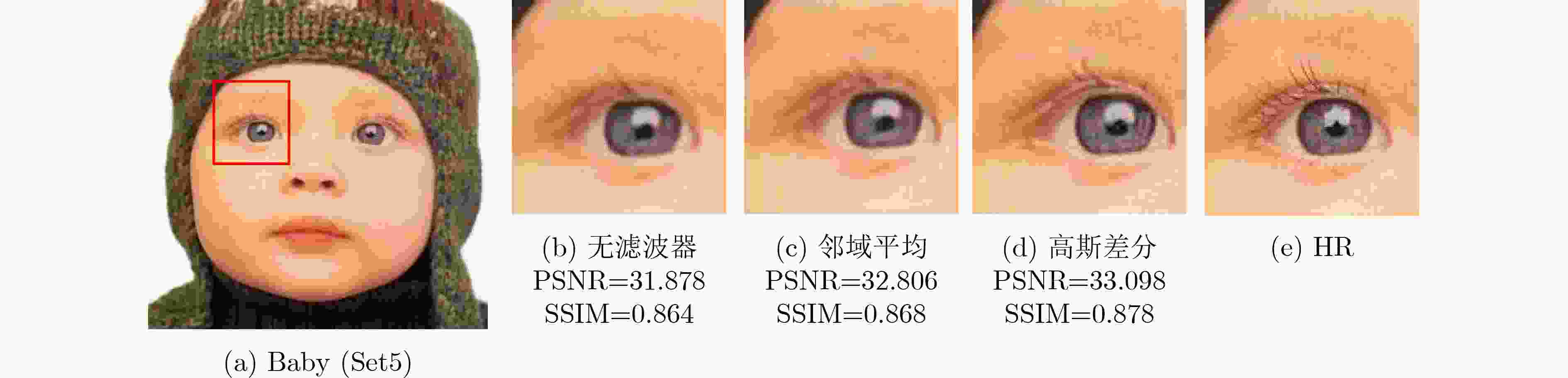

图 7 不同滤波器在Set5数据集“baby”图像4倍超分辨率重构比较

下载: 全尺寸图片幻灯片

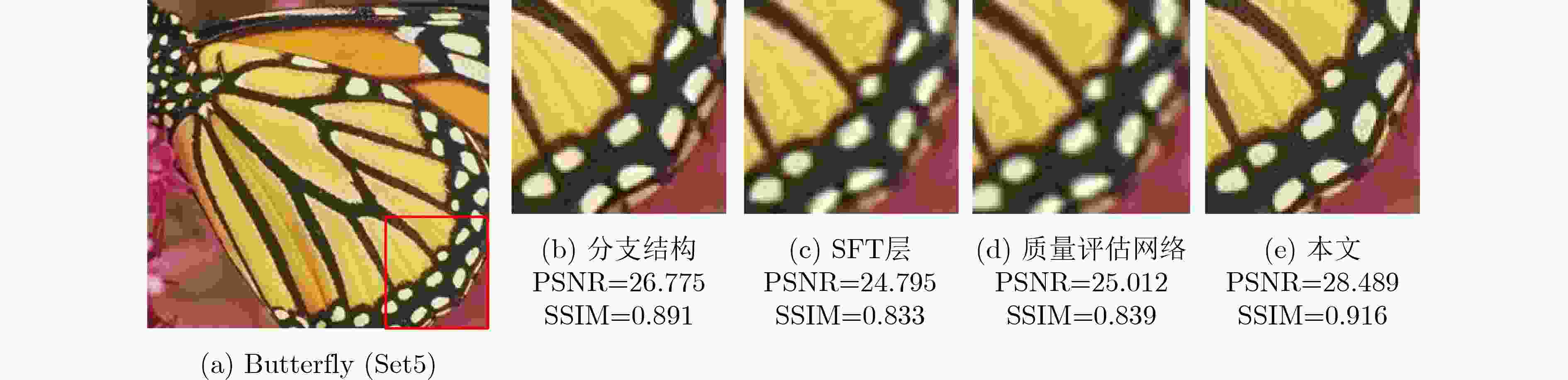

图 8 不同模块在Set5数据集“butterfly”图像4倍超分辨率重构比较

下载: 全尺寸图片幻灯片

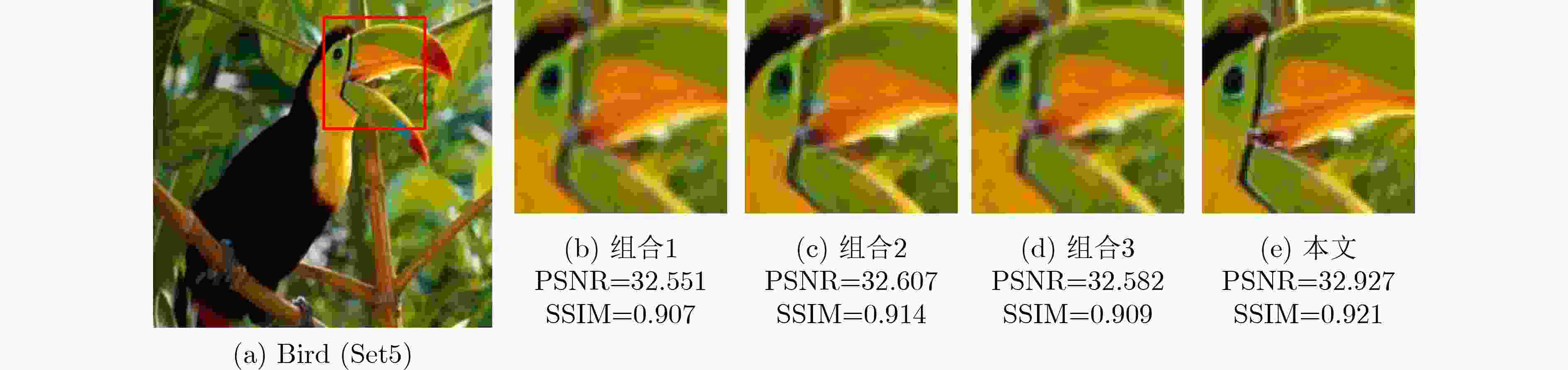

图 9 不同损失函数在Set5数据集“bird”图像4倍超分辨率重构比较

下载: 全尺寸图片幻灯片

表 1 不同方法各数据集的PSNR (dB)和SSIM均值比较(×4)

算法	Set5		Set14		BSDS100		Manga109
算法	PSNR↑	SSIM↑	PSNR↑	SSIM↑	PSNR↑	SSIM↑	PSNR↑	SSIM↑
SRGAN^[11]	28.574	0.818	25.674	0.692	25.156	0.654	26.488	0.828
ESRGAN^[12]	30.438	0.852	26.278	0.699	25.323	0.651	28.245	0.859
SFTGAN^[14]	27.578	0.809	26.968	0.729	25.501	0.653	28.182	0.858
DSGAN^[17]	30.392	0.854	26.644	0.714	25.447	0.655	27.965	0.853
SRCGAN^[13]	28.068	0.789	26.071	0.696	25.659	0.657	25.295	0.796
FxSR^[15]	30.637	0.849	26.708	0.719	26.144	0.684	27.647	0.844
SROOE^[16]	30.862	0.866	27.231	0.731	26.195	0.687	27.852	0.849
WGSR^[19]	30.373	0.851	27.023	0.727	26.372	0.684	28.287	0.861
本文	30.904	0.872	27.715	0.749	26.838	0.701	28.312	0.867

下载: 导出CSV

表 2 自制数据集不同方法NIQE和FVSD平均值比较(×4)

算法	NIQE↓	FVSD↑
SRGAN^[11]	12.84	3.84
ESRGAN^[12]	8.62	6.46
SFTGAN^[14]	8.46	6.35
DSGAN^[17]	8.41	6.51
SRCGAN^[13]	10.21	4.25
FxSR^[15]	8.37	6.48
SROOE^[16]	8.19	6.49
WGSR^[19]	8.14	6.52
本文	8.11	6.54

下载: 导出CSV

表 3 不同滤波器重构效果的影响

滤波器	PSNR(dB)↑	SSIM↑
无	28.831	0.835
邻域平均	28.941	0.833
高斯差分	29.015	0.837

下载: 导出CSV

表 4 含有不同模块对应的PSNR (dB)和SSIM均值

分支结构	SFT层	质量评估网络	PSNR (dB)↑	SSIM↑
$\surd $	$ \times $	$ \times $	28.772	0.828
$ \times $	$\surd $	$ \times $	28.402	0.821
$ \times $	$ \times $	$\surd $	28.642	0.823
$\surd $	$\surd $	$\surd $	29.015	0.837

下载: 导出CSV

表 5 不同损失函数的影响

损失组合	颜色损失		多层感知损失	对抗损失		FVSD损失	PSNR (dB)↑	SSIM↑
损失组合	Lcol	Lcol-1	多层感知损失	Ladv	Ladv-1	FVSD损失	PSNR (dB)↑	SSIM↑
组合1	$ \times $	$\surd $	$\surd $	$ \times $	$\surd $	$ \times $	28.352	0.818
组合2	$ \times $	$\surd $	$\surd $	$ \times $	$\surd $	$\surd $	28.831	0.835
组合3	$\surd $	$ \times $	$\surd $	$\surd $	$ \times $	$ \times $	28.437	0.821
本文	$\surd $	$ \times $	$\surd $	$\surd $	$ \times $	$\surd $	29.015	0.837

下载: 导出CSV

表 6 重构时间与参数量的比较

算法	重构时间(ms)	参数量(MB)
SRGAN^[11]	0.0401	1.51
ESRGAN^[12]	0.1603	16.69
SFTGAN^[14]	0.0664	1.83
DSGAN^[17]	0.1723	16.69
SRCGAN^[13]	0.0096	0.38
FxSR^[15]	0.3541	18.30
SROOE^[16]	0.3880	70.20
WGSR^[19]	0.1806	16.69
本文	0.1568	9.62

下载: 导出CSV
