离散相移IRS辅助放大转发中继网络的性能分析

董榕恩; 谢中毅; 马海波; 赵飞龙; 束锋

doi:10.11999/JEIT240236

离散相移IRS辅助放大转发中继网络的性能分析

doi: 10.11999/JEIT240236 cstr: 32379.14.JEIT240236

1.
海南大学信息与通信工程学院海口 570228
2.
紫金山实验室南京 210094
3.
中国移动通信集团海南有限公司海口 571250

基金项目: 国家自然科学基金(U22A2002, 62071234)，海南省科技专项基金(ZDKJ2021022)，海南大学科研启动项目(KYQD(ZR)-21008)，海南大学信息技术协同创新中心项目(XTCX2022XXC07)

详细信息

作者简介:
董榕恩：女，博士后，研究方向为方向调制、IRS辅助的无线网络

谢中毅：男，硕士生，研究方向为IRS辅助的无线通信

马海波：男，高级工程师，研究方向为无线通信

赵飞龙：男，教授级高级工程师，研究方向为电磁波传播及其应用、移动通信、算力网络等

束锋：男，博士生导师，研究方向为智能无线通信、信息安全、大规模MIMO测向等

通讯作者:
束锋　shufeng0101@163.com

中图分类号: TN92
计量
- 文章访问数: 482
- HTML全文浏览量: 155
- PDF下载量: 64
- 被引次数: 0
出版历程
- 收稿日期: 2024-03-13
- 修回日期: 2024-07-17
- 网络出版日期: 2024-08-27
- 刊出日期: 2025-01-31

Performance Analysis of Discrete-Phase-Shifter IRS-aided Amplify-and-Forward Relay Network

1.
School of Information and Communication Engineering, Hainan University, Haikou 570228, China
2.
Purple Mountain Laboratories, Nanjing 210094, China
3.
China Mobile Group Hainan Co., Ltd., Haikou 571250, China

Funds: The National Natural Science Foundation of China (U22A2002, 62071234), Hainan Province Science and Technology Special Fund (ZDKJ2021022), The Scientific Research Fund Project of Hainan University (KYQD(ZR)-21008), The Collaborative Innovation Center of Information Technology, Hainan University (XTCX2022XXC07)

摘要

摘要: 作为一种通过算法智能地控制信号反射来重构无线通信环境的新技术，智能反射面(IRS)近年来受到了广泛关注。与传统的中继系统相比，IRS辅助的中继系统可有效节约成本和能耗，并显著提高系统性能。然而，配备离散移相器的IRS会导致相位量化误差，从而降低接收机的接收性能。为了分析IRS相位量化误差导致的性能损失，该文基于弱大数定律和瑞利分布，在瑞利信道下，推导了关于移相器量化比特数的双IRS辅助放大转发中继网络的信噪比性能损失与可达速率的闭合表达式。此外，基于Taylor级数展开表达式，推导了其近似性能损失闭合表达式。仿真结果表明，系统的信噪比和可达速率性能损失随着量化比特数的增加而逐渐减小，而随着 IRS 相移元件数的增加而逐渐增大。当量化比特数为4时，系统的信噪比和可达速率性能损失分别小于0.06 dB 和0.03 bit/(s·Hz)。
- 智能反射面 /
- 放大转发中继 /
- 信噪比 /
- 可达速率
Abstract: Objective Most existing research assumes that the Intelligent Reflecting Surface (IRS) is equipped with continuous phase shifters, which neglects the phase quantization error. However, in practice, IRS devices are typically equipped with discrete phase shifters due to hardware and cost constraints. Similar to the performance degradation caused by finite quantization bit shifters in directional modulation networks, discrete phase shifters in IRS systems introduce phase quantization errors, potentially affecting system performance. This paper analyzes the performance loss and approximate performance loss in a double IRS-aided amplify-and-forward relay network, focusing on Signal-to-Noise Ratio (SNR) and achievable rate under Rayleigh fading channels. The findings provide valuable guidance on selecting the appropriate number of quantization bit for IRS in practical applications. Methods Based on the weak law of large numbers, Euler’s formula, and Rayleigh distribution, closed-form expressions for the SNR performance loss and achievable rate of the discrete phase shifter IRS-aided amplify-and-forward relay network are derived. Additionally, corresponding approximate expressions for the performance loss are derived using the first-order Taylor series expansion. Results and Discussions The SNR performance loss at the destination is evaluated as a function of the number of IRS-1 elements (N), assuming that the number of IRS-2 elements (M) equals N (Fig. 2). It is evident that, regardless of whether the scenario involves actual or approximate performance loss, the SNR performance loss decreases as the number of quantization bit (k) increases but increases as N grows. When k = 1, the gap between the actual performance loss and the approximate performance loss widens with increasing N. This gap becomes negligible when k is greater than or equal to 2. Notably, when k = 4, the SNR performance loss is less than 0.06 dB. Furthermore, both the SNR performance loss and approximate performance loss gradually decelerate as N increases towards a larger scale. The achievable rate at the destination is evaluated as a function of the N, where M equals N (Fig. 3). It can be observed that, in all scenarios—whether there is no performance loss, with performance loss, or approximate performance loss—the achievable rate increases gradually as N increases. This is because both IRS-1 and IRS-2 provide greater performance gains as N grows. When k = 1, the difference in achievable rate between the performance loss and approximate performance loss scenarios increases with N. As k increases, the achievable rate with performance loss and approximate performance loss converge towards the no-performance-loss scenario. For example, when N = 1 024, the performance loss in achievable rate is about 0.15 bit/(s·Hz) at k = 2 and only 0.03 bit/(s·Hz) at k = 3. The achievable rate is evaluated as a function of k (Fig. 4). The performance loss in achievable rate increases with N and M. When k = 3, the achievable rate with performance loss and approximate performance loss decrease by 0.04 bit/(s·Hz) compared to the no performance loss scenario. When k = 1, the differences in achievable rate between the no performance loss, performance loss, and approximate performance loss scenarios grow with increasing N and M. Remarkably, the achievable rate for the system with N = 1 024 and M = 128 outperforms that of N = 128 and M = 1 024. This suggests that increasing N provides a more significant improvement in rate performance than increasing M. Conclusions This paper investigates a double IRS-assisted amplify-and-forward relay network and analyzes the system performance loss caused by phase quantization errors in IRS equipped with discrete phase shifters under Rayleigh fading channels. Using the weak law of large numbers, Euler’s formula, and Rayleigh distribution, closed-form expressions for SNR performance loss and achievable rate are derived. Approximate performance loss expressions are also derived based on a first-order Taylor series expansion. Simulation results show that the performance losses in SNR and achievable rate decrease with increasing quantization bit, but increase with the number of IRS elements. When the number of quantization bit is 4, the performance losses in SNR and achievable rate are less than 0.06 dB and 0.03 bit/(s·Hz), respectively, suggesting that the system performance loss is negligible when using 4-bit phase quantization shifters.
- Intelligent Reflecting Surface (IRS) /
- Amplify-and-forward relay /
- Signal-to-Noise Ratio (SNR) /
- Achievable rate

HTML全文

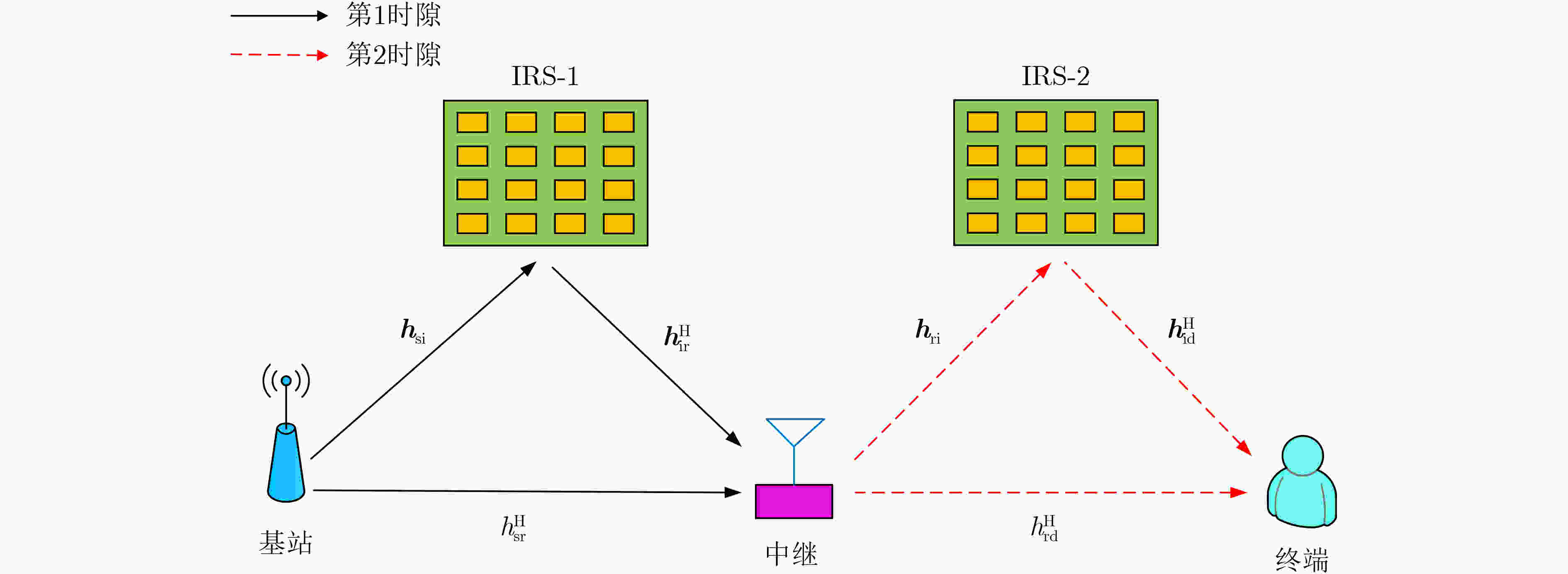

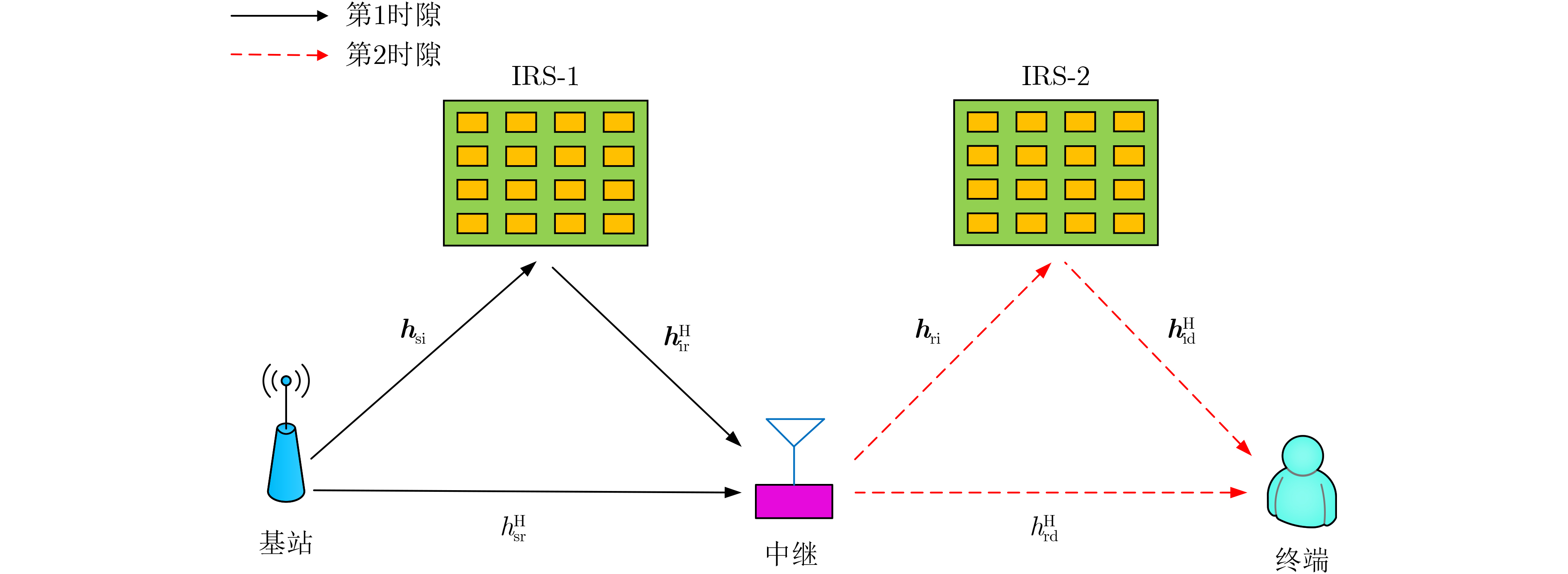

图 1 双IRS辅助放大转发中继的系统模型图

下载: 全尺寸图片幻灯片

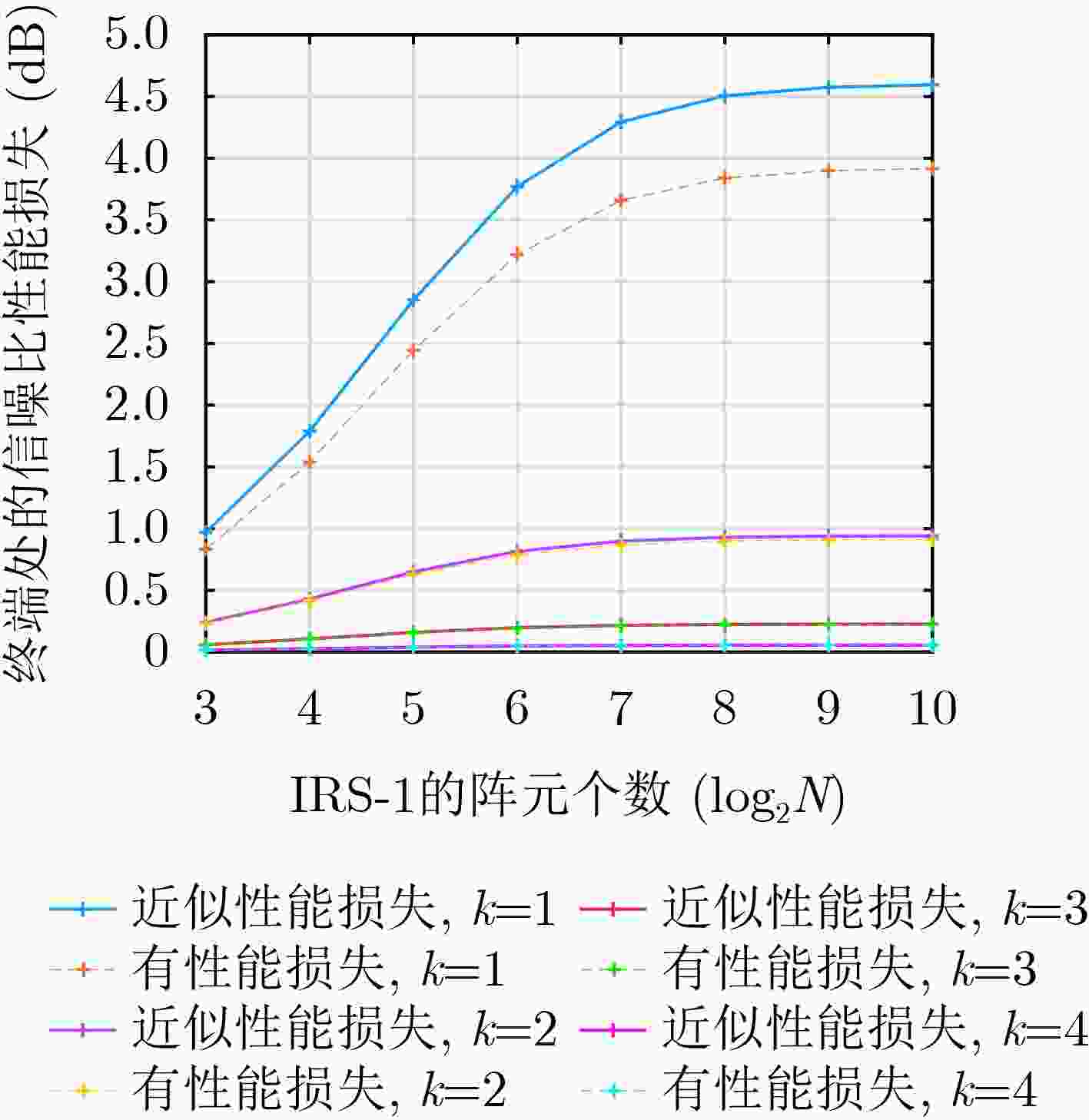

图 2 信噪比性能损失随IRS-1阵元个数变化曲线图

下载: 全尺寸图片幻灯片

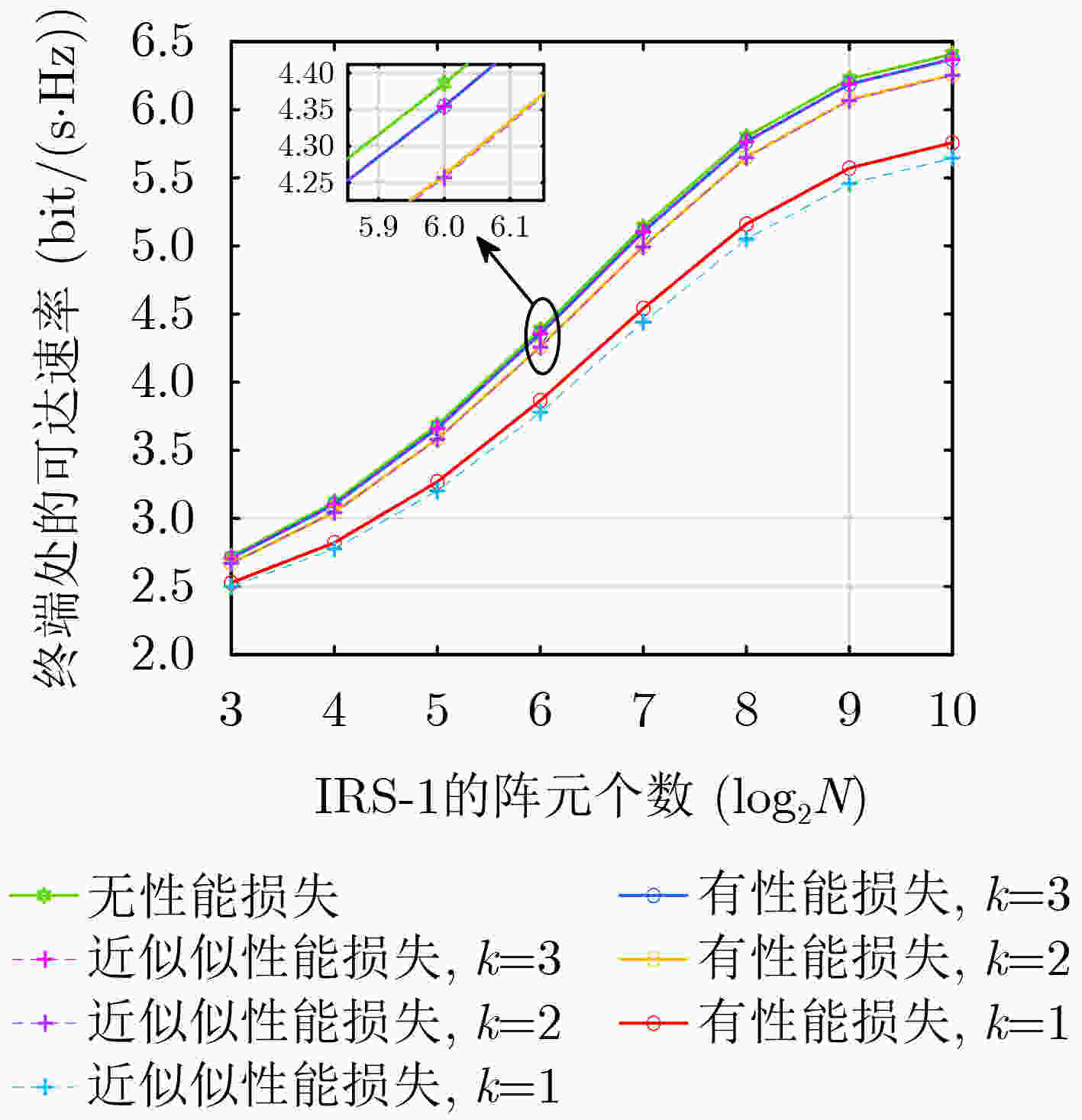

图 3 可达速率随IRS-1阵元个数变化曲线图

下载: 全尺寸图片幻灯片

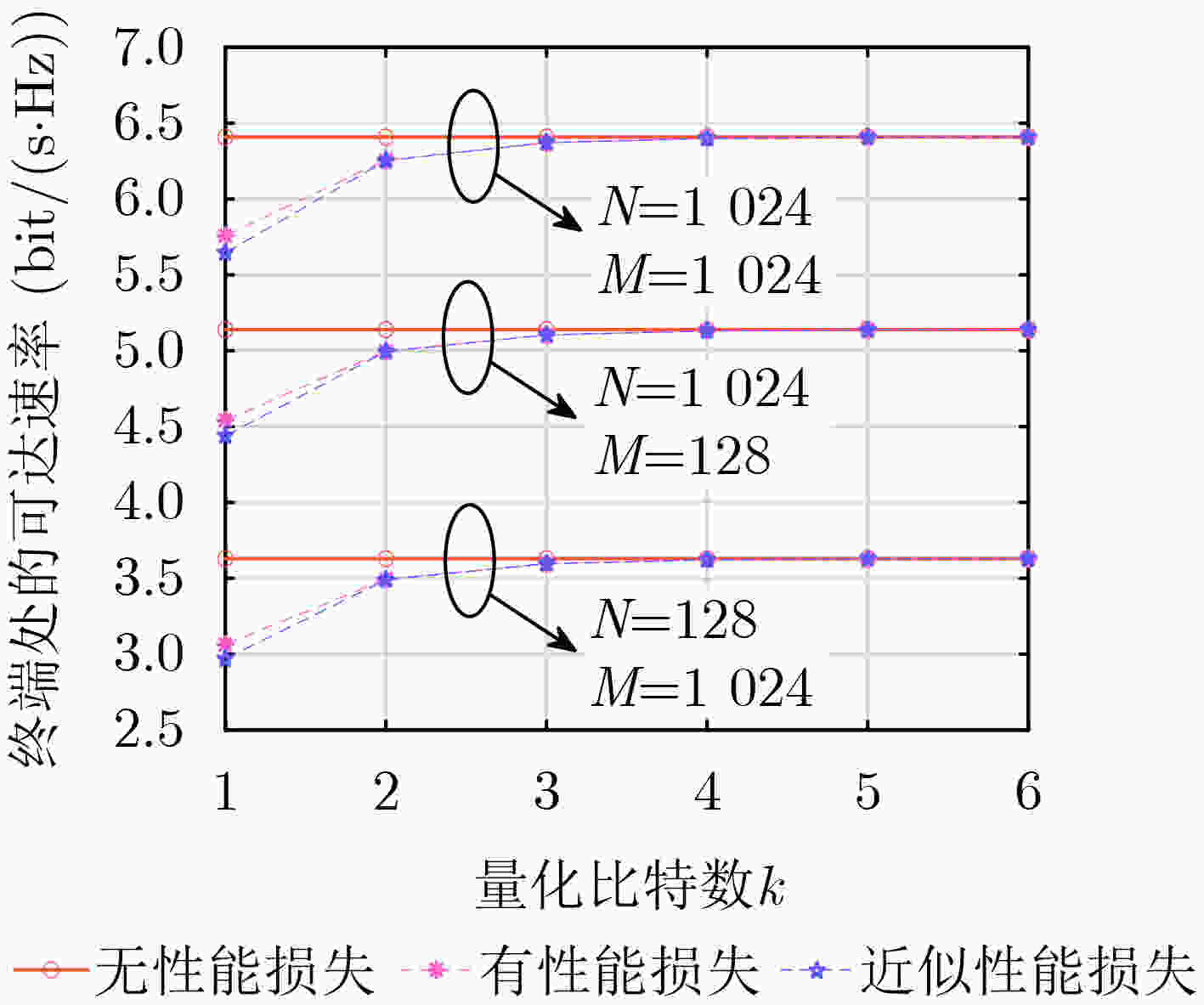

图 4 可达速率随量化比特数变化曲线图

下载: 全尺寸图片幻灯片

参考文献(23)

[1]	LIN Ruiquan, QIU Hangding, WANG Jun, et al. Physical-layer security enhancement in energy-harvesting-based cognitive internet of things: A GAN-powered deep reinforcement learning approach[J]. IEEE Internet of Things Journal, 2024, 11(3): 4899–4913. doi: 10.1109/JIOT.2023.3300770.
[2]	LIN Ruiquan, LI Fushuai, WANG Jun, et al. A blockchain-based method to defend against massive SSDF attacks in cognitive internet of vehicles[J]. IEEE Transactions on Vehicular Technology, 2024, 73(5): 6954–6967. doi: 10.1109/TVT.2023.3347430.
[3]	COVER T and GAMAL A E. Capacity theorems for the relay channel[J]. IEEE Transactions on Information Theory, 1979, 25(5): 572–584. doi: 10.1109/TIT.1979.1056084.
[4]	DING Haiyang, GE Jianhua, DA COSTA D B, et al. Diversity and coding gains of fixed-gain amplify-and-forward with partial relay selection in Nakagami-m fading[J]. IEEE Communications Letters, 2010, 14(8): 734–736. doi: 10.1109/LCOMM.2010.08.100530.
[5]	BLETSAS A, SHIN H, and WIN M Z. Cooperative communications with outage-optimal opportunistic relaying[J]. IEEE Transactions on Wireless Communications, 2007, 6(9): 3450–3460. doi: 10.1109/TWC.2007.06020050.
[6]	LANEMAN J N and WORNELL G W. Distributed space-time-coded protocols for exploiting cooperative diversity in wireless networks[J]. IEEE Transactions on Information Theory, 2023, 49(10): 2415–2425. doi: 10.1109/TIT.2003.817829.
[7]	ARTHI M, JOY J J, ARULMOZHIVARMAN P, et al. An efficient relay station deployment scheme based on the coverage and budget constraints in multi-hop relay networks[C]. 2015 International Conference on Communications and Signal Processing (ICCSP), Melmaruvathur, India, 2015: 124–128. doi: 10.1109/ICCSP.2015.7322702.
[8]	YILMAZ E, ZAKHOUR R, GESBERT D, et al. Multi-pair two-way relay channel with multiple antenna relay station[C]. 2010 IEEE International Conference on Communications, Cape Town, South Africa, 2010: 1–5. doi: 10.1109/ICC.2010.5502396.
[9]	RANKOV B and WITTNEBEN A. Spectral efficient protocols for half-duplex fading relay channels[J]. IEEE Journal on Selected Areas in Communications, 2007, 25(2): 379–389. doi: 10.1109/JSAC.2007.070213.
[10]	ZHANG Zhang, LÜ Tiejun, and SU Xin. Combining cooperative diversity and multiuser diversity: a fair scheduling scheme for multi-source multi-relay networks[J]. IEEE Communications Letters, 2011, 15(12): 1353–1355. doi: 10.1109/LCOMM.2011.102611.111715.
[11]	张在琛, 江浩. 智能超表面使能无人机高能效通信信道建模与传输机理分析[J]. 电子学报, 2023, 51(10): 2623–2634. doi: 10.12263/DZXB.20221352. ZHANG Zaichen and JIANG Hao. Channel modeling and characteristics analysis for high energy-efficient RIS-assisted UAV communications[J]. Acta Electronica Sinica, 2023, 51(10): 2623–2634. doi: 10.12263/DZXB.20221352.
[12]	CHEN Kangjian, QI Chenhao, DOBRE O A, et al. Simultaneous beam training and target sensing in ISAC systems with RIS[J]. IEEE Transactions on Wireless Communications, 2024, 23(4): 2696–2710. doi: 10.1109/TWC.2023.3302319.
[13]	JIANG Hao, RUAN Chengyao, ZHANG Zaichen, et al. A general wideband non-stationary stochastic channel model for intelligent reflecting surface-assisted MIMO communications[J]. IEEE Transactions on Wireless Communications, 2021, 20(8): 5314–5328. doi: 10.1109/TWC.2021.3066806.
[14]	ZHANG Chencheng, QI Chenhao, and NALLANATHAN A. Fast multibeam training for RIS-assisted millimeter wave massive MIMO[J]. IEEE Communications Letters, 2024, 28(1): 168–172. doi: 10.1109/LCOMM.2023.3333683.
[15]	PAN Cunhua, REN Hong, WANG Kezhi, et al. Multicell MIMO communications relying on intelligent reflecting surfaces[J]. IEEE Transactions on Wireless Communications, 2020, 19(8): 5218–5233. doi: 10.1109/TWC.2020.2990766.
[16]	NIU Hehao, CHU Zheng, ZHOU Fuhui, et al. Weighted sum secrecy rate maximization using intelligent reflecting surface[J]. IEEE Transactions on Communications, 2021, 69(9): 6170–6184. doi: 10.1109/TCOMM.2021.3085780.
[17]	YILDIRIM I, KILINC F, BASAR E, et al. Hybrid RIS-empowered reflection and decode-and-forward relaying for coverage extension[J]. IEEE Communications Letters, 2021, 25(5): 1692–1696. doi: 10.1109/LCOMM.2021.3054819.
[18]	GALAPPATHTHIGE D L, DEVKOTA A, and AMARASURIYA G. On the performance of IRS-assisted relay systems[C]. 2021 IEEE Global Communications Conference (GLOBECOM), Madrid, Spain, 2021: 1–6. doi: 10.1109/GLOBECOM46510.2021.9685500.
[19]	LIU Chang, ZHOU Jiayu, GAO Ying, et al. IRS-aided secure communications over an untrusted AF relay system[J]. IEEE Transactions on Wireless Communications, 2023, 22(12): 8620–8633. doi: 10.1109/TWC.2023.3264626.
[20]	TALWAR S, JING Yindi, and SHAHBAZPANAHI S. Joint relay selection and power allocation for two-way relay networks[J]. IEEE Signal Processing Letters, 2011, 18(2): 91–94. doi: 10.1109/LSP.2010.2096466.
[21]	TAO Ye, LI Qiang, and GE Xiaohu. Sum rate optimization for IRS-aided two-way AF relay systems[C]. 2021 IEEE/CIC International Conference on Communications in China (ICCC), Xiamen, China, 2021: 823–828. doi: 10.1109/ICCC52777.2021.9580369.
[22]	DONG Rongen, SHI Baihua, ZHAN Xichao, et al. Performance analysis of massive hybrid directional modulation with mixed phase shifters[J]. IEEE Transactions on Vehicular Technology, 2022, 71(5): 5604–5608. doi: 10.1109/TVT.2022.3152807.
[23]	DONG Rongen, TENG Yin, SUN Zhongwen, et al. Performance analysis of wireless network aided by discrete-phase-shifter IRS[J]. Journal of Communications and Networks, 2022, 24(5): 603–612. doi: 10.23919/JCN.2022.000029.
