多任务协同的多模态遥感目标分割算法

毛秀华; 张强; 阮航; 杨雨昂

doi:10.11999/JEIT231267

多任务协同的多模态遥感目标分割算法

doi: 10.11999/JEIT231267

1.
北京跟踪与通信技术研究所北京 100094
2.
天基综合信息系统全国重点实验室北京 100094

详细信息

作者简介:
毛秀华：女，助理研究员，硕士，研究方向为人工智能、目标识别

张强：男，副研究员，博士，研究方向为人工智能、目标识别

阮航：男，副研究员，博士，研究方向为人工智能、目标识别

杨雨昂：男，研究实习员，学士，研究方向为人工智能、目标识别

通讯作者:
毛秀华，　13718227932@139.com

中图分类号: TP751
计量
- 文章访问数: 102
- HTML全文浏览量: 43
- PDF下载量: 12
- 被引次数: 0
出版历程
- 收稿日期: 2023-11-05
- 修回日期: 2024-03-27
- 网络出版日期: 2024-05-11

Multitask Collaborative Multi-modal Remote Sensing Target Segmentation Algorithm

1.
Beijing Institute of Tracking and Telecommunications Technology, Beijing 100094, China
2.
National Key Laboratory of Space Integrated Information System, Beijing 100094, China

摘要

摘要: 利用语义分割技术提取的高分辨率遥感影像目标分割具有重要的应用前景。随着多传感器技术的飞速发展，多模态遥感影像间良好的优势互补性受到广泛关注，对其联合分析成为研究热点。该文同时分析光学遥感影像和高程数据，并针对现实场景中完全配准的高程数据不足导致两类数据融合分类精度不足的问题，提出一种基于多模态遥感数据的多任务协同模型(UR-PSPNet)，该模型提取光学图像的深层特征，预测语义标签和高程值，并将高程数据作为监督信息嵌入，以提升目标分割的准确性。该文设计了基于ISPRS的对比实验，证明了该算法可以更好地融合多模态数据特征，提升了光学遥感影像目标分割的精度。
- 语义分割 /
- 遥感影像 /
- 多模态 /
- 深度学习 /
- 高程估计
Abstract: The use of semantic segmentation technology to extract high-resolution remote sensing image object segmentation has important application prospects. With the rapid development of multi-sensor technology, the good complementary advantages between multimodal remote sensing images have received widespread attention, and joint analysis of them has become a research hotspot. This article analyzes both optical remote sensing images and elevation data, and proposes a multi-task collaborative model based on multimodal remote sensing data (United Refined PSPNet, UR-PSPNet) to address the issue of insufficient fusion classification accuracy of the two types of data due to insufficient fully registered elevation data in real scenarios. This model extracts deep features of optical images, predicts semantic labels and elevation values, and embeds elevation data as supervised information, to improve the accuracy of target segmentation. This article designs a comparative experiment based on ISPRS, which proves that this algorithm can better fuse multimodal data features and improve the accuracy of object segmentation in optical remote sensing images.
- Semantic segmentation /
- Remote sensing images /
- Multi-modal data /
- Deep learning /
- Elevation estimation

HTML全文

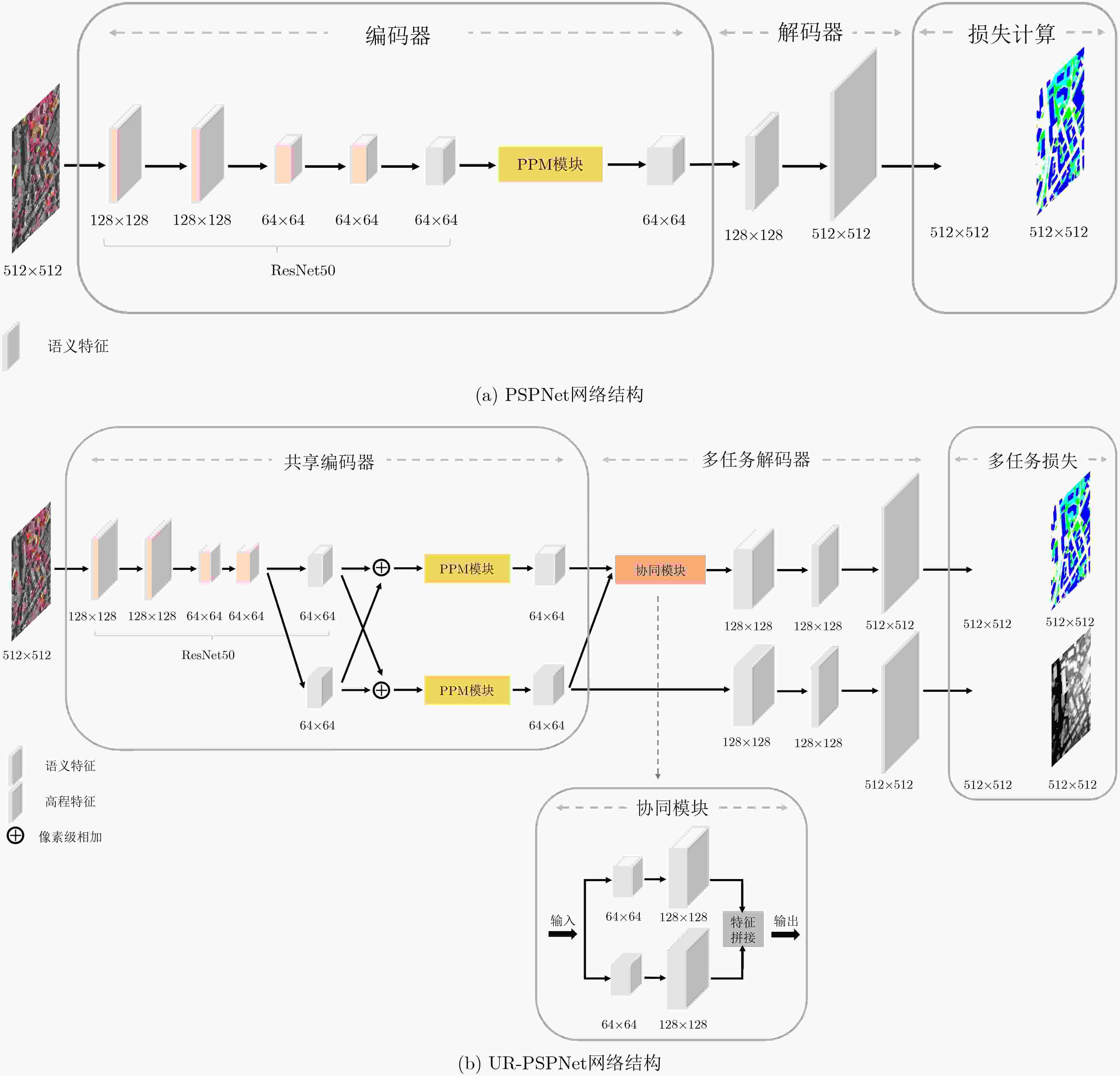

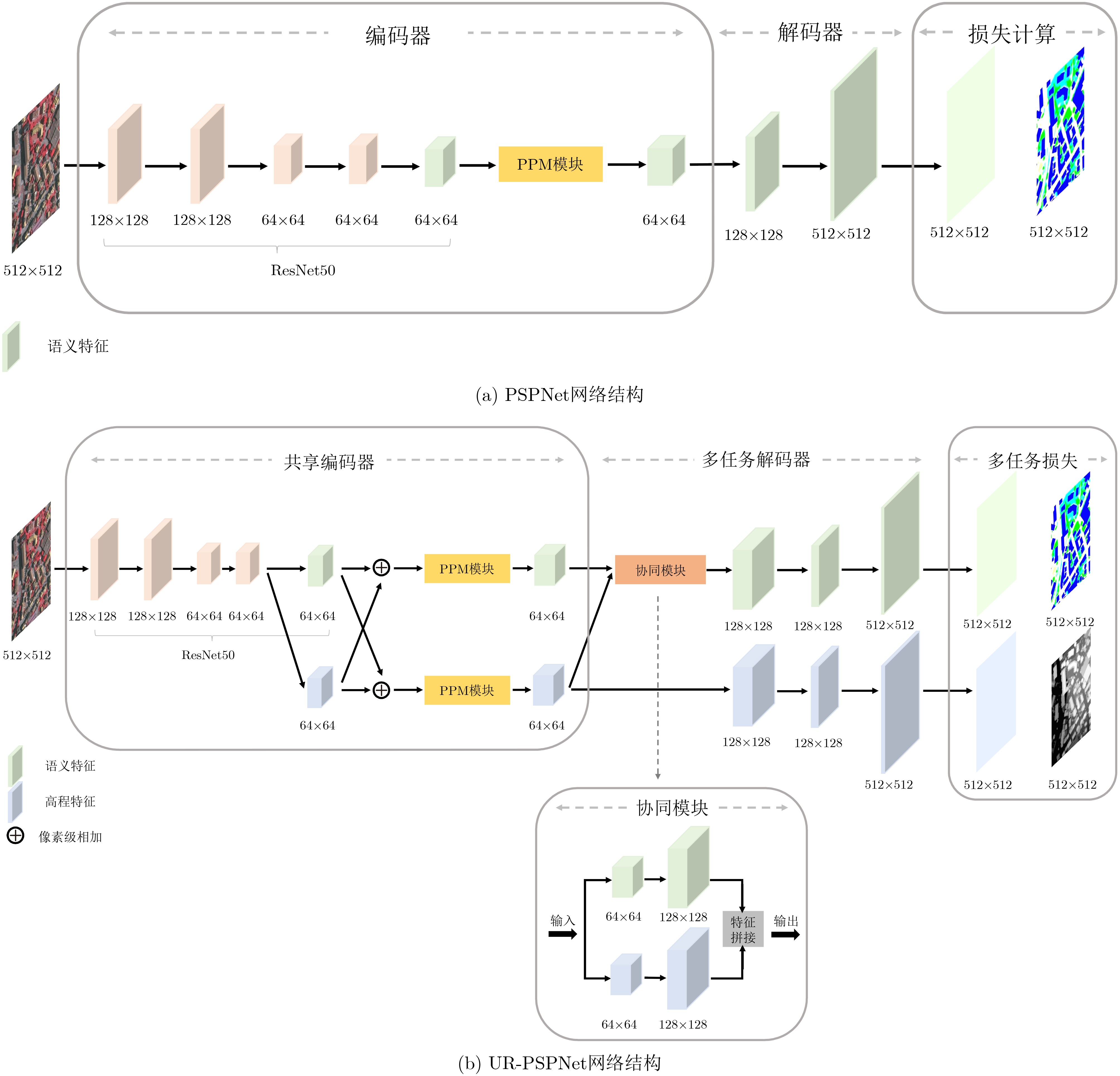

图 1 PSPNet以及UR-PSPNet网络结构

下载: 全尺寸图片幻灯片

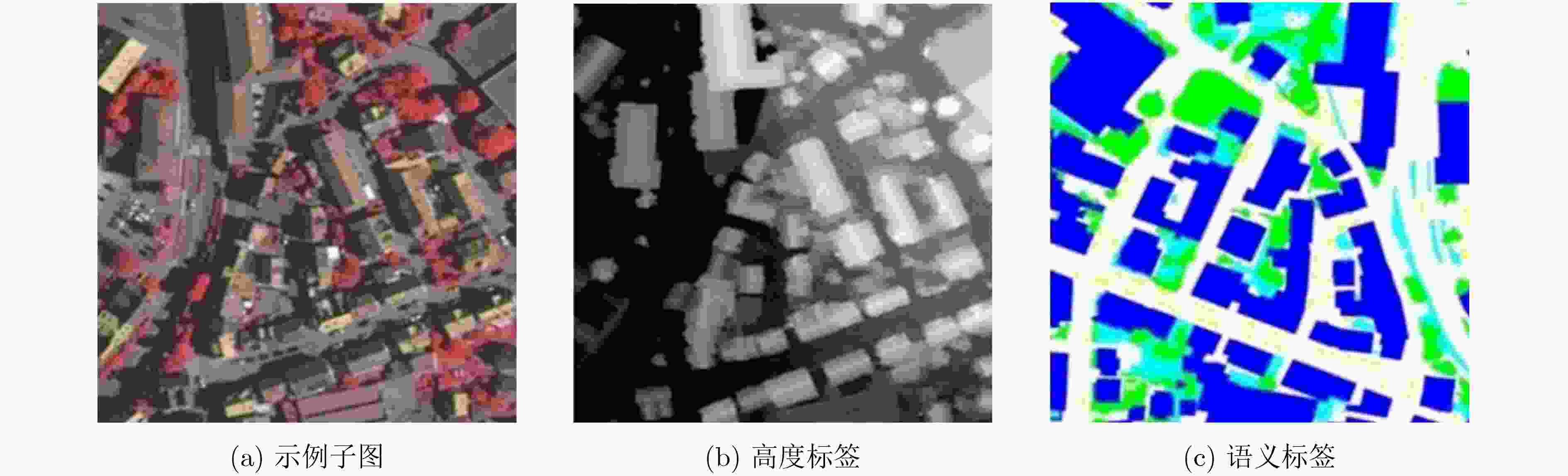

图 2 Vaihingen数据集提供图像

下载: 全尺寸图片幻灯片

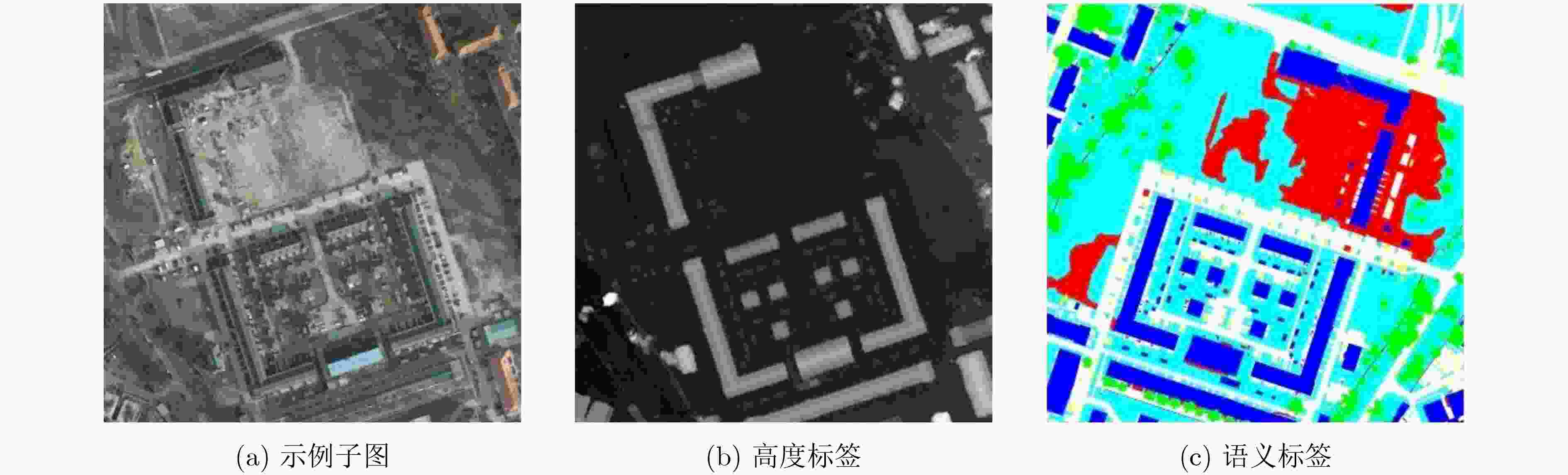

图 3 Potsdam数据集提供图像

下载: 全尺寸图片幻灯片

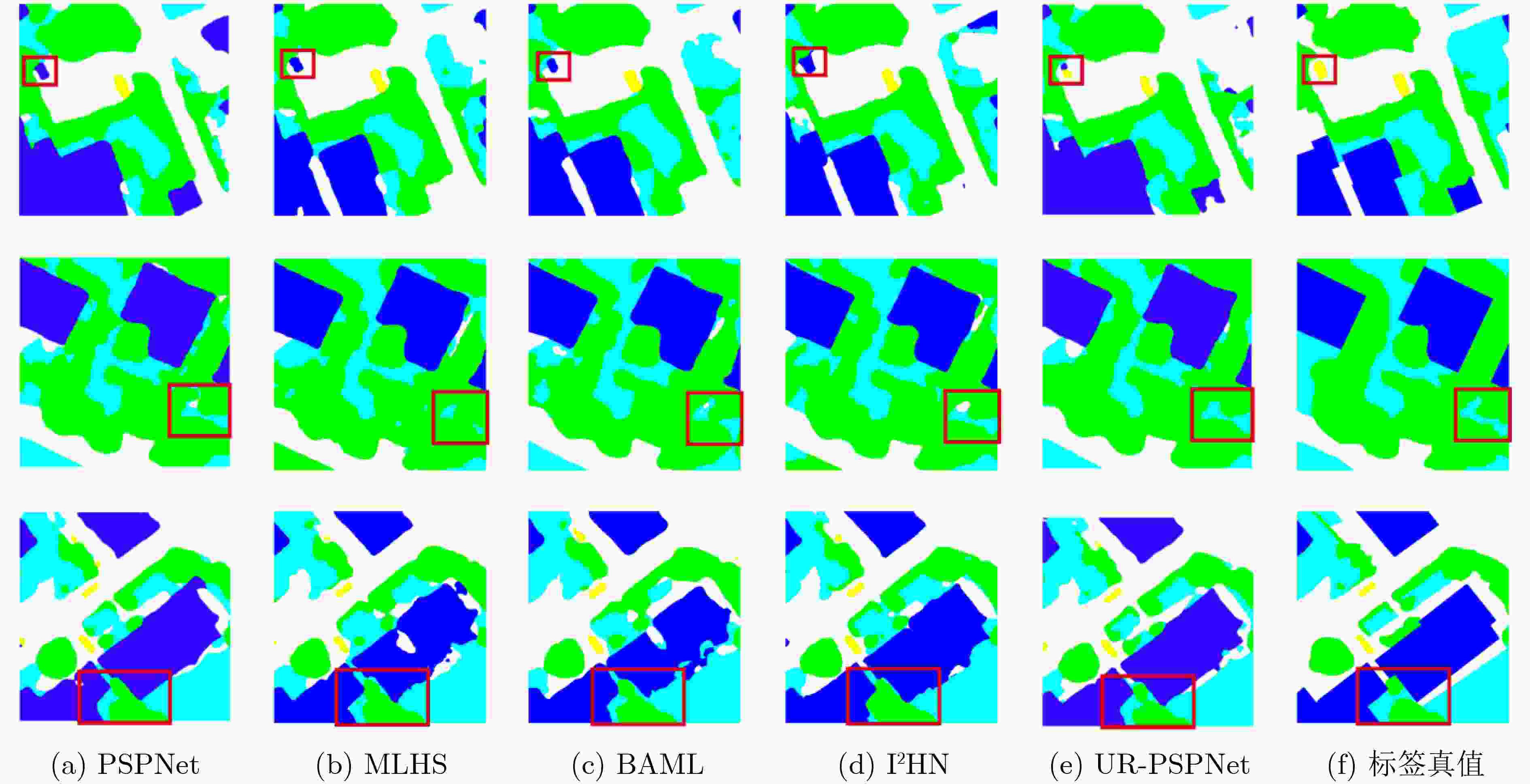

图 4 实验可视化结果

下载: 全尺寸图片幻灯片

表 1 数据集划分信息

数据集	训练集样本数	验证集样本数	测试集样本数
Vaihingen	721	325	398
Potsdam	721	325	398

下载: 导出CSV

表 2 编码器具体网络结构及参数

模块	网络层	类型	核尺寸	输出图像尺寸
修改的ResNet50 主干网模块	Conv1	卷积层×3	-，-	128×128
	Block1	残差块×3	-，-	128×128
	Block2	残差块×4	-，-	64×64
	Block3	残差块×6	-，-	64×64
	语义分支1	卷积层×2	33，256 33，6	64×64
	语义上采样1	双线性插值	-，6	512×512
	高程分支1	卷积层×2	33，256 33，1	64×64
	高程上采样1	双线性插值	-，1	512×512
	语义Block4	残差块×3	-，-	64×64
	高程Block4	残差块×3	-，-	64×64
PPM模块	相加1	相加层	-，2048	64×64
	语义分支2_1	全局平均池化	-，512	64×64
	语义分支2_2	卷积层	1*1，512	64×64
	语义拼接1	通道拼接层	-，2048	64×64
	高程分支2_1	全局平均池化	-，512	64×64
	高程分支2_2	卷积层	1*1，512	64×64
	高程拼接1	通道拼接层	-，2048	64×64

下载: 导出CSV

表 3 解码器具体网络结构及参数

模块	网络层	类型	核尺寸	输出图像尺寸
协同模块	高程分支3	卷积层	1*1，2048	64×64
	高程上采样2	双线性插值	-，2048	128×128
	语义分支3	卷积层	1*1，2048	64×64
	语义上采样2	双线性插值	-，2048	128×128
	拼接1	通道拼接层	-，4096	128×128
解码器其他部分	语义分支4_1	卷积层	3*3，512	128×128
	语义分支4_2	卷积层	1×1，6	128×128
	高程分支4_1	卷积层	3*3，512	128×128
	高程分支4_2	卷积层	1*1，1	128×128
	高程上采样3	双线性插值	-，6	512×512
	语义上采样3	双线性插值	-，1	512×512

下载: 导出CSV

表 4 在Vaihingen数据集的实验结果

模型	mIoU	mF₁	OA	Rel	Rmse
FCN^[3]	72.69	83.74	86.51	-	-
PSPNet^[4]	79.62	88.48	89.65	-	-
MLHS^[13]	77.03	85.68	86.70	0.2818	1.3416
BAML^[14]	78.88	86.84	87.58	0.2580	1.3692
I²HN^[15]	79.62	87.41	89.13	0.2342	1.0143
UR-PSPNet(本文)	80.02	88.73	89.88	0.2182	0.9218

下载: 导出CSV

表 5 在Potsdam数据集的实验结果

模型	mIoU	mF₁	OA	Rel	Rmse
MLHS^[13]	81.65	88.52	86.97	0.080	1.0954
BAML^[14]	83.69	89.71	88.23	0.0768	1.0721
I²HN^[15]	83.72	89.63	87.45	0.0617	0.6186
UR-PSPNet(本文)	84.27	90.03	88.61	0.0592	0.5991

下载: 导出CSV
