Super-Resolution Inpainting of Low-resolution Randomly Occluded Face Images

REN Kun^{1, 2, 3
, ,},
LI Zhengzhen^{1, 2, 3},
GUI Yuanze¹,
FAN Chunqi¹,
LUAN Heng⁴

1.
Faculty of Information Technology, Beijing University of Technology, Beijing 100124, China
2.
Engineering Research Center of Digital Community, Ministry of Education, Beijing University of Technology, Beijing 100124, China
3.
Beijing Laboratory for Urban Mass Transit, Beijing University of Technology, Beijing 100124, China
4.
TravelSky Technology Limited, Beijing 101300, China

Funds: The National Key Research and Development Project (2023YFC3904605)

摘要

摘要: 针对低分辨率随机遮挡人脸图像，该文提出一种端到端的4倍超分辨率修复生成对抗网络(SRIGAN)。SRIGAN生成网络由编码器、特征补偿子网络和含有金字塔注意力模块的解码器构成；判别网络为改进的Patch判别网络。该网络通过特征补偿子网络和两阶段训练策略有效学习遮挡区域的缺失特征，通过在解码器中引入金字塔注意力模块和多尺度重建损失增强信息重构，从而实现低分辨率随机遮挡图像与4倍高分辨率完整图像的映射。同时，通过损失函数设计和改进Patch判别网络，确保网络训练的稳定性，提升生成网络性能。对比实验和模块验证实验验证了该算法的有效性。
- 图像修复 /
- 超分辨率重建 /
- 生成对抗网络 /
- 金字塔注意力
Abstract: An end-to-end quadruple Super-Resolution Inpainting Generative Adversarial Network (SRIGAN) is proposed in this paper, for low-resolution random occlusion face images. The generative network consists of an encoder, a feature compensation subnetwork, and a decoder constructed with a pyramid attention module. The discriminant network is an improved Patch discriminant network. The network can effectively learn the absent features of the occluded region through a feature compensation subnetwork and a two-stage training strategy. Then, the information is constructed with the decoder with a pyramid attention module and multi-scale reconstruction loss. Hence, the generative network can transform a low-resolution occlusion image into a quadruple high-resolution complete image. Furthermore, the improvements of the loss function and Patch discriminant network are employed to ensure the stability of network training and enhance the performance of the generated network. The effectiveness of the proposed algorithm is verified by comparison and module verification experiments.
- Image inpainting /
- Super-Resolution(SR) /
- Generative Adversarial Network(GAN) /
- Pyramid attention

HTML全文

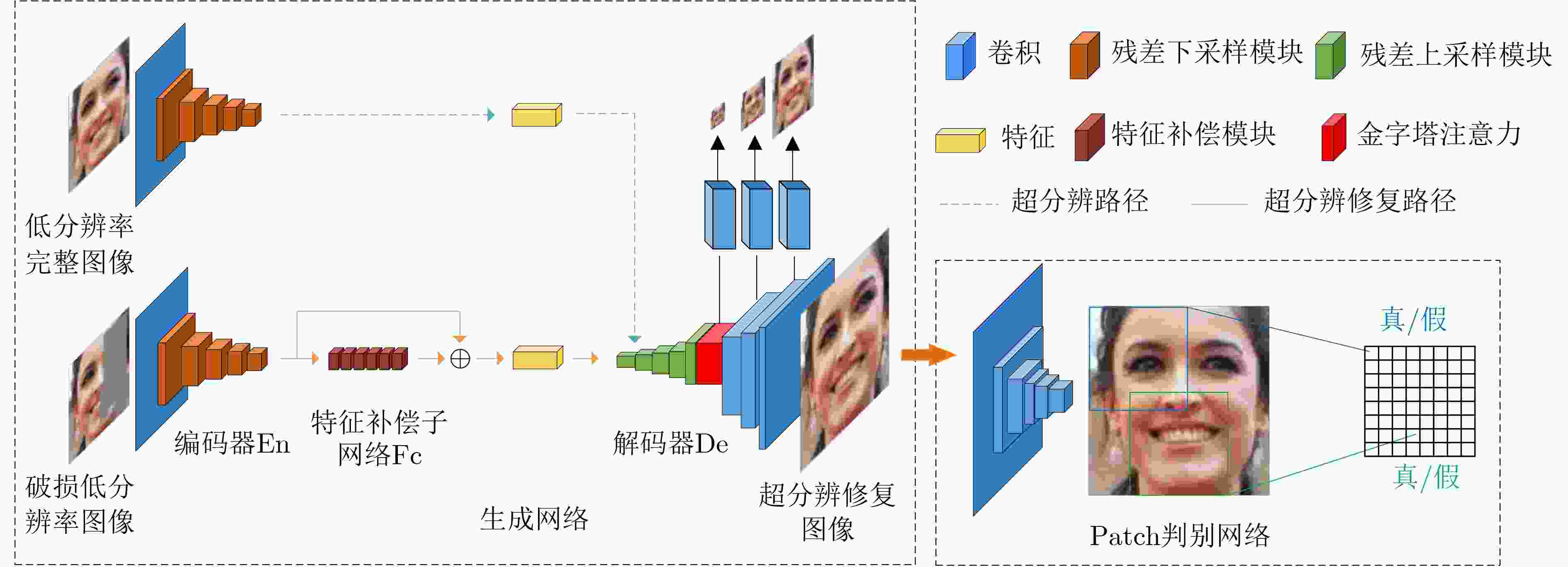

图 1 超分辨率修复生成对抗网络的总体框图

下载: 全尺寸图片幻灯片

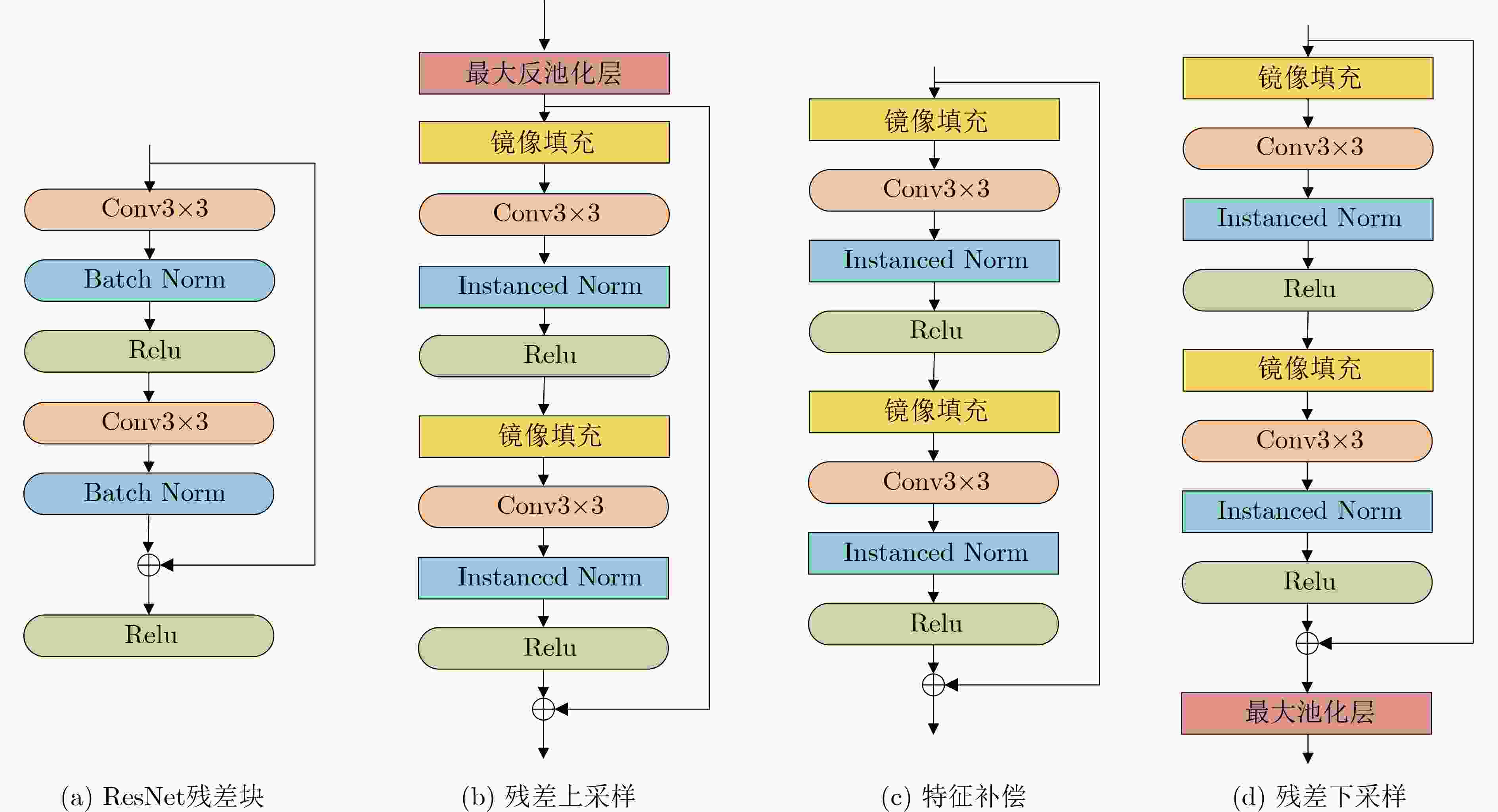

图 2 超分辨修复生成网络的基本模块

下载: 全尺寸图片幻灯片

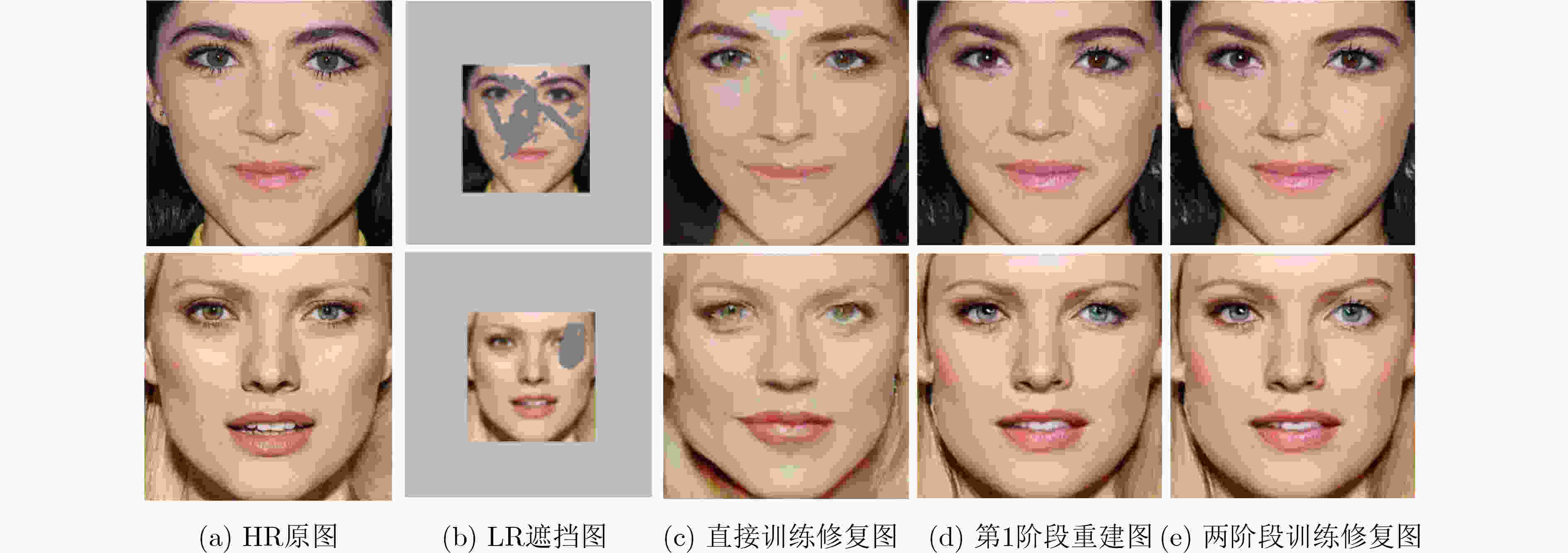

图 3 不同训练方法和阶段的视觉效果对比

下载: 全尺寸图片幻灯片

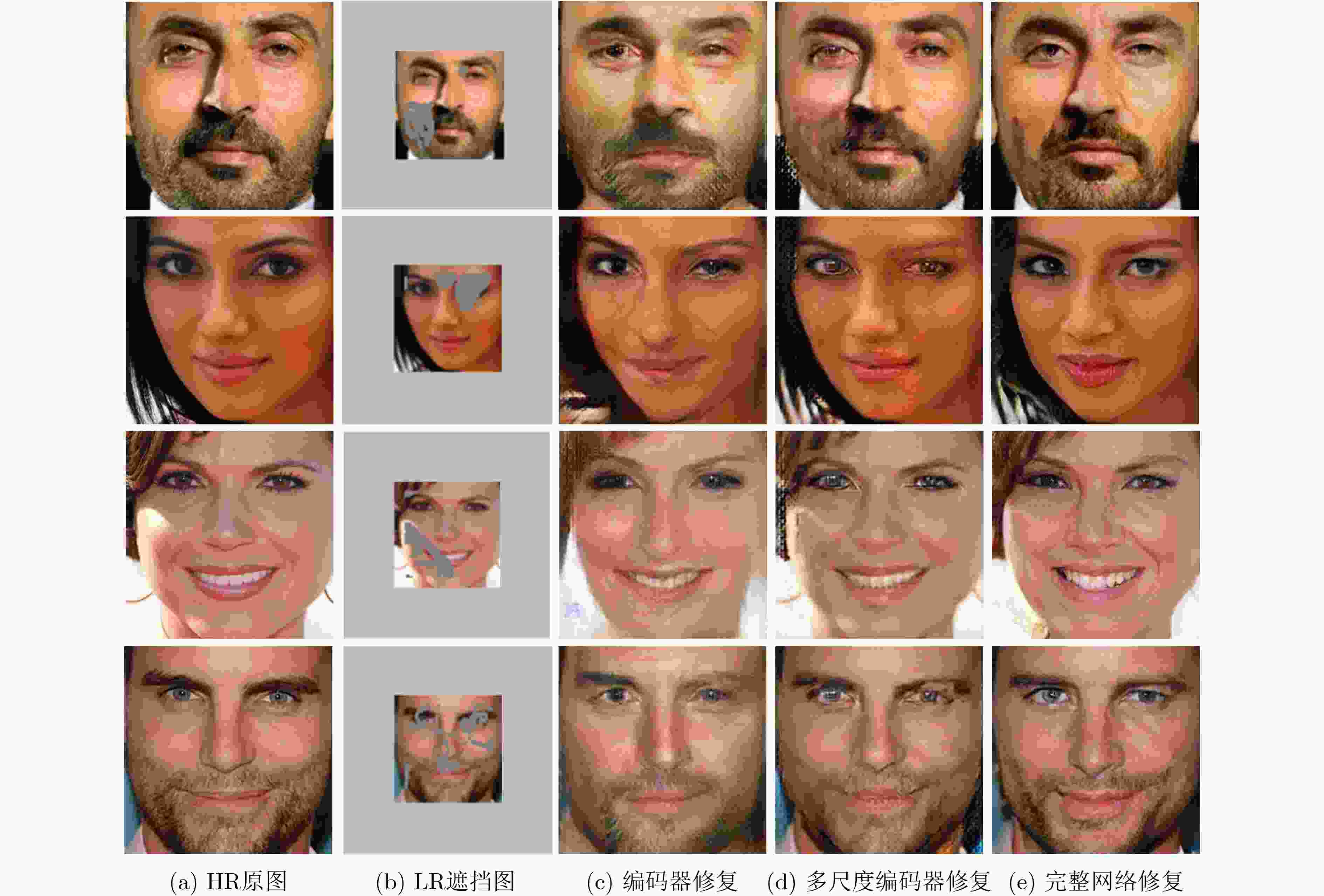

图 4 不同修复模块的输出视觉效果对比

下载: 全尺寸图片幻灯片

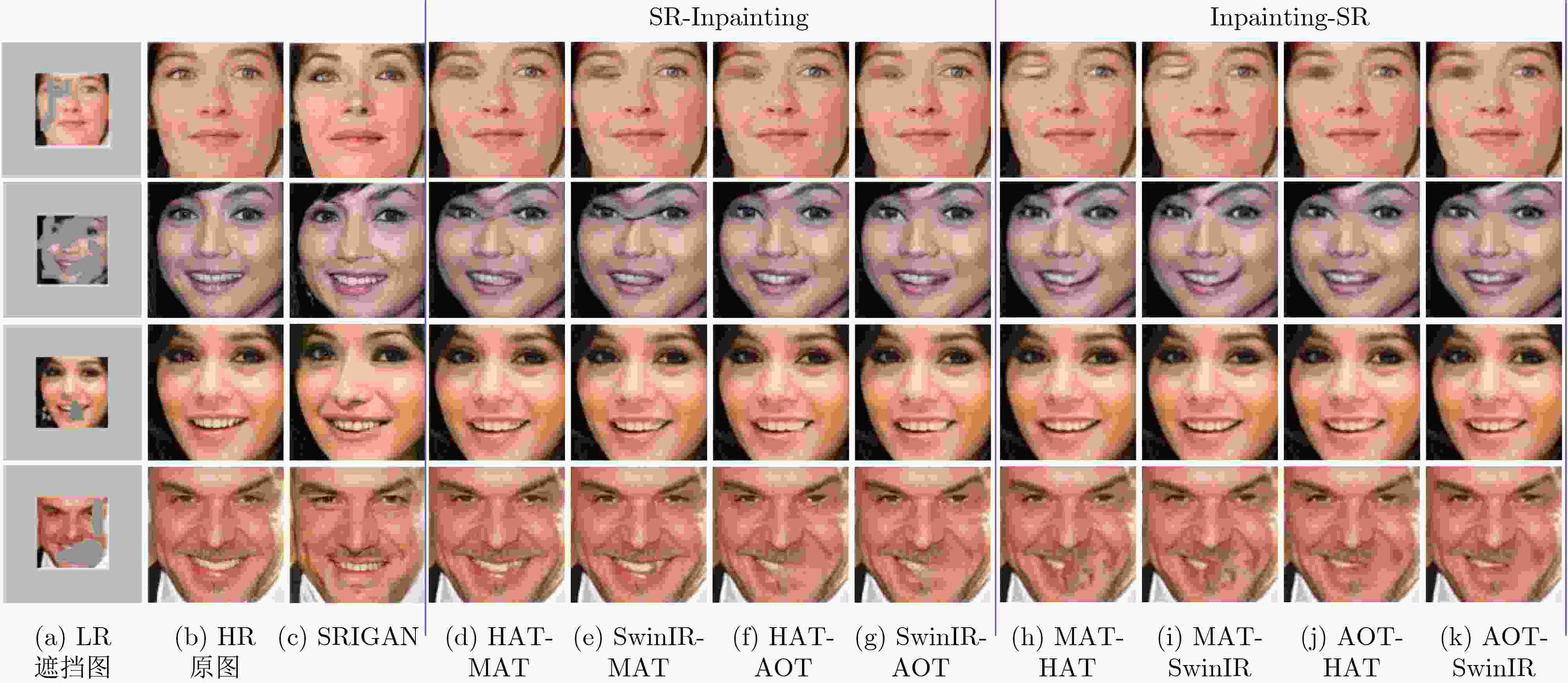

图 5 SRIGAN,SR-Inpainting和Inpainting-SR级联方法的重建结果图

下载: 全尺寸图片幻灯片

1 训练流程

循环1，训练阶段1，训练编码器En，解码器De，判别网络D，迭代训练n=1,2,···,N₁：
步骤1　数据预处理得到I_gt, M, I_LR, ${\boldsymbol{I}}' $(LR遮挡人脸图像)；
步骤2　输入I_LR到En-De得到生成图像I_gen；
步骤3　冻结生成网络，以损失函数L_D优化判别网络；
步骤4　冻结判别网络，以L_G=λ_mulL_mul+λ_advL_adv+λ_perL_per+λ_styleL_style为损失函数优化生成网络；
步骤5　当n= N₁，循环1结束。
循环2，训练阶段2，训练特征补偿网络Fc；冻结编码器En，只对Fc进行优化，迭代训练n=1,2,···,N₂：
步骤1　数据预处理得到I_gt, M, I_LR, ${\boldsymbol{I}}' $；
步骤2　输入I_LR到En得到特征p；
步骤3　输入${\boldsymbol{I}}' $ 到En-Fc得到特征q；
步骤4　以损失函数L_Fc优化Fc；
步骤5　当n= N₂，循环2结束。

下载: 导出CSV

2 数据预处理

步骤1　选取HR人脸图像真值I_gt：　　　　从训练集中随机取出m个HR图像$ {\boldsymbol{I}}_{{\text{gt}}}^{(1)},{\boldsymbol{I}}_{{\text{gt}}}^{(2)}, \cdots ,{\boldsymbol{I}}_{{\text{gt}}}^{(m)} $组成一个批量。
步骤2　对I_gt使用双线性插值下采样生成LR图像真值I_LR；
步骤3　生成随机掩码M：
i=1,2,···, m迭代生成：
在[1,2]区间随机生成正整数j；
若j=1，从不规则掩码数据集随机抽取掩码；
若j=2，随机生成掩码位置坐标(a, b)，掩码边长c和d；生成对角线坐标为(a, b)和 (a+c, b+d) 的矩形掩码；
对掩码进行随机旋转、裁剪，得到M⁽ⁱ⁾
步骤4　生成LR遮挡人脸图像I'⁽ⁱ⁾= I⁽ⁱ⁾ ×M⁽ⁱ⁾

下载: 导出CSV

表 1 不同训练方法和阶段性能比较

评价指标	直接训练修复	两阶段SR修复	第1阶段SR重建
PSNR(dB)↑	21.207 0	24.860 8	25.295 9
SSIM ↑	0.724 7	0.890 3	0.906 4
MAE ↓	0.060 6	0.036 1	0.034 5

下载: 导出CSV

表 2 各模块量化对比

评价指标	解码器	多尺度解码器	完整网络
PSNR (dB)↑	20.346 0	22.986 1	24.860 8
SSIM↑	0.685 5	0.821 8	0.890 3
MAE↓	0.068 5	0.047 9	0.036 1

下载: 导出CSV

表 3 SR-Inpainting级联方法对比

	DRN-CA	DRN-EC	PAN-CA	PAN-EC	HAT-MAT	HAT-AOT	SwinIR-MAT	SwinIR-AOT	本文方法
PSNR(dB)↑	24.296 2	25.319 8	24.571 5	25.623 7	25.574 2	26.645 9	25.548 3	25.894 2	24.860 8
SSIM ↑	0.810 1	0.864 9	0.817 4	0.872 5	0.861 6	0.886 1	0.859 6	0.877 3	0.890 3
MAE↓	0.039 9	0.036 1	0.038 8	0.034 9	0.035 3	0.032 7	0.036 4	0.033 4	0.036 1

下载: 导出CSV

表 4 Inpainting-SR级联方法对比

	CA-DRN	EC-DRN	CA-PAN	EC-PAN	MAT-HAT	AOT-HAT	MAT-SwinIR	AOT-SwinIR	本文方法
PSNR(dB)↑	24.393 9	22.838 3	22.212 3	24.487 5	25.807 2	26.598 6	23.892 4	24.623 5	24.860 8
SSIM ↑	0.841 3	0.810 6	0.790 3	0.844 9	0.819 1	0.831 5	0.771 0	0.782 7	0.890 3
MAE↓	0.045 7	0.053 9	0.057 8	0.045 3	0.036 7	0.034 2	0.053 1	0.047 5	0.036 1

下载: 导出CSV
