面向数字信号处理领域的近似计算技术应用与研究进展

王旭; 陈珂; 闫成刚; 王成华; 刘伟强

doi:10.11999/JEIT231245

面向数字信号处理领域的近似计算技术应用与研究进展

doi: 10.11999/JEIT231245

1.
南京航空航天大学集成电路学院南京 211106
2.
空天集成电路与微系统工信部重点实验室南京 211106

基金项目: 国家重点研发计划青年科学家项目(2022YFB4500200)，国家自然科学基金(62101252, 62022041)

详细信息

作者简介:
王旭：女，博士生，研究方向为近似计算

陈珂：男，副研究员，研究方向为近似计算电路设计

闫成刚：男，副研究员，研究方向为混合信号集成电路设计

王成华：男，教授，研究方向为集成电路设计、验证与测试

刘伟强：男，教授，研究方向为高能效高安全性新兴计算集成电路与系统

通讯作者:
刘伟强　liuweiqiang@nuaa.edu.cn

中图分类号: TN402; TP183
计量
- 文章访问数: 143
- HTML全文浏览量: 65
- PDF下载量: 40
- 被引次数: 0
出版历程
- 收稿日期: 2023-11-09
- 修回日期: 2024-03-29
- 网络出版日期: 2024-05-07
- 刊出日期: 2024-05-10

Progress in The Application and Research of Approximate Computation Techniques Oriented to The Field of Digital Signal Processing

1.
College of Integrated Circuits, Nanjing University of Aeronautics and Astronautics, Nanjing 211106, China
2.
Key Laboratory of Aerospace Integrated Circuits and Microsystem, Ministry of Industry and Information Technology, Nanjing 211106, China

Funds: The National Key Research and Development Program of China (2022YFB4500200), The National Natural Science Foundation of China (62101252, 62022041)

摘要

摘要: 在信号处理领域，近似计算技术备受关注。复杂算法和海量数据限制了应用的处理速度且增加了系统硬件消耗。由于信号具有冗余性，精确结果并非必需，满足用户可接受的结果已足够。因此，采用近似计算技术可以有效减少计算量，提高计算效率和系统性能。该文以近似计算技术的不同设计层次为切入，首先介绍了信号处理应用的特点，综述了近年来近似计算技术在算法和电路层面的研究进展，并调研了通信、视频图像以及雷达等信号处理方向的近似计算技术方案。最后，对该领域的发展方向进行了讨论和展望，为推动近似计算技术在信号处理领域的应用提供了思路。
- 近似计算 /
- 新兴计算范式 /
- 数字信号处理 /
- 研究进展
Abstract: In the field of signal processing, approximate computing techniques have garnered significant attention. Complex algorithms and massive data impose limitations on processing speed and increase system hardware consumption. Since signals often contain redundancy, precise results are not always necessary, and achieving results acceptable to users is sufficient. Therefore, employing approximate computing techniques can effectively reduce computational complexity, enhance computational efficiency, and improve system performance. This paper takes a hierarchical approach to the design of approximate computing techniques. It first introduces the characteristics of signal processing applications, reviews recent research progress in approximate computing techniques at the algorithm and circuit levels, and investigates approximate computing solutions in signal processing directions such as communication, video imaging, and radar. Finally, it discusses and prospects the development direction of this field, providing insights to promote the application of approximate computing techniques in signal processing.
- Approximate computing /
- Emerging computing paradigm /
- Digital signal processing /
- Research progress

HTML全文

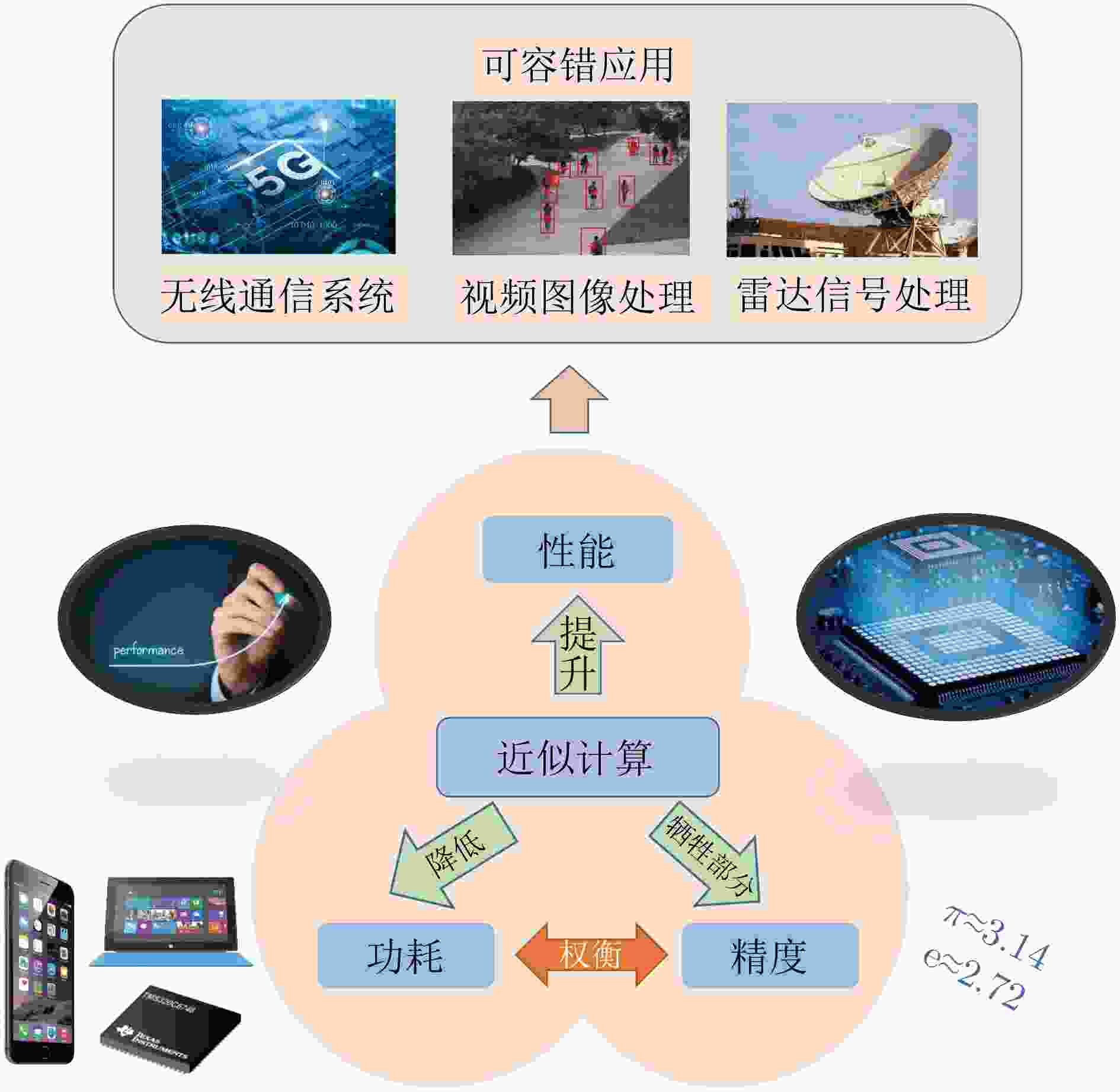

图 1 近似计算技术及其应用

下载: 全尺寸图片幻灯片

表 1 加法器近似技术

近似方法	相关工作	概述
非分段推测近似	文献[6]	通过缩短进位链来获得更快速和更高性能的加法器。
分段推测近似	文献[7–9]	通过缩短进位链来获得更快速和更高性能的加法器。
晶体管级近似	文献[10–12]	通过减少晶体管和基本门的数量，显著降低功耗。

下载: 导出CSV

表 2 定点乘法器近似技术

近似方法	相关工作	概述
操作数近似	文献[14]	通过将二进制乘法转换为对数域的加法，具有极低的功耗。
阵列近似	文献[15]	通过对部分积矩阵的一部分低有效位直接舍去，以达到调整输出位宽和降低乘法器功耗面积的目的。
部分积近似	文献[16–18]	利用卡诺图对Booth编码结果进行优化，从而精简 Booth 算法的部分积表达式。
压缩器近似	文献[19–21]	通过切断压缩器同级之间进位链使得乘法器在功耗、延迟和晶体管数量方面都实现了显著降低。

下载: 导出CSV

表 3 除法器近似技术

近似方法	相关工作	概述
阵列近似	文献[26, 27]	对传统阵列结构中的减法器进行近似设计，降低除法器阵列的复杂度。
操作数近似	文献[28, 29]	对操作数进行截断，或者从首位 1 开始截断，在较小精度损失下大大减小了运算延时和能量。
阵列和操作数混合近似	文献[30]	利用卡诺图对 Booth编码结果进行优化，从而精简 Booth 算法的部分积表达式。

下载: 导出CSV

表 4 乘法累加器近似技术

近似方法	相关工作	概述
乘法器近似	文献[31, 32]	通过将乘法操作数进行分段并设计近似 MAC。
加法器近似	文献[33, 34]	通过将近似加法器运用到有符号 MAC 单元的最后一步进位传播加法器中，同时使用 VOS 调节输入电压，最终实现功耗降低。
乘法加法阵列合并近似	文献[35–37]	通过将累加插入到乘法部分积阵列中，设计近似MAC 单元。

下载: 导出CSV
