Low-power Communication and Control Joint Optimization for Service Continuity Assurance in Aerial-Ground Integrated Networks

CAI Ziwei¹,
SHENG Min^{1
, ,},
LIU Junyu¹,
ZHAO Chenxi¹,
LI Jiandong^{1, 2}

1.
State Key Laboratory of ISN, Xidian University, Xi’an, 710071, China
2.
Pengcheng Laboratory, Shenzhen 518055, China

Funds: The National Key Research and Development Program of China (2022YFB2902300), The National Natural Science Foundation of China (62121001, 62341111, 62171344), The Key lndustry Innovation China of Shaanxi (2022ZDLGY05-01, 2022ZDLGY05-6), The Major Key Project of PengCheng Laboratory(PCL) (PCL2021A15)

摘要

摘要: 空地一体化网络(AGIN)充分利用了空中基站(ABSs)灵活部署的特点，为热点地区提供了按需覆盖与高质量服务。然而，空中基站的高动态性使得网络的服务连续性难以保障。而且，空中基站能量受限，提升服务连续性和降低功耗通常又对应不同的飞行动作，因此，低功耗的服务连续性保障尤为困难。针对上述问题，该文基于联邦深度强化学习(FDRL)提出了一种面向低功耗服务连续性保障的通信与控制联合优化方法。所提方法通过联合优化空中基站的移动控制、用户关联和功率分配来保障网络服务的连续性。针对空中基站的高动态性，通过在所提方法中设计了环境状态经验池来利用信道的时空相关性，并在奖励函数中引入速率方差来保障网络服务连续性。考虑到不同飞行动作的功耗差异，所提方法通过优化空中基站的飞行动作来降低网络功耗。仿真结果说明，该文所提算法在满足用户速率需求和速率方差需求的前提下，能够减小网络功耗，并且所提联邦深度强化学习的性能接近中心式强化学习的性能。
- 空地一体化网络 /
- 服务连续性保障 /
- 低功耗通信与控制联合优化
Abstract: The Aerial-Ground Integrated Networks (AGIN) take full advantage of the flexible deployment of Aerial Base Stations (ABSs) to provide on-demand coverage and high-quality services in hotspot areas. However, the high dynamics of ABSs pose a great challenge to service continuity assurance in AGIN. Furthermore, given the energy constraints of ABSs, ensuring service continuity with low power consumption becomes an increasingly formidable challenge. This is attributed to the inherent contradiction between enhancing service continuity and reducing power consumption, which typically necessitates distinct flight actions. Focusing on the problem mentioned above, a communication and control joint optimization approach based on Federated Deep Reinforcement Learning (FDRL) is proposed to obtain low-power service continuity assurance in AGIN. The proposed approach ensures service continuity by jointly optimizing the flight actions of ABSs, user associations, and power allocation. To cope with the high dynamics of ABSs, an environmental state experience pool is designed to capture the spatiotemporal correlation of channels, and the rate variance is introduced into the reward function to ensure service continuity. Taking into account the power consumption differences associated with various flight actions, the proposed approach optimizes the flight actions of ABSs to reduce their power consumption. Simulation results demonstrate that, under the premise of satisfying requirements for user rate and rate variance, the proposed approach can effectively reduce network power consumption. Additionally, the performance of FDRL is close to that of centralized reinforcement learning.
- Aerial-Ground Integrated Networks (AGIN) /
- Service continuity assurance /
- Low-power communication and control joint optimization

HTML全文

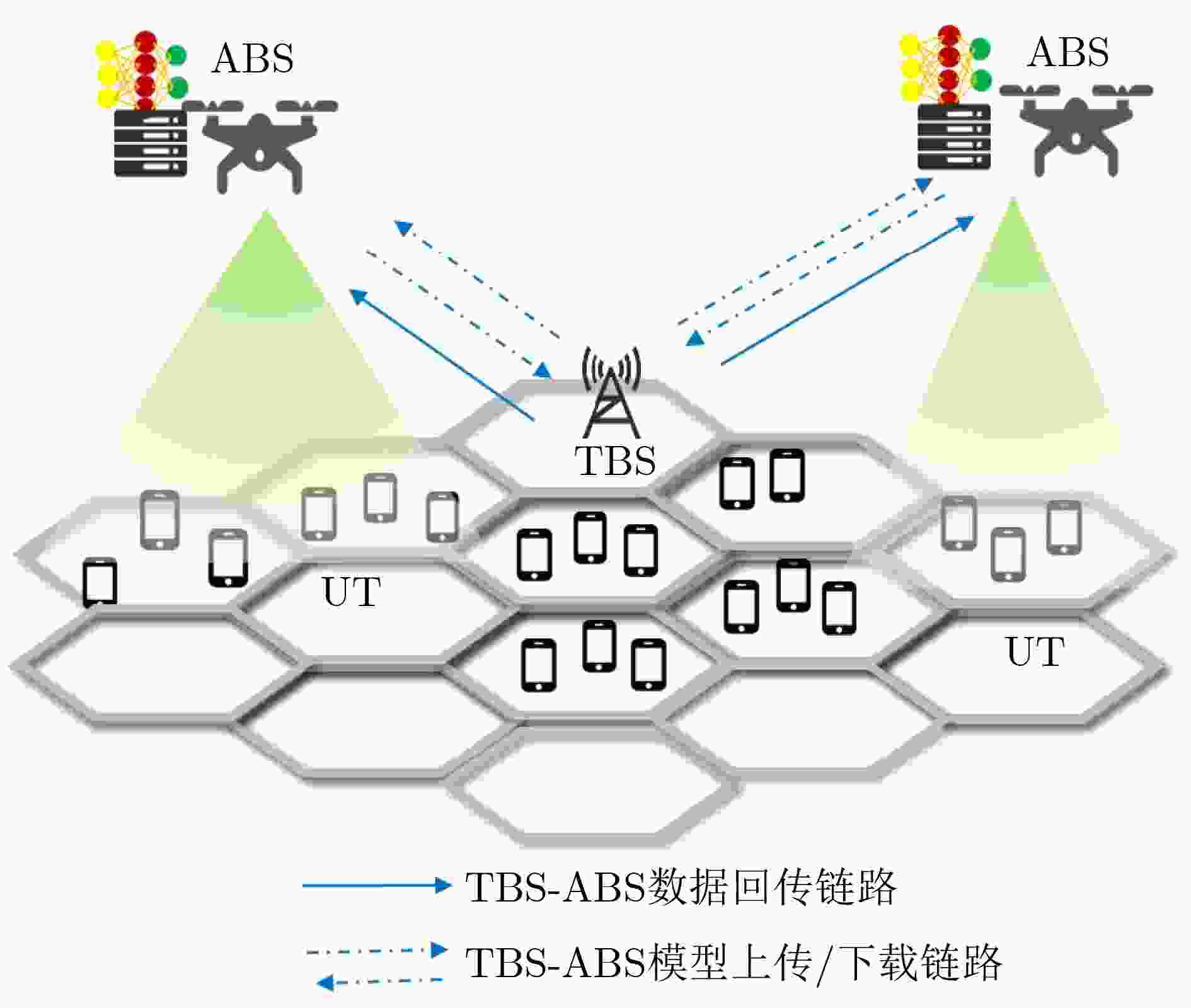

图 1 空地一体化网络系统模型图

下载: 全尺寸图片幻灯片

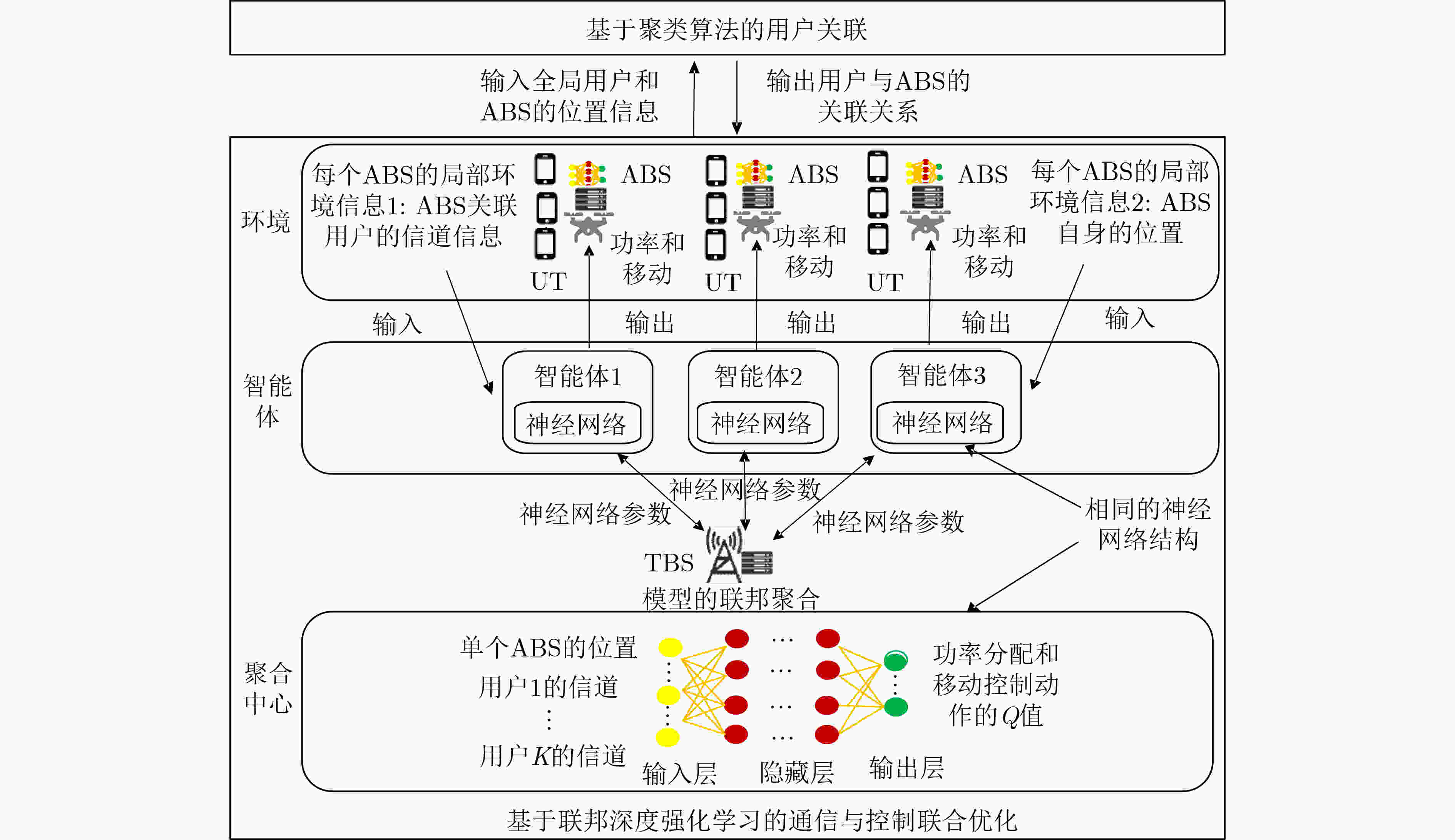

图 2 空中基站的通信与控制联合优化算法框图

下载: 全尺寸图片幻灯片

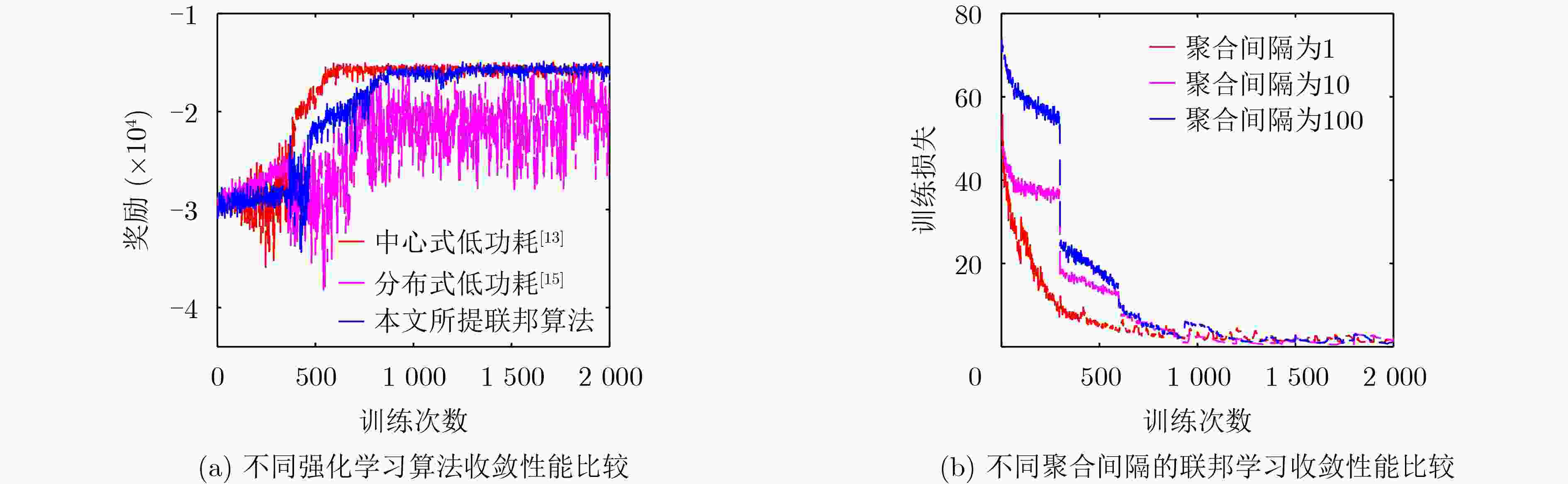

图 3 联邦深度强化学习的收敛性能

下载: 全尺寸图片幻灯片

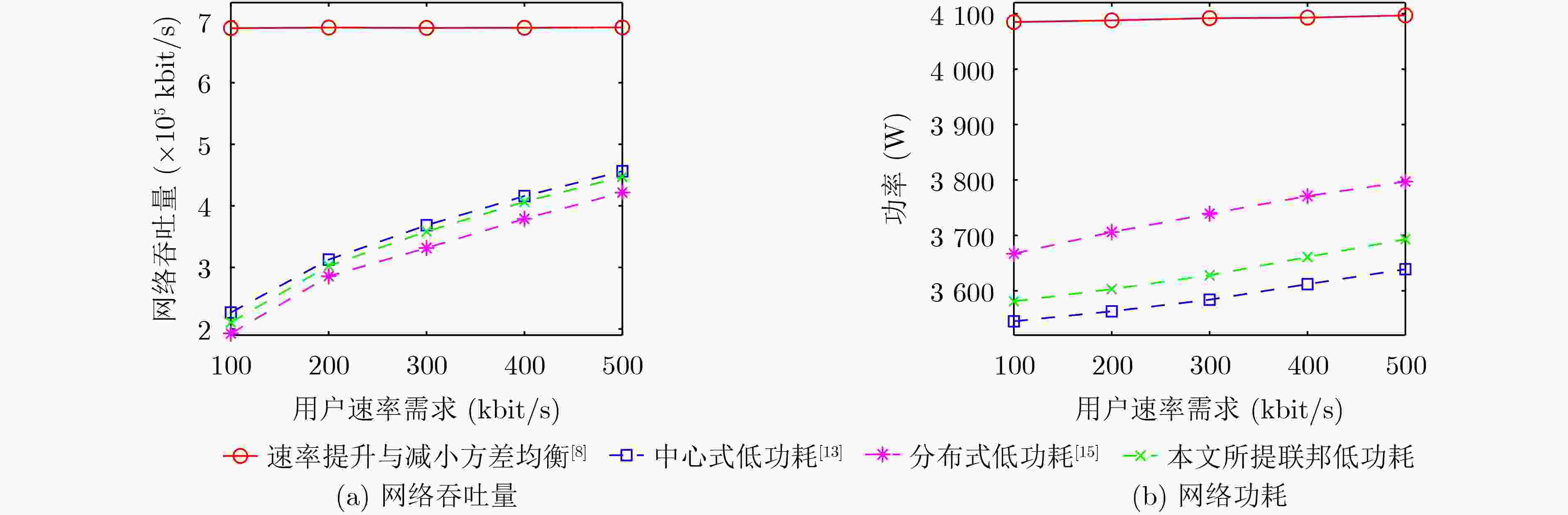

图 4 网络吞吐量和网络功耗随用户速率需求的变化趋势

下载: 全尺寸图片幻灯片

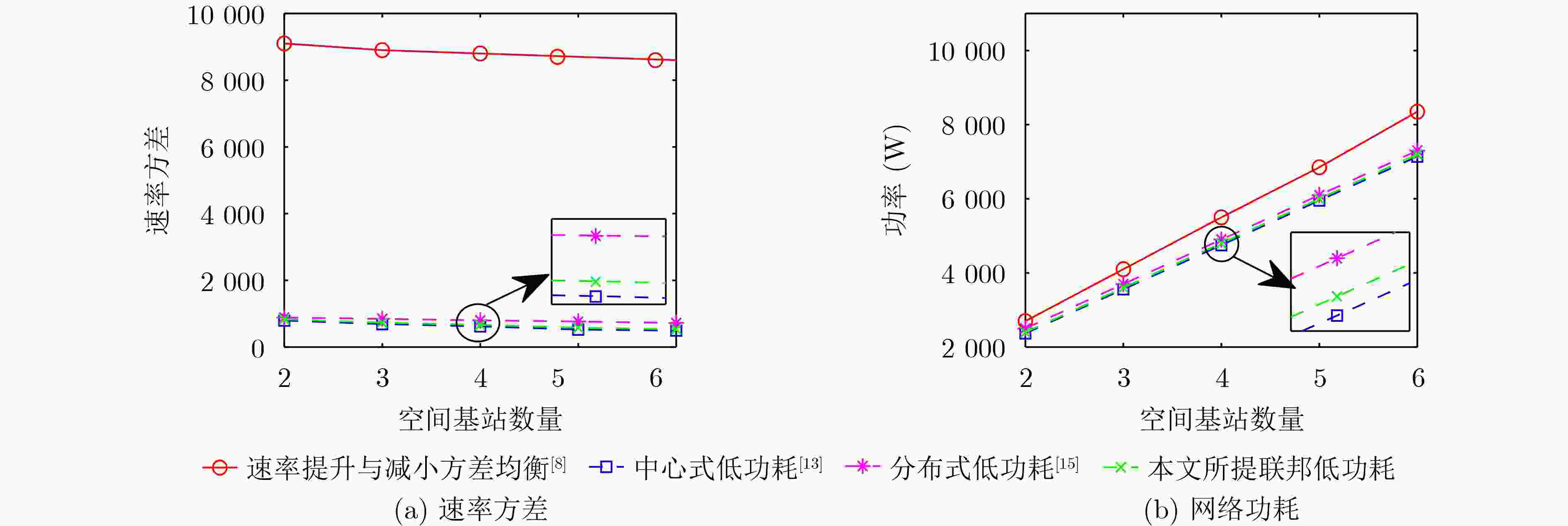

图 5 用户速率方差与网络功耗随空中基站数量的变化趋势

下载: 全尺寸图片幻灯片

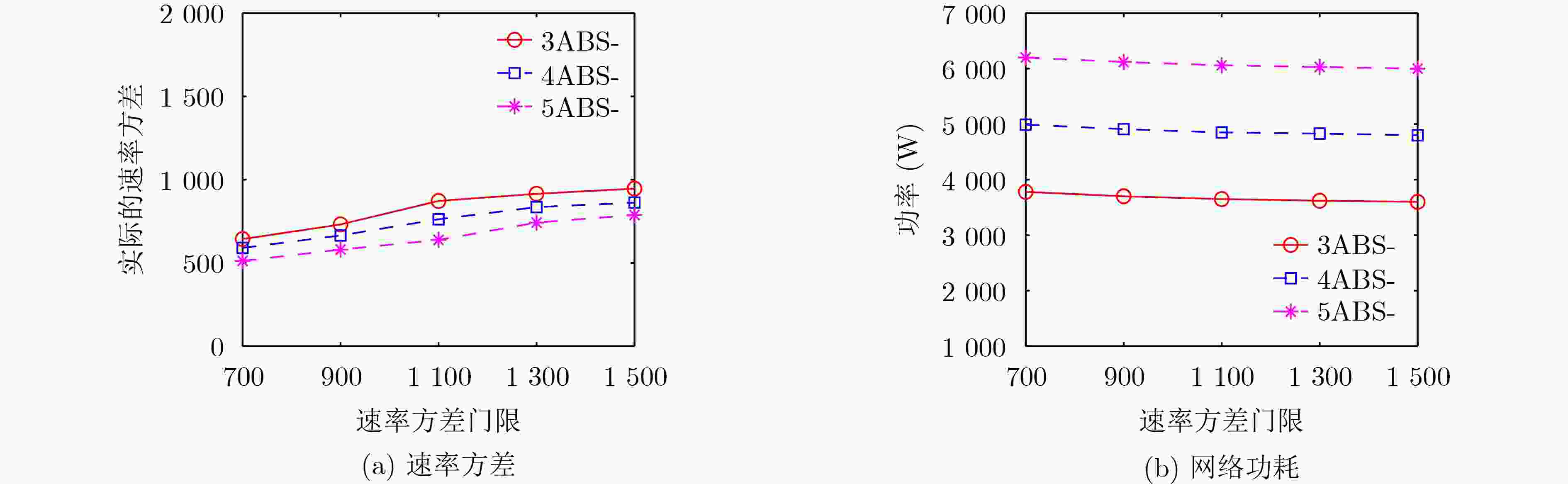

图 6 实际速率方差和网络功耗随速率方差门限的变化趋势

下载: 全尺寸图片幻灯片

1 均值聚类关联算法

输入：ABS位置 $\{ ({x_m},{y_m},{z_m}),m \in [1,M]\}$ ，用户位置　 $\{ ({x_k},{y_k},0),k \in [1,K]\}$ ，ABS数量 $M$ ，用户数量 $K$ ，聚类　迭代次数 $I$
(1) 随机选择 $M$ 个用户作为 $M$ 簇的簇心，它是所有用户位置的　子集
(2) ${\text{for }}i = 1,2, \cdots ,I{\text{ do}}$
(3) 　 ${\text{for }}k = 1,2, \cdots ,K{\text{ do}}$
(4) 　　计算用户 $k$ 与每个簇心的距离
(5) 　　把用户划分到距离最小的簇内
(6) 　　重新计算每个簇的簇心
(7) 　 ${\text{end for}}$
(8) 　如果簇心不再变化，提前结束聚类过程
(9)) ${\text{end for}}$
(10) 得到用户簇和对应的簇心
(11) ${\text{for }}m = 1,2, \cdots ,M{\text{ do}}$ ：
(12) 　计算空中基站 $m$ 与每个簇心的距离，并将距离存储在距　　　　离数组中
(13) 找到距离最小的用户簇，并将 $m$ 与其关联
(14) 　在空中基站 $m$ 的 $R$ 个子信道集合中按顺序选择子信道，　　　　记录到用户关联列表中
(15) 标记已经选择基站的用户簇，使其不能与其他基站关联
(16) ${\text{end for}}$
(17) 输出用户关联列表

下载: 导出CSV

2 联邦深度强化学习算法

输入：聚合间隔 $G$ ，折扣因子 $\gamma$ ，学习率 $\kappa$ ，探索因子 $\varepsilon$ ，智能体的数量 $M$ ，用于训练的幕数 $E$ ，单幕的时隙数 $T$
(1) 初始化环境参数，包含ABS和用户的位置，以及信道增益
(2) 给每一个智能体和全局模型设置初始化的深度神经网络参数
(3) ${\text{for }}i = 1,2, \cdots ,E{\text{ do}}$
(4) 　 ${\text{for }}t = 1,2, \cdots ,T{\text{ do}}$
(5) 　　 ${\text{for }}m = 1,2, \cdots ,M{\text{ do}}$
(6) 　　　步骤1：从聚合服务器获取全局的模型参数 ${\theta ^g}$ ，初始化智能体 $m$ 的神经网络
(7) 　　　步骤2：从网络环境中获取状态参数 $s(t)$
(8) 　　　步骤3：根据 $\varepsilon$ 和式(15)选择动作 $a(t)$
(9) 　　　步骤4：执行动作 $a(t)$ ，获得下一个状态 $s(t + 1)$ 和 $R(t)$
(10) 　　步骤5：把 $a(t)$ , $s(t)$ , $s(t + 1)$ , $R(t)$ 记录到环境信息经验池中
(11) 　　步骤6：当采样数满足训练要求时，从环境信息经验池中选择样本训练深度神经网络训练模型 ${\theta _m}$ ，否者返回
(12) 　 ${\text{end for}}$
(13) 　 ${\text{if }}(t\% G = = 0)$
(14) 　　 $M$ 个智能体传输深度神经网络参数到TBS，执行FedAvg聚合，把聚合后的模型传输给各个智能体分布式执行
(15) 　 ${\text{end if}}$
(16) ${\text{end for}}$
(17) ${\text{end for}}$
(18) 输出ABS移动控制和功率分配的动作

下载: 导出CSV
