基于伪监督注意力短期记忆与多尺度去伪影网络的图像分块压缩感知

doi: 10.11999/JEIT231069

李俊辉,
侯兴松^,

西安交通大学信息与通信工程学院西安 710049

基金项目: 国家自然科学基金(62272376, 61872286)，陕西省重点研发项目(202DLGY04-05, S2021-YF-YBSF-0094)

详细信息

作者简介:
李俊辉：男，博士生，研究方向为图像压缩感知重建、图像压缩

侯兴松：男，教授，博士生导师，研究方向为图像压缩感知、图像压缩、计算机视觉

通讯作者:
侯兴松　houxs@mail.xjtu.edu.cn

中图分类号: TN911.73; TN751
计量
- 文章访问数: 319
- HTML全文浏览量: 132
- PDF下载量: 72
- 被引次数: 0
出版历程
- 收稿日期: 2023-10-07
- 修回日期: 2024-01-17
- 网络出版日期: 2024-01-20
- 刊出日期: 2024-02-29

Pseudo Supervised Attention Short-term Memory and Multi-Scale Deartifacting Network Based on Image Block Compressed Sensing

LI Junhui,
HOU Xingsong^,

School of Information and Communication Engineering, Xi’an Jiaotong University, Xi’an 710049, China

Funds: The National Natural Science Foundation of China (62272376, 61872286), Key R&D Program of Shaanxi Province, China (202DLGY04-05, S2021-YF-YBSF-0094)

摘要

摘要: 基于深度展开网络的分块压缩感知(BCS)方法，在迭代去块伪影时通常会同时去除部分信号和保留部分块伪影，不利于信号恢复。为了改善重建性能，在学习去噪的迭代阈值(LDIT) 算法基础上，该文提出基于伪监督注意力短期记忆与多尺度去伪影网络(MSD-Net)的图像BCS迭代方法(PSASM-MD)。首先，在每步迭代中，利用残差网络并行地对每个图像子块单独去噪后再拼接。然后，对拼接后的图像采用含有伪监督注意力模块(PSAM)的MSD-Net进行特征提取，以更好地去除块伪影以提高重建性能。其中，PSAM被用于从含有块伪影的残差中抽取部分有用信号，并传递到下一步迭代实现短期记忆，以尽量避免去除有用信号。实验结果表明，该文方法相比现有先进的同类BCS方法在主观视觉感知和客观评价指标上均取得了更优的结果。
- 分块压缩感知 /
- 短期记忆 /
- 图像去伪影 /
- 深度展开网络
Abstract: Deep unfolding network based Block Compressed Sensing (BCS) methods typically remove some signal and retain certain block artifacts simultaneously during iterative deartifacting, which is unfavorable for signal recovery. To enhance reconstruction performance, based on Learned Denoising Iterative Thresholding (LDIT) algorithm. Pseudo Supervised Attention Short-term Memory and Multi-scale Deartifacting (PSASM-MD) based image BCS, is proposed in this paper. Initially, in each iteration, each image block is denoised separately in parallel using residual networks before being concatenated. Subsequently, in conjunction with the Pseudo-Supervised Attention Module (PSAM), Multi-Scale Deartifacting Network (MSD-Net) is used to perform feature extraction on the concatenated images, enabling more efficient removal of block artifacts and improving the reconstruction performance. In this case, PSAM is utilized to extract useful signal components from the residuals containing block artifacts, transfer the short-term memory to the subsequent iteration to minimize the removal of useful signals. Experimental results demonstrate that this approach outperforms existing state-of-the-art BCS methods both in subjective visual perception and objective evaluation metrics.
- Block Compressed Sensing (BCS) /
- Short-term memory /
- Image deartifacting /
- Deep unfolding network

HTML全文

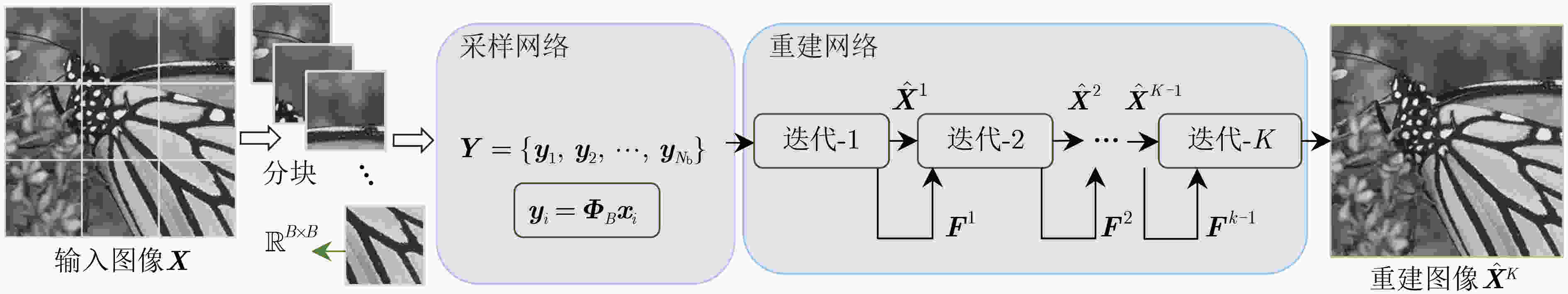

图 1 PSASM-MD模型框架

下载: 全尺寸图片幻灯片

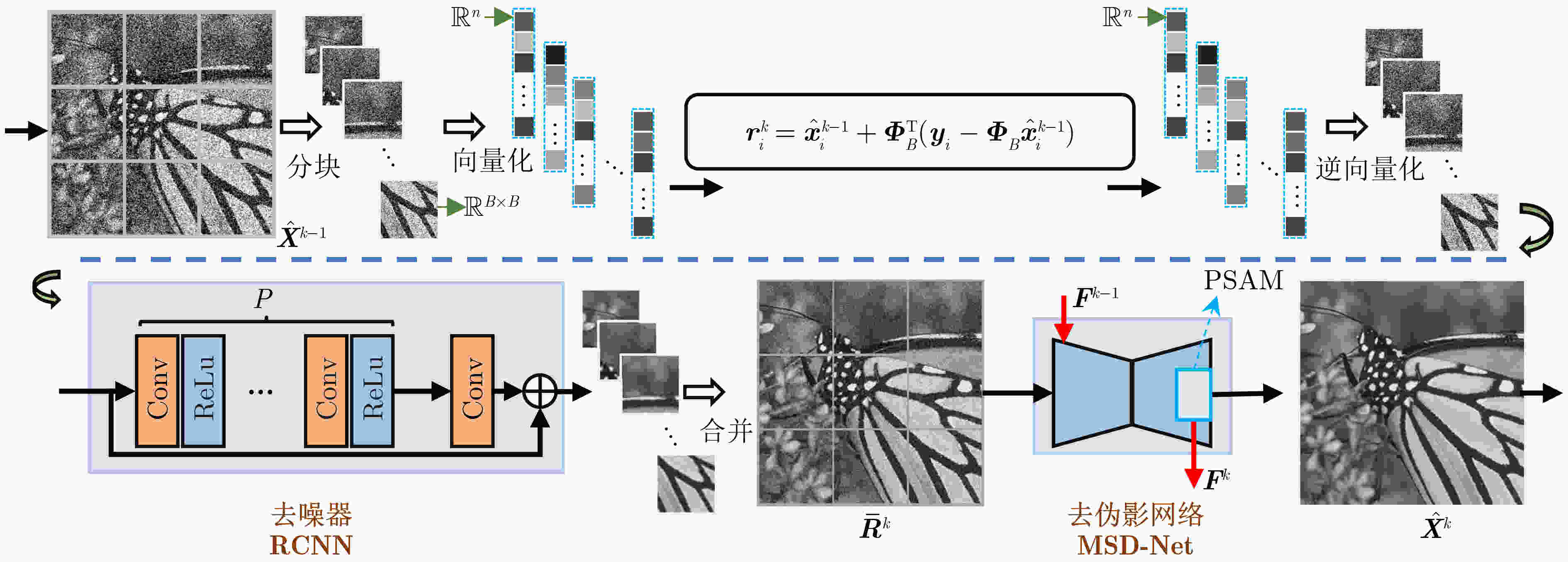

图 2 PSASM-MD中第k次迭代网络结构

下载: 全尺寸图片幻灯片

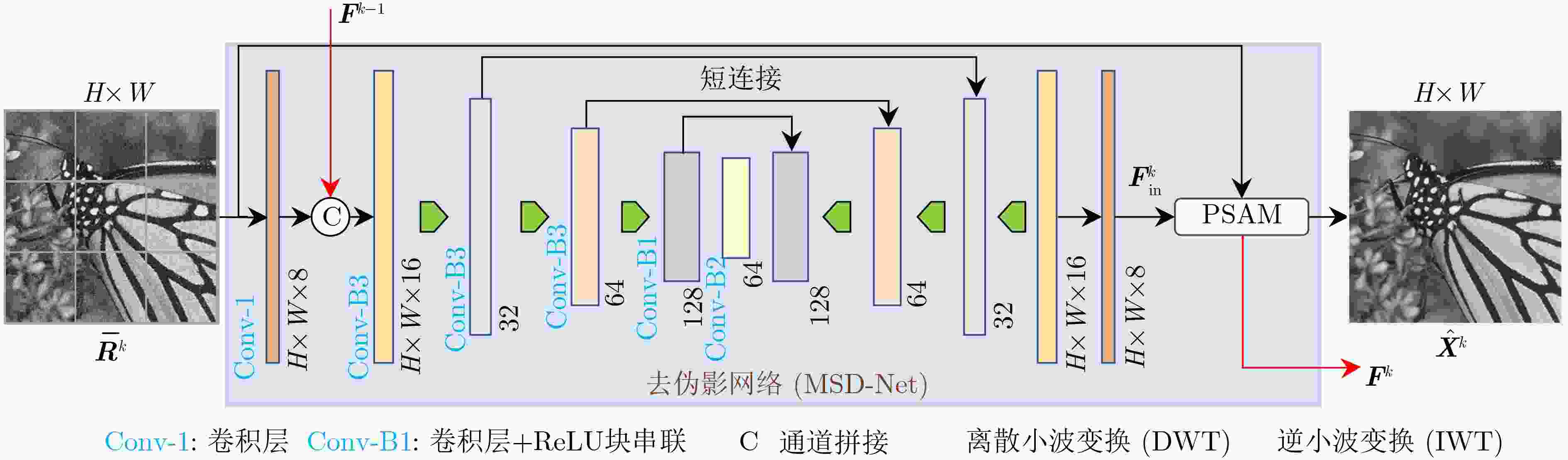

图 3 MSD-Net的网络结构

下载: 全尺寸图片幻灯片

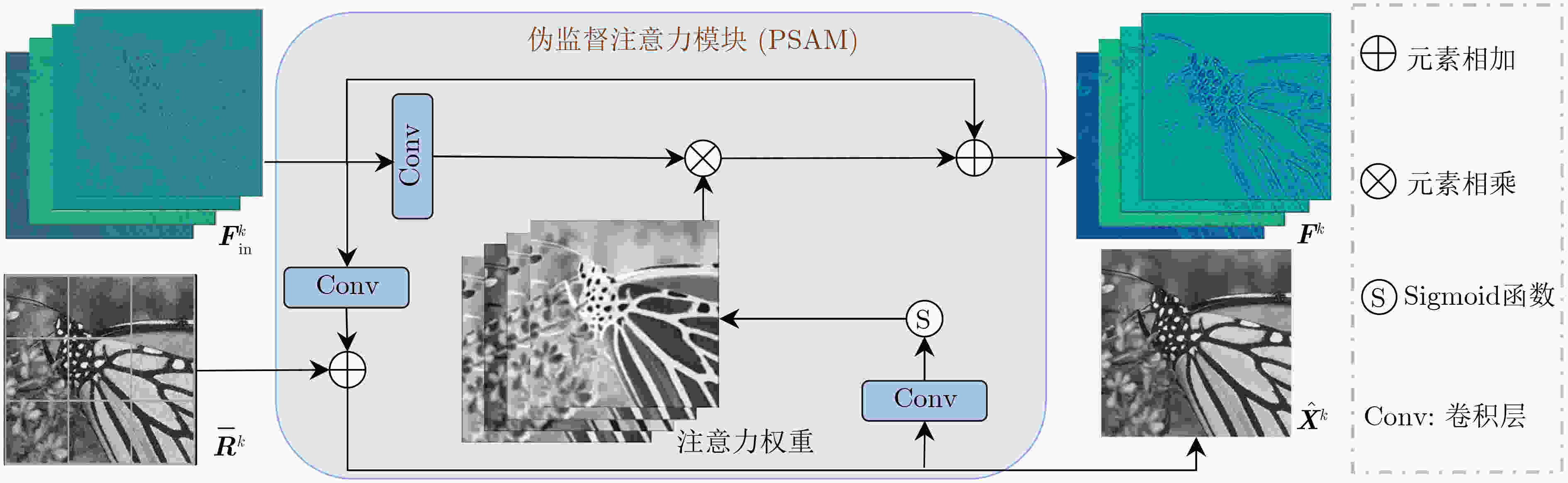

图 4 PSAM的网络结构

下载: 全尺寸图片幻灯片

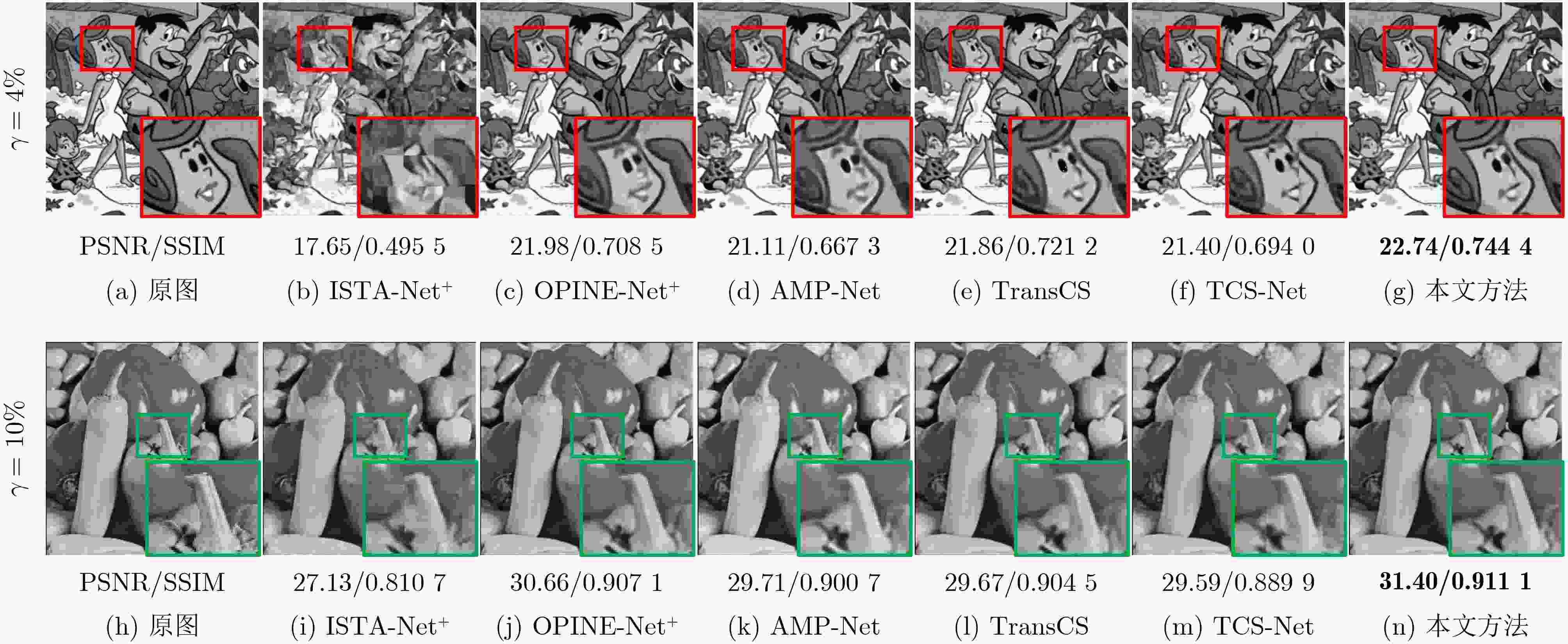

图 5 不同BCS算法在Set11中“Flinstones”和“Peppers”上的重建结果

下载: 全尺寸图片幻灯片

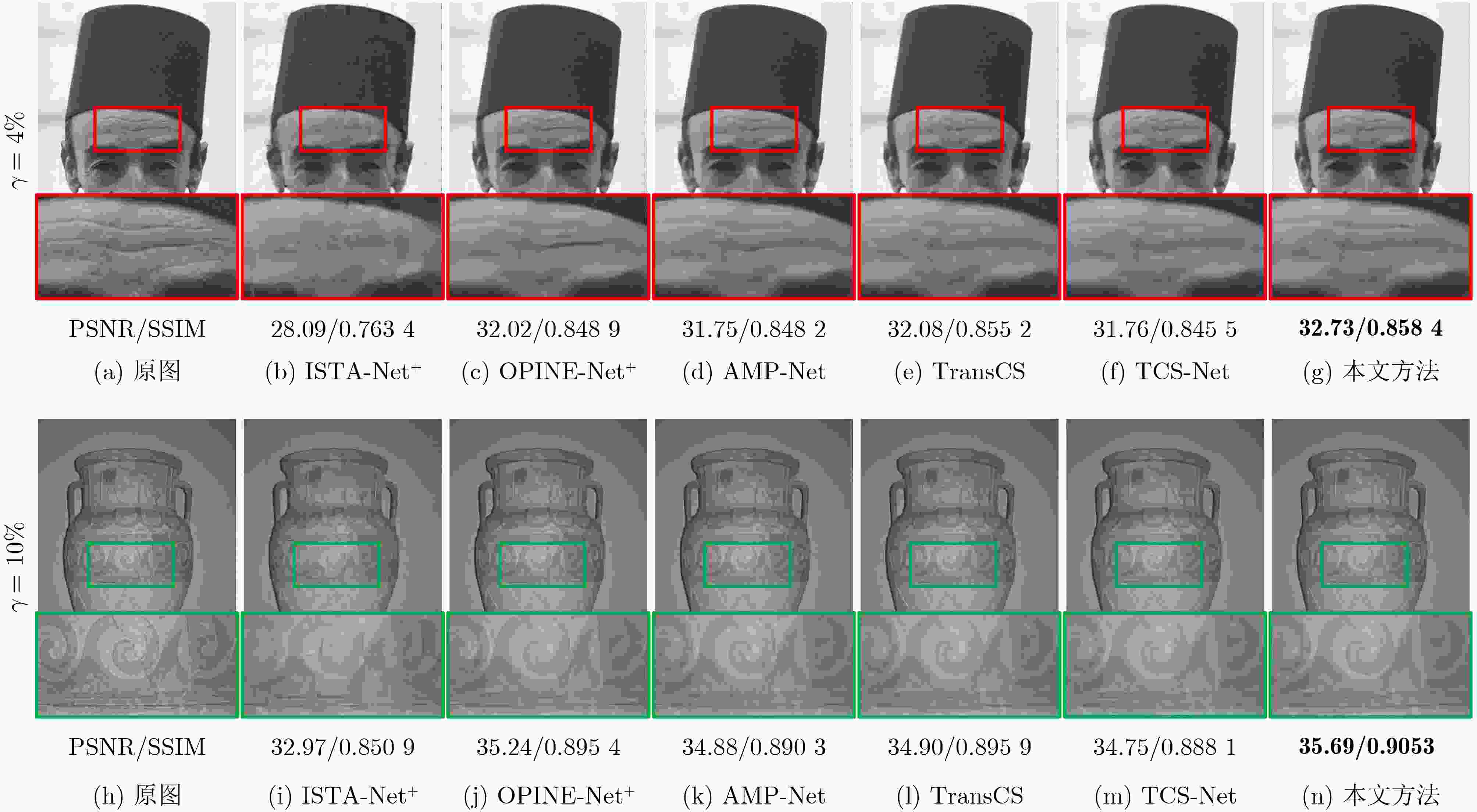

图 6 不同BCS算法在BSD68中的“test034” 和“test045”上的重建结果

下载: 全尺寸图片幻灯片

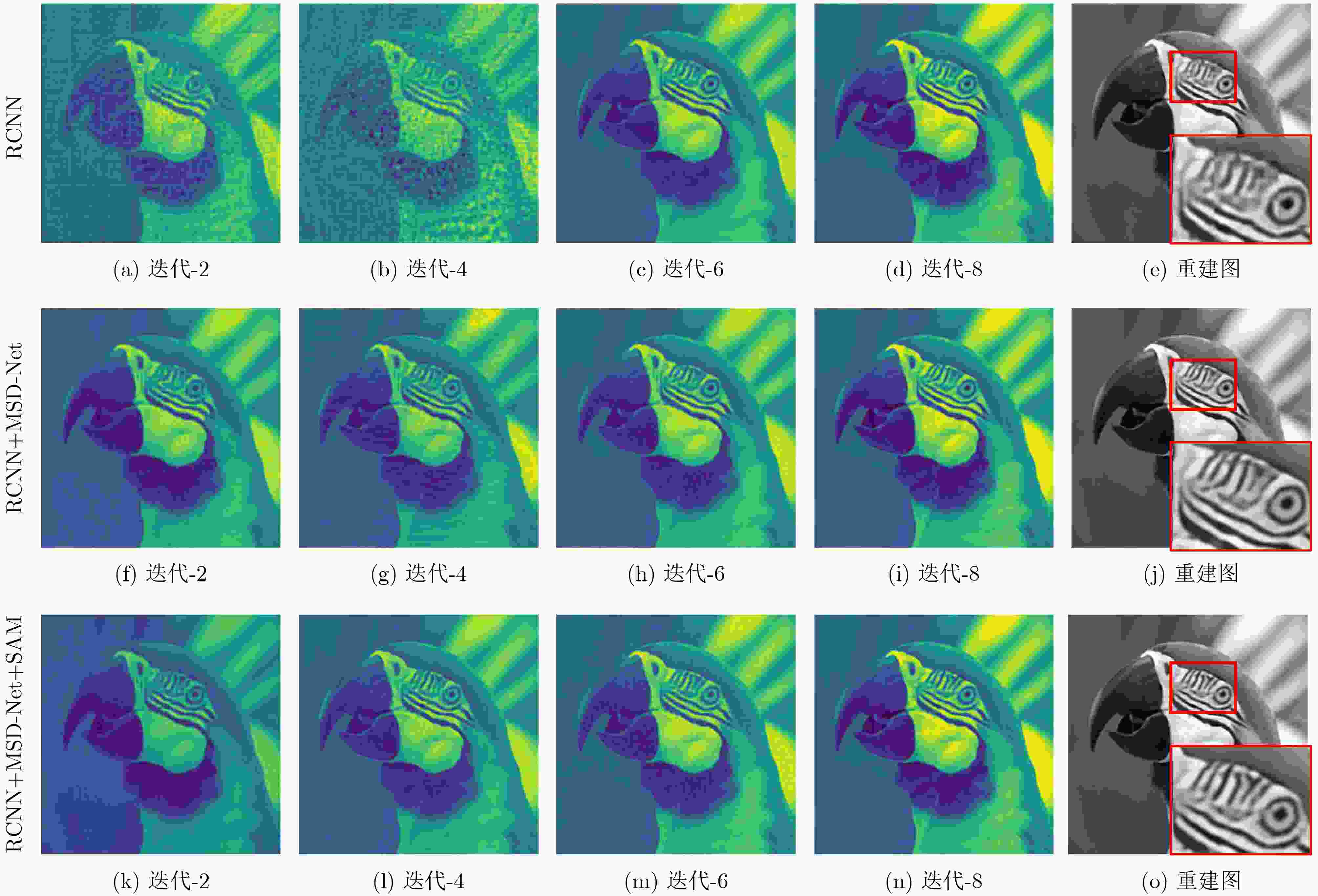

图 7 不同网络结构下中间迭代重建图的特征图以及最终的重建图

下载: 全尺寸图片幻灯片

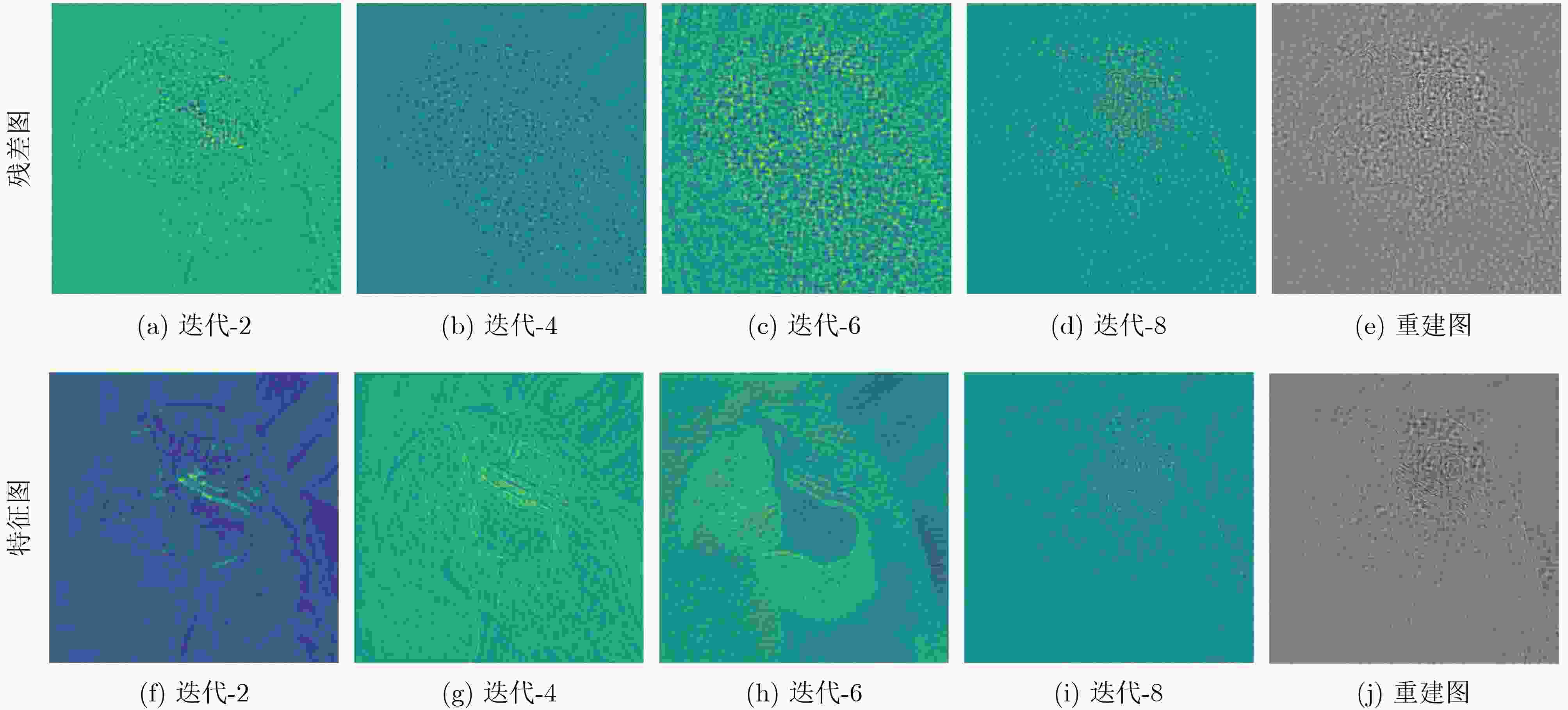

图 8 不同迭代阶段的重建图像的残差图和PSAM提取的特征图以及最终重建图的残差图

下载: 全尺寸图片幻灯片

表 1 几种BCS算法在Set11上不同采样率下PSNR(dB)/SSIM的平均值

采样率$\gamma $(%)	ISTA-Net⁺	OPINE-Net⁺	AMP-Net	TransCS	TCS-Net	PSASM-MD
1	17.45/0.4131	20.15/0.5340	20.20/0.5580	-/-	21.09/0.5505	22.01/0.6077
4	21.56/0.6240	25.69/0.7920	25.26/0.7722	25.41/0.7883	25.46/0.7863	26.40/0.8001
10	26.49/0.8036	29.81/0.8884	29.40/0.8779	29.54/0.8877	29.04/0.8834	30.40/0.8906
25	32.44/0.9237	34.86/0.9509	34.63/0.9481	35.06/0.9548	33.94/0.9508	35.24/0.9519
50	38.07/0.9706	40.17/0.9797	40.34/0.9804	40.49/0.9815	-/-	40.90/0.9812

下载: 导出CSV

表 2 几种BCS算法在BSD68 上不同采样率下PSNR(dB)/SSIM的平均值

采样率$\gamma $(%)	ISTA-Net⁺	OPINE-Net⁺	AMP-Net	TransCS	TCS-Net	PSASM-MD
1	19.18/0.4201	22.11/0.5140	21.97/0.5086	-/-	22.26/0.5194	22.89/0.5530
4	22.34/0.5573	25.00/0.6825	25.40/0.6985	25.28/0.6881	25.07/0.6829	25.59/0.6847
10	25.30/0.7001	27.82/0.8045	27.41/0.8036	27.86/0.8086	27.42/0.8037	28.20/0.7993
25	29.31/0.8507	31.51/0.9061	31.56/0.9121	31.74/0.9121	30.94/0.9083	31.98/0.9069
50	34.01/0.9421	36.35/0.9660	36.64/0.9707	36.81/0.9699	-/-	37.19/0.9689

下载: 导出CSV

表 3 PSASM-MD不同网络结构下Set11上的平均PSNR(dB)/SSIM结果

采样率$\gamma $(%)	RCNN	RCNN+ DCNN^[14]	RCNN+ MSD-Net	RCNN+MSD-Net+PSAM
4	25.49/ 0.7676	26.06/0.7882	26.29/0.7962	26.40/0.7986
10	29.52/ 0.8773	29.98/0.8848	30.11/0.8873	30.38/0.8914

下载: 导出CSV
