中继辅助的寄生反向散射通信网络中断性能分析

宋曦 韩东升

宋曦, 韩东升. 中继辅助的寄生反向散射通信网络中断性能分析[J]. 电子与信息学报, 2024, 46(6): 2452-2461. doi: 10.11999/JEIT231057
引用本文: 宋曦, 韩东升. 中继辅助的寄生反向散射通信网络中断性能分析[J]. 电子与信息学报, 2024, 46(6): 2452-2461. doi: 10.11999/JEIT231057
SONG Xi, HAN Dongsheng. Outage Performance of Relay-assisted Parasitic Backscatter Communication Networks[J]. Journal of Electronics & Information Technology, 2024, 46(6): 2452-2461. doi: 10.11999/JEIT231057
Citation: SONG Xi, HAN Dongsheng. Outage Performance of Relay-assisted Parasitic Backscatter Communication Networks[J]. Journal of Electronics & Information Technology, 2024, 46(6): 2452-2461. doi: 10.11999/JEIT231057

中继辅助的寄生反向散射通信网络中断性能分析

doi: 10.11999/JEIT231057
基金项目: 国家自然科学基金(61771195),河北省省级科技计划(SZX2020034)
详细信息
    作者简介:

    宋曦:男,博士生,研究方向为反向散射通信、电力通信

    韩东升:男,教授,博士生导师,研究方向为无线通信新技术、电力系统通信

    通讯作者:

    宋曦 120212501020@ncepu.edu.cn

  • 中图分类号: TN926

Outage Performance of Relay-assisted Parasitic Backscatter Communication Networks

Funds: The National Natural Science Foundation of China (61771195), S&T Program of Hebei (SZX2020034)
  • 摘要: 已有寄生反向散射通信网络依赖于收发机之间存在的直达链路,从而无法应用于直达链路深度衰落或不存在场景。针对上述问题,该文提出一种中继辅助的寄生反向散射通信网络,并分析所提网络的中断性能。具体而言,依据所提网络推导得到主系统和次系统的瞬时信噪比,并在考虑次用户能量因果约束的条件下定义了主次系统中断概率,接着利用数学知识推导得到瑞利衰落模型下的主次系统中断概率表达式,最后通过计算机仿真验证了所推导的主次系统中断概率表达式的准确性,并分析了不同系统参数对主、次系统中断概率的影响。

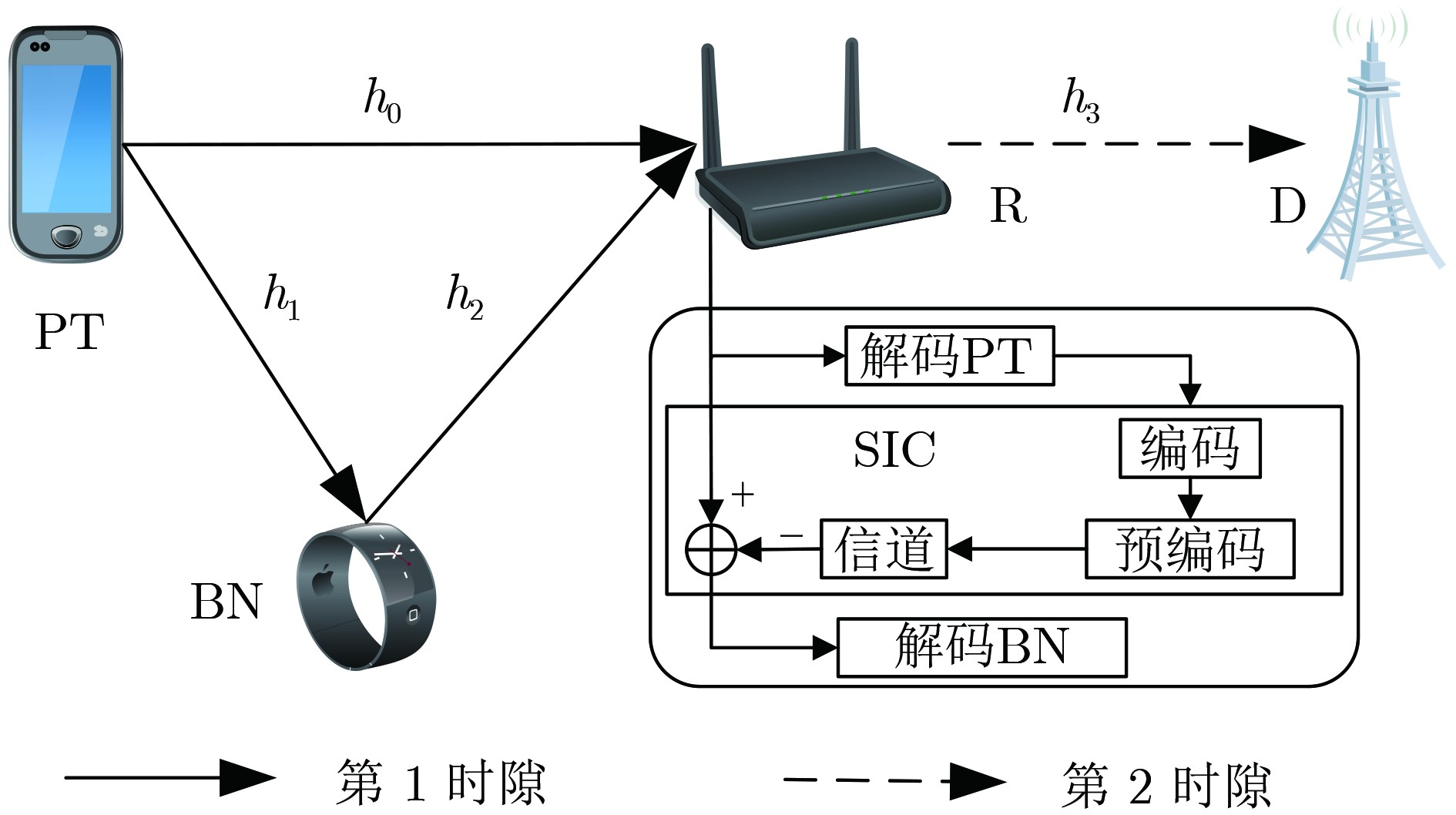

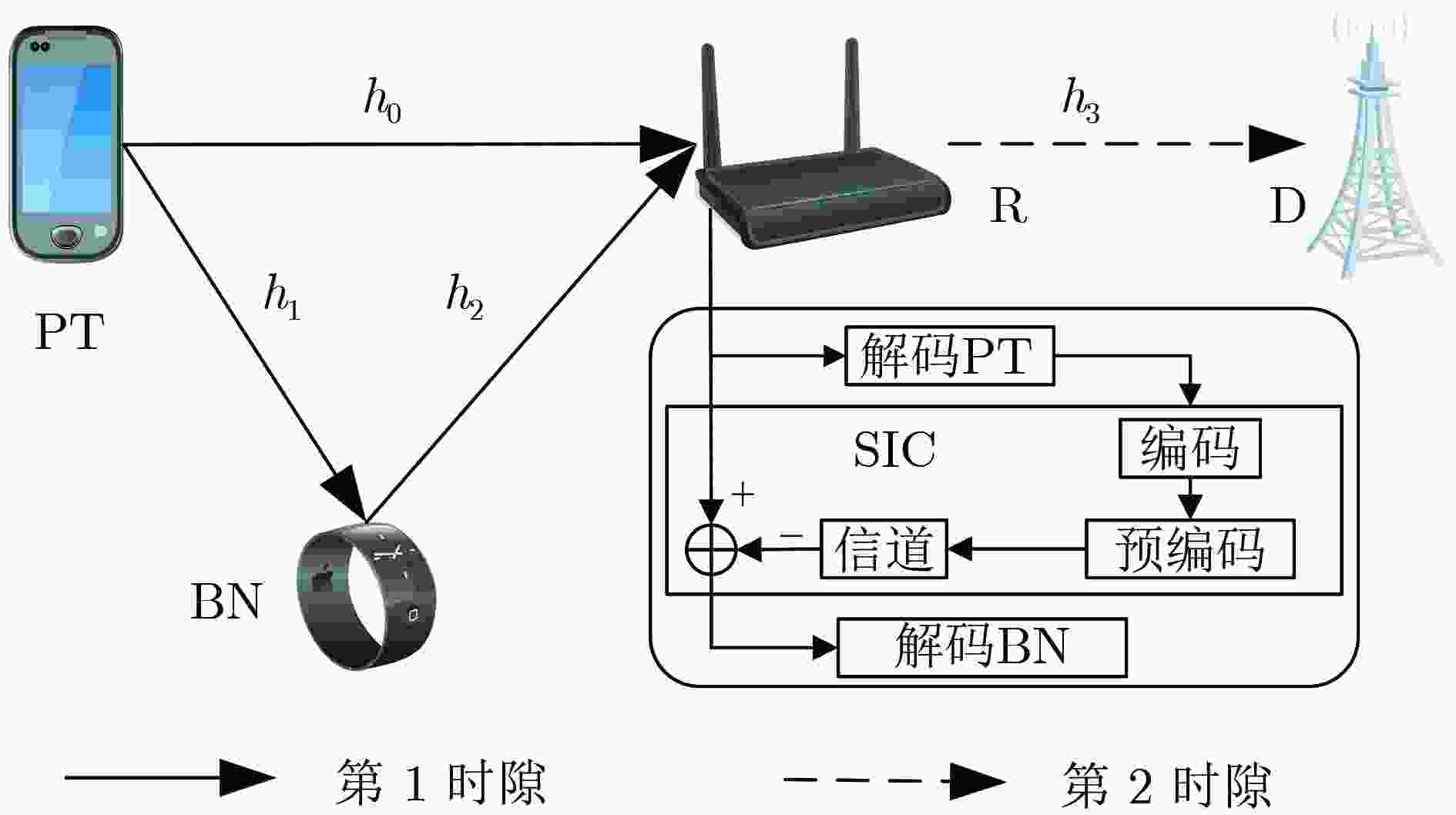

  • 图  1  系统模型

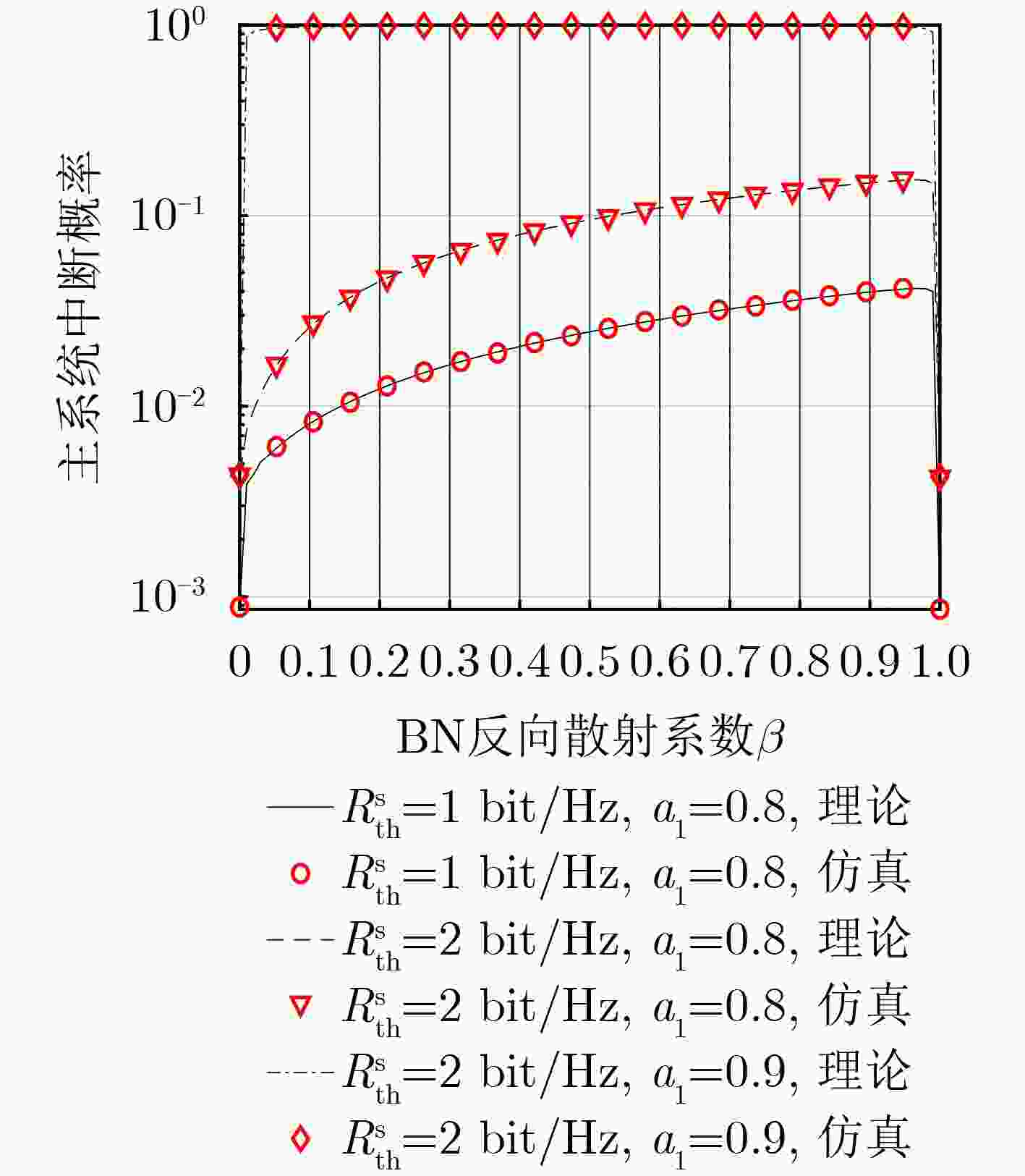

    图  2  主系统中断概率与$\beta $的关系曲线

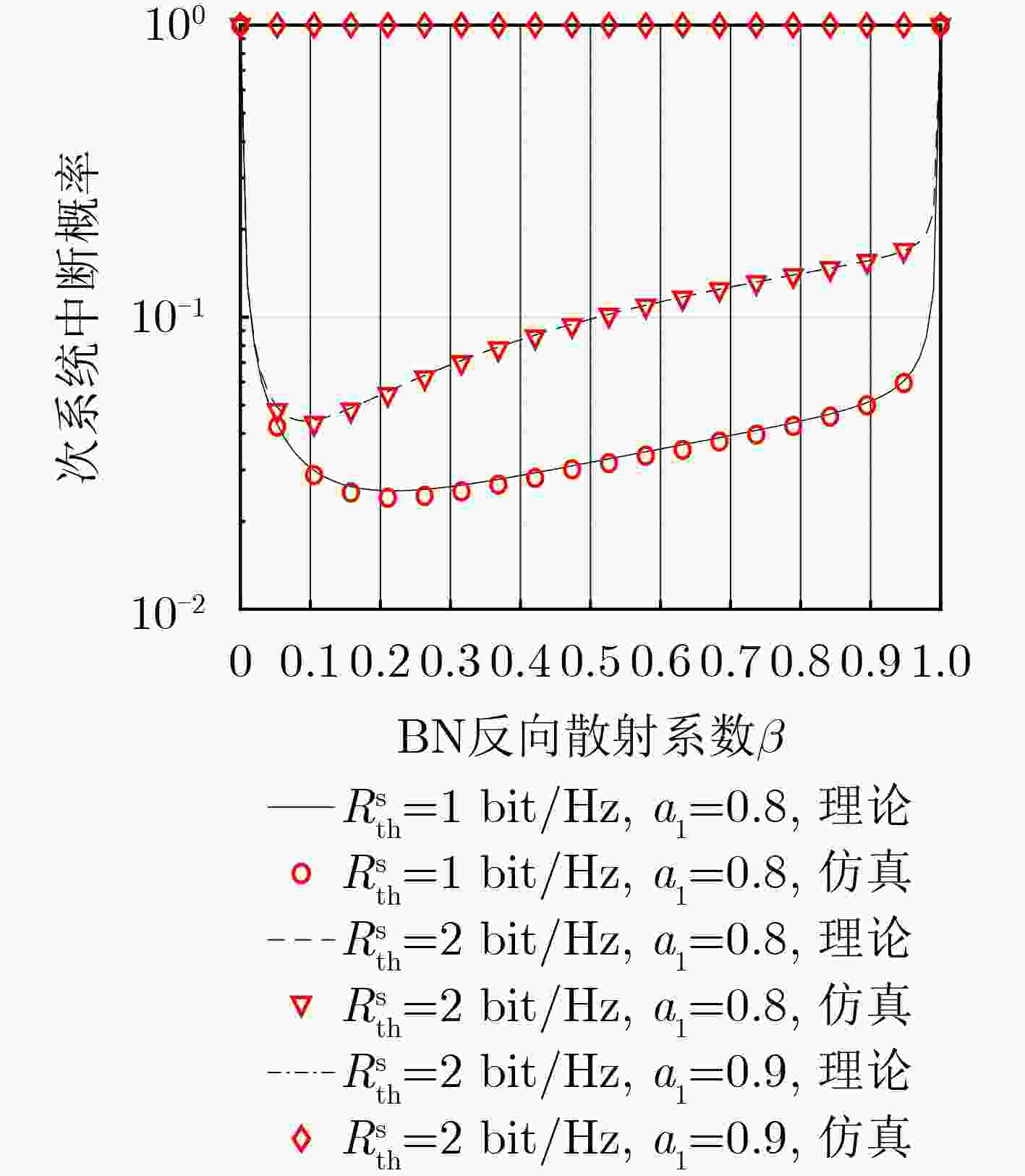

    图  3  次系统中断概率与$\beta $的关系曲线

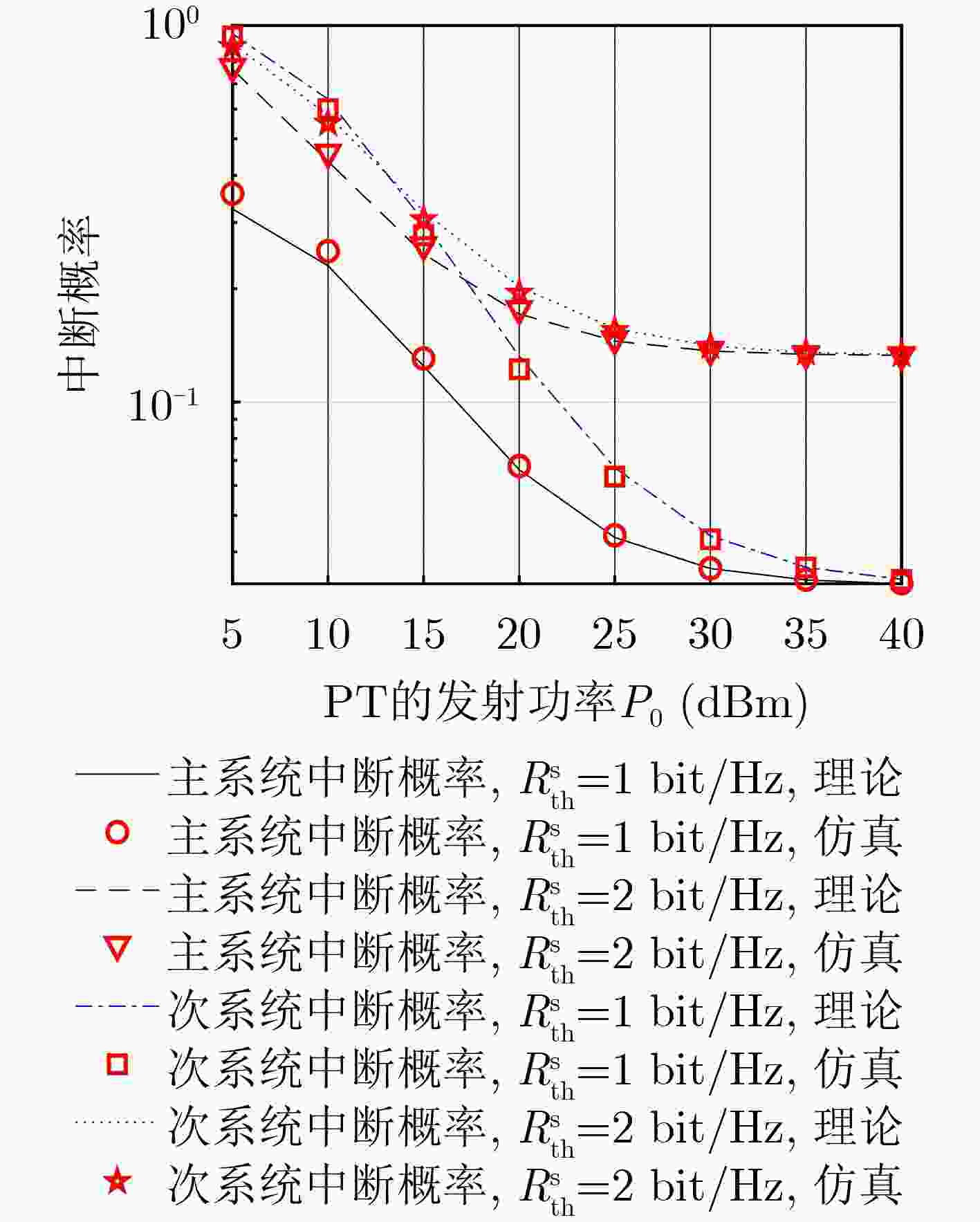

    图  4  主、次系统中断概率与${P_0}$的关系曲线

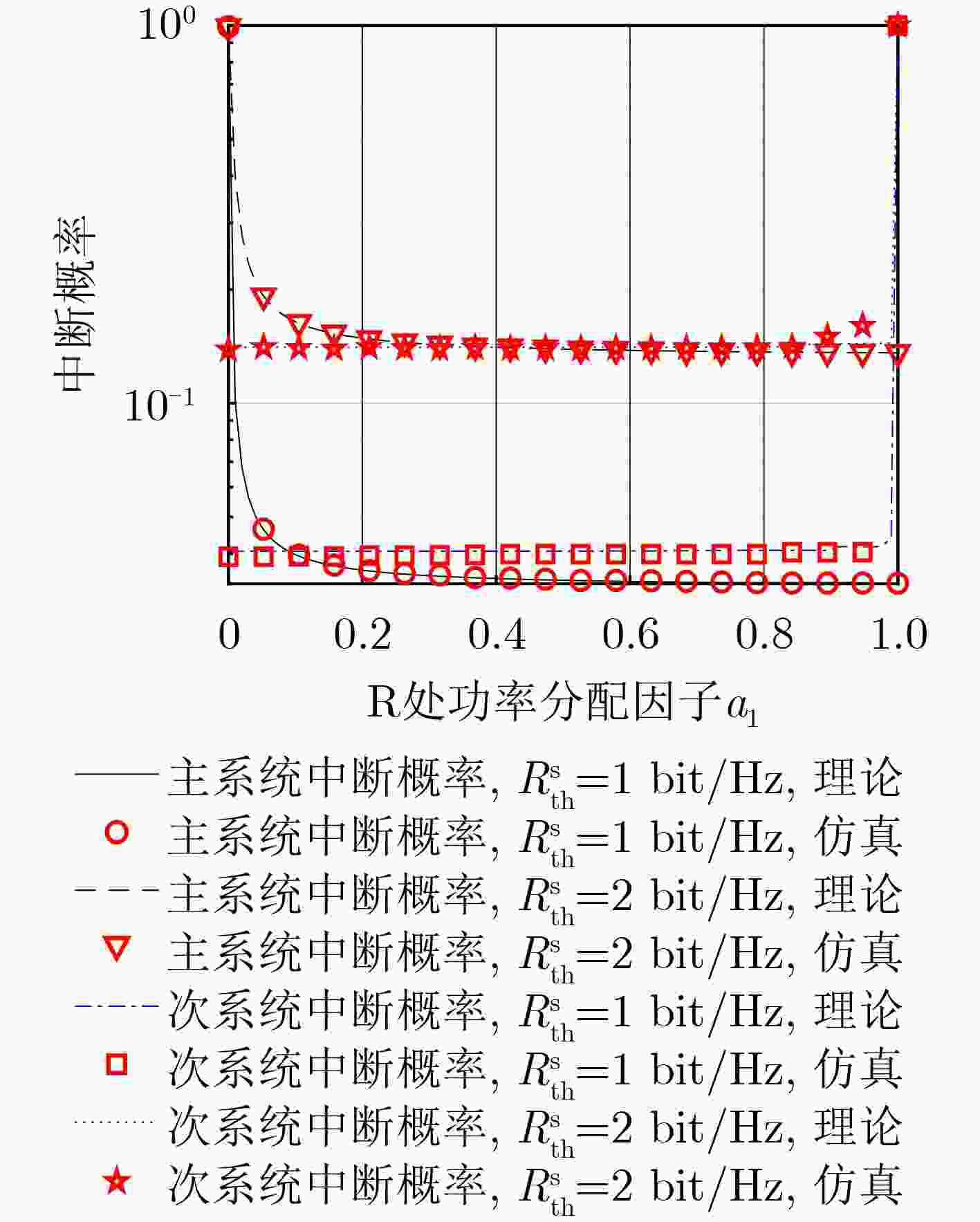

    图  5  主、次系统中断概率与${a_1}$的关系曲线

    表  1  主系统中断概率表达情况总结

    不同参数设置 主系统中断概率表达式$ P_{{\text{out}}}^p $
    $ {a_1} - \gamma _{{\text{th}}}^s{a_2} \gt 0 $ $ \begin{gathered} 1 - \exp \left( { - \dfrac{{{A_1}}}{{{\lambda _1}}} - \dfrac{{{A_5}}}{{{\lambda _3}}} - \dfrac{{{A_3}}}{{{\lambda _0}}}} \right)\left( {{P_{111}} - {P_{112}}} \right) - {P_{112}}\exp \left( { - \dfrac{{{A_1}}}{{{\lambda _1}}} - \dfrac{{{A_6}}}{{{\lambda _3}}} - \dfrac{{{A_3}}}{{{\lambda _0}}}} \right) \\ - \exp \left( { - \dfrac{{{A_3}}}{{{\lambda _0}}} - \dfrac{{{A_6}}}{{{\lambda _3}}}} \right)\left( {1 - \exp \left( { - \dfrac{{{A_1}}}{{{\lambda _1}}}} \right)} \right) \\ \end{gathered} $
    $ {a}_{1}-{\gamma }_{\text{th}}^{s}{a}_{2}\le 0,且{a}_{2}-{\gamma }_{\text{th}}^{c}{a}_{1} \gt 0 $ $ \begin{gathered} 1 - \exp \left( { - \dfrac{{{A_1}}}{{{\lambda _1}}} - \dfrac{{\max \left( {{A_7},{A_8}} \right)}}{{{\lambda _3}}} - \dfrac{{{A_3}}}{{{\lambda _0}}}} \right)\left( {{P_{111}} - {P_{112}}} \right) - \exp \left( { - \dfrac{{{A_1}}}{{{\lambda _1}}} - \dfrac{{{A_6}}}{{{\lambda _3}}} - \dfrac{{{A_3}}}{{{\lambda _0}}}} \right){P_{112}} \\ - \exp \left( { - \dfrac{{{A_3}}}{{{\lambda _0}}} - \dfrac{{{A_6}}}{{{\lambda _3}}}} \right)\left( {1 - \exp \left( { - \dfrac{{{A_1}}}{{{\lambda _1}}}} \right)} \right) \\ \end{gathered} $
    $ {a}_{1}-{\gamma }_{\text{th}}^{s}{a}_{2}\le 0,且{a}_{2}-{\gamma }_{\text{th}}^{c}{a}_{1}\le 0 $ $ 1 - \exp \left( { - \dfrac{{{A_1}}}{{{\lambda _1}}} - \dfrac{{{A_6}}}{{{\lambda _3}}} - \dfrac{{{A_3}}}{{{\lambda _0}}}} \right){P_{112}} - \exp \left( { - \dfrac{{{A_3}}}{{{\lambda _0}}} - \dfrac{{{A_6}}}{{{\lambda _3}}}} \right)\left( {1 - \exp \left( { - \dfrac{{{A_1}}}{{{\lambda _1}}}} \right)} \right) $
    $ {P_{111}} = - \dfrac{{{\lambda _0}}}{{{A_2}{\lambda _1}{\lambda _2}}}\exp \left( {\dfrac{{{\lambda _0}}}{{{\lambda _1}{\lambda _2}{A_2}}}} \right){\text{Ei}}\left( { - \dfrac{{{\lambda _0}}}{{{\lambda _1}{\lambda _2}{A_2}}}} \right) $,$ {P_{112}} = \dfrac{{\pi {A_4}}}{{{\lambda _1}{\lambda _2}M}}\displaystyle\sum\limits_{m = 1}^M {\sqrt {1 - v_m^2} {K_0}\left( {2\sqrt {\dfrac{{{\kappa _m}}}{{{\lambda _1}{\lambda _2}}}} } \right)\exp \left( { - \dfrac{{{A_2}{\kappa _m}}}{{{\lambda _0}}}} \right)} $,
    $ {A_1} = \dfrac{{{P_{\text{c}}}d_1^{{\alpha _1}}}}{{\eta \left( {1 - \beta } \right){P_0}}},{A_2} = \gamma _{{\text{th}}}^sd_0^{{\alpha _0}}\beta d_1^{ - {\alpha _1}}d_2^{ - {\alpha _2}},{A_3} = \dfrac{{\gamma _{{\text{th}}}^sd_0^{{\alpha _0}}{\sigma ^2}}}{{{P_0}}},{A_4} = \dfrac{{\gamma _{{\text{th}}}^c{\sigma ^2}d_1^{{\alpha _1}}d_2^{{\alpha _2}}}}{{{P_0}\beta }},{A_5} = \dfrac{{\gamma _{{\text{th}}}^s{\sigma ^2}d_3^{{\alpha _3}}}}{{{P_{\text{R}}}\left( {{a_1} - \gamma _{{\text{th}}}^s{a_2}} \right)}} $,$ {A_6} = \dfrac{{\gamma _{{\text{th}}}^sd_3^{{\alpha _3}}{\sigma ^2}}}{{{P_{\text{R}}}}} $,
    $ {A_7} = \dfrac{{\gamma _{{\text{th}}}^c{\sigma ^2}d_3^{{\alpha _3}}}}{{{P_{\text{R}}}\left( {{a_2} - \gamma _{{\text{th}}}^c{a_1}} \right)}},{A_8} = \dfrac{{\gamma _{{\text{th}}}^sd_3^{{\alpha _3}}{\sigma ^2}}}{{{P_{\text{R}}}{a_1}}} $
    下载: 导出CSV

    表  2  次系统中断概率表达情况总结

    不同参数设置 次系统中断概率表达式$ P_{{\text{out}}}^b $
    $ {a_1} - \gamma _{{\text{th}}}^s{a_2} \gt 0 $ $ 1 - \exp \left( { - \dfrac{{{A_1}}}{{{\lambda _1}}} - \dfrac{{\max \left( {{A_5},{A_9}} \right)}}{{{\lambda _3}}} - \dfrac{{{A_3}}}{{{\lambda _0}}}} \right)\left( {{P_{111}} - {P_{112}}} \right) $
    $ {a}_{1}-{\gamma }_{\text{th}}^{s}{a}_{2}\le 0,且{a}_{2}-{\gamma }_{\text{th}}^{c}{a}_{1} \gt 0 $ $ 1 - \exp \left( { - \dfrac{{{A_1}}}{{{\lambda _1}}} - \dfrac{{{A_7}}}{{{\lambda _3}}} - \dfrac{{{A_3}}}{{{\lambda _0}}}} \right)\left( {{P_{111}} - {P_{112}}} \right) $
    $ {a}_{1}-{\gamma }_{\text{th}}^{s}{a}_{2}\le 0,且{a}_{2}-{\gamma }_{\text{th}}^{c}{a}_{1}\le 0 $ $ 1 $
    $ {P_{111}} = - \dfrac{{{\lambda _0}}}{{{A_2}{\lambda _1}{\lambda _2}}}\exp \left( {\dfrac{{{\lambda _0}}}{{{\lambda _1}{\lambda _2}{A_2}}}} \right){\text{Ei}}\left( { - \dfrac{{{\lambda _0}}}{{{\lambda _1}{\lambda _2}{A_2}}}} \right) $,$ {P_{112}} = \dfrac{{\pi {A_4}}}{{{\lambda _1}{\lambda _2}M}}\displaystyle\sum\limits_{m = 1}^M {\sqrt {1 - v_m^2} {K_0}\left( {2\sqrt {\dfrac{{{\kappa _m}}}{{{\lambda _1}{\lambda _2}}}} } \right)\exp \left( { - \dfrac{{{A_2}{\kappa _m}}}{{{\lambda _0}}}} \right)} $,
    $ {A_1} = \dfrac{{{P_{\text{c}}}d_1^{{\alpha _1}}}}{{\eta \left( {1 - \beta } \right){P_0}}},{A_2} = \gamma _{{\text{th}}}^sd_0^{{\alpha _0}}\beta d_1^{ - {\alpha _1}}d_2^{ - {\alpha _2}},{A_3} = \dfrac{{\gamma _{{\text{th}}}^sd_0^{{\alpha _0}}{\sigma ^2}}}{{{P_0}}},{A_4} = \dfrac{{\gamma _{{\text{th}}}^c{\sigma ^2}d_1^{{\alpha _1}}d_2^{{\alpha _2}}}}{{{P_0}\beta }},{A_5} = \dfrac{{\gamma _{{\text{th}}}^s{\sigma ^2}d_3^{{\alpha _3}}}}{{{P_{\text{R}}}\left( {{a_1} - \gamma _{{\text{th}}}^s{a_2}} \right)}} $,$ {A_7} = \dfrac{{\gamma _{{\text{th}}}^c{\sigma ^2}d_3^{{\alpha _3}}}}{{{P_{\text{R}}}\left( {{a_2} - \gamma _{{\text{th}}}^c{a_1}} \right)}} $,
    $ {A_9} = \dfrac{{\gamma _{{\text{th}}}^cd_3^{{\alpha _3}}{\sigma ^2}}}{{{P_{\text{R}}}{a_2}}} $
    下载: 导出CSV

    表  3  仿真参数设置

    参数名称参数符号数值
    路径损耗${\alpha _0},{\alpha _1},{\alpha _2},{\alpha _3}$2.7
    噪声功率 (W)${\sigma ^2}$10-9
    PT到R的距离(m)${d_{\text{0}}}$50
    PT到BN的距离(m)${d_{\text{1}}}$5
    BN到R的距离(m)${d_{\text{2}}}$48
    R到D的距离(m)${d_{\text{3}}}$100
    PT、R的发射功率(dBm)${P_0},{P_{\text{R}}}$30
    BN反向散射系数$\beta $0.8
    BN反向散射通信功耗(μW)${P_c}$8.9
    BN能量转换效率$\eta $0.8
    PT的目标速率(bit/Hz)$R_{{\text{th}}}^s$1
    BN的目标速率(bit/Hz)$R_{{\text{th}}}^c$0.1
    R处功率分配因子${a_1},{a_2}$0.8,0.2
    高斯-切比雪夫分段总数$M$10
    下载: 导出CSV
  • [1] 郑黎明, 刘培国, 王宏义, 等. 无源物联网: 背景、概念、挑战及研究进展[J]. 电子与信息学报, 2023, 45(7): 2293–2310. doi: 10.11999/JEIT221219.

    ZHENG Liming, LIU Peiguo, WANG Hongyi, et al. Passive internet of things: Background, concept, challenges and progress[J]. Journal of Electronics & Information Technology, 2023, 45(7): 2293–2310. doi: 10.11999/JEIT221219.
    [2] YE Yinghui, SHI Liqin, CHU Xiaoli, et al. Resource allocation in backscatter-assisted wireless powered MEC networks with limited MEC computation capacity[J]. IEEE Transactions on Wireless Communications, 2022, 21(12): 10678–10694. doi: 10.1109/TWC.2022.3185825.
    [3] 张晓茜, 徐勇军. 面向零功耗物联网的反向散射通信综述[J]. 通信学报, 2022, 43(11): 199–212. doi: 10.11959/j.issn.1000-436x.2022199.

    ZHANG Xiaoxi and XU Yongjun. Survey on backscatter communication for zero-power IoT[J]. Journal on Communications, 2022, 43(11): 199–212. doi: 10.11959/j.issn.1000-436x.2022199.
    [4] LIANG Yingchang, ZHANG Qianqian, LARSSON E G, et al. Symbiotic radio: Cognitive backscattering communications for future wireless networks[J]. IEEE Transactions on Cognitive Communications and Networking, 2020, 6(4): 1242–1255. doi: 10.1109/TCCN.2020.3023139.
    [5] YE Yinghui, SHI Liqin, CHU Xiaoli, et al. On the outage performance of ambient backscatter communications[J]. IEEE Internet of Things Journal, 2020, 7(8): 7265–7278. doi: 10.1109/JIOT.2020.2984449.
    [6] ELSAYED M, SAMIR A, EL-BANNA A A A, et al. When NOMA multiplexing meets symbiotic ambient backscatter communication: Outage analysis[J]. IEEE Transactions on Vehicular Technology, 2022, 71(1): 1026–1031. doi: 10.1109/TVT.2021.3127043.
    [7] YANG Hancheng, DING Haiyang, and ELKASHLAN M. Opportunistic symbiotic backscatter communication systems[J]. IEEE Communications Letters, 2023, 27(1): 100–104. doi: 10.1109/LCOMM.2022.3202362.
    [8] 叶迎晖, 田雨佳, 卢光跃, 等. 基于能量收集的互惠共生无线电中断性能分析[J]. 电子与信息学报, 2023, 45(7): 2350–2357. doi: 10.11999/JEIT220778.

    YE Yinghui, TIAN Yujia, LU Guangyue, et al. Outage performance of commensal symbiotic radio based on energy harvesting[J]. Journal of Electronics & Information Technology, 2023, 45(7): 2350–2357. doi: 10.11999/JEIT220778.
    [9] YE Yinghui, SHI Liqin, CHU Xiaoli, et al. Mutualistic cooperative ambient backscatter communications under hardware impairments[J]. IEEE Transactions on Communications, 2022, 70(11): 7656–7668. doi: 10.1109/TCOMM.2022.3201119.
    [10] ZHOU Shaoqing, XU Wei, WANG Kezhi, et al. Ergodic rate analysis of cooperative ambient backscatter communication[J]. IEEE Wireless Communications Letters, 2019, 8(6): 1679–1682. doi: 10.1109/LWC.2019.2936196.
    [11] ZHANG Qianqian, LIANG Yingchang, YANG Hongchuan, et al. Mutualistic mechanism in symbiotic radios: When can the primary and secondary transmissions be mutually beneficial?[J]. IEEE Transactions on Wireless Communications, 2022, 21(10): 8036–8050. doi: 10.1109/TWC.2022.3163735.
    [12] LONG Ruizhe, LIANG Yingchang, GUO Huayan, et al. Symbiotic radio: A new communication paradigm for passive internet of things[J]. IEEE Internet of Things Journal, 2020, 7(2): 1350–1363. doi: 10.1109/JIOT.2019.2954678.
    [13] YANG Haohang, YE Yinghui, LIANG Kai, et al. Energy efficiency maximization for symbiotic radio networks with multiple backscatter devices[J]. IEEE Open Journal of the Communications Society, 2021, 2: 1431–1444. doi: 10.1109/OJCOMS.2021.3090836.
    [14] GONG Shimin, GAO Lin, XU Jing, et al. Exploiting backscatter-aided relay communications with hybrid access model in device-to-device networks[J]. IEEE Transactions on Cognitive Communications and Networking, 2019, 5(4): 835–848. doi: 10.1109/TCCN.2019.2925080.
    [15] XU Jing, LI Jiachen, GONG Shimin, et al. Passive relaying game for wireless powered internet of things in backscatter-aided hybrid radio networks[J]. IEEE Internet of Things Journal, 2019, 6(5): 8933–8944. doi: 10.1109/JIOT.2019.2924977.
    [16] GONG Shimin, HUANG Xiaoxia, XU Jing, et al. Backscatter relay communications powered by wireless energy beamforming[J]. IEEE Transactions on Communications, 2018, 66(7): 3187–3200. doi: 10.1109/TCOMM.2018.2809613.
    [17] XU Rui, YE Yinghui, SUN Haijian, et al. Wireless powered opportunistic cooperative backscatter communications: To relay or not?[C]. 2022 IEEE 95th Vehicular Technology Conference: (VTC2022-Spring), Helsinki, Finland, 2022: 1–5. doi: 10.1109/VTC2022-Spring54318.2022.9860432.
    [18] XU Rui, SHI Liqin, YE Yinghui, et al. Relay-enabled backscatter communications: Linear mapping and resource allocation[J]. IEEE Transactions on Vehicular Technology, 2023, 72(12): 16323–16337. doi: 10.1109/TVT.2023.3299621.
    [19] GU Bowen, LI Dong, LIU Ye, et al. Exploiting constructive interference for backscatter communication systems[J]. IEEE Transactions on Communications, 2023, 71(7): 4344–4359. doi: 10.1109/TCOMM.2023.3277519.
    [20] GU Bowen, LI Dong, XU Yongjun, et al. Many a little makes a mickle: Probing backscattering energy recycling for backscatter communications[J]. IEEE Transactions on Vehicular Technology, 2023, 72(1): 1343–1348. doi: 10.1109/TVT.2022.3205888.
