粒子群优化的门控循环单元网络漂流浮标轨迹预测

刘凇佐; 王虔; 李磊; 李慧; 余赟

doi:10.11999/JEIT230945

粒子群优化的门控循环单元网络漂流浮标轨迹预测

doi: 10.11999/JEIT230945 cstr: 32379.14.JEIT230945

刘凇佐^{1, 2, 3, 4},
王虔^{1, 2, 3},
李磊⁵,
李慧^6, ,,
余赟⁷

1.
哈尔滨工程大学水声技术重点实验室哈尔滨 150001
2.
工业和信息化部海洋信息获取与安全工信部重点实验室(哈尔滨工程大学) 哈尔滨 150001
3.
哈尔滨工程大学水声工程学院哈尔滨 150001
4.
哈尔滨工程大学三亚南海创新发展基地三亚 572024
5.
中国石油大学(华东)海洋与空间信息学院青岛 266580
6.
哈尔滨工程大学智能科学与工程学院哈尔滨 150001
7.
海军装备研究院北京 100161

基金项目: 国家自然科学基金(61803115)

详细信息

作者简介:
刘凇佐：男，教授，研究方向为水下信息融合，漂流浮标轨迹预测技术，仿生通信与侦测技术

王虔：女，硕士生，研究方向为漂流浮标轨迹预测技术

李磊：男，讲师，研究方向为水下多源信息融合技术，水下被动声学监测关键技术

李慧：女，副教授，研究方向为高精度导航定位技术及应用、卫星精密轨道及钟差预测技术及应用、智能导航技术及应用

余赟：女，高工，研究方向为声纳信号处理，水下信息融合技术

通讯作者:
李慧　lihuiheu@hrbeu.edu.cn

中图分类号: TN96
计量
- 文章访问数: 235
- HTML全文浏览量: 149
- PDF下载量: 43
- 被引次数: 0
出版历程
- 收稿日期: 2023-08-31
- 修回日期: 2024-05-13
- 网络出版日期: 2024-05-22
- 刊出日期: 2024-08-30

Gated Recurrent Unit Network of Particle Swarm Optimization for Drifting Buoy Trajectory Prediction

LIU SongZuo^{1, 2, 3, 4},
WANG Qian^{1, 2, 3},
LI Lei⁵,
LI Hui^{6
, ,},
YU Yun⁷

1.
National Key Laboratory of Underwater Acoustic Technology, Harbin Engineering University, Harbin, 150001, China
2.
Key Laboratory of Marine Information Acquisition and Security (Harbin Engineering University), Ministry of Industry and Information Technology, Harbin, 150001, China
3.
College of Underwater Acoustic Engineering, Harbin Engineering University, Harbin 150001, China
4.
Sanya Nanhai Innovation and Development Base of Harbin Engineering University, Sanya, 572024, China
5.
College of Oceanography and Space Informatics, China University of Petroleum (East China), Qingdao 266580, China
6.
College of Intelligent Systems Science and Engineering, Harbin Engineering University Harbin 150001, China
7.
Naval Academy of Armament, Beijing 100161, China

Funds: The National Natural Science Foundation of China (61803115)

摘要

摘要: 该文针对漂流浮标的轨迹预测问题，提出一种基于深度学习框架的端对端预测模型。由于不同海域的水动力模型存在较大差异，针对海面漂流浮标的流体载荷计算也较为复杂。因此，该文根据漂流浮标历史轨迹形成的多维时间序列，提出更具有普适性的基于数据驱动的轨迹预测模型。该模型将粒子群优化算法(PSO)与门控循环单元(GRU)结合，使用PSO算法对GRU神经网络的超参数进行初始化，经过多次迁移迭代训练后获得最优漂流浮标轨迹预测模型。最后使用多个北大西洋真实漂流浮标轨迹数据进行验证，结果表明PSOGRU算法能够实现准确的漂流浮标轨迹预测。
- 漂流浮标 /
- 轨迹预测 /
- 粒子群优化 /
- 门控循环单元
Abstract: Considering the trajectory prediction problem of drift buoys, an end-to-end prediction model based on the depth learning framework is proposed in this paper.The hydrodynamic models in different sea areas are quite different, and the calculation of fluid load of floating buoys on the sea surface is also complicated. Therefore, a more universal data-driven trajectory prediction model based on the multidimensional time series formed by the historical trajectories of drifting buoys is proposed. In this model, Particle Swarm Optimization (PSO) is combined with Gated Recurrent Unit (GRU), and the PSO is used to initialize the hyperparameters of the GRU neural network. The optimal drifting buoy trajectory prediction model is obtained after multiple migration iteration training. Finally, several real drifting buoy track data in the North Atlantic are used to verify the results. The results show that the PSOGRU algorithm can achieve accurate drifting buoy track prediction results.
- Drifting buoy /
- Trajectory prediction /
- Particle Swarm Optimization(PSO) /
- Gated Recurrent Unit (GRU)

HTML全文

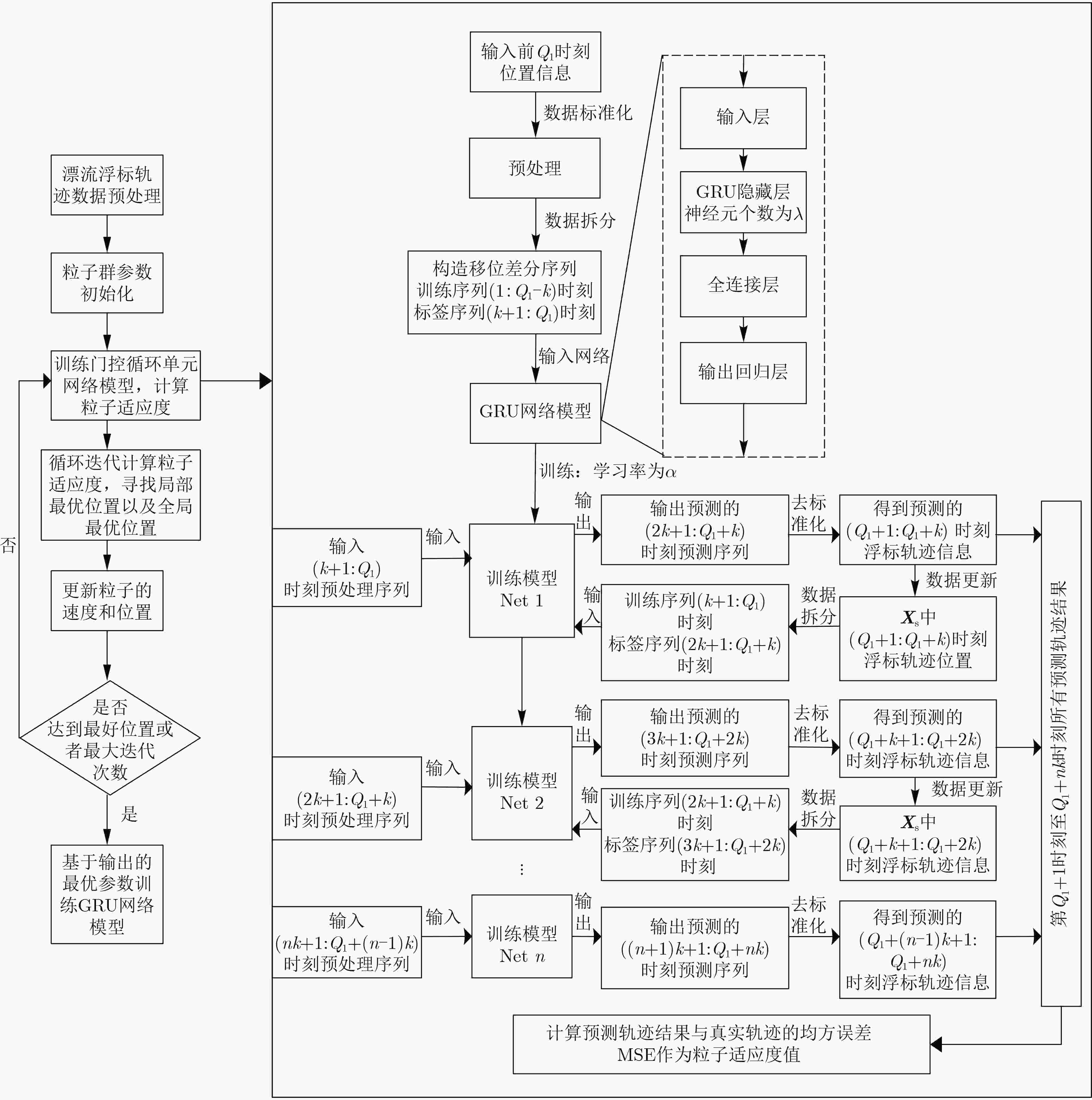

图 1 PSO寻优GRU网络超参数流程

下载: 全尺寸图片幻灯片

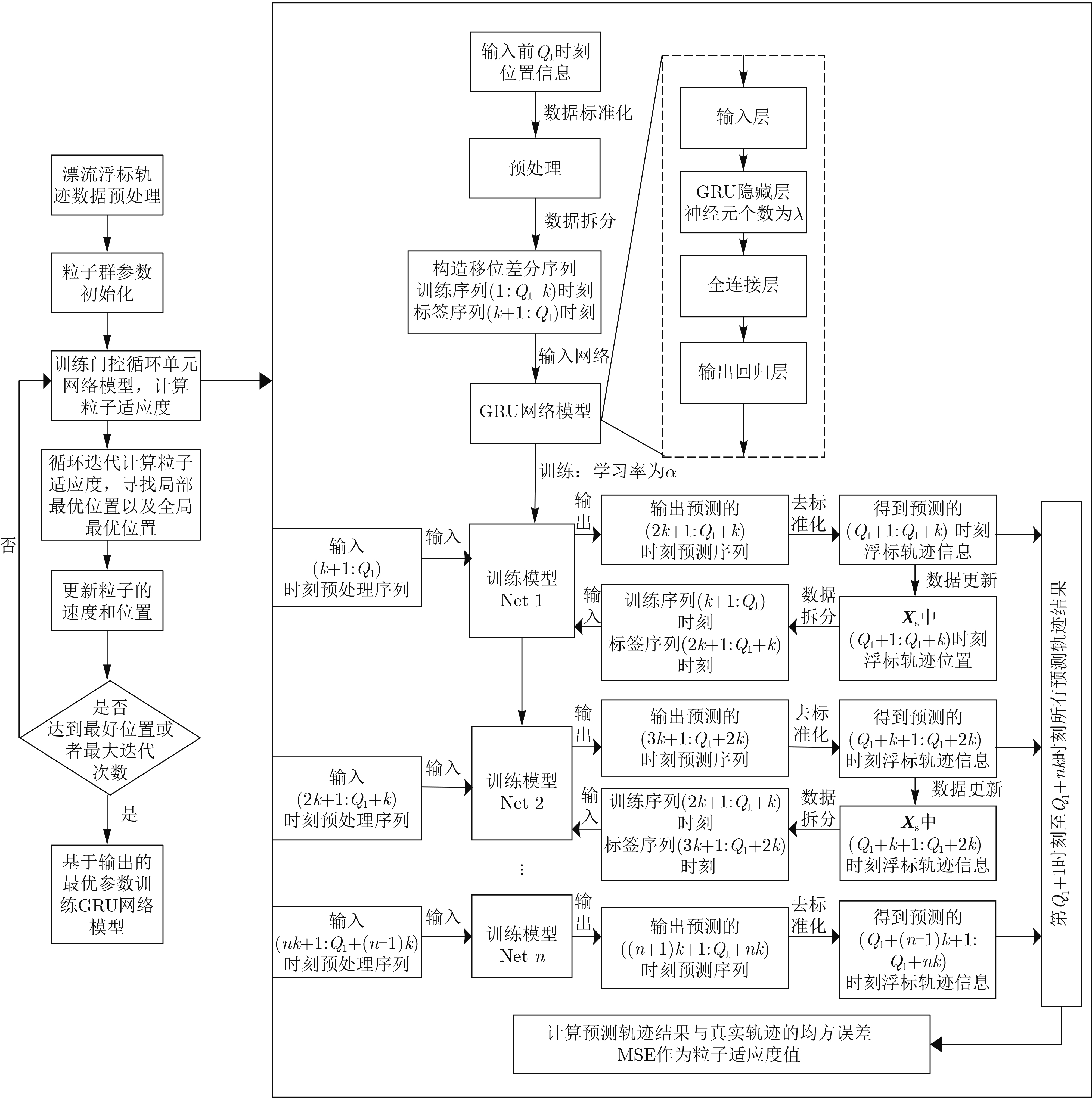

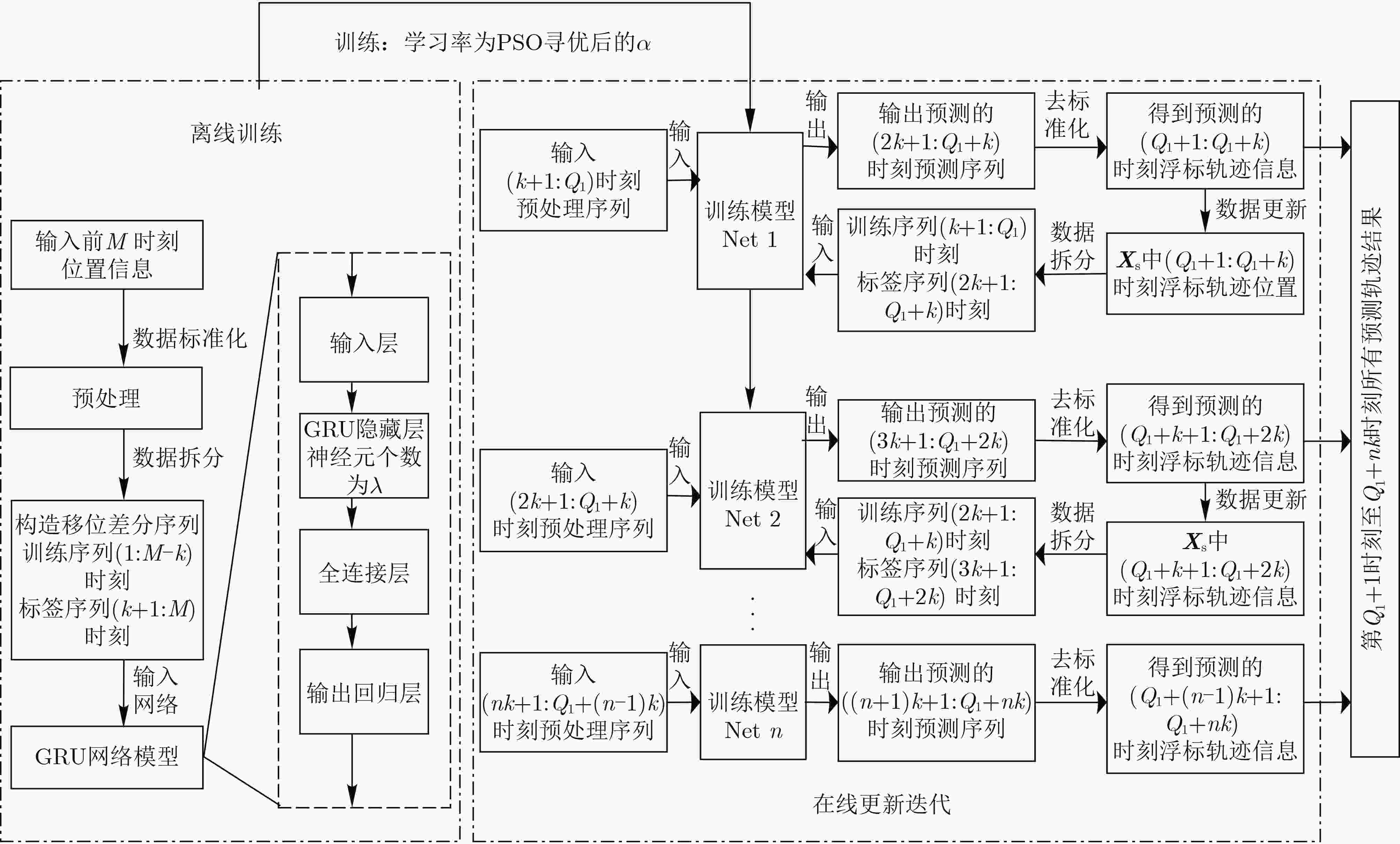

图 2 PSOGRU算法预测模型

下载: 全尺寸图片幻灯片

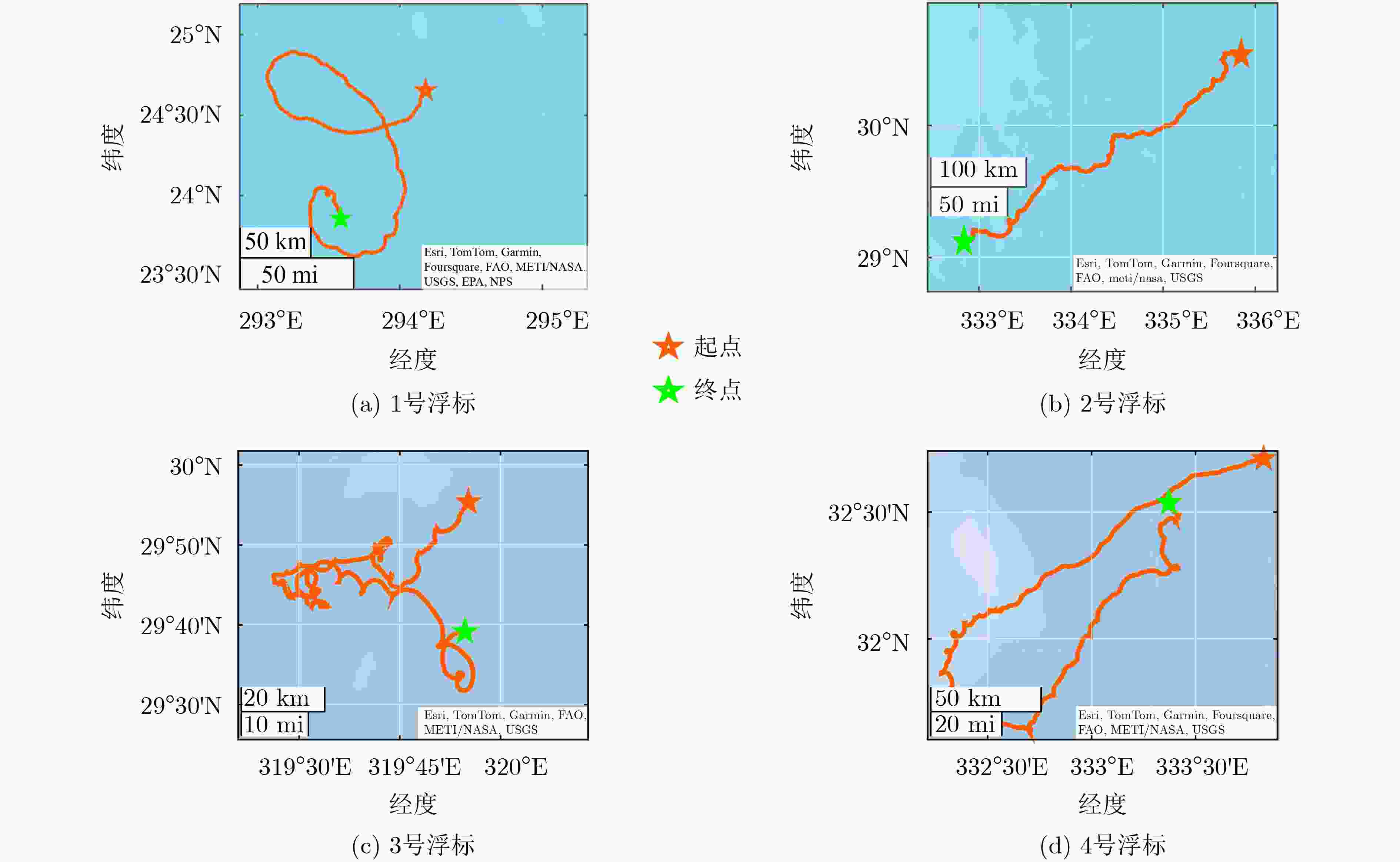

图 3 4只浮标552 h漂流轨迹

下载: 全尺寸图片幻灯片

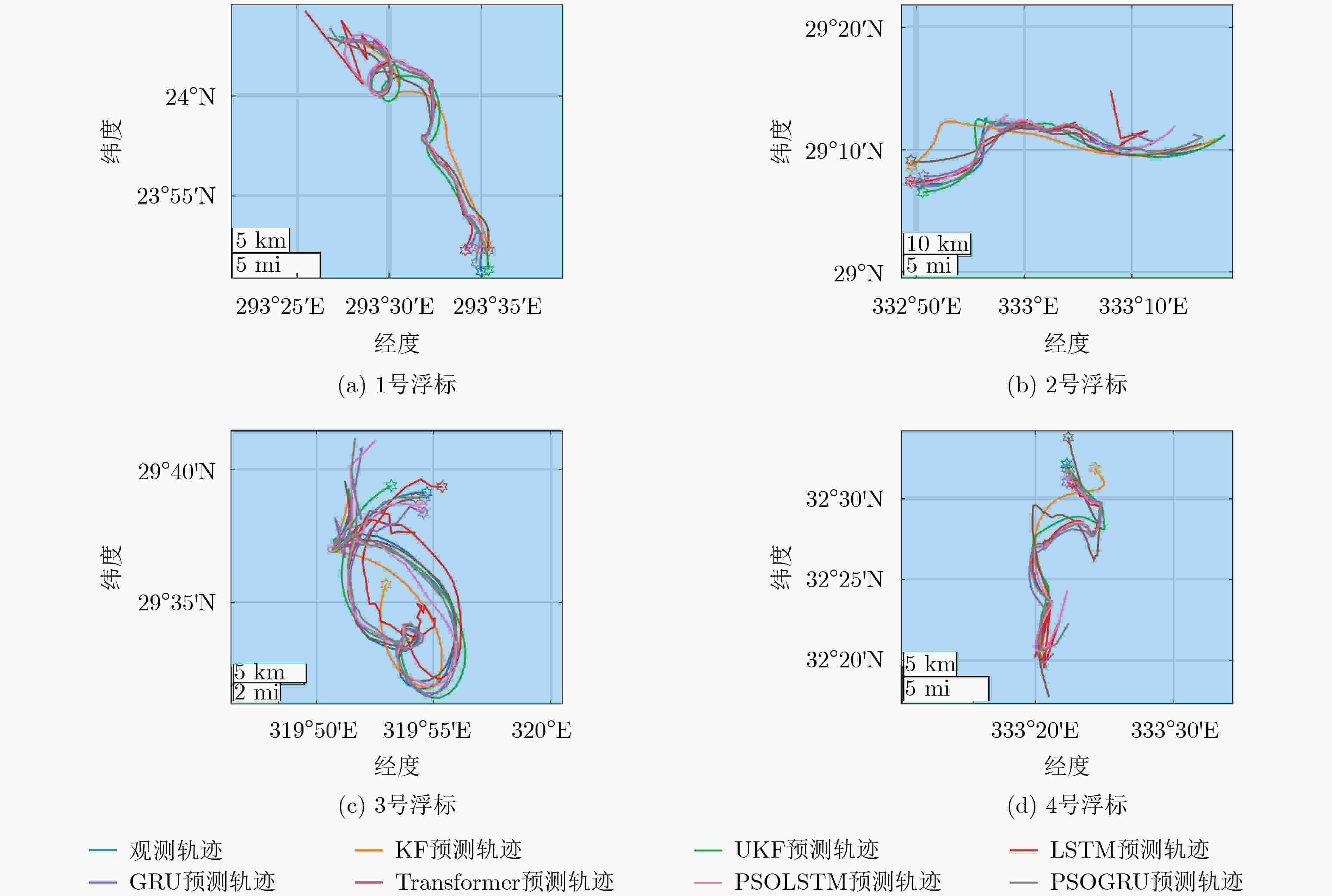

图 4 7种模型下4只浮标72 h漂移轨迹预测对比

下载: 全尺寸图片幻灯片

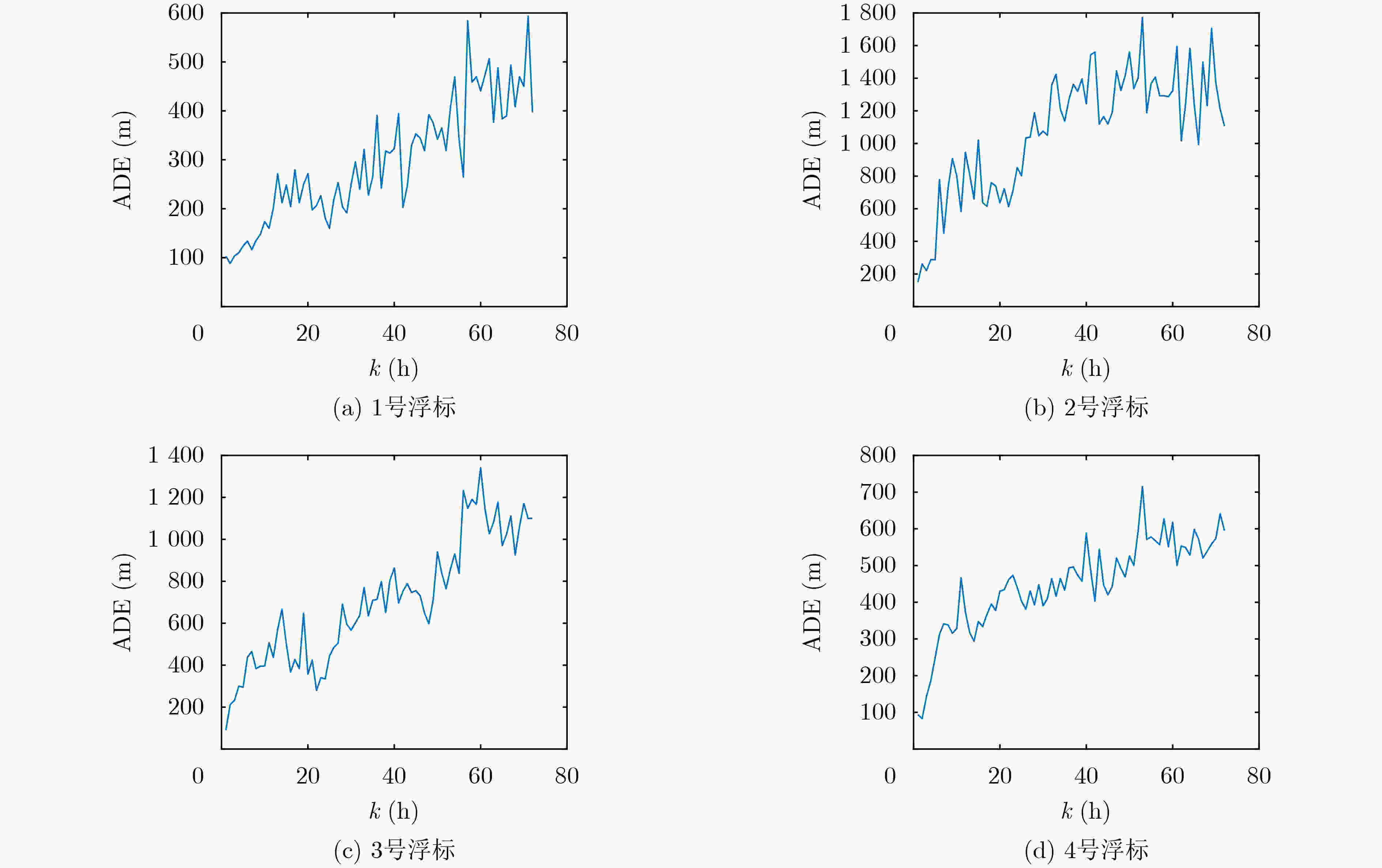

图 5 4只浮标72 h平均位移误差与$ {k} $的关系

下载: 全尺寸图片幻灯片

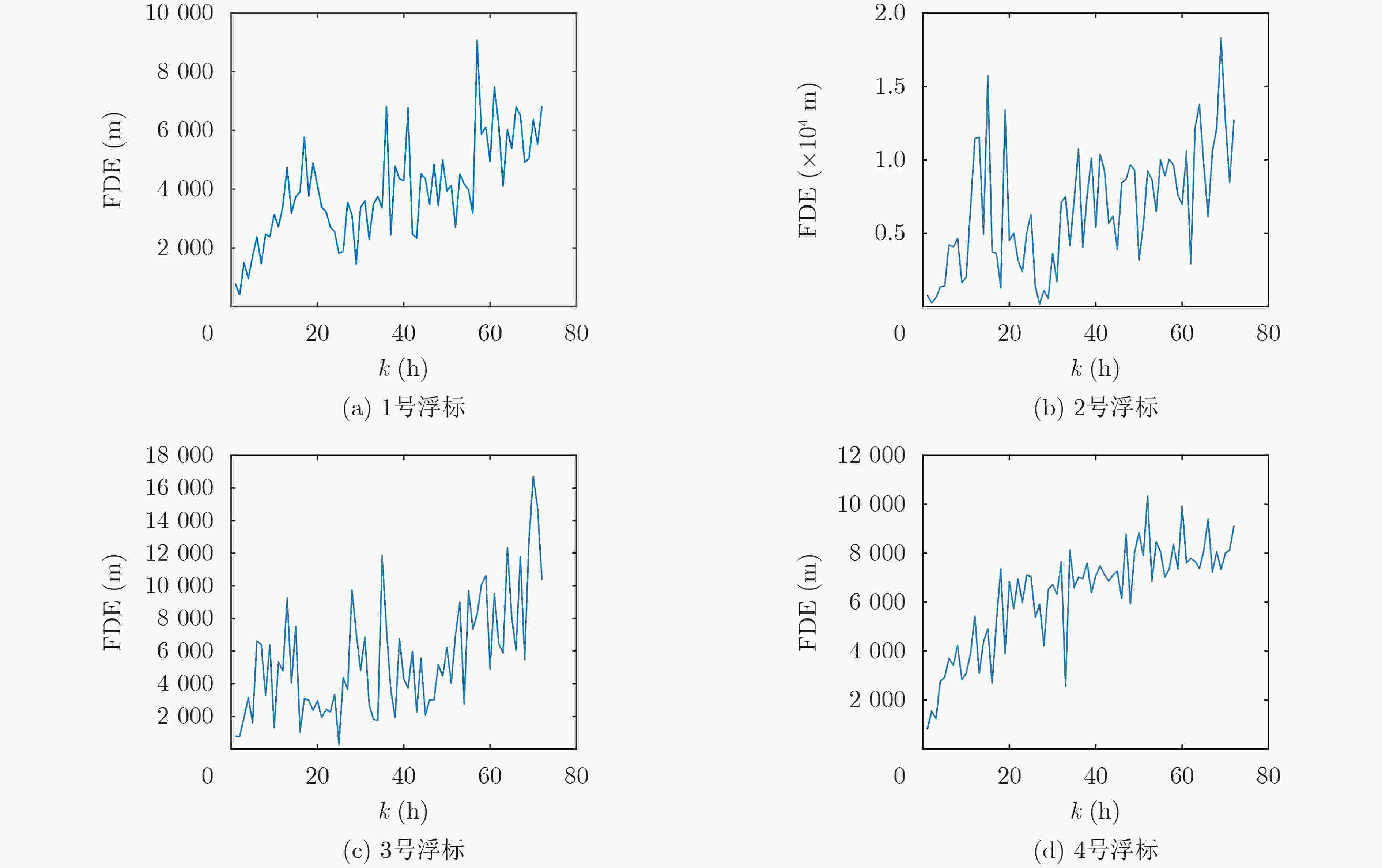

图 6 4只浮标72 h最终位移误差与$ {k} $的关系

下载: 全尺寸图片幻灯片

表 1 4只漂流浮标轨迹预测的网络模型超参数最优解

神经网络超参数	1号浮标	2号浮标	3号浮标	4号浮标
初始化中间层神经元个数$\lambda $	50	35	32	13
初始学习率$\alpha $	0.05	0.05	0.04	0.03

下载: 导出CSV

表 2 7种模型对4只漂流浮标72 h漂流轨迹预测的ADE结果(m)

模型	1号浮标	2号浮标	3号浮标	4号浮标	平均值
卡尔曼滤波	180.93	506.72	472.33	332.75	373.18
无迹卡尔曼滤波	99.51	198.73	169.62	106.99	143.71
LSTM神经网络	141.43	495.79	191.99	140.63	242.46
GRU神经网络	95.51	434.04	107.20	135.18	192.98
Transformer网络	100.24	418.28	83.22	223.17	185.42
PSOLSTM网络模型	136.95	369.35	88.98	155.42	187.68
PSOGRU网络模型	50.79	152.21	79.72	101.87	96.15

下载: 导出CSV

表 3 7种模型对4只漂流浮标72小时漂流轨迹预测的FDE结果(m)

模型	1号浮标	2号浮标	3号浮标	4号浮标	平均值
卡尔曼滤波	2 604.10	2 919.93	7 157.77	3 850.37	4 133.04
无迹卡尔曼滤波	723.83	1 456.09	2 844.72	683.77	1 427.10
LSTM神经网络	2 844.00	1 659.31	1 280.71	2 409.21	2 048.31
GRU神经网络	2 433.24	1 283.96	1 443.72	2 045.37	1 801.58
Transformer网络	2 064.30	3 776.45	929.65	3 594.53	2 591.23
PSOLSTM网络模型	2 122.79	1 477.55	1 124.07	1 269.57	1 498.50
PSOGRU网络模型	980.05	791.39	774.96	807.41	838.45

下载: 导出CSV

表 4 7种模型下的预测时间对比(s)

模型	1号浮标	2号浮标	3号浮标	4号浮标	平均预测时间
卡尔曼滤波	0.017	0.017	0.016	0.015	0.016
无迹卡尔曼滤波	0.017	0.017	0.016	0.015	0.016
LSTM神经网络	1 425.01	1 425.73	1 425.72	1 425.03	1 425.37
GRU神经网络	972.74	969.91	969.90	974.18	971.68
Transformer网络	834.44	836.43	846.26	836.25	838.35
PSOLSTM网络模型	929.43	927.31	927.30	928.03	928.02
PSOGRU网络模型	641.88	636.21	636.91	641.19	639.05

下载: 导出CSV

表 5 ADE(m)最值对应的预测时间k (h)

	1号浮标		2号浮标		3号浮标		4号浮标
最大值	593.18	k = 71	1772.63	k = 53	1340.71	k =60	715.01	k =53
最小值	88.17	k = 2	149.66	k = 1	90.23	k =1	83.15	k =2

下载: 导出CSV

表 6 FDE (m)最值对应的预测时间k (h)

	1号浮标		2号浮标		3号浮标		4号浮标
最大值	9 074.36	k =57	18 316.02	k =69	16 694.51	k =70	10 343.81	k =52
最小值	399.34	k =2	174.82	k =27	257.29	k =25	807.41	k =1

下载: 导出CSV
