一种融合个性化细胞关系和背景信息的宫颈细胞分类方法

丁博; 李超炜; 秦健; 何勇军; 洪振龙

doi:10.11999/JEIT230826

一种融合个性化细胞关系和背景信息的宫颈细胞分类方法

doi: 10.11999/JEIT230826 cstr: 32379.14.JEIT230826

1.
哈尔滨理工大学计算机科学与技术学院哈尔滨 150080
2.
哈尔滨工业大学计算学部哈尔滨 150006

基金项目: 国家自然科学基金(61673142)，黑龙江省自然科学基金 (LH2022F029, JQ2019F002)

详细信息

作者简介:
丁博：女，副教授，研究方向为计算机图形学、CAD、医学图像处理和人工智能

李超炜：男，硕士生，研究方向为医学图像处理和人工智能

秦健：男，博士生，研究方向为医学图像处理和人工智能

何勇军：男，教授，研究方向为医学图像处理和人工智能

洪振龙：男，硕士生，研究方向为医学图像处理和人工智能

通讯作者:
何勇军　heyongjun@hit.edu.cn

中图分类号: TN911.73 ; TP315.69
计量
- 文章访问数: 103
- HTML全文浏览量: 58
- PDF下载量: 17
- 被引次数: 0
出版历程
- 收稿日期: 2023-08-01
- 修回日期: 2024-04-23
- 网络出版日期: 2024-07-25
- 刊出日期: 2024-08-10

A Fusion-based Approach for Cervical Cell Classification Incorporating Personalized Relationships and Background Information

1.
School of Computer Science and Technology, Harbin University of Science and Technology, Harbin 150080, China
2.
School of Computer Science and Technology, Harbin Institute of Technology, Harbin 150006, China

Funds: The National Natural Science Foundation of China (61673142), The Natural Science Foundation of Hei Longjiang Province of China (LH2022F029, JQ2019F002)

摘要

摘要: 宫颈细胞分类在宫颈癌辅助诊断中发挥着重要的作用。然而，现有的宫颈细胞分类方法未充分考虑细胞关系和背景信息，也没有模拟病理医生的诊断方式，导致分类性能较低。因此，该文提出了一种融合细胞关系和背景信息的宫颈细胞分类方法，由基于细胞关系的图注意力分支(GAB-CCR)和背景信息注意力分支(BAB-WSI)组成。GAB-CCR采用细胞特征间的余弦相似度，首先构建相似和差异细胞关系图，并利用GATv2增强模型对细胞关系建模。BAB-WSI使用多头注意力模块捕捉涂片背景上的关键信息并反映不同区域的重要性。最后，将增强后的细胞特征和背景特征融合，提升了网络的分类性能。实验表明，相比于基线模型Swin Transformer-L，所提方法在准确率、敏感度、特异性和F1-Score分别提高了15.9%, 30.32%, 8.11%和31.62%。
- 图像处理 /
- 宫颈细胞分类 /
- 细胞关系 /
- 背景信息 /
- 注意力机制
Abstract: Cervical cell classification plays a crucial role in assisting the diagnosis of cervical cancer. However, existing methods for cervical cell classification do not enough consider relationships among cells and background information, and fail to effectively simulate the diagnostic approach of pathology doctors. As a result, their classification performance is limited. In this study, a novel approach that integrates cell relationships and background information for cervical cell classification is proposed. The proposed method consists of a Graph Attention Branching for Cell-Cell Relationships (GAB-CCR) and a Background Attention Branching for Whole Slide Images (BAB-WSI). GAB-CCR utilizes cosine similarity of cell features to construct preliminary graphs representing similar and distinct cell relationships. Additionally, GAB-CCR enhances the ability of models in modeling cell relationships through GATv2. BAB-WSI employs multi-head attention to effectively capture crucial information on the slide background and reflect the importance of different regions. Finally, the enhanced cell and background features are fused to improve the classification performance of the network. Experimental results demonstrate that the proposed method achieves significant improvements over the baseline model, Swin Transformer-L, with improvement in accuracy, sensitivity, specificity, and F1-Score by 15.9%, 30.32%, 8.11%, and 31.62% respectively.
- Image processing /
- Cervical cell classification /
- Relationship among cells /
- Background information /
- Attention mechanism

HTML全文

图 1 不同类别的宫颈细胞

下载: 全尺寸图片幻灯片

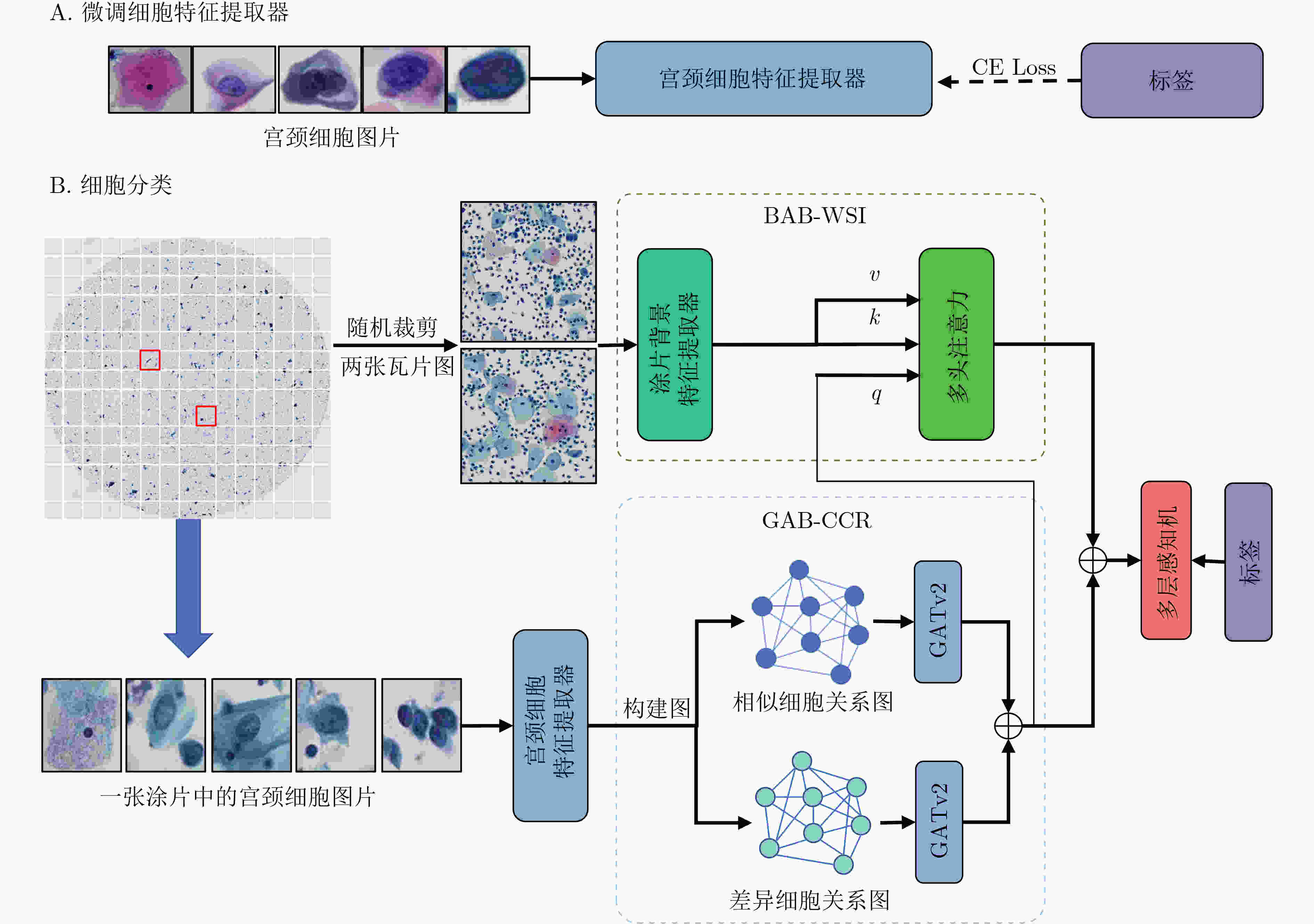

图 2 宫颈细胞框架总体流程图

下载: 全尺寸图片幻灯片

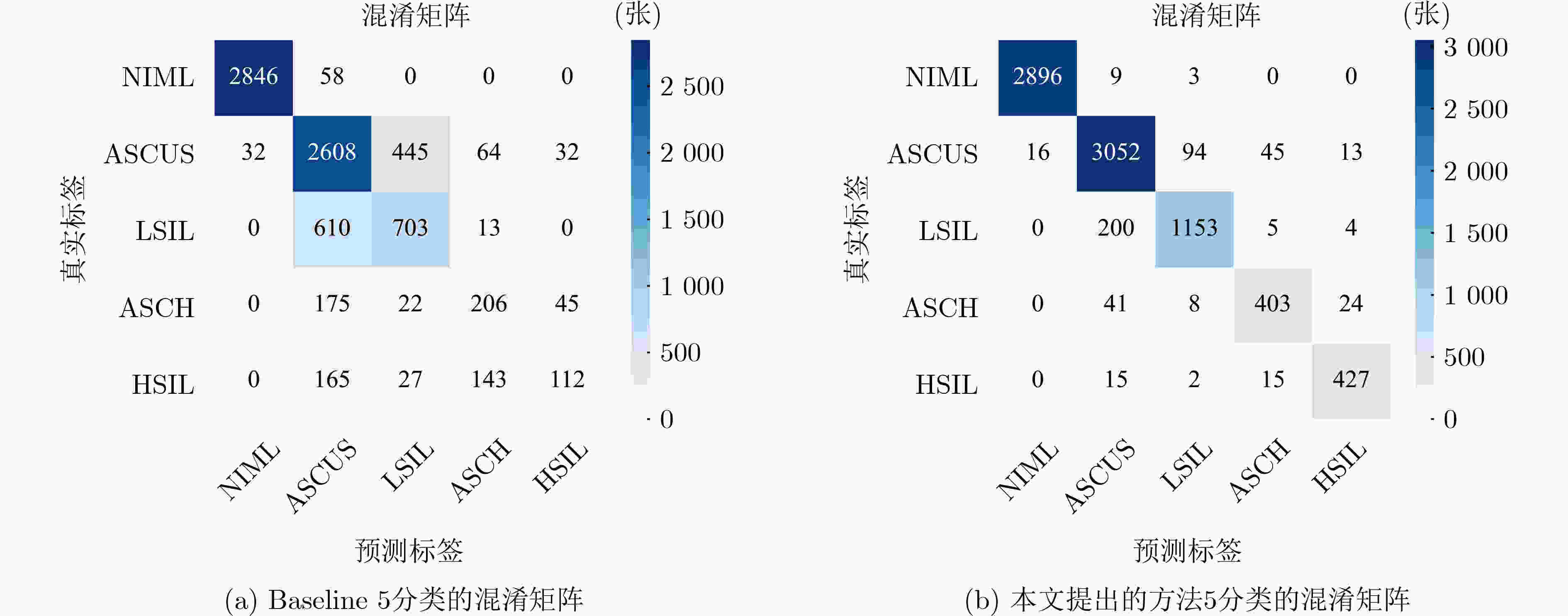

图 3 消融实验的混淆矩阵

下载: 全尺寸图片幻灯片

表 1 不同类别的宫颈细胞数量分布

细胞类别	细胞数量	类型
NIML	14516	正常
ASCUS	15897	异常
LSIL	6631	异常
ASCH	2238	异常
HSIL	2229	异常
总计	41511	–

下载: 导出CSV

表 2 对比实验结果(%)

方法	准确率	敏感度	特异性	F1-Score
Resnet152	78.62	63.25	93.95	65.15
DenseNet121	78.96	63.73	90.93	63.43
Inception v3	78.35	61.45	90.36	58.87
Efficientnetv2-L	80.36	67.95	94.63	68.57
VOLO-D2/224	79.03	64	91	58.87
VIT-B	77.35	59.33	89.83	58.87
Xcit-s24	76.19	61.88	90.47	58.87
Swin Transformer-L	78.23	61.02	90.25	58.87
Mixer-B/16	76.79	59.83	89.95	58.87
DeepCervix	76.71	60.22	93.51	61.76
Basak等人^[19]	70.83	42.46	90.87	42.41
Manna等人^[17]	72.97	53.13	92.10	55.49
Shi等人^[15]	88.48	88.51	97.01	88.33
Ou等人^[40]	89.06	89.25	97.15	89.13
本文方法	94.13	91.34	98.36	91.67

下载: 导出CSV

表 3 GAB-CCR分支消融实验结果(%)

方法	准确率	敏感度	特异性	F1-Score
Baseline	78.23	61.02	90.25	60.05
Baseline+GAB-SCCR	92.52	87.77	97.83	89.08
Baseline+GAB-DCCR	92.46	86.70	97.73	88.73
Baseline+GAB-CCR	93.48	88.29	98.02	90.78

下载: 导出CSV

表 4 消融实验结果(%)

方法	准确率	敏感度	特异性	F1-Score
Baseline	78.23	61.02	90.25	60.05
Baseline+GAB-CCR	93.48	88.29	98.02	90.78
Baseline+BFB-WSI	91.91	88.28	97.87	87.17
Baseline+BAB-WSI	93.12	88.34	98.03	89.68
Basline+GAB-CCR+BFB-WSI	93.69	89.50	98.14	91.05
Basline+GAB-CCR+BAB-WSI(Ours)	94.13	91.34	98.36	91.67

下载: 导出CSV
