基于迁移学习和参数优化的干扰效能评估方法

孙志国; 肖硕; 吴毅杰; 李诗铭; 王震铎

doi:10.11999/JEIT230817

基于迁移学习和参数优化的干扰效能评估方法

doi: 10.11999/JEIT230817

1.
哈尔滨工程大学通信与信息工程学院哈尔滨 150001
2.
上海航天电子技术研究所上海 201109

基金项目: 国家自然科学基金(62001138)，黑龙江省自然科学基金(LH2021F009)

详细信息

作者简介:
孙志国：男，教授、博士生导师，研究方向为认知数据链、无线通信与防护

肖硕：男，硕士生，研究方向为数据链干扰效能评估

吴毅杰：男，高级工程师，研究方向为测控通信相关技术

李诗铭：女，工程师，研究方向为数据链相关通信技术

王震铎：男，副教授，研究方向为变换域通信理论与技术、数据链关键技术及其干扰效能评估方法

通讯作者:
王震铎　zhenduowang@hrbeu.edu.cn

中图分类号: TN92
计量
- 文章访问数: 144
- HTML全文浏览量: 103
- PDF下载量: 18
- 被引次数: 0
出版历程
- 收稿日期: 2023-08-01
- 修回日期: 2023-10-25
- 网络出版日期: 2023-10-27

Interference Performance Evaluation Method Based on Transfer Learning and Parameter Optimization

1.
College of Information and Communication Engineering, Harbin Engineering University, Harbin 150001, China
2.
Shanghai Institute of Aerospace Electronics Technology, Shanghai 201109, China

Funds: The National Natural Science Foundation of China (62001138) , Heilongjiang Provincial Natural Science Foundation of China (LH2021F009)

摘要

摘要: 针对数字通信系统中传统误码率评估导致干扰效能评估结果单一的问题，该文提出了一种基于迁移学习和参数优化的干扰效能评估方法。该方法选取各信号处理模块的核心参数作为机器学习的训练指标，并以优劣解距离的评估结果作为分类标准，采用支持向量机训练评估模型。通过改进蚁群算法的全局搜索能力和迁移学习的知识传递特性分别解决了支持向量机中的参数优化问题和训练样本中的数据缺失问题。仿真实验结果表明，掌握源域数据集的支持向量机在模型准确度方面提升4.2%，牺牲初始收敛能力的参数优化与最优解的靠近程度提升4.7%，并且可以应用于数字通信系统的干扰效能评估。
- 干扰效能评估 /
- 数字通信 /
- 支持向量机 /
- 蚁群优化 /
- 迁移学习
Abstract: A novel method for evaluating interference performance based on Transfer Learning(TL) and parameter optimization is proposed to address the limitation of single evaluation results obtained using traditional error rate assessment in digital communication systems. This method selects the core parameters of each signal processing module as the training index of machine learning and considers the evaluation results of the Technique for Order Preference by Similarity to the Ideal Solution (TOPSIS) as the classification standard. An SVM (Support Vector Machine) is used to train and evaluate the model. The parameter optimization problem in the SVM is addressed by enhancing the global search capability of Ant Colony Optimization (ACO). Moreover, the issue of missing data in the training samples is solved based on the knowledge transfer properties of TL. The results of the simulation experiments demonstrate that the SVM with access to the source domain dataset increases the model accuracy by 4.2%. Parameter optimization, which sacrifices the initial convergence ability, enhances the proximity to the optimal solution by 4.7%.In addition, it can be employed to evaluate the interference performance of digital communication systems.
- Interference performance evaluation /
- Digital communication /
- Support Vector Machine(SVM) /
- Ant Colony Optimization (ACO) /
- Transfer Learning (TL)

HTML全文

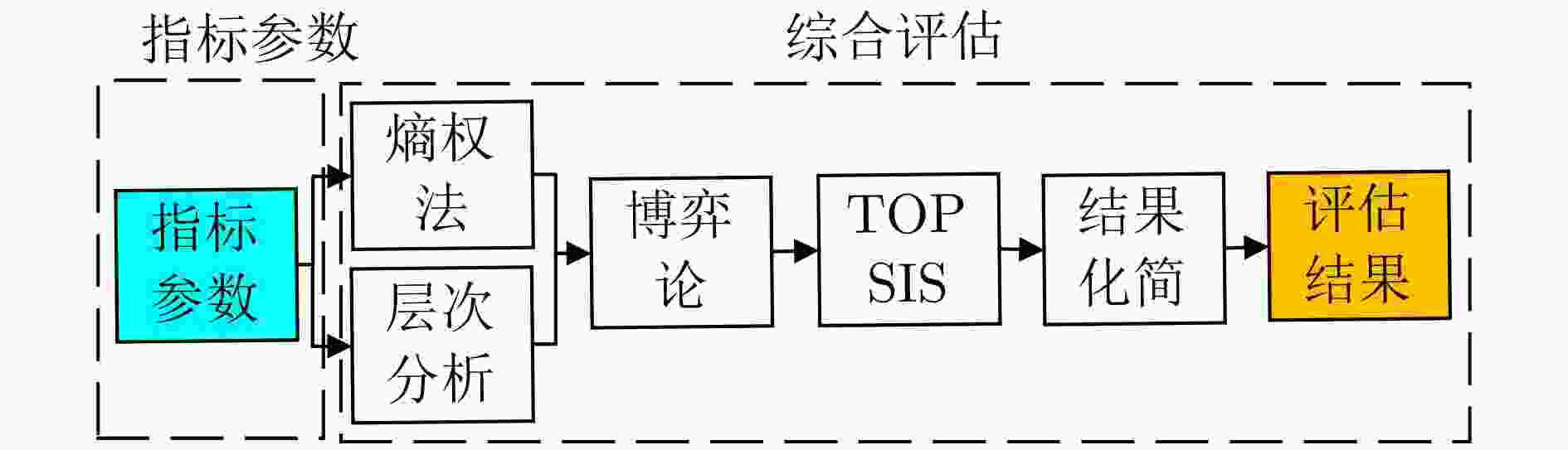

图 1 基于通信指标的综合评估流程图

下载: 全尺寸图片幻灯片

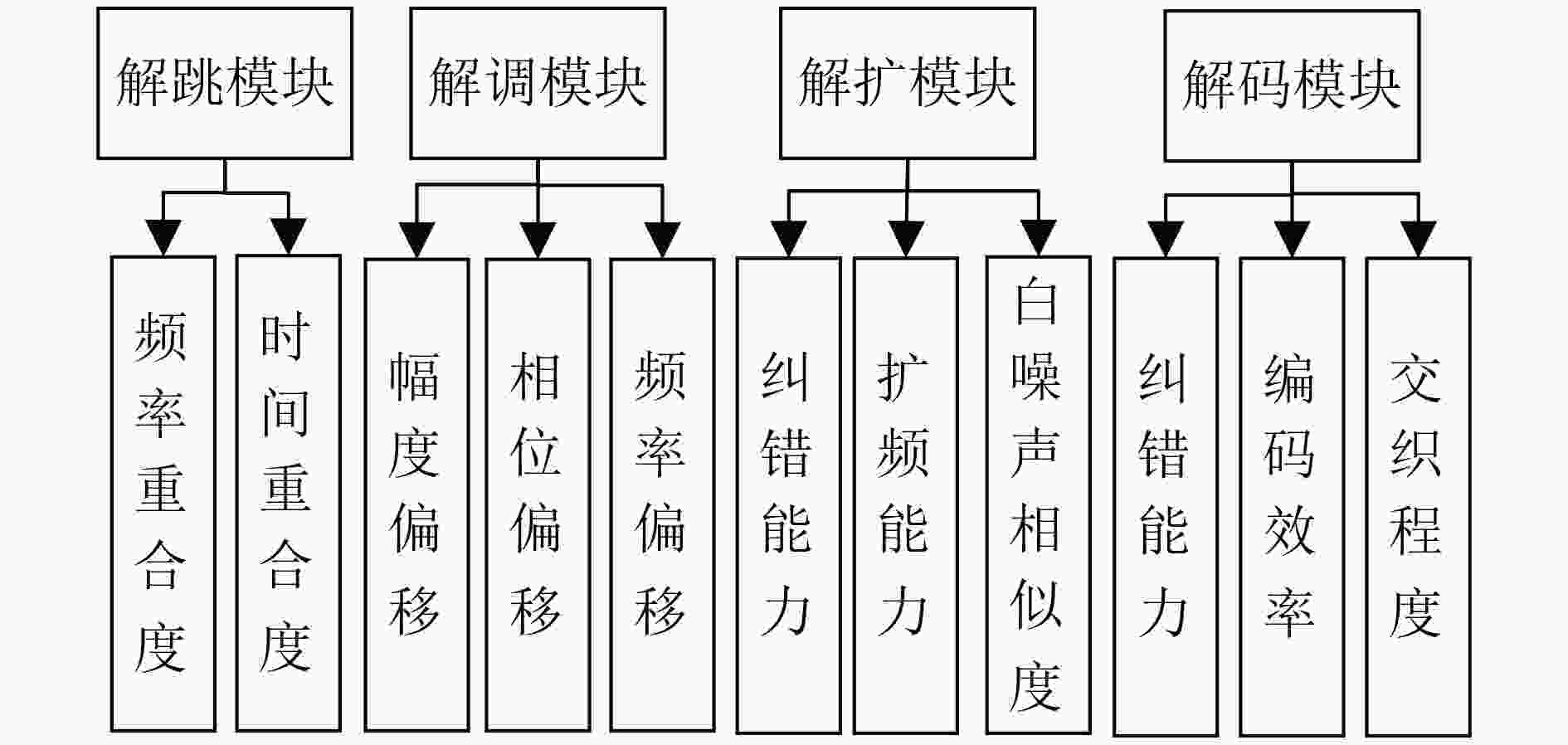

图 2 基于穿透式的指标选取结果

下载: 全尺寸图片幻灯片

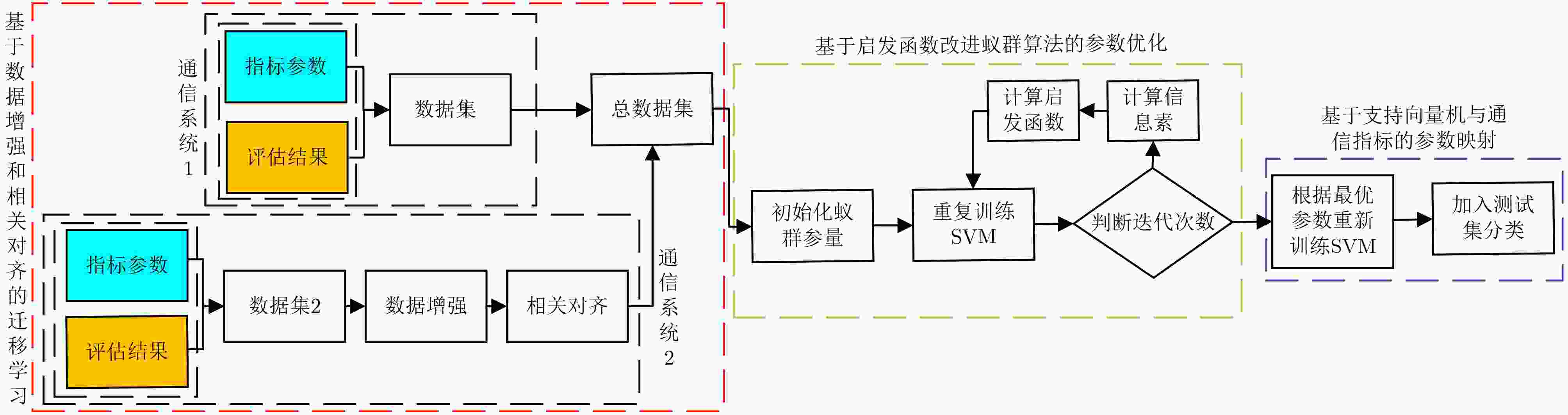

图 3 基于迁移学习和参数优化的干扰效能评估流程图

下载: 全尺寸图片幻灯片

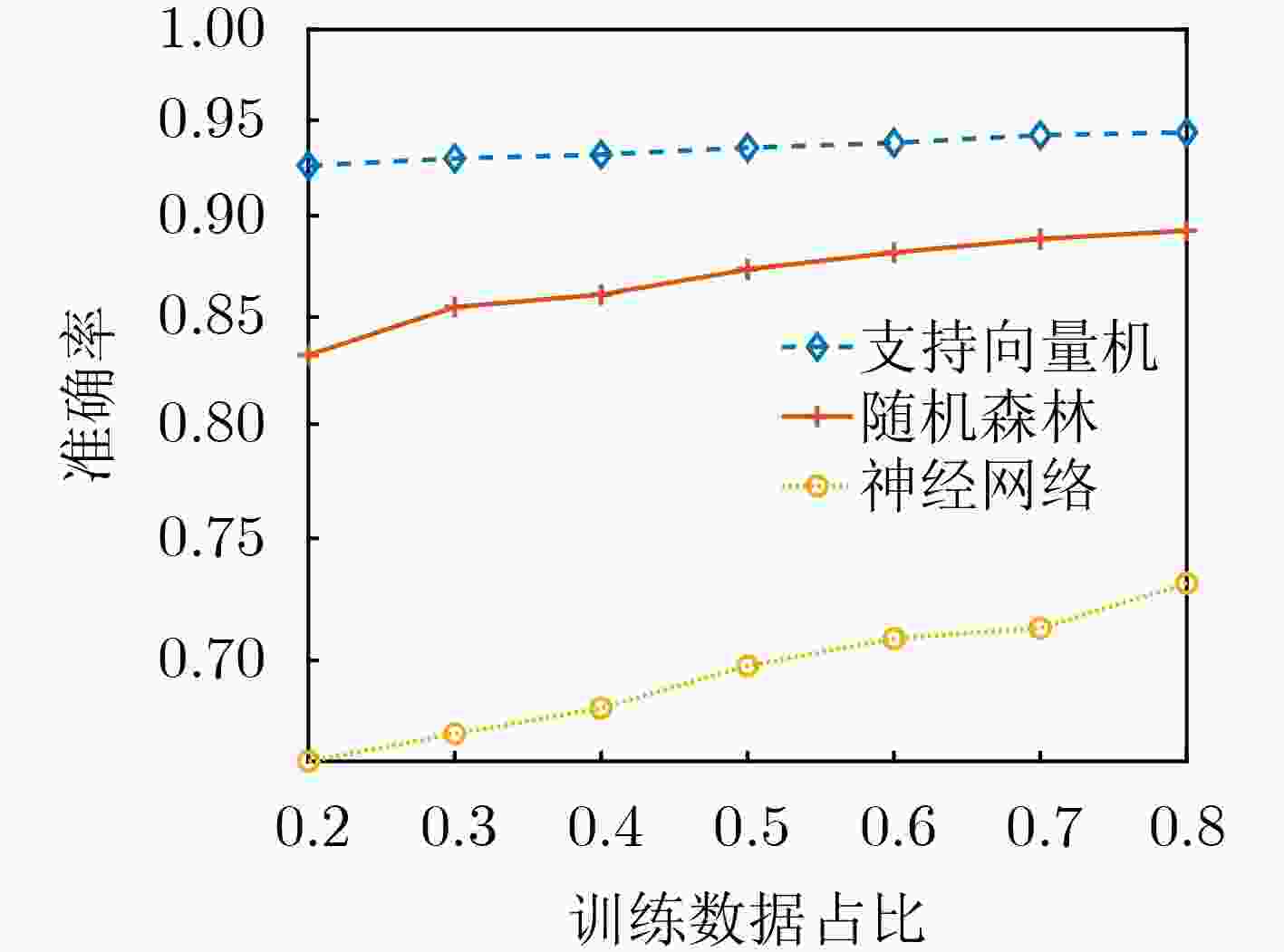

图 4 干扰效能评估模型准确率

下载: 全尺寸图片幻灯片

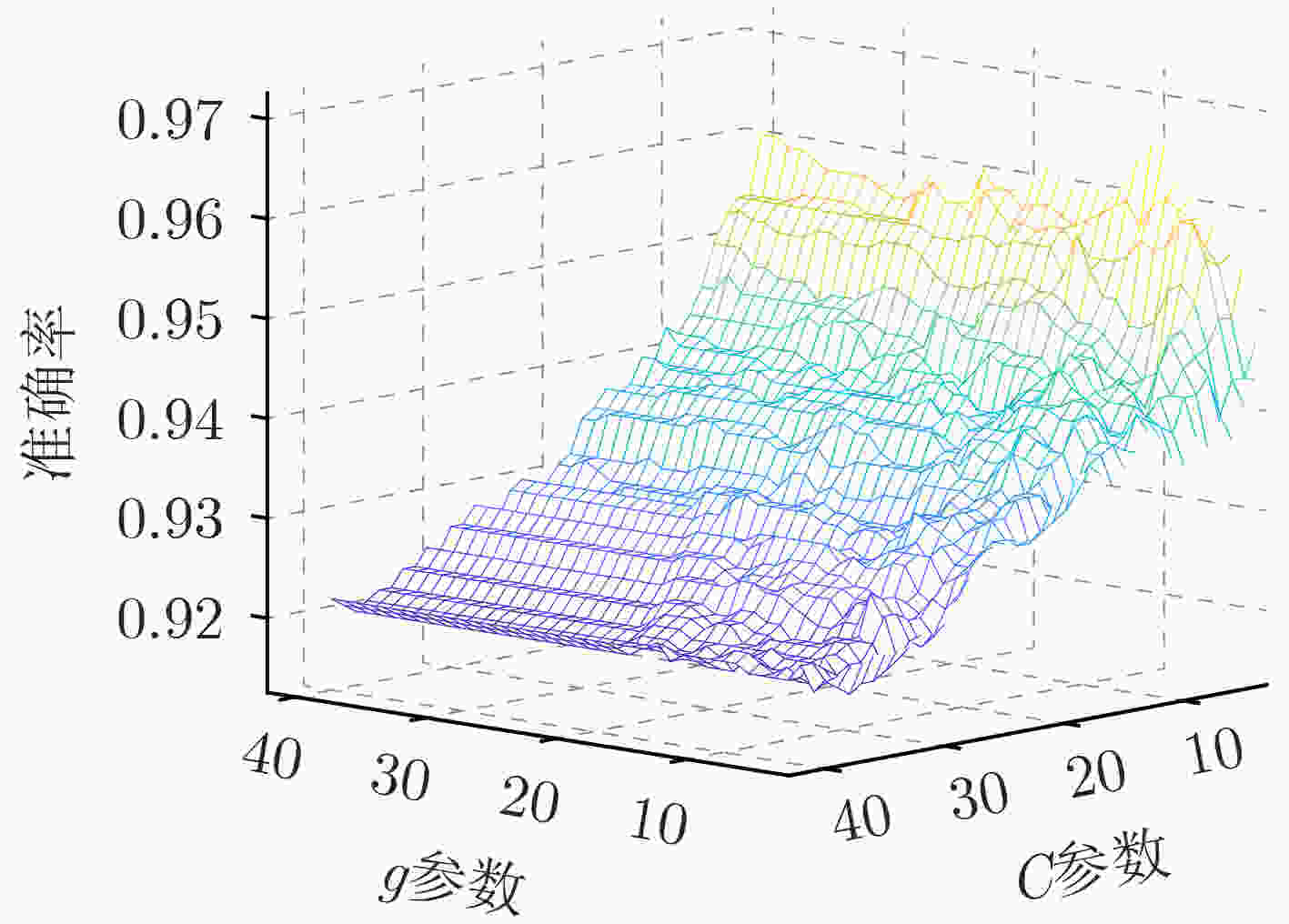

图 5 网格优化结果图

下载: 全尺寸图片幻灯片

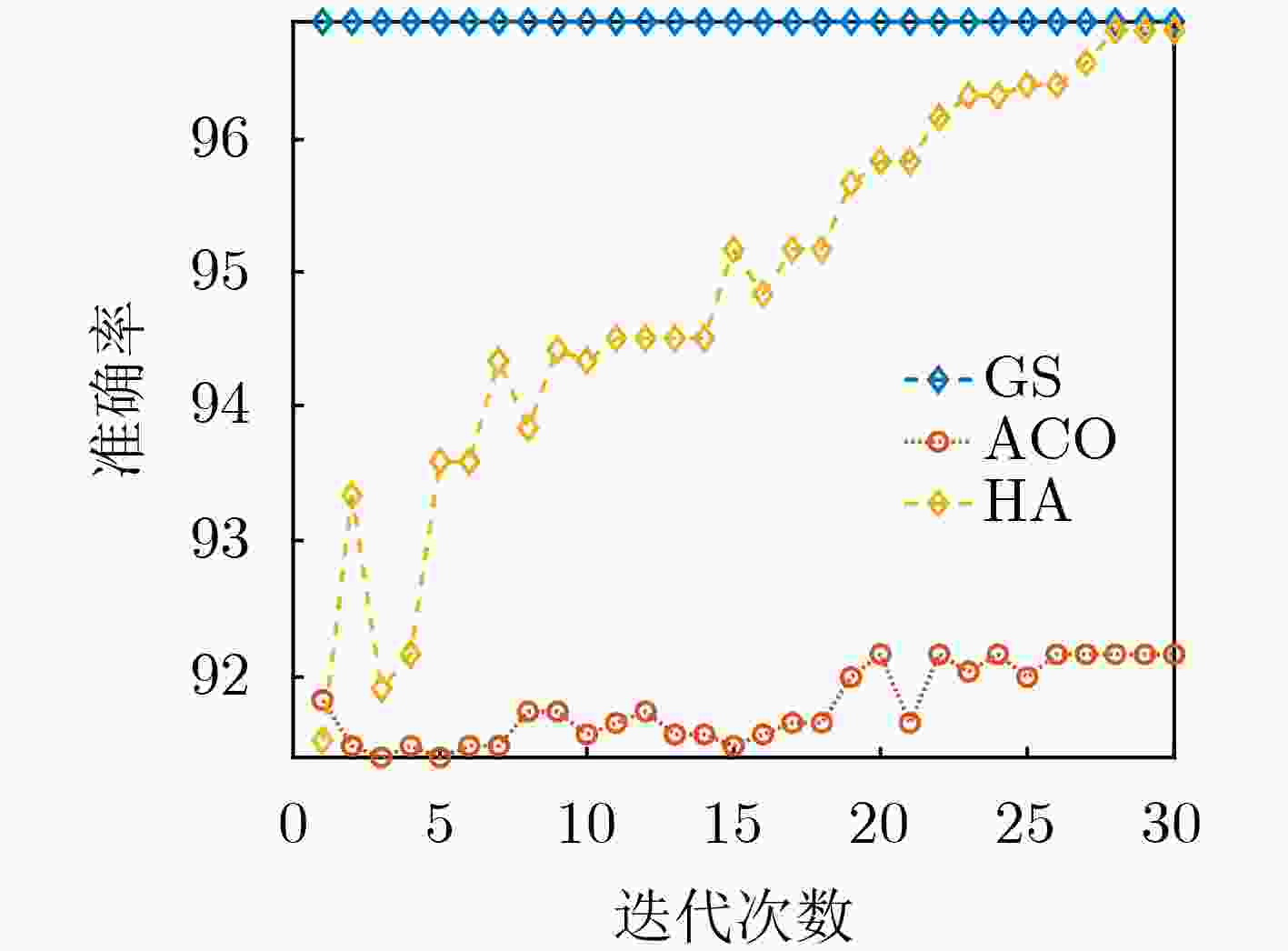

图 6 蚁群优化结果图

下载: 全尺寸图片幻灯片

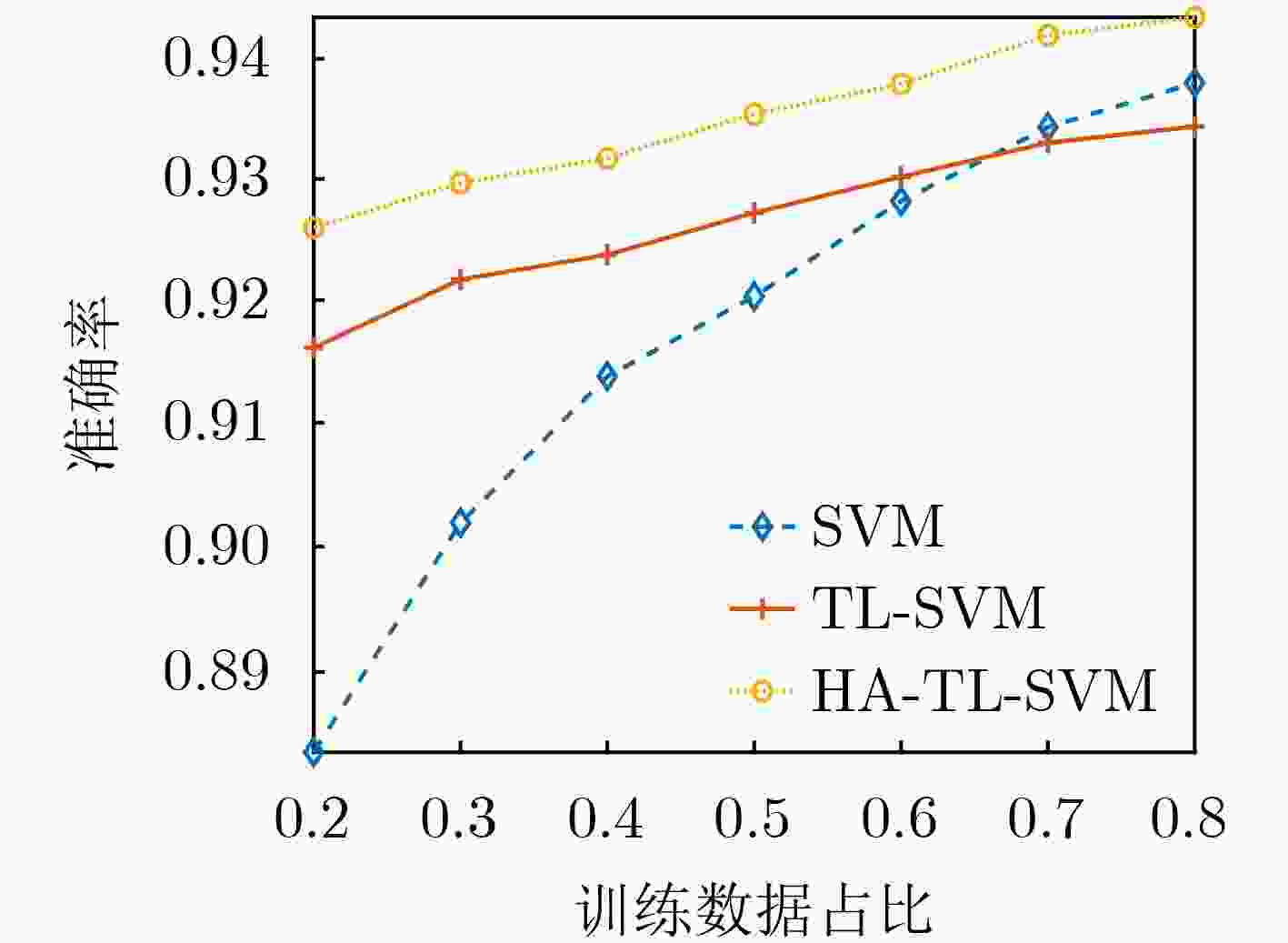

图 7 改进支持向量机准确率

下载: 全尺寸图片幻灯片

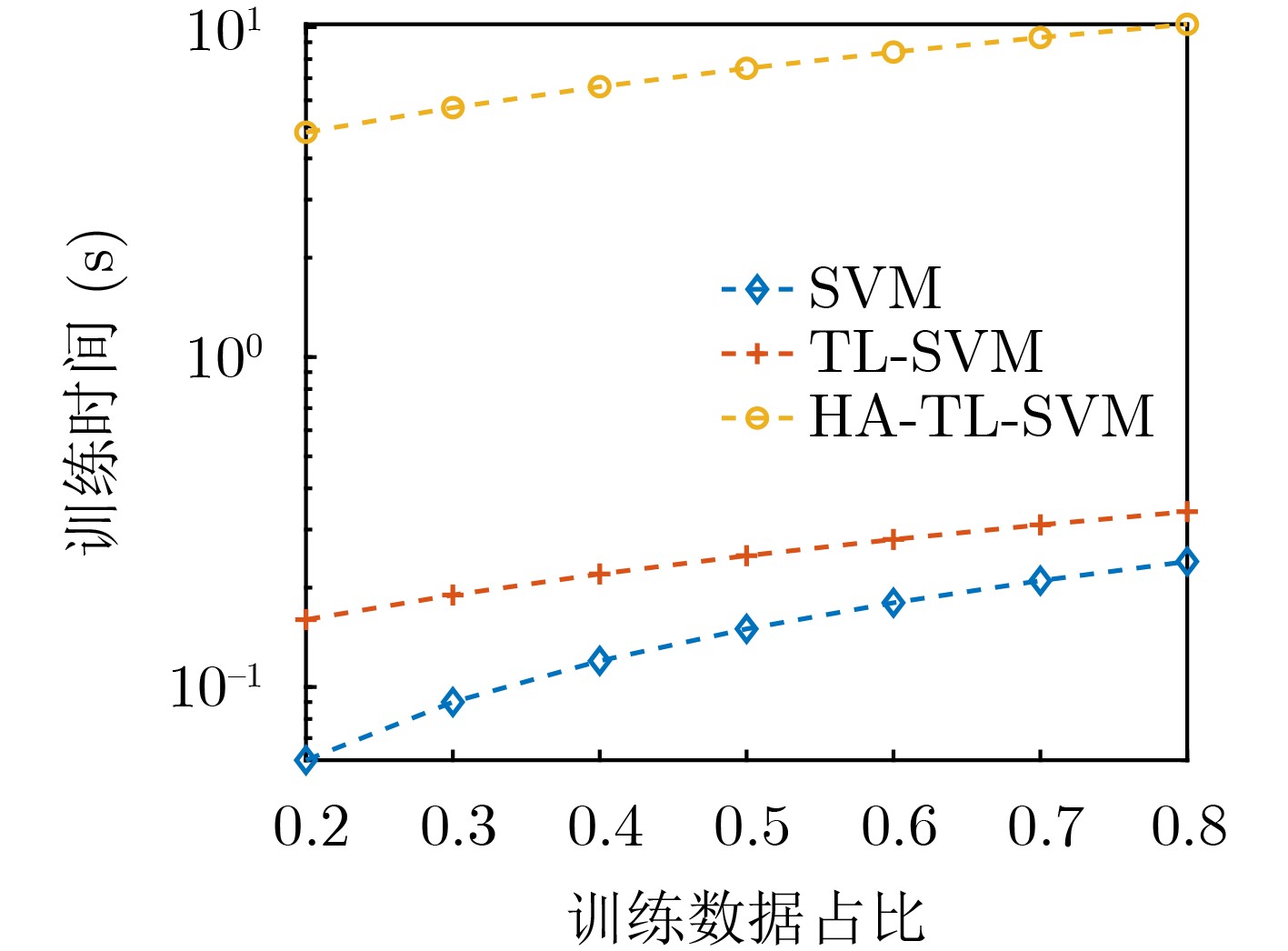

图 8 改进支持向量机训练时间

下载: 全尺寸图片幻灯片

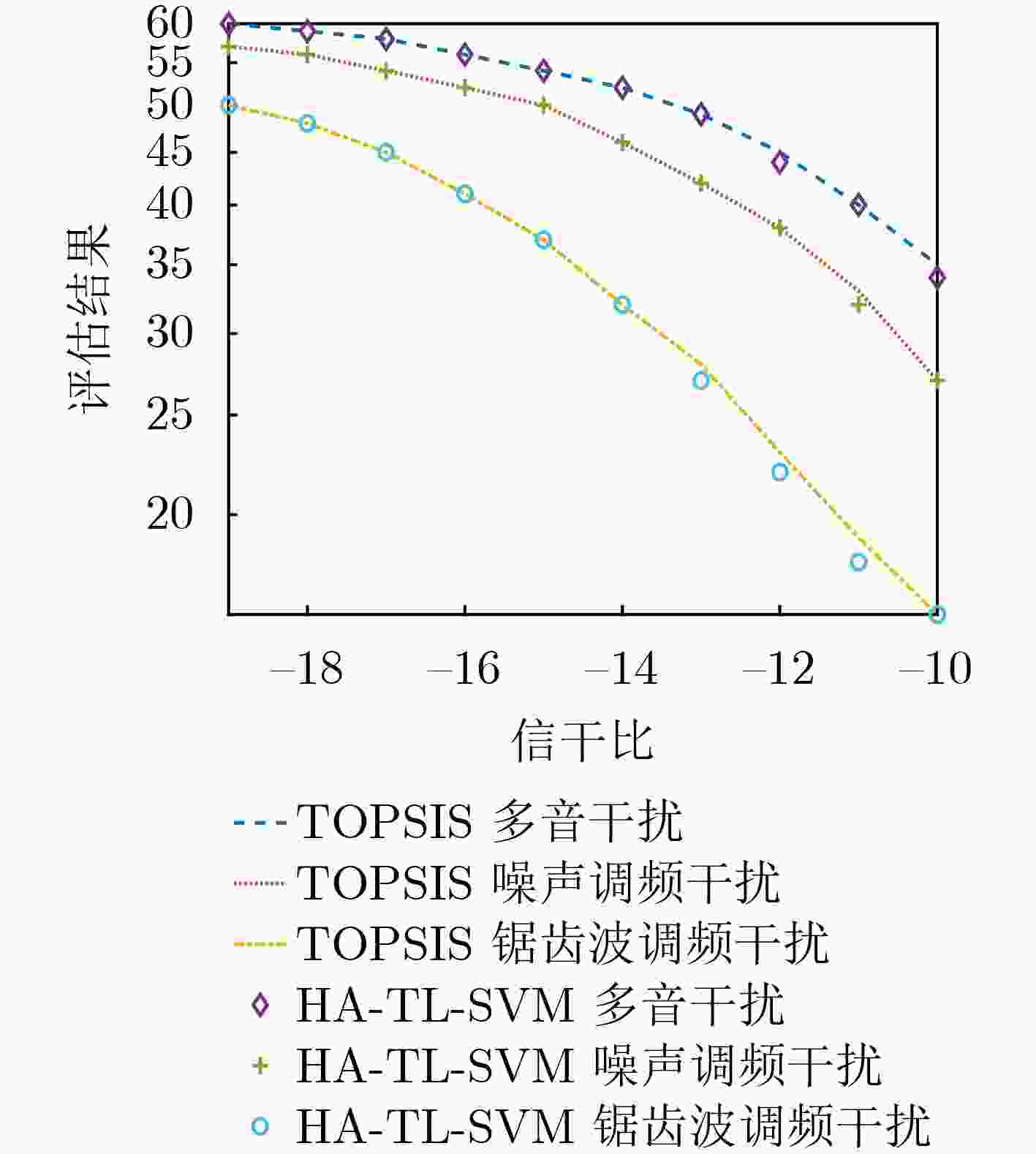

图 9 不同干扰种类评估结果

下载: 全尺寸图片幻灯片

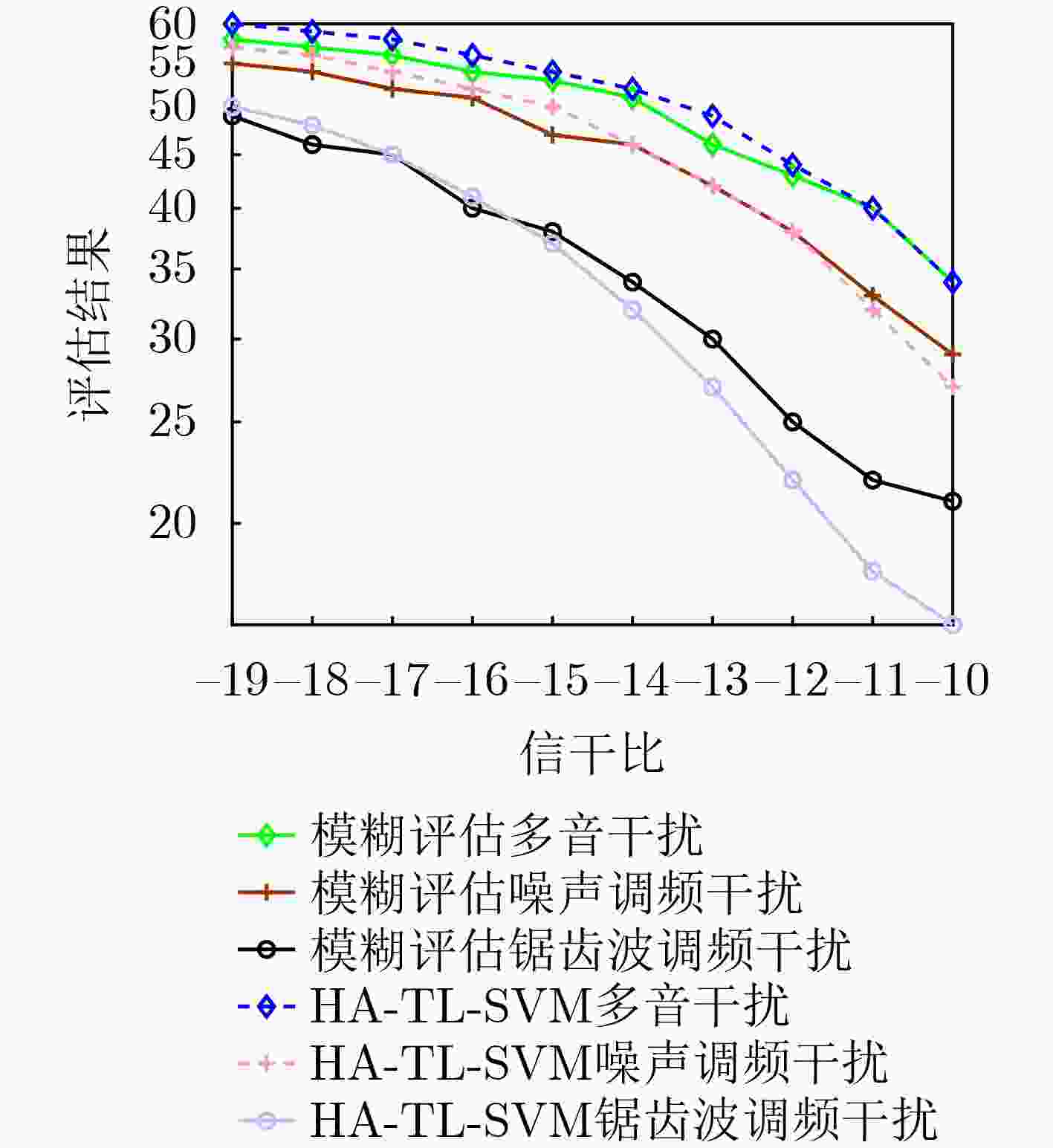

图 10 模糊评估与HA-TL-SVM评估结果

下载: 全尺寸图片幻灯片

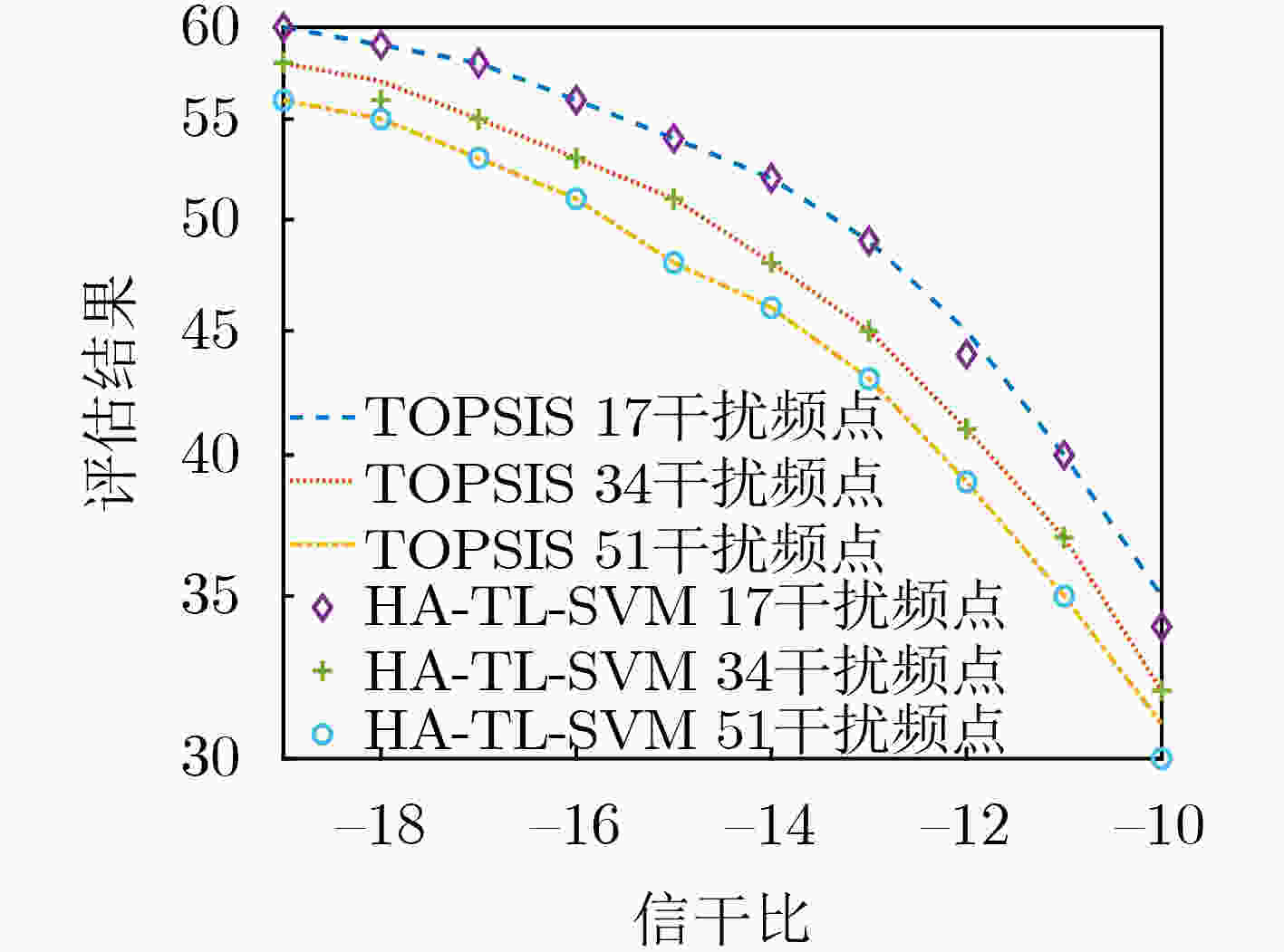

图 11 不同干扰频点个数评估结果

下载: 全尺寸图片幻灯片

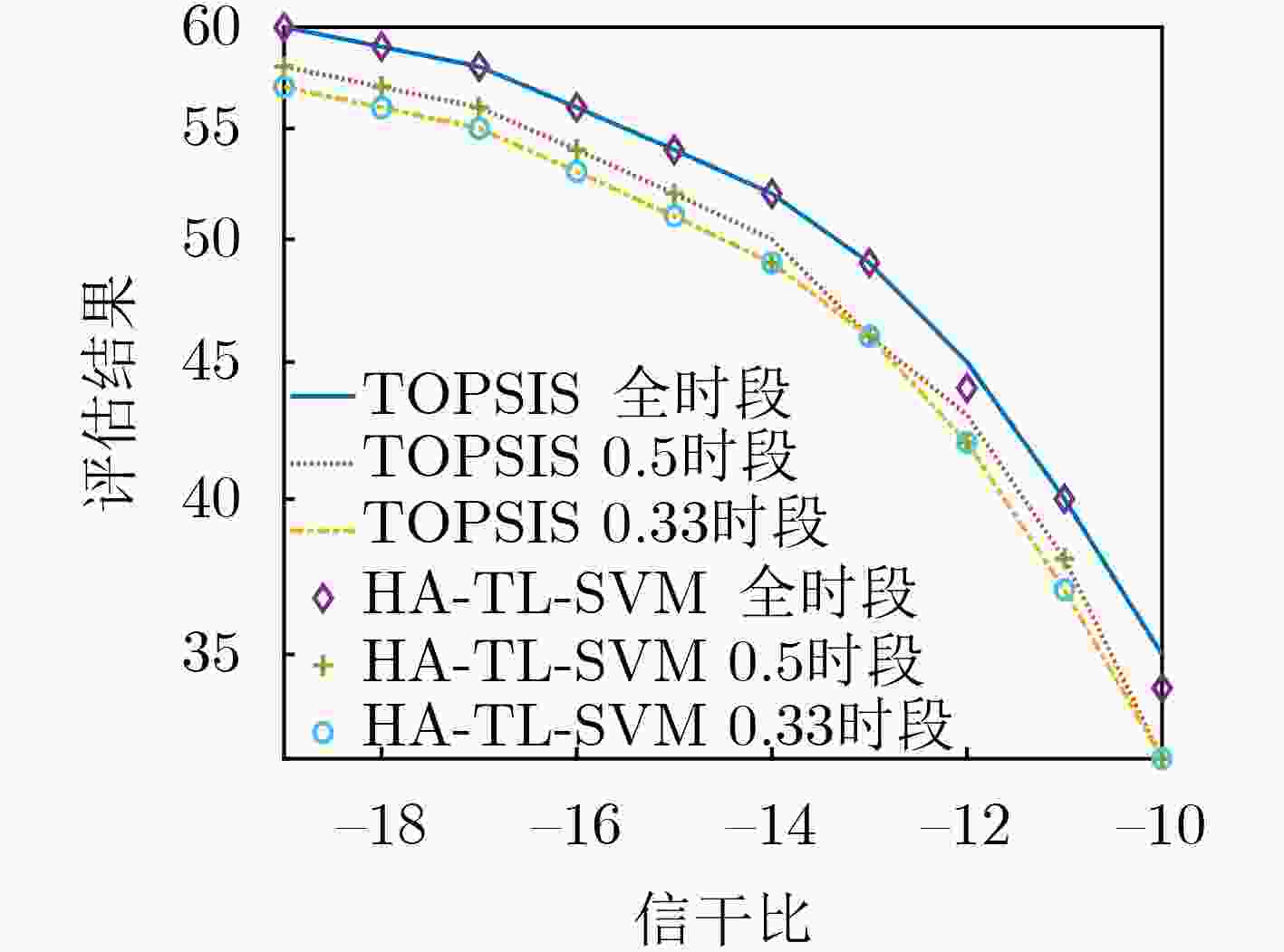

图 12 不同干扰时间评估结果

下载: 全尺寸图片幻灯片

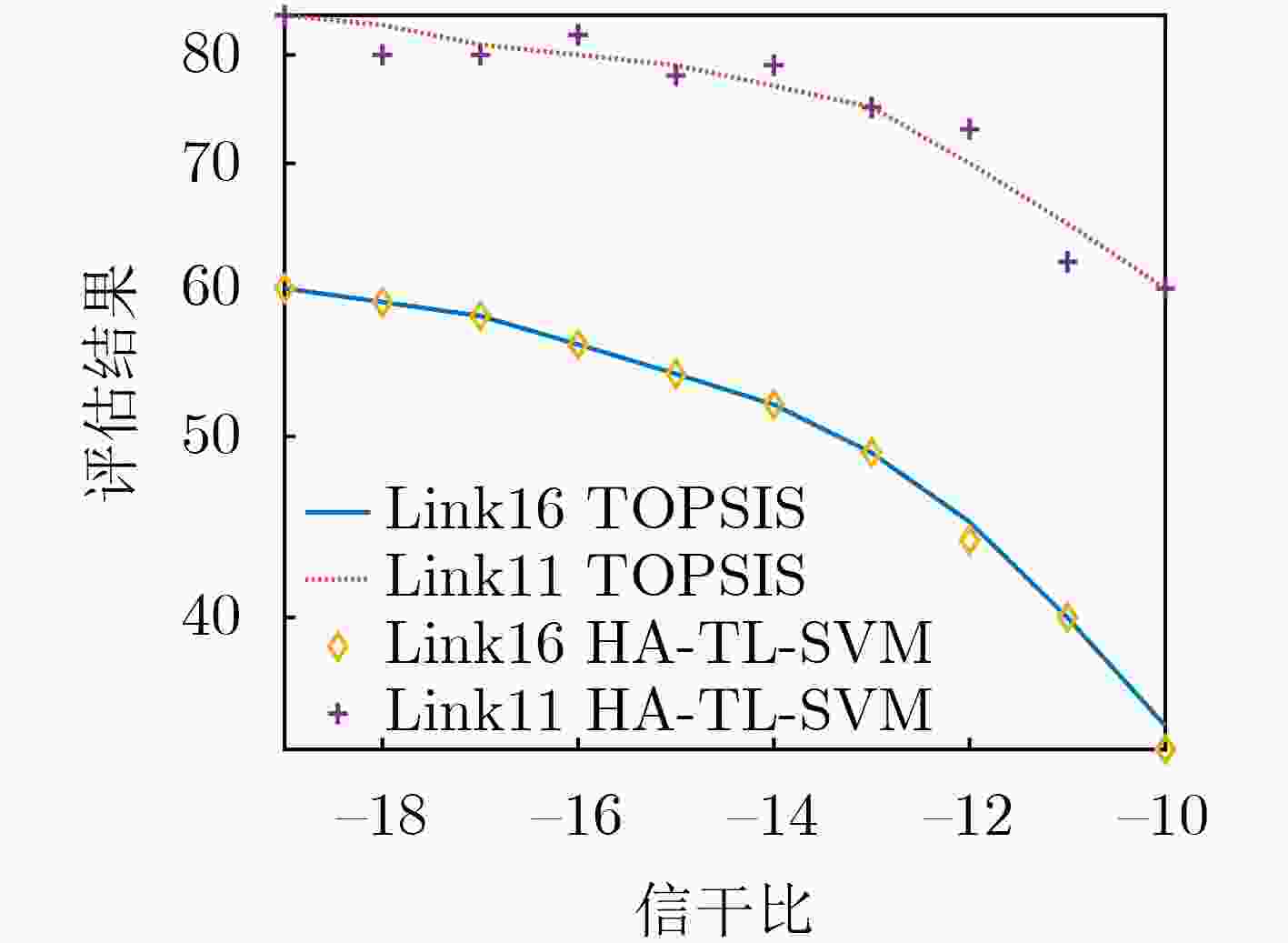

图 13 不同通信系统评估结果

下载: 全尺寸图片幻灯片
