基于不动点深度学习的IRS辅助毫米波移动通信系统全信道估计

褚宏云; 潘雪; 黄航; 郑凌; 杨梦瑶; 肖戈

doi:10.11999/JEIT230692

基于不动点深度学习的IRS辅助毫米波移动通信系统全信道估计

doi: 10.11999/JEIT230692

褚宏云¹,
潘雪^1, ,,
黄航²,
郑凌¹,
杨梦瑶¹,
肖戈¹

1.
西安邮电大学西安 710121
2.
南京电子设备研究所南京 210013

基金项目: 国家自然科学基金(62102314)，173计划技术领域基金(2022-JCJQ-JJ-0730)，陕西省自然科学基金(2022JQ-635)

详细信息

作者简介:
褚宏云：女，讲师，研究生导师，研究方向为智能超表面使能无线通信系统关键技术

潘雪：女，硕士生，研究方向为智能超表面信道估计

黄航：男，高级工程师，研究方向为电子对抗

郑凌：男，讲师，研究生导师，研究方向为下一代网络体系架构、高性能网络与交换、人工智能算法及其FPGA实现

杨梦瑶：女，硕士生，研究方向为通信感知一体化

肖戈：男，硕士生，研究方向为智能超表面波束形成

通讯作者:
潘雪　px0321@stu.xupt.edu.cn

中图分类号: TN929.5
计量
- 文章访问数: 324
- HTML全文浏览量: 151
- PDF下载量: 41
- 被引次数: 0
出版历程
- 收稿日期: 2023-07-12
- 修回日期: 2023-12-27
- 网络出版日期: 2024-02-21
- 刊出日期: 2024-06-30

Full Channel Estimation for IRS-assisted Millimeter-wave Mobile Communication Systems Based on Fixed Point Deep Learning

1.
Xi’an University of Posts and Telecommunications, Xi’an 710121, China
2.
Nanjing Research Institute of Electronic Equipment, Nanjing 210013, China

Funds: The National Natural Science Foundation of China (62102314), The 173 Program for Technology (2022-JCJQ-JJ-0730), The Natural Science Foundation of Shaanxi Province (2022JQ-635)

摘要

摘要: 将智能反射面(IRS)与大规模MIMO结合能够保证和提高毫米波通信系统性能。针对基站(BS)-用户直连信道与用户-IRS-BS反射信道混叠场景，该文提出一种自适应的全信道估计方法。首先，引入辅助变量，采用原子范数将直连信道与反射信道的稀疏角度域子空间进行关联；然后，利用原子范数最小化将全信道估计问题建模为连续角度域稀疏矩阵重建规划；最后，基于不动点深度学习网络设计低复杂度的问题求解算法。该算法不仅能够克服传统基于模型解法中非线性估计算子对先验知识的依赖还可根据移动场景变化自适应调节算法复杂度。仿真结果表明，所提算法能够避免传统时分估计策略引起的差错传播效应，具有更高的估计精度和更低的复杂度。
- 智能反射面(IRS) /
- 直连与反射混叠信道估计 /
- 不动点深度学习 /
- 原子范数最小化 /
- 毫米波MIMO
Abstract: Combining Intelligent Reflective Surface (IRS) with massive MIMO can guarantee and improve the performance of millimeter-wave communication systems. An adaptive full-channel estimation method is proposed for the Base Station (BS)-user direct-connect channel and user-IRS-BS reflective channel mixing scenario. First, auxiliary variables are introduced and atomic paradigms are used to correlate the sparse angle-domain subspaces of the direct-connect and reflective channels; then, the full-channel estimation problem is modeled as a continuous angle-domain sparse matrix reconstruction planning by using atomic paradigm minimization; and finally, a low-complexity problem solving algorithm based on the immovable-point deep learning network is designed. The algorithm can not only overcome the dependence of the nonlinear estimation operator on a priori knowledge in the traditional model-based solution method but also adaptively adjust the complexity of the algorithm according to the changes of the mobile scene. Simulation results show that the proposed algorithm can avoid the error propagation effect caused by the traditional time-division estimation strategy, and has higher estimation accuracy and lower complexity.
- Intelligent Reflecting Surface (IRS) /
- Channel estimation for overlapped direct and reflecting channels /
- Fixed point deep learning /
- Atomic norm minimization /
- millimeter-wave MIMO

HTML全文

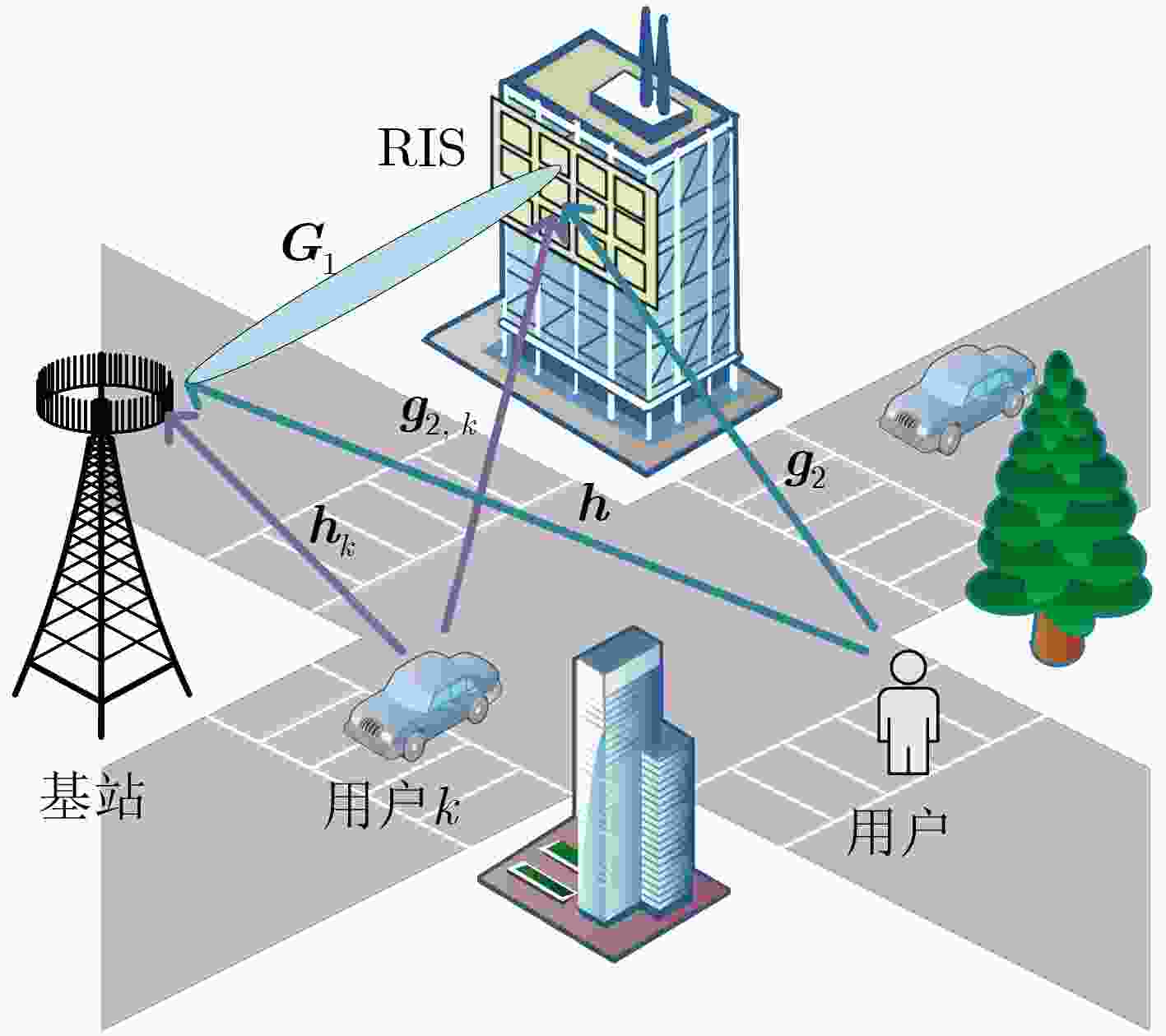

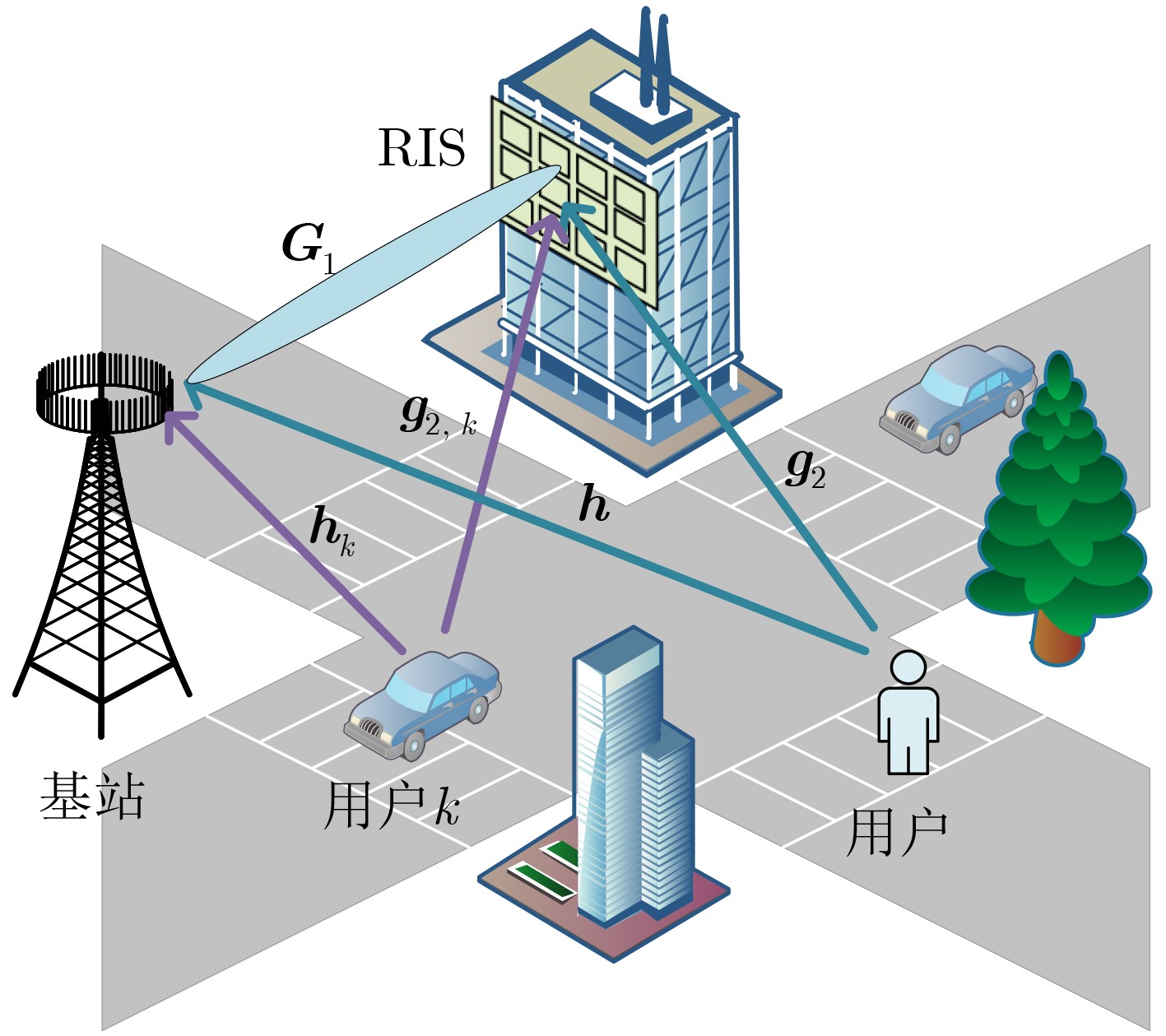

图 1 IRS辅助的多用户毫米波移动通信系统

下载: 全尺寸图片幻灯片

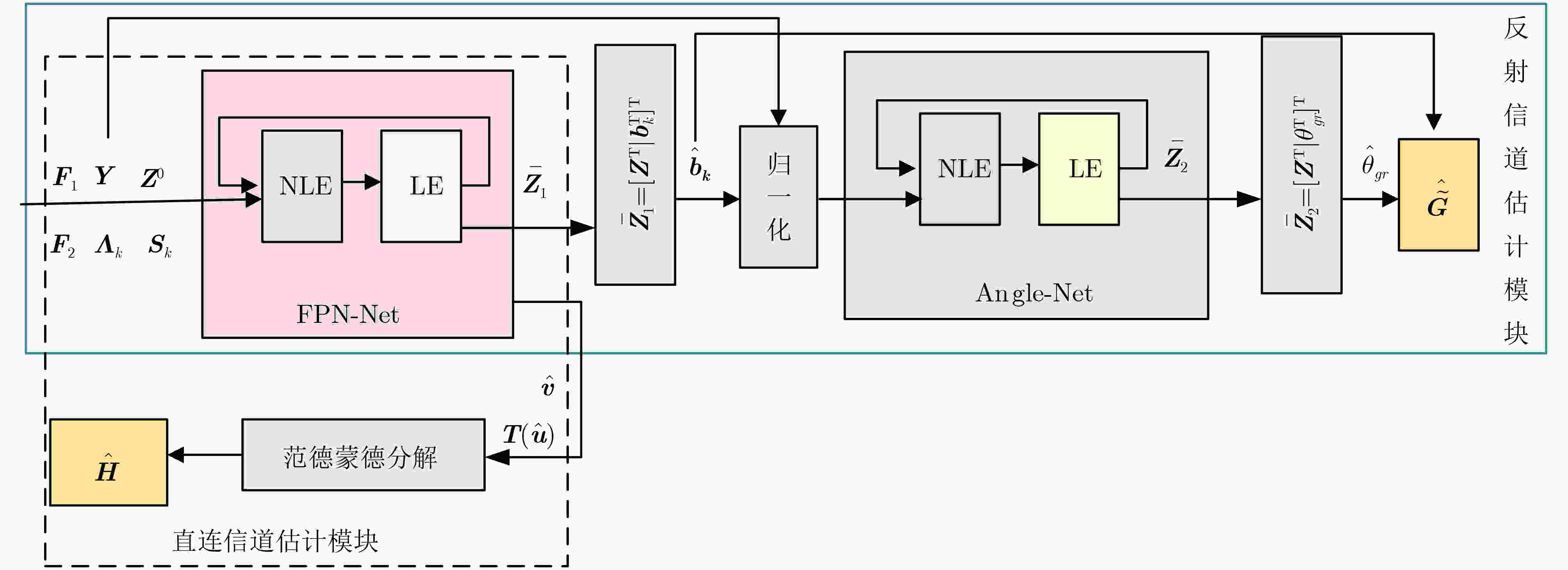

图 2 基于不动点深度学习的信道估计方法的两阶段网络结构

下载: 全尺寸图片幻灯片

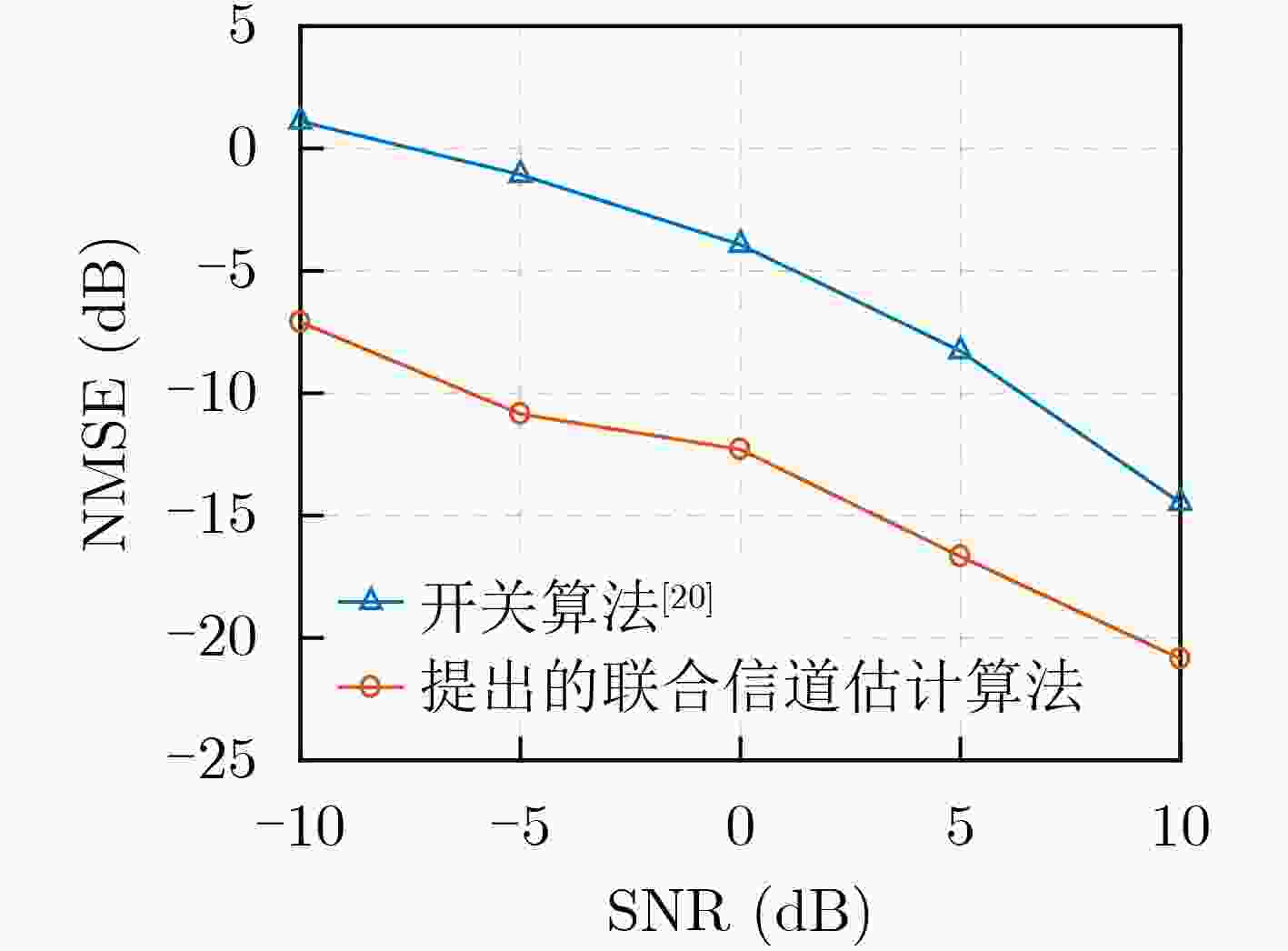

图 3 不同信噪比的NMSE性能比较

下载: 全尺寸图片幻灯片

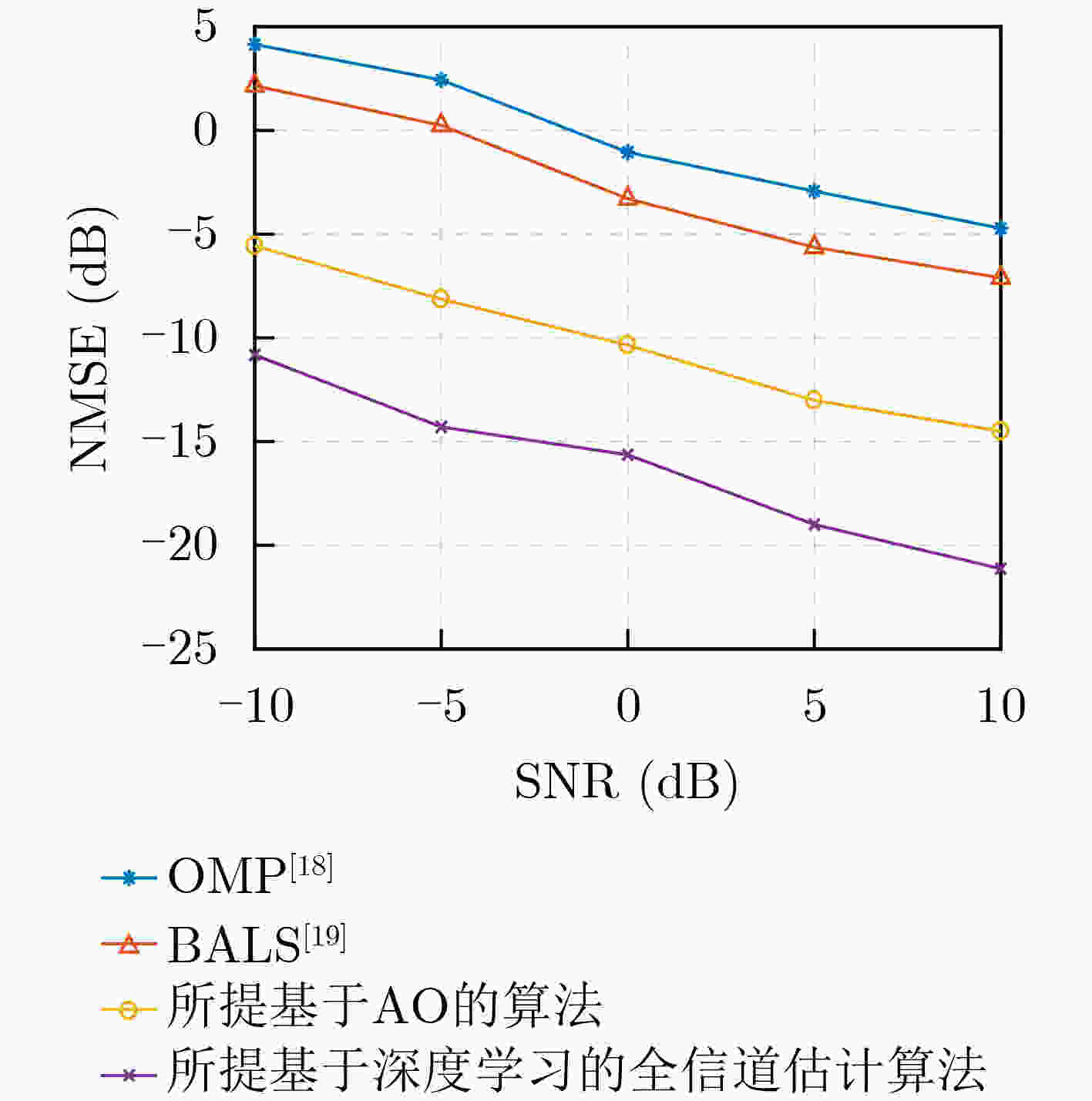

图 4 不同估计方法的NMSE

下载: 全尺寸图片幻灯片

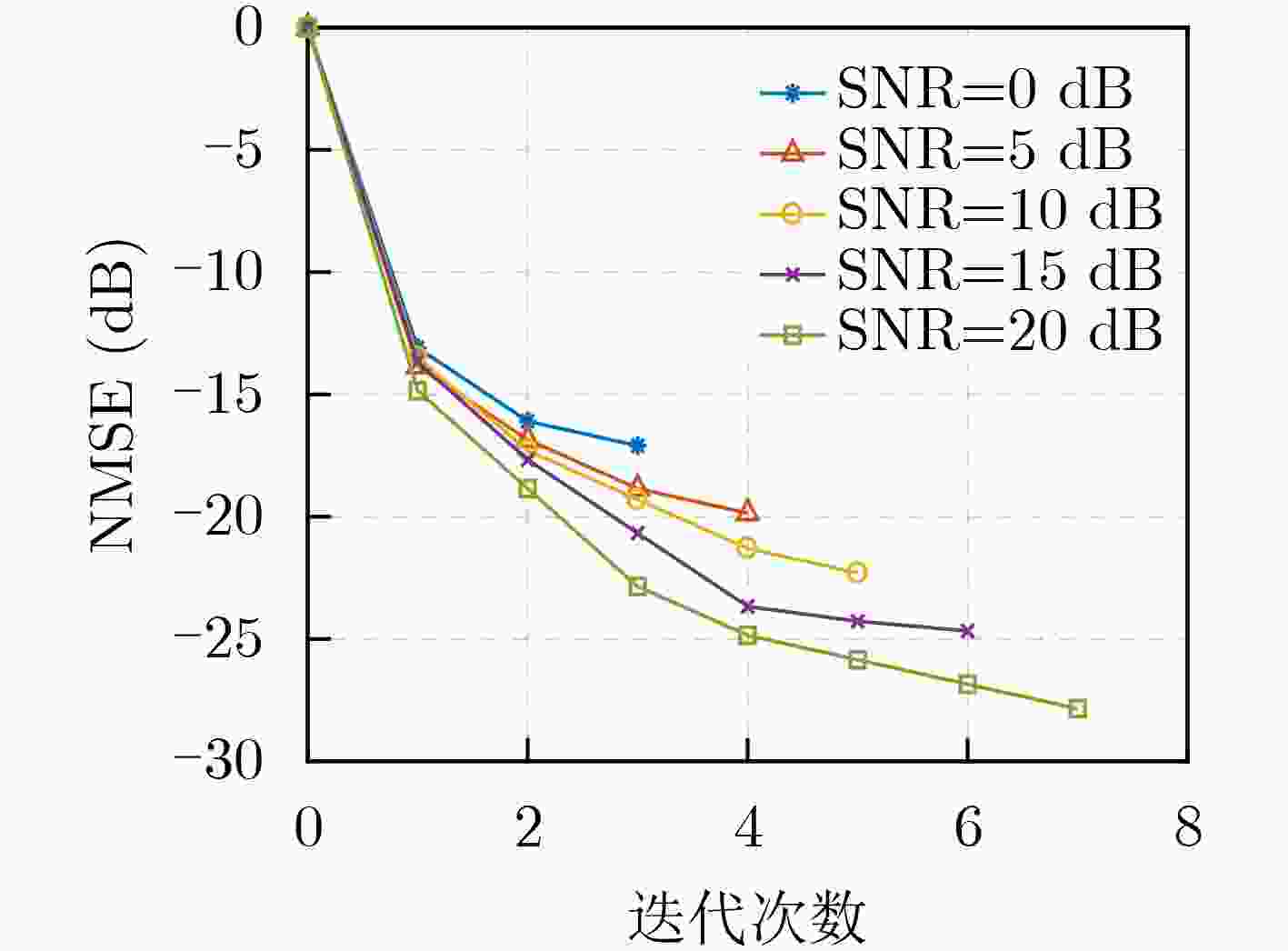

图 5 提出的算法在NMSE上的收敛性

下载: 全尺寸图片幻灯片

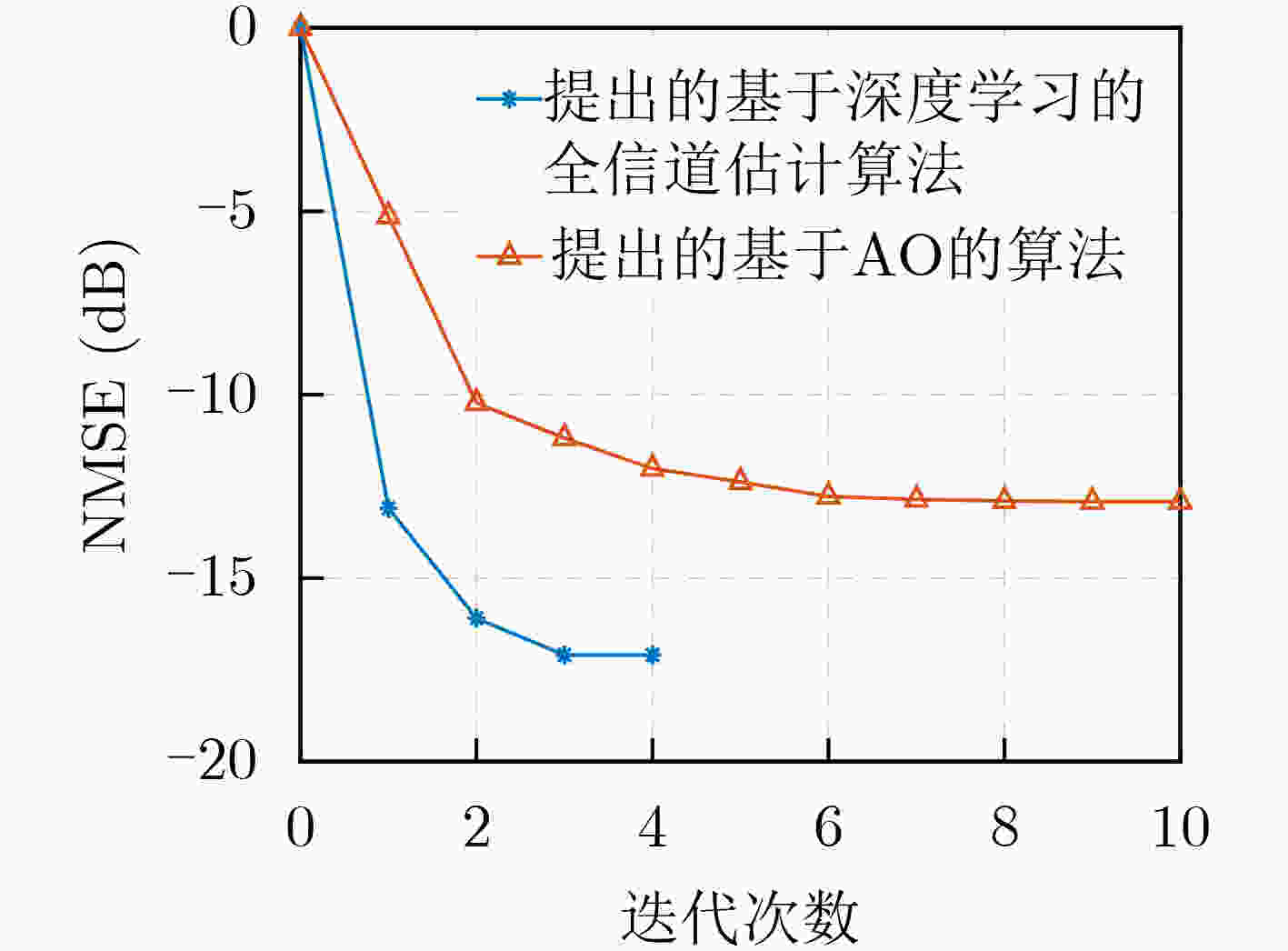

图 6 SNR=0 dB时迭代的NMSE

下载: 全尺寸图片幻灯片

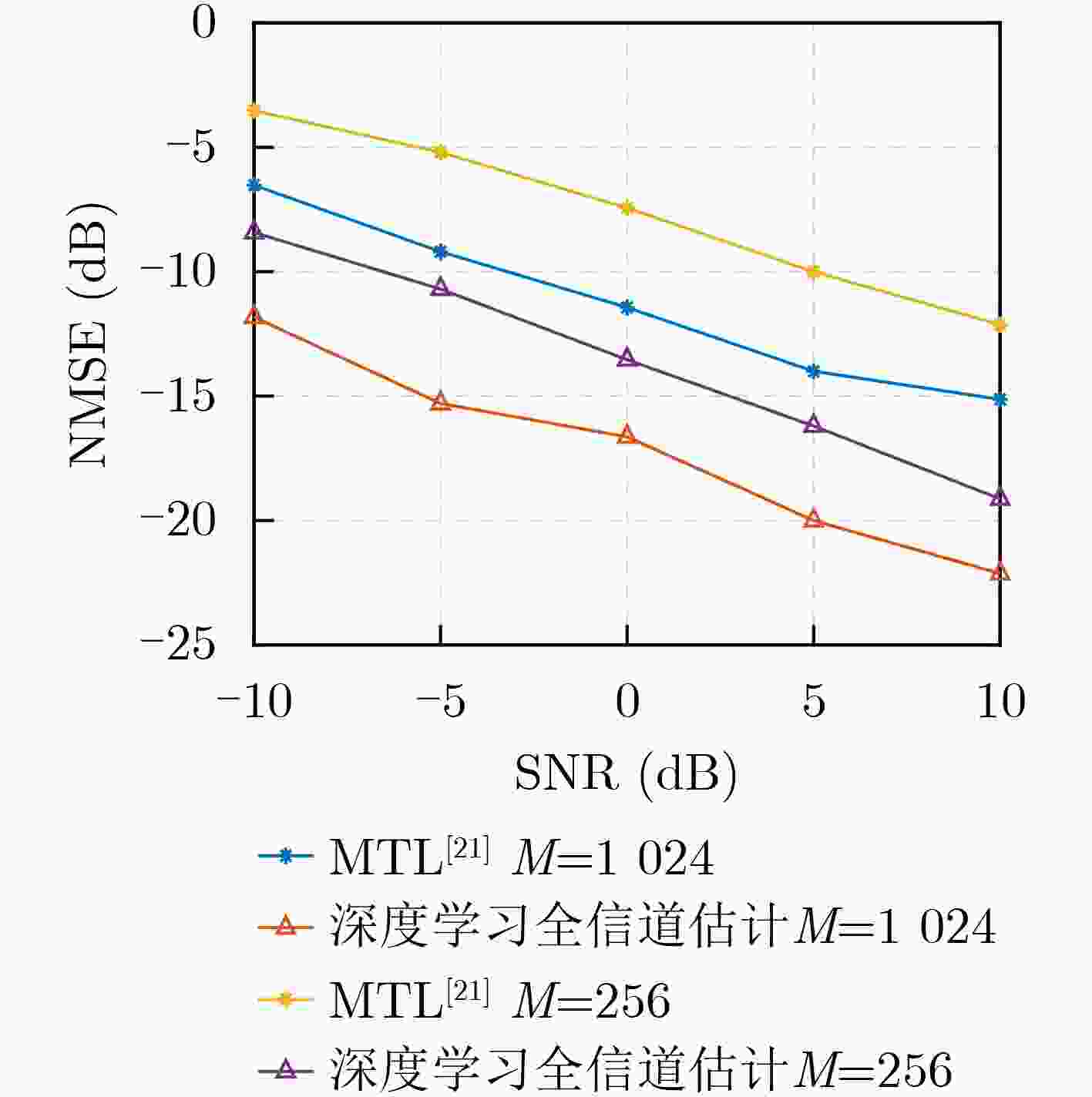

图 7 不同算法的NMSE

下载: 全尺寸图片幻灯片

1 基于AO的信道估计算法暨稀疏子空间关联过程

输入：问题(P)
输出：反射信道$ \widetilde {\boldsymbol{G}} $，直连信道$ {\boldsymbol{H}} $
· 估计反射信道
(1)根据步骤1估计$ {{\boldsymbol{b}}_k} $
(2)根据步骤2估计$ {\boldsymbol{a}}(M,{\theta _{gr}}) $
(3)根据式(16)得到反射信道$ \widetilde {\boldsymbol{G}} $
· 估计直连信道
(4)根据步骤1得到$ {\boldsymbol{T}}({\boldsymbol{\hat u}}) $,$ {\boldsymbol{\hat v}} $
(5)对$ {\boldsymbol{T}}({\boldsymbol{\hat u}}) $进行范德蒙德分解得到$ {\boldsymbol{a}}(M,{\hat \theta _{k,{L_1}}}) $
(6)根据式(14)得到直连信道$ {\boldsymbol{H}} $

下载: 导出CSV

2 FPN-Net不动点迭代算法

输入：$ {{\boldsymbol{F}}_1},{{\boldsymbol{F}}_2},{\boldsymbol{Y}} $和NLE的权重$ \varTheta $，误差容限$ \varepsilon $
初始化：$ {{\boldsymbol{Z}}^{(0)}} \leftarrow 0 $，$ i \leftarrow 0 $
(1)$ {f_\varTheta }( \cdot ;{\boldsymbol{Y}}) $的固定点迭代
(2)while $ {\Vert {{\boldsymbol{Z}}}^{(i)}-{f}_{\varTheta }({{\boldsymbol{Z}}}^{(i)};{\boldsymbol{Y}})\Vert }_{{\mathrm{F}}} \gt \varepsilon $do
(3)$ {{\boldsymbol{Z}}^{(i + 1)}} \leftarrow {f_\varTheta }({{\boldsymbol{Z}}^{(i)}};{\boldsymbol{Y}}) $
(4)$ i \leftarrow i + 1 $
(5)$ {{\boldsymbol{Z}}^*} \leftarrow {{\boldsymbol{Z}}^i} $
(6)end while
(7)返回$ {{\boldsymbol{Z}}^*} $

下载: 导出CSV

表 1 基于深度学习的全信道估计算法的主要参数

参数名称	数值
最大周期数	150
训练批量数	128
验证批量数	2000
学习率	1e–3
训练集	80000
验证集	5000
测试集	5000

下载: 导出CSV
