面向一致覆盖的无蜂窝和传统蜂窝共存网络AP部署优化

姜静 陶莎 王伟 褚宏云 Worakrin Sutthiphan 李春国

姜静, 陶莎, 王伟, 褚宏云, Worakrin Sutthiphan, 李春国. 面向一致覆盖的无蜂窝和传统蜂窝共存网络AP部署优化[J]. 电子与信息学报, 2024, 46(6): 2352-2360. doi: 10.11999/JEIT230627
引用本文: 姜静, 陶莎, 王伟, 褚宏云, Worakrin Sutthiphan, 李春国. 面向一致覆盖的无蜂窝和传统蜂窝共存网络AP部署优化[J]. 电子与信息学报, 2024, 46(6): 2352-2360. doi: 10.11999/JEIT230627
JIANG Jing, TAO Sha, WANG Wei, CHU Hongyun, Worakrin Sutthiphan, LI Chunguo. Consistent-coverage Oriented AP Deployment Optimization in Cell Free and Legacy Coexistence Network[J]. Journal of Electronics & Information Technology, 2024, 46(6): 2352-2360. doi: 10.11999/JEIT230627
Citation: JIANG Jing, TAO Sha, WANG Wei, CHU Hongyun, Worakrin Sutthiphan, LI Chunguo. Consistent-coverage Oriented AP Deployment Optimization in Cell Free and Legacy Coexistence Network[J]. Journal of Electronics & Information Technology, 2024, 46(6): 2352-2360. doi: 10.11999/JEIT230627

面向一致覆盖的无蜂窝和传统蜂窝共存网络AP部署优化

doi: 10.11999/JEIT230627
基金项目: 国家自然科学基金(61871321, 61901370),陕西省国际科技合作项目重点计划(2023-GHZD-37),陕西省重点产业链(2023-ZDLGY-49)
详细信息
    作者简介:

    姜静:女,教授,研究方向为massive MIMO、人工智能及通感算一体化设计

    陶莎:女,硕士生,研究方向为massive MIMO

    王伟:男,高级工程师,研究方向为5G行业专网、能量与信息融合、空天地一体化网络

    褚宏云:女,讲师,研究方向为智能超表面技术

    Worakrin Sutthiphan:男,研究方向为无线网络规划、网络资源配置优化

    李春国:男,教授,研究方向为无线通信与网络安全

    通讯作者:

    陶莎 tsssss@stu.xupt.edu.cn

  • 中图分类号: TN929.5

Consistent-coverage Oriented AP Deployment Optimization in Cell Free and Legacy Coexistence Network

Funds: The National Natural Science Foundation of China (61871321, 61901370), Key Program for International S\&T Cooperation Projects of Shaanxi Province (2023-GHZD-37), Key Industrial Chain Projects of Shaanxi Province (2023-ZDLGY-49)
  • 摘要: 为了解决传统蜂窝网络中用户体验剧烈波动的问题,无蜂窝和传统蜂窝共存网络将大量接入点(Access Point, AP)部署到传统蜂窝网络中,显著改善边缘用户和盲区的覆盖信号质量。因此用户在覆盖区域的任何位置均获得良好、一致的用户体验,即一致覆盖是提升共存网络性能的首要目标。而AP部署方案是共存网络中用户传输速率和覆盖的决定性因素,该文提出了面向一致覆盖的AP部署优化方法。首先根据共存网络的联合传输模型推导得到用户的下行可达速率,然后以最大化平均吞吐量为目标,将AP部署建模为比率和规划问题,并基于分式规划和引入辅助变量将其转换为凸优化问题,进而通过迭代求解AP的最优位置。仿真结果表明,相比传统蜂窝网络,所提方案可显著提高边缘和盲区的平均吞吐量。

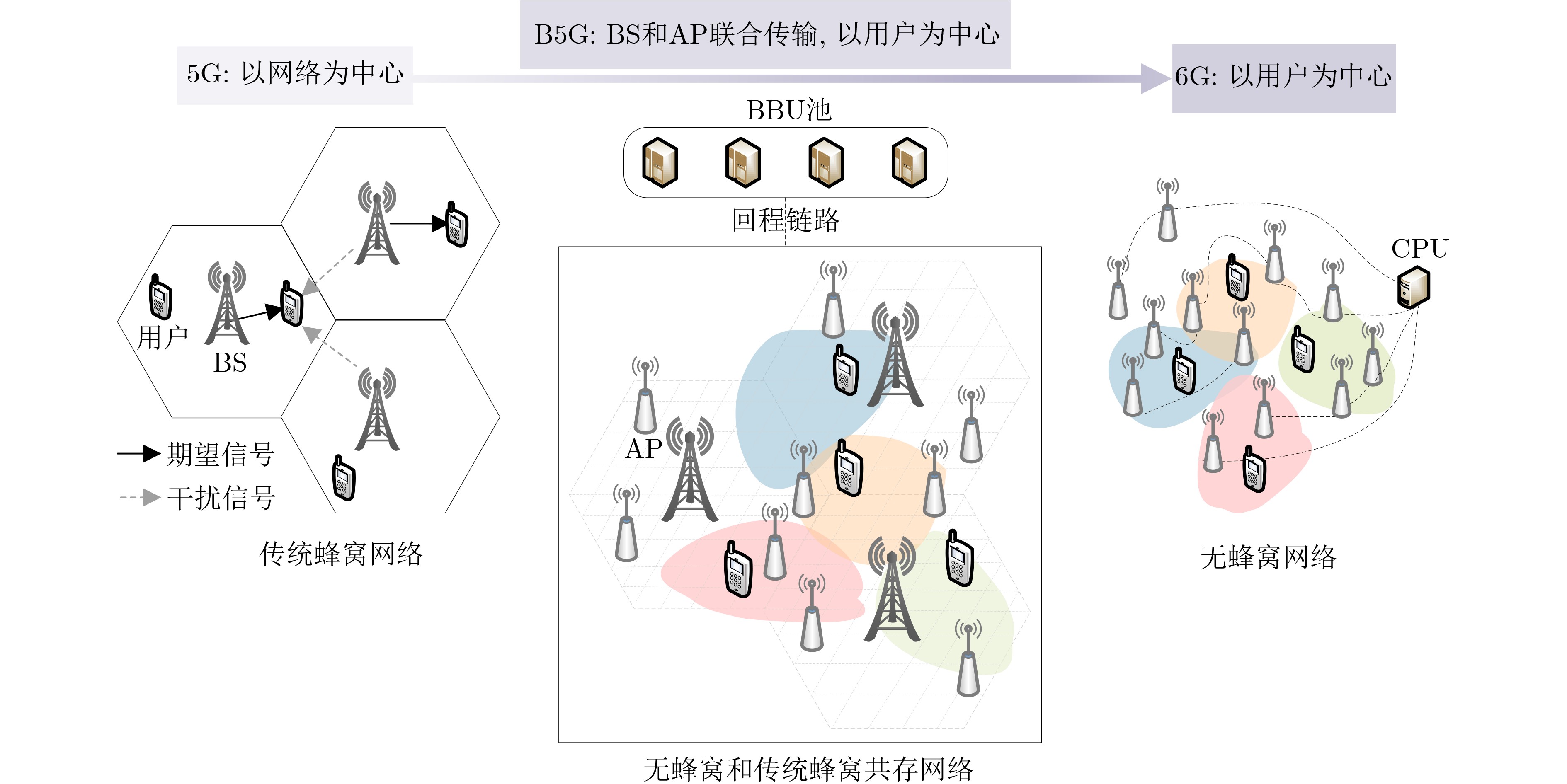

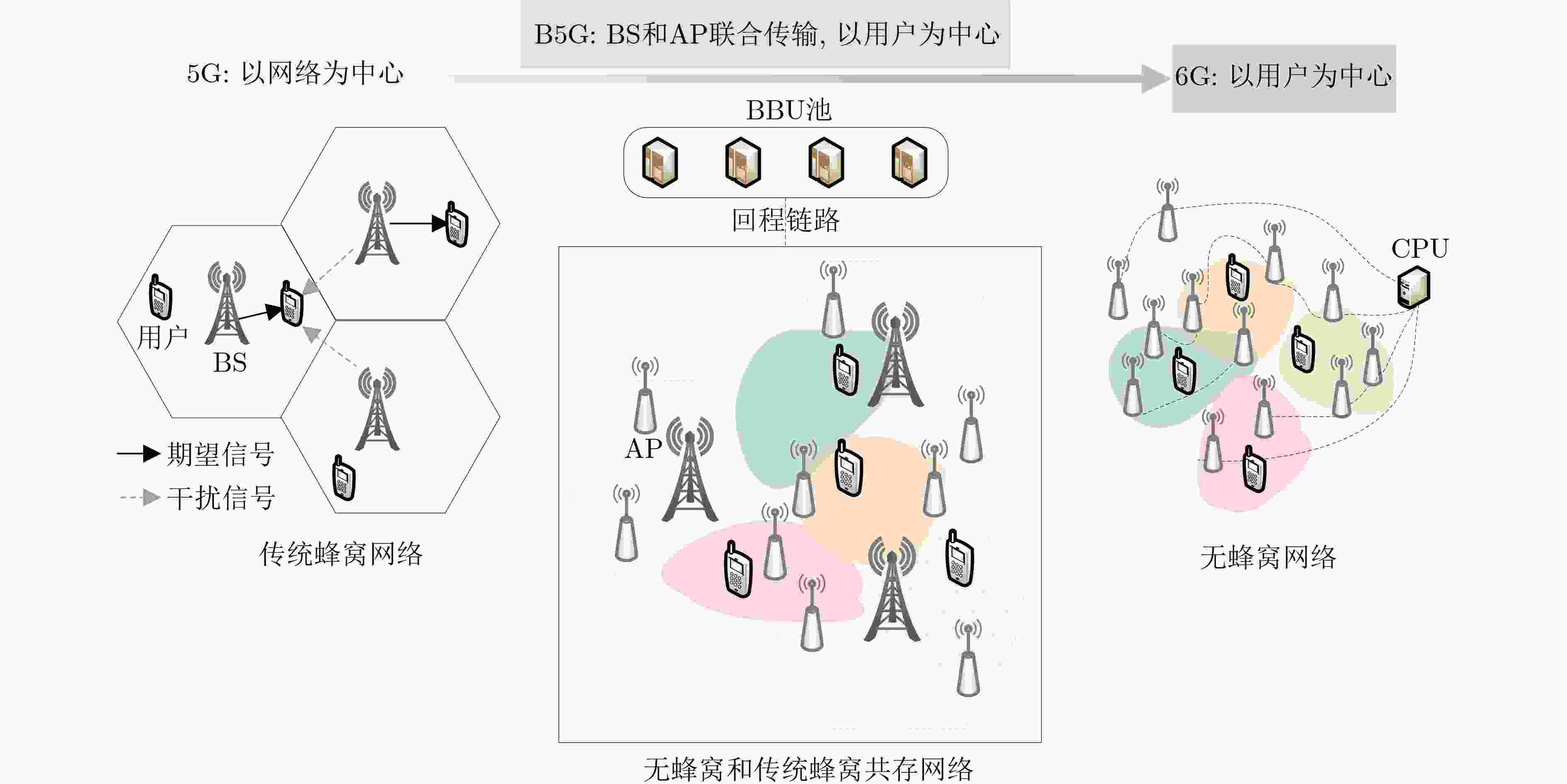

  • 图  1  传统蜂窝网络架构、无蜂窝和传统蜂窝共存网络架构、无蜂窝网络架构

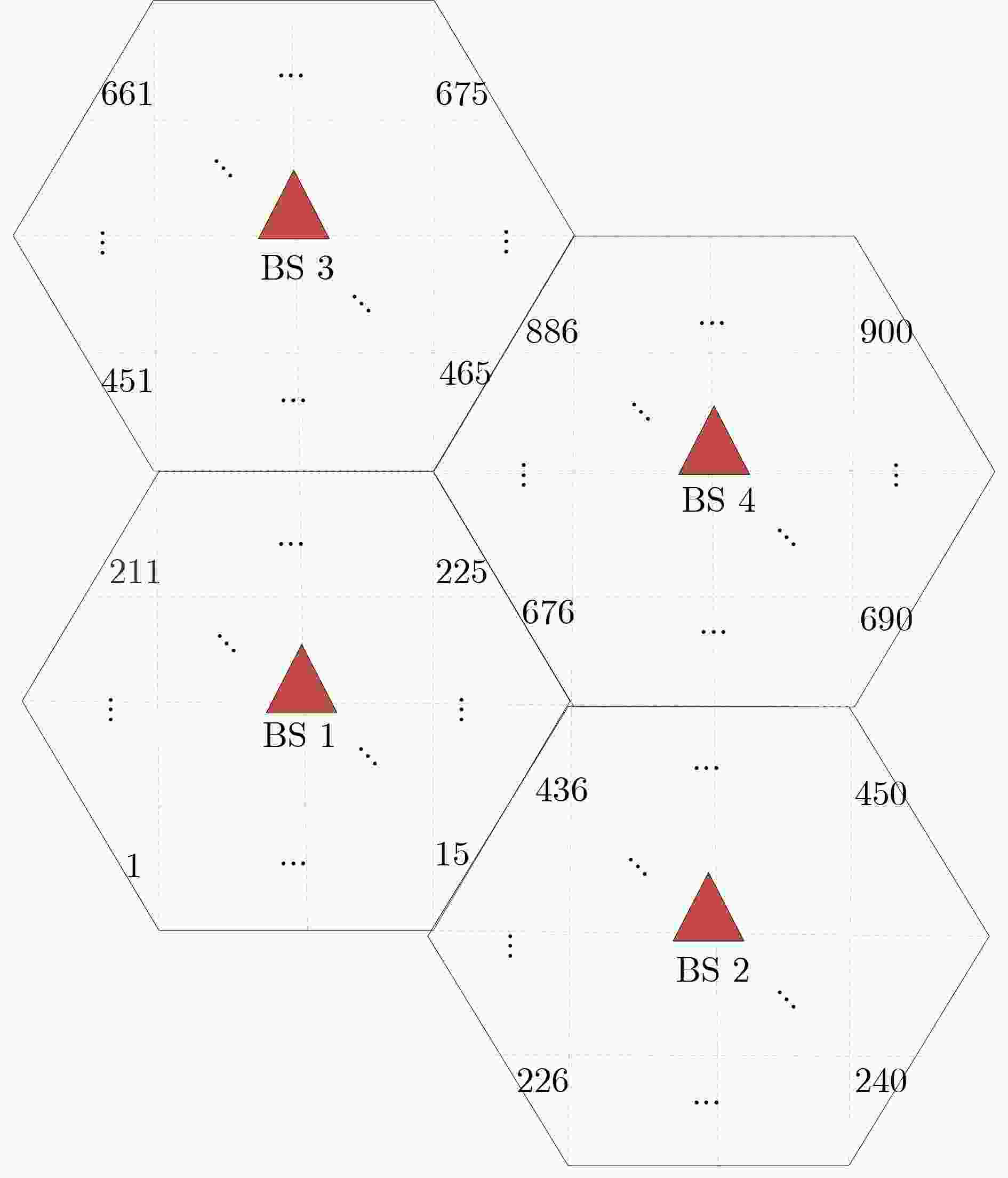

    图  2  覆盖范围的栅格示意图

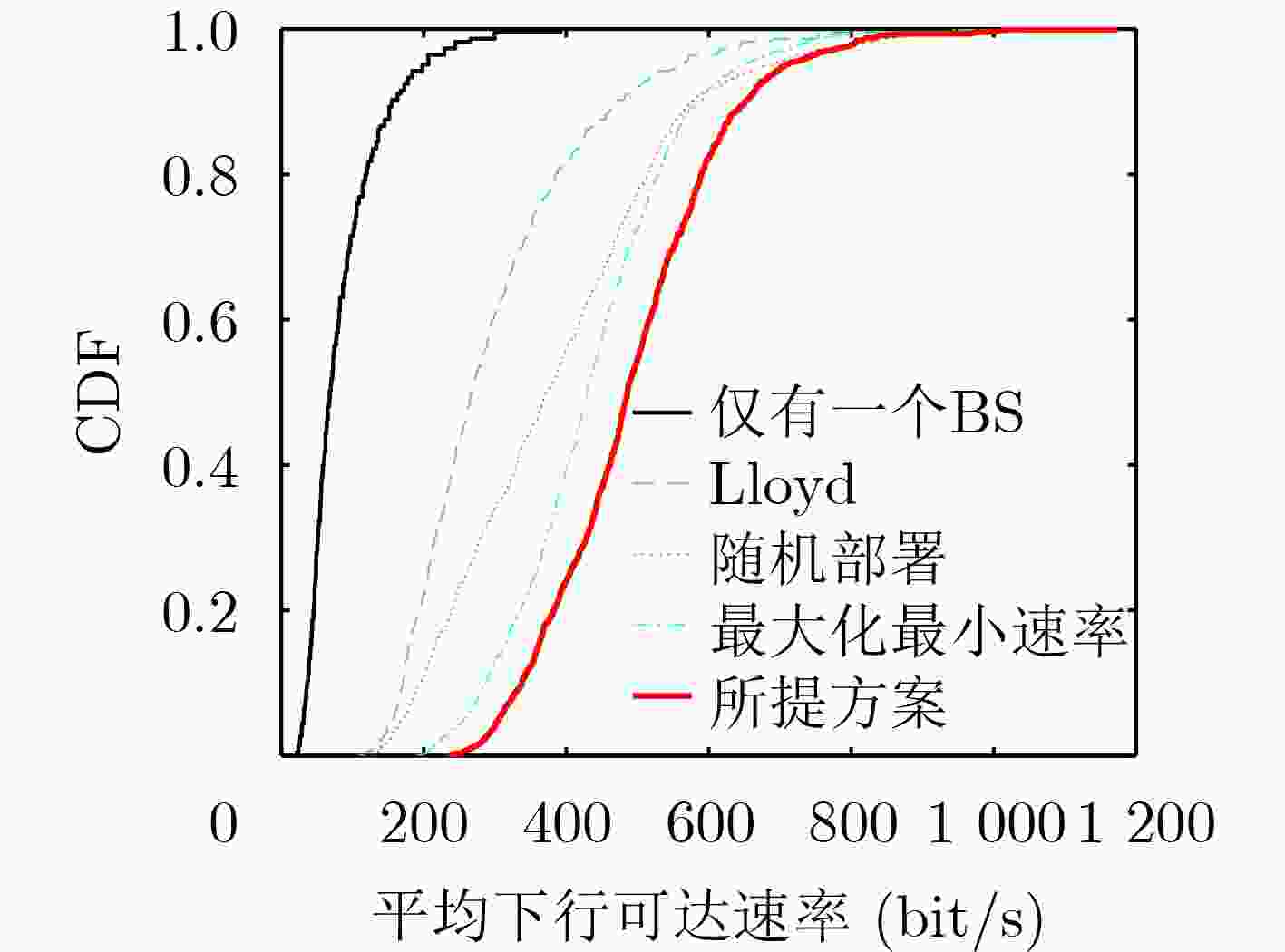

    图  3  不同部署方案下用户平均下行可达速率累积分布

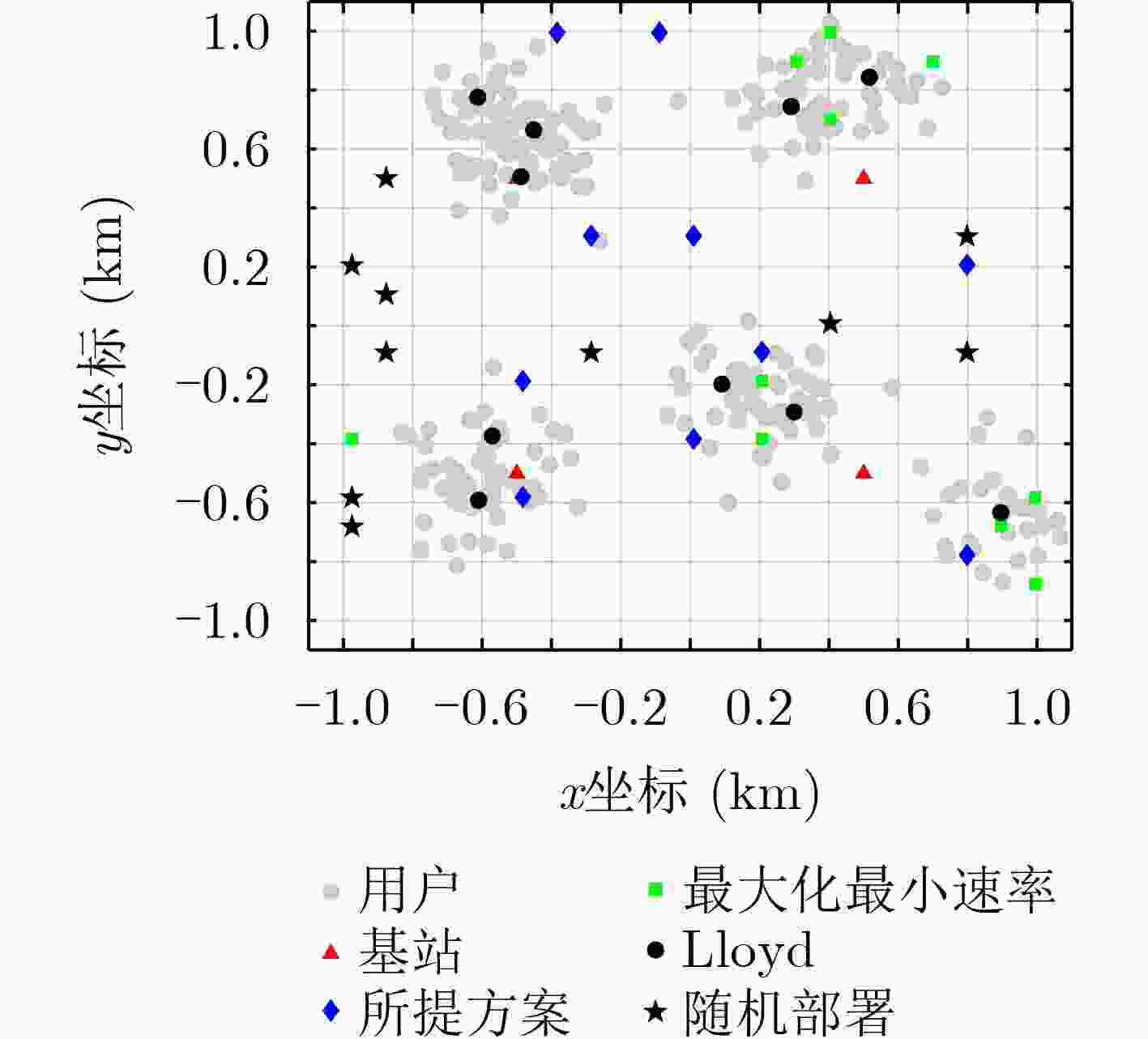

    图  4  不同部署方案下的AP位置分布

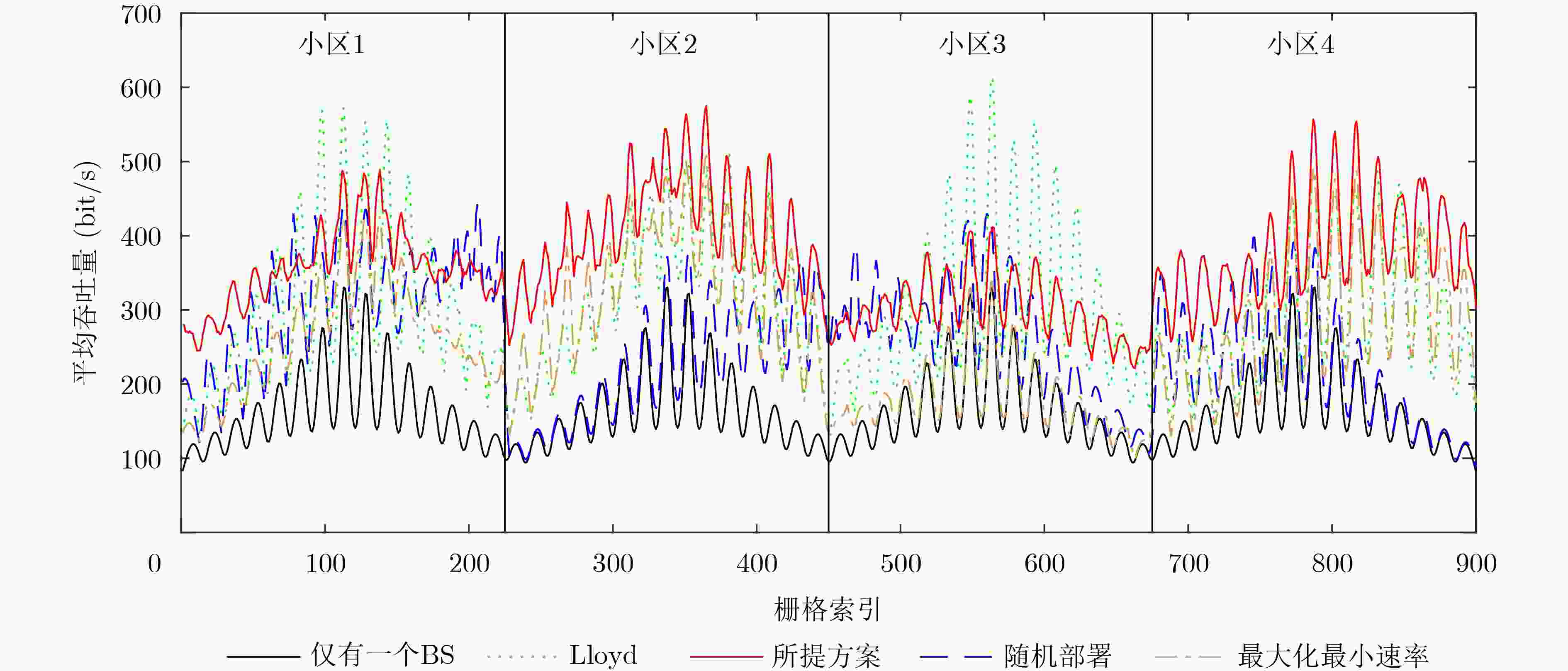

    图  5  不同部署方案下的平均吞吐量

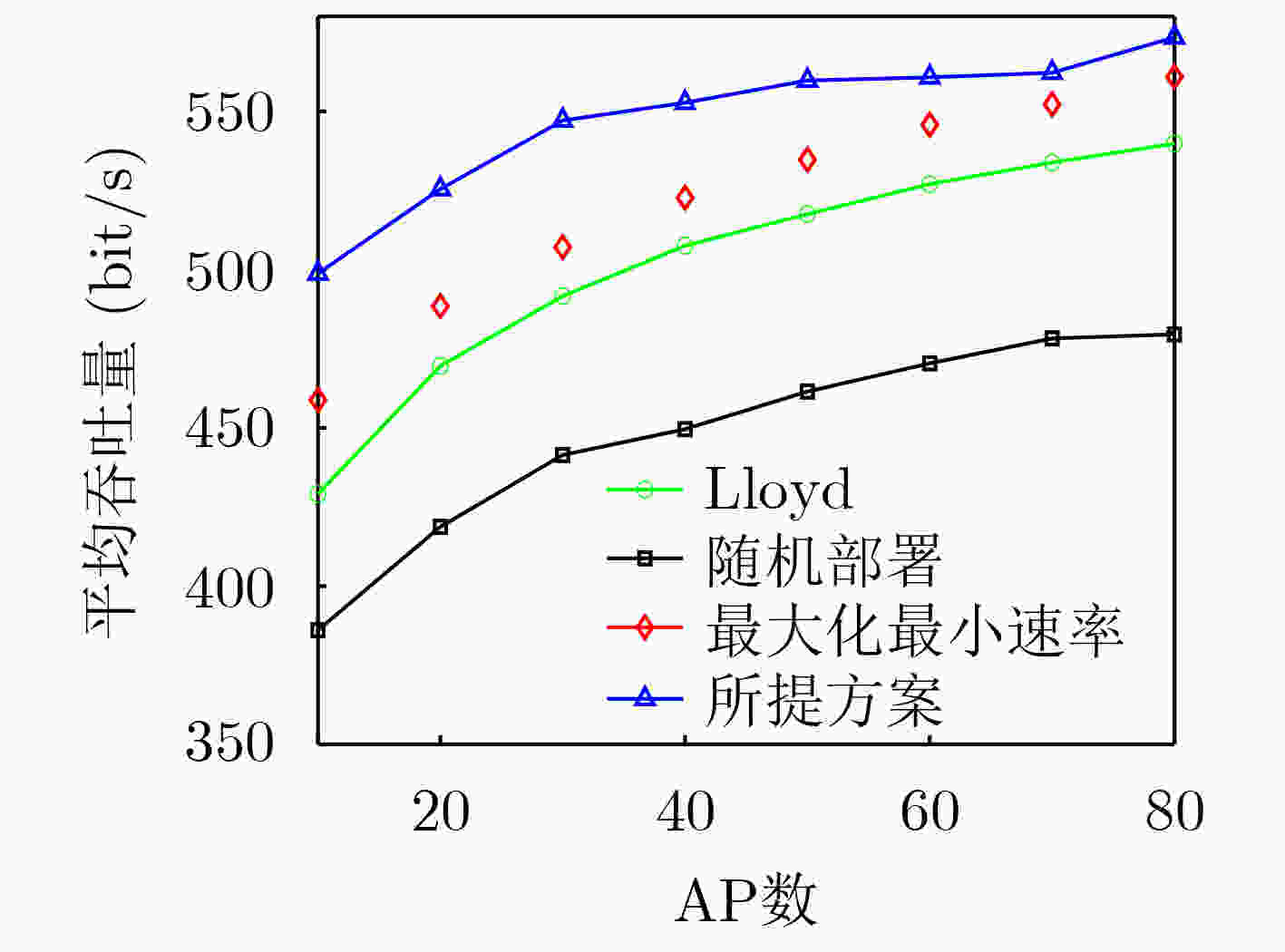

    图  6  系统平均吞吐量与AP数目关系

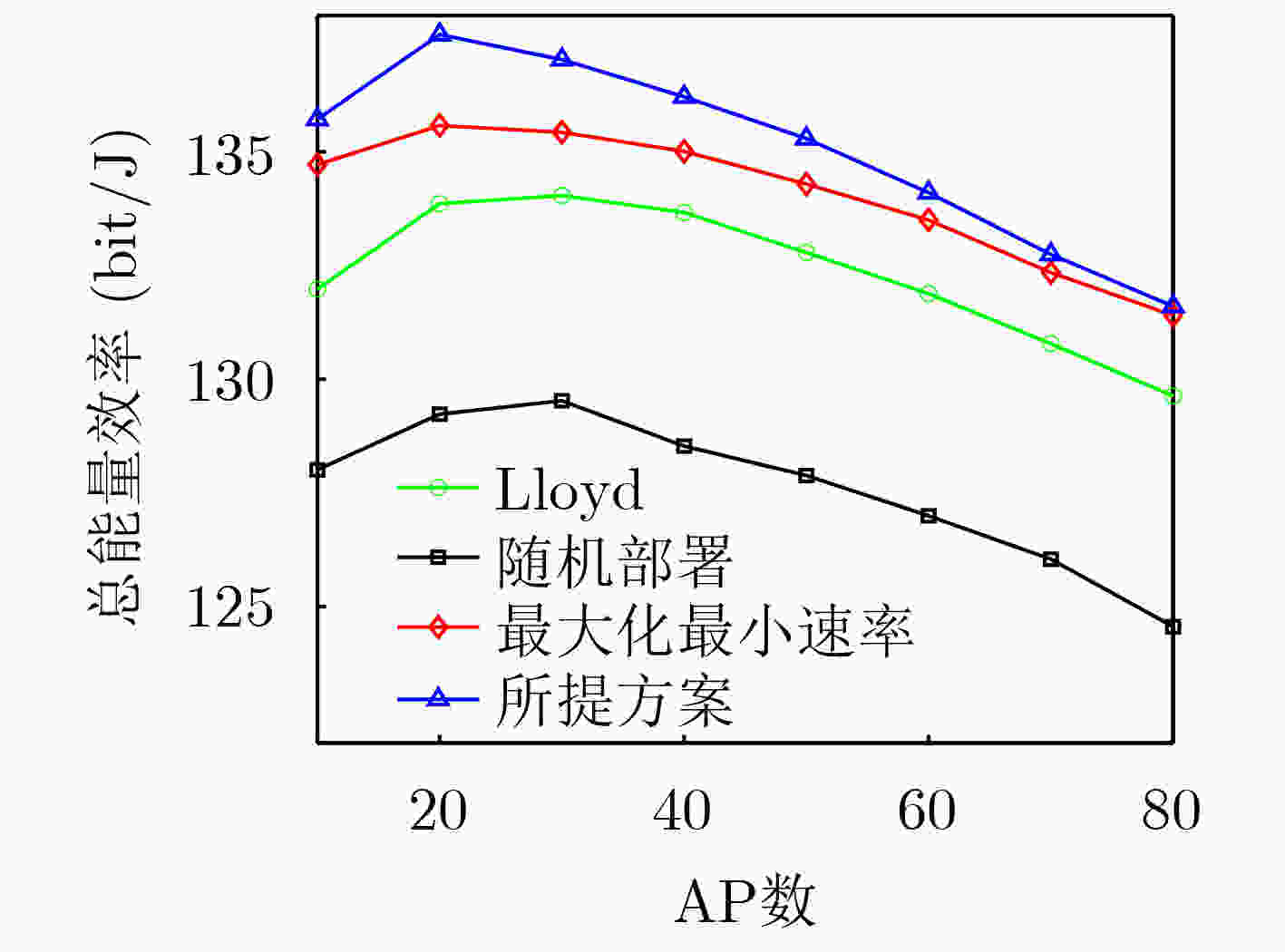

    图  7  系统能量效率与AP数目关系

    1  算法整体流程

     初始化:可行解${{\boldsymbol{X}}^0}$,迭代收敛精度$\delta \ge 0$,迭代次数$t = 0$,最
     大迭代次数${T_{\max }}$
     (1) while $ {R_t} - {R_{t - 1}} \ge \delta $或$t < {T_{\max }}$do
     (2) 对于给定的${{\boldsymbol{X}}_t}$,根据式(14)更新${\lambda _t}$
     (3) 根据式(21)和式(22)更新$ {{\boldsymbol{C}}_k} $和$ {{\boldsymbol{D}}_k} $
     (4) 根据式(23)更新$ {\boldsymbol{E}} $
     (5) 利用单纯形法求解P5,更新${{\boldsymbol{X}}_{t + 1}}$
     (6) 迭代次数$t = t + 1$
     (7) end while
     (8) 将${\boldsymbol{X}}$中最大的前$L$个值并将其置为1,其他置为0,输出${\boldsymbol{X}}$
    下载: 导出CSV

    表  1  部分仿真参数

    参数名称 符号 数值
    蜂窝数/BS数 $M$ 4
    用户数 $K$ 300
    基站天线数 ${N_{\mathrm{t}}}$ 64
    预定义AP位置数 $N$ 500
    栅格数 $S$ 900
    系统带宽(MHz) $B$ 20
    下载: 导出CSV
